  1. Oxy Fuel WeldingBasic Setup & Use By: Jeremy Hodkiewicz

  2. Typical Torch System • Oxygen Cylinder • Acetylene Cylinder • Method of Securing the cylinders • Caps • Regulators • Backflash arrestors • Hoses • Torch Body • Torch Head • Torch Tip • Clothing and Eye/Face Protection

  3. Oxygen Cylinders • Oxygen is very pure - 99% • Pressure is about 2200 psi • Forged from a single piece of steel - no welding minimum ¼” thick • Atmoshere • 21% oxygen • 78% Nitrogen • 1% other (carbon dioxide, argon, helium, water vapor)

  4. Oxygen Cylinder Safety • Valve is a back-seating valve • Always open all the way!!! • Always transport with safety cap on • Tanks should always be safety chained • Should valve be broken off tank will become a torpedo that is capable of breaking through a concrete wall!!!

  5. T K LK S D,E,Y,U,LE Q ME MBE XAD MD R Oxygen cylinder sizes:

  6. Acetylene Cylinders • C2H2 - Made from calcium carbide and water • Cylinders are filled with monolithic filter material • 85% porous (Asbestos fibers, balsawood) • Cylinders are then filled with Acetylene gas and Acetone • The acetone absorbs the acetylene and slowly releases it as it is used • Let stand upright at least 20 minutes before using • Cylinder safety must be safety chained • Safety cap must be on when changing tanks. • Only open valve ¼ to ½ turns • More than 15 PSI Acetylene is very explosive

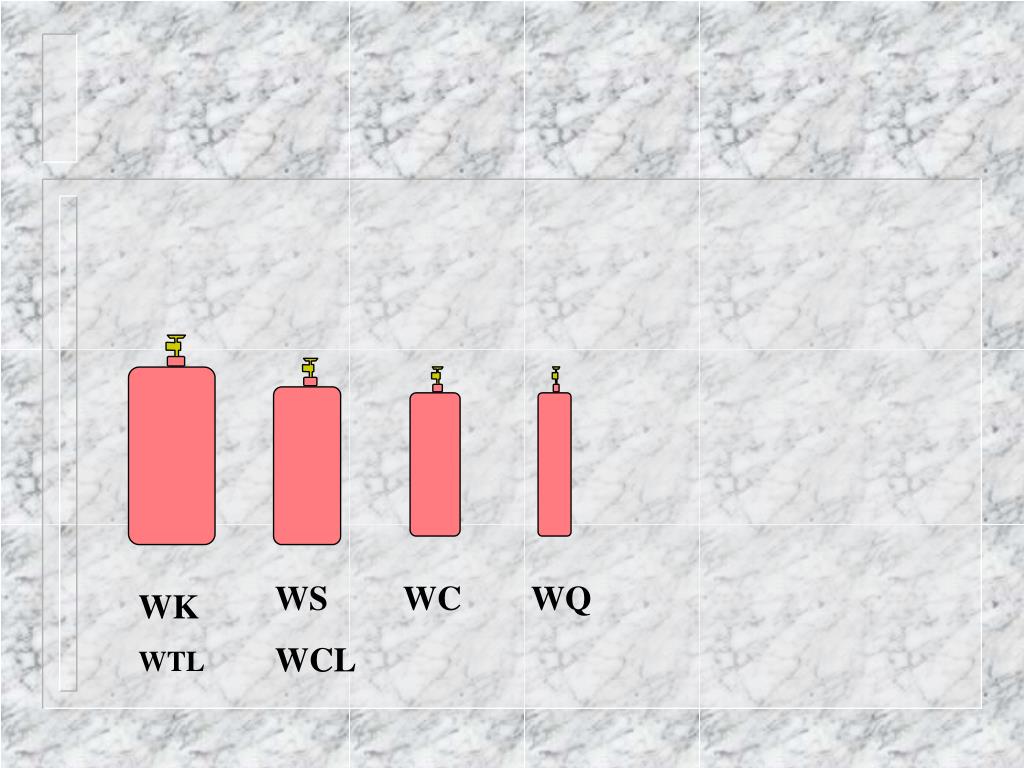

  7. WS WCL WC WQ WK WTL

  8. Regulators • Gauges – • Tank pressure • Working pressure • Regulator- adjusts the working pressure

  9. Hoses • Acetylene= Red • Notch around nut means LH thread • Oxygen = Green • RH Thread • New Hoses have talc inside - Blow out before connecting to torch

  10. Backflash Arrestor • Torch / Manifold • Regulator / torch

  11. Torch Body • Valves control gas flow • Final flame adjustment controlled here

  12. Setup Procedures • Hooking up new cylinder • Place new cylinder in rack and hook up safety chain • Remove safety cap • Crack valve open to clean dirt out of valve • Hook up regulator (use proper tools) • Now see adjustment procedure

  13. Setup Procedures • Make sure regulator ADJUSTING SCREW IS TURNED OUT • Stand to the side of the adjusting screw • Open tanks one at a time (Oxygen wide, Acetylene 1/2 turn) • Turn acetylene valve on torch open one turn and turn regulator screw in until gauge reads (3-5psi) • Turn oxygen valve on torch open one and turn regulator screw in until gauge reads (10 psi)

  14. Lighting Procedure • Open acetylene valve ½ turn • Light torch with sparker • (do not light with anything else!!!) • Adjust acetylene to proper flame • Slowly turn on oxygen until a neutral flame is obtained • Flame temp is about 5500°F • Steel melts at 2800°F

  15. Welding Flame Types Carburizing Flame Neutral Flame Oxidizing Flame

  16. Shut Down Procedure • Turn off acetylene torch valve • Turn off oxygen torch valve • Turn off tank valves • Bleed lines one at a time • TURN ADJUSTING SCREWS OUT

  17. Oxy-Acetylene Welding • Hold blue cone about 1/16-1/8” from metal at a 15-45° angle • Move tip in small circles until a molten puddle is formed • Slowly push the puddle across the metal

  18. Oxy-Acetylene Welding (With Filler Rod) • Heat metal until puddle is formed • Then hold filler rod about 3/8” from flame • Metal will melt off of filler rod and be drawn into puddle • Slowly push the puddle across the work piece

  19. Weld Quality Torch High Torch Low Torch Slow Torch Fast OK

  20. Welding Troubleshooting

  21. Safety • Backflash (will make a hissing noise) • Turn Oxygen off first • Watch where you point your flame (flame temp is 5500°F) • Don’t blow molten metal toward another person • Don’t melt the hoses • Don’t drop metal on hoses • Don’t let hoses lay on hot metal • Only light torch with sparker

  22. OFW Welding Tip Information

  23. OFB Brazing Tip Information

  24. Air-Fuel Soldering Tip Information

  25. OFC Cutting Tip Information
