  1. WIRELESS POWER TRANSFER IN 3D SPACE Submitted By

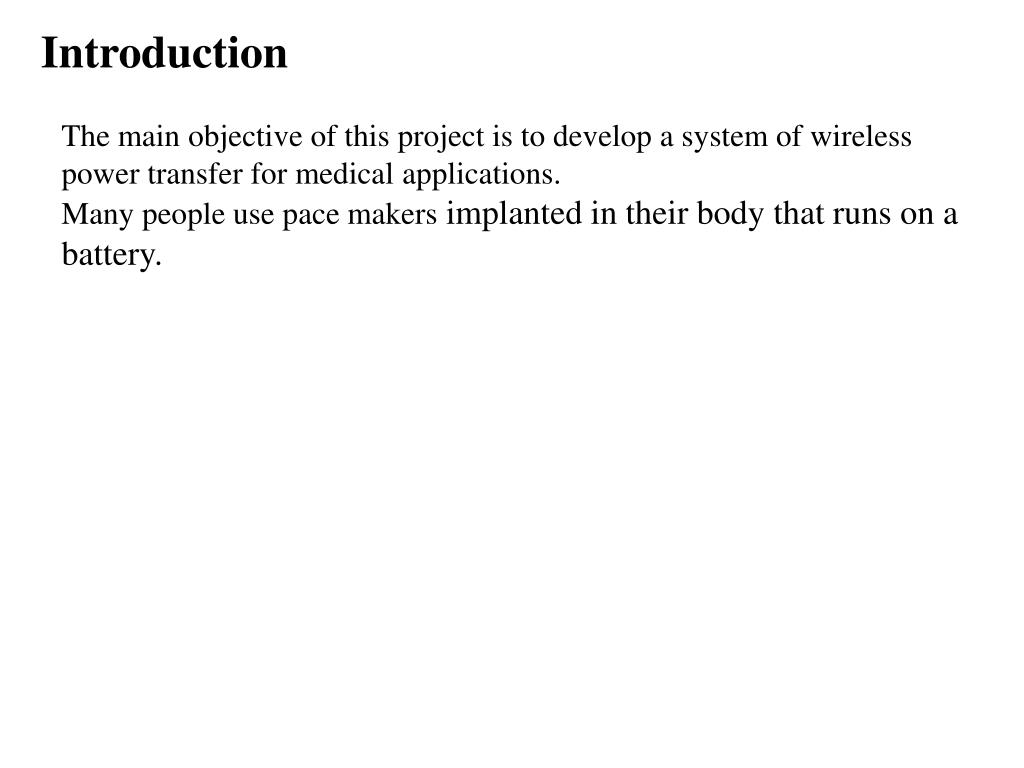

  2. Introduction The main objective of this project is to develop a system of wireless power transfer for medical applications. Many people use pace makers implanted in their body that runs on a battery.

  3. FUTURE SCOPE • The project can be enhanced in future up to 1 meter distance in space using resonators with a Q factor of 1,000 enabling it to send power over a distance 9 times the radius of the coil of 11 CMs .

  4. Contents Introduction Block diagram Hardware requirements Power supply Schematic diagram Working of the project Advantages Applications Conclusion

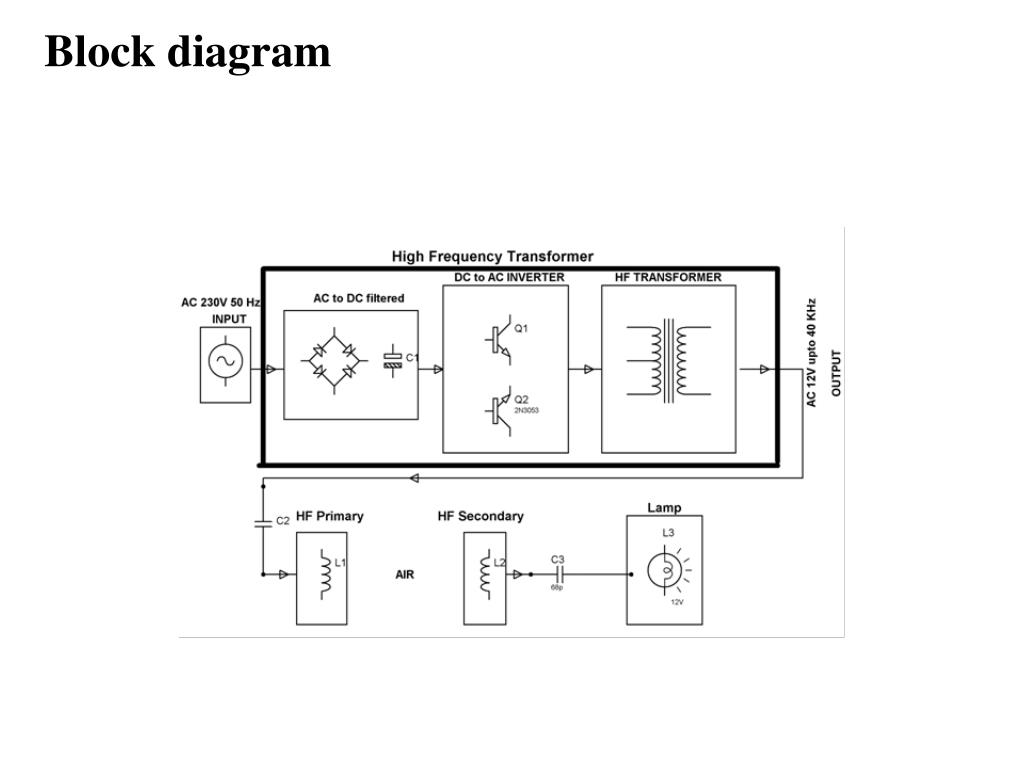

  5. Block diagram

  6. Hardware requirements • HIGH FREQUENCY TRANSFORMER • RECTIFIER • FILTER • VOLTAGE REGULATOR • TRANSISTOR • COIL • LED • 1N4007 • RESISTOR • CAPACITOR

  7. Hardware Components description 1.Design of HF transformers

  8. Hardware Components description 2. Using In4007 as Bridge rectifier 3. Capacitors Filter(470µf) 4. 5v Regulator 5. Relay

  9. 7. LED • 6.COIL 8. RESISTOR

  10. DESCRIPTION AND WORKING • Please refer CD

  11. 11. Capacitor

  12. Description of HF transformers • Electric power transmission over long distances. High-voltage direct-current HVDC power transmission systems • Large, specially constructed power transformers are used for electric arc furnaces used in steelmaking. • Rotating transformers are designed so that one winding turns while the other remains stationary. • A common use was the video head system as used in VHS and Beta video tape players. • These can pass power or radio signals from a stationary mounting to a rotating mechanism, or radar antenna.
