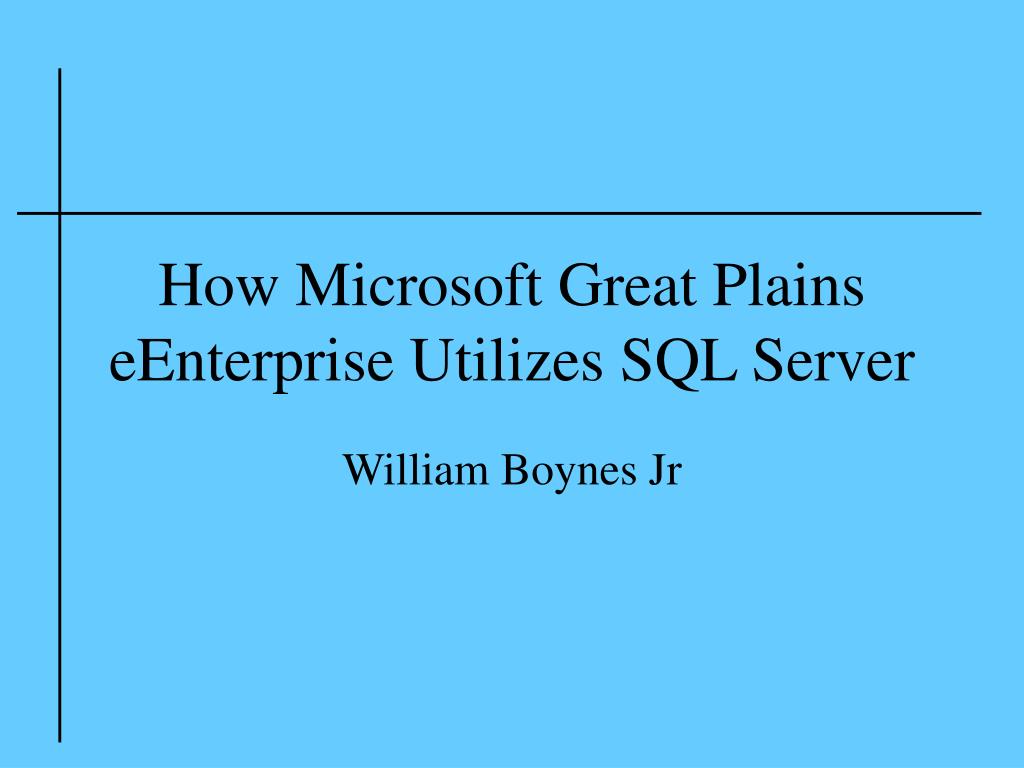

  1. How Microsoft Great Plains eEnterprise Utilizes SQL Server William Boynes Jr

  2. Rules of The Presentation • First Rule of Bill’s Presentation – THIS IS NOT A PRODUCT DEMO • Second Rule of Bill’s Presentation – THIS IS NOT A PRODUCT DEMO • Third Rule of Bill’s Presentation – There will be one instance of a product demo • Fourth Rule of Bill’s Presentation – More Business than Technical So SCREAM OUT

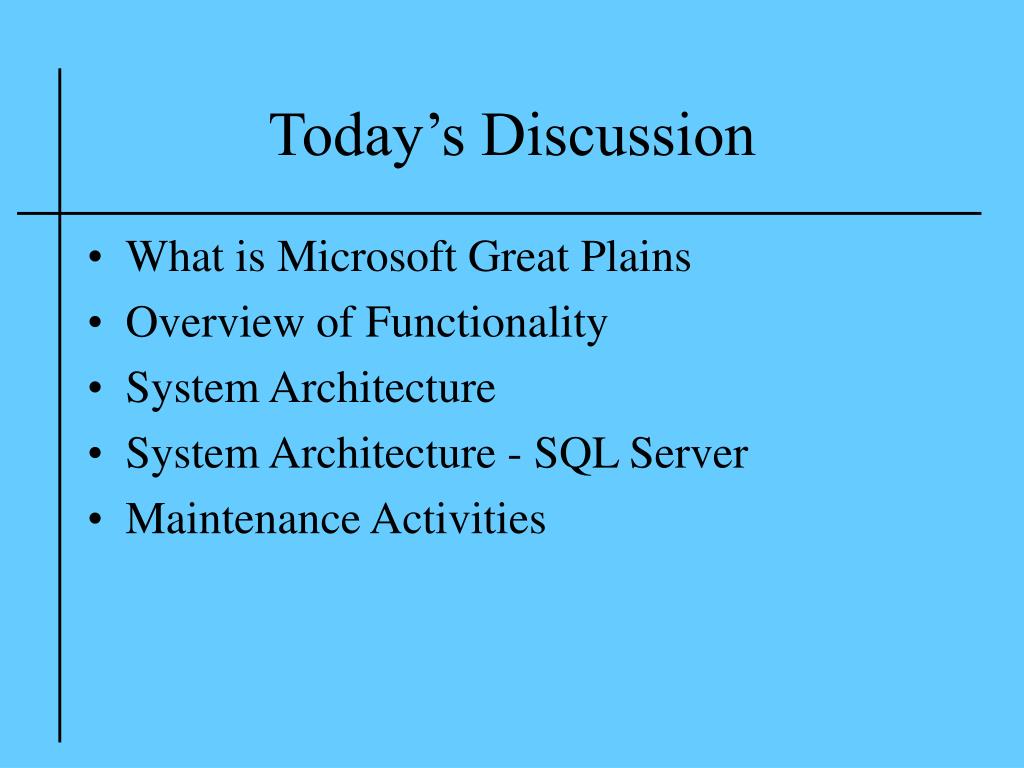

  3. Today’s Discussion • What is Microsoft Great Plains • Overview of Functionality • System Architecture • System Architecture - SQL Server • Maintenance Activities

  4. History Of Microsoft Great Plains eEnterprise • Released in July 1994 • Initially 100 Programmers – Now Over 250! • Provides full Enterprise Functionality • Targeted At The Medium Sized Enterprise • Runs on SQL Server

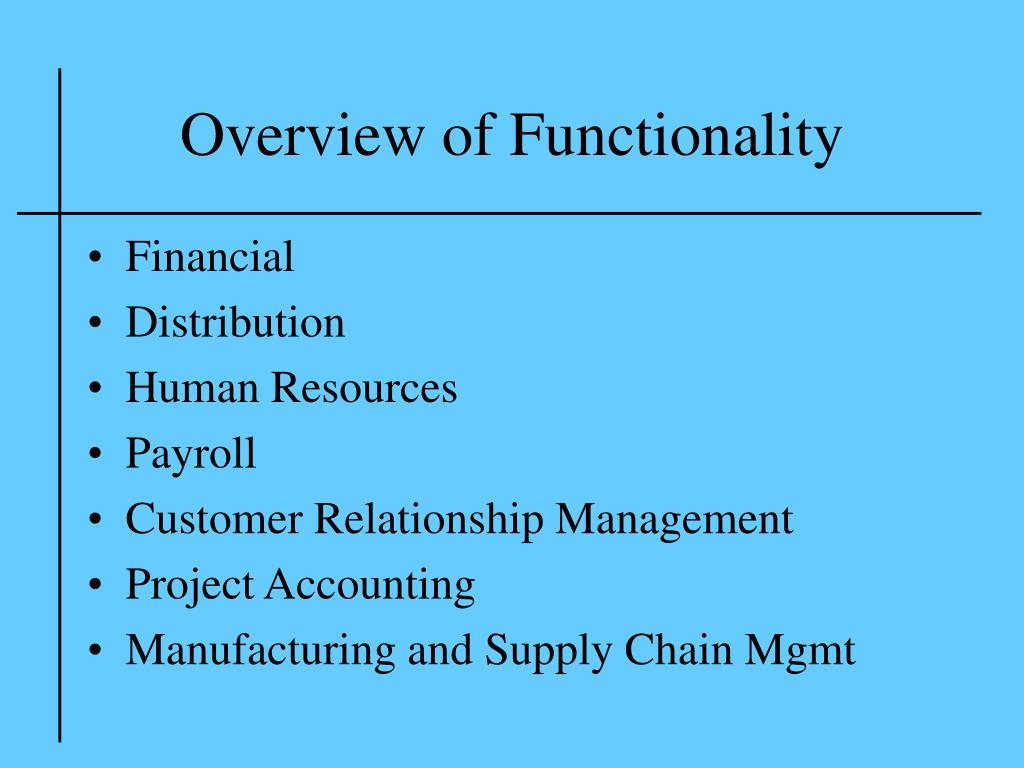

  5. Overview of Functionality • Financial • Distribution • Human Resources • Payroll • Customer Relationship Management • Project Accounting • Manufacturing and Supply Chain Mgmt

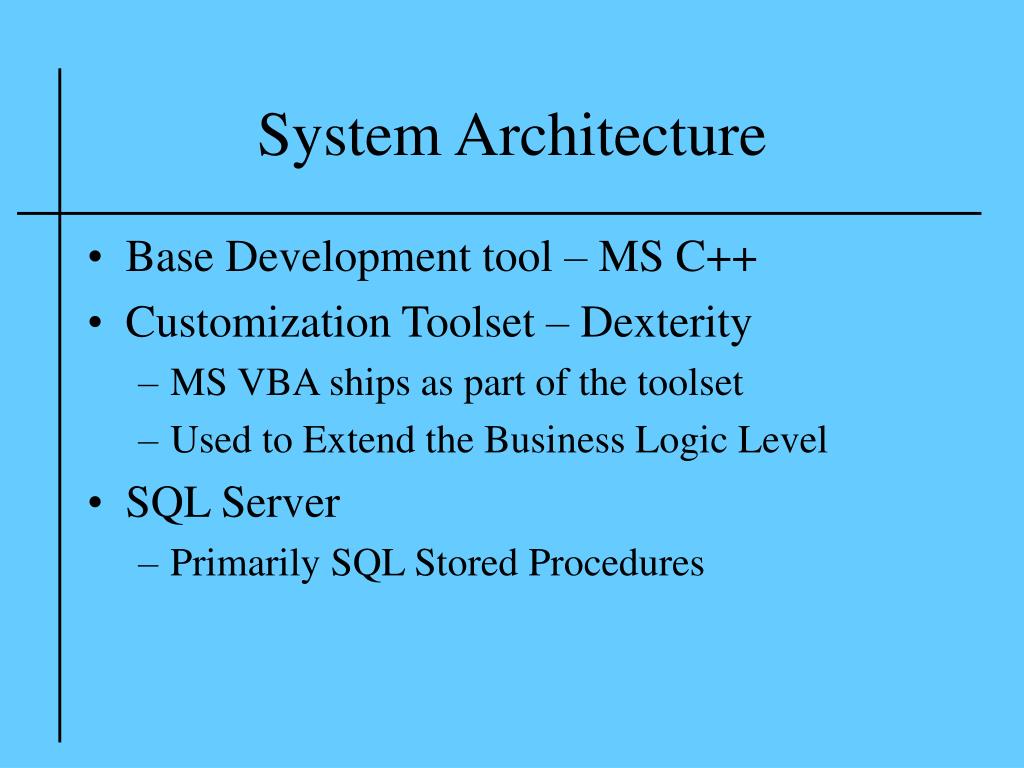

  6. System Architecture • Base Development tool – MS C++ • Customization Toolset – Dexterity • MS VBA ships as part of the toolset • Used to Extend the Business Logic Level • SQL Server • Primarily SQL Stored Procedures

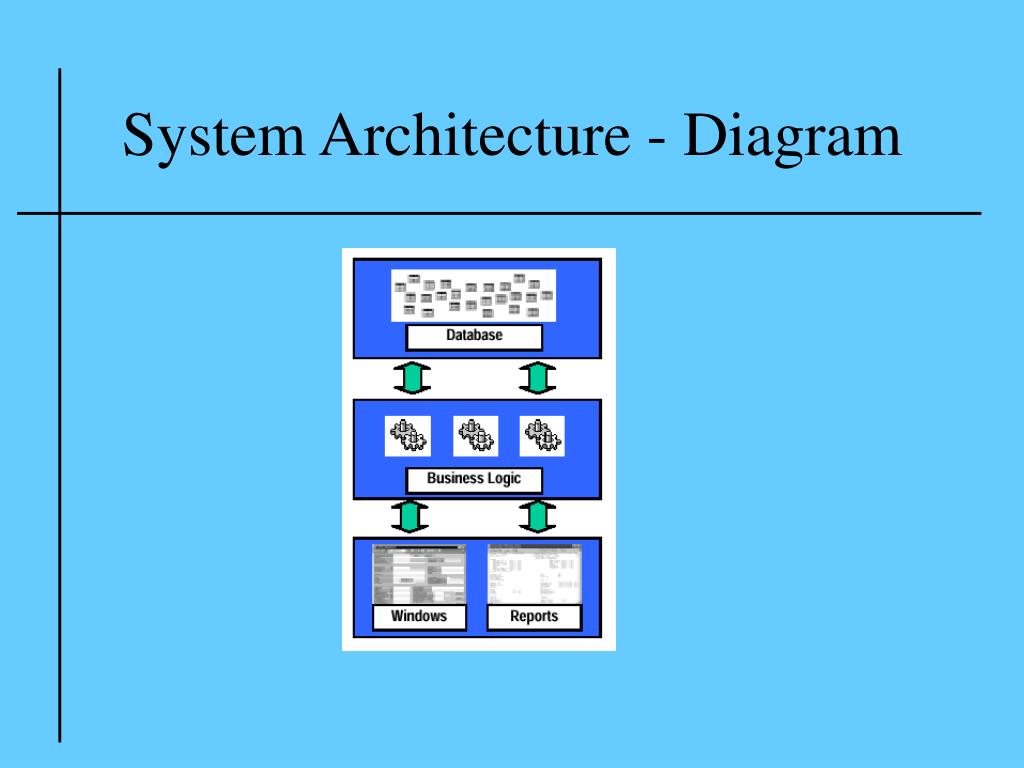

  7. System Architecture - Diagram

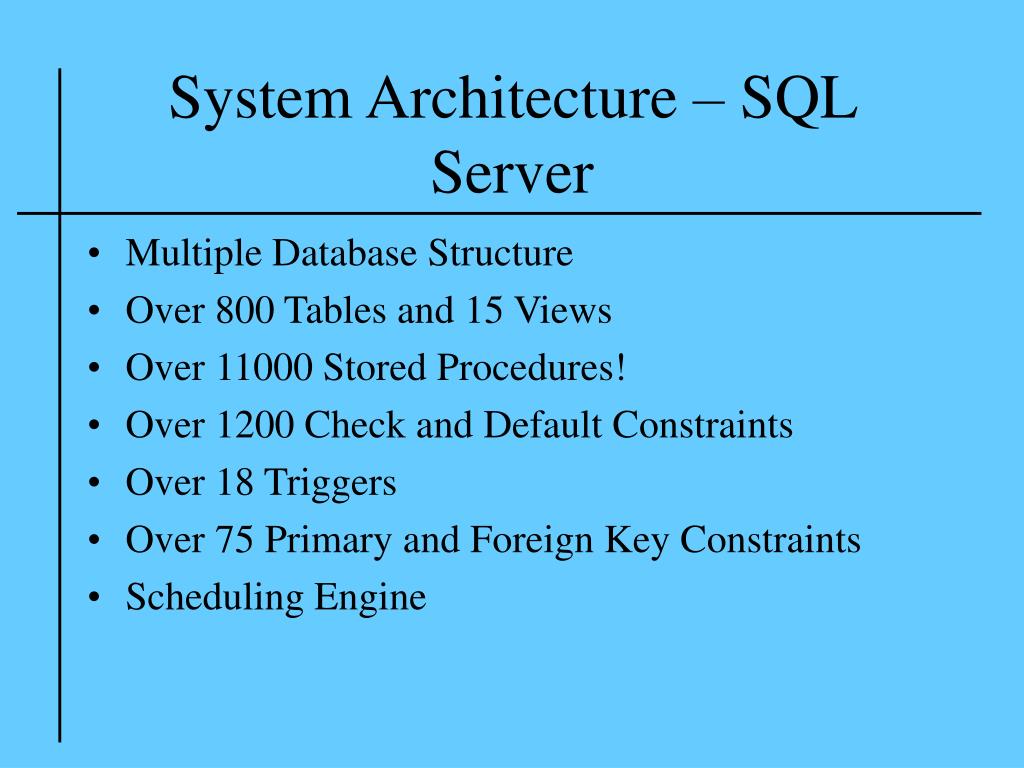

  8. System Architecture – SQL Server • Multiple Database Structure • Over 800 Tables and 15 Views • Over 11000 Stored Procedures! • Over 1200 Check and Default Constraints • Over 18 Triggers • Over 75 Primary and Foreign Key Constraints • Scheduling Engine

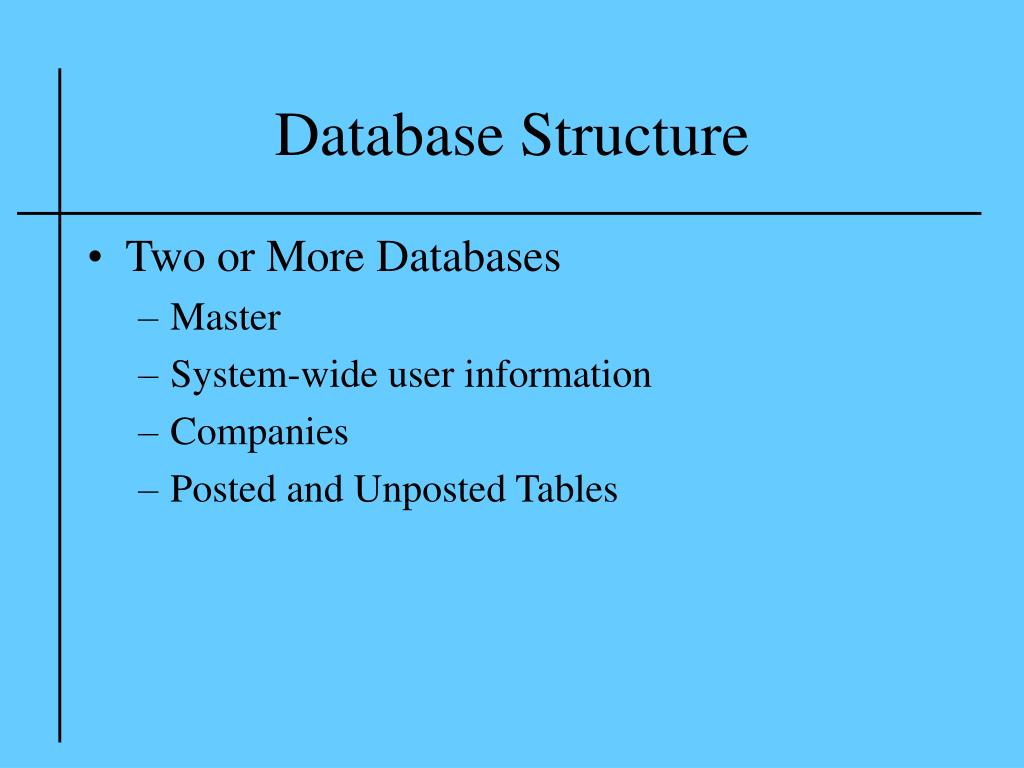

  9. Database Structure • Two or More Databases • Master • System-wide user information • Companies • Posted and Unposted Tables

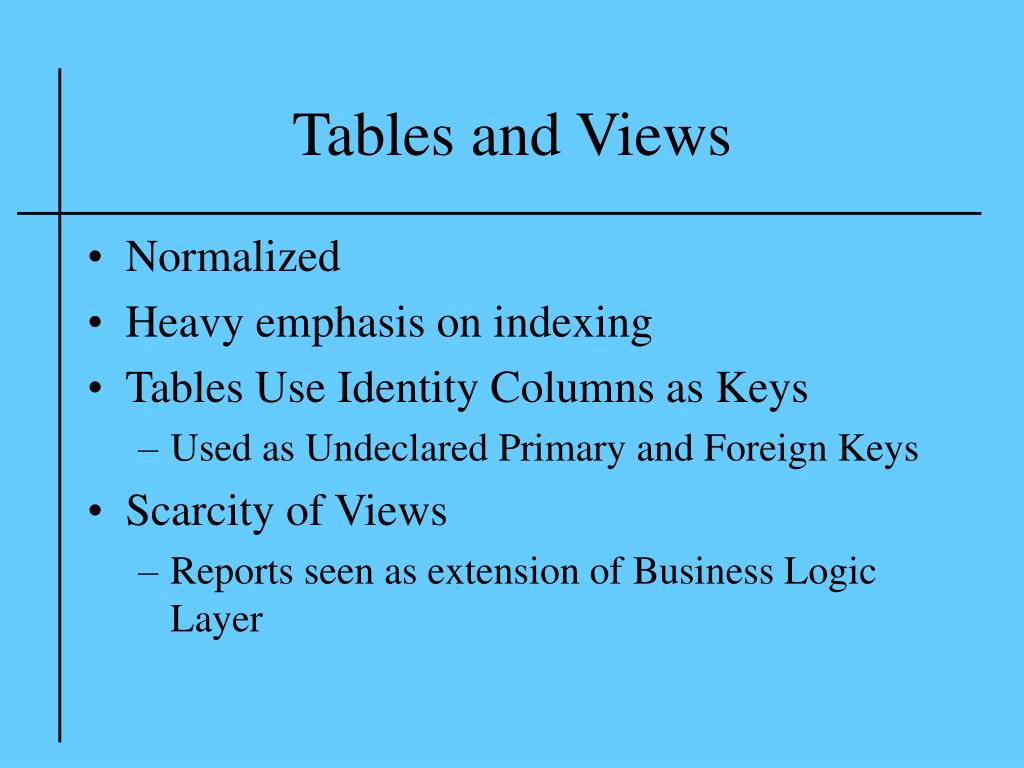

  10. Tables and Views • Normalized • Heavy emphasis on indexing • Tables Use Identity Columns as Keys • Used as Undeclared Primary and Foreign Keys • Scarcity of Views • Reports seen as extension of Business Logic Layer

  11. Stored Procedures • Do the “Heavy Lifting” of the Application • Inserting New Records • Posting Enterprise Transactions • Assisting with the Business Logic Level • Extensive use of variables from front end and temporary tables on back end

  12. Stored Procedure Example • create procedure dbo.glDeleteBatch @I_iSQLSessionID int = NULL, @I_cBatchSource char(15) = NULL, @I_cBatchNumber char(15) = NULL, @I_cProductName char(30) = NULL, @O_tNotesDeleted tinyint = NULL output, @O_iErrorState int = NULL output as declare • @tTransaction tinyint, @iStatus int, @GL_Normal char(15), @GL_Clearing char(15), @BATCH_WINDOW smallint, @cUserID char(15), @cCompanyName char(64), @mNoteIndex numeric(19,5), @cDBName char(5), @TRUE tinyint, @FALSE tinyint, @tNotesDeleted tinyi • nt, @iError int, @tVatMode tinyint if @I_iSQLSessionID is NULL or @I_cBatchSource is NULL or @I_cBatchNumber is NULL or @I_cProductName is NULL begin select @O_iErrorState = 20667 return end select @O_iErrorState = 0, @O_tNotesDeleted = 0 exec @iS • tatus = DYNAMICS.dbo.smGetConstantString 'GL_NORMAL_STR', @GL_Normal output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus <> 0 return @iStatus exec @iStat • us = DYNAMICS.dbo.smGetConstantString 'GL_CLEARING_STR', @GL_Clearing output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus <> 0 return @iStatus exec @iSta • tus = DYNAMICS.dbo.smGetConstantInt 'BATCH_WINDOW', @BATCH_WINDOW output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus <> 0 return @iStatus exec @iStatus • = DYNAMICS.dbo.smGetConstantInt 'FALSE', @FALSE output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus <> 0 return @iStatus exec @iStatus = DYNAMICS.dbo.smG • etConstantInt 'TRUE', @TRUE output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus <> 0 return @iStatus if @@trancount = 0 begin select @tTransaction = 1 • begin transaction end if @I_cBatchSource = @GL_Normal begin exec @iStatus = dtaRemoveRecordsForBatch @I_cBatchNumber, @I_cBatchSource, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_ • iErrorState <> 0 or @iStatus <> 0 return(@iStatus) exec @iStatus = vatLineAnalisysMode @tVatMode output, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 select @iStatus = @iError if @O_iErrorState <> 0 or @iStatus < • > 0 return(@iStatus) if @tVatMode = @TRUE begin delete VAT10301 from VAT10301 VAT, GL10000 HDR where convert(int,VAT.DOCNUMBR) = HDR.JRNENTRY and HDR.BACHNUMB = @I_cBatchNumber and HDR.BCHSOURC = @I_cBatchSource and VAT.RCTRXSEQ = 0 selec • t @iError = @@error if @iError <> 0 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 21067 return(@iError) end end delete GL10001 from GL10001 LINE, GL10000 HDR where HDR.JRNENTRY = LINE.JRNENTRY and HDR.BACHNUMB = • @I_cBatchNumber and HDR.BCHSOURC = @I_cBatchSource select @iError = @@error if @iError <> 0 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20681 return(@iError) end end else begin delete GL10002 from GL10002 CLEARIN • G, GL10000 HDR where HDR.JRNENTRY = CLEARING.JRNENTRY and HDR.BACHNUMB = @I_cBatchNumber and HDR.BCHSOURC = @I_cBatchSource select @iError = @@error if @iError <> 0 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20682 • return(@iError) end end delete SY03900 from GL10000 HDR, SY03900 NOTE where HDR.BACHNUMB = @I_cBatchNumber and HDR.BCHSOURC = @I_cBatchSource and HDR.NOTEINDX = NOTE.NOTEINDX if @@rowcount > 0 select @tNotesDeleted = @TRUE select @iError = @@erro • r if @iError <> 0 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20683 return(@iError) end delete GL10000 where BACHNUMB = @I_cBatchNumber and BCHSOURC = @I_cBatchSource select @iError = @@error if @iError <> 0 begin if @tT • ransaction = 1 rollback transaction select @O_iErrorState = 20684 return(@iError) end select @mNoteIndex = BATCH.NOTEINDX from SY00500 BATCH, SY03900 NOTE where BATCH.BACHNUMB = @I_cBatchNumber and BATCH.BCHSOURC = @I_cBatchSource and BATCH.NOTEIN • DX = NOTE.NOTEINDX if @mNoteIndex > 0 begin delete SY03900 where NOTEINDX = @mNoteIndex if @@rowcount <> 1 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20683 return end select @tNotesDeleted = @TRUE end delete SY0 • 0500 where BACHNUMB = @I_cBatchNumber and BCHSOURC = @I_cBatchSource select @iError = @@error if @iError <> 0 begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20685 return(@iError) end select @cDBName = db_name() exec @iStatus • = DYNAMICS..smAddRecordDeletedRecord @I_iSQLSessionID, 'SY00500', @I_cBatchNumber, 2, @I_cProductName, @cDBName, 0, @O_iErrorState output select @iError = @@error if @iStatus = 0 and @iError <> 0 begin select @iStatus = @iError end if @iStatus < • > 0 or @O_iErrorState <> 0 begin if @tTransaction = 1 rollback transaction return(@iStatus) end select @cCompanyName = ACT.CMPNYNAM, @cUserID = ACT.USERID from DYNAMICS.dbo.ACTIVITY ACT, DYNAMICS.dbo.SY01500 COMP where ACT.SQLSESID = @I_iSQLSessi • onID and COMP.CMPNYNAM = ACT.CMPNYNAM delete DYNAMICS.dbo.SY00800 where WINTYPE = @BATCH_WINDOW and USERID = @cUserID and CMPNYNAM = @cCompanyName and BCHSOURC = @I_cBatchSource and BACHNUMB = @I_cBatchNumber select @iError = @@error if @iError <> 0 • begin if @tTransaction = 1 rollback transaction select @O_iErrorState = 20687 return(@iError) end select @O_tNotesDeleted = @tNotesDeleted if @tTransaction = 1 commit transaction return

  13. Check and Default Constraints • VERY MISLEADING • Bulk of Check Constraints Related to Datetime • Four Default Constraints • GPS_CHAR • GPS_DATE • GPS_INT • GPS_MONEY

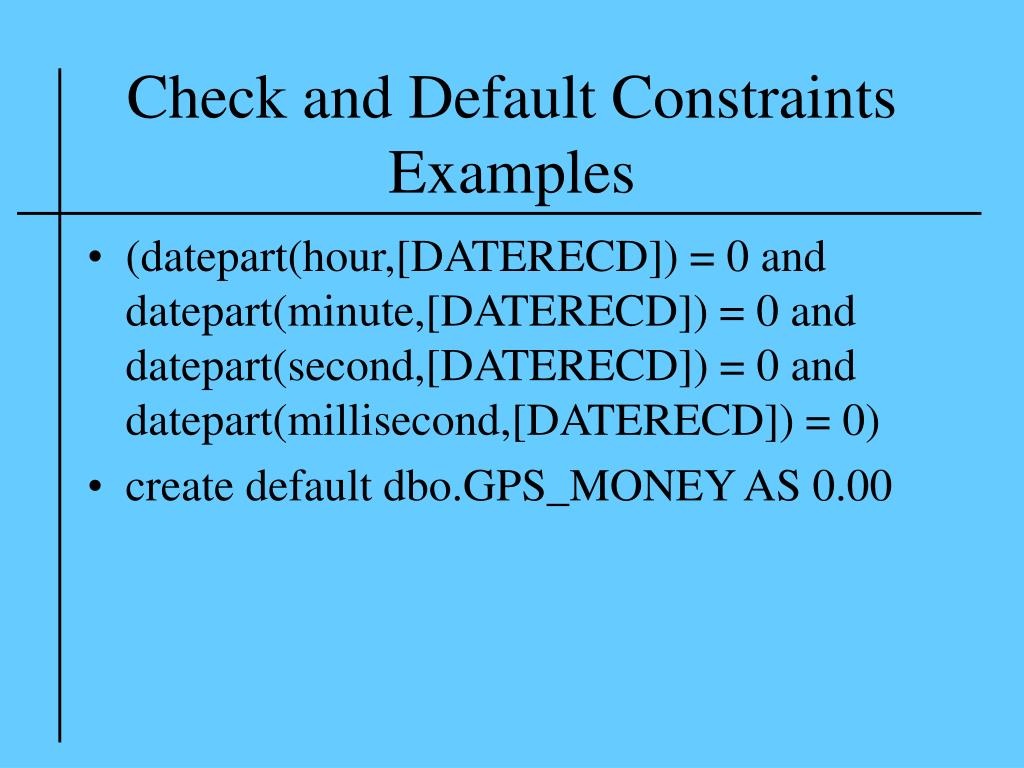

  14. Check and Default Constraints Examples • (datepart(hour,[DATERECD]) = 0 and datepart(minute,[DATERECD]) = 0 and datepart(second,[DATERECD]) = 0 and datepart(millisecond,[DATERECD]) = 0) • create default dbo.GPS_MONEY AS 0.00

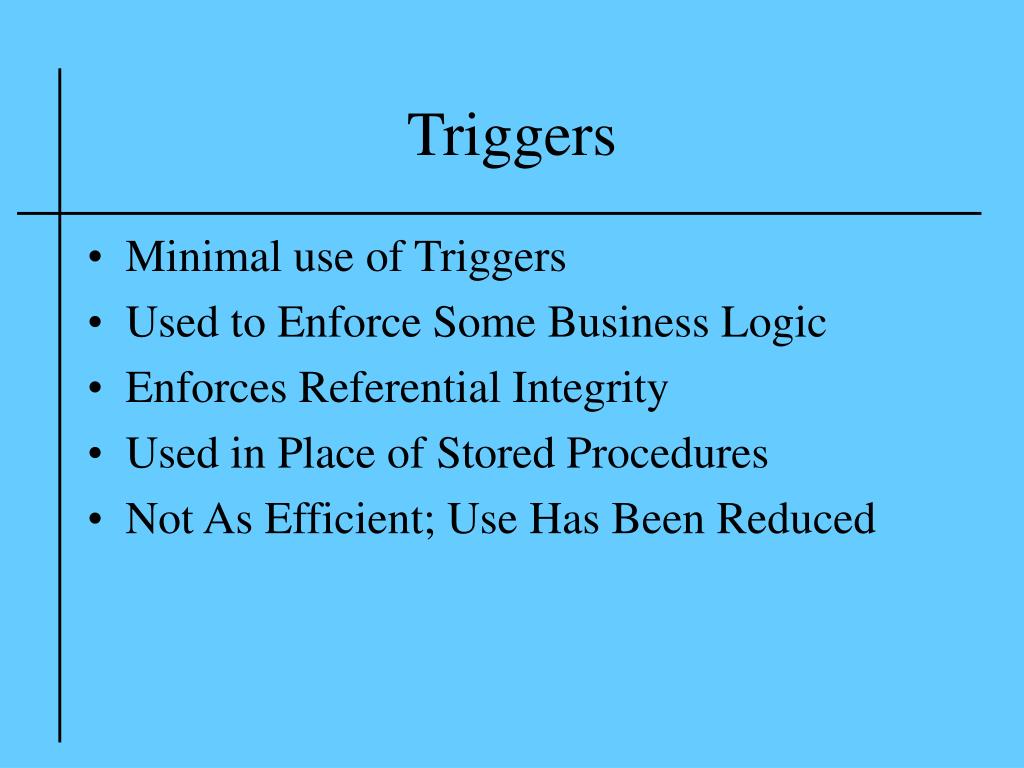

  15. Triggers • Minimal use of Triggers • Used to Enforce Some Business Logic • Enforces Referential Integrity • Used in Place of Stored Procedures • Not As Efficient; Use Has Been Reduced

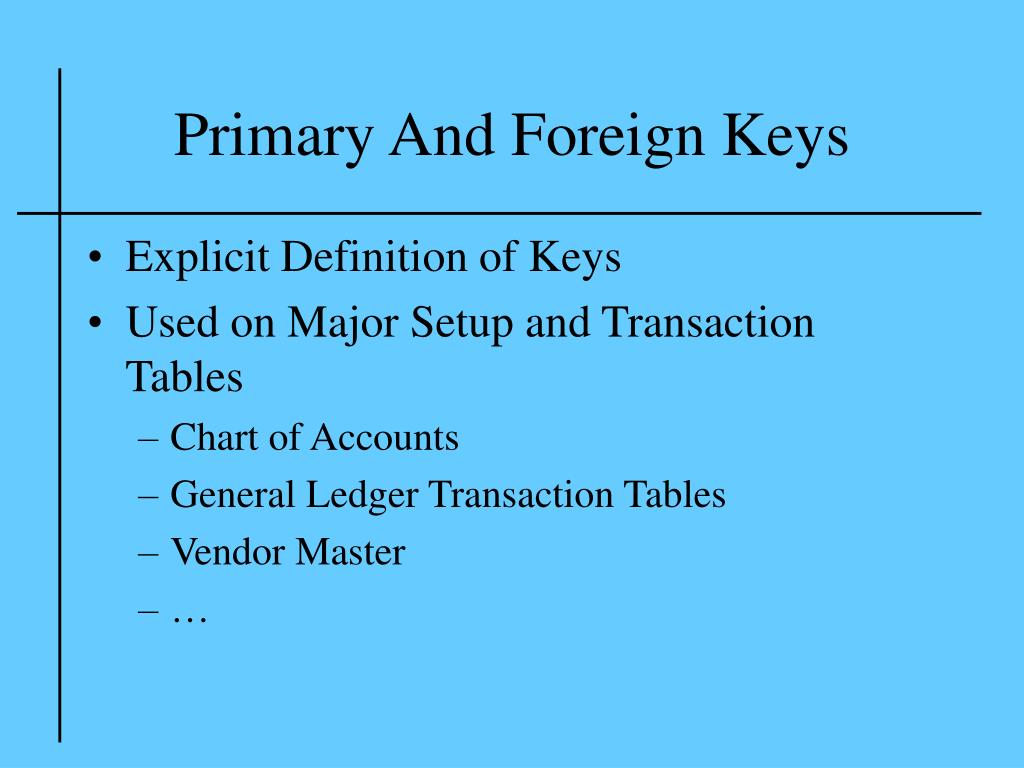

  16. Primary And Foreign Keys • Explicit Definition of Keys • Used on Major Setup and Transaction Tables • Chart of Accounts • General Ledger Transaction Tables • Vendor Master • …

  17. Scheduling Engine • Business Alerts • Series of Stored Procedures • Checks for Conditions Within The System • Uses the Scheduling Engine to E-Mail Users • Done Through Front End Wizard • Demonstration

  18. Managing The Installation • Care and Feeding of The Server • Business Alerts • Indexing Scheme • Referential Integrity • Outside Systems • Backup and Recovery

  19. Conclusion • Fully functioning, incredibly sophisticated system • Takes Advantage of Most Base SQL Functions • Very Open • Allows Data to Be Put Easily into System • Easy Access to Data Model • Questions???
