PIFA

PIFA. WPF001 Antenna Profile ： 40*30*6.3*4.3 Frequency range ： 2.4~2.5GHz WPF001 Antenna Profile ： 22*17*6.3*4.3 Frequency range ： 5.15~5.35 / 5.725~5.85GHz WPF002 Antenna Profile ： 30.1*3.0*4.5 Frequency range ： 2.4~2.5GHz WPF005 Antenna Profile ： 22.7*4.2*5.0

novia
Download Presentation

PIFA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

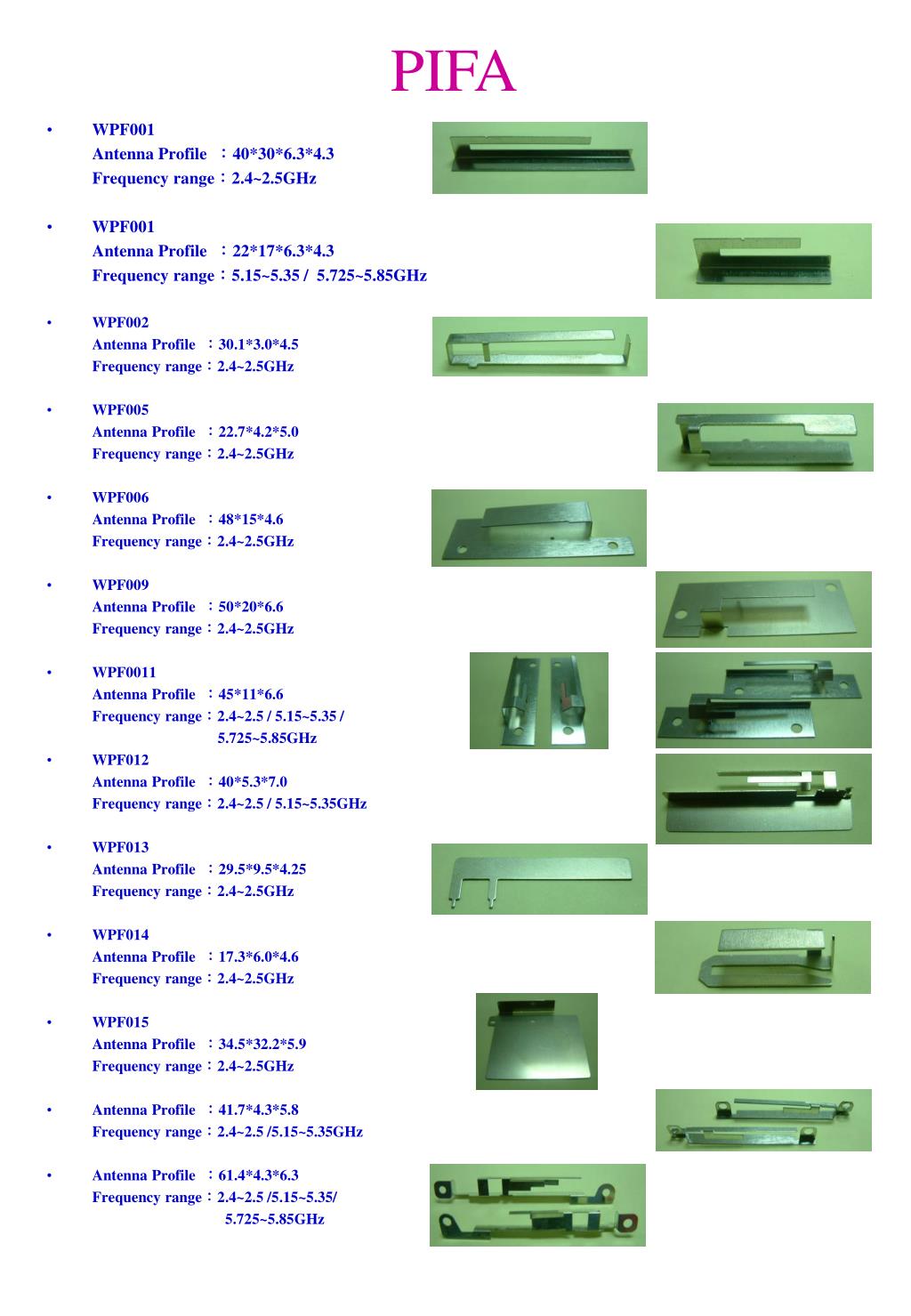

  1. PIFA • WPF001 Antenna Profile ：40*30*6.3*4.3 Frequency range：2.4~2.5GHz • WPF001 Antenna Profile ：22*17*6.3*4.3 Frequency range：5.15~5.35 / 5.725~5.85GHz • WPF002 AntennaProfile ：30.1*3.0*4.5 Frequency range：2.4~2.5GHz • WPF005 Antenna Profile ：22.7*4.2*5.0 Frequency range：2.4~2.5GHz • WPF006 Antenna Profile ：48*15*4.6 Frequency range：2.4~2.5GHz • WPF009 Antenna Profile ：50*20*6.6 Frequency range：2.4~2.5GHz • WPF0011 Antenna Profile ：45*11*6.6 Frequency range：2.4~2.5 / 5.15~5.35 / 5.725~5.85GHz • WPF012 Antenna Profile ：40*5.3*7.0 Frequency range：2.4~2.5 / 5.15~5.35GHz • WPF013 Antenna Profile ：29.5*9.5*4.25 Frequency range：2.4~2.5GHz • WPF014 Antenna Profile ：17.3*6.0*4.6 Frequency range：2.4~2.5GHz • WPF015 Antenna Profile ：34.5*32.2*5.9 Frequency range：2.4~2.5GHz • Antenna Profile ：41.7*4.3*5.8 Frequency range：2.4~2.5 /5.15~5.35GHz • Antenna Profile ：61.4*4.3*6.3 Frequency range：2.4~2.5 /5.15~5.35/ 5.725~5.85GHz
