Data Discretization Unification

1. Data Discretization Unification Ruoming Jin Yuri Breitbart Chibuike Muoh Kent State University, Kent, USA

2. Outline • Motivation • Problem Statement • Prior Art & Our Contributions • Goodness Function Definition • Unification • Parameterized Discretization • Discretization Algorithm & Its Performance

3. Motivation Patients Table

4. Motivation Possible implication of the table: • If a person is between 18 and 25, the probability of procedure success is ‘much higher’ than if the person is between 45 and 55 • Is that a good rule or this one is better: If a person is between 18 and 30, the probability of procedure success is ‘much higher’ than if the person is between 46 and 61 • What is the best interval?

5. Motivation • Without data discretization some rules would be difficult to establish. • Several existing data mining systems cannot handle continuous variables without discretization. • Data discretization significantly improves the quality of the discovered knowledge. • New methods of discretization needed for tables with rare events. • Data discretization significantly improves the performance of data mining algorithms. Some studies reported ten fold increase in performance. However: Any discretization process generally leads to a loss of information. Minimizing such a possible loss is the mark of good discretization method.

6. Problem Statement Given an input table:

7. Problem Statement Obtain an output table: Where Si= Union of consecutive k intervals.The quality of discretization is measured by cost(model) =cost(data/model) +penalty(model)

8. Prior Art • Unsupervised Discretization – no class information is provided: • Equal-width • Equal-frequency • Supervised Discretization – class information is provided with each attribute value: • MDLP • Pearson’s X2 or Wilks’ G2 statistic based methods • Dougherty, Kohavi (1995) compare unsupervised and supervised methods of Holte (1993) and entropy based methods by Fayyad and Irani (1993) and conclude that supervised methods give less classification errors than the unsupervised ones and supervised methods based on entropy are better than other supervised methods .

9. Prior Art • There are several recent (2003-2006) papers introduced new discretization algorithms: Yang and Webb; Kurgan and Cios (CAIM); Boulle (Khiops). • CAIM attempts to minimize the number of discretization intervals and at the same time to minimize the information loss. • Khiops uses Pearson’s X2 statistic to select merging consecutive intervals that minimize the value of X2. • Yang and Webb studied discretization using naïve Bayesian classifiers. They report that their method generates a lower number of classification errors than the alternative discretization methods that appeared in literature

10. Our Results • There is a strong connection between discretization methods based on statistic and on entropy. • There is a parametric function so that any prior discretization method is derivable from this function by choosing at most two parameters. • There is an optimal dynamic programming method that derived from our discretization approach that mostly outperforms any prior discretization method in experiments that we conducted.

11. Goodness Function Definition(Preliminaries)

12. Goodness Function Definition(Preliminaries) Entropy of the i-th row of acontingency table Total entropy of all intervals Entropy of a contingency table: • Binary encoding of a row requires H(Si) binary characters. • Binary encoding of a set of rows requires H( S1, S2, … SI’ ) binary characters • Binary encoding of a table requires SL binary characters : N*H( S1 ,S2 , ….SI’ ) = SL

13. Goodness Function Definition • Cost(Model, T)= Cost(T/Model)+Penalty(Model) • (Mannila, et. al.) • Cost(T/Model) is the complexity of table encoding in • the given model. • Penalty(Model) reflects a complexity of the resulting • table. • GFModel (T) = Cost(Model, T0) – Cost(Model, T)

14. Goodness Function DefinitionModels To Be Considered • MDLP (Information Theory) • Statistical Model Selection • Confidence Level of Rows Independence • Gini Index

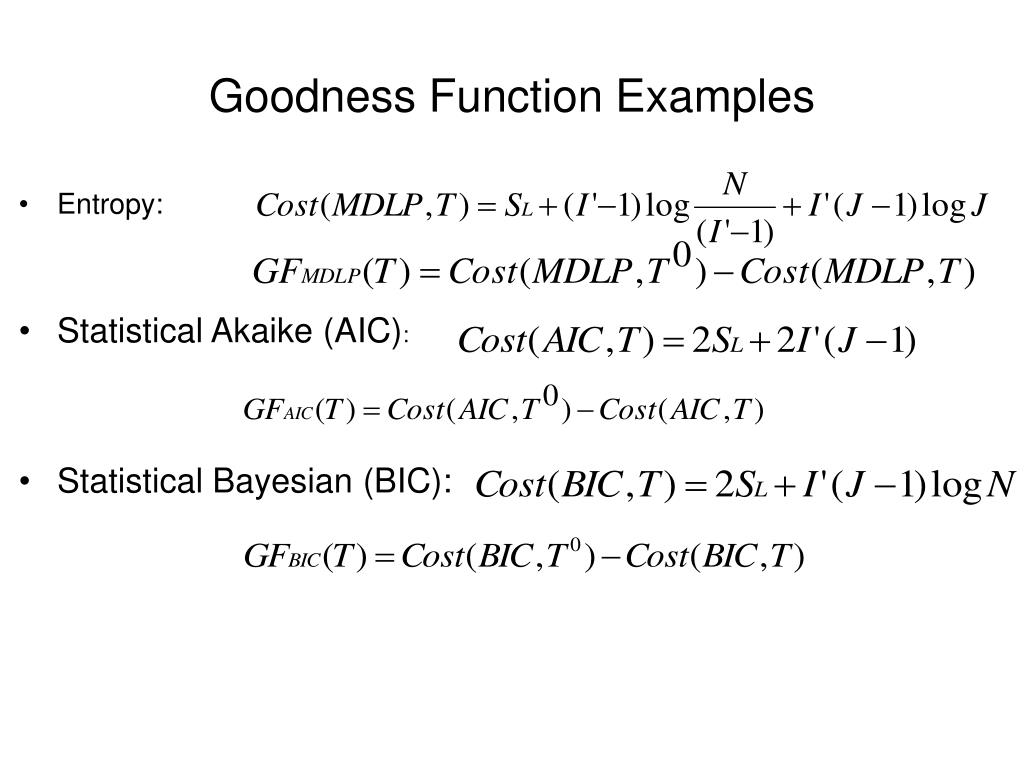

15. Goodness Function Examples • Entropy: • Statistical Akaike (AIC): • Statistical Bayesian (BIC):

16. Goodness Function Examples (Con’t) • Confidence level based Goodness Functions: Pearson X2 –statistic where Wilks’ G2-statistic • Table’s degree of freedom is df=(I’-1)(J-1) • Distribution functions for these statistics are • It is known in statistic that asymptotically both Pearson’s X2 and Wilks G2 statistics have chi-square distribution with df degrees of freedom.

17. Unification • The following relationship between G2 and goodness functions for MDLP, AIC, and BIC holds: G2/2 = N*H(S1U ……USI’) – SL • Thus, the goodness functions for MDLP, AIC and BIC can be rewritten as follows:

18. Unification • Normal Deviate is the difference between the mean and the variable divided by standard deviation • Consider t a random variable chi-square distributed. U(t) be a normal deviate so that the following equation holds • Let u(t) be a normal deviate function. The following theorem holds (see Wallace 1959, 1960) For all t>df, all df>.37, and with w(t)=[t-df-df*log(t/df)](1/2) 0<w(t)≤u(t)≤w(t)+.6*df-(1/2)

19. Unification • From this theorem it follows that if df goes to infinity and w(t)>>0, u(t)/w(t) ~1. • Finally, w2(t) ~ u2(t) ~t – df – df*log(t/df) and GFG2(T)=u2(G2)=G2 - df*(1+ log(G2 /df)) and similarly goodness function for GFX2(T) is asymptotically the same

20. Unification • G2 estimate • If G2 >df, then G2 <2N*logJ. It follows from the upper bound logJ on H(S1 U ….U SJ) and lower bound 0 on entropy of a specific row of the contingency table. • Recall that u2(G2)=G2 - df*(1+ log(G2 /df)) • Thus, penalty of u2(G2) is between O(df) and O(df*logN) • If G2~ c*df and c>1, then penalty is O(df) • If G2~ c*df and N/df ~N/(I’J)=c, then penalty is also O(df) • If G2~ c*df and N->inf and N/(I’J) ->inf, then penalty is O(df*logN)

21. Unification • GFMDLP = G2 –(depending on the ratio of N/I’) O(df) O(dflogN) • GFAIC = G2 - df • GFBIC = G2 - df*(logN)/2 • GFG2=G2 - df([either constant or logN, depending on the ratio between N and I and J] • In general, GF = G2 - df*f(N,I,J) • To unify a Gini function as one of the cost functions we resort to the parametric approach to goodness of discretization

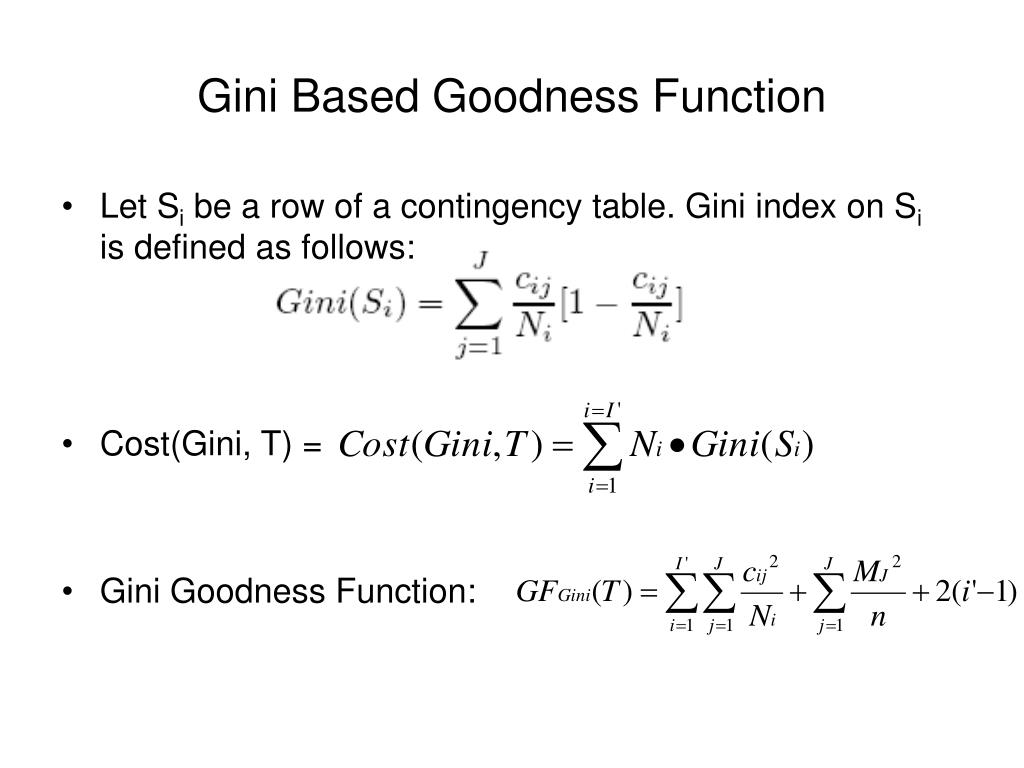

22. Gini Based Goodness Function • Let Si be a row of a contingency table. Gini index on Si is defined as follows: • Cost(Gini, T) = • Gini Goodness Function:

23. Parametrized Entropy Entropy of the row Gini of the row Parametrized Data Cost Parametrized Discretization

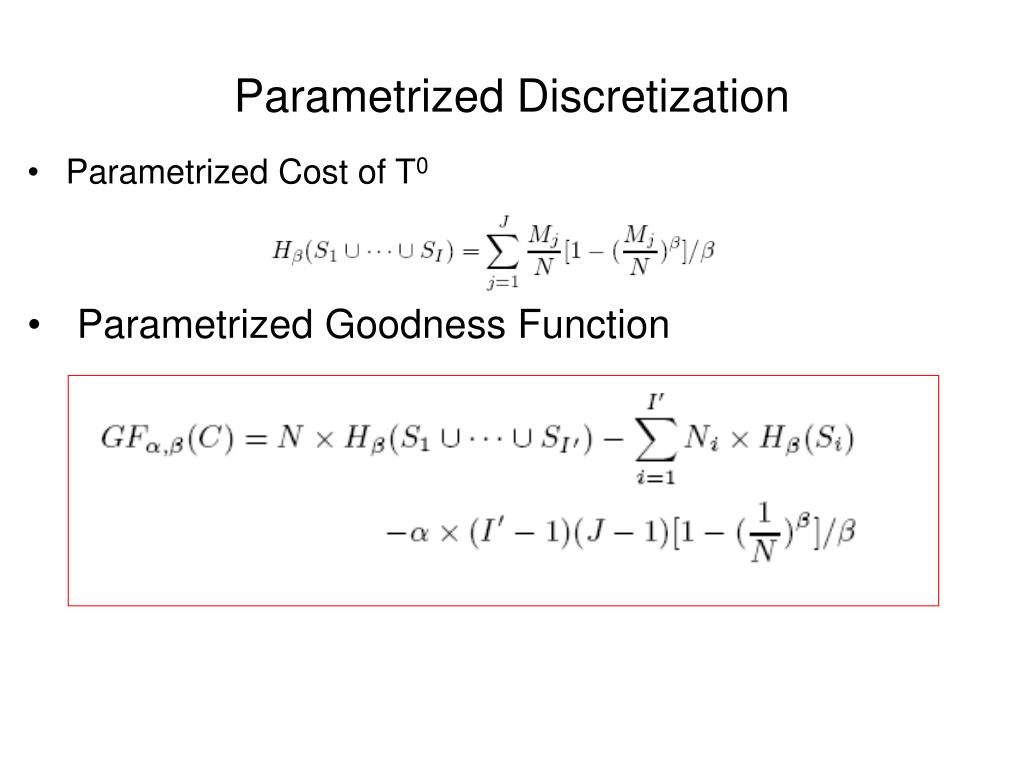

24. Parametrized Cost of T0 Parametrized Goodness Function Parametrized Discretization

25. Parameters for Known Goodness Functions

26. Parametrized Dynamic Programming Algorithm

27. Dynamic Programming Algorithm

28. Experiments

31. Classification errors for Glass dataset (Naïve Bayesian)

32. Iris+C4.5

33. Experiments: C4.5 Validation

34. Experiments: Naïve Bayesian Validation

35. Conclusions • We considered several seemingly different approaches to discretization and demonstrated that they can be unified by considering a notion of generalized entropy. • Each of the methods that were discussed in literature can be derived from generalized entropy by selecting at most two parameters. • Dynamic Programming Algorithm for a given set of two parameters selects an optimal method of discretization (in terms of the discretization goodness function)

36. What Remains To be Done • How to find analytically a relationship between the goodness function in terms of the model and the number of classification errors? • What is the Algorithm for Selecting the Best Parameters for a Given Set of Data?
