  1. DACS Initialization Sequence, TB2005.

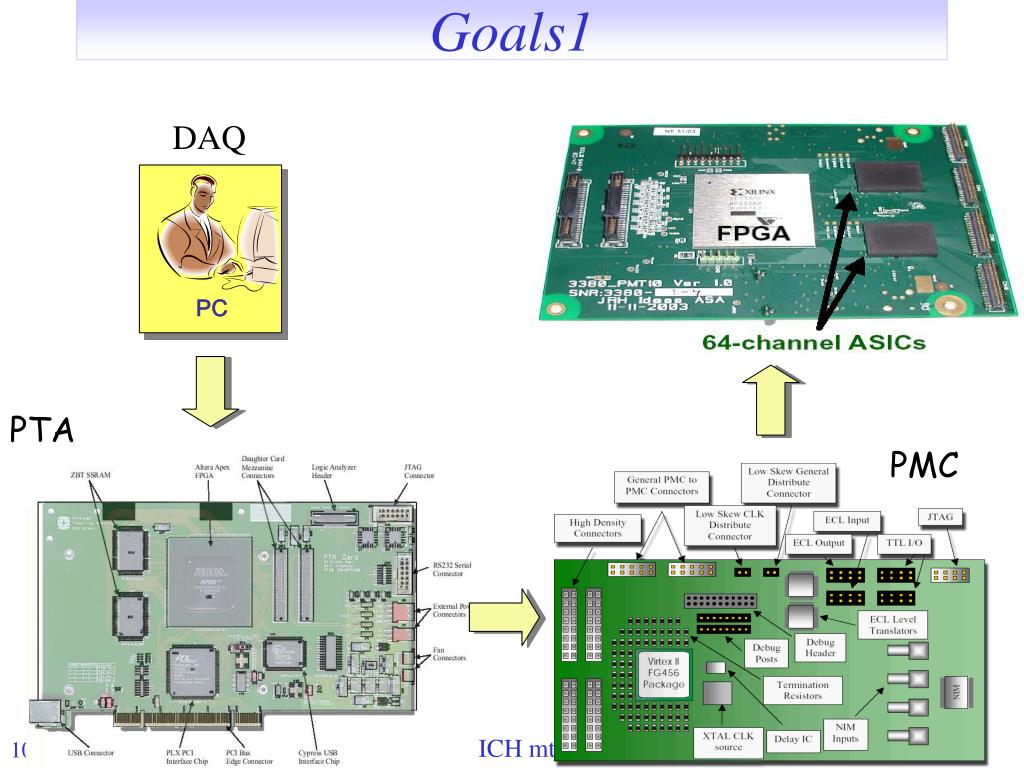

  2. PC PMC PTA Goals1 DAQ

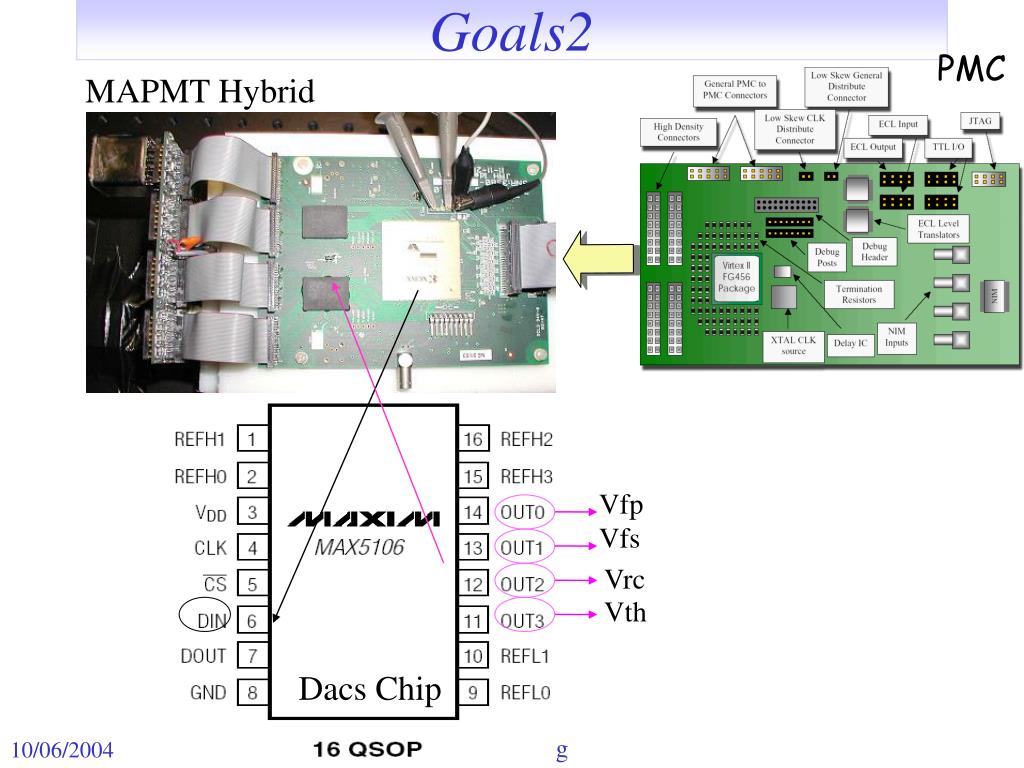

  3. PMC MAPMT Hybrid Goals2 Vfp Vfs Vrc Vth Dacs Chip

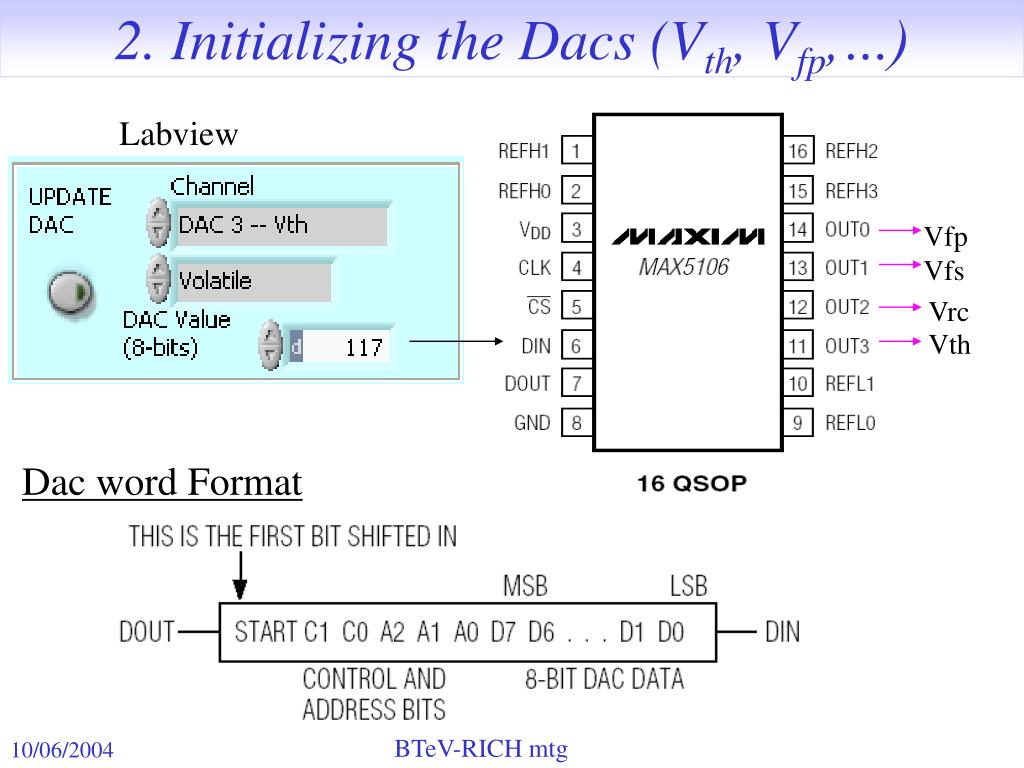

  4. 2. Initializing the Dacs (Vth, Vfp,…) Labview Vfp Vfs Vrc Vth Dac word Format

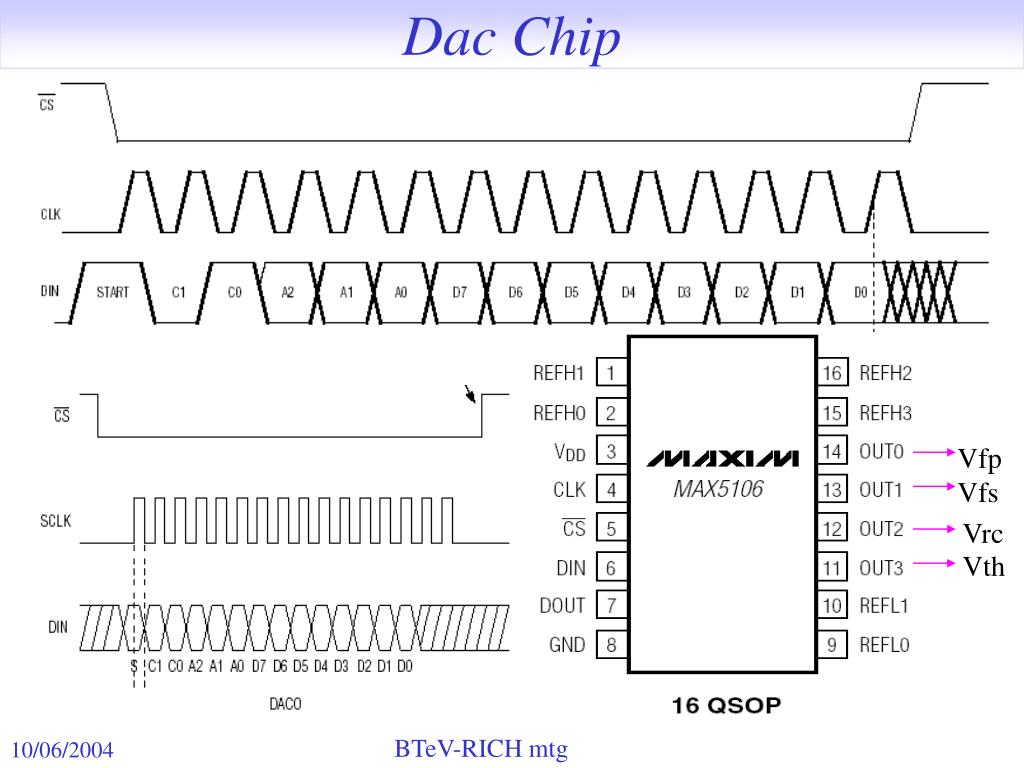

  5. Dac Chip Vfp Vfs Vrc Vth

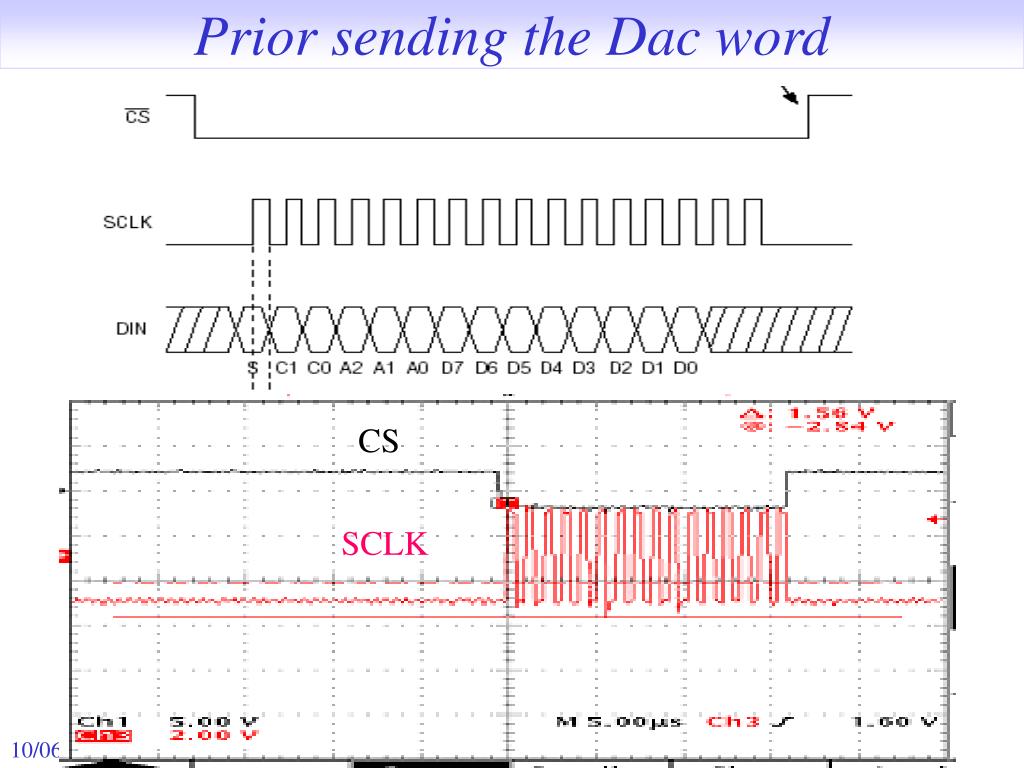

  6. Prior sending the Dac word CS SCLK

  7. Sending the Dac word (117)d = 10100001110101

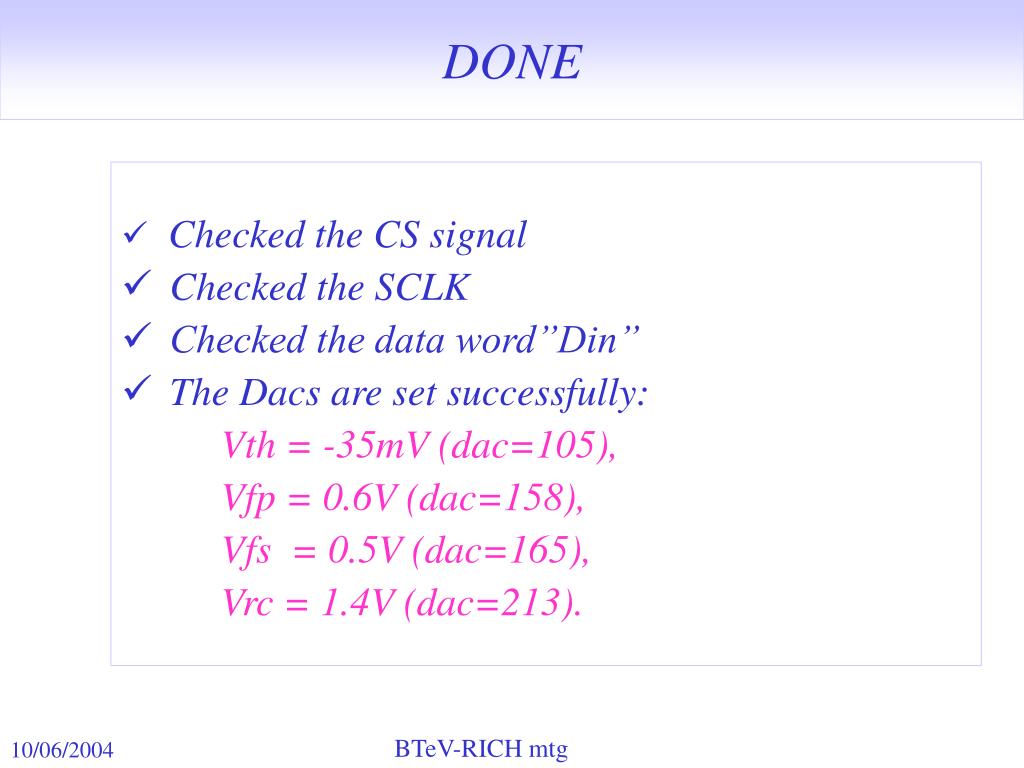

  8. DONE • Checked the CS signal • Checked the SCLK • Checked the data word”Din” • The Dacs are set successfully: Vth = -35mV (dac=105), Vfp = 0.6V (dac=158), Vfs = 0.5V (dac=165), Vrc = 1.4V (dac=213).

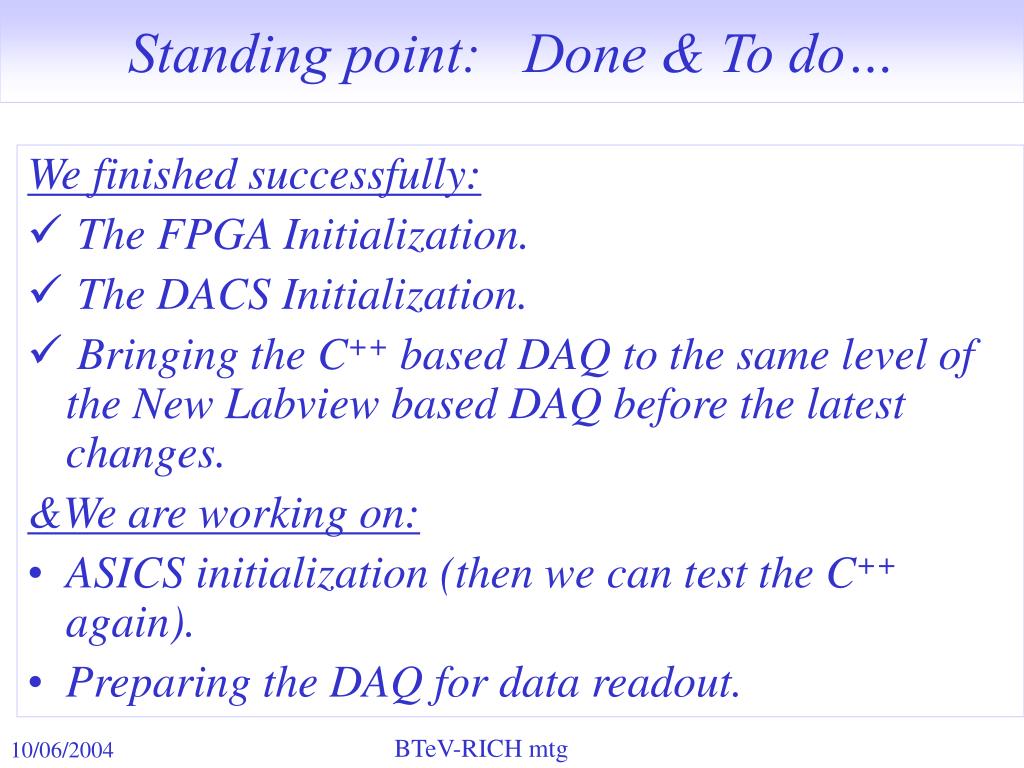

  9. Standing point: Done & To do… We finished successfully: • The FPGA Initialization. • The DACS Initialization. • Bringing the C++ based DAQ to the same level of the New Labview based DAQ before the latest changes. &We are working on: • ASICS initialization (then we can test the C++ again). • Preparing the DAQ for data readout.
