Chương 3 Tri thức và lập luận

Chương 3 Tri thức và lập luận. Nội dung chính chương 3. Logic – ngôn ngữ của tư duy Logic mệnh đề (cú pháp, ngữ nghĩa, sức mạnh biểu diễn, các thuật toán suy diễn) Prolog (cú pháp, ngữ nghĩa, lập trình prolog, bài tập và thực hành)

nuru
Download Presentation

Chương 3 Tri thức và lập luận

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chương 3Tri thức và lập luận

  2. Nội dung chính chương 3 • Logic – ngôn ngữ của tư duy • Logic mệnh đề (cú pháp, ngữ nghĩa, sức mạnh biểu diễn, các thuật toán suy diễn) • Prolog (cú pháp, ngữ nghĩa, lập trình prolog, bài tập và thực hành) • Logic cấp một (cú pháp, ngữ nghĩa, sức mạnh biểu diễn, các thuật toán suy diễn) Lecture 1 Lecture 2 Lecture 3,4

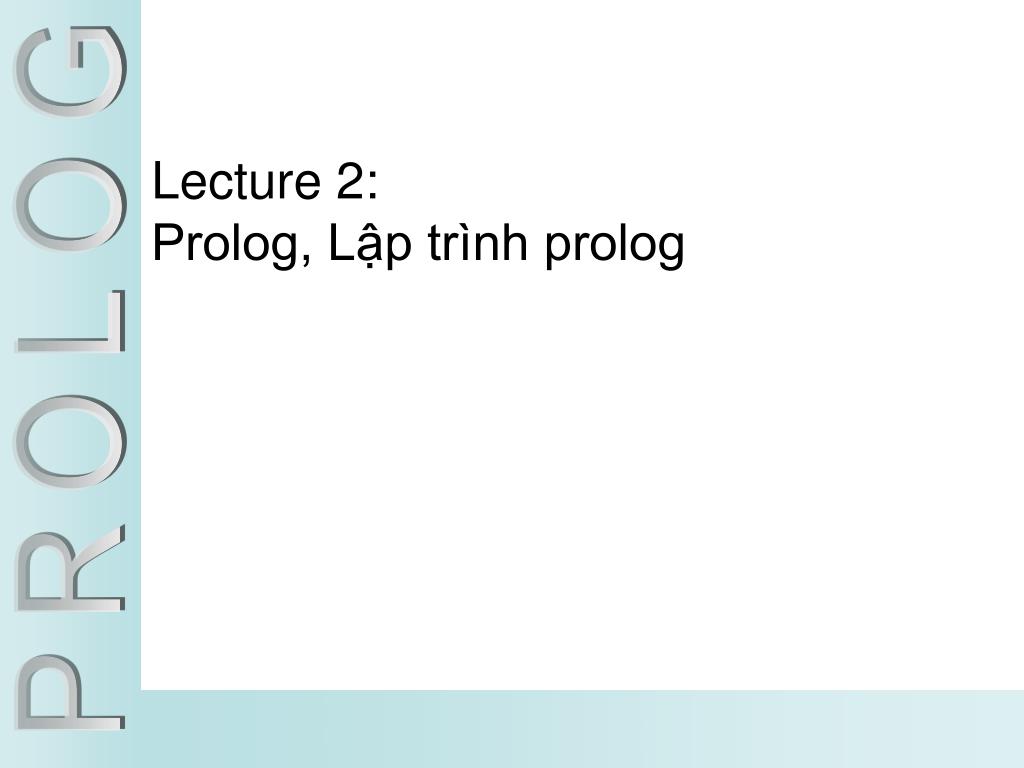

  3. Lecture 2:Prolog, Lập trình prolog

  4. Lecture2-outline • Cơ bản về Prolog, lập trình prolog • Suy diễn trong Prolog (kiểm tra,Suy diễn lùi, đệ qui) • CUT và Phủ định

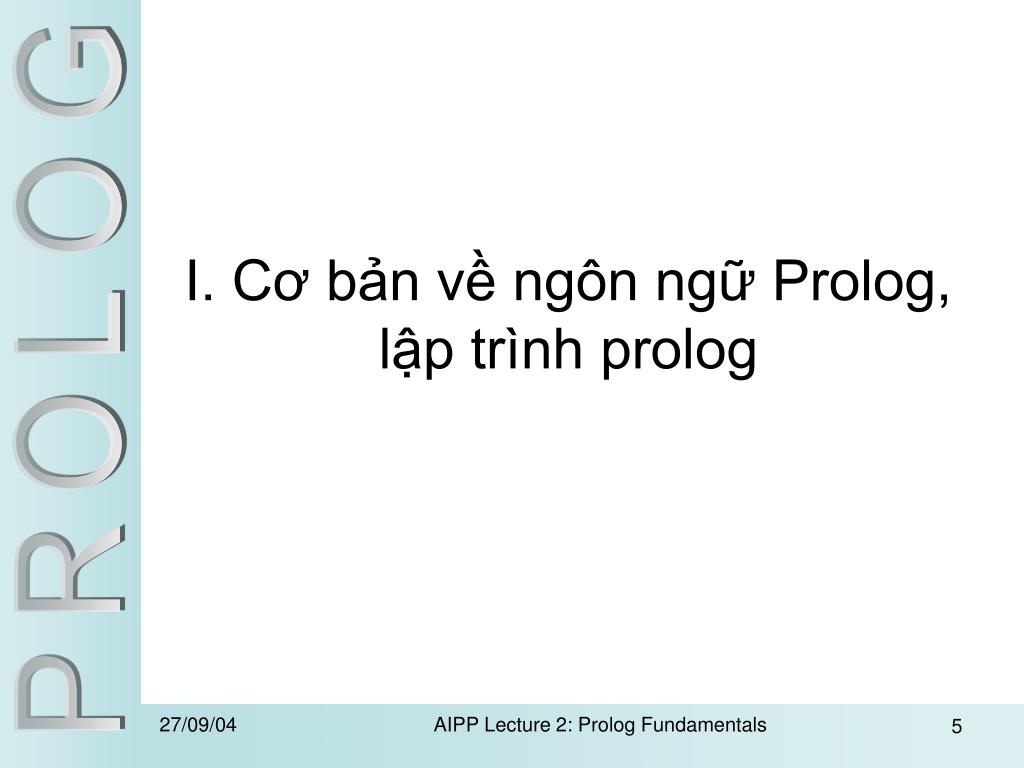

  5. I. Cơ bản về ngôn ngữ Prolog, lập trình prolog AIPP Lecture 2: Prolog Fundamentals

  6. Chương trình và thực hiện chương trình trong prolog • Program is a database of facts and rules. • Some are always true (facts): father( john, jim). • Some are dependent on others being true (rules): parent( Person1, Person2 ) :- father( Person1, Person2 ). • To run a program, we ask questions about the database. parent(john,jim). parent(john,X). Lecture 1: An Introduction

  7. Facts Rules Prolog in English Example Database: John is the father of Jim. Jane is the mother of Jim. Jack is the father of John. Person 1 is a parent of Person 2 if Person 1 is the father of Person 2 or Person 1 is the mother of Person 2. Person 1 is a grandparent of Person 2 if some Person 3 is a parent of Person 2 and Person 1 is a parent of Person 3. Example questions: Who is Jim's father? Is Jane the mother of Fred? Is Jane the mother of Jim? Does Jack have a grandchild? Lecture 1: An Introduction

  8. Prolog in Prolog Example Database: father( john, jim ). mother( jane, jim ). father( jack, john ). parent( Person1, Person2 ) :- father( Person1, Person2 ). parent( Person1, Person2 ) :- mother( Person1, Person2 ). grandparent( Person1, Person2 ) :- parent( Person3, Person2 ), parent( Person1, Person3 ). Example questions: ?- father( Who, jim ). ?- mother( jane, fred ). ?- mother( jane, jim ). ?- grandparent( jack, _ ). Example Database: John is the father of Jim. Jane is the mother of Jim. Jack is the father of John. Person 1 is a parent of Person 2 if Person 1 is the father of Person 2 or Person 1 is the mother of Person 2. Person 1 is a grandparent of Person 2 if some Person 3 is a parent of Person 2 and Person 1 is a parent of Person 3. Example questions: Who is Jim's father? Is Jane the mother of Fred? Is Jane the mother of Jim? Does Jack have a grandchild? Lecture 1: An Introduction

  9. Cú pháp • Prolog program consist of clauses. • A clause has a head and a body (Rule) or just a head (Fact). • A head consists of a predicate name and arguments. • A clause body consists of a conjunction of terms. • Terms can be constants, variables, or compound terms. AIPP Lecture 2: Prolog Fundamentals

  10. Clauses - Câu • Prolog program consist of clauses. A clause = An individual definition (whether it be a fact or rule). e.g. mother(jane,alan).= Fact parent(P1,P2):- mother(P1,P2).= Rule • A clause consists of a head • and sometimes abody. • Facts don’t have a body because they are always true. body head AIPP Lecture 2: Prolog Fundamentals

  11. Predicate – Vị từ • A predicate denotes a property or relationship between objects • ‘Predicate’is the name given to the word occurring before the bracket in a fact or rule: parent(jane,alan). • By defining a predicate you are specifying which information needs to be known for the property denoted by the predicate to be true. Predicate name AIPP Lecture 2: Prolog Fundamentals

  12. Arguments – Các tham số của vị từ • A predicate head consists of a predicate name and sometimes some arguments contained within brackets and separated by commas. mother(jane,alan). • A body can be made up of any number of subgoals (calls to other predicates) and terms. • Arguments also consist of terms, which can be: • Constants e.g. jane, • Variables e.g. Person1, or • Compound terms (explained in later lectures). Predicate name Arguments AIPP Lecture 2: Prolog Fundamentals

  13. Terms: ConstantsHạng thức hằng Constants can either be: • Numbers: • integers are the usual form (e.g. 1, 0, -1, etc), but • floating-point numbers can also be used (e.g. 3.0E7) • Symbolic (non-numeric) constants: • always start with a lower case alphabetic character and contain any mixture of letters, digits, and underscores (but no spaces, punctuation, or an initial capital). • e.g. abc, big_long_constant, x4_3t). • String constants: • are anything between single quotes e.g. ‘Like this’. AIPP Lecture 2: Prolog Fundamentals

  14. Terms: VariablesHạng thức biến • Variables always start with an upper case alphabetic character or an underscore. • Other than the first character they can be made up of any mixture of letters, digits, and underscores. e.g.X, ABC, _89two5, _very_long_variable • There are no “types” for variables (or constants) – a variable can take any value. • All Prolog variables have a “local” scope: • they only keep the same value within a clause; the same variable used outside of a clause does not inherit the value (this would be a “global” scope). AIPP Lecture 2: Prolog Fundamentals

  15. Naming tips – Một số qui ước khi đặt các tên • Use real English when naming predicates, constants, and variables. e.g. “John wants to help Somebody.” Could be: wants(john,to_help,Somebody). Not: x87g(j,_789). • Use a VerbSubjectObject structure: wants(john,to_help). • BUT do not assume Prolog Understands the meaning of your chosen names! • You create meaning by specifying the body (i.e. preconditions) of a clause. AIPP Lecture 2: Prolog Fundamentals

  16. Using predicate definitions Xây dựng vị từ • Command line programming is tedious e.g. | ?- write(‘What is your name?’), nl, read(X), write(‘Hello ‘), write(X). • We can define predicates to automate commands: greetings:- write(‘What is your name?’), nl, read(X), write(‘Hello ‘), write(X). • | ?- greetings. • What is your name? • |: tim. • Hello tim • X = tim ? • yes Terminal Prolog Code AIPP Lecture 2: Prolog Fundamentals

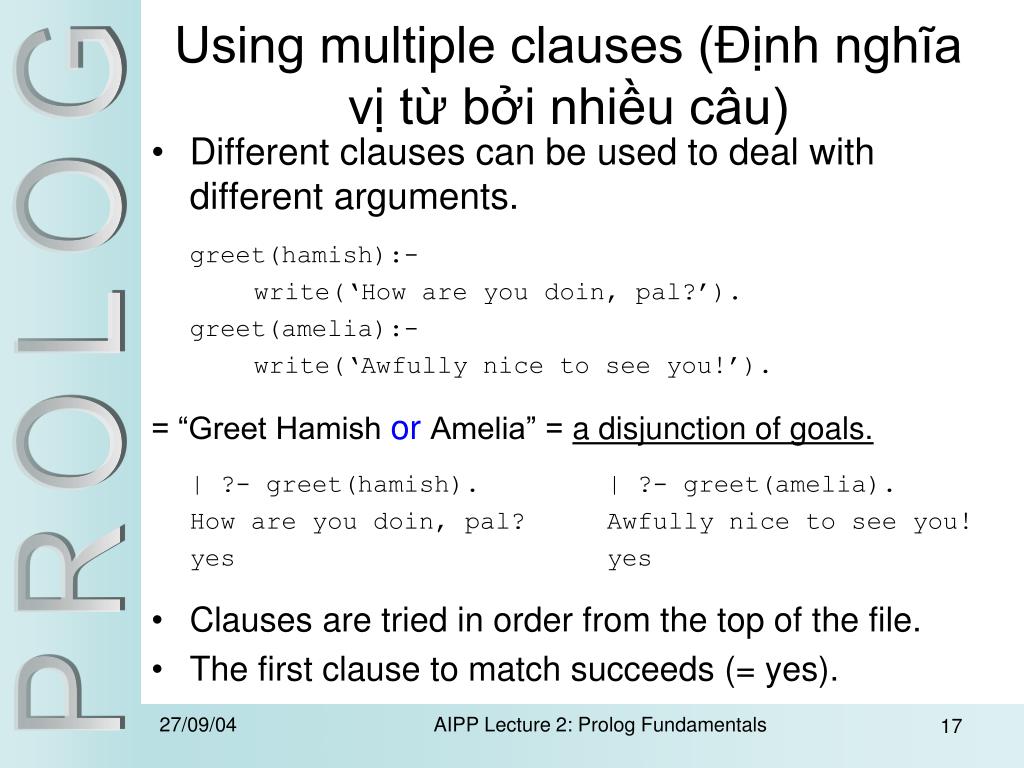

  17. Using multiple clauses (Định nghĩa vị từ bởi nhiều câu) • Different clauses can be used to deal with different arguments. greet(hamish):- write(‘How are you doin, pal?’). greet(amelia):- write(‘Awfully nice to see you!’). = “Greet Hamish or Amelia” = a disjunction of goals. | ?- greet(hamish). | ?- greet(amelia). How are you doin, pal? Awfully nice to see you! yes yes • Clauses are tried in order from the top of the file. • The first clause to match succeeds (= yes). AIPP Lecture 2: Prolog Fundamentals

  18. Re-trying Goals – Câu truy vấn có nhiều đáp số • When a question is asked with a variable as an argument (e.g. greet(Anybody).)we canask the Prolog interpreter for multiple answers using: ; | ?- greet(Anybody). How are you doin, pal? Anybody = hamish? ;  “Redo that match.” Anybody = amelia? ;  “Redo that match.” no  “Fail as no more matches.” • This fails the last clause used and searches down the program for another that matches. • RETURN = accept the match • ; = reject that match AIPP Lecture 2: Prolog Fundamentals

  19. greet(Anybody):- write('Hullo '), write(Anybody). | ?- greet(hamish). Hullo hamish? yes Ordering of clauses (Thứ tự các câu là quan trọng) • The order of multiple clauses is important. greet(hamish):- write('How are you doin, pal?'). greet(amelia):- write('Awfully nice to see you!'). • The most specific clause should always be at the top. • General clauses (containing variables) at the bottom. AIPP Lecture 2: Prolog Fundamentals

  20. | ?- greet(hamish). How are you doin, pal?. yes greet(Anybody):- write('Hullo '), write(Anybody). Ordering of clauses (thứ tự các câu) • The order of multiple clauses is important. • greet(hamish):- • write('How are you doin, pal?'). • greet(amelia):- • write('Awfully nice to see you!'). • The most specific clause should always be at the top. • General clauses (containing variables) at the bottom. AIPP Lecture 2: Prolog Fundamentals

  21. Unification (hợp nhất hai hạng thức) • When two terms match we say that they unify. • Their structures and arguments are compatible. • This can be checked using =/2 |?- loves(john,X) = loves(Y,mary). X = mary,  unification leads to instantiation Y = john?  yes Terms that unifyOutcome fred = fred. yes. ‘Hey you’ = ‘Hey you’. yes fred=X. X=fred. X=Y. Y = X. foo(X) = foo(bar). X=bar. foo(N,N) = foo(bar,X). N=bar, X=bar. foo(foo(bar)) = foo(X) X = foo(bar) Terms that don’t unify fred = jim. ‘Hey you’ = ‘Hey me’. frou(frou) = f(frou). foo(bar) = foo(bar,bar). foo(N,N) = foo(bar,rab). AIPP Lecture 2: Prolog Fundamentals

  22. We can ask about facts directly: |?- mother(X,alan). X = jane? Yes Or we can define rules that prove if a property or relationship holds given the facts currently in the database. |?- parent(jane,X). X = alan? yes mother(jane,alan). father(john,alan). parent(Mum,Child):- mother(Mum,Child). parent(Dad,Child):- father(Dad,Child). Asking questions of the databaseTruy vấn cơ sở dữ liệu AIPP Lecture 2: Prolog Fundamentals

  23. Summary • Prolog program consist of clauses. • A clause has a head and a body (Rule) or just a head (Fact). • A head consists of a predicate name and arguments. • A clause body consists of a conjunction of terms. • Terms can be constants, variables, or compound terms. • We can set our program goals by typing a command that unifies with a clause head. • A goal unifies with clause heads in order (top down). • Unification leads to the instantiation of variables to values. • If any variables in the initial goal become instantiated this is reported back to the user. AIPP Lecture 2: Prolog Fundamentals

  24. II. Suy diễn trong prolog (kiểm tra, suy diễn lùi, đệ qui) AIPP Lecture 2: Prolog Fundamentals

  25. Tests – Kiểm tra • When we ask Prolog a question we are asking for the interpreter to prove that the statement is true. ?- 5 < 7, integer(bob). yes = the statement can be proven. no = the proof failed because either • the statement does not hold, or • the program is broken. Error= there is a problem with the question or program. *nothing* = the program is in an infinite loop. • We can ask about: • Properties of the database: mother(jane,alan). • Built-in properties of individual objects: integer(bob). • Absolute relationships between objects: • Unification: =/2 • Arithmetic relationships: <, >, =<, >=, =:=, +, -, *, / AIPP Lecture 3: Rules, Results, and Backtracking

  26. Arithmetic Operators – Các phép toán số • Operators for arithmetic and value comparisons are built-in to Prolog = always accessible / don’t need to be written • Comparisons: <, >, =<, >=, =:=(equals),=\=(not equals) = Infix operators: go between two terms. =</2 is used • 5 =< 7. (infix) • =<(5,7). (prefix)  all infix operators can also be prefixed • Equality is different from unification =/2 checks if two terms unify =:=/2 compares the arithmetic value of two expressions ?- X=Y. ?- X=:=Y. ?-X=4,Y=3, X+2 =:= Y+3. yes Instantiation error X=4, Y=3? yes AIPP Lecture 3: Rules, Results, and Backtracking

  27. Arithmetic Operators (2) • Arithmetic Operators: +, -, *, / = Infix operators but can also be used as prefix. • Need to use is/2 to access result of the arithmetic expression otherwise it is treated as a term: |?- X = 5+4. |?- X is 5+4. X = 5+4 ? X = 9 ? yes yes (Can X unify with 5+4?)(What is the result of 5+4?) • Mathematical precedence is preserved: /, *, before +,- • Can make compound sums using round brackets • Impose new precedence • Inner-most brackets first | ?- X is (5+4)*2. X = 18 ? yes | ?- X is 5+4*2. X = 13 ? yes AIPP Lecture 3: Rules, Results, and Backtracking

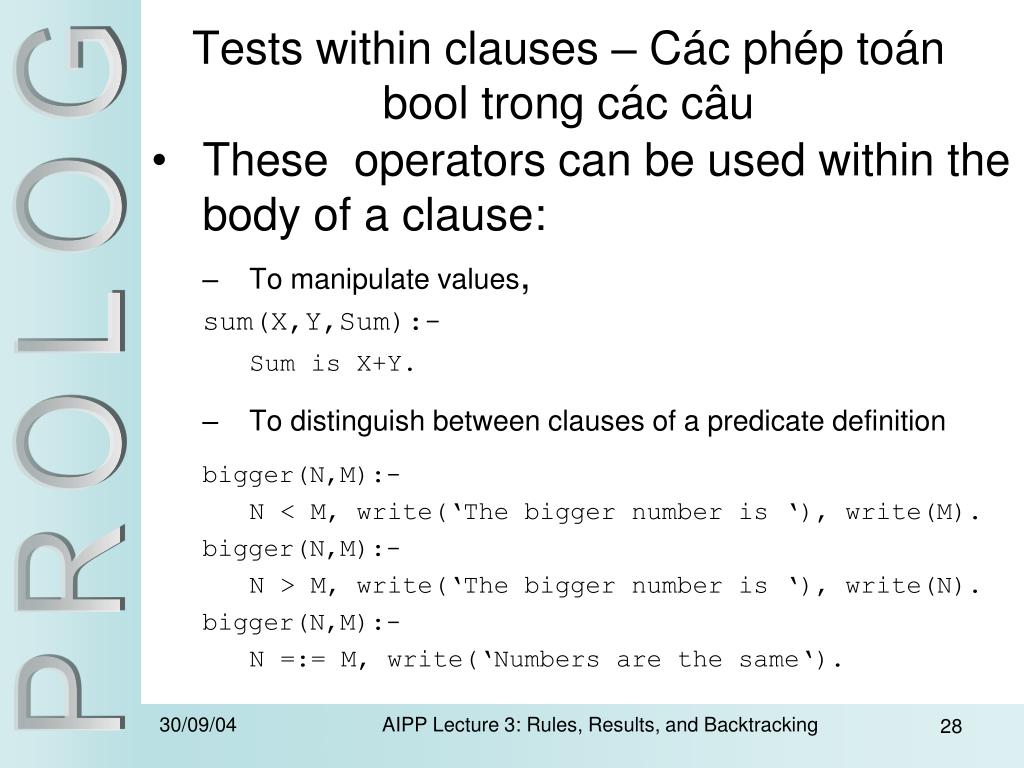

  28. Tests within clauses – Các phép toán bool trong các câu • These operators can be used within the body of a clause: • To manipulate values, sum(X,Y,Sum):- Sum is X+Y. • To distinguish between clauses of a predicate definition bigger(N,M):- N < M, write(‘The bigger number is ‘), write(M). bigger(N,M):- N > M, write(‘The bigger number is ‘), write(N). bigger(N,M):- N =:= M, write(‘Numbers are the same‘). AIPP Lecture 3: Rules, Results, and Backtracking

  29. Backtracking – Suy diễn lùi |?- bigger(5,4). bigger(N,M):- N < M, write(‘The bigger number is ‘), write(M). bigger(N,M):- N > M, write(‘The bigger number is ‘), write(N). bigger(N,M):- N =:= M, write(‘Numbers are the same‘). AIPP Lecture 3: Rules, Results, and Backtracking

  30. Backtracking – Suy diễn lùi • |?- bigger(5,4). • bigger(5,4):- • 5 < 4, fails • write(‘The bigger number is ‘), write(M). • bigger(N,M):- • N > M, • write(‘The bigger number is ‘), write(N). • bigger(N,M):- • N =:= M, • write(‘Numbers are the same‘). Backtrack AIPP Lecture 3: Rules, Results, and Backtracking

  31. Backtracking – Suy diễn lùi • |?- bigger(5,4). • bigger(N,M):- • N < M, • write(‘The bigger number is ‘), write(M). • bigger(5,4):- • 5 > 4, • write(‘The bigger number is ‘), write(N). • bigger(N,M):- • N =:= M, • write(‘Numbers are the same‘). AIPP Lecture 3: Rules, Results, and Backtracking

  32. Backtracking – Suy diễn lùi • |?- bigger(5,4). • bigger(N,M):- • N < M, • write(‘The bigger number is ‘), write(M). • bigger(5,4):- • 5 > 4, succeeds, go on with body. • write(‘The bigger number is ‘), write(5). • The bigger number is 5 • yes • |?- Reaches full-stop = clause succeeds AIPP Lecture 3: Rules, Results, and Backtracking

  33. Backtracking – Suy diễn lùi • |?- bigger(5,5).  If our query only matches the final clause • bigger(N,M):- • N < M, • write(‘The bigger number is ‘), write(M). • bigger(N,M):- • N > M, • write(‘The bigger number is ‘), write(N). • bigger(5,5):- • 5 =:= 5, • write(‘Numbers are the same‘).  Is already known as the first two clauses failed. AIPP Lecture 3: Rules, Results, and Backtracking

  34. Clauses should be ordered according to specificity Most specific at top Universally applicable at bottom Backtracking – Suy diễn lùi • |?- bigger(5,5).  If our query only matches the final clause • bigger(N,M):- • N < M, • write(‘The bigger number is ‘), write(M). • bigger(N,M):- • N > M, • write(‘The bigger number is ‘), write(N). • bigger(5,5):- • write(‘Numbers are the same‘). • Numbers are the same • yes  Satisfies the same conditions. AIPP Lecture 3: Rules, Results, and Backtracking

  35. Satisfying Subgoals – Đích trung gian • Most rules contain calls to other predicates in their body. These are known as Subgoals. • These subgoals can match: • facts, • other rules, or • the same rule = a recursive call 1) drinks(alan,beer). 2) likes(alan,coffee). 3) likes(heather,coffee). 4) likes(Person,Drink):- drinks(Person,Drink).  a different subgoal 5) likes(Person,Somebody):- likes(Person,Drink),  recursive subgoals likes(Somebody,Drink).  AIPP Lecture 3: Rules, Results, and Backtracking

  36. Representing Proof using TreesCây biểu diễn chứng minh To help us understand Prolog’s proof strategy we can represent its behaviour using AND/OR trees. • Query is the top-most point (node) of the tree. • Tree grows downwards (looks more like roots!). • Each branch denotes a subgoal. • The branch is labelled with the number of the matching clause and • any variables instantiated when matching the clause head. • Each branch ends with either: • A successful match , • A failed match , or • Another subgoal. |?- likes(alan,X). 2 X/coffee 1st solution = “Alan likes coffee.” X = coffee AIPP Lecture 3: Rules, Results, and Backtracking

  37. Representing Proof using Trees (2) • Using the tree we can see what happens when we ask • for another match ( ; ) |?- likes(alan,X). Backtracking 2 4 X/coffee X = coffee drinks(alan,X). 1st match is failed and forgotten 1 X/beer X = beer 2nd solution = “Alan likes beer because Alan drinks beer.” AIPP Lecture 3: Rules, Results, and Backtracking

  38. Recursion using Trees Cây đệ qui • When a predicate calls itself within its body we say • the clause is recursing |?- likes(alan,X). Conjoined subgoals 2 5 X/coffee 4 X = coffee drinks(alan,X). likes(alan,Drink) likes(Somebody,Drink) 2 X/coffee 1 X/beer X = beer X = coffee AIPP Lecture 3: Rules, Results, and Backtracking

  39. Recursion using Trees (2) • When a predicate calls itself within its body we say • the clause is recursing |?- likes(alan,X). 2 5 X/coffee 4 X = coffee drinks(alan,X). likes(alan,coffee) likes(Somebody,coffee) 2 X/coffee 1 X/beer Somebody /alan 2 X = beer X = coffee Somebody = alan 3rd solution = “Alan likes Alan because Alan likes coffee.” AIPP Lecture 3: Rules, Results, and Backtracking

  40. Recursion using Trees (3) • When a predicate calls itself within its body we say • the clause is recursing |?- likes(alan,X). 2 5 X/coffee 4 X = coffee drinks(alan,X). likes(Somebody,coffee) likes(alan,coffee) 1 X/beer Somebody / heather 3 Somebody /alan X/coffee 2 X = beer 2 X = coffee Somebody = heather 4th solution = “Alan likes Heather because Heather likes coffee.” Somebody = alan AIPP Lecture 3: Rules, Results, and Backtracking

  41. Infitite Recursive Loop • If a recursive clause is called with an incorrect goal it will loop • as it can neither prove it • nor disprove it. likes(Someb,coffee) Somebody = alan 3 5 2 likes(Someb,coffee) 2 Somebody = heather likes(coffee,coffee) Someb = alan likes(coffee,X) likes(coffee,X) likes(coffee,X2) likes(X,X2) likes(coffee,X3) likes(X2,X3) AIPP Lecture 3: Rules, Results, and Backtracking

  42. II. CUT và phủ định và findall AIPP Lecture 2: Prolog Fundamentals

  43. CUT a(X, Y) :- b(X), !, c(Y). b(1). b(2). b(3). c(1). c(2). c(3). ------------------ Kết quả truy vấn thế nào? ?- a(Q, R). Q = 1, R = 1 ; Q = 1, R = 2 ; Q = 1, R = 3. Tai sao? AIPP Lecture 2: Prolog Fundamentals

  44. CUT a(X) :- b(X), !, c(X). b(1). b(2). b(3). c(2). ---------------------- ?- a(Q). false. ?- a(2). true. Tại sao? AIPP Lecture 2: Prolog Fundamentals

  45. Green Cuts ! (Sử dụng CUT khi nào?) |?- trace, f(2,N). 1 1 Call: f(2,_487) ? 2 2 Call: 2<3 ? 2 2 Exit: 2<3 ? ? 1 1 Exit: f(2,0) ? N = 0 ? ; no f(X,0):- X < 3, !. f(X,1):- 3 =< X, X < 6, !. f(X,2):- 6 =< X. • Notice that the answer is still the same, with or without the cut. • This is because the cut does not alter the logical behaviour of the program. • It only alters the procedural behaviour: specifying which goals get checked when. • This is called a green cut. It is the correct usage of a cut. • Be careful to ensure that your clauses are actually mutually exclusive when using green cuts! If you reach this point don’t bother trying any other clause. AIPP Lecture 7: The Cut

  46. Red Cuts ! (Không sử dụng CUT khi nào?) | ?- f(7,N). 1 1 Call: f(7,_475) ? 2 2 Call: 7<3 ? 2 2 Fail: 7<3 ? 3 2 Call: 3=<7 ? 3 2 Exit: 3=<7 ? 4 2 Call: 7<6 ? 4 2 Fail: 7<6 ? 5 2 Call: 6=<7 ? 5 2 Exit: 6=<7 ? 1 1 Exit: f(7,2) ? N = 2 ? yes f(X,0):- X < 3, !. f(X,1):- 3 =< X, X < 6, !. f(X,2):- 6 =< X. • Because the clauses are mutually exclusive and ordered we know that once the clause above fails certain conditions must hold. • We might want to make our code more efficient by removing superfluous tests. Redundant? AIPP Lecture 7: The Cut

  47. Phủ định parents(a,b). parents(c,d). parents(b,c). parents(a,e). nochild(X):- \+ parents(X,_). ------------------------ ?- parents(f,X). false. ?- nochild(a). false. ?- nochild(e). true. \+ X means not(X) that is the way to implement negation in Prolog; however not(X) does not mean that X is false, it means that X can't be proved true from the database. AIPP Lecture 2: Prolog Fundamentals

  48. Phủ định (tiếp) • Kiểm tra một số có là nguyên tố?. is_prime(2). is_prime(3). is_prime(P):-integer(P), P>3, P mod 2 =\= 0, \+ has_factor(P,3). has_factor(P,N):- P mod N =:=0. has_factor(P,N):- L is N+2, L*L<P, has_factor(P,L). ------------------------ ?- is_prime(97). true. ?- is_prime(18). false. AIPP Lecture 2: Prolog Fundamentals

  49. findall parents(a,b). parents(c,d). parents(b,c). parents(a,e). --------------- ?- parents(a,X). X = b ; X = e. ?- findall(X,parents(a,X),F). F = [b, e] ?- findall([X,Y],parents(X,Y),F). F = [[a, b], [c, d], [b, c], [a, e]]. Sử dụng dấu “;” nếu muốn Prolog in các kết quả khác Vị từ xây dựng sẵn trong Prolog cho phép tìm tập F gồm tất cả các X thỏa mãn parents(a,X). AIPP Lecture 2: Prolog Fundamentals

  50. Bài tập chữa trên lớp • Tim phan tu cuoi cung cua mot danh sach. Chu y: [X|R]: X la 1 phan tu, R la 1 list. 2. Hoanvi 3. Sap xep danh sach 4. Giai phuong trinh bac nhat 5. Hop va giao 2 tap hop. 6. Thay the 1 ky tu boi 1 ky tu khac trong danh sach 7. Trich xau con tu vi tri K den L cua mot xau. 8. Tim thua so chung lon nhat 2 so 9. Do thi va tim duong di trong do thi. AIPP Lecture 2: Prolog Fundamentals
