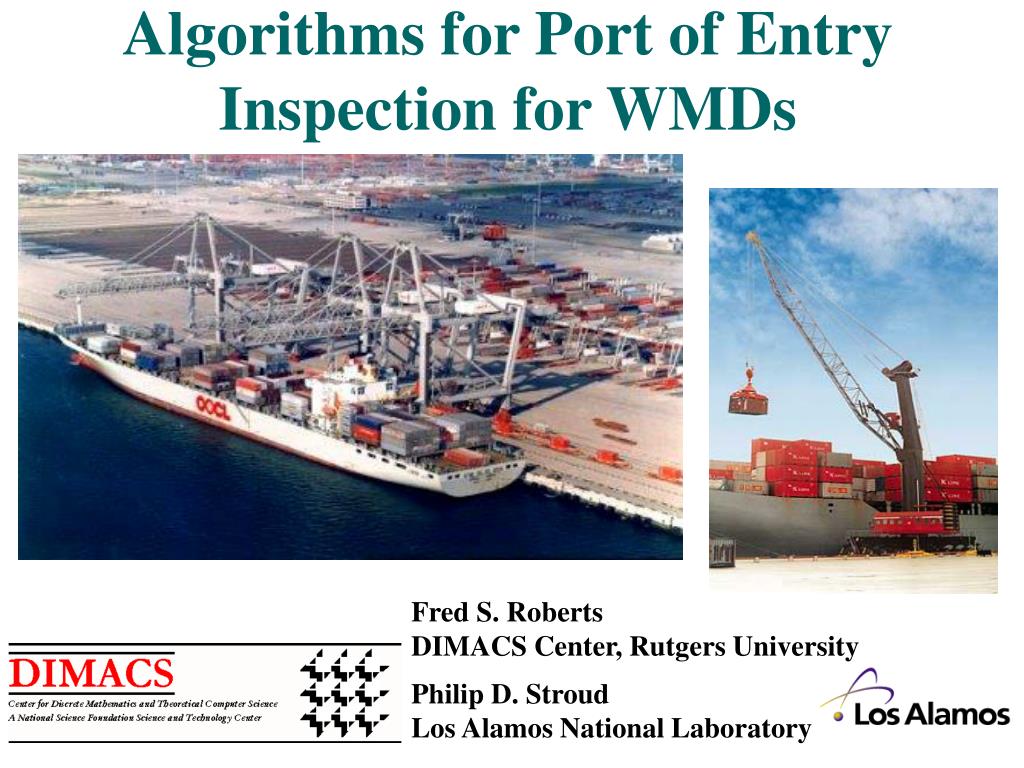

  1. Algorithms for Port of Entry Inspection for WMDs Fred S. Roberts DIMACS Center, Rutgers University Philip D. Stroud Los Alamos National Laboratory

  2. Port of Entry Inspection Algorithms • Goal: Find ways to intercept illicit • nuclear materials and weapons • destined for the U.S. via the • maritime transportation system • Currently inspecting only small • % of containers arriving at ports • Even inspecting 8% of containers in Port of NY/NJ might bring international trade to a halt (Larrabbee 2002)

  3. Aim: Develop decision support algorithms that will help us to “optimally” intercept illicit materials and weapons subject to limits on delays, manpower, and equipment • Find inspection schemes that minimize total “cost” including “cost” of false positives and false negatives Port of Entry Inspection Algorithms Mobile Vacis: truck-mounted gamma ray imaging system

  4. Stream of containers arrives at a port • The Decision Maker’s Problem: • Which to inspect? • Which inspections next based on previous results? • Approach: • “decision logics” • combinatorial optimization methods • Builds on ideas of Stroud and Saeger at Los Alamos National Laboratory • Need for new models • and methods Sequential Decision Making Problem

  5. Such sequential diagnosis problems arise in many areas: • Communication networks (testing connectivity, paging cellular customers, sequencing tasks, …) • Manufacturing (testing machines, fault diagnosis, routing customer service calls, …) • Artificial intelligence/CS (optimal derivation strategies in knowledge bases, best-value satisficing search, coding decision trees, …) • Medicine (diagnosing patients, sequencing treatments, …) Sequential Diagnosis Problem

  6. Containersarriving to be classified into categories. • Simple case: 0 = “ok”, 1 = “suspicious” • Inspection scheme: specifies which inspections are to be made based on previous observations Sequential Decision Making Problem

  7. Containers have attributes, each • in a number of states • Sample attributes: • Levels of certain kinds of chemicals or biological materials • Whether or not there are items of a certain kind in the cargo list • Whether cargo was picked up in a certain port Sequential Decision Making Problem

  8. Currently used attributes: • Does ship’s manifest set off an “alarm”? • What is the neutron or Gamma emission count? Is it above threshold? • Does a radiograph image come up positive? • Does an induced fission test come up positive? Sequential Decision Making Problem Gamma ray detector

  9. We can imagine many other attributes • This project is concerned with general algorithmic approaches. • We seek a methodology not tied to today’s technology. • Detectors are evolving quickly. Sequential Decision Making Problem

  10. Simplest Case: Attributes are in state 0 or 1 • Then: Container is a binary string like 011001 • So: Classification is a decision functionF that assigns each binary string to a category. Sequential Decision Making Problem 011001 F(011001) If attributes 2, 3, and 6 are present and others are not, assign container to category F(011001).

  11. If there are two categories, 0 and 1, decision function F is a boolean function. • Example: • F(000) = F(111) = 1, F(abc) = 0 otherwise • This classifies a container as positive iff it has none of the attributes or all of them. Sequential Decision Making Problem 1 =

  12. Sequential Decision Making Problem • Given a container, test its attributes until know enough to calculate the value of F. • An inspection scheme tells us in which order to test the attributes to minimize cost. • Even this simplified problem is hard computationally.

  13. This assumes F is known. • Simplifying assumption: Attributes are independent. • At any point we can stop inspecting and output the value of F based on outcomes of inspections so far. • Complications: May be precedence relations in the components (e.g., can’t test attribute a4 before testing a6. • Or: cost may depend on attributes tested before. • F may depend on variables that cannot be directly tested or for which tests are too costly. Sequential Decision Making Problem

  14. Such problems are hard computationally. • There are many possible boolean functions F. • Even if F is fixed, problem of finding a good classification scheme (to be defined precisely below) is NP-complete. • Several classes of functions F allow for efficient inspection schemes: • k-out-of-n systems • Certain series-parallel systems • Read-once systems • “regular” systems • Horn systems Sequential Decision Making Problem

  15. n types of sensors measure presence or absence of the n attributes. • Many copies of each sensor. • Complication: different characteristics of sensors. • Entities come for inspection. • Which sensor of a given type to • use? • Think of inspection lanes and • queues. • Besides efficient inspection • schemes, could decrease costs by: • Buying more sensors • Change allocation of containers to sensor lanes. Sensors and Inspection Lanes

  16. Sensors measure presence/absence of attributes. • Binary Decision Tree (BDT): • Nodes are sensors or categories (0 or 1) • Two arcs exit from each sensor node, labeled left and right. • Take the right arc when sensor says the attribute is present, left arc otherwise Binary Decision Tree Approach

  17. Reach category 1 from the root only through the path a0 to a1 to 1. • Container is classified in category 1 iff it has both attributes a0 and a1 . • Corresponding boolean function F(11) = 1, F(10) = F(01) = F(00) = 0. Binary Decision Tree Approach Figure 1

  18. Reach category 1 from the root by: • a0 L to a1 R a2 R 1 or • a0 R a2 R1 • Container classified in category 1 iff it has • a1 and a2 and not a0 or • a0 and a2 and possibly a1. • Corresponding boolean function F(111) = F(101) = F(011) = 1, F(abc) = 0 otherwise. Binary Decision Tree Approach Figure 2

  19. This binary decision tree corresponds to the same boolean function • F(111) = F(101) = F(011) = 1, F(abc) = 0 otherwise. • However,it has one less observation node ai. So, it is more efficient if all observations are equally costly and equally likely. Binary Decision Tree Approach Figure 3

  20. Even if the boolean function F is fixed, the problem of finding the “optimal” binary decision tree for it is very hard (NP-complete). • For small n = number of attributes, can try to solve it by brute force enumeration. • Even for n = 4, not practical. • (n = 4 at Port of Long Beach-Los Angeles) Binary Decision Tree Approach Port of Long Beach

  21. Promising Approaches: • Heuristic algorithms, approximations to optimal. • Special assumptions about the boolean function F. • For “monotone” boolean functions, integer programming formulations give promising heuristics. • Stroud and Saeger enumerate all • “complete,” monotone boolean functions • and calculate the least expensive • corresponding binary decision trees. • Their method practical for n up to 4, • not n = 5. Binary Decision Tree Approach

  22. Monotone Boolean Functions: • Given two strings x1x2…xn, y1y2…yn • Suppose that xi yi for all i implies that F(x1x2…xn)  F(y1,y2…yn). • Then we say that F is monotone. • Then 11…1 has highest probability of being in category 1. Binary Decision Tree Approach

  23. Incomplete Boolean Functions: • Boolean function F is incomplete if F can be calculated by finding at most n-1 attributes and knowing the value of the input string on those attributes • Example: F(111) = F(110) = F(101) = F(100) = 1, F(000) = F(001) = F(010) = F(011) = 0. • F(abc) is determined without knowing b (or c). • F is incomplete. Binary Decision Tree Approach

  24. Complete, Monotone Boolean Functions: • Stroud and Saeger: “brute force” algorithm for enumerating binary decision trees implementing complete, monotone boolean functions and choosing least cost BDT. • Feasible to implement up to n = 4. • n = 2: • There are 6 monotone boolean functions. • Only 2 of them are complete, monotone • There are 4 binary decision trees for calculating these 2 complete, monotone boolean functions. Binary Decision Tree Approach

  25. Complete, Monotone Boolean Functions: • n = 3: • 9 complete, monotone boolean functions. • 60 distinct binary trees for calculating them • n = 4: • 114 complete, monotone boolean functions. • 11,808 distinct binary decision trees for calculating them. • (Compare 1,079,779,602 BDTs for all boolean functions) Binary Decision Tree Approach

  26. Complete, Monotone Boolean Functions: • n = 5: • 6894 complete, monotone boolean functions • 263,515,920 corresponding binary decision trees. • Combinatorial explosion! • Need alternative approaches; enumeration not feasible! • (Even worse: compare 5 x 1018 BDTs corresponding to all boolean functions) Binary Decision Tree Approach

  27. Cost Functions • Stroud-Saeger method applies to more sophisticated cost models, not just cost = number of sensors in the BDT. • Using a sensor has a cost: • Unit cost of inspecting one item with it • Fixed cost of purchasing and deploying it • Delay cost from queuing up at the sensor station • Preliminary problem: disregard fixed and delay costs. Minimize unit costs.

  28. Tradeoff between fixed costs and delay costs: Add more sensors cuts down on delays. • Stochastic process of containers arriving • Distribution of delay times for inspections • Use queuing theory to find average delay times under different models Cost Functions: Delay Costs

  29. Cost Functions:Unit CostsTree Utilization • Complication: Assume cost depends on how many nodes of BDT are actually visited during an “average” container’s inspection. (This is sum of unit costs.) • Depends on characteristics of population of entities being inspected. • I.e., depends on “distribution” of containers. • In our early models, we assume we are given probability of sensor errors and probability of bomb in a container. • This allows us to calculate “expected” cost of utilization of the tree Cutil.

  30. Cost Functions • Cost of false positive: Cost of additional tests. • If it means opening the container, it’s very expensive. • Cost of false negative: • Complex issue. • What is cost of a bomb going off in Manhattan?

  31. One Approach to False Positives/Negatives: • Assume there can be Sensor Errors • Simplest model: assume that all sensors checking for attribute ai have same fixed probability of saying ai is 0 if in fact it is 1, and similarly saying it is 1 if in fact it is 0. • More sophisticated analysis later describes a model for determining probabilities of sensor errors. • Notation: X = state of nature (bomb or no bomb) • Y = outcome (of sensor or entire inspection process). Cost Functions: Sensor Errors

  32. A A B 0 B 0 C 1 C 1 1 0 1 0 Probability of Error for The Entire Tree State of nature is one (X = 1), presence of a bomb State of nature is zero (X = 0), absence of a bomb Probability of false positive (P(Y=1|X=0)) for this tree is given by Probability of false negative (P(Y=0|X=1)) for this tree is given by P(Y=1|X=0) = P(YA=1|X=0) * P(YB=1|X=0) + P(YA=1|X=0) *P(YB=0|X=0)* P(YC=1|X=0) Pfalsepositive P(Y=0|X=1) = P(YA=0|X=1) + P(YA=1|X=1) *P(YB=0|X=1)*P(YC=0|X=1) Pfalsenegative

  33. Cost Function used for Evaluating the Decision Trees. CTot =CFalsePositive *PFalsePositive + CFalseNegative *PFalseNegative+ Cutil CFalsePositive is the cost of false positive (Type I error) CFalseNegative is the cost of false negative (Type II error) PFalsePositive is the probability of a false positive occurring PFalseNegative is the probability of a false negative occurring Cutil is the expected cost of utilization of the tree.

  34. Stroud Saeger Experiments • Stroud-Saeger ranked all trees formed from 3 or 4 sensors A, B, C and D according to increasing tree costs. • Used cost function defined above. • Values used in their experiments: • CA = .25; P(YA=1|X=1) = .90; P(YA=1|X=0) = .10; • CB = 10; P(YC=1|X=1) = .99; P(YB=1|X=0) = .01; • CC = 30; P(YD=1|X=1) = .999; P(YC=1|X=0) = .001; • CD = 1; P(YD=1|X=1) = .95; P(YD=1|X=0) = .05; • Here, Ci = unit cost of utilization of sensor i. • Also fixed were: CFalseNegative, CFalsePositive, P(X=1)

  35. Stroud Saeger Experiments: Our Sensitivity Analysis • We have explored sensitivity of the Stroud-Saeger conclusions to variations in values of these three parameters. • We estimated high and low values for these parameters. n = 3 (use sensors A, B, C) • We chose one of the values from the interval of values and then explored the highest ranked tree as the other two were chosen at random in the interval of values. 10,000 experiments for each pair of fixed values. • We looked for the variation in the top-ranked tree and how the top-rank related to choice of parameter values. • Very surprising results.

  36. Stroud Saeger Experiments: Our Sensitivity Analysis • CFalseNegativewas varied between 25 million and 10 billion dollars • Low and high estimates of direct and indirect costs incurred due to a false negative. • CFalsePositive was varied between $180 and $720 • Cost incurred due to false positive (4 men * (3 -6 hrs) * (15 – 30 $/hr) • P(X=1)was varied between 1/10,000,000 and 1/100,000

  37. Frequency of Top-ranked Trees when CFalseNegative and CFalsePositive are Varied • 10,000 randomized experiments (randomly selected values of CFalseNegative and CFalsePositive from the specified range of values) for the median value of P(X=1). • The above graph has frequency counts of the number of experiments when a particular tree was ranked first or second, or third and so on. • Only three trees (7, 55 and 1) ever came first. 6 trees came second, 10 came third, 13 came fourth.

  38. Frequency of Top-ranked Trees when CFalseNegative and P(X=1) are Varied • 10,000 randomized experiments for the median value of CFalsePositive. • Only 2 trees (7 and 55) ever came first. 4 trees came second. 7 trees came third. 10 and 13 trees came 4th and 5th respectively.

  39. Frequency of Top-ranked Trees when P(X=1) and CFalsePositive are Varied • 10,000 randomized experiments for the median value of CFalseNegative. • Only 3 trees (7, 55 and 1) ever came first. 6 trees came second. 10 trees came third. 13 and 16 trees came 4th and 5th respectively.

  40. Values of CFalseNegative and CFalsePositive when Tree 7 was Ranked First • This is a graph of CFalsePositive against CFalseNegative values obtained from the randomized experiments. The black dots represent points at which tree 7 scored first rank.

  41. Values of CFalseNegative and CFalsePositive when Tree 55 was Ranked First • Tree 55 fills up the lower area in the range of CFalseNegative and CFalsePositive values.

  42. Values of CFalseNegative and CFalsePositive when Tree 1 was Ranked First • Tree 1 fills up the upper area in the range of CFalseNegative and CFalsePositive.

  43. Values of CFalseNegative and CFalsePositive for the Three First Ranked Trees • Trees 7, 55 and 1 fill up the entire area in the range of CFalseNegative and CFalsePositive among themselves.

  44. Tree 7 again fills up the major area in the range of CFalseNegative and P(X=1). Values of CFalseNegative and P(X=1) when Tree 7 was Ranked First

  45. Tree 55 fills up the rest of the area in the range of CFalseNegative and P(X=1). Values of CFalseNegative and P(X=1) when Tree 55 was Ranked First

  46. Together trees 7 and 55 fill up the entire region of CFalseNegative and P(X=1). Values of CFalseNegative and P(X=1) for First Ranked Trees

  47. Tree 7 fills up the major area in the range of CFalsePositive and P(X=1). Values of CFalsePositive and P(X=1) When Tree 7 was Ranked First

  48. Tree 55 fills up the upper area in the range of CFalsePositive and P(X=1). Values of CFalsePositive and P(X=1) when Tree 55 was Ranked First

  49. Tree 1 fills up the lower area in the range of CFalsePositive and P(X=1). Values of CFalsePositive and P(X=1) when Tree 1 was Ranked First

  50. Trees 7, 55 and 1 fill up the entire area in the range of CFalsePositive and P(X=1) among themselves. Values ofCFalsePositive and P(X=1) for First Ranked Trees
