  1. Drawing Hydrocarbon Structures

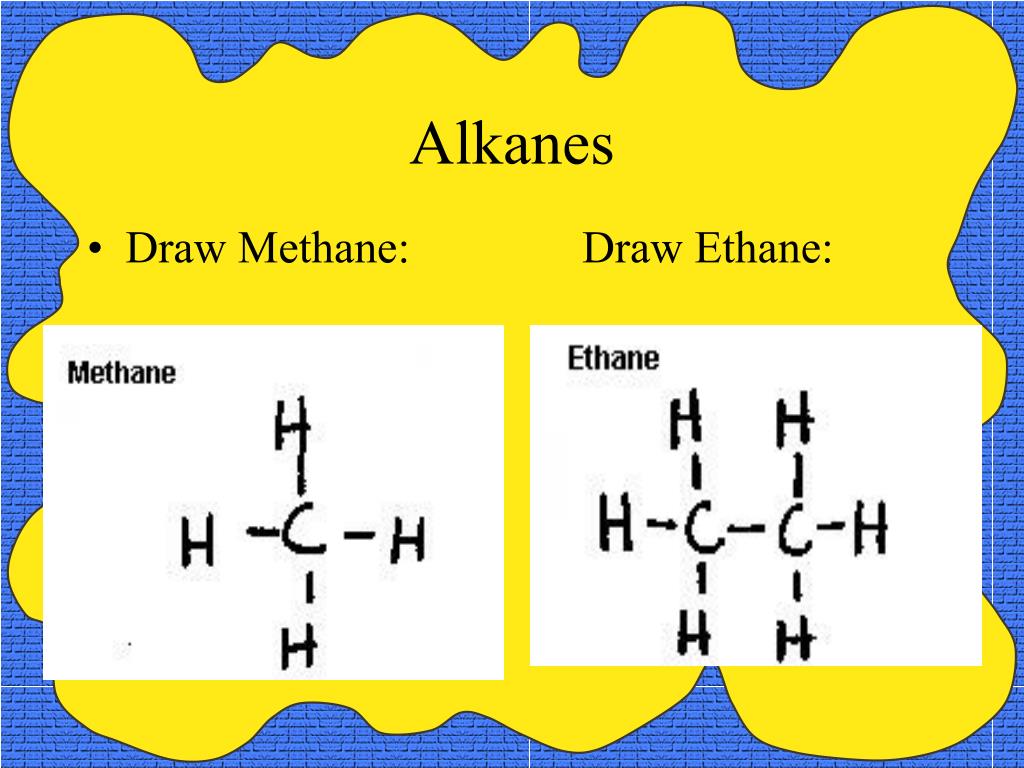

  2. Alkanes • Draw Methane: Draw Ethane:

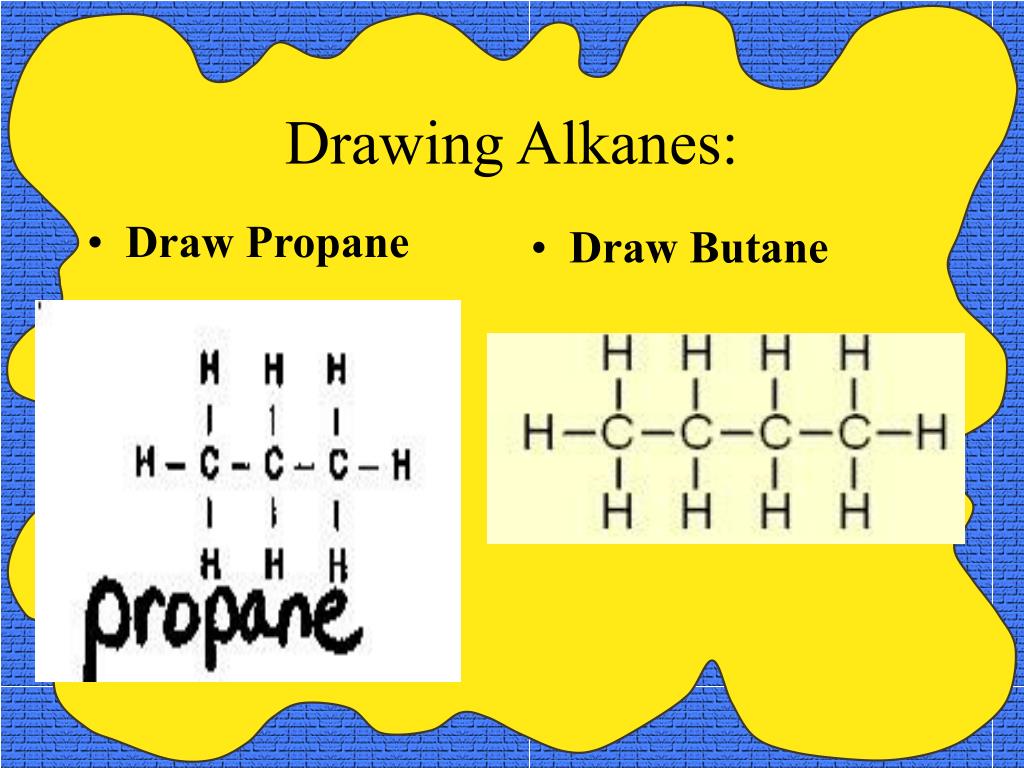

  3. Draw Propane Draw Butane Drawing Alkanes:

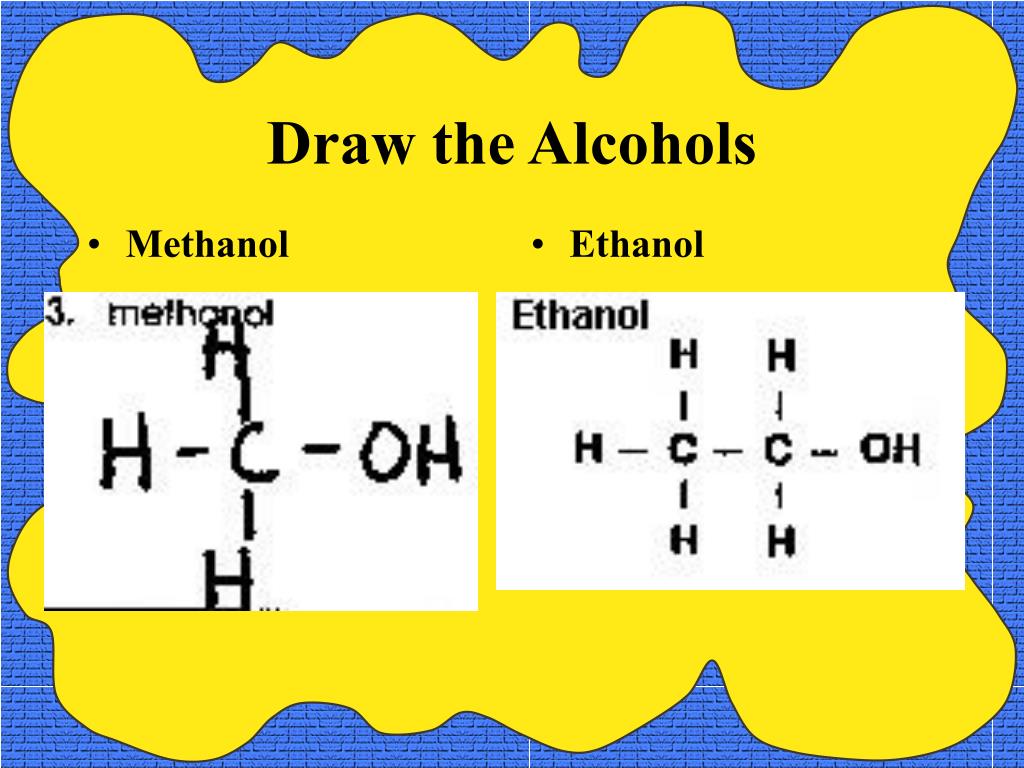

  4. Methanol Ethanol Draw the Alcohols

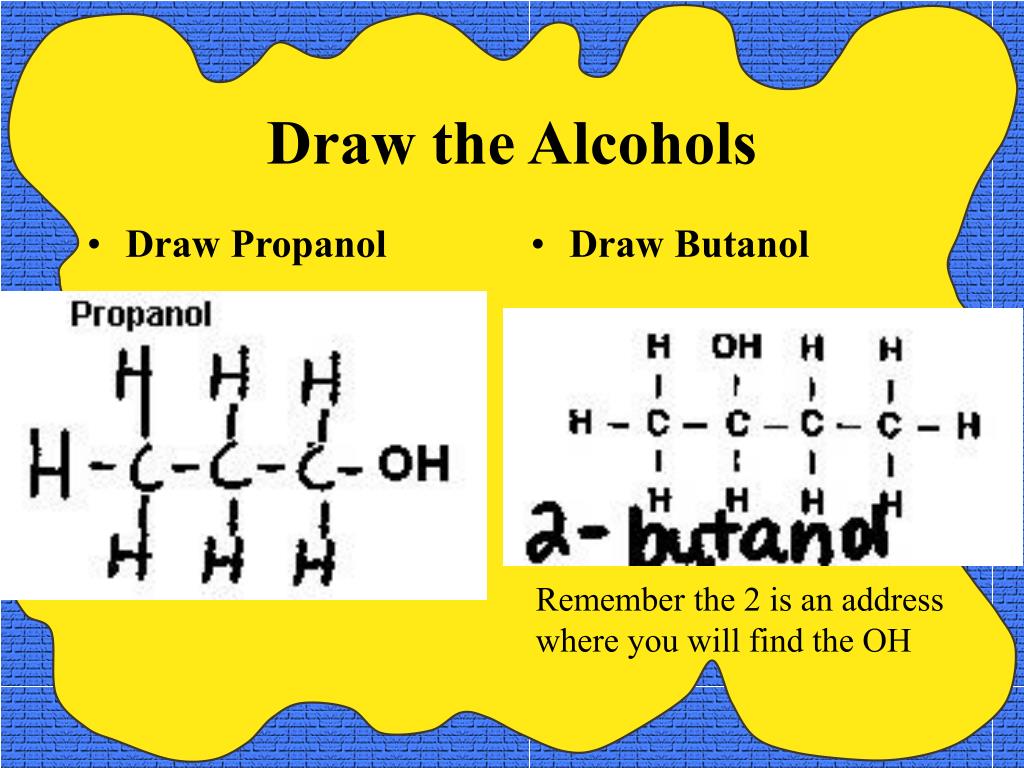

  5. Draw Propanol Draw Butanol Draw the Alcohols Remember the 2 is an addresswhere you will find the OH

  6. Draw Methanoic Acid Draw Ethanoic Acid Draw the Carboxylic Acid

  7. Draw Propanolic Acid Draw Butanolic Acid Draw the Carboxylic Acid

  8. Double & Triple Bonds

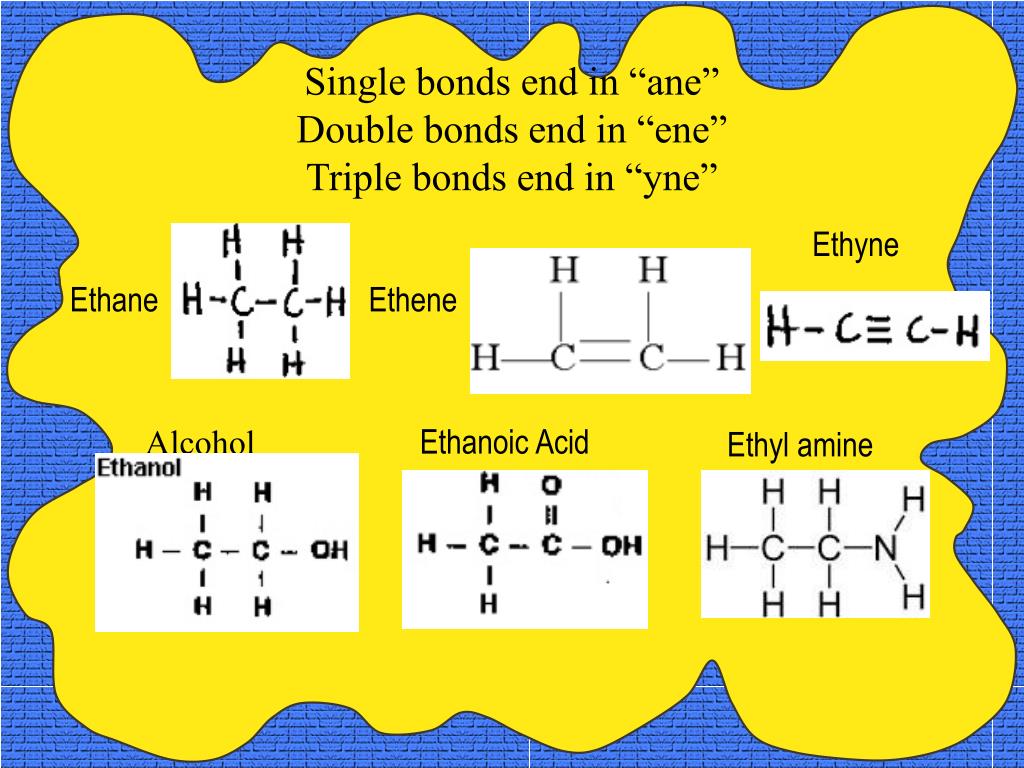

  9. Single bonds end in “ane”Double bonds end in “ene”Triple bonds end in “yne” Ethyne Ethane Ethene Ethanoic Acid Alcohol Ethyl amine

  10. Single bonds end in “ane”Double bonds end in “ene”Triple bonds end in “yne” Propane (3 Carbons) Propene propyne Propylamine Propanol Propanoic Acid or

  11. Butane Isomers: Same Formula/Different Structure Butene n or 1-butyne

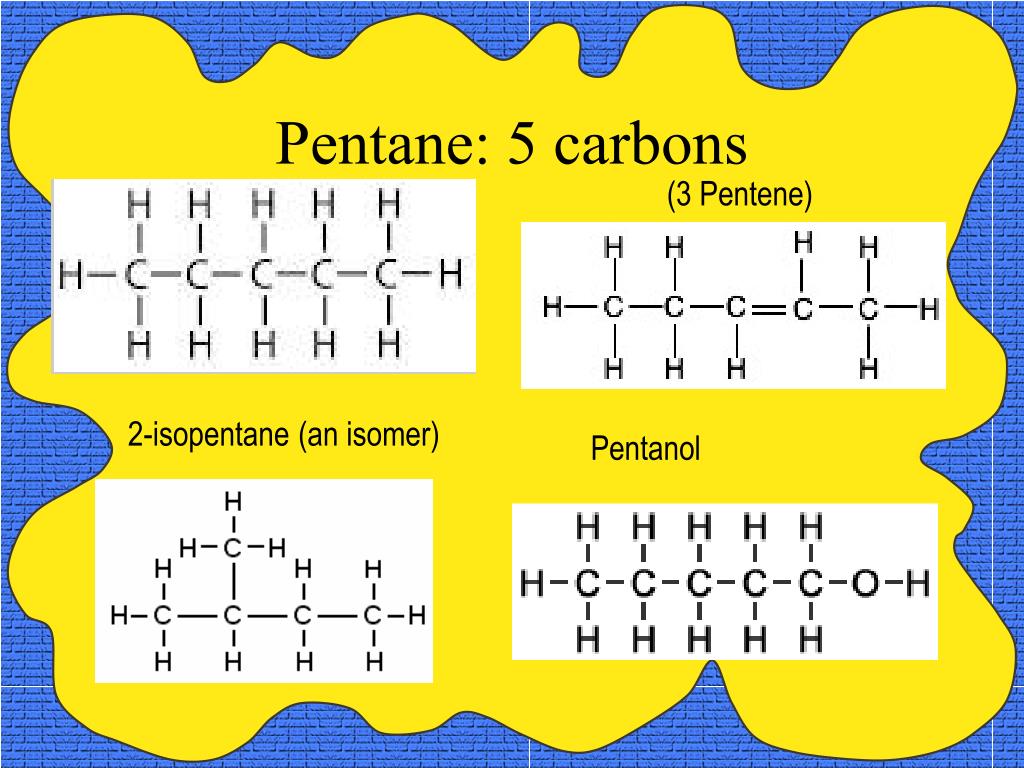

  12. Pentane: 5 carbons (3 Pentene) 2-isopentane (an isomer) Pentanol

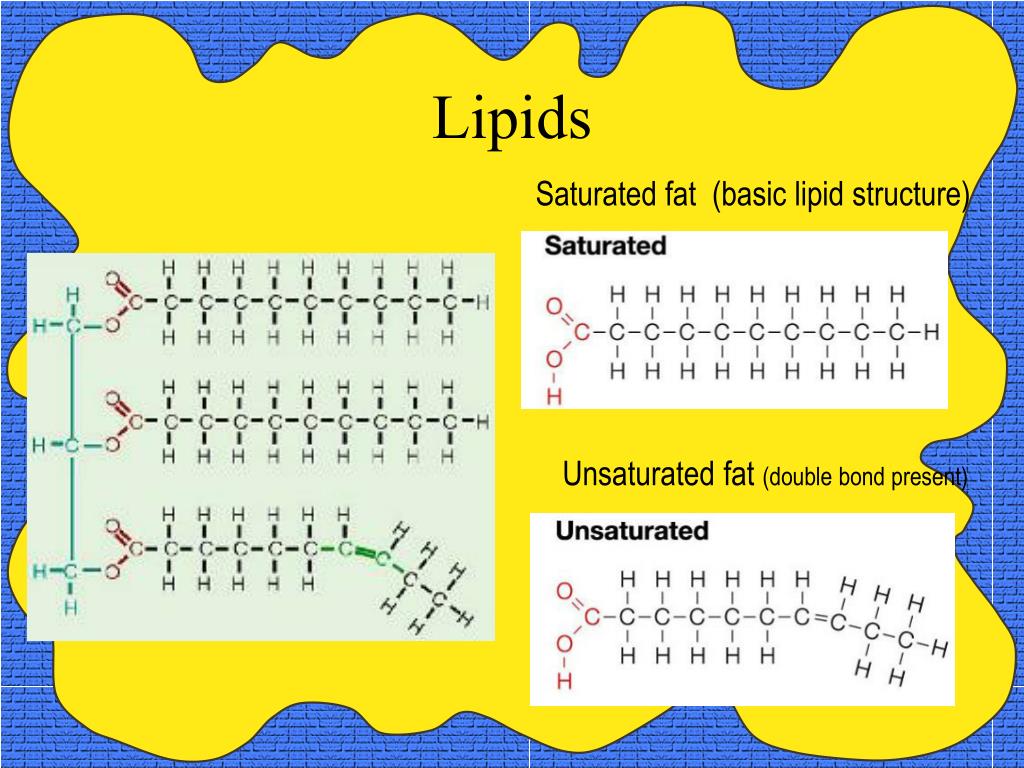

  13. Lipids Saturated fat (basic lipid structure) Unsaturated fat (double bond present)

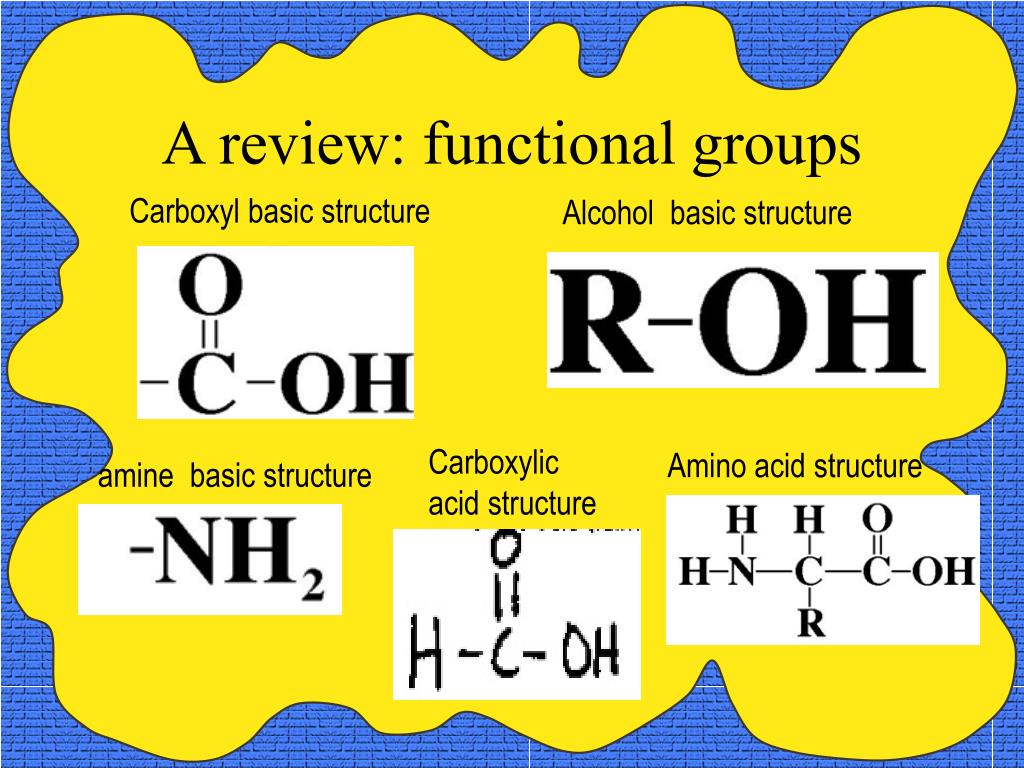

  14. A review: functional groups Carboxyl basic structure Alcohol basic structure Carboxylic acid structure Amino acid structure amine basic structure

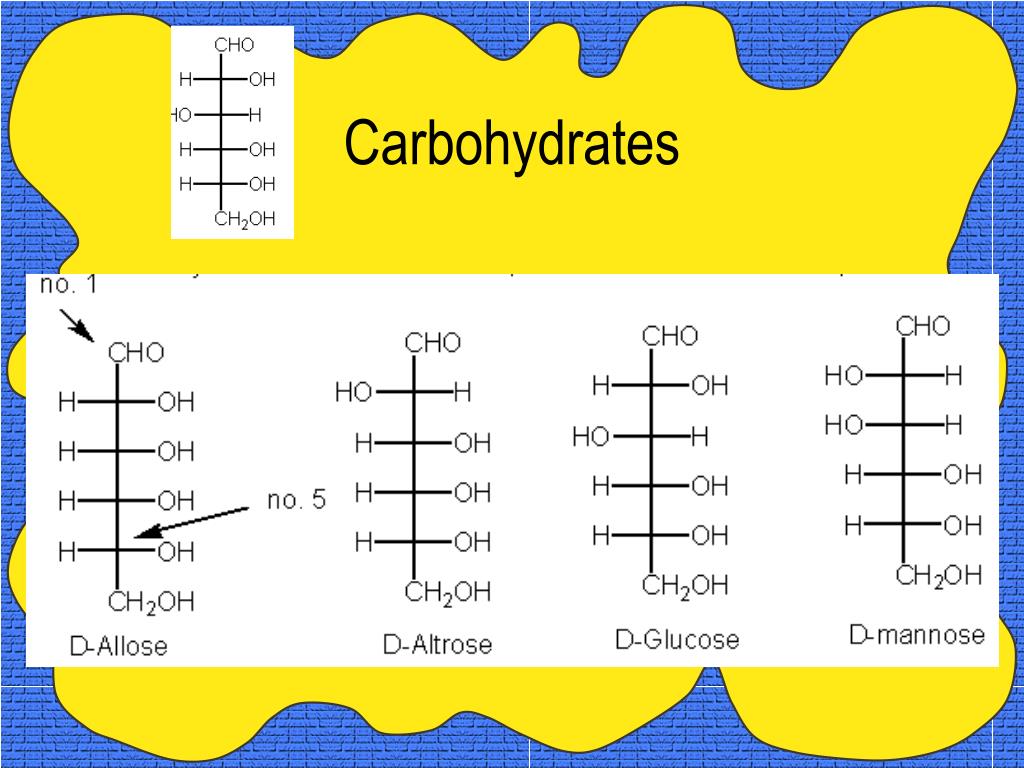

  15. Carbohydrates

  16. 7. It’s a Family Thing
