  1. Release BOM

  2. 點選 New Object後會出現New的視窗 Create New ECN

  3. Create New ECN 1 Type選取ECN 2 3 選取ECN 後，系統會自動跑出一個E開頭的ECNOK

  4. Cover PageAffected Model 1 選取有影響到的Model OK

  5. Cover PageReason Code 2 Reason Code選取N-02-BM Release

  6. Cover PageDescription of Change/Reason For Change Description of Change(這張ECN要做什麼) Reason For Change(為什麼要這樣做的理由，務必填寫 填寫Description及ReasonSave(一定要Save才能選Workflow) 3

  7. Cover PageWorkflow Workflow點選ECN(V1)Save，系統會從 Unassigned變成Create 4

  8. Page TwoAffected BU Page Two選取Affected BUSave 5

  9. Affected Items ASSY料號必須串完BOM才可放到上一階(可放在同一張ECN) 點選 會出現Add Affected Items視窗，在Item輸入欲串BOM的料號，若其子階也欲串BOMAdd Another(新增子階料號)Add

  10. Affected ItemsNew Rev/Lifecycle Phase 將滑鼠移到該料號上點一下，選取 輸入New Rev及選取Lifecycle PhaseOK New Rev的編碼原則：要上Batch的版本為３碼 第一碼為PCB版次(空板) 第二碼為Model Status(1表A-Test；2表B-Test；3表C-Test) 第三碼為Model Status的版次(EX：若PCB為B版，在B-Test有第一版，其編碼為B2A 不上Batch的版本為２碼，其編碼原則與Batch的後２碼相同 31KN1MB0070 41KN1CS0072,51KN1SS0075

  11. Import BOM 選取PDM上的ToolsImport

  12. Import BOM   1 • Import File：按瀏覽選取欲Import的Excel檔 • File Type：選取Excel WorkbookNext • PS：一般而言，系統做Import是抓Excel File的Sheet 1，若要選擇Sheet，可選步驟 的Configure選取 

  13. Import BOM 2 選取Item(Bill of Material)Next

  14. Import BOM 2 在Change Order點選 ，在Search處輸入ECN號 碼，若沒有ECN，可直接 Create一個新的 NextFinish

  15. Import BOM 3 如果曾做過Import，請按瀏覽選取檔案，其副 檔名為.xml，如是第一次做Import BOM，則選 Create a new mapping(以從未做過為例)Next

  16. Import BOM 4 選取Create a new mapping(Create New Mapping)建 立一個 Mapping File(請依照以下步驟操作)

  17. Import BOM 步驟一： • Document(DOC LIST)Document Number • Document(Title Block)Document Number • PS：先點一下Import Fields(Part Number)，再點到Agile Fields(Document Number)  

  18. Import BOM 步驟二： • Parts(BOM)相對應欄位 • Parts(Title Block)Part Number(此欄位是選Parent) • 以上步驟一、步驟二做完後Save As(將檔案存在一個固定的路徑)  

  19. Import BOM 5 若 Mapping File建立正確，會出現New Mapping CreatedImport

  20. Import BOM 6 Import成功後會告知有多少料號串在Item(父階)底下

  21. Audio Status 將畫面回到ECN 點選 會出現訊息視窗告知是否有漏填欄位

  22. Next Status 以上確認無誤後，點選 加會簽人員

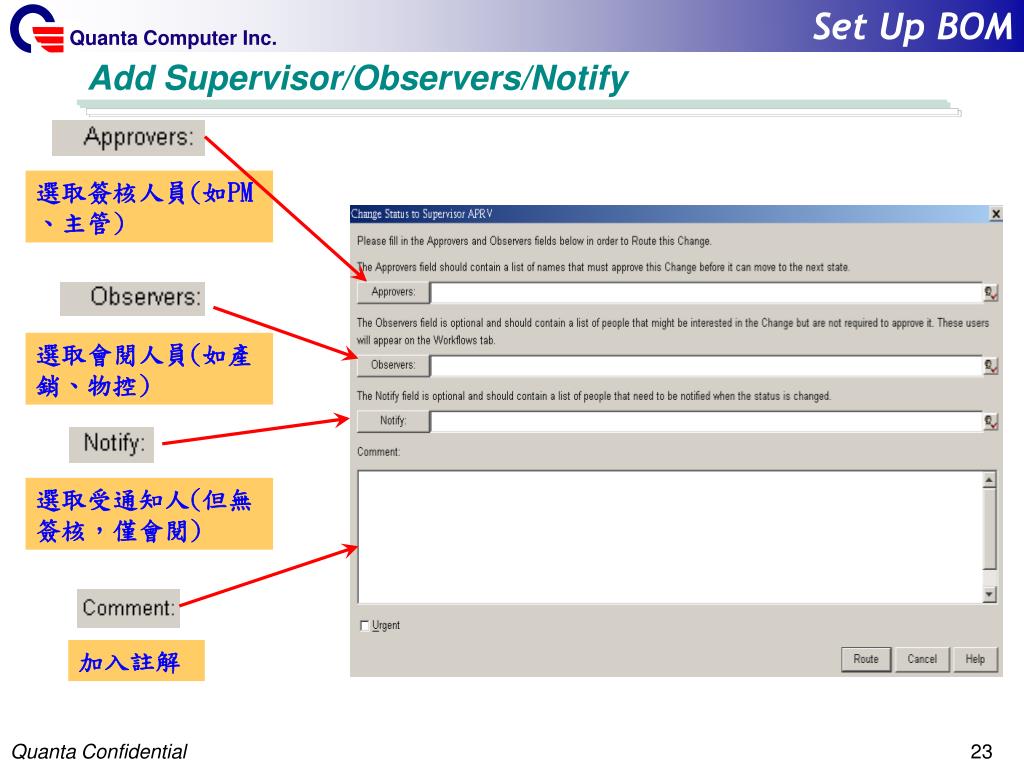

  23. Add Supervisor/Observers/Notify 選取簽核人員(如PM、主管) 選取會閱人員(如產銷、物控) 選取受通知人(但無簽核，僅會閱) 加入註解

  24. Address Book 1 2 可直接於下方List選取會簽人員，或是在Find Name輸入指定的名字後按 可以找出符合該名的所有人員，選取完後按OK 3

  25. Change Status to Supervisor APRV 點選 將此份ECN傳送給相關人員會簽

  26. Workflow 尚未簽核人員 會閱人員
