  1. Lecture, November 20, 2002 • Message Delivery to Processes • Internet Addressing • Address resolution protocol (ARP) • Dynamic host reconfiguration protocol (DHCP) • Tunneling • Mobile IP • Routing in Virtual Circuit Networks

  2. Message delivery to processes

  3. Addressing • Address spaces • Flat • Hierarchical • Addressing Modes • Unicast • Multicast • Broadcast • Anycast

  4. Internet addressing • IPv4 address encoding – classes • Problems and solutions • Subnetting • Classless address encoding • Address resolution protocol (ARP) • Dynamic host reconfiguration protocol (DHCP) • Tunneling • Mobile IP

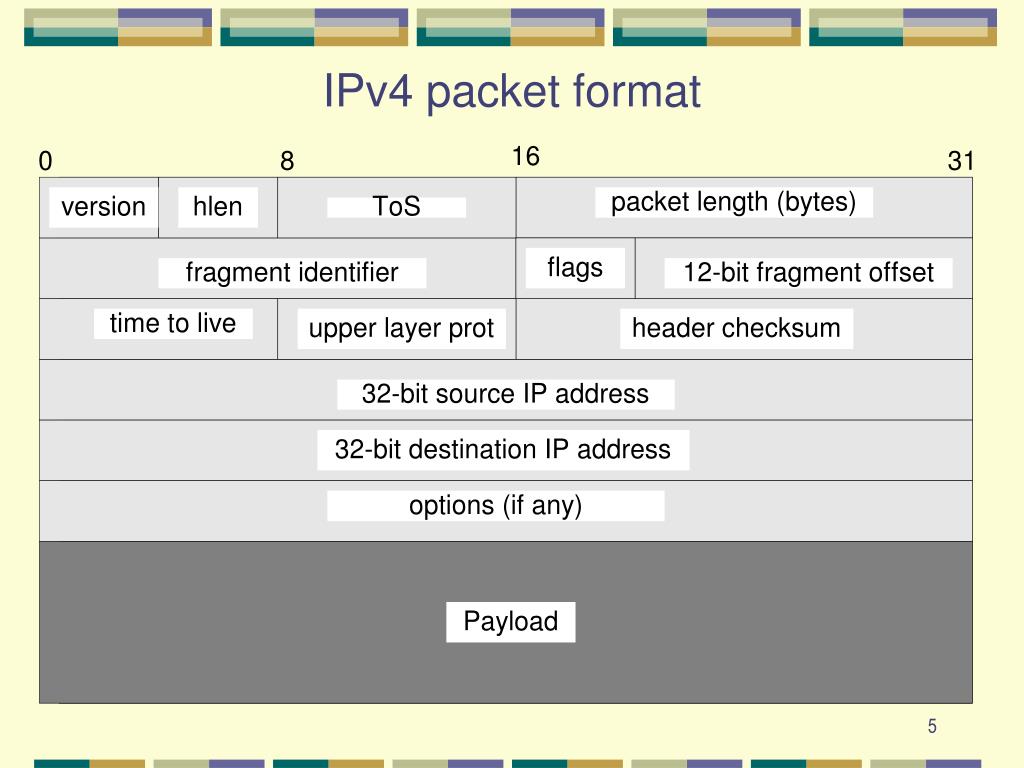

  5. IPv4 packet format

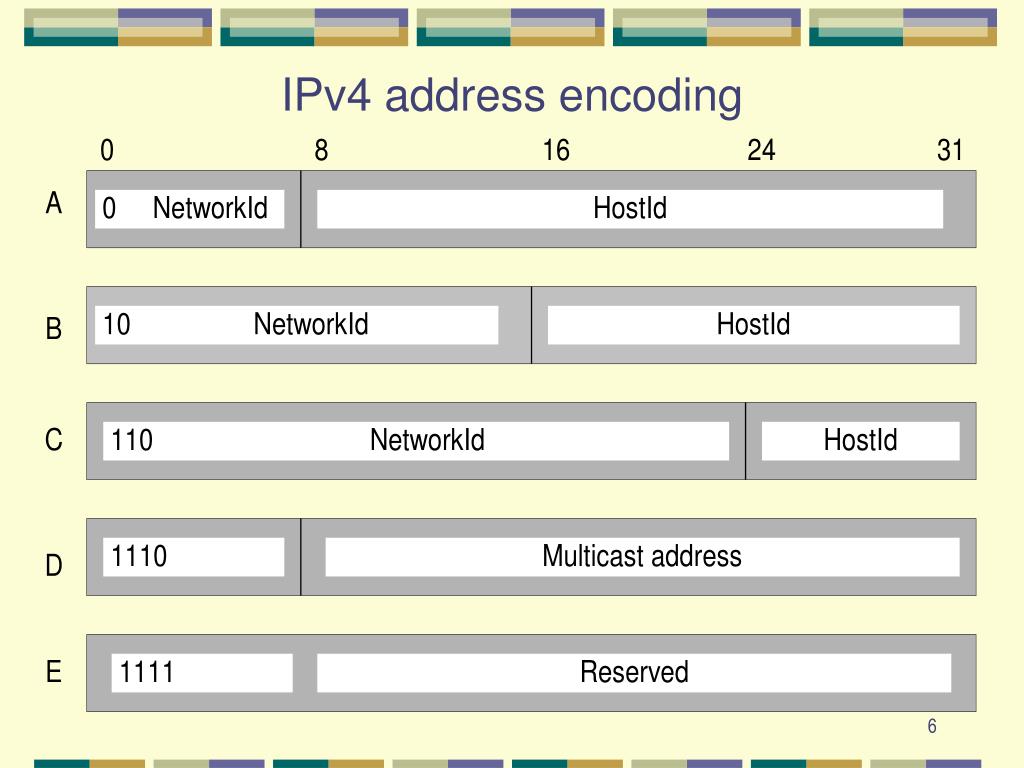

  6. IPv4 address encoding

  7. Problems with IPv4 address encoding • The size of the IP address space is: 232 • Class C addresses not very useful… • Class B addresses wasteful… • We would like to group network addresses to reduce the size of forwarding tables.

  8. Subnetting • Define a subnet mask and a subnet number. • Obtain the subnet number: (IP address) AND (subnet mask) • The whole idea is to allocate a single network number to a collection of networks. • All hosts in a subnet have the same subnet number. • Routing: given a destination IP address the router ANDs this address with the masks of all entries to determine the subnet number of the destination. Example.

  9. Subnetting

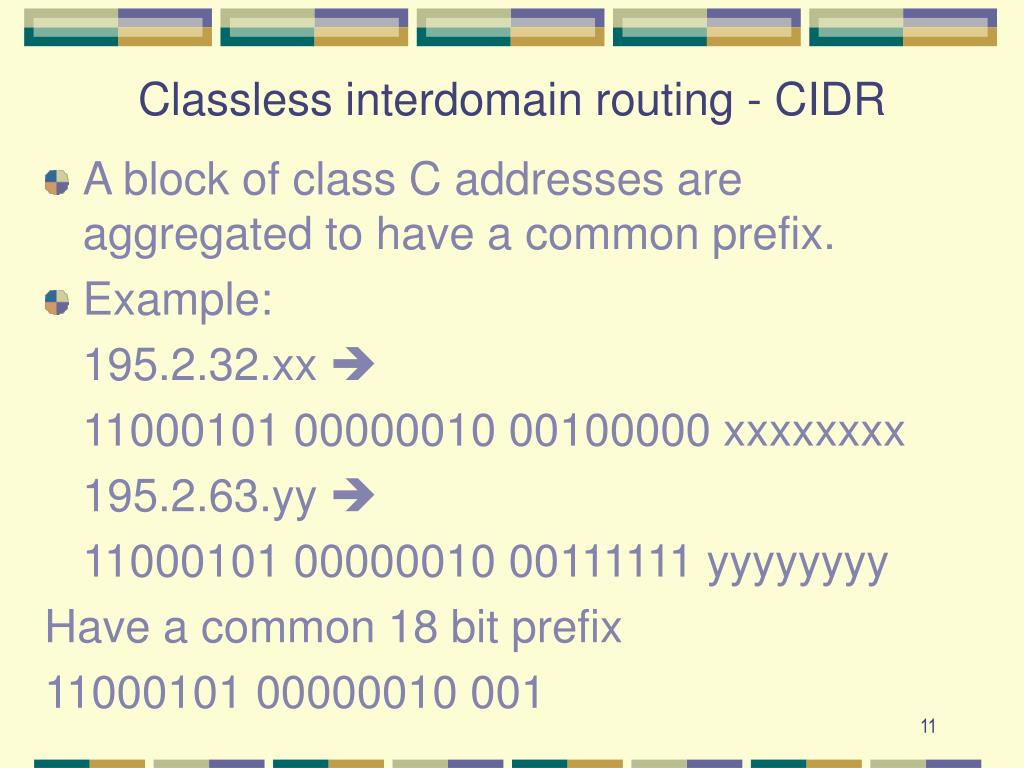

  10. Classless interdomain routing - CIDR • A block of class C addresses are aggregated to have a common prefix. • Example: 195.2.32.xx  11000101 00000010 00100000 xxxxxxxx 195.2.63.yy  11000101 00000010 00111111 yyyyyyyy Have a common 18 bit prefix 11000101 00000010 001

  11. Classless interdomain routing - CIDR • In this bloc we have 214 addresses (32-18=14). • If • all potential 16,384 hosts in this block are connected to LANs connected to the same router and • All routers know to use an 18 bit prefix for the lookup phase of forwarding we are in business.

  12. Address Resolution Protocol

  13. Tunneling

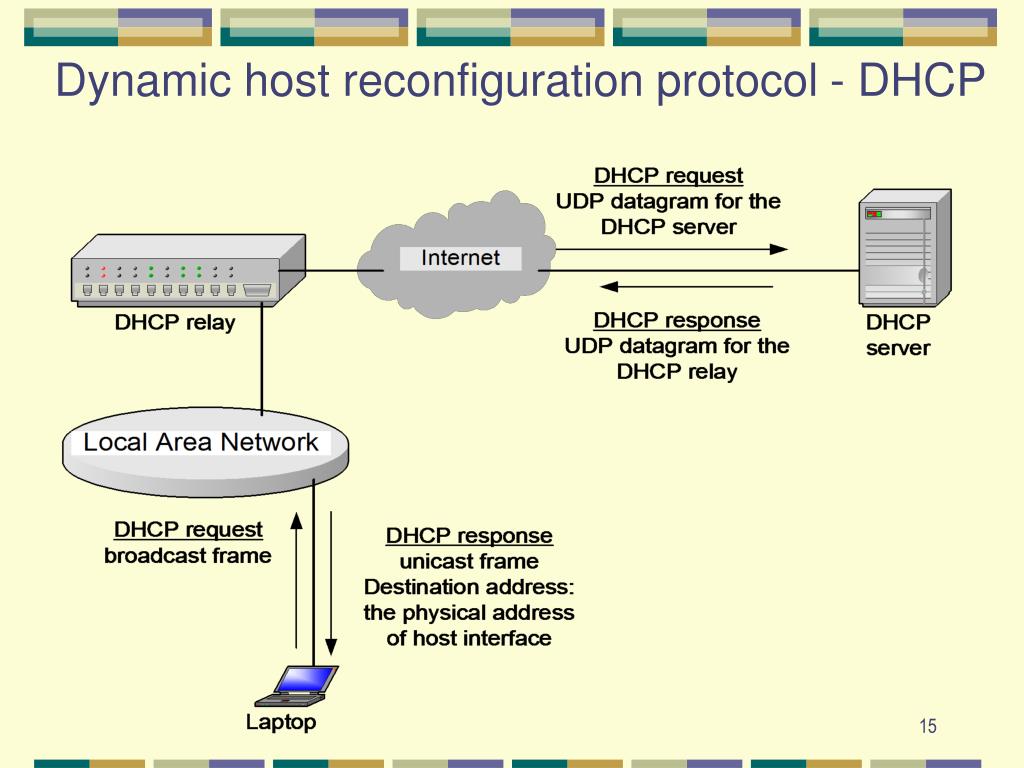

  14. Dynamic host reconfiguration protocol - DHCP

  15. Mobile IP

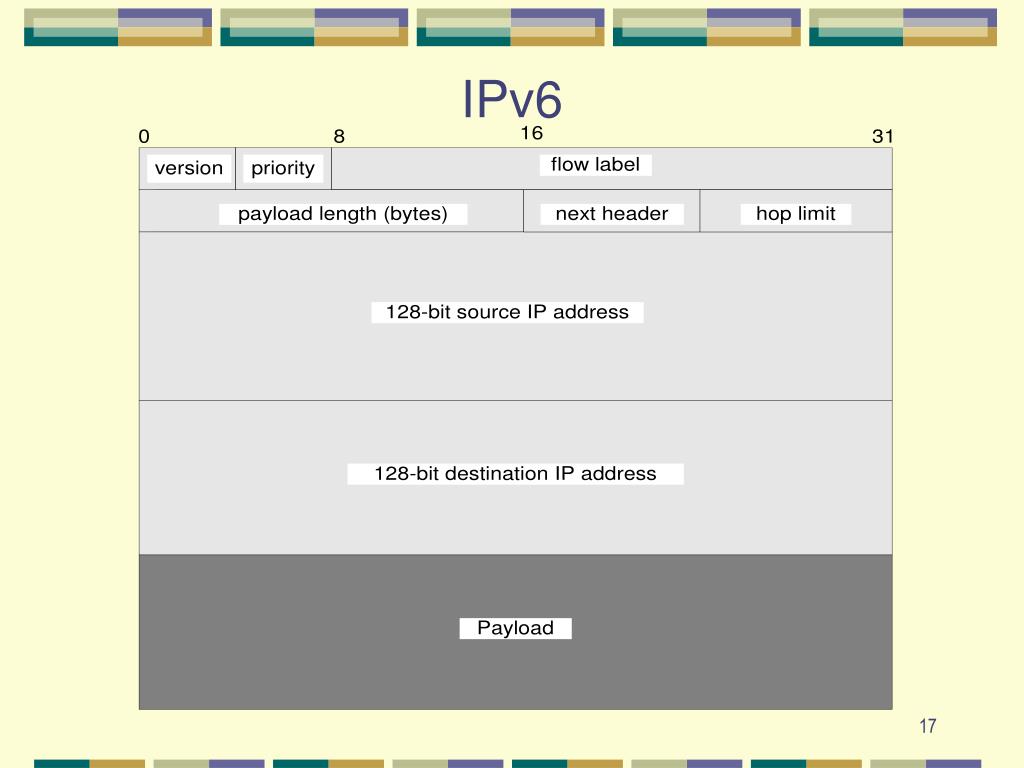

  16. IPv6

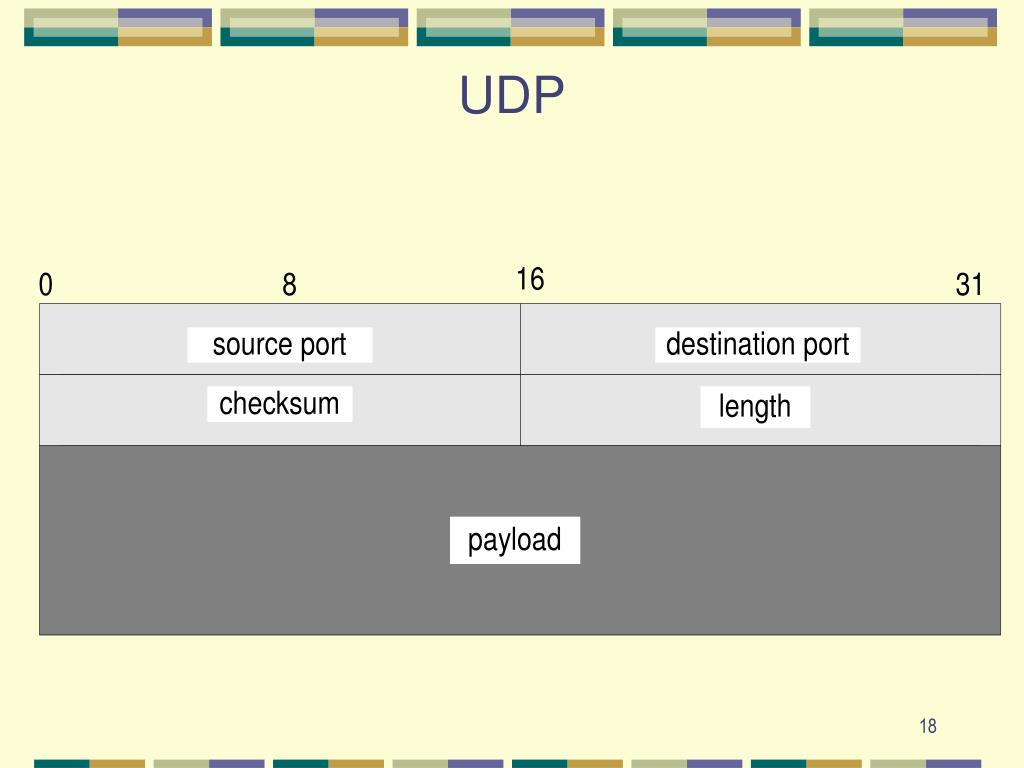

  17. UDP
