  1. Modelling and Control of Nonlinear Processes Jianying (Meg) Gao and Hector Budman Department of Chemical Engineering University of Waterloo

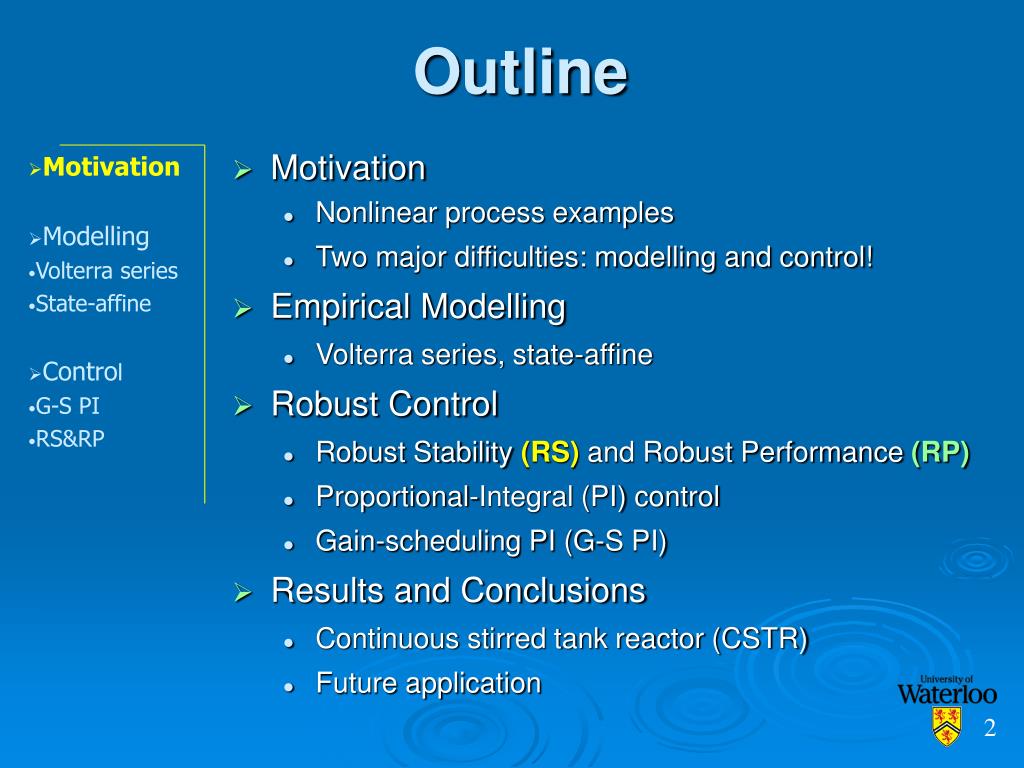

  2. Outline • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Motivation • Nonlinear process examples • Two major difficulties: modelling and control! • Empirical Modelling • Volterra series, state-affine • Robust Control • Robust Stability (RS) and Robust Performance (RP) • Proportional-Integral (PI) control • Gain-scheduling PI (G-S PI) • Results and Conclusions • Continuous stirred tank reactor (CSTR) • Future application

  3. Substrate Nonlinear Process Example 1 • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Fed-batch Bioreactor Mass Balance • Linear process: constant • Nonlinear process: Monod Input Output

  4. A A & B Cooling Heat Output Input Nonlinear Process Example 2 • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Continuous Stirred Tank Reactor: CSTR • Mass Balance: • Linear process: constant • Nonlinear process: Arrhenius

  5. Linear model nonlinear model uncertainty Nonlinear Control • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • 1st Difficulty: simple & accurate model • Accurate: the model gives a good data fit • Simple: the model structure is simple to apply for control purpose • 2nd Difficulty: model is never perfect! • Uncertainty: model/plant mismatch • Controllers are desired to be ROBUST to model uncertainty! • Robust control: takes into account uncertainty!

  6. 1g/l 1g/l Empirical Modelling • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP (inlet concentration) model v y e u process controller -y measurement soft sensor

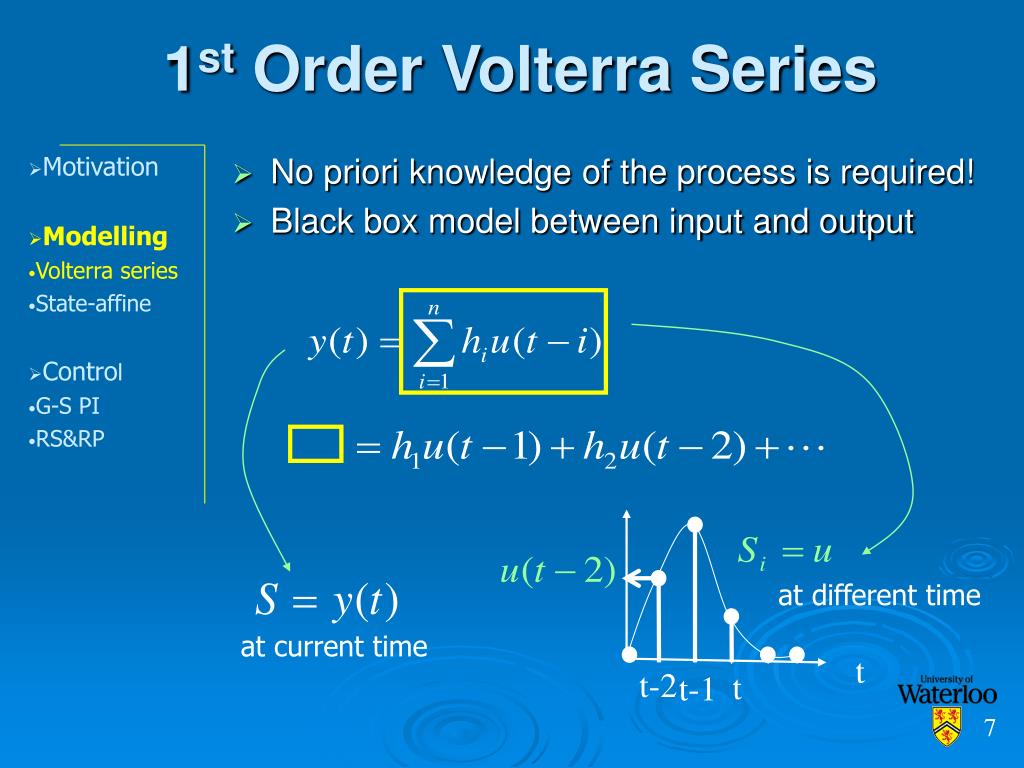

  7. at different time t t-2 t t-1 at current time 1st Order Volterra Series • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • No priori knowledge of the process is required! • Black box model between input and output

  8. A Cooling Tc A & B 0 t 1 n 1 1st Order Volterra Series • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Impulse response • 1st order Volterra kernels: Output Input t

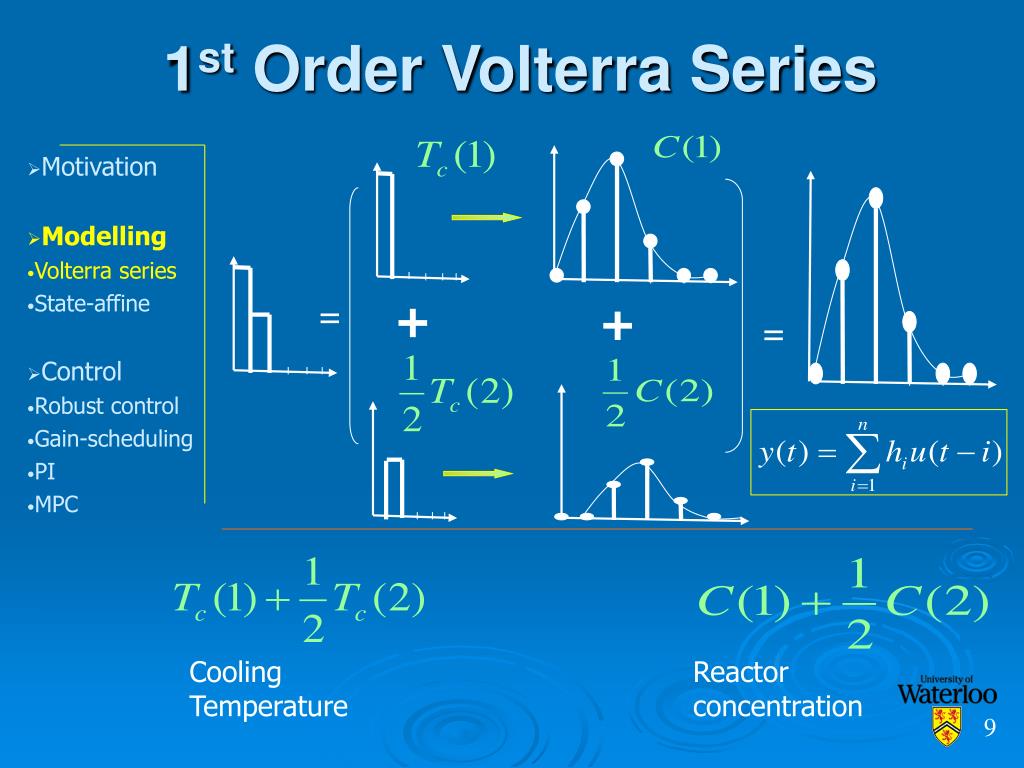

  9. + = + = 1st Order Volterra Series • Motivation • Modelling • Volterra series • State-affine • Control • Robust control • Gain-scheduling • PI • MPC Cooling Temperature Reactor concentration

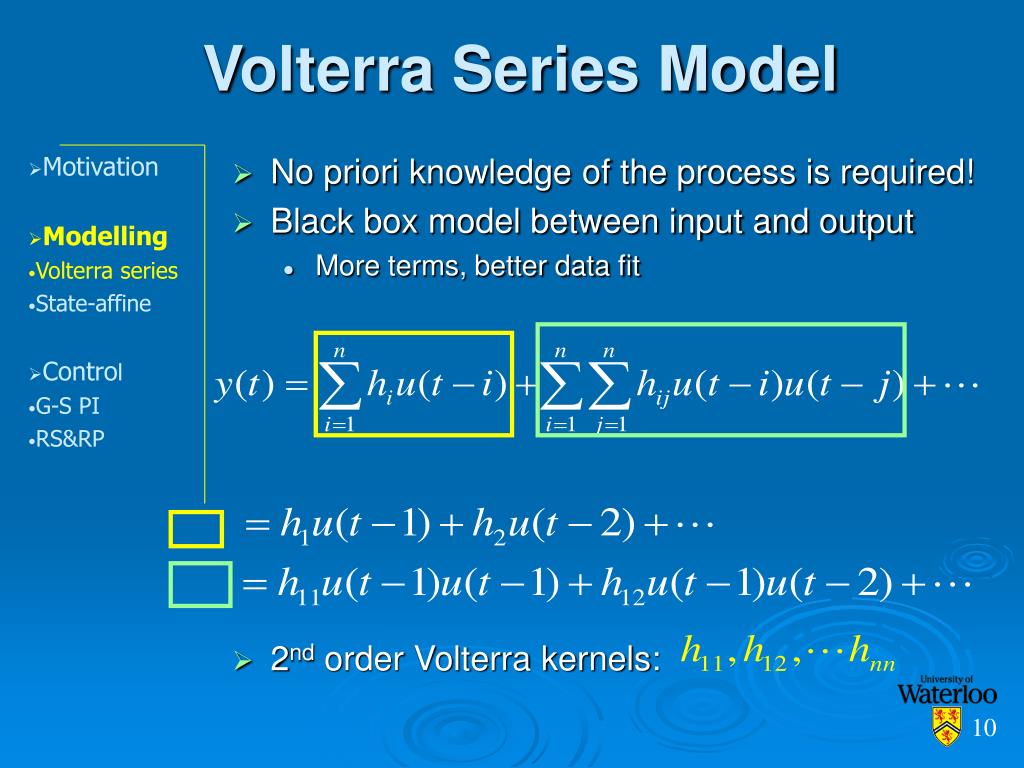

  10. Volterra Series Model • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • No priori knowledge of the process is required! • Black box model between input and output • More terms, better data fit • 2nd order Volterra kernels:

  11. Identify Volterra Kernels • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Identification of Volterra kernels • Linear least squares

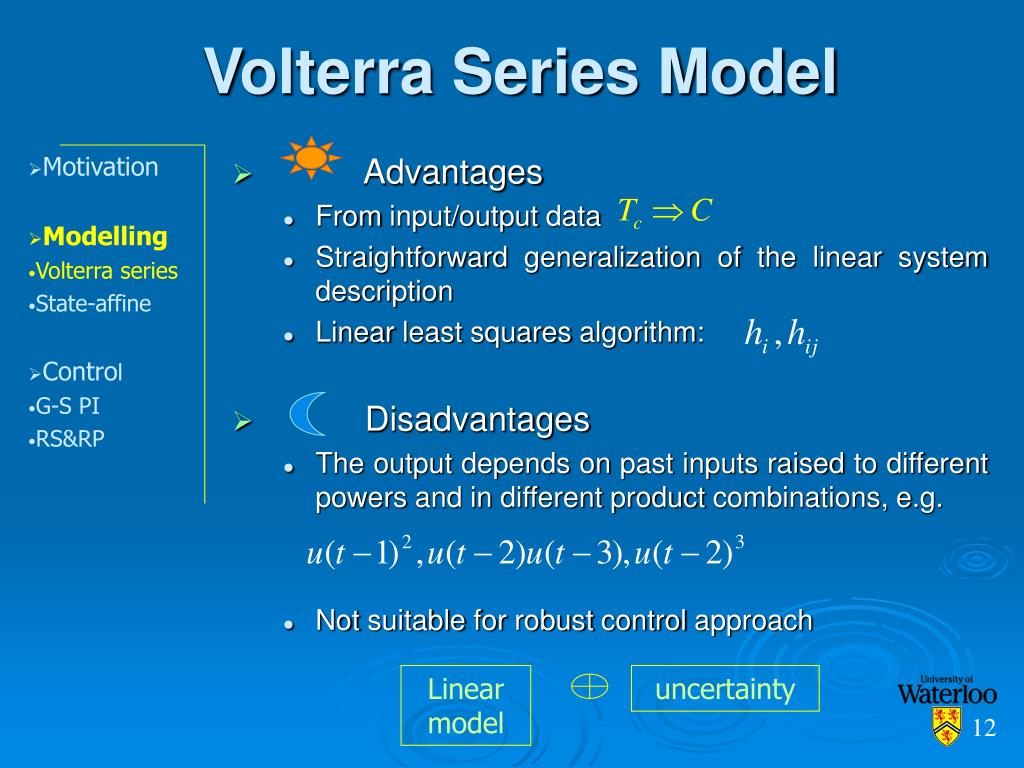

  12. Linear model uncertainty Volterra Series Model • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Advantages • From input/output data • Straightforward generalization of the linear system description • Linear least squares algorithm: • Disadvantages • The output depends on past inputs raised to different powers and in different product combinations, e.g. • Not suitable for robust control approach

  13. Least squares Sontag’s algorithm Volterra series model I/O Data State-affine model Intermediate step State-affine Model • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • State-affine Model (Sontag, 1978) • State-affine system, i.e. systems that are affine in the state variables but are nonlinear with respect to the inputs • It can cover a wide range of nonlinear processes • Identified from Volterra series model kernels • Suitable for robust control

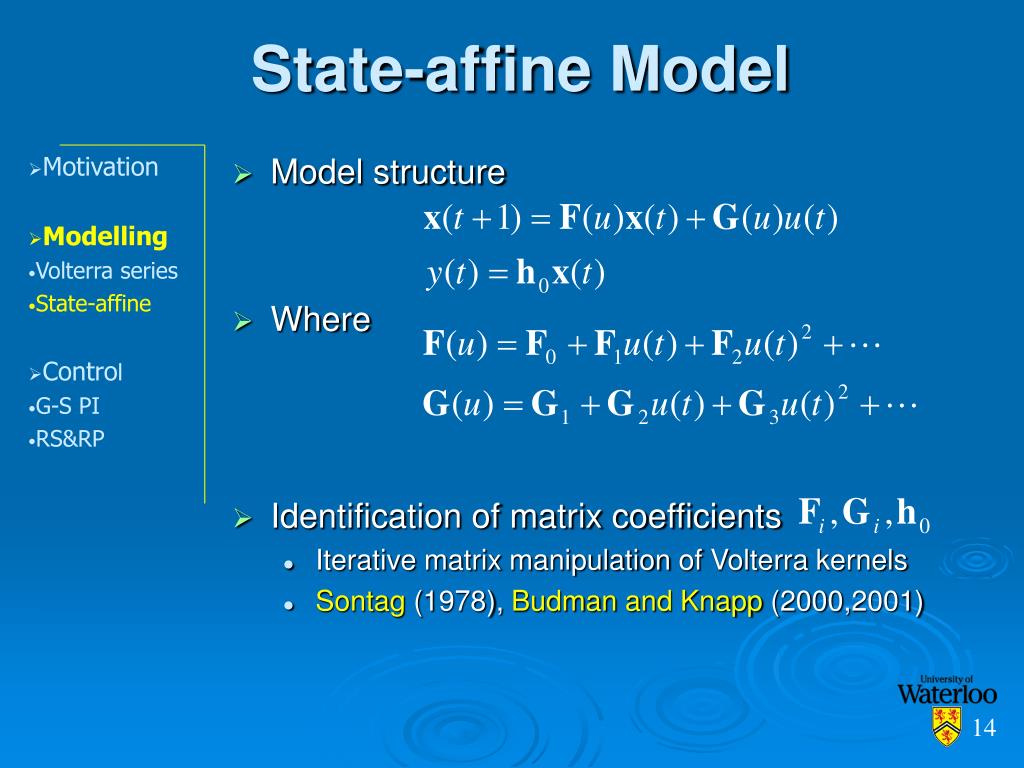

  14. State-affine Model • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Model structure • Where • Identification of matrix coefficients • Iterative matrix manipulation of Volterra kernels • Sontag (1978), Budman and Knapp (2000,2001)

  15. Nonlinearity Nominal point Linear model uncertainty State-affine Model • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • A simple example • How to treat the nonlinearity as Uncertainty?

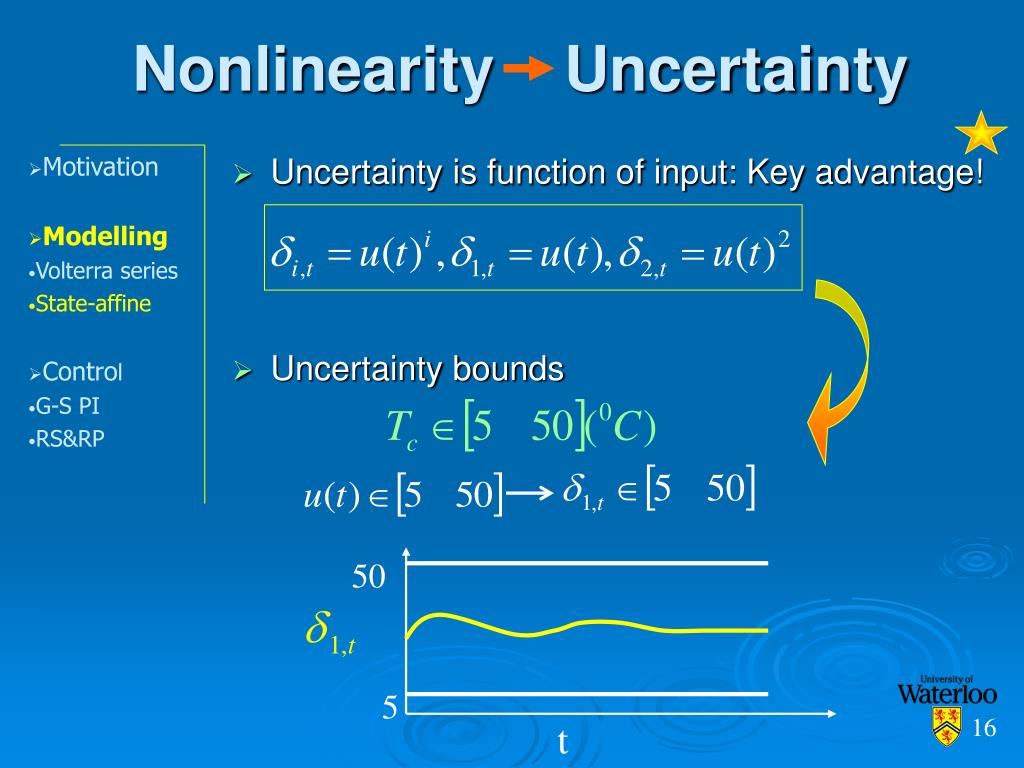

  16. 50 5 t Nonlinearity Uncertainty • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Uncertainty is function of input: Key advantage! • Uncertainty bounds

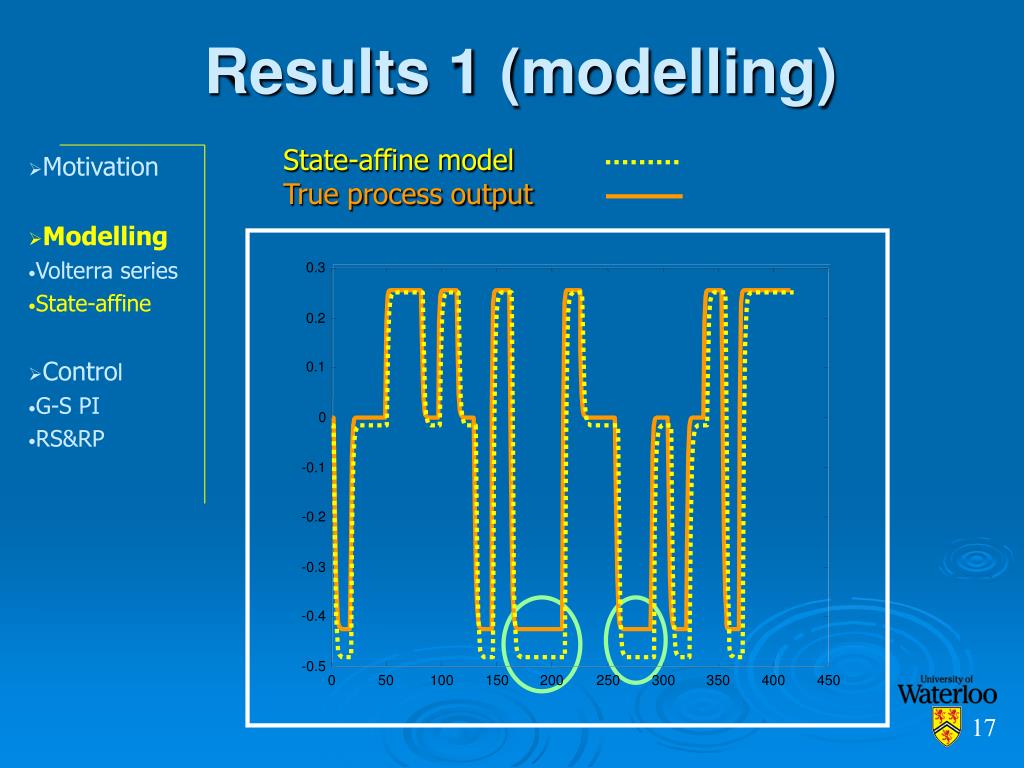

  17. State-affine model True process output 0.3 0.2 0.1 0 -0.1 -0.2 -0.3 -0.4 -0.5 0 50 100 150 200 250 300 350 400 450 Results 1 (modelling) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP

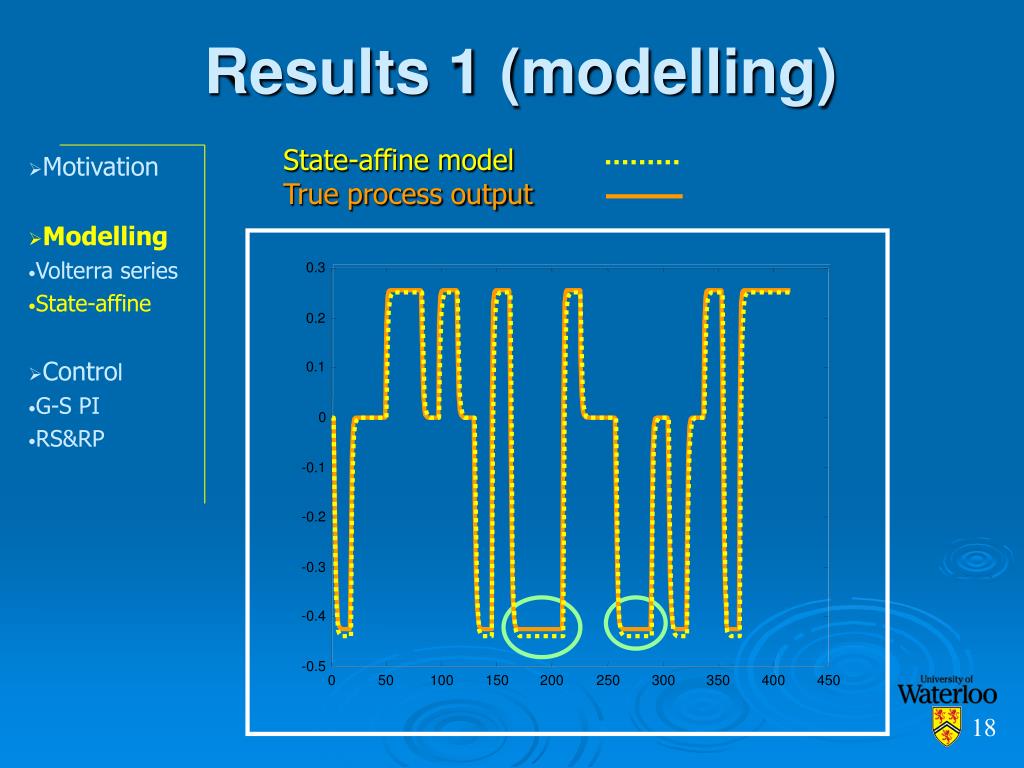

  18. State-affine model True process output 0.3 0.2 0.1 0 -0.1 -0.2 -0.3 -0.4 -0.5 0 50 100 150 200 250 300 350 400 450 Results 1 (modelling) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP

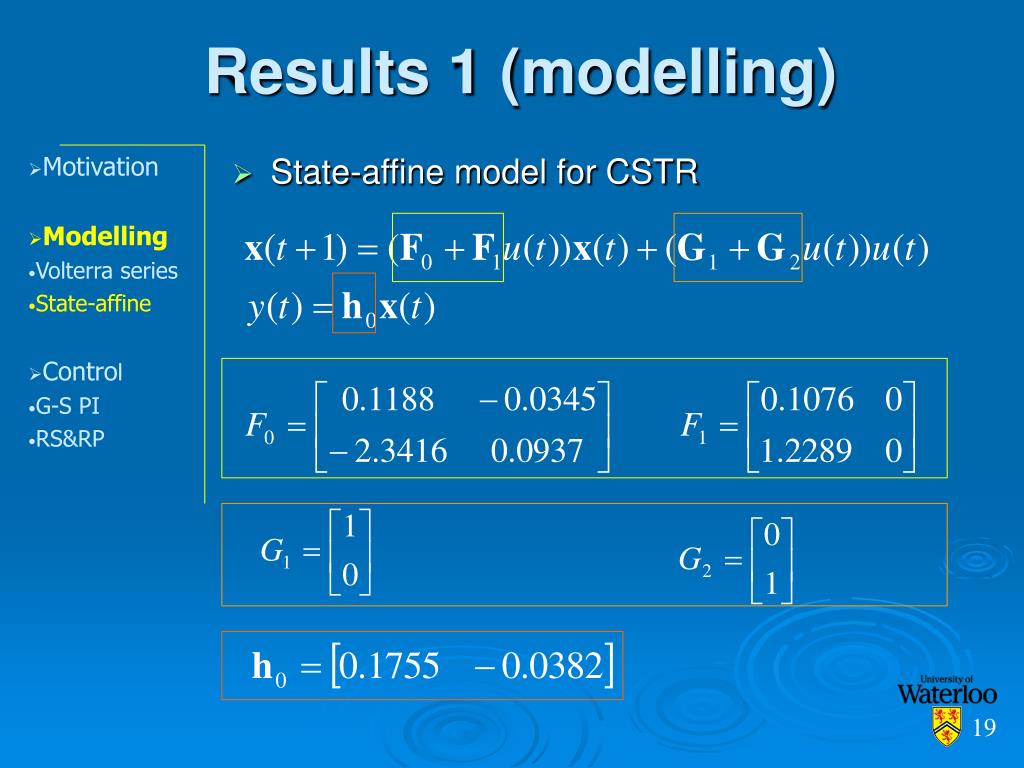

  19. Results 1 (modelling) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • State-affine model for CSTR

  20. Conclusions 1 (modelling) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • A general modelling approach is proposed! • For a Nonlinear Process: • Obtained an empirical model from I/O data! • No priori knowledge required! So it can be applied to processes with unknowndynamics! • Nonlinearityis dealt with as uncertainty! • Methods for quantifying the model uncertainty from experimental data are studied.

  21. Slope= u e PI 0 t 0 t G-S PI Design • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • PI controller: • Proportional gain: • Integration time: • Gain-Scheduling PI controller

  22. A A & B Output Linear Model 2 Linear Model 1 Linear Model 3 ? ? switch switch Traditional Gain-Scheduling • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP 5 50

  23. G-S PI Design • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Continuous G-S PI controller: state-space • Design parameters: Math manipulation

  24. Closed-loop System: APS • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Affine Parameter-dependent System: the closed-loop • Assumption1:Affine dependence on the uncertain parameters

  25. 100 5 t W Uncertain Parameter • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Assumption 2: Each uncertain parameter is bounded • Convexity: Parameter vector is valued in a hyper-rectangle called the parameter box

  26. Robust Stability • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Lyapunov function • Energy 0 • Stable position: zero energy • Path:

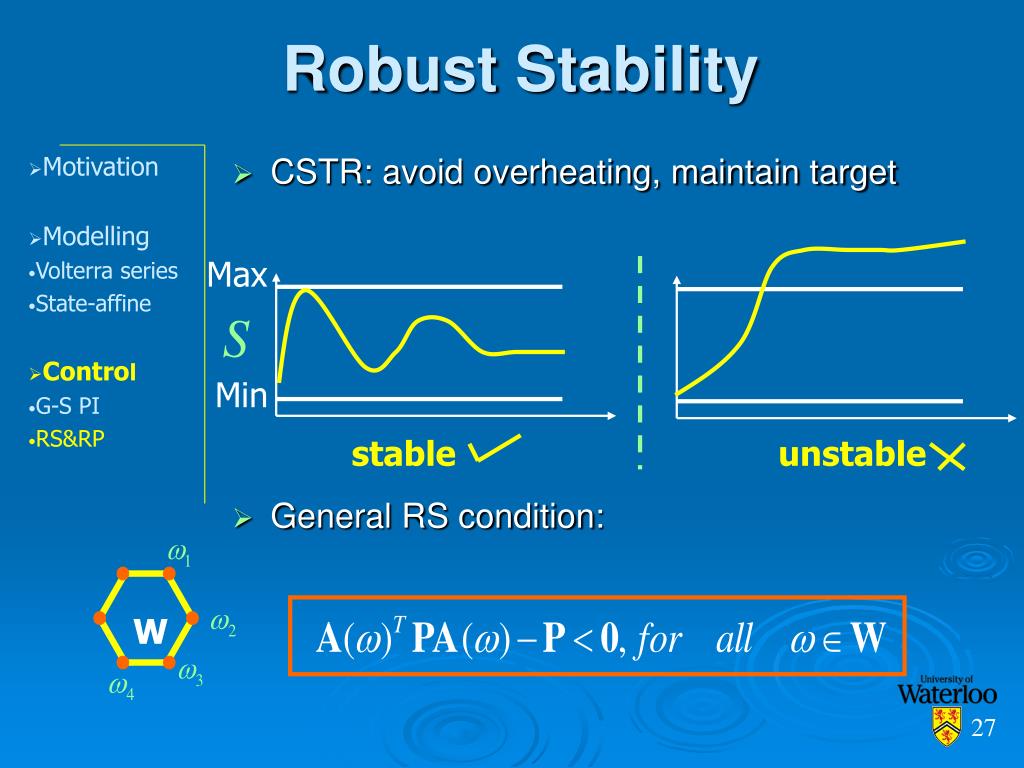

  27. Min W Robust Stability • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • CSTR: avoid overheating, maintain target • General RS condition: Max stable unstable

  28. e 1g/l Robust Performance • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Disturbance Rejection; performance index • Smaller , better performance • Larger , worse performance  =Disturbance in A A & B Output

  29. Max Min Robust Performance • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Fed-batch bioreactor: product quality! • RP: Solve for and controller parameters Good Bad

  30. uncertainty linear model controller closed-loop RS ? RP ? Robust Control Design • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Empirical model of the nonlinear process • State-affine model • Controller structure • PI: • G-S PI: • Closed-loop system • RS and RP conditions are checked

  31. 20 18 16 RS region 14 12 RP region 10 8 6 4 2 0.5 1 1.5 2 2.5 3 3.5 Results 2 (Linear PI) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Linear PI: RS and RP regions Good

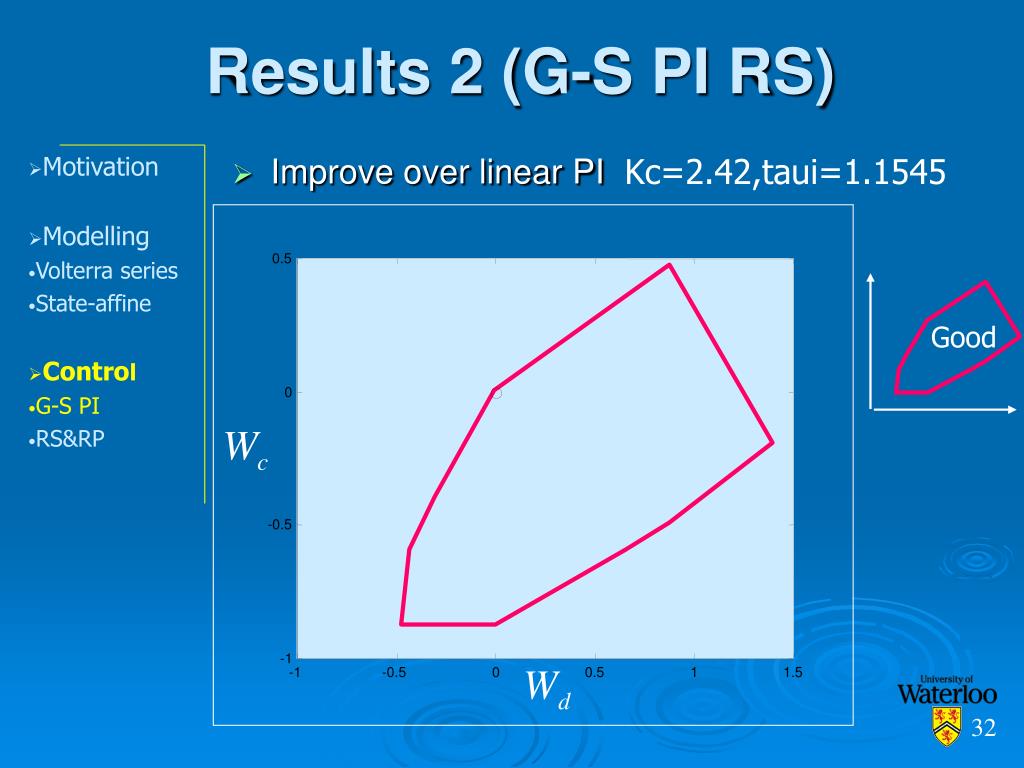

  32. 0.5 Good 0 -0.5 -1 -1 -0.5 0 0.5 1 1.5 Results 2 (G-S PI RS) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Improve over linear PI Kc=2.42,taui=1.1545

  33. 0.5 Good 0 -0.5 -1 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 1.2 Results 2 (G-S PI RP) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Improve over linear PI Kc=2,taui=1.1545

  34. Results 2 (PI) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Simulation: G-S PI is much BETTER! 1 Disturbance 0.5 0 -0.5 -1 0 2 4 6 8 10 12 14 16 18 20 1 Linear PI 0.5 0 G-S PI:better -0.5 -1 2 4 6 8 10 12 14 16 18 20

  35. Conclusions 2 (Control) • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Design and simulation results • is a good performance index • Consistence between analysis and simulation • A general robust design approach is proposed! • Based on empirical model from I/O data! • G-S PI! Much better performance for wide operation range!

  36. Conclusions • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Two difficulties are solved efficiently! • Modelling: state-affine • Control: robust control • Our contributions! • Quantify uncertainty from I/O data! • Develop global RP conditions! • Propose Continuous G-S PI structure!

  37. Application • Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP • Empirical Modelling • Models: nonlinear chemical and biochemical processes • Robust Control Design • Nonlinear processes when nonlinearity is treated as uncertainty! • Uncertain processes with real and time-varying uncertainty!

  38. Motivation • Modelling • Volterra series • State-affine • Control • G-S PI • RS&RP Thank You! Any Questions?

  39. Unconstrained MPC • p: prediction horizon;m: control horizon • k: sampling point, same as t K+m

  40. Unconstrained MPC 0 0 • Quadratic Design Objective • Solution [1] [2]

  41. Unconstrained MPC • Least Squares Solution • MPC Solution: Best Sequence of m Control Moves • Present Control Move is Implemented

  42. MPC Design Parameters • No general guide on design parameters! • Control horizon: m • Small: a robust controller that is relatively insensitive to model errors • Large: computational effort increases; excessive control action • Prediction horizon: p • Large: more conservative control action which has a stabilizing effect but also increase the computational effort • weighting matrix for outputs : • Usually set

  43. State-space MPC • Weighting matrix for inputs: • More important than other parameters • Small more aggressive control, less stable • Large less aggressive control, more stable • State-space MPC (Zanovello and Budman,1999) • Closed-loop System: APS

  44. Robust G-S MPC Operation Range 1(u=-1) 2(u=0) 3(u=1) Step 1 State Affine 1&2 State Affine 2&3 Step 2 RS & RP MPC 1-2 MPC 2-3 Step 3 Step 4 Switching

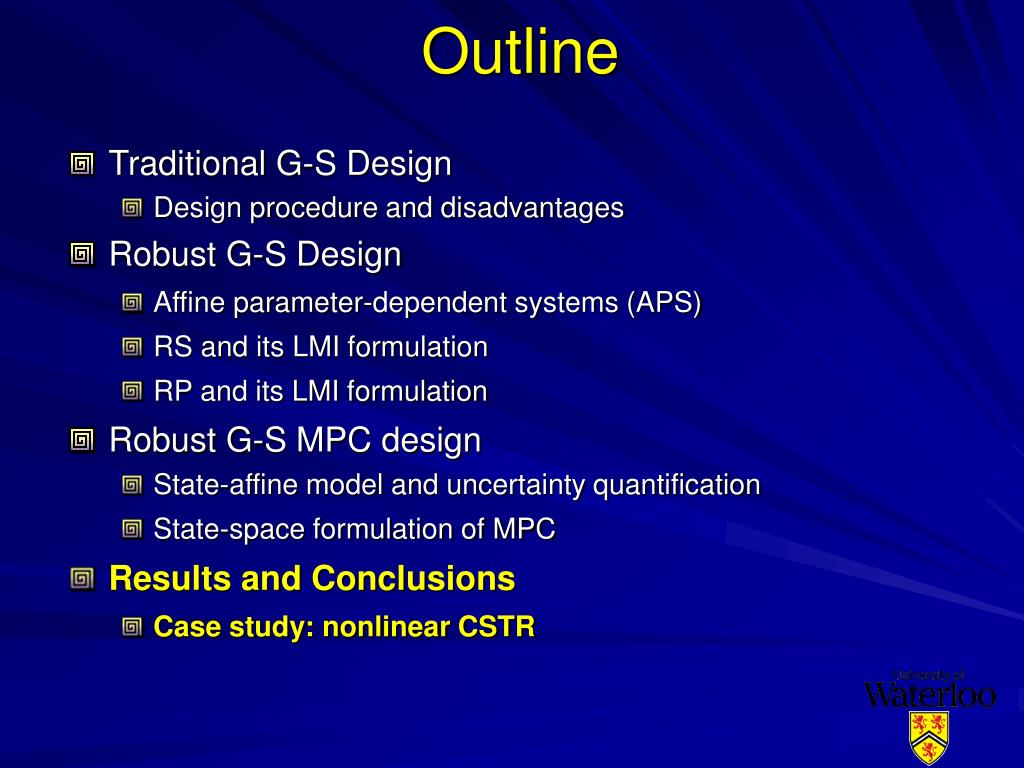

  45. Outline • Traditional G-S Design • Design procedure and disadvantages • Robust G-S Design • Affine parameter-dependent systems (APS) • RS and its LMI formulation • RP and its LMI formulation • Robust G-S MPC design • State-affine model and uncertainty quantification • State-space formulation of MPC • Results and Conclusions • Case study: nonlinear CSTR

  46. Nonlinear CSTR Pure A Mix of A and B Q , C , T f f f Q , C , T f r V , , T u(t)=Tc • 1st –order exothermal reaction 1st –order exothermal reaction

  47. Results (1) • Optimization Design Results: Table 1 • Evenly Separated Ranges

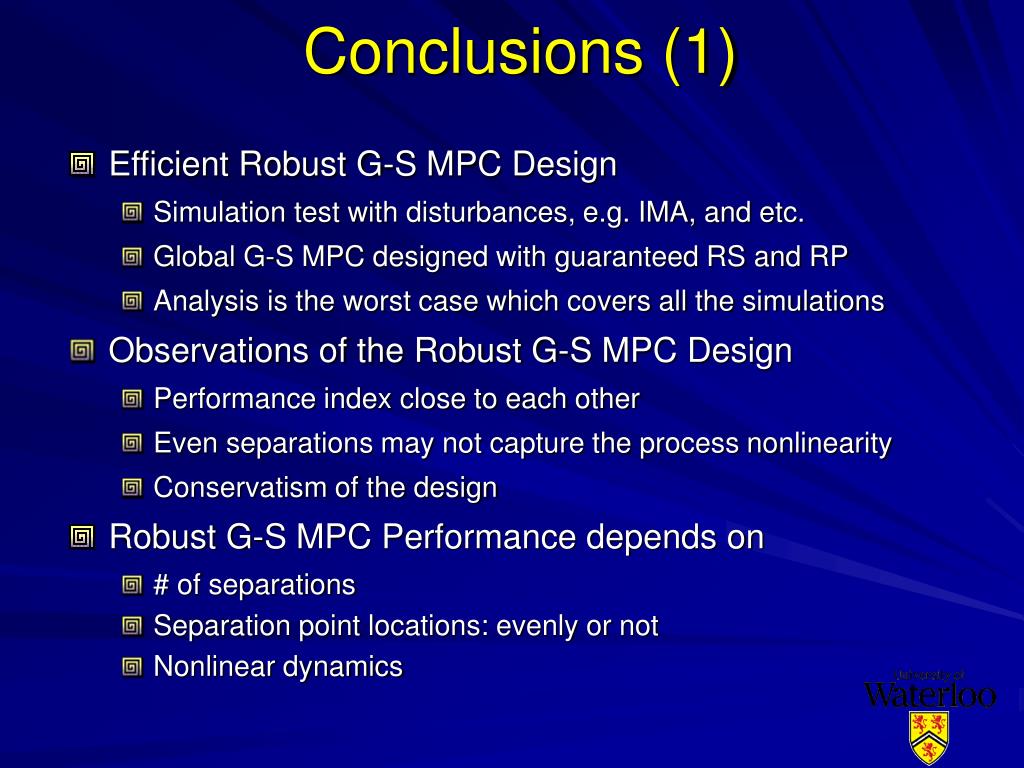

  48. Conclusions (1) • Efficient Robust G-S MPC Design • Simulation test with disturbances, e.g. IMA, and etc. • Global G-S MPC designed with guaranteed RS and RP • Analysis is the worst case which covers all the simulations • Observations of the Robust G-S MPC Design • Performance index close to each other • Even separations may not capture the process nonlinearity • Conservatism of the design • Robust G-S MPC Performance depends on • # of separations • Separation point locations: evenly or not • Nonlinear dynamics

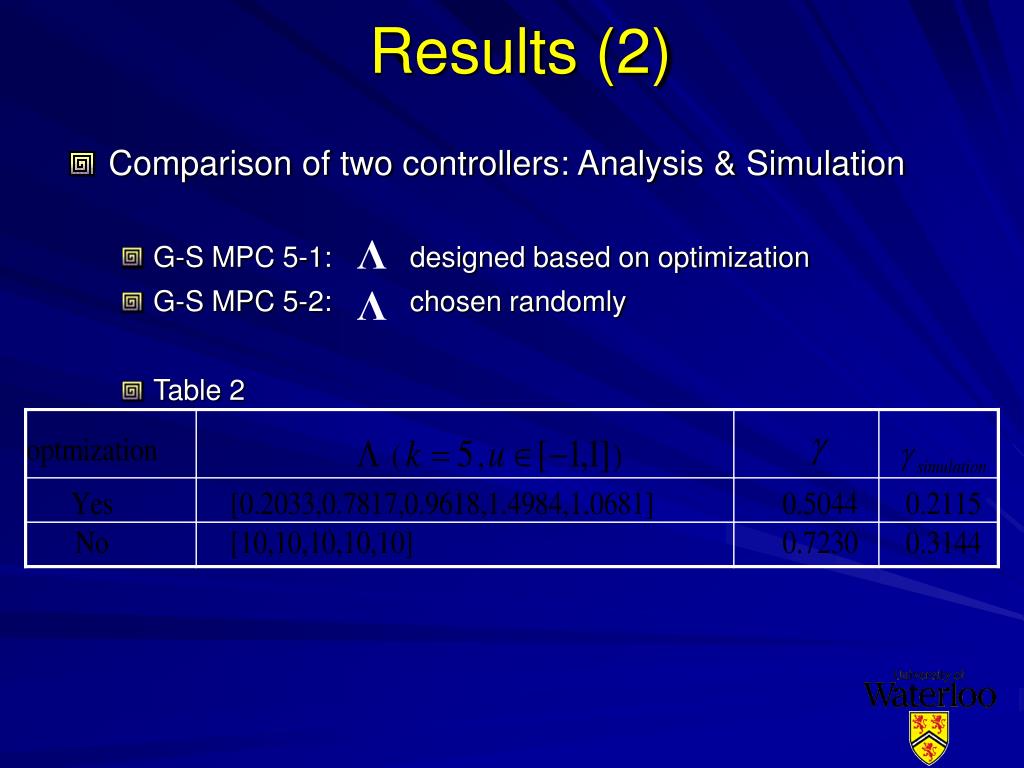

  49. Results (2) • Comparison of two controllers: Analysis & Simulation • G-S MPC 5-1: designed based on optimization • G-S MPC 5-2: chosen randomly • Table 2

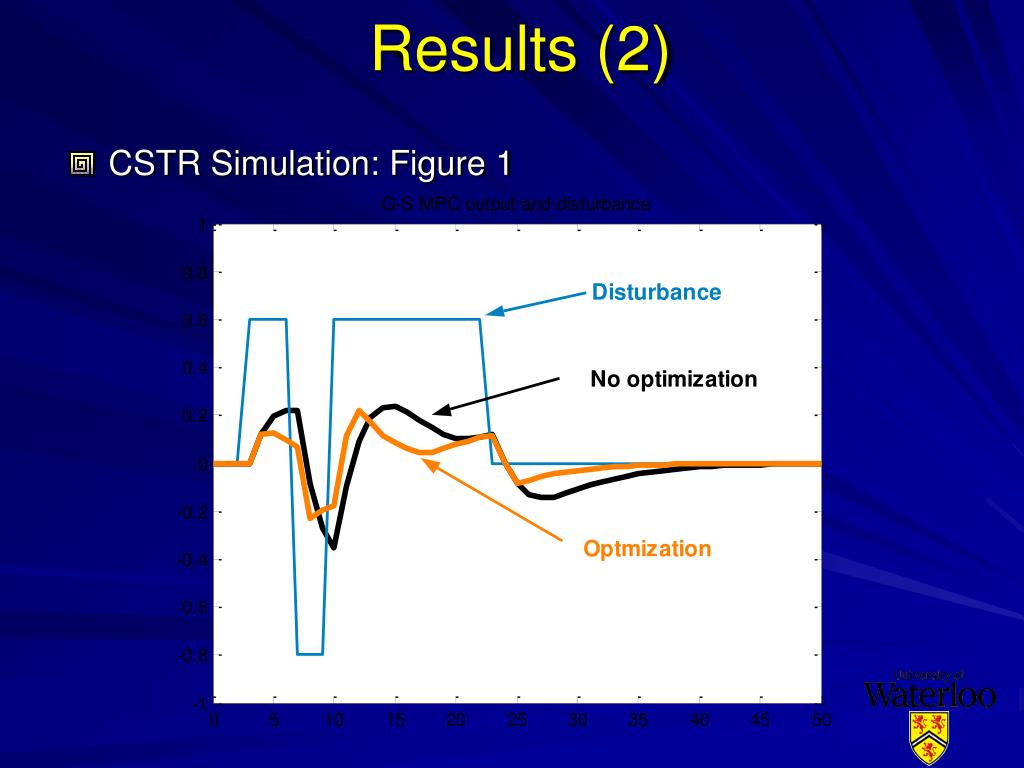

  50. Results (2) • CSTR Simulation: Figure 1
