  1. Raster Graphics 고려대학교 컴퓨터 그래픽스 연구실 cgvr.korea.ac.kr

  2. Contents • Display Hardware • How are images display? • Raster Graphics Systems • How are imaging system organized? • Output Primitives • How can we describe shapes with primitives? • Color Models • How can we describe and represent colors? cgvr.korea.ac.kr

  3. Display Hardware • Video Display Devices • Cathode Ray Tube (CRT) • Liquid Crystal Display (LCD) • Plasma panels • Thin-film electroluminescent display • Light-emitting diodes (LED) • Hard-Copy Devices • Ink-jet printer • Laser printer • Film recorder • Electrostatic printer • Pen plotter cgvr.korea.ac.kr

  4. Cathode Ray Tube (CRT) cgvr.korea.ac.kr

  5. Liquid Crystal Display (LCD) cgvr.korea.ac.kr

  6. Raster Graphics cgvr.korea.ac.kr

  7. Frame Buffer cgvr.korea.ac.kr

  8. Frame Buffer Refresh • Refresh Rate • Usually 30~75 Hz cgvr.korea.ac.kr

  9. 255 255 255 150 150 150 75 75 75 0 0 0 255 255 255 150 150 150 75 75 75 0 0 0 255 255 255 150 150 150 75 75 75 0 0 0 255 255 255 150 150 150 75 75 75 0 0 0 255 255 255 150 150 150 75 75 75 0 0 0 Color Frame Buffer Blue channel Green channel Red channel cgvr.korea.ac.kr

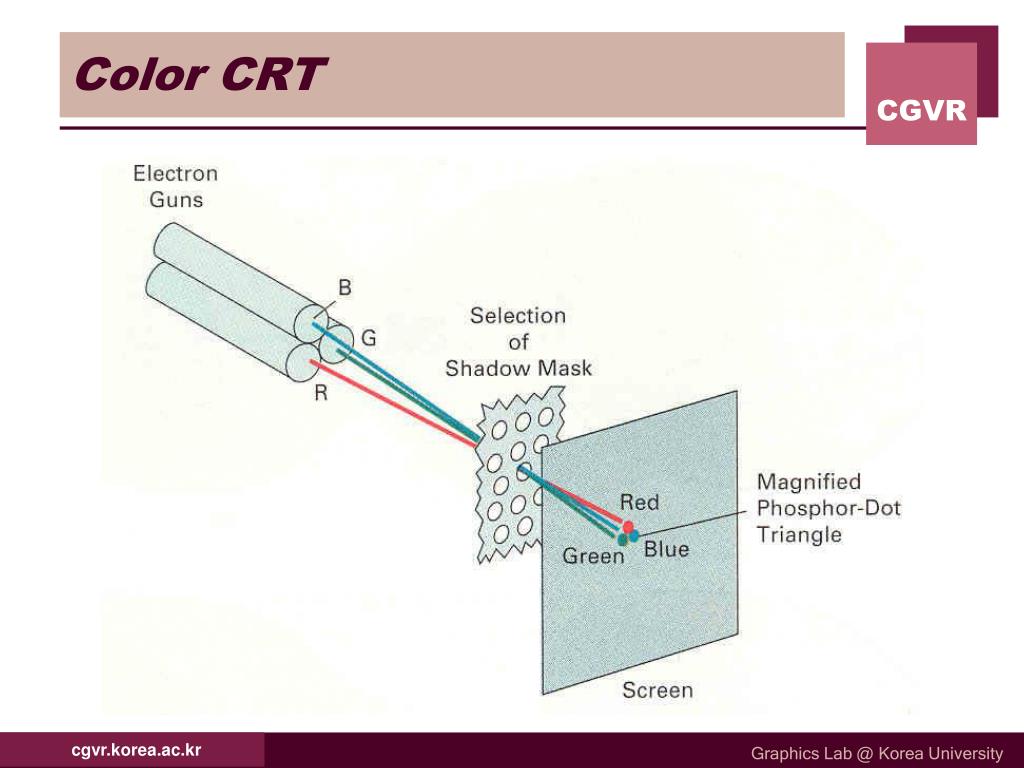

  10. Color CRT cgvr.korea.ac.kr

  11. Contents • Display Hardware • How are images display? • Raster Graphics Systems • How are imaging system organized? • Output Primitives • How can we describe shapes with primitives? • Color Models • How can we describe and represent colors? cgvr.korea.ac.kr

  12. Output Primitives • Points • Lines • DDA Algorithm • Bresenham’s Algorithm • Polygons • Scan-Line Polygon Fill • Inside-Outside Tests • Boundary-Fill Algorithm • Antialiasing cgvr.korea.ac.kr

  13. Points • Single Coordinate Position • Set the bit value(color code) corresponding to a specified screen position within the frame buffer y setPixel (x, y) x cgvr.korea.ac.kr

  14. Lines • Intermediate Positions between Two Endpoints • DDA, Bresenham’s line algorithms Jaggies = Aliasing cgvr.korea.ac.kr

  15. y2 y1 x1 x2 DDA Algorithm • Digital Differential Analyzer • 0 < Slope <= 1 • Unit x interval = 1 cgvr.korea.ac.kr

  16. y2 y1 x1 x2 DDA Algorithm • Digital Differential Analyzer • 0 < Slope <= 1 • Unit x interval = 1 • Slope > 1 • Unit y interval = 1 cgvr.korea.ac.kr

  17. y1 y2 x1 x2 DDA Algorithm • Digital Differential Analyzer • 0 < Slope <= 1 • Unit x interval = 1 • Slope > 1 • Unit y interval = 1 • -1 <= Slope < 0 • Unit x interval = -1 cgvr.korea.ac.kr

  18. y2 y1 x1 x2 DDA Algorithm • Digital Differential Analyzer • Slope >= 1 • Unit x interval = 1 • 0 < Slope < 1 • Unit y interval = 1 • -1 <= Slope < 0 • Unit x interval = -1 • Slope < -1 • Unit y interval = -1 cgvr.korea.ac.kr

  19. Bresenham’s Line Algorithm • Midpoint Line Algorithm • Decision variable • d > 0 : choose NE • : dnew= dold+a+b • d <= 0 : choose E • : dnew= dold+a NE Q M P(xp, yp) E cgvr.korea.ac.kr

  20. Bresenham’s Algorithm(cont.) • Initial Value of d • Update d cgvr.korea.ac.kr
