1. Learning Fuzzy Association Rules and Associative Classification Rules Jianchao Han Computer Science Department California State University Dominguez Hills

2. Agenda • Introduction • Traditional Association Rules • Positive and Negative Fuzzy Association Rules • An Illustrative Example • Positive and Negative Fuzzy Associative Classification Rules • Implementation Algorithms • Conclusion WCCI 2006

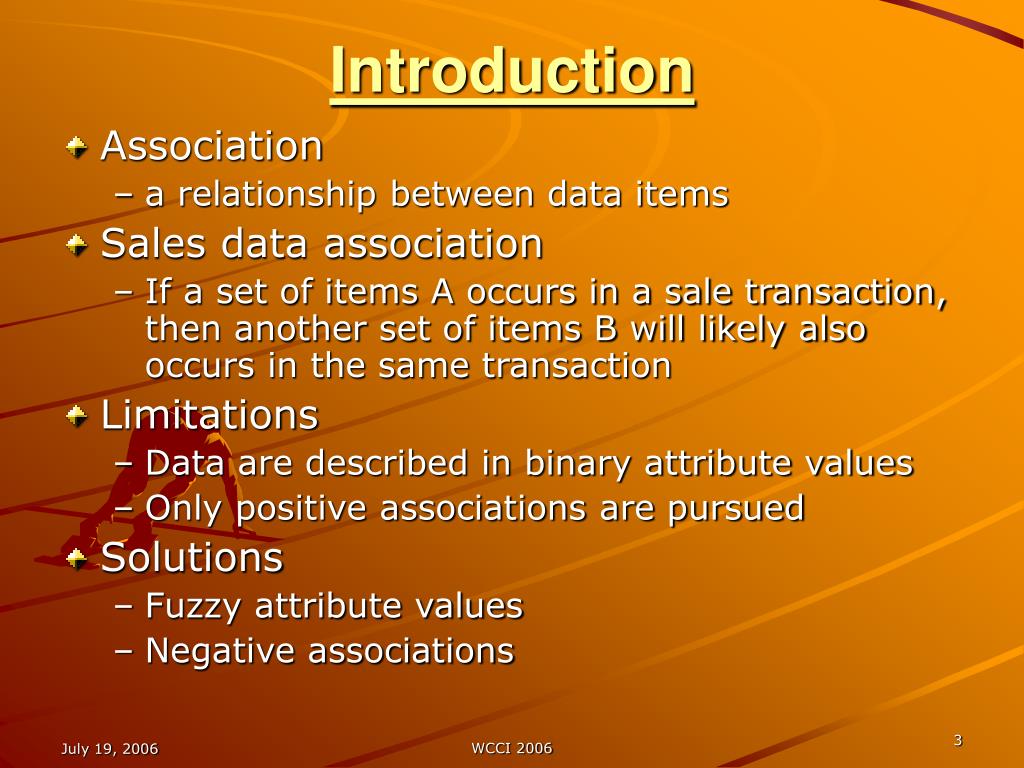

3. Introduction • Association • a relationship between data items • Sales data association • If a set of items A occurs in a sale transaction, then another set of items B will likely also occurs in the same transaction • Limitations • Data are described in binary attribute values • Only positive associations are pursued • Solutions • Fuzzy attribute values • Negative associations WCCI 2006

4. Traditional Association Rules • Basket data • I={I1, I2 , … , Im}, a set of possible items • D={t1, t2 , … , tn}, a database of transactions • t∈D is represented as a binary vector, with • t[Ik]=1 if t contains Ik • t[Ik]=0 if t does not contain Ik • Support of itemset • ∀X⊂I, t satisfies X, if ∀Ik∈I, t[Ik]=1 • The support of X in D is defined as • Supp(X) = |{t∈D| t satisfies X}| • That is the number of transactions that satisfy X WCCI 2006

5. Traditional Association Rules • Itemset (binary) association rules • For any X, Y⊂I, X⋂Y=Ф, XY is an association rule if • The support of the rule Supp(XY) is the probability of occurrence of X⋃Y in D • The confidence of the rule Conf(XY) is the conditional probability of Y given X • Mining association rules • Look for all possible associations XY such that Supp(XY) ≥ α – a given threshold and Conf(XY) ≥ β– another given threshold WCCI 2006

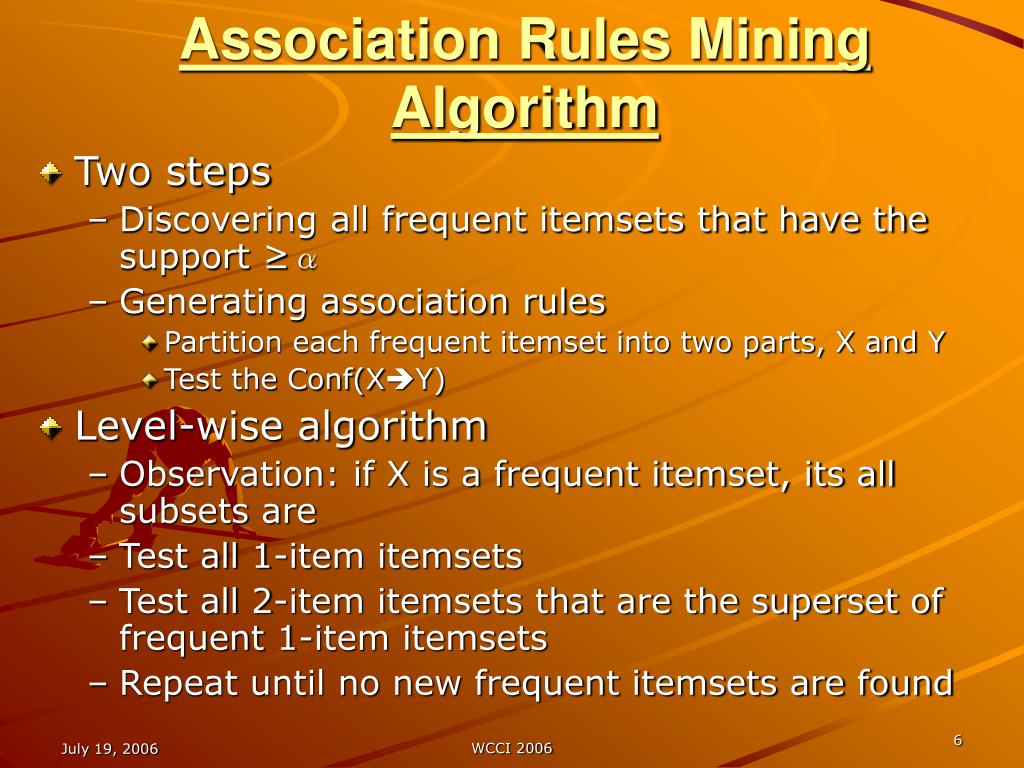

6. Association Rules Mining Algorithm • Two steps • Discovering all frequent itemsets that have the support ≥α • Generating association rules • Partition each frequent itemset into two parts, X and Y • Test the Conf(XY) • Level-wise algorithm • Observation: if X is a frequent itemset, its all subsets are • Test all 1-item itemsets • Test all 2-item itemsets that are the superset of frequent 1-item itemsets • Repeat until no new frequent itemsets are found WCCI 2006

7. Fuzzy Association Rules • Binary value is extended to the interval [0,1] • Example -- Item Tomato belongs to Vegetable in some degree, say 0.7 • Itemset A={A1, A2 , … , Al}⊂I, where Ai is a fuzzy subset of I • Support of an itemset A is defined as • Support of a rule AB is • Confidence of a rule AB is WCCI 2006

8. Positive vs. Negative Association Rules • Positive association rules • Like AB • Negative association rules • Like ¬AB, ¬A¬B, A¬B • Different rule-interest measures exist for negative association rules, e.g. • Negative example of AB is positive example of BA • A¬B, if • A⋃B is infrequent • A⋃¬B is frequent • Supp(A⋃¬B) – Supp(A)Supp(¬B)≥α • Supp(A⋃¬B)/Supp(A) ≥β WCCI 2006

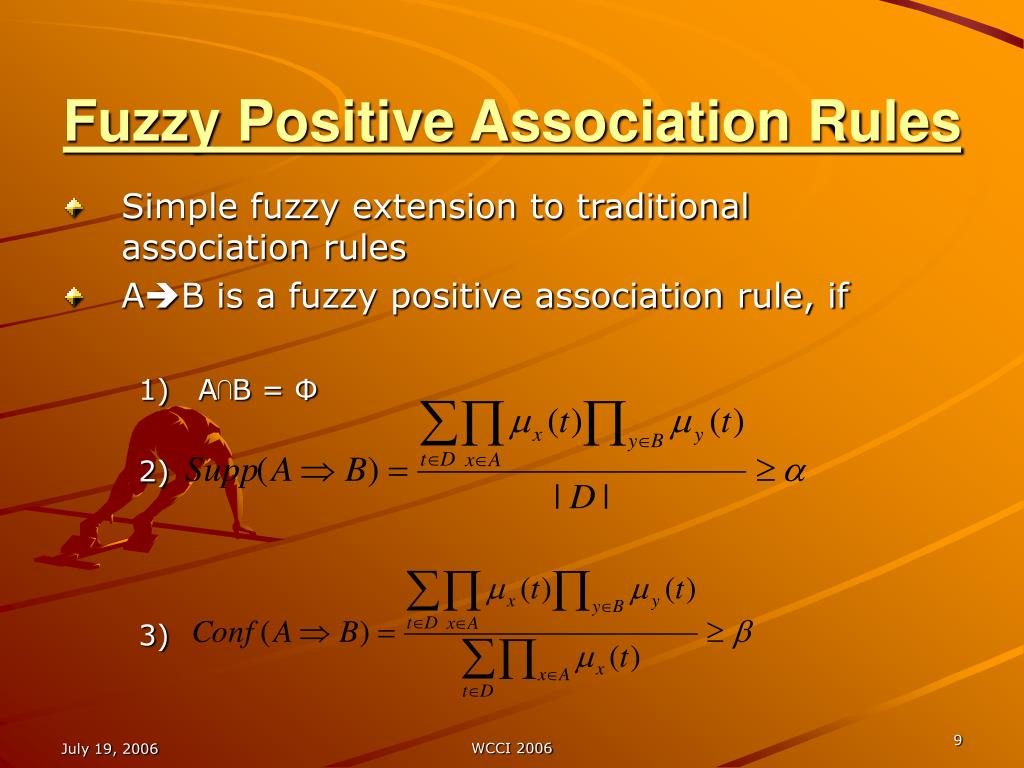

9. Fuzzy Positive Association Rules • Simple fuzzy extension to traditional association rules • AB is a fuzzy positive association rule, if • A⋂B = Ф WCCI 2006

10. Fuzzy Negative Association Rules • A¬B is a negative association rule if • A⋂B = Ф • Supp(A) ≥α • Supp(B) ≥α • Supp(AB) <  WCCI 2006

11. Fuzzy Negative Association Rules • ¬AB is a negative association rule if • A⋂B = Ф • Supp(A) ≥α • Supp(B) ≥α • Supp(AB) <  WCCI 2006

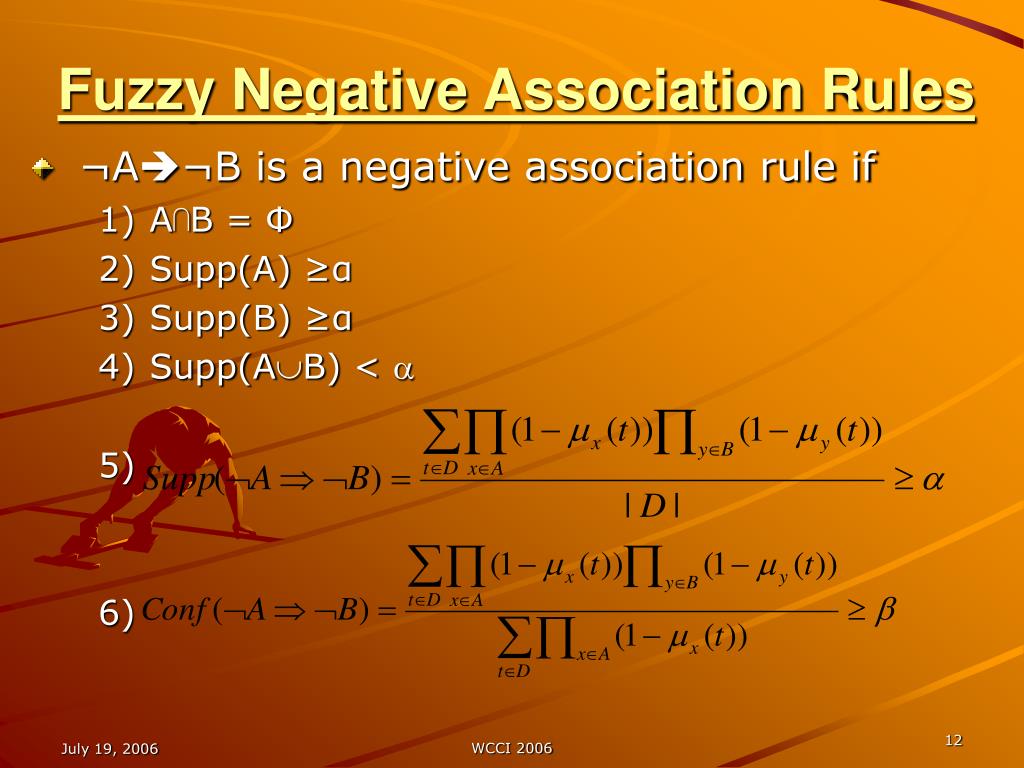

12. Fuzzy Negative Association Rules • ¬A¬B is a negative association rule if • A⋂B = Ф • Supp(A) ≥α • Supp(B) ≥α • Supp(AB) <  WCCI 2006

13. Algorithm for Mining both Positive and Negative Fuzzy Rules • Two steps • Generating all frequent and infrequent itemsets • Extracting fuzzy association rules • Positive rules are extracted from the frequent itemsets • Negative rules are extracted from the infrequent itemsets WCCI 2006

14. An Example Transaction Database Frequent vs. Infrequent Itemsets With support threshold 40% WCCI 2006

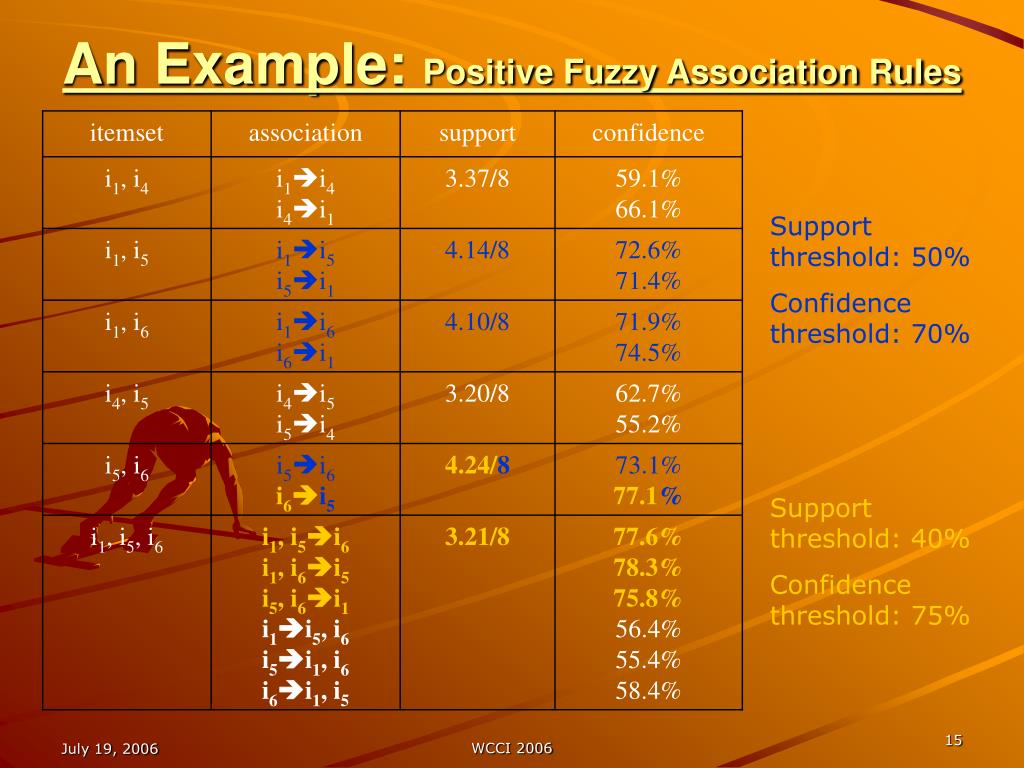

15. An Example: Positive Fuzzy Association Rules Support threshold: 50% Confidence threshold: 70% Support threshold: 40% Confidence threshold: 75% WCCI 2006

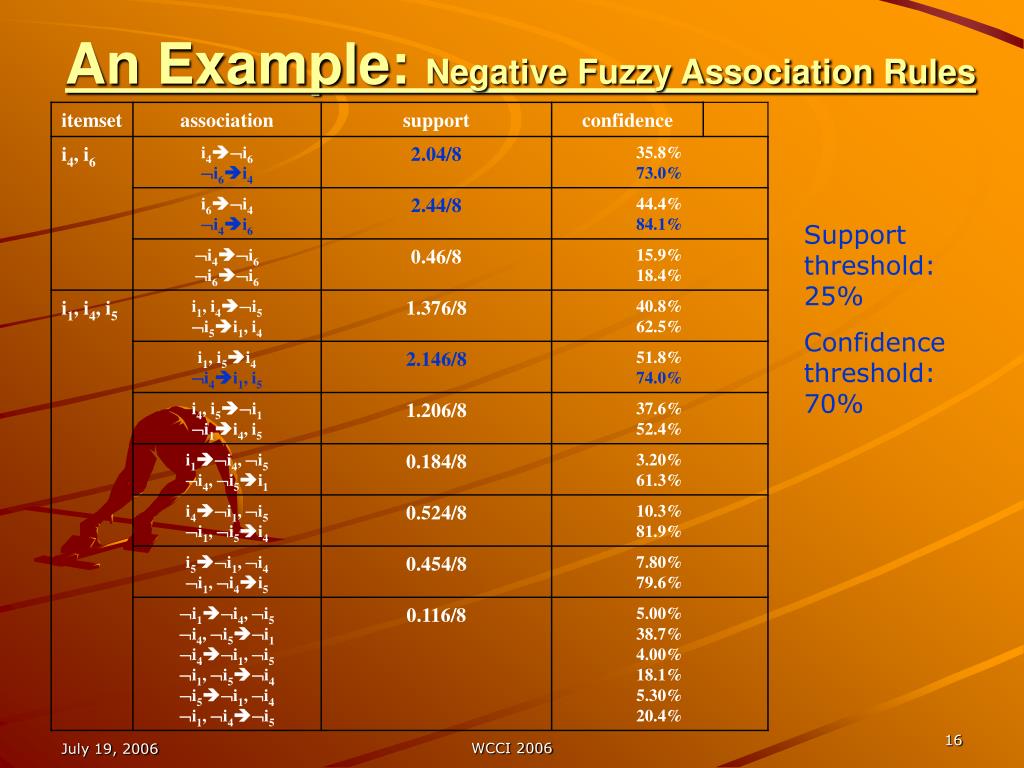

16. An Example: Negative Fuzzy Association Rules Support threshold: 25% Confidence threshold: 70% WCCI 2006

17. Associative Classification Rules • Associative classification rules are a special subset of association rules whose right-hand-side is restricted to the class labels. • In classification, data attributes are partitioned into two categories: condition attributes and decision attributes. • For simplicity, decision attributes are converted into decision attribute-value pairs that are indicated as class labels. • Thus, class labels are also items in the database, but separate from condition items. WCCI 2006

18. Two Constraints • the left-hand-side of classification rules must be frequent itemsets of condition attributes, or the negation of infrequent conditional itemsets • the class labels that appear in the right-hand-side of classification rules must also be frequent 1-itemsets WCCI 2006

19. Positive Fuzzy Associative Classification Rules • Let AI be an itemset, and c C be a class label. The relationship Ac is a positive fuzzy associative classification rule, if the following conditions hold: • A{c} is a frequent itemsets in D,Supp(A{c})/|D|  minsupp 2)A c is confident, Conf(Ac}=Supp(A{c})/Supp(A) minconf WCCI 2006

20. Negative Fuzzy Associative Classification Rules • We only consider the format Ac • where A is a frequent itemset, • {c} is a frequent class label, • A{c} is infrequent • Ac is a negative fuzzy associative classification rule if 1 Supp(A) ≥ minsupp; 2 Supp({c}) ≥ minsupp; 3 Supp(A{c})/|D| < minsupp; 4 Supp(¬A{c})/|D| ≥ minsupp; 5 Conf(Ac)=Supp(¬A{c})/Supp(¬A)≥minconf. WCCI 2006

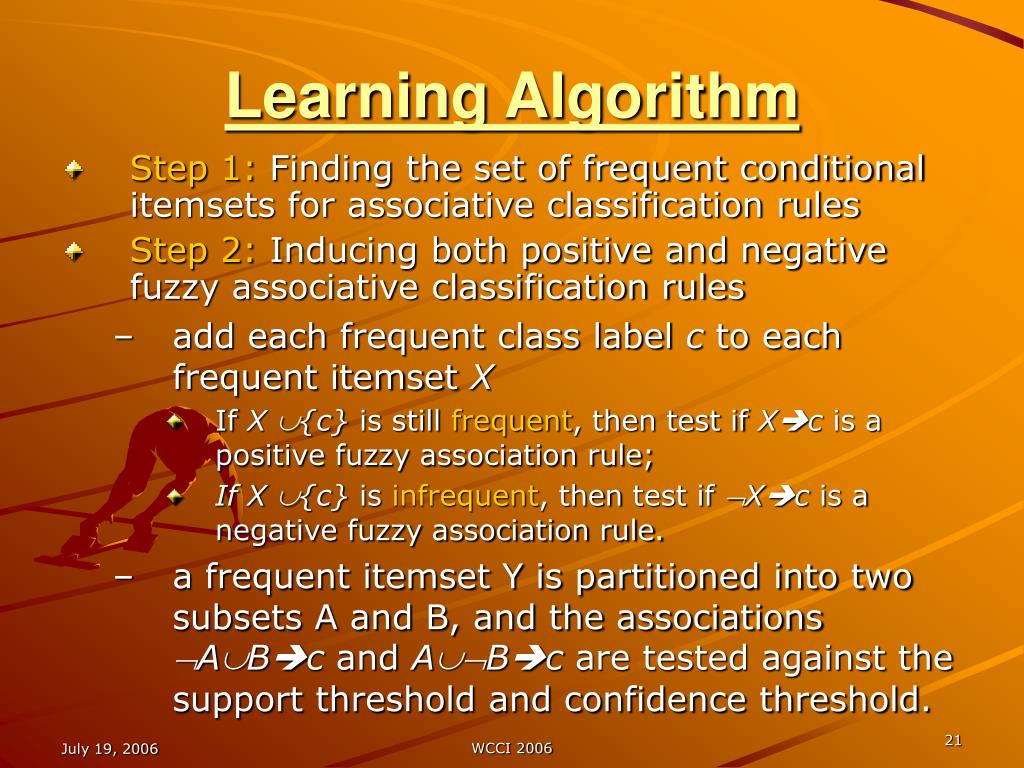

21. Learning Algorithm • Step 1:Finding the set of frequent conditional itemsets for associative classification rules • Step 2: Inducing both positive and negative fuzzy associative classification rules • add each frequent class label c to each frequent itemset X • If X {c} is still frequent, then test if Xc is a positive fuzzy association rule; • If X {c} is infrequent, thentest if Xc is a negative fuzzy association rule. • a frequent itemset Y is partitioned into two subsets A and B, and the associations ABc and ABc are tested against the support threshold and confidence threshold. WCCI 2006

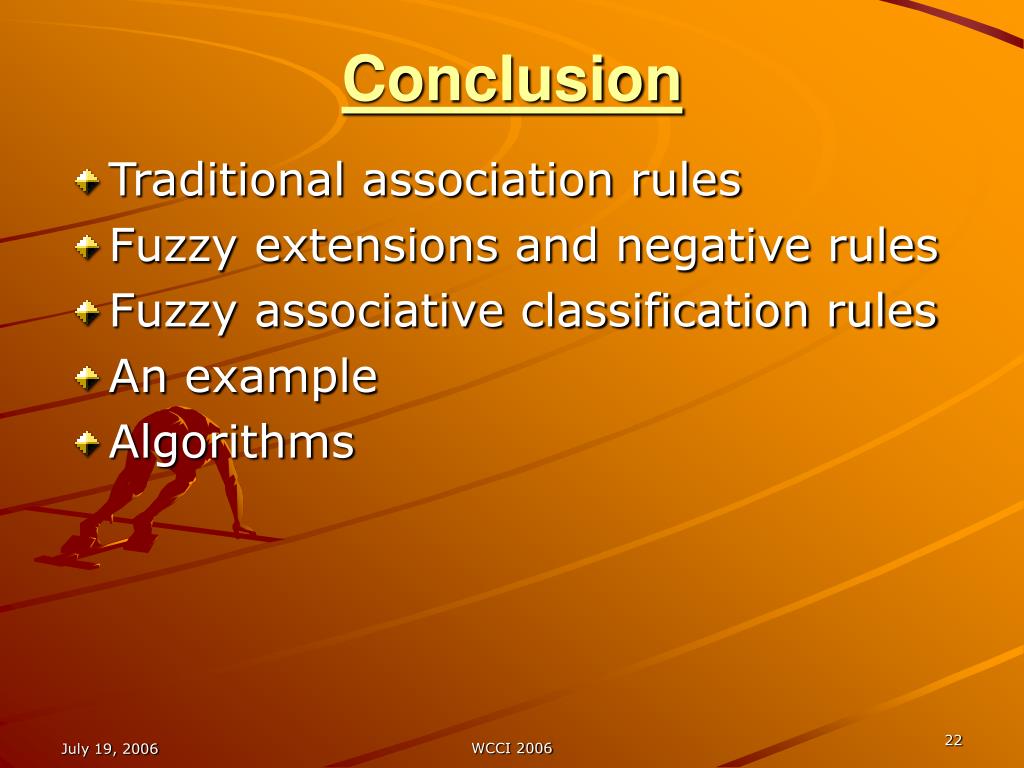

22. Conclusion • Traditional association rules • Fuzzy extensions and negative rules • Fuzzy associative classification rules • An example • Algorithms WCCI 2006
