Computer Science: An Overview Eleventh Edition by J. Glenn Brookshear

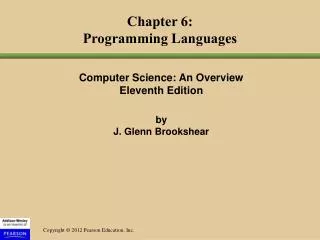

Chapter 6:Programming Languages Computer Science: An OverviewEleventh Edition by J. Glenn Brookshear

Generations of programming languages

Second-generation: Assembly language • A mnemonic system for representing machine instructions • Mnemonic names for op-codes • Identifiers: Descriptive names for memory locations, chosen by the programmer

Assembly Language Characteristics • One-to-one correspondence between machine instructions and assembly instructions • Programmer must think like the machine • Inherently machine-dependent • Converted to machine language by a program called an assembler

Machine language156C166D505630CEC000 Assembly languageLD R5, PriceLD R6, ShipChargeADDI R0, R5 R6ST R0, TotalCostHLT Program Example

Third Generation Language • Uses high-level primitives • Similar to our pseudocode in Chapter 5 • Machine independent (mostly) • Examples: FORTRAN, COBOL • Each primitive corresponds to a sequence of machine language instructions • Converted to machine language by a program called a compiler

The evolution of programming paradigms *different ways of thinking about communicating with the machine

A function for checkbook balancing constructed from simpler functions Sample pseudocode: Imperative language: Total_credits <- sum of all Credits Temp_balance <- Old_balance + Total_credits Total_dedits <- sum of all Debits Balance <- Temp_balance – Total_debits Notice this code requires temporary storage to complete. Sample pseudocode: Functional language (LISP): (Find_diff (Find_sum Old_balance Credits) (Find-sum Debits)) This code uses information as it goes – no temporary storage needed for the final output.

Programming Concepts Generally, a program consists of three categories: • Declarative • Imperative • Comments

The composition of a typical imperative program or program unit

Object-Oriented Languages • A class is the declaration of what makes up the object. • The object is an instance (specific occurrence) of the class. These attribute can be declared within the object. • Declarative statements • Variables and their data types (primitive, special) • Imperative statements • Methods – procedures CLASS CIRCLE OBJECTS

Data Types Primitive • Integer: Whole numbers • Real (float): Numbers with fractions • Character: Symbols • Boolean: True/false

Variable Declarations float Length, Width; int Price, Total, Tax; char Symbol; boolean Answer; • With assignment: int Price = 0; char Choice = ‘A’; boolean Answer = true; float Length = 12.5;

Data Structures • The conceptual shape or arrangement of data deals with data structures. • Arrays • Aggregate type

A two-dimensional array with two rows and nine columns

The conceptual structure of the aggregate type (record) Employee

Control Statements • Conditional statements • Loops • While • Until • For • Case (branching) • If-then-else

The for loop structure and its representation in C++, C#, and Java

Sample Code – C++

Computer Science: An Overview Eleventh Edition by J. Glenn Brookshear
