  1. Network Address Translation (NAT) and Dynamic Host Configuration Protocol (DHCP) Relates to Lab 7. Module about private networks and NAT.

  2. Network address translation: why? • A fix to the IP address depletion problem. • NAT is a router function where IP addresses (and possibly port numbers) of IP datagrams are replaced at the boundary of a private network • We’ve learned another solution. What is it?

  3. Private Internet network Source = 10.0.1.2 Source = 128.143.71.21 Destination = 213.168.112.3 Destination = 213.168.112.3 NAT private address: 10.0.1.2 public address: 213.168.112.3 device public address: 128.143.71.21 H1 H5 Source = 213.168.112.3 Source = 213.168.112.3 Destination = 10.0.1.2 Destination = 128.143.71.21 Private Public Address Address 10.0.1.2 128.143.71.21 Basic operation of NAT • NAT device has address translation table

  4. Private Network • Private IP network is an IP network that is not directly connected to the Internet • IP addresses in a private network can be assigned arbitrarily. • Not registered and not guaranteed to be globally unique • Question: how is public IP address assigned? • Generally, private networks use addresses from the following experimental address ranges (non-routable addresses): • 10.0.0.0 – 10.255.255.255 • 172.16.0.0 – 172.31.255.255 • 192.168.0.0 – 192.168.255.255

  5. Main uses of NAT • Pooling of IP addresses • Supporting migration between network service providers • IP masquerading • Load balancing of servers

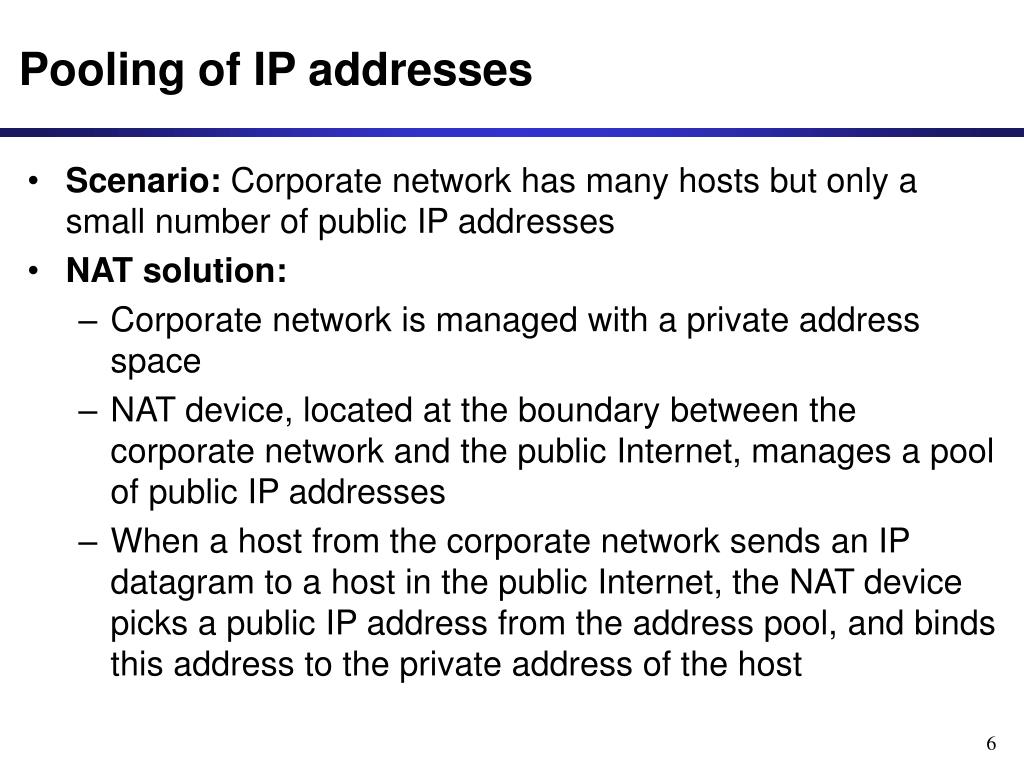

  6. Pooling of IP addresses • Scenario: Corporate network has many hosts but only a small number of public IP addresses • NAT solution: • Corporate network is managed with a private address space • NAT device, located at the boundary between the corporate network and the public Internet, manages a pool of public IP addresses • When a host from the corporate network sends an IP datagram to a host in the public Internet, the NAT device picks a public IP address from the address pool, and binds this address to the private address of the host

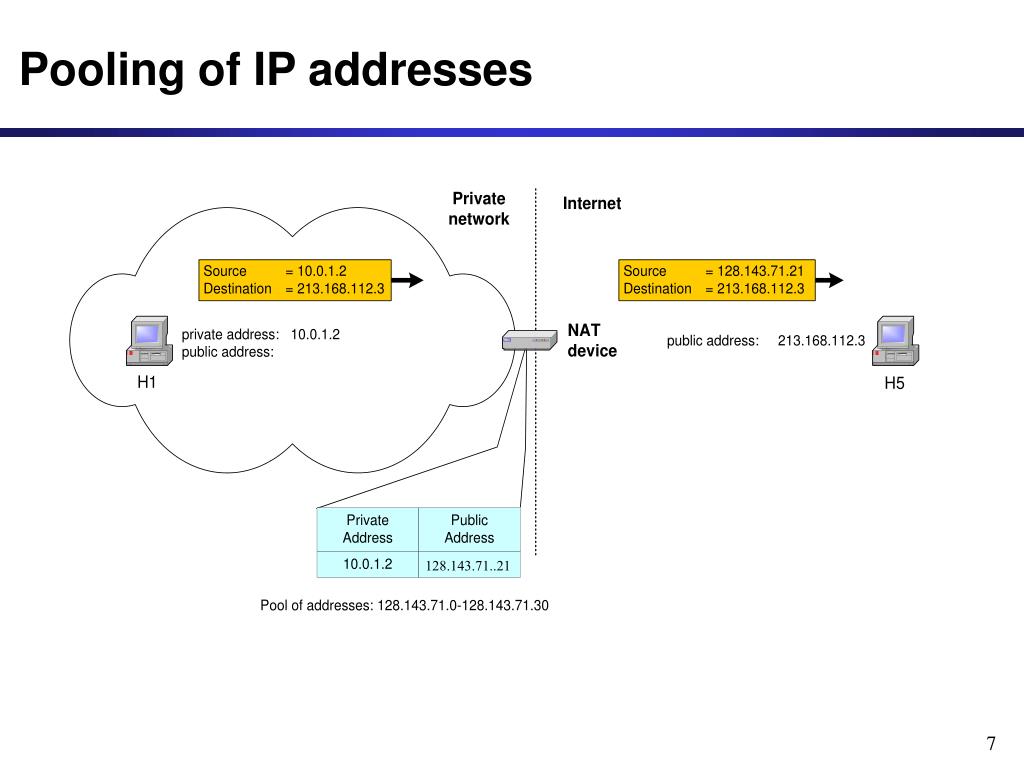

  7. Pooling of IP addresses 128.143.71..21

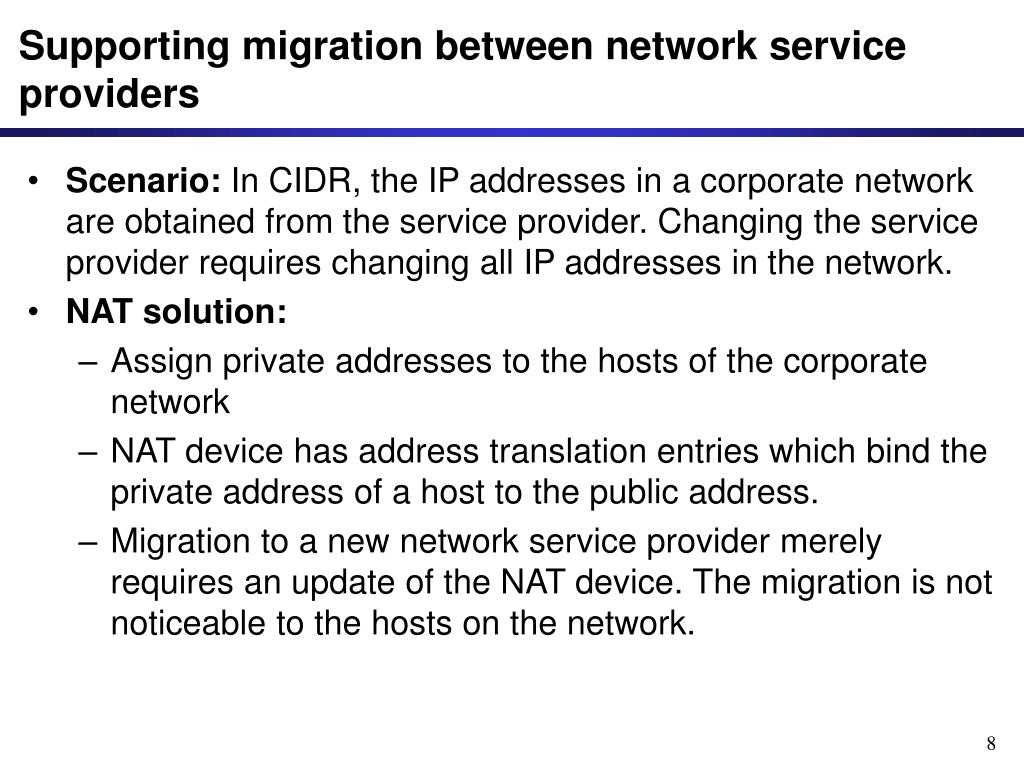

  8. Supporting migration between network service providers • Scenario: In CIDR, the IP addresses in a corporate network are obtained from the service provider. Changing the service provider requires changing all IP addresses in the network. • NAT solution: • Assign private addresses to the hosts of the corporate network • NAT device has address translation entries which bind the private address of a host to the public address. • Migration to a new network service provider merely requires an update of the NAT device. The migration is not noticeable to the hosts on the network.

  9. Supporting migration between network service providers

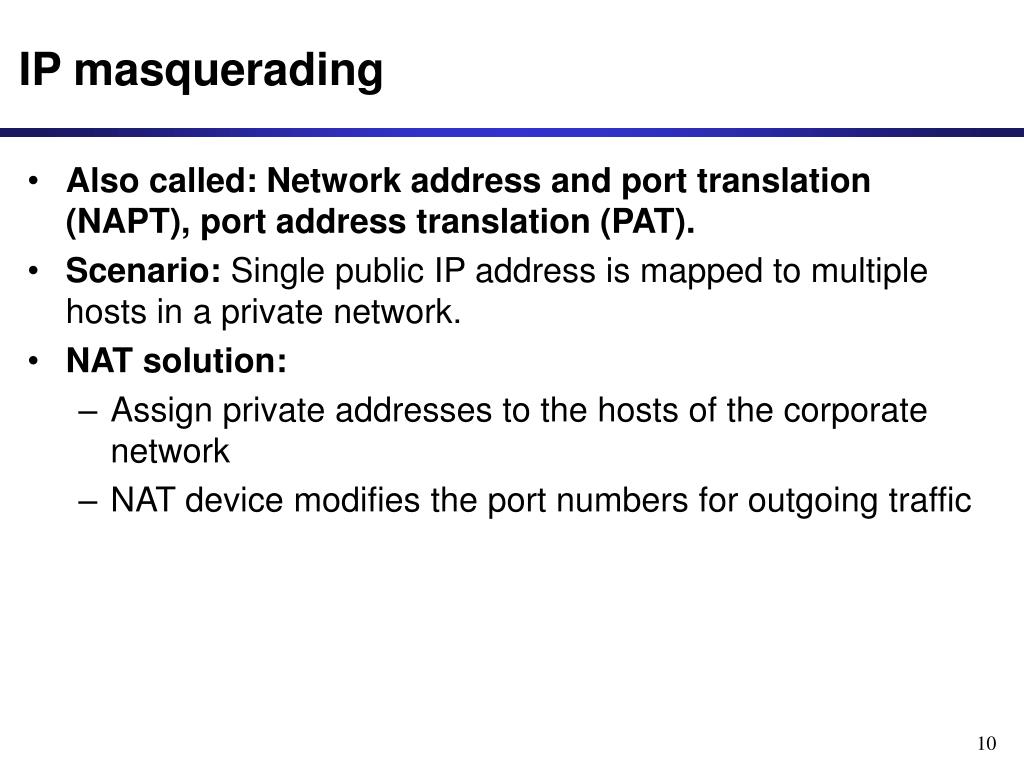

  10. IP masquerading • Also called: Network address and port translation (NAPT), port address translation (PAT). • Scenario: Single public IP address is mapped to multiple hosts in a private network. • NAT solution: • Assign private addresses to the hosts of the corporate network • NAT device modifies the port numbers for outgoing traffic

  11. Source = 10.0.1.2 Source = 128.143.71.21 Source port = 2001 Source port = 2100 private address: 10.0.1.2 NAT 128.143.71.21 Internet Private network H1 device private address: 10.0.1.3 H2 Source = 10.0.1.3 Source = 128.143.71.21 Source port = 3020 Source port = 4444 Private Public Address Address 10.0.1.2/2001 128.143.71.21/2100 10.0.1.3/3020 128.143.71.21/4444 IP masquerading

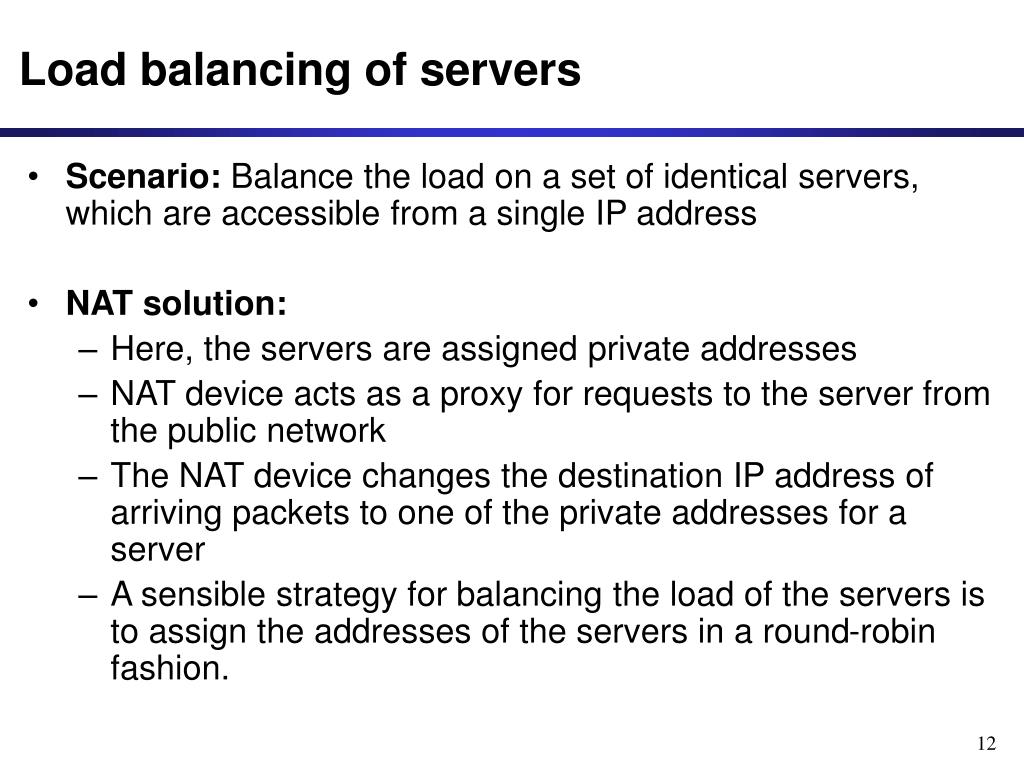

  12. Load balancing of servers • Scenario: Balance the load on a set of identical servers, which are accessible from a single IP address • NAT solution: • Here, the servers are assigned private addresses • NAT device acts as a proxy for requests to the server from the public network • The NAT device changes the destination IP address of arriving packets to one of the private addresses for a server • A sensible strategy for balancing the load of the servers is to assign the addresses of the servers in a round-robin fashion.

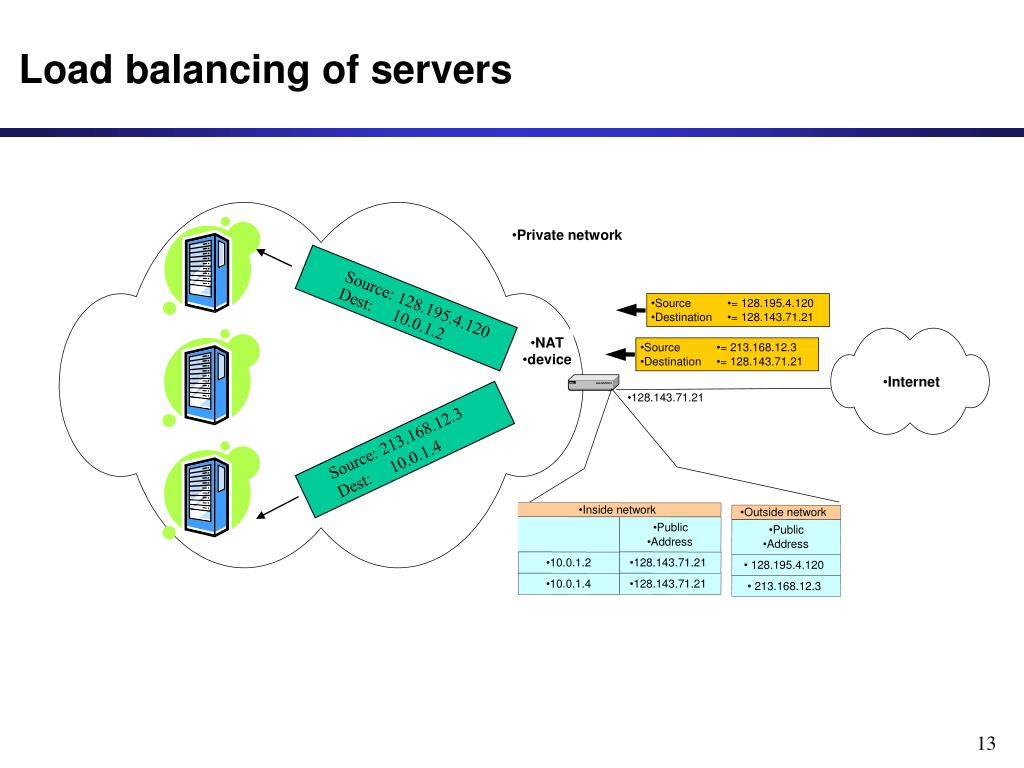

  13. Source: 213.168.12.3 Dest: 10.0.1.4 Load balancing of servers Private network Source: 128.195.4.120 Source = 128.195.4.120 Dest: 10.0.1.2 Destination = 128.143.71.21 NAT Source = 213.168.12.3 device Destination = 128.143.71.21 Internet 128.143.71.21 Inside network Outside network Public Public Address Address 10.0.1.2 128.143.71.21 128.195.4.120 10.0.1.4 128.143.71.21 213.168.12.3

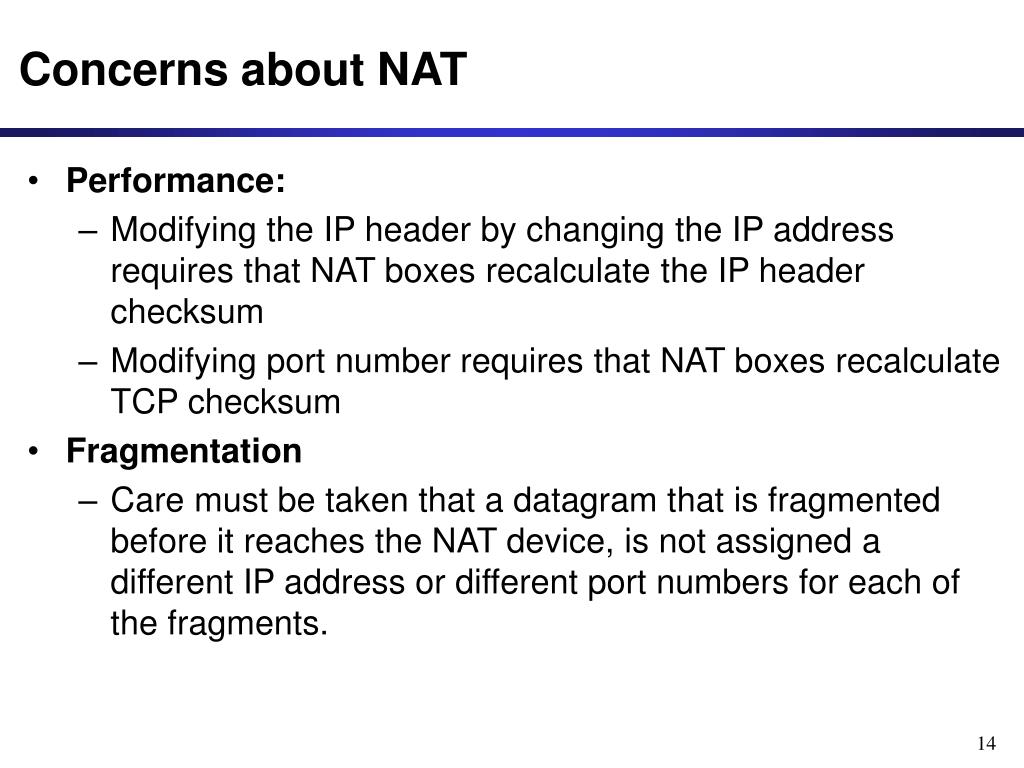

  14. Concerns about NAT • Performance: • Modifying the IP header by changing the IP address requires that NAT boxes recalculate the IP header checksum • Modifying port number requires that NAT boxes recalculate TCP checksum • Fragmentation • Care must be taken that a datagram that is fragmented before it reaches the NAT device, is not assigned a different IP address or different port numbers for each of the fragments.

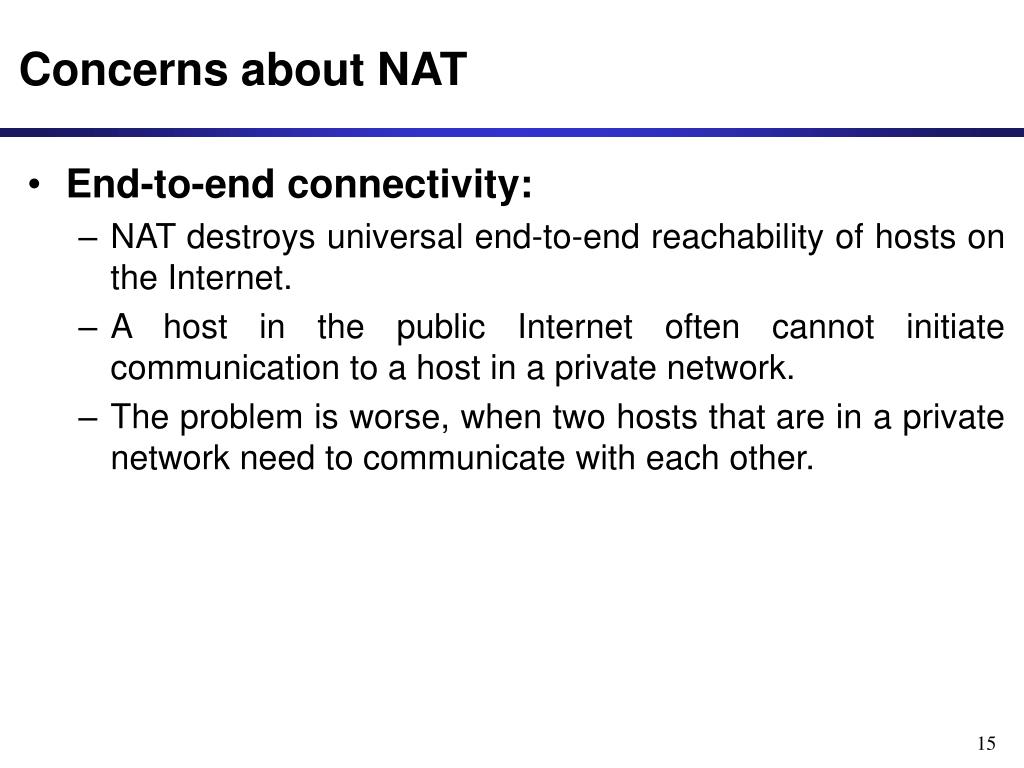

  15. Concerns about NAT • End-to-end connectivity: • NAT destroys universal end-to-end reachability of hosts on the Internet. • A host in the public Internet often cannot initiate communication to a host in a private network. • The problem is worse, when two hosts that are in a private network need to communicate with each other.

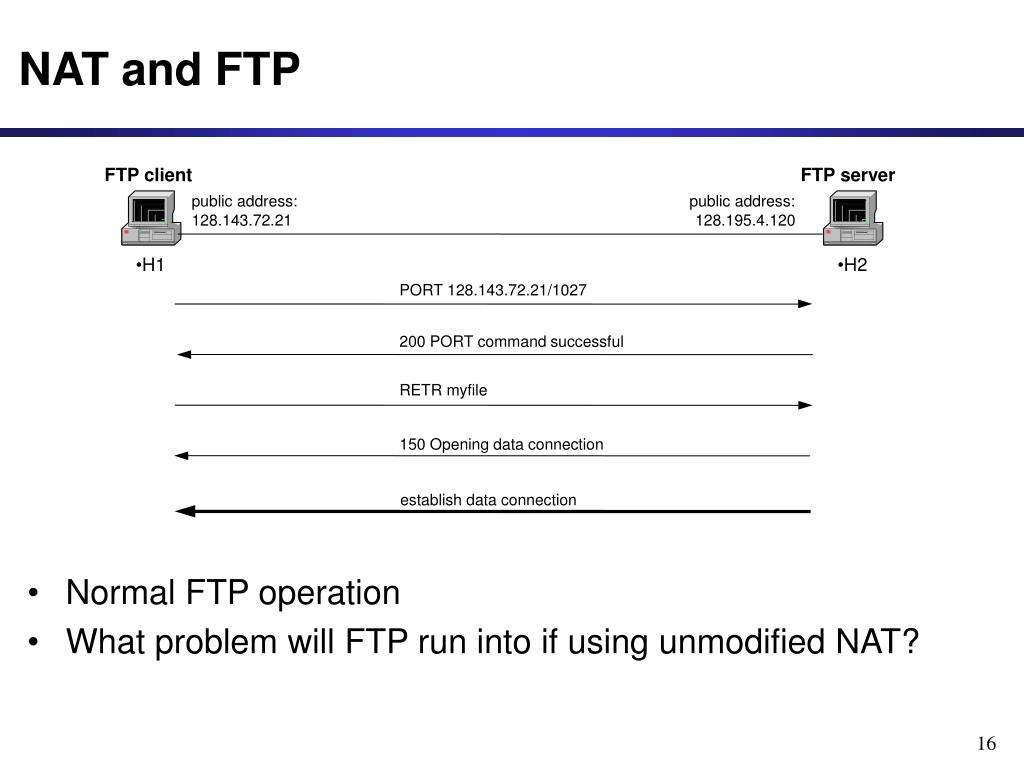

  16. H1 NAT and FTP • Normal FTP operation • What problem will FTP run into if using unmodified NAT? FTP client FTP server public address: public address: 128.143.72.21 128.195.4.120 H2 PORT 128.143.72.21/1027 200 PORT command successful RETR myfile 150 Opening data connection establish data connection

  17. NAT and FTP • NAT device with FTP support

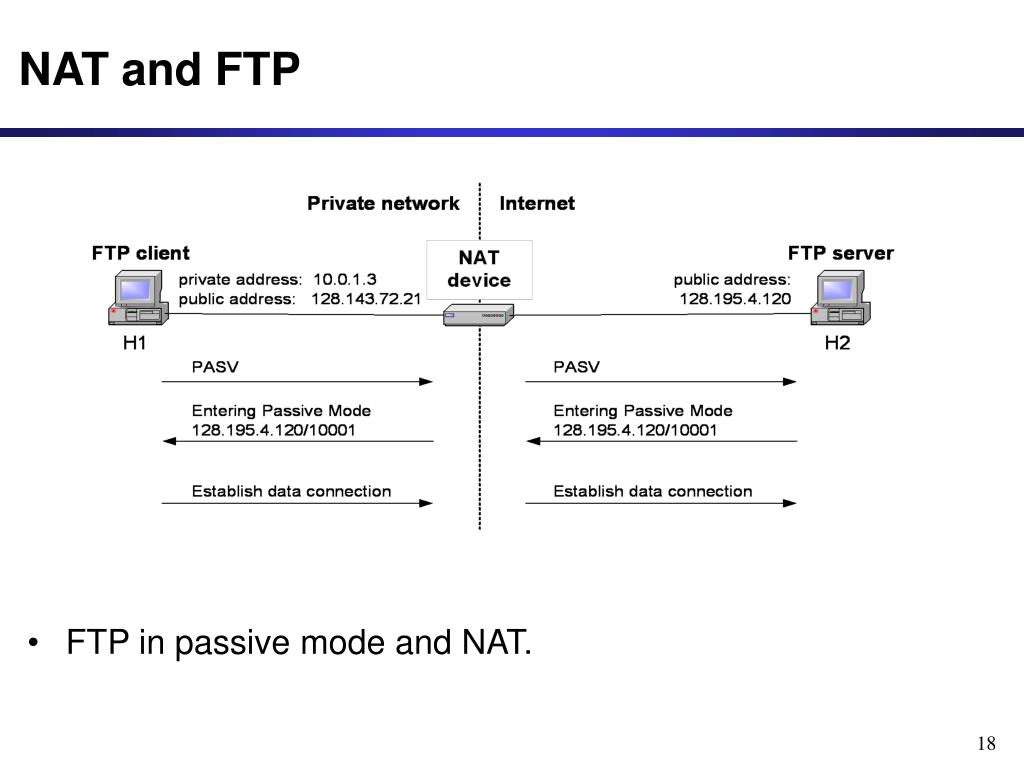

  18. NAT and FTP • FTP in passive mode and NAT.

  19. Configuring NAT in Linux • Linux uses the Netfilter/iptable package to add filtering rules to the IP module

  20. Configuring NAT with iptable • First example:iptables –t nat –A POSTROUTING –s 10.0.1.2 –j SNAT --to-source 128.143.71.21 • Pooling of IP addresses:iptables –t nat –A POSTROUTING –s 10.0.1.0/24 –j SNAT --to-source 128.128.71.0–128.143.71.30 • IP masquerading: iptables –t nat –A POSTROUTING –s 10.0.1.0/24 –o eth1 –j MASQUERADE • Load balancing: iptables -t nat -A PREROUTING -i eth1 -j DNAT --to-destination 10.0.1.2-10.0.1.4

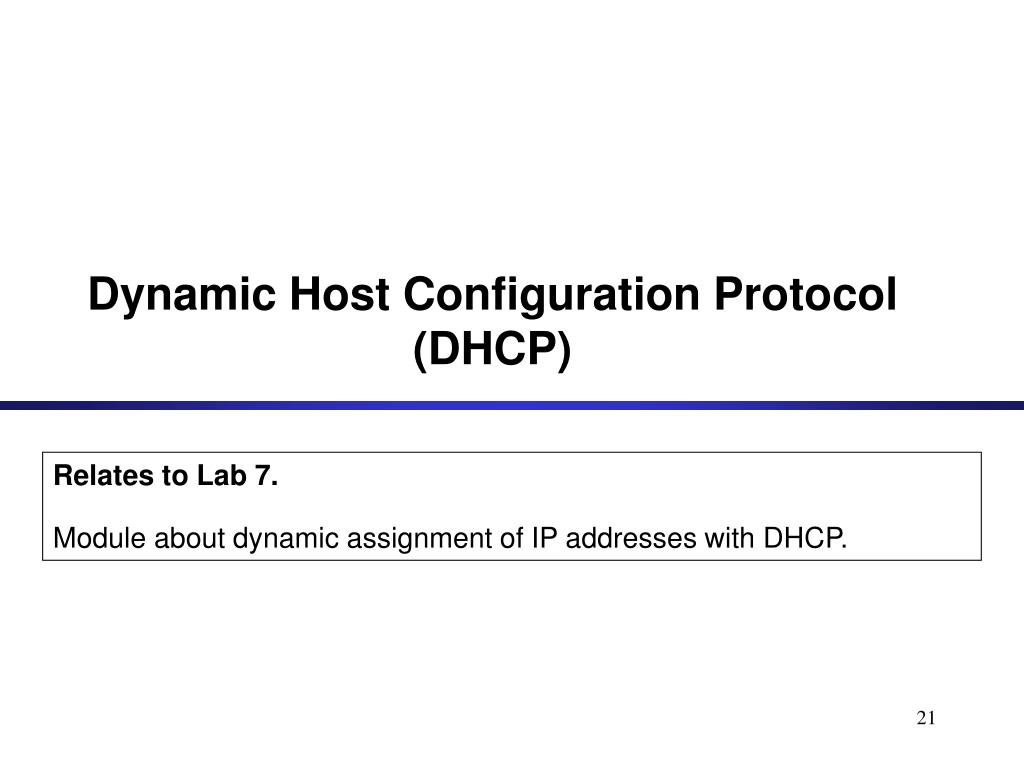

  21. Dynamic Host Configuration Protocol (DHCP) Relates to Lab 7. Module about dynamic assignment of IP addresses with DHCP.

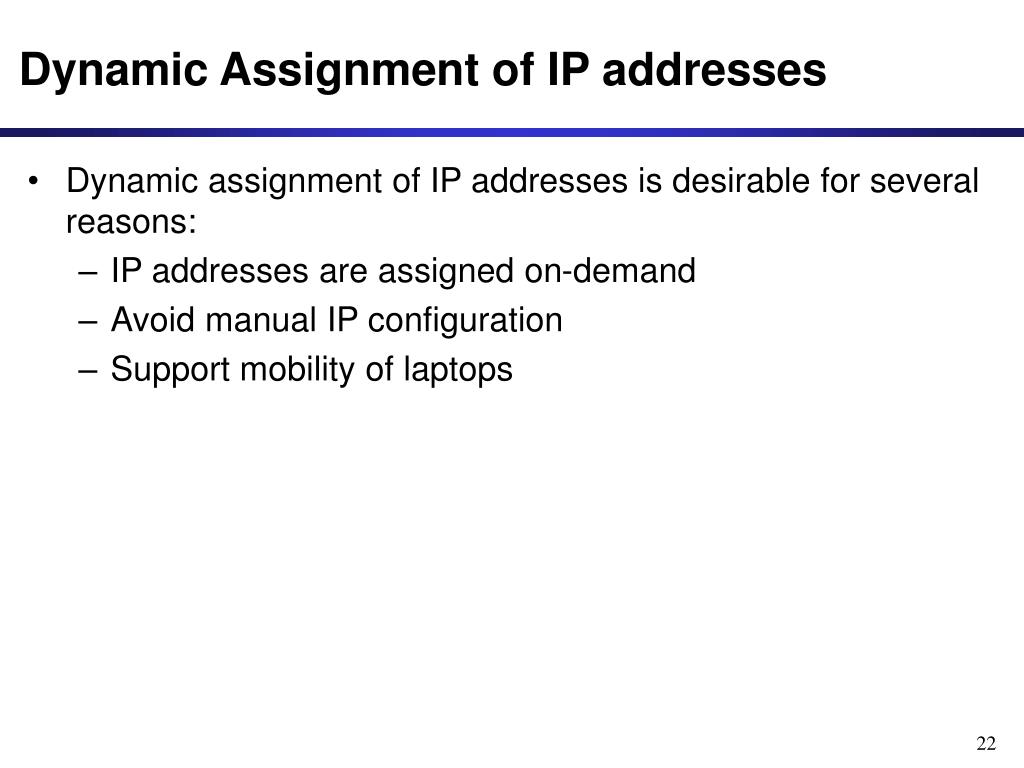

  22. Dynamic Assignment of IP addresses • Dynamic assignment of IP addresses is desirable for several reasons: • IP addresses are assigned on-demand • Avoid manual IP configuration • Support mobility of laptops

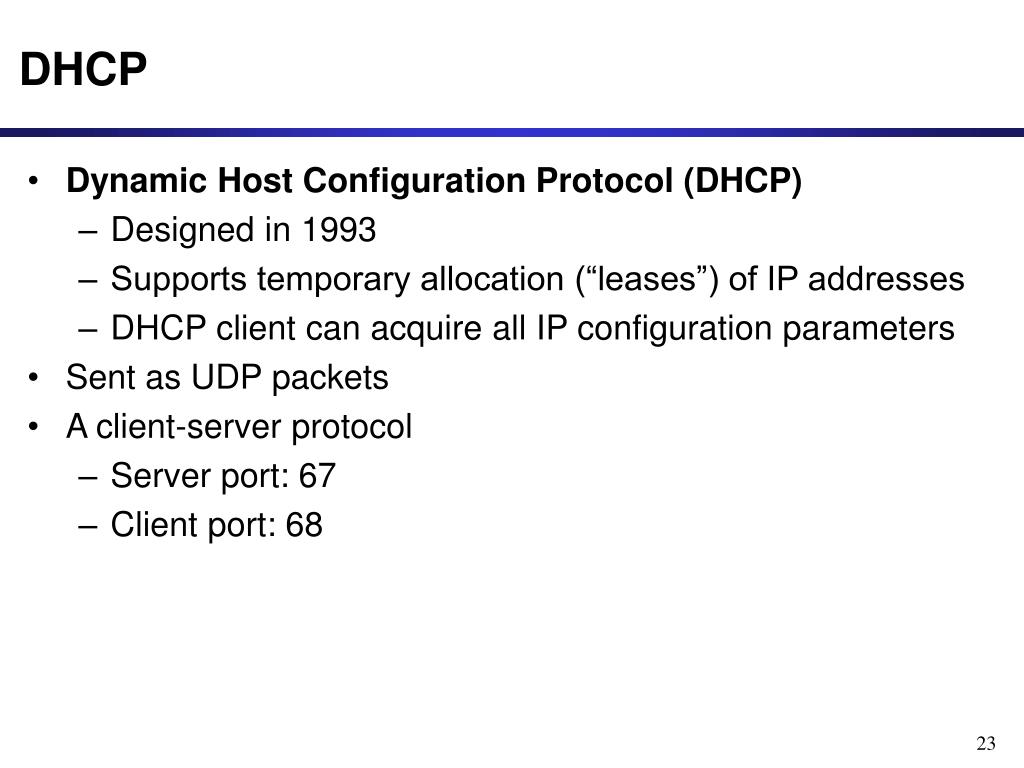

  23. DHCP • Dynamic Host Configuration Protocol (DHCP) • Designed in 1993 • Supports temporary allocation (“leases”) of IP addresses • DHCP client can acquire all IP configuration parameters • Sent as UDP packets • A client-server protocol • Server port: 67 • Client port: 68

  24. DHCP Message Format (There are >100 different options)

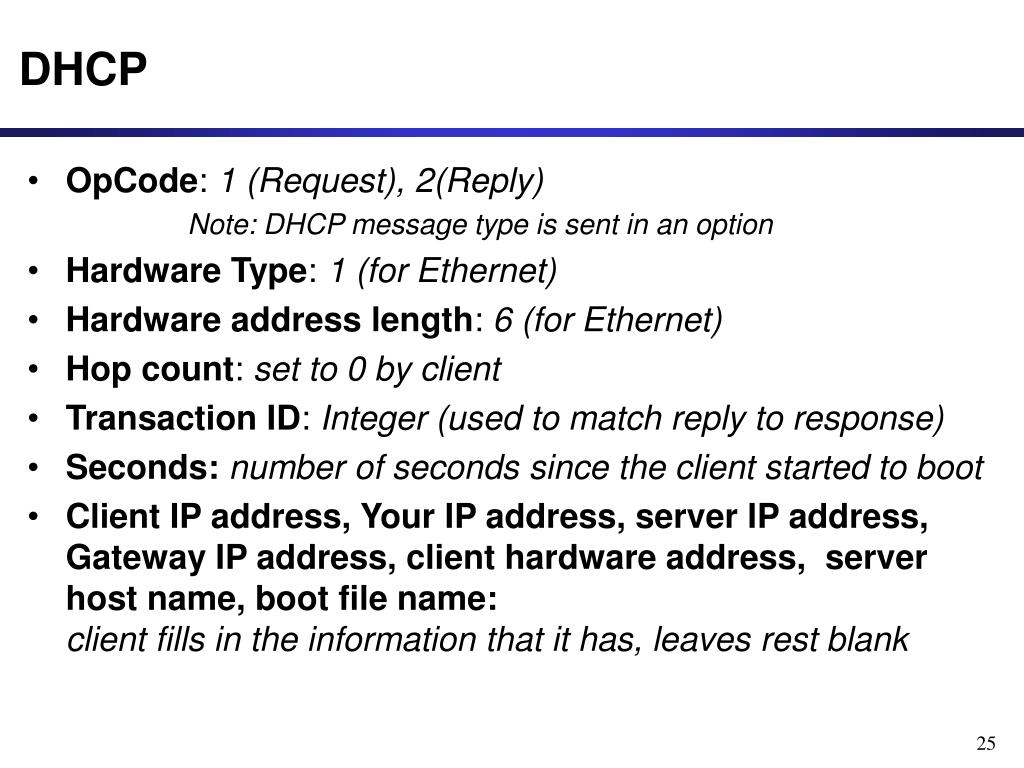

  25. DHCP • OpCode: 1 (Request), 2(Reply) Note: DHCP message type is sent in an option • Hardware Type: 1 (for Ethernet) • Hardware address length: 6 (for Ethernet) • Hop count: set to 0 by client • Transaction ID: Integer (used to match reply to response) • Seconds:number of seconds since the client started to boot • Client IP address, Your IP address, server IP address, Gateway IP address, client hardware address, server host name, boot file name:client fills in the information that it has, leaves rest blank

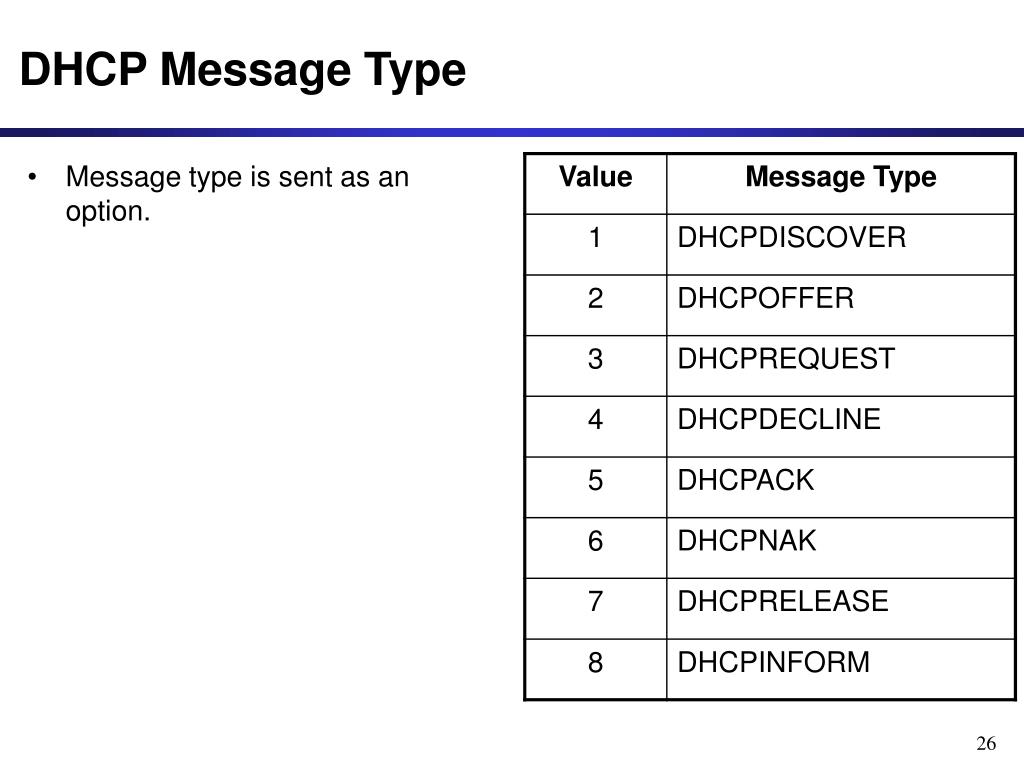

  26. DHCP Message Type • Message type is sent as an option.

  27. Src: 0.0.0.0, 68 Dest: 255.255.255.255, 67 DHCPDISCOVERY Yiaddr: 0.0.0.0 Transaction ID: 654 DHCP operations Src:128.195.31.1, 67 Dest: 255.255.255.255, 68 DHCPOFFER Yiaddr: 128.195.31.147 Transaction ID: 654 Server ID: 128.195.31.1 Lifetime: 3600 secs

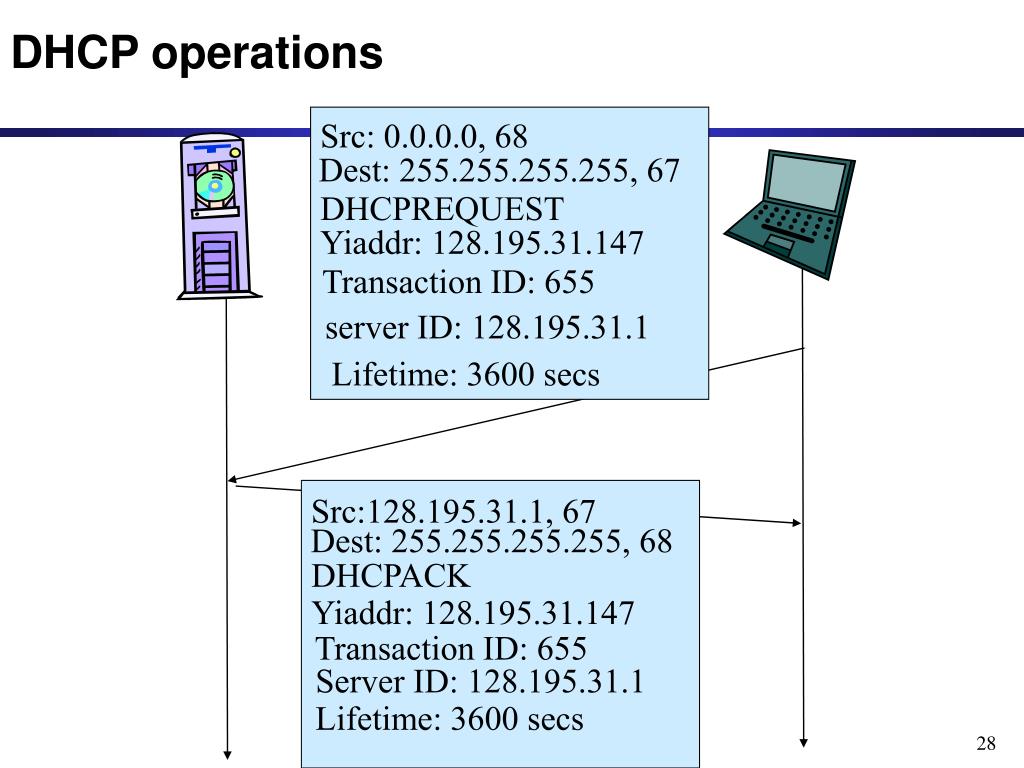

  28. DHCP operations Src: 0.0.0.0, 68 Dest: 255.255.255.255, 67 DHCPREQUEST Yiaddr: 128.195.31.147 Transaction ID: 655 server ID: 128.195.31.1 Lifetime: 3600 secs Src:128.195.31.1, 67 Dest: 255.255.255.255, 68 DHCPACK Yiaddr: 128.195.31.147 Transaction ID: 655 Server ID: 128.195.31.1 Lifetime: 3600 secs

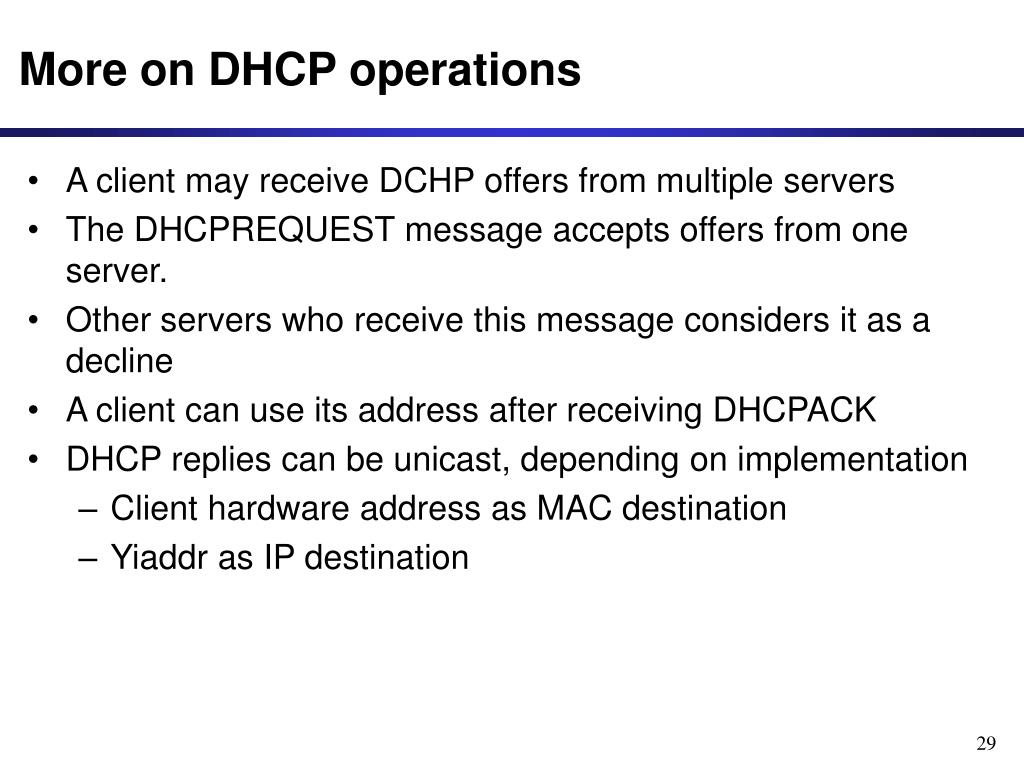

  29. More on DHCP operations • A client may receive DCHP offers from multiple servers • The DHCPREQUEST message accepts offers from one server. • Other servers who receive this message considers it as a decline • A client can use its address after receiving DHCPACK • DHCP replies can be unicast, depending on implementation • Client hardware address as MAC destination • Yiaddr as IP destination

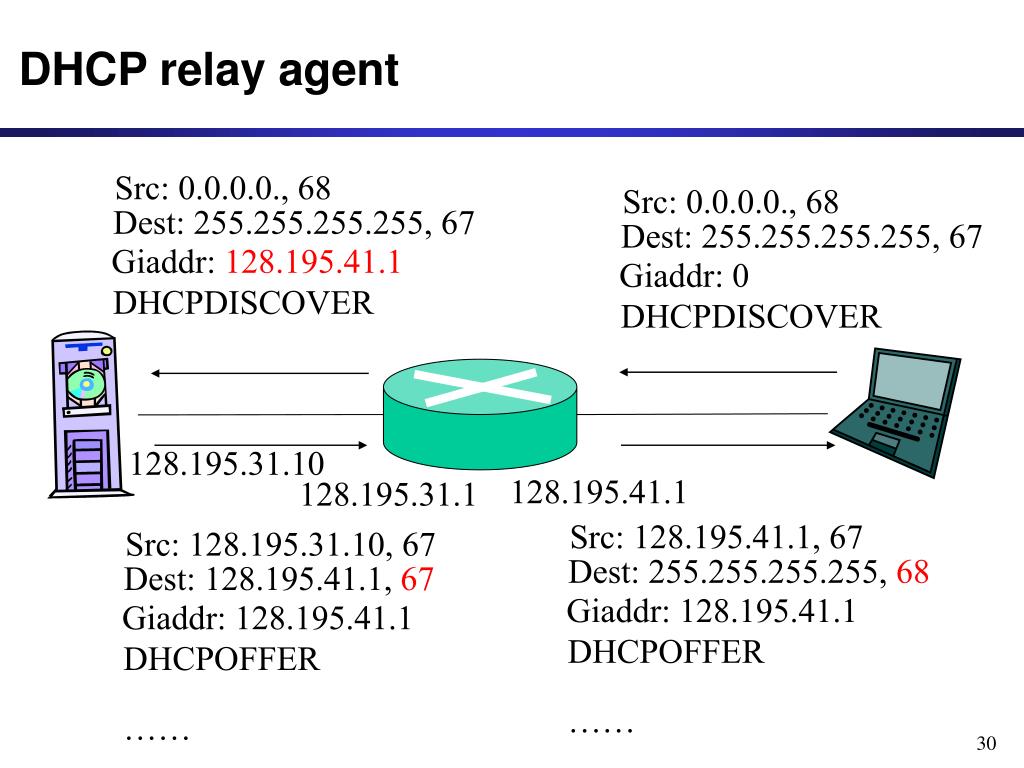

  30. Src: 0.0.0.0., 68 Src: 0.0.0.0., 68 Src: 128.195.41.1, 67 Src: 128.195.31.10, 67 Dest: 255.255.255.255, 67 Dest: 255.255.255.255, 68 Dest: 255.255.255.255, 67 Dest: 128.195.41.1, 67 Giaddr: 128.195.41.1 Giaddr: 128.195.41.1 Giaddr: 128.195.41.1 Giaddr: 0 DHCPDISCOVER DHCPDISCOVER DHCPOFFER …… DHCPOFFER …… DHCP relay agent 128.195.31.10 128.195.41.1 128.195.31.1

  31. Lab question: • Why does DHCP choose well-known client port?

  32. History of DHCP • Three Protocols: • RARP (until 1985, no longer used) • BOOTP (1985-1993) • DHCP (since 1993) • Only DHCP is widely used today.

  33. Solutions for dynamic assignment of IP addresses • Reverse Address Resolution Protocol (RARP) • RARP is no longer used • Works similar to ARP • Broadcast a request for the IP address associated with a given MAC address • RARP server responds with an IP address • Only assigns IP address (not the default router and subnetmask)

  34. BOOTP • BOOTstrap Protocol (BOOTP) • Host can configure its IP parameters at boot time. • 3 services. • IP address assignment. • Detection of the IP address for a serving machine. • The name of a file to be loaded and executed by the client machine (boot file name) • Not only assigns IP address, but also default router, network mask, etc. • Sent as UDP messages (UDP Port 67 (server) and 68 (host)) • Use limited broadcast address (255.255.255.255): • These addresses are never forwarded

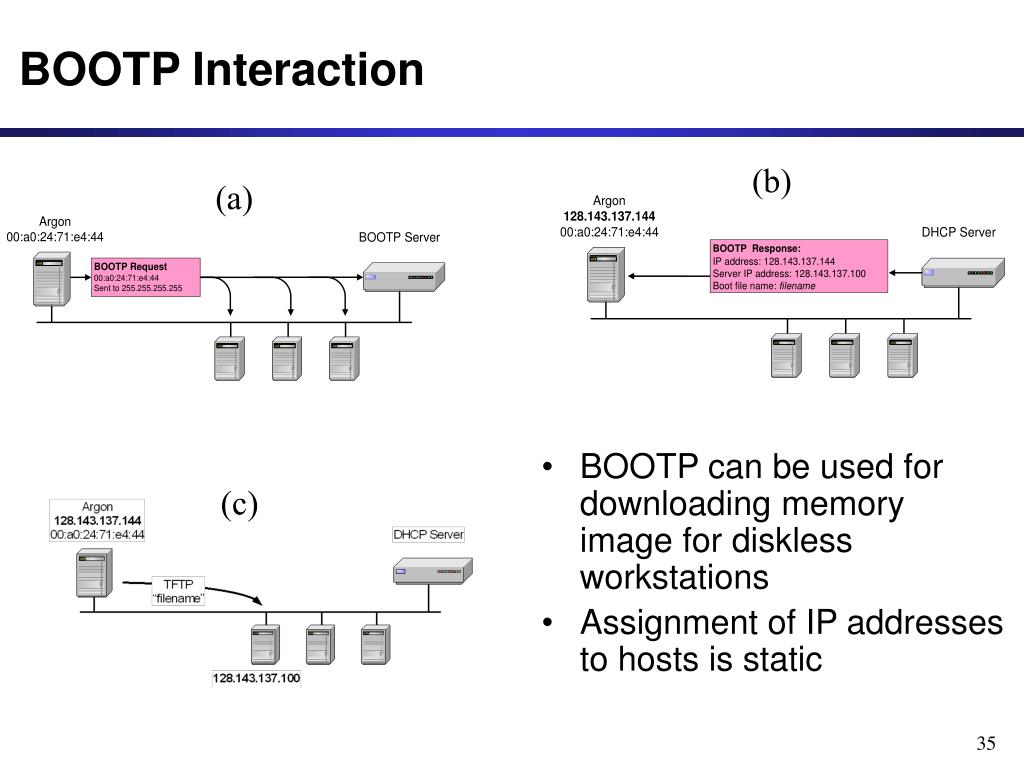

  35. BOOTP Interaction • BOOTP can be used for downloading memory image for diskless workstations • Assignment of IP addresses to hosts is static (b) (a) (c)

  36. Lab errata • In  Figure 7.1,  the private network interface of Router2  should be labeled with IP address "10.0.1.1/24" (instead of 10.0.0.1/24).
