Software Types

1. Software Types • Operating Systems • Also called Systems Software • Manage the computer resources • Ex: Linux, Windows, MacOS • Applications Software • Specific tasks • Rely on OS • Ex: MS Office, CAD/CAM, PhotoShop

2. OS Types • IBM 370 • SunOS, VAX • Win Server 2008 • Windows, MacOS • Windows CE • pSOS • Embedded NT, embedded Linux • Mainframes • Workstations • Servers • Personal Computers • Mobile Devices • Real Time • Embedded Live Chat 7

3. Operating System Functions • Access Control • Who can access resources. • Identity and credential management • Account management and verification. • Information flow. • Audit and Integrity protection. • Logs & permissions.

4. What needs Protection? • Memory. • I/O devices: disks • Re-useable I/O devices: printers. • Programs and sub-processes. • Networks. • Data.

5. Security Methods of Operating Systems • Separation: basis of protection • Physical: different devices for different security levels. • Temporal: processes execute at different times. • Logical: illusion that a user is operating alone. • Cryptographic: conceal data and computations. • Only half the answer • must share some objects.

6. Protection Levels • Do not protect. • Isolate: processes unaware of each other. • Share all or share nothing. Owner declares. • Share via access limitation: OS checks. • Share by capabilities: dynamic creation of sharing rights for objects. • Limit use of object: view but not print.

7. Protection Ring Model

8. UNIX Operating System Security • Root Accounts • Sudo an alternative. • Permissions • -rwxr--r-- /etc/passwd • Owner, group, world. • SUID • -rwSrwxrwx 1 root wheel 3412 Jan 1 2011 program.sh • Dangerous, anyone can edit and execute as root.

9. UNIX Operating System Security • Iptables: Host based firewall. • OSSEC: Host based intrusion detection. • AIDE: log monitoring. • Only run required services • Center for Internet Security • Instructions to lock down and secure most operating systems. • Extra secure operating systems • SELinux: security enhanced Linux with security modules. • OpenBSD: listed #1 in a top ten list.

10. Windows OS Security • Firewall: turn it on. • Automatic updates: set a time. • Anti-Virus: must have. • Anti-Spyware: good to have. • HIDS: 3rd party products. • Event Monitoring: centralize logging. • User Permissions: audit permissions.

11. Windows Security Tools • Secunia: monitor for product patches. • AVG: free Anti-virus. • Malwarebytes: anti-malware. • Spybot Search and Destroy: rm spyware. • JavaRA & PureRA: keep java up to date. • Parental/worker controls: block web sites. • Use at your own risk.

12. Memory Protection • Protect the memory space of data & programs. • Fence: confine to one side of a boundary. • Fence Register: address at the end of the Operating System. • Restrictive, too much memory could be reserved. • Variable fence register: location can change • Protects in one direction. Users compete for Memory.

13. Figure 4-1  Fixed Fence.

14. Figure 4-2  Variable Fence Register.

15. Figure 4-3  Pair of Base/Bounds Registers. Variable Register = Base Register

16. Figure 4-4  Two Pairs of Base/Bounds Registers.

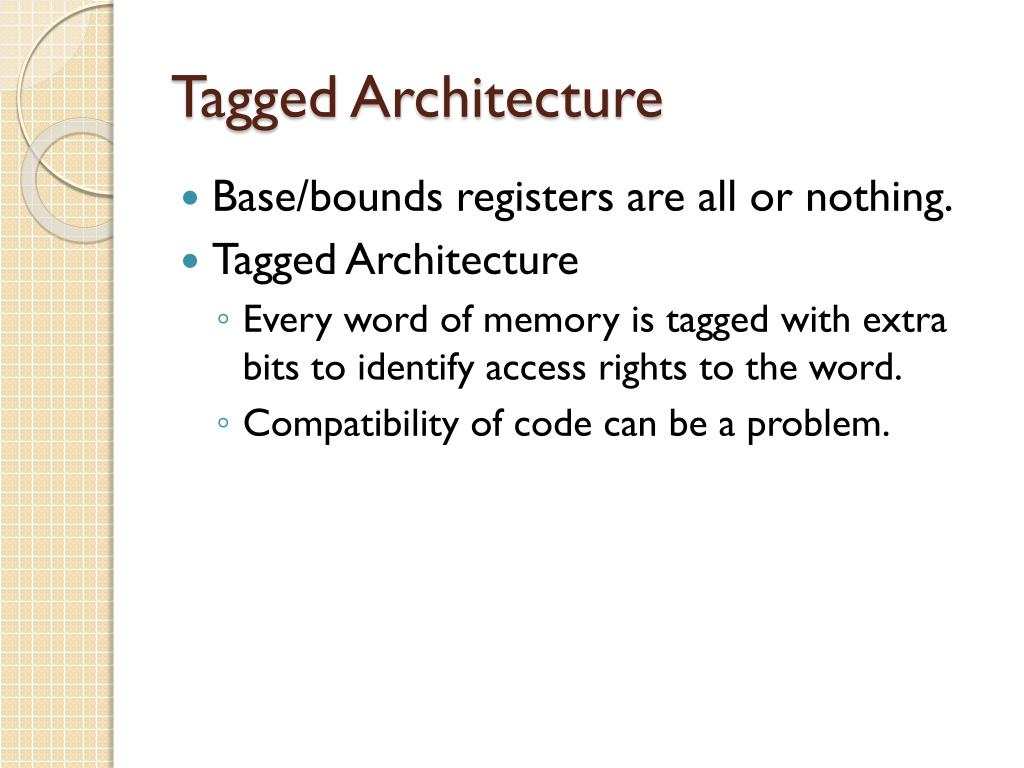

17. Tagged Architecture • Base/bounds registers are all or nothing. • Tagged Architecture • Every word of memory is tagged with extra bits to identify access rights to the word. • Compatibility of code can be a problem.

18. Figure 4-5  Example of Tagged Architecture.

19. Segmentation • Divide a program into separate pieces • Code of a procedure, an array, data values. • Each piece can have its own access rights. • A segment has a name and an offset value. • Usually one OS segment address table per executing process. • Segments can exist at any location, can be moved and can be checked for protection.

20. Figure 4-6  Logical and Physical Representation of Segments.

21. Figure 4-7  Translation of Segment Address.

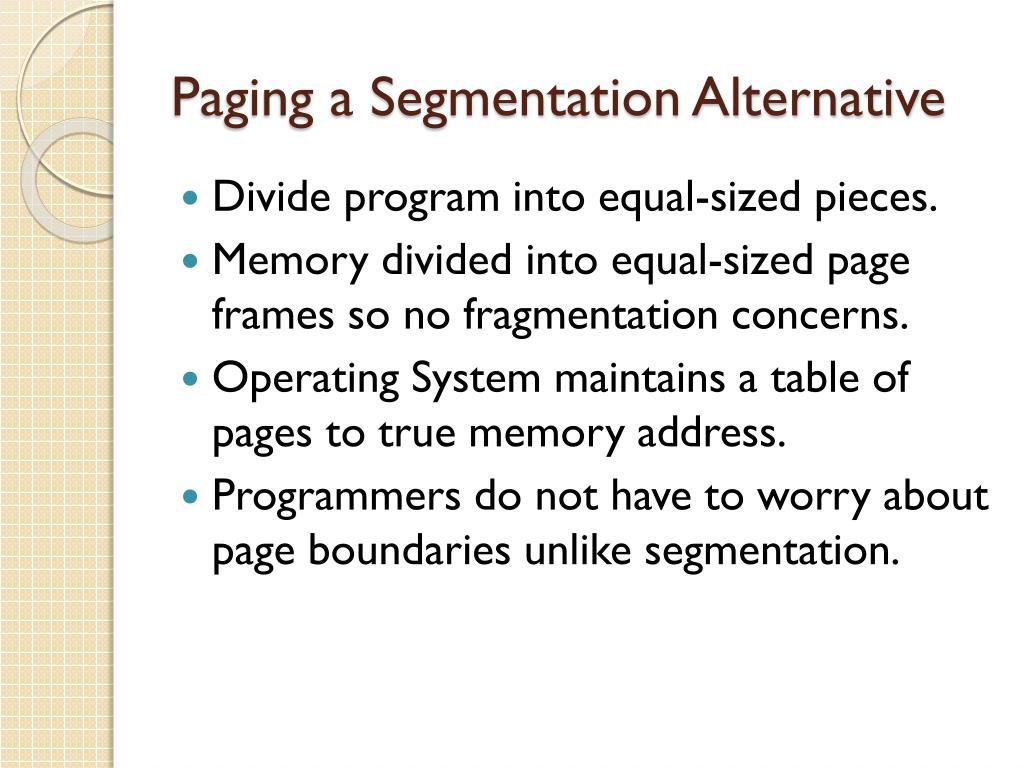

22. Paging a Segmentation Alternative • Divide program into equal-sized pieces. • Memory divided into equal-sized page frames so no fragmentation concerns. • Operating System maintains a table of pages to true memory address. • Programmers do not have to worry about page boundaries unlike segmentation.

23. Figure 4-8  Page Address Translation.

24. Combine Paging & Segmentation • Paging offers implementation efficiency. • Segmentation offers logical protection. • Combine them to form paged segmentation. • Program divided into logical segments • Break each segment into fixed page sizes. • Hardware improvement improved efficiency for paged segmentation.

25. Figure 4-9  Paged Segmentation.

26. Directory Access • Each user controls access to their files. • Each user has their own directory. • Also has copies of files they can access. • Permissions: Read, Write, eXecute. • Difficulty if there are many shared objects. • Space consumption. • Revocation of access can be time consuming. • Given the number of copies.

27. Figure 4-10  Directory Access.

28. Alternative Access Paths • Directory problems with pseudonyms. • Owners have files with same name. • Want to grant access to these files to another user. • Multiple permissions may exist to same object for a single user. • The directory approach is considered too simple for most object protection situations.

29. Figure 4-11  Alternative Access Paths.

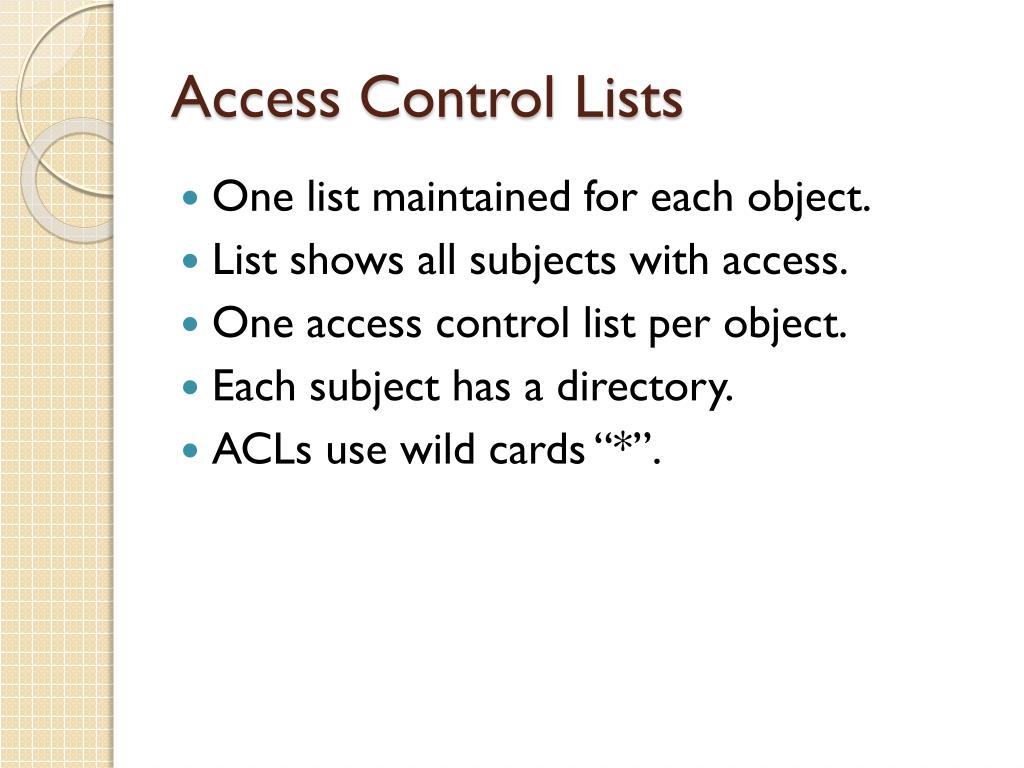

30. Access Control Lists • One list maintained for each object. • List shows all subjects with access. • One access control list per object. • Each subject has a directory. • ACLs use wild cards “*”.

31. Figure 4-12  Access Control List.

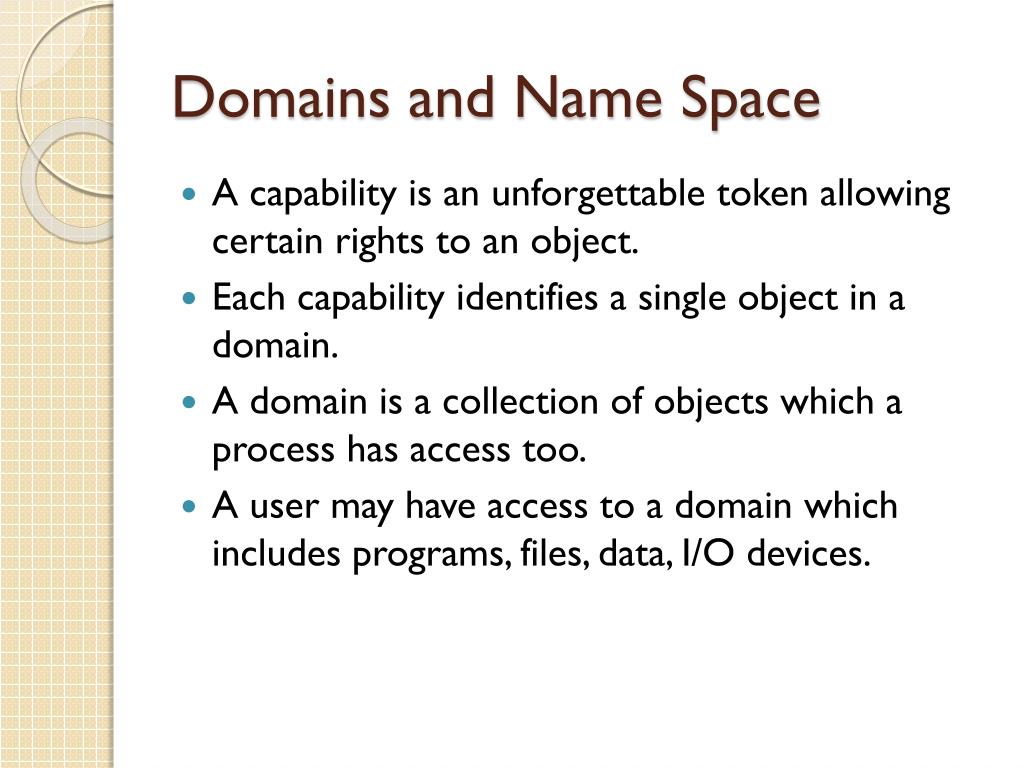

32. Domains and Name Space • A capability is an unforgettable token allowing certain rights to an object. • Each capability identifies a single object in a domain. • A domain is a collection of objects which a process has access too. • A user may have access to a domain which includes programs, files, data, I/O devices.

33. Figure 4-13  Process Execution Domain.

34. Domain Object Passing • A collection of capabilities defines a domain. • Calling a sub-procedure can pass objects. • Capabilities are a straight forward way to track of access rights during execution. • capabilities backed up by control matrix or an access control list. • Capabilities must be stored in memory inaccessible to users.

35. Figure 4-14  Passing Objects to a Subject.

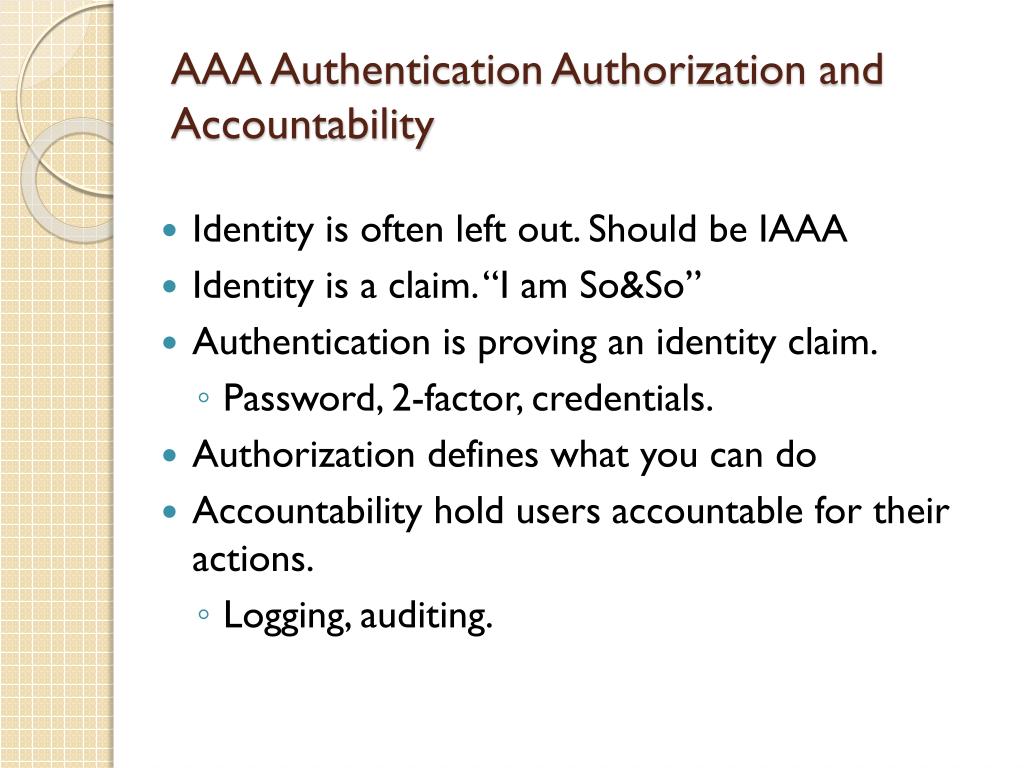

36. AAA Authentication Authorization and Accountability • Identity is often left out. Should be IAAA • Identity is a claim. “I am So&So” • Authentication is proving an identity claim. • Password, 2-factor, credentials. • Authorization defines what you can do • Accountability hold users accountable for their actions. • Logging, auditing.

37. Triple A Model A A A Authentication Authorization Accounting Source: Jayaswal, K. (2006). Administering data centers: Servers, storage, and voice over IP. Indianapolis, IN: Wiley Publishing, Inc. Live Chat 10

38. AAA • Authentication • Who you are • Authorization • What you are permitted to do • Accounting • What you actually did Source: Jayaswal, K. (2006). Administering data centers: Servers, storage, and voice over IP. Indianapolis, IN: Wiley Publishing, Inc. Live Chat 10

39. Authentication • Authentication is the process used to identify who you are based on: • User name/password combination • Certificates • Biometrics • Fingerprints • Retina scan • Other? Source: Jayaswal, K. (2006). Administering data centers: Servers, storage, and voice over IP. Indianapolis, IN: Wiley Publishing, Inc. Live Chat 10

40. Authentication • Password-based authentication • User name/password • Token-based authentication • One-time password generated by encrypting a time stamp with secret key (SecurID) • Digital Certificate-based authentication • Electronic or digital certificate • Contains public key, user information, issuer’s information, and valid period Source: Jayaswal, K. (2006). Administering data centers: Servers, storage, and voice over IP. Indianapolis, IN: Wiley Publishing, Inc. Live Chat 10

41. Authorization Process • As users attempt to gain access to network resources, credentials are presented • Request sent to an AAA server • Server authenticates user and determines authorization • Accounting keeps track of resource usage Source: Jayaswal, K. (2006). Administering data centers: Servers, storage, and voice over IP. Indianapolis, IN: Wiley Publishing, Inc. Live Chat 10

42. Authentication Mechanisms • Something the user knows • Password, pass phrase, PIN, a secret. • Something the user has: • Badge, keys, identification, token. • Something the user is • Biometrics • 2-Factor: require two of the above.

43. Figure 4-15  Users’ Password Choices.

44. Password Attacks • Password cracking: John-the-ripper • Brute force attacks: take time, effective. • Rainbow Table: a database of password hash values. • Hybrid attack: append or pre-pend characters before hashing. • Attack against complex passwords. • Dictionary attacks: use word lists. • Salt: a random value used when creating password hashes.

45. Biometrics • Enrollment: registering with the system. • Throughput: how long to authenticate. 6-10 • Accuracy • False Rejection Rate(FRR) • Authorized subject rejected • False Accept Rate • Unauthorized person accepted as valid • Crossover Error Rate: accuracy • Where FRR =FAR

46. Biometric Devices • Retina Scan: laser scan of capillaries. • Iris Scan: passive, high accuracy, each iris is unique, no body fluids exchanged. • Hand Geometry: specific points on hand. • Keyboard dynamics: measure pressure and rhythm. • Dynamic Signature: how a person signs their name. • Voice Print: tone of voice. Vulnerable to a replay attack. • Facial scan: high cost. Used at Super Bowl to identify criminals.

47. Discussion Questions • Biometric Objections. • What are some reasons people are reluctant to use biometrics? • How can you counter these objections?
