  1. EEX Update: • Analysis of March 13/14 data run • Analysis of March 17th Streak camera data • Next steps… April 4th, 2008 Tim Koeth

  2. Measuring the EEX Line Matricies Adjusting one input parameter at a time and measuring all output parameters we can map out the transport matrix. For example, introducing a momentum offset yields the 6th column: Do this with the TM110 cavity at: 0, 25%, 50%, 75%, 100%

  3. EEX Beam Line at the Photoinjector H&VBX03 (cor magnet) D1 D2 TM110 D3 D4 Spectrometer H&VA9C (cor magnet)

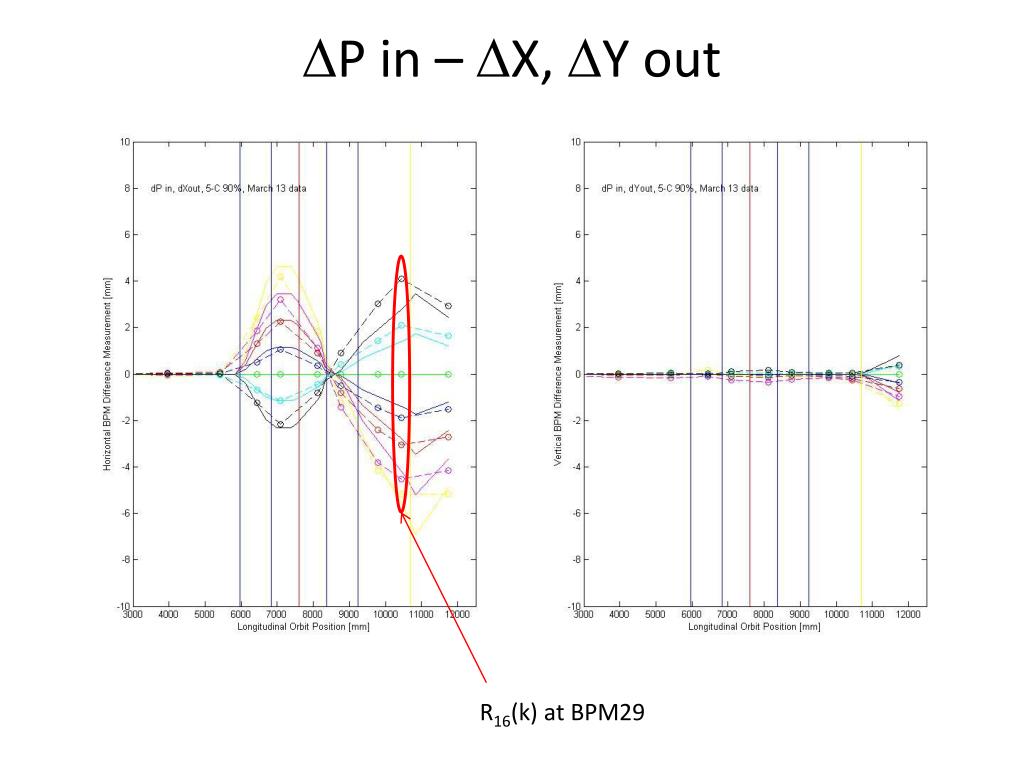

  4. DP in – DX, DY out R16(k) at BPM29

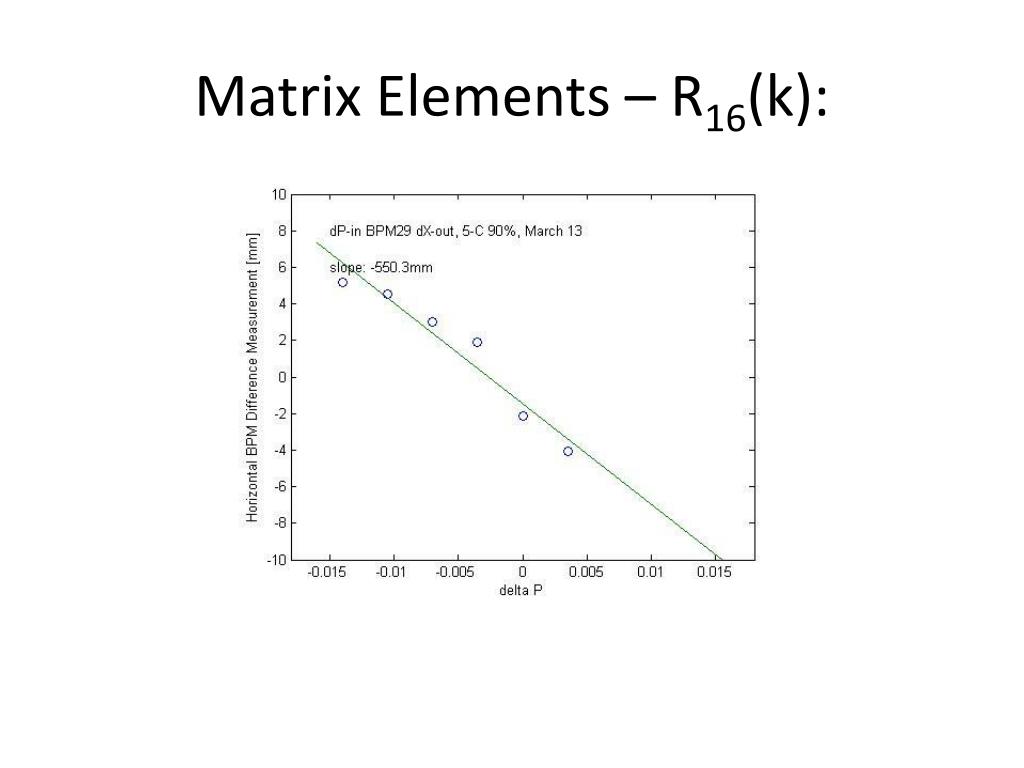

  5. Matrix Elements – R16(k):

  6. R16(k)

  7. DX’ in – DX, DY out R12 BPM28

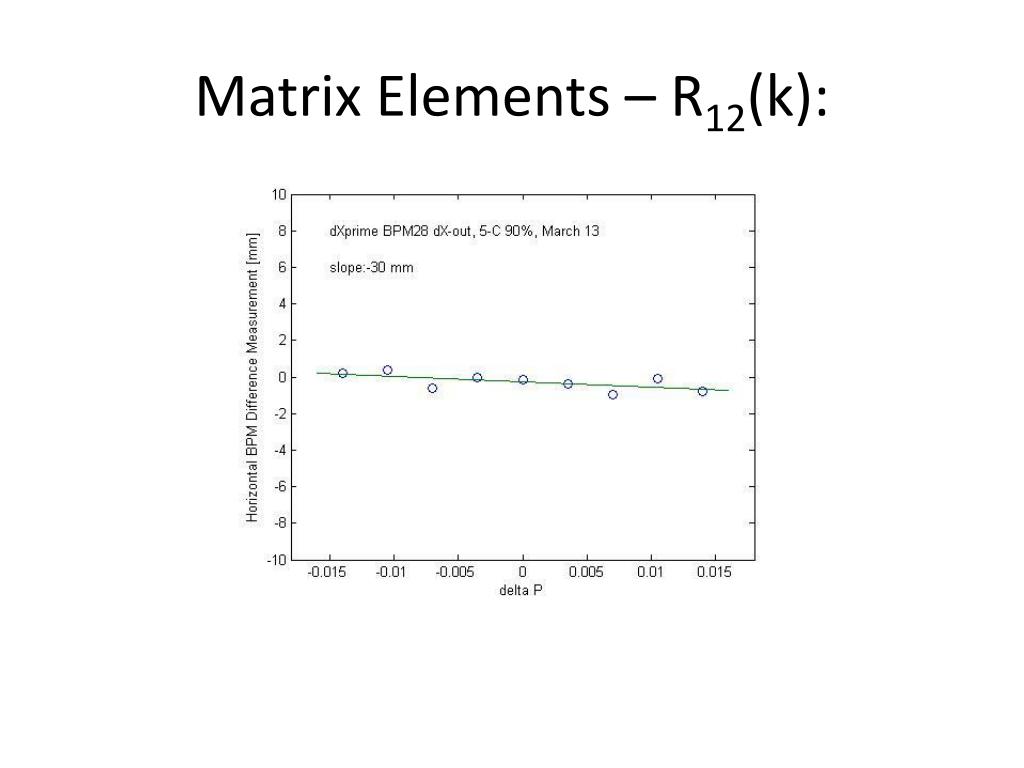

  8. Matrix Elements – R12(k):

  9. R12(k)

  10. DY’ in – DX, DY out

  11. DF in – DX, DY out

  12. DX in – DX, DY out

  13. DY’ in – DX, DY out

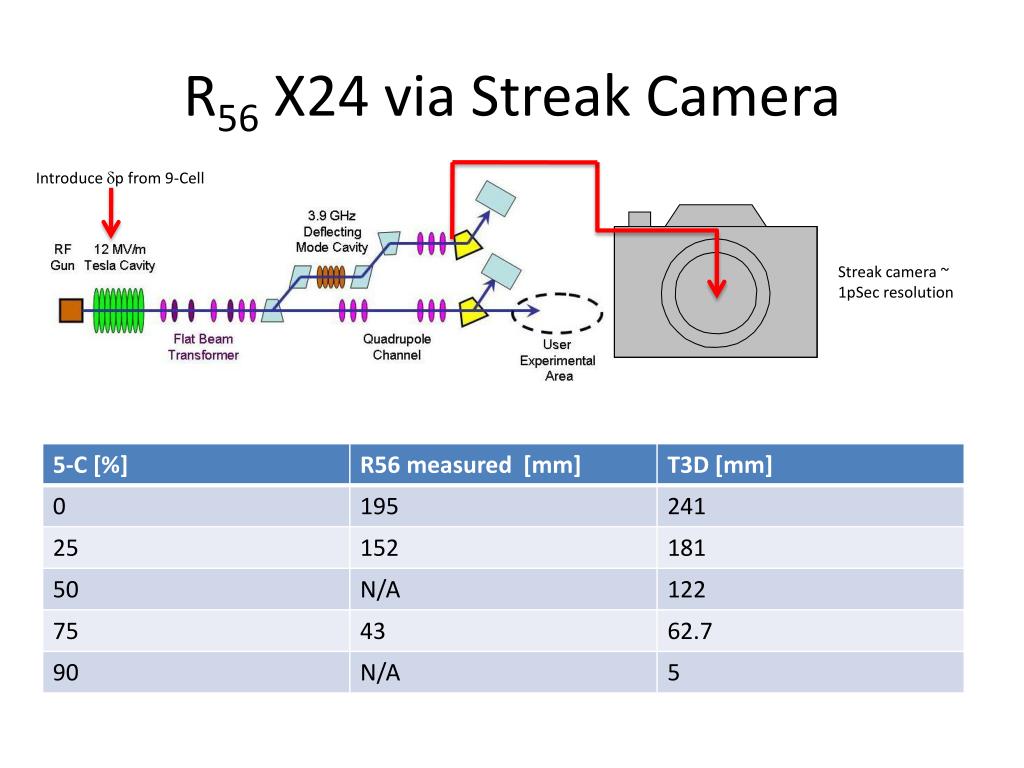

  14. R56 X24 via Streak Camera Introduce dp from 9-Cell Streak camera ~ 1pSec resolution
