  1. Math: Find the area of a circle. Science: Describe the impact of catastrophic events on the Earth (Earthquake) By Alfonso Salinas, Oralia Fernandez and Diana De Alba.

  2. Pre-requisites: Math and Science • • Circumference (radius, chord, diameter, arch) • Concept of Area • Coordinate Plane • Rates • Tectonic Plates

  3. Activity to discover “Area of a circle” Organize class into groups. Distribute: • Template of a Circle • Ruler • Scissors

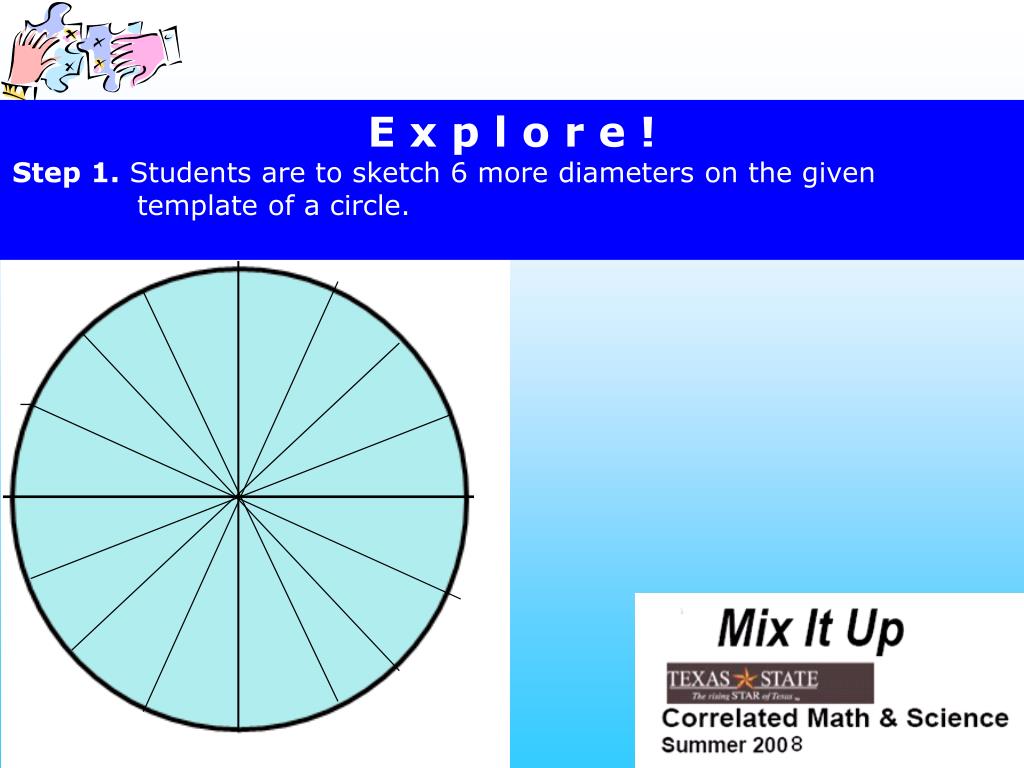

  4. E x p l o r e ! Step 1. Students are to sketch 6 more diameters on the given template of a circle.

  5. Step 2. Students are to cut out the circle through one of the diameters.

  6. Step 3. Cut out the circle through all the radii towards the circumference

  7. Step 4. Try to fit the pieces you have into a known polygon

  8. How does it looks like?

  9. How does it looks like? Rectangle, parallelogram What parts could you label in this figure?

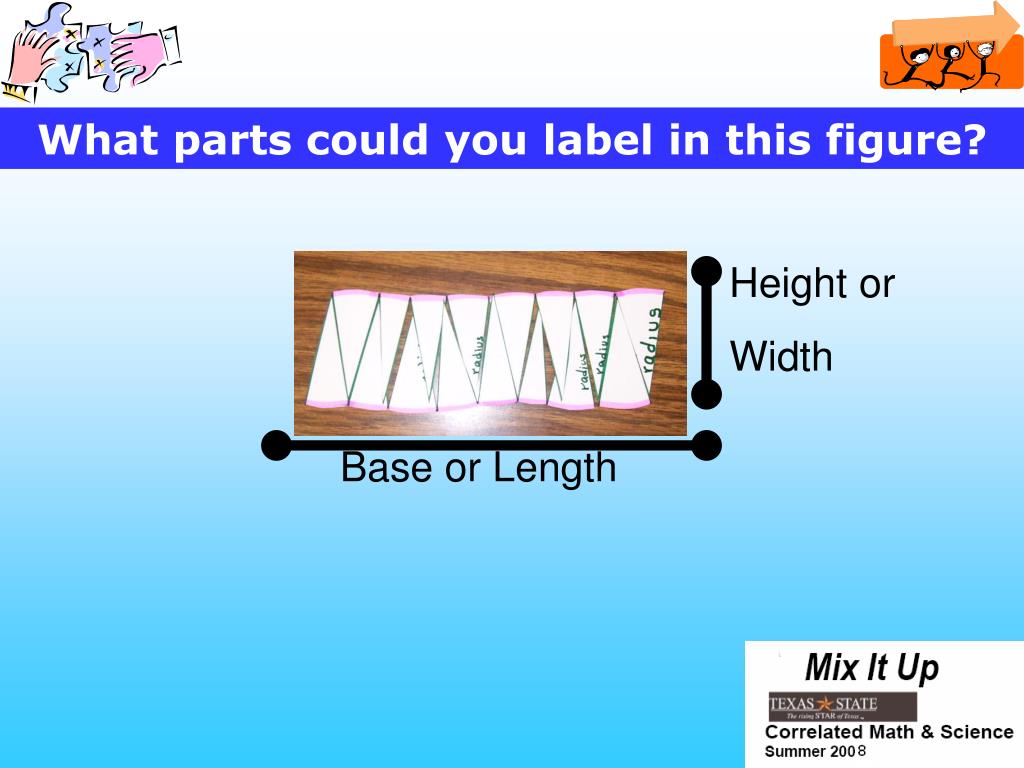

  10. What parts could you label in this figure? Height or Width Base or Length

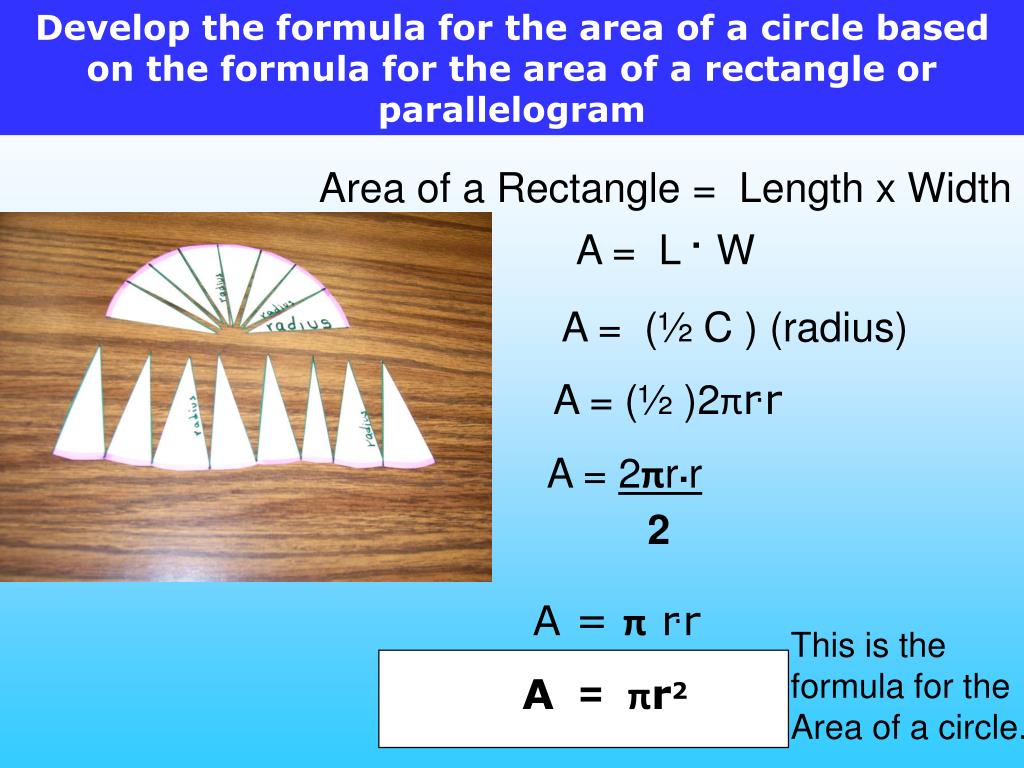

  11. Develop the formula for the area of a circle based on the formula for the area of a rectangle or parallelogram Area of a Rectangle = Length x Width A = L .W A = (½ C ) (radius) A = (½ )2πr.r A = 2πr.r 2 A = π r.r A = πr2 This is the formula for the Area of a circle.

  12. How does an Earthquake wave travel? Observe the following animation How fast red, yellow and blue lines travel ? USGS Science for a changing world http://neic.usgs.gov/neis/eq_depot/2002/eq_021103/ak_seismic_waves.html

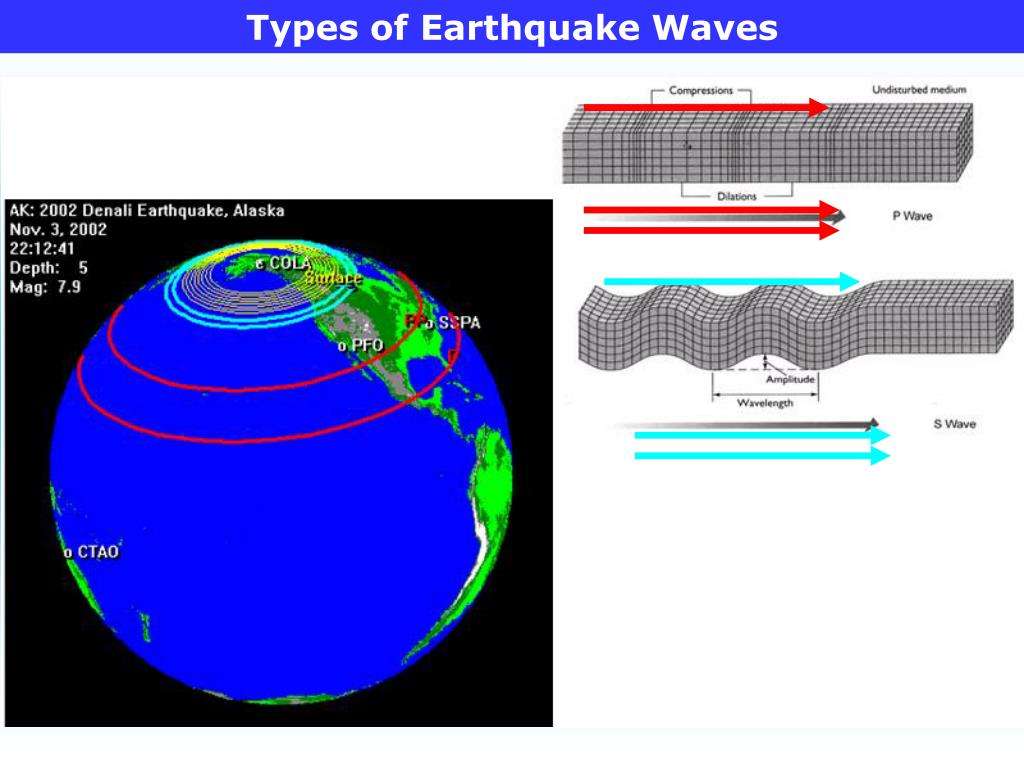

  13. Types of Earthquake Waves

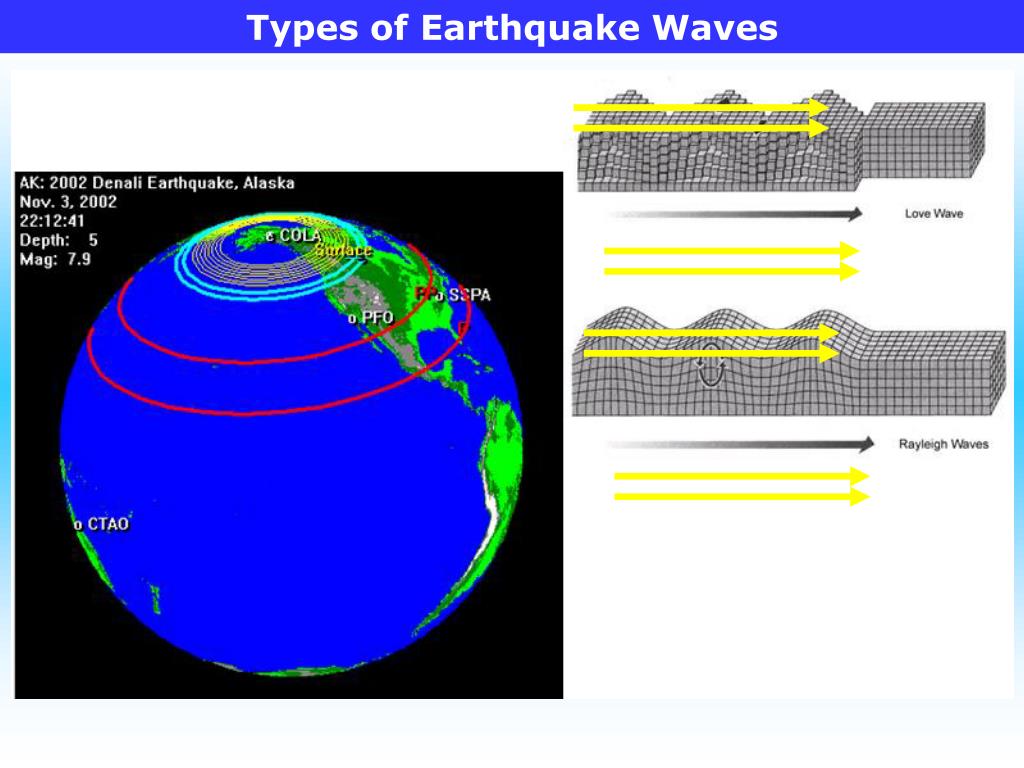

  14. Types of Earthquake Waves

  15. Types of Earthquake Waves If the average velocity of a P-Waves is 7 Km/Sec. Find the area of seismic activity within three seconds. AREA = 1,385.44 Km2 r=21Km Source http://nemo.sciencecourseware.org/VirtualEarthquake/VQuakeExecute.html

  16. Types of Earthquake Waves If the average velocity of a S-Waves is 5 Km/Sec. Find the area of seismic activity within three seconds. AREA = 706.86 Km2 r=15Km Source http://nemo.sciencecourseware.org/VirtualEarthquake/VQuakeExecute.html

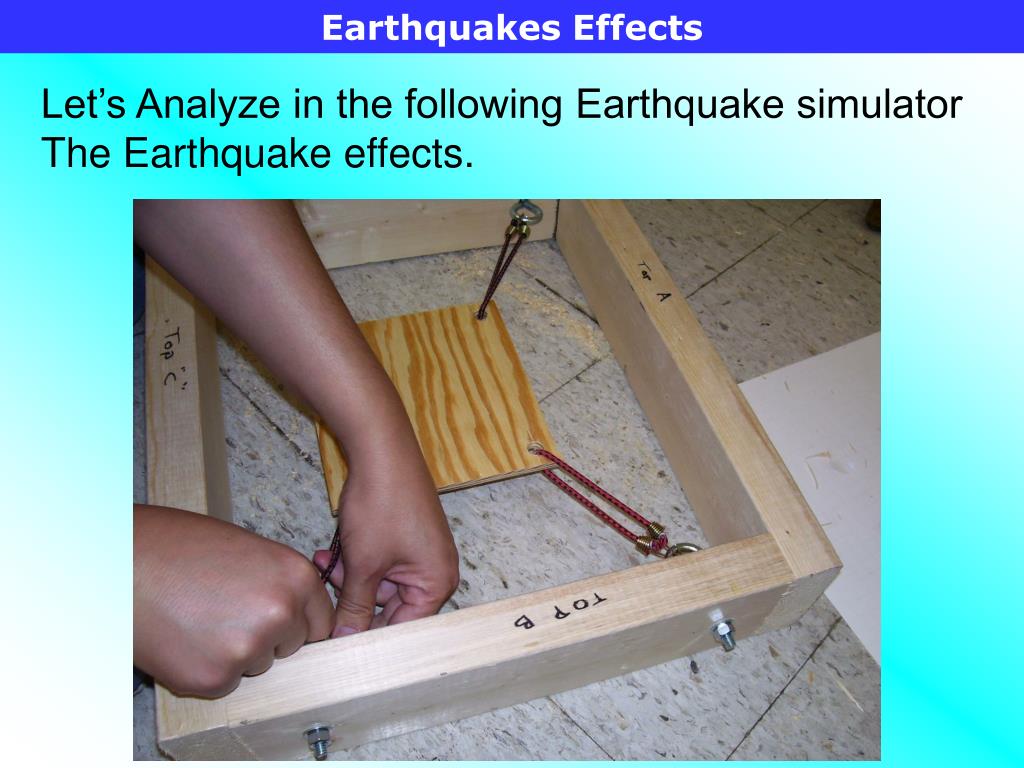

  17. Earthquakes Effects Let’s Analyze in the following Earthquake simulator The Earthquake effects.

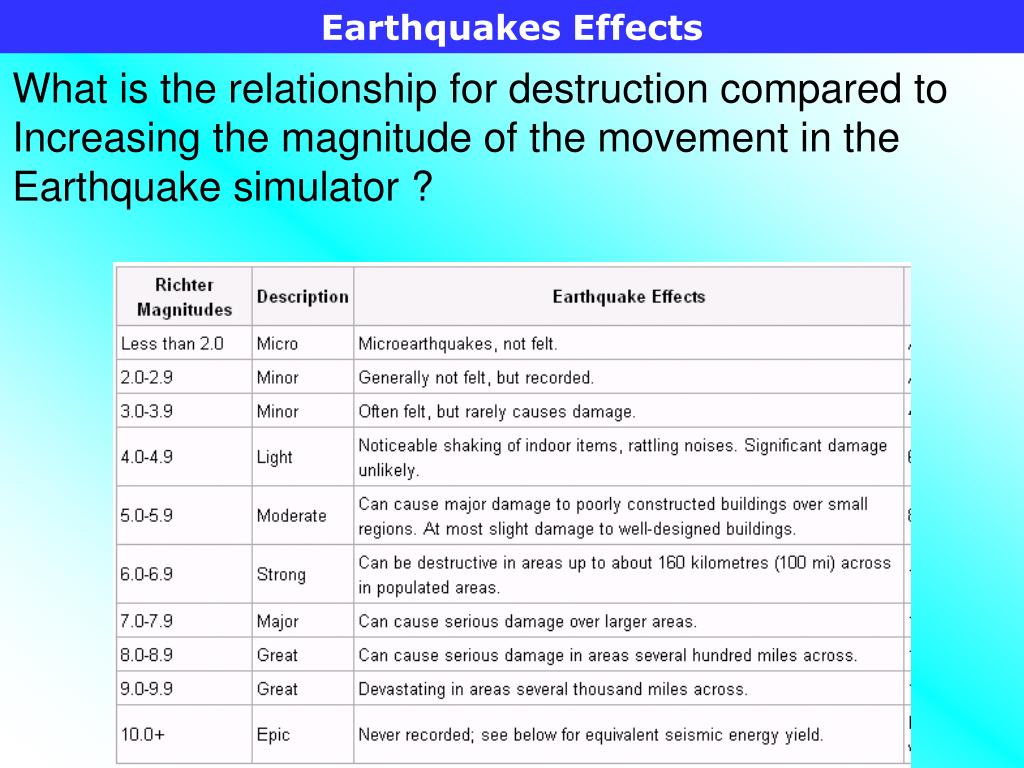

  18. Earthquakes Effects What is the relationship for destruction compared to Increasing the magnitude of the movement in the Earthquake simulator ?

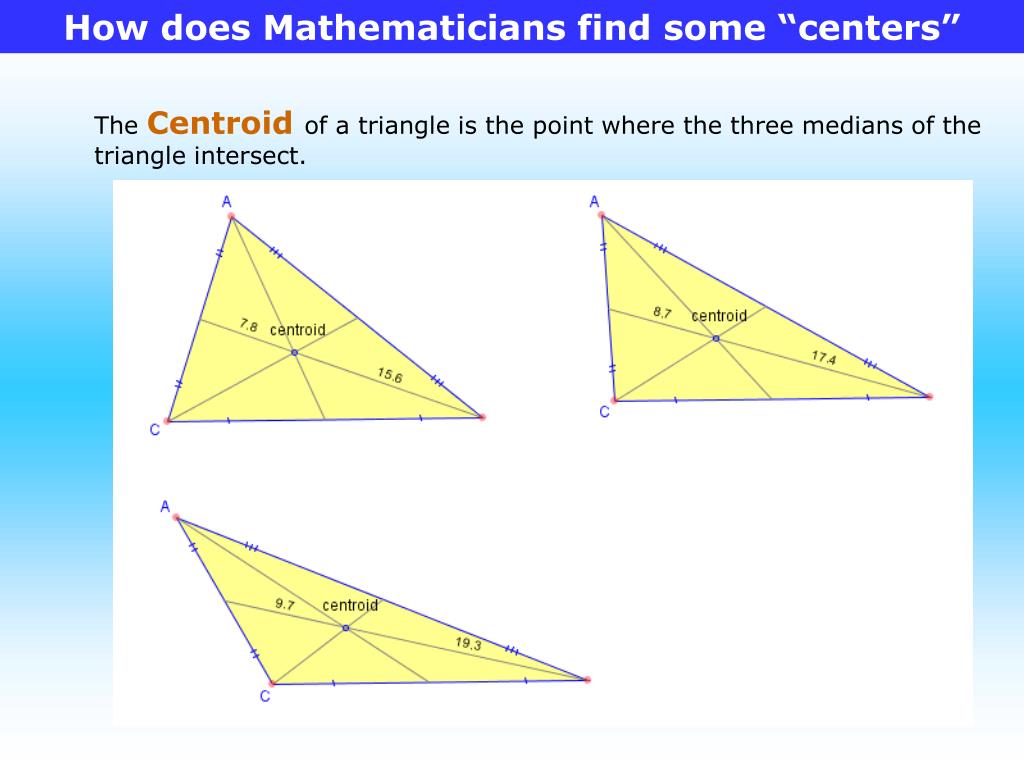

  19. How does Mathematicians find some “centers” The Centroid of a triangle is the point where the three medians of the triangle intersect.

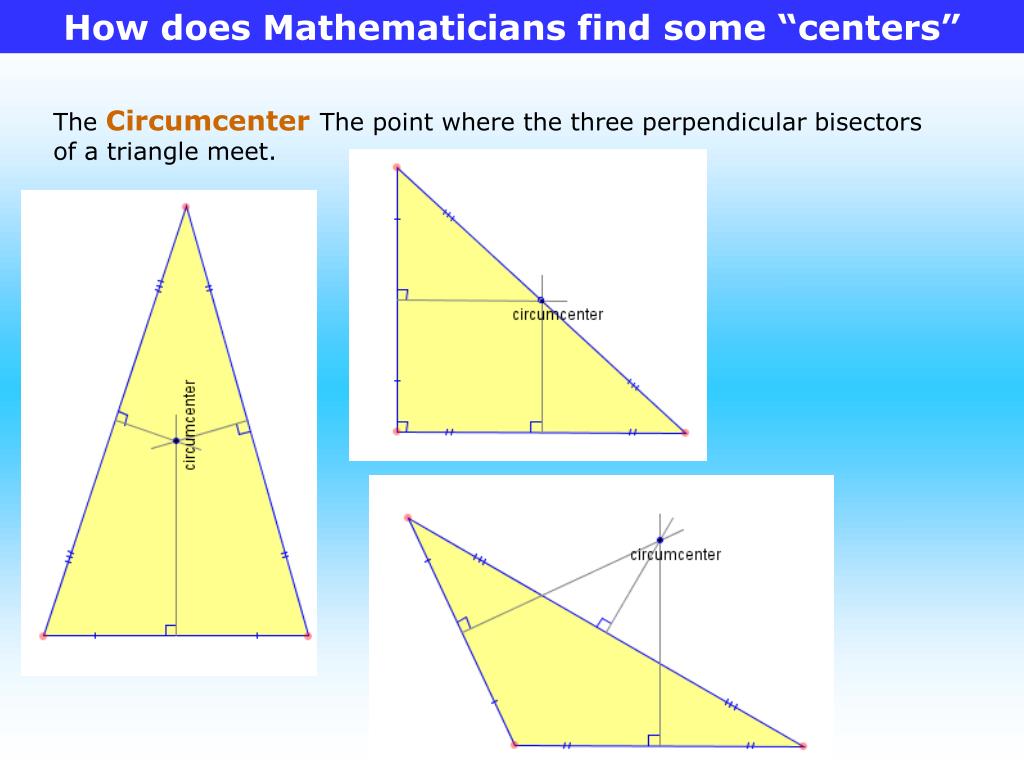

  20. How does Mathematicians find some “centers” The Circumcenter The point where the three perpendicular bisectors of a triangle meet.

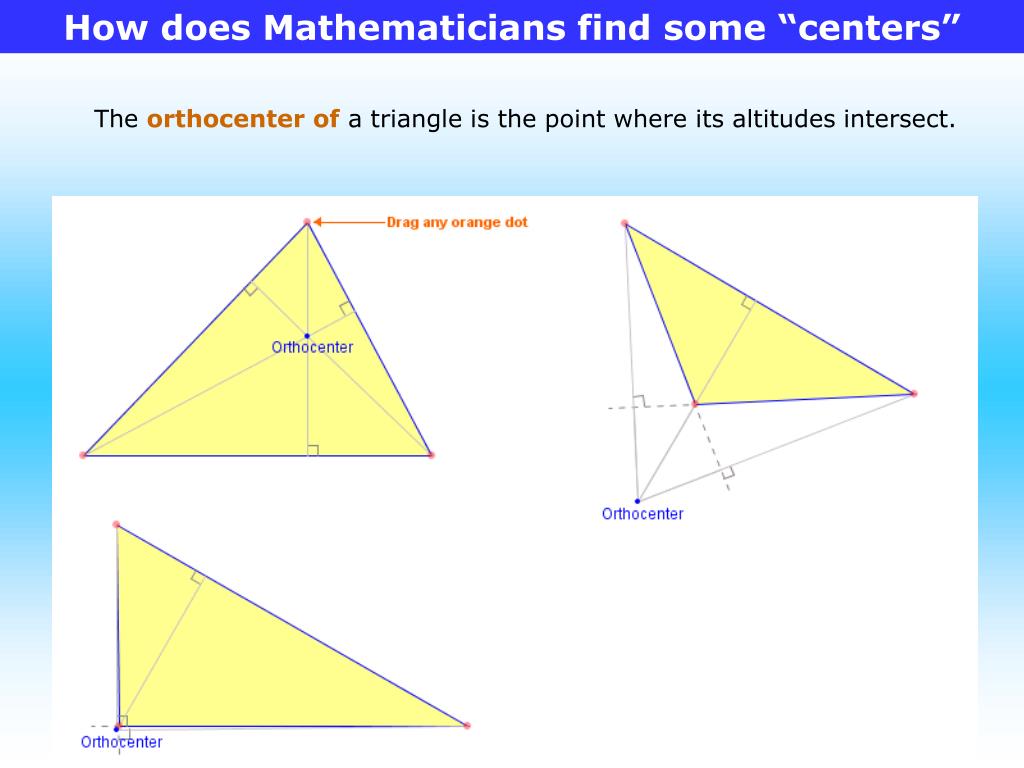

  21. How does Mathematicians find some “centers” The orthocenter of a triangle is the point where its altitudes intersect.

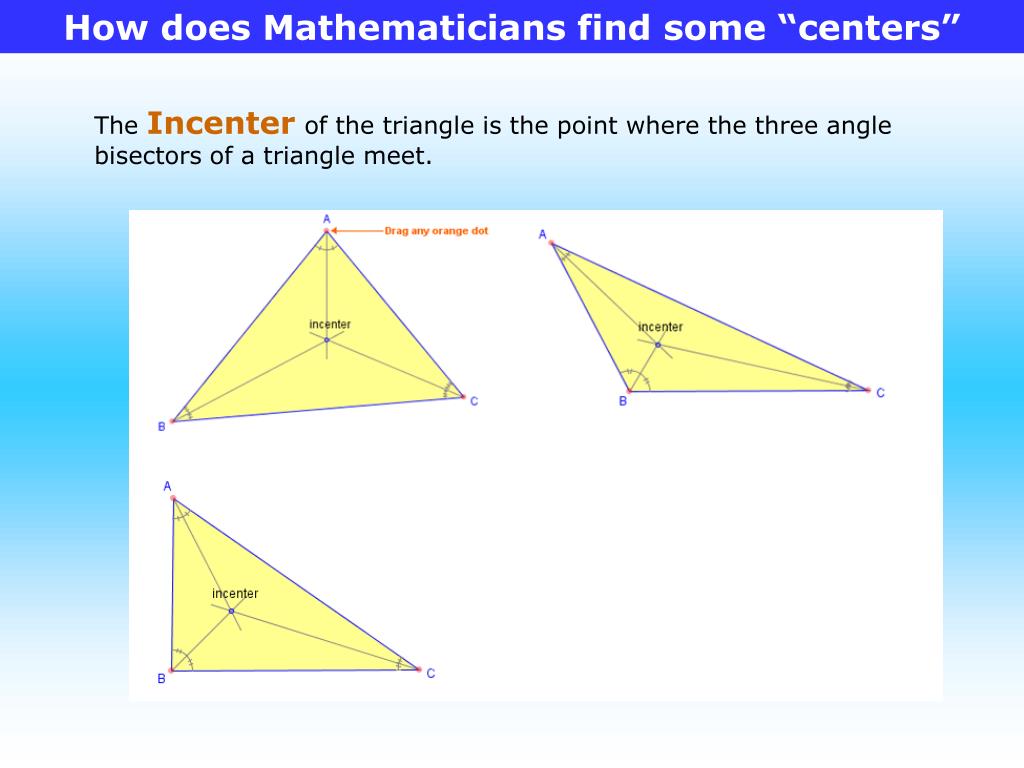

  22. How does Mathematicians find some “centers” The Incenter of the triangle is the point where the three angle bisectors of a triangle meet.

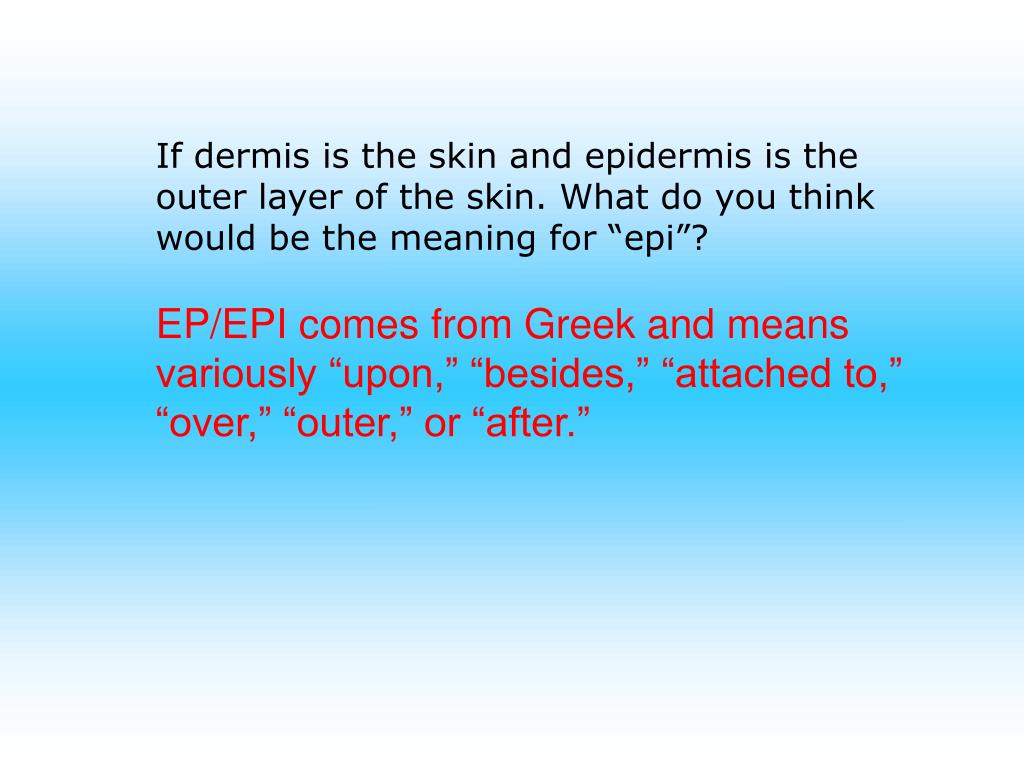

  23. If dermis is the skin and epidermis is the outer layer of the skin. What do you think would be the meaning for “epi”? EP/EPI comes from Greek and means variously “upon,” “besides,” “attached to,” “over,” “outer,” or “after.”

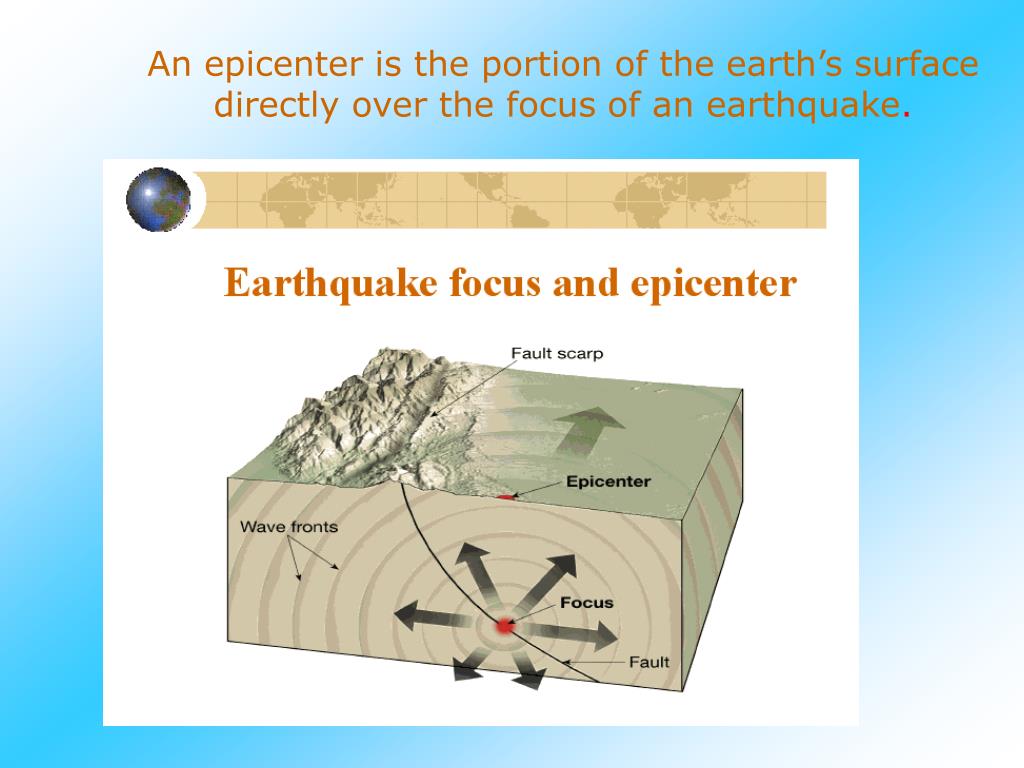

  24. An epicenter is the portion of the earth’s surface directly over the focus of an earthquake.

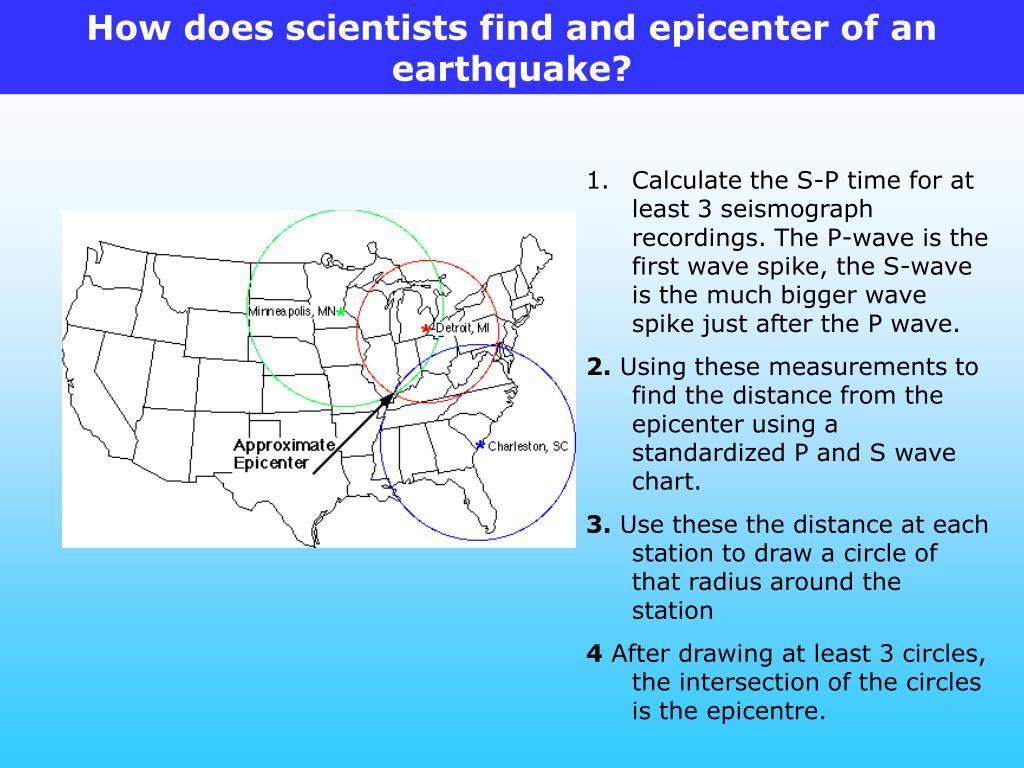

  25. How does scientists find and epicenter of an earthquake? • Calculate the S-P time for at least 3 seismograph recordings. The P-wave is the first wave spike, the S-wave is the much bigger wave spike just after the P wave. • 2. Using these measurements to find the distance from the epicenter using a standardized P and S wave chart. • 3. Use these the distance at each station to draw a circle of that radius around the station • 4 After drawing at least 3 circles, the intersection of the circles is the epicentre.

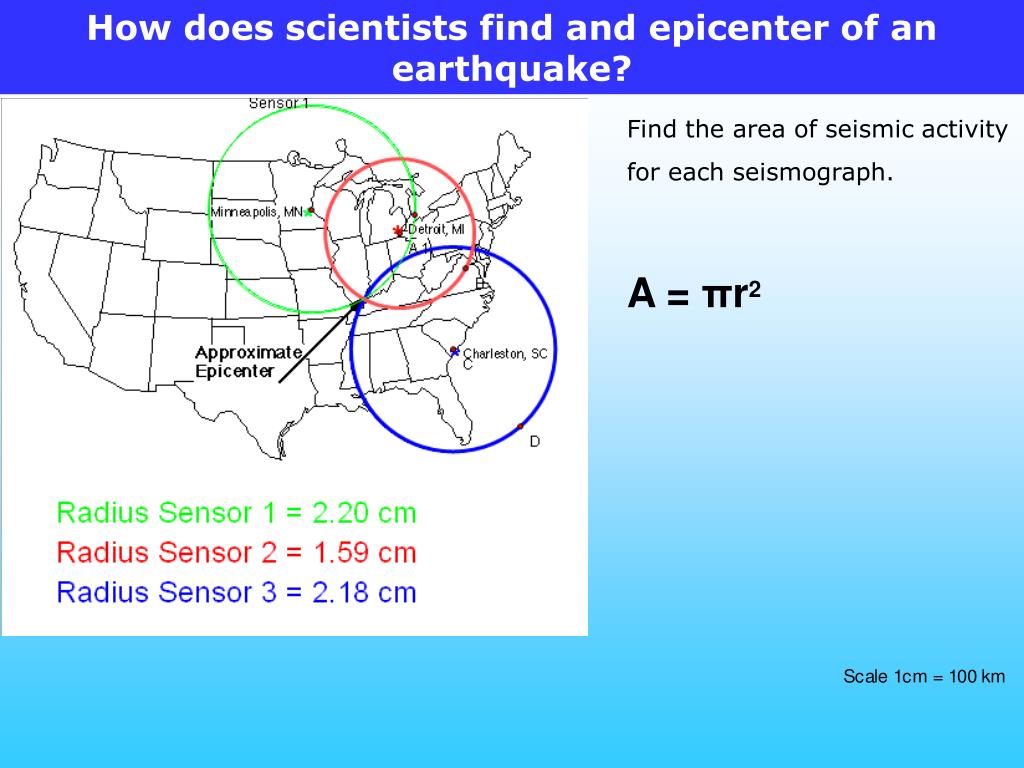

  26. How does scientists find and epicenter of an earthquake? Find the area of seismic activity for each seismograph. A = πr2

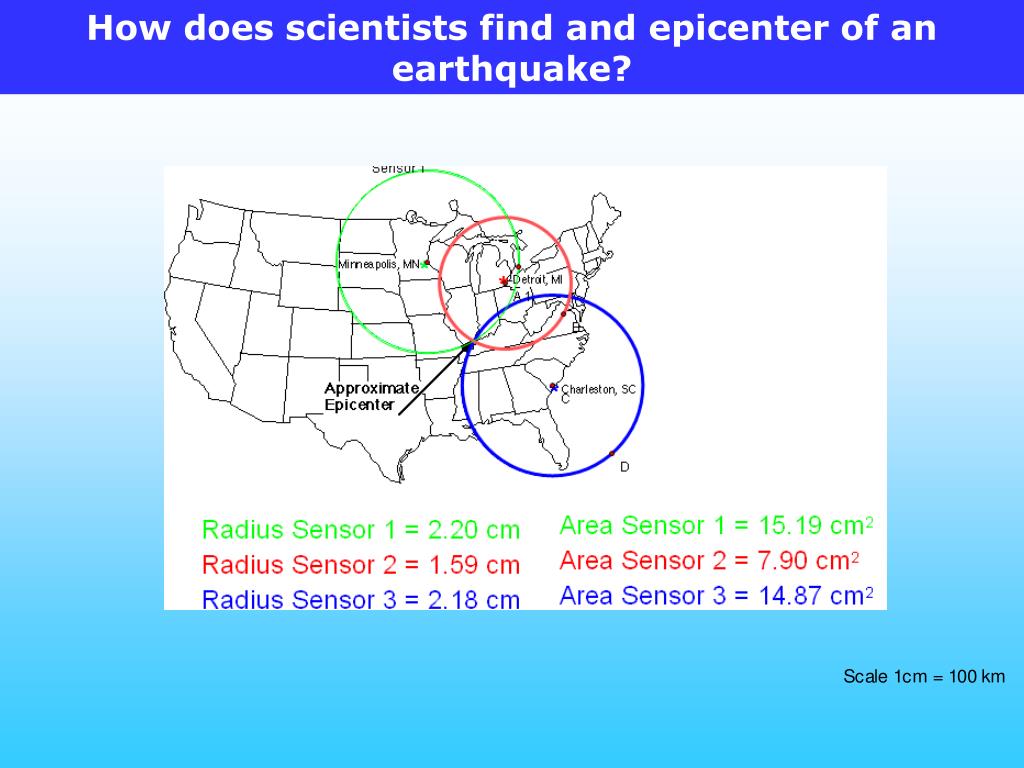

  27. How does scientists find and epicenter of an earthquake?
