MATLABPolynomials Nafees Ahmed Asstt. Professor, EE Deptt DIT, DehraDun

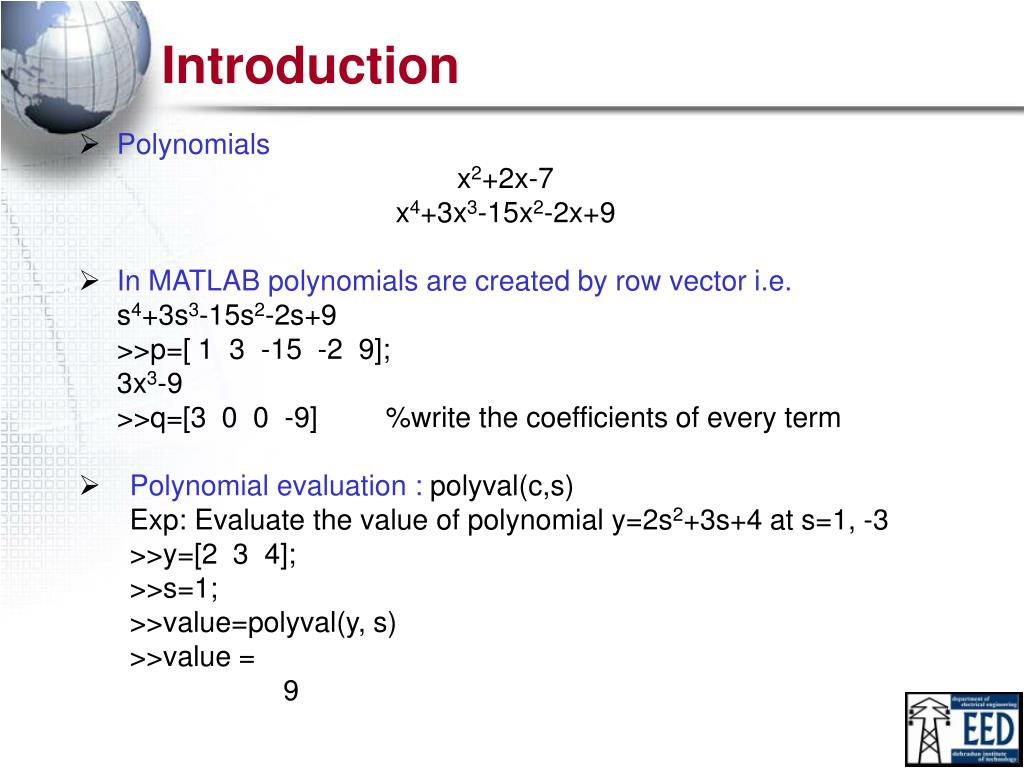

Introduction • Polynomials • x2+2x-7 • x4+3x3-15x2-2x+9 • In MATLAB polynomials are created by row vector i.e. • s4+3s3-15s2-2s+9 • >>p=[ 1 3 -15 -2 9]; • 3x3-9 • >>q=[3 0 0 -9] %write the coefficients of every term • Polynomial evaluation : polyval(c,s) • Exp: Evaluate the value of polynomial y=2s2+3s+4 at s=1, -3 • >>y=[2 3 4]; • >>s=1; • >>value=polyval(y, s) • >>value = • 9
Polynomials Evaluation • Similarly >>s=-3; >>value=polyval(y, s) >>value = 13 OR >>s=[1 -3]; >> value=polyval(y, s) value = 9 13 OR >>value=polyval(y,[1 -3])
Roots of Polynomials Roots of polynomials: roots(p) >>p=[1 3 2]; % p=s2+3s+2 >>r=roots(p) r = -2 -1 Try this: find the roots of s4+3s3-15s2-2s+9=0
Polynomials mathematics • Addition >>a=[0 1 2 1]; %s2+2s+1 >>b=[1 0 1 5]; % s3+s+1 >>c=a+b %s3+s2+3s+6 • Subtraction >>a=[3 0 0 2]; %s3+2 >>b=[0 0 1 7]; %s+7 >>c=b-a %-s3+s+5 c= -3 0 1 5
Polynomials mathematics • Multiplication : Multiplication is done by convolution operation . Sytnax z= conv(x, y) >>a=[1 2 ]; %s+2 >>b=[1 4 8 ]; % s2+4s+8 >>c=conv(a, b) % s3+6s2+16s+16 c= 1 6 16 16 Try this: find the product of (s+3),(s+6) & (s+2). Hint: two at a time • Division : Division is done by deconvolution operation. Syntax is [z, r]=deconv(x, y) Where x=divident vector y=divisor vector z=Quotients vector r=remainders vector
Polynomials mathematics >>a=[1 6 16 16]; %a=s3+6s2+16s+16 >>b=[1 4 8]; %b=s2+4s+8 >>[c, r]=deconv(a, b) c= • 2 r= 0 0 0 0 Try this: divide s2-1 by s+1

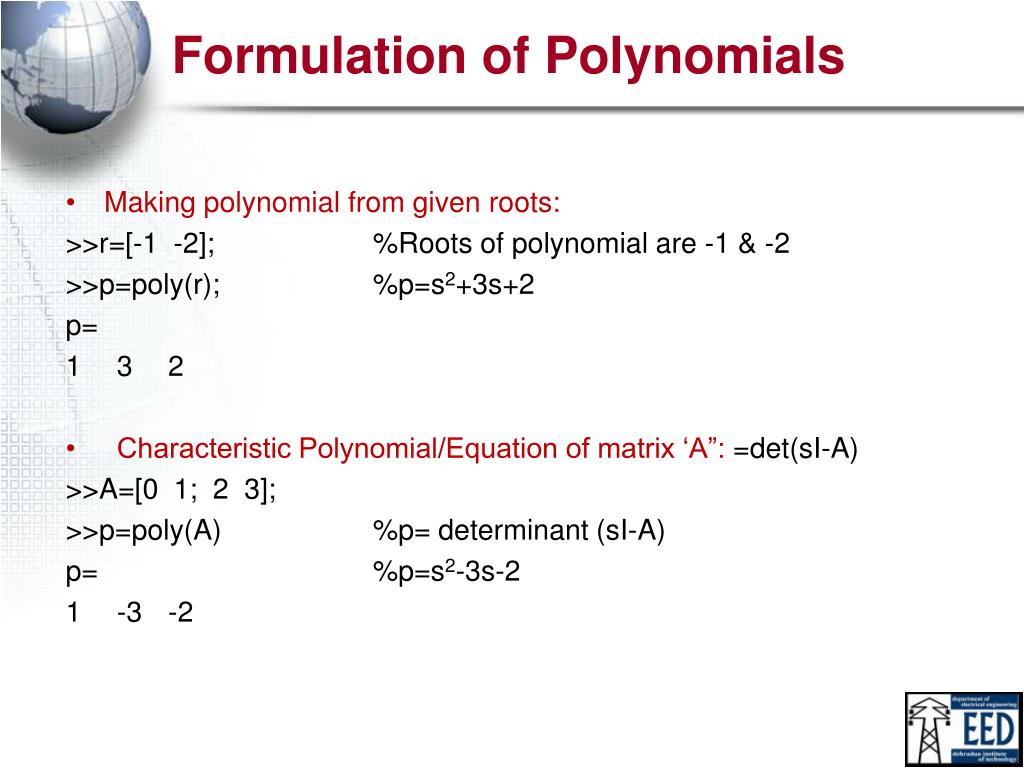

Formulation of Polynomials • Making polynomial from given roots: >>r=[-1 -2]; %Roots of polynomial are -1 & -2 >>p=poly(r); %p=s2+3s+2 p= • 3 2 • Characteristic Polynomial/Equation of matrix ‘A”: =det(sI-A) >>A=[0 1; 2 3]; >>p=poly(A) %p= determinant (sI-A) p= %p=s2-3s-2 1 -3 -2

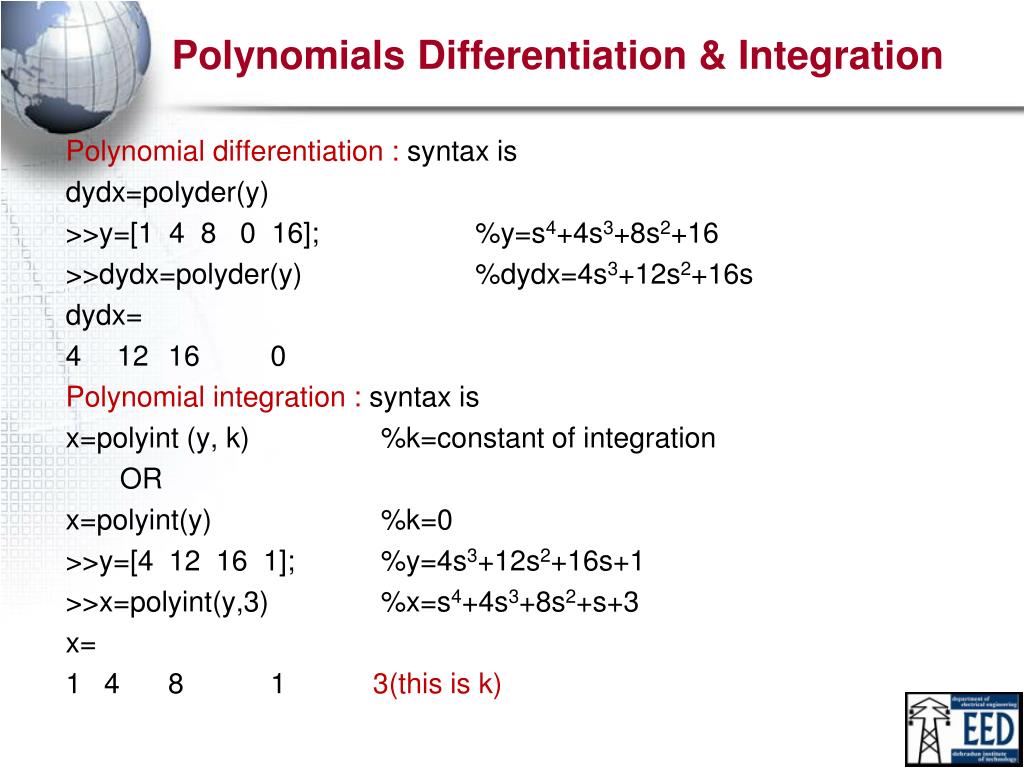

Polynomials Differentiation & Integration Polynomial differentiation : syntax is dydx=polyder(y) >>y=[1 4 8 0 16]; %y=s4+4s3+8s2+16 >>dydx=polyder(y) %dydx=4s3+12s2+16s dydx= • 12 16 0 Polynomial integration : syntax is x=polyint (y, k) %k=constant of integration OR x=polyint(y) %k=0 >>y=[4 12 16 1]; %y=4s3+12s2+16s+1 >>x=polyint(y,3) %x=s4+4s3+8s2+s+3 x= 1 4 8 1 3(this is k)

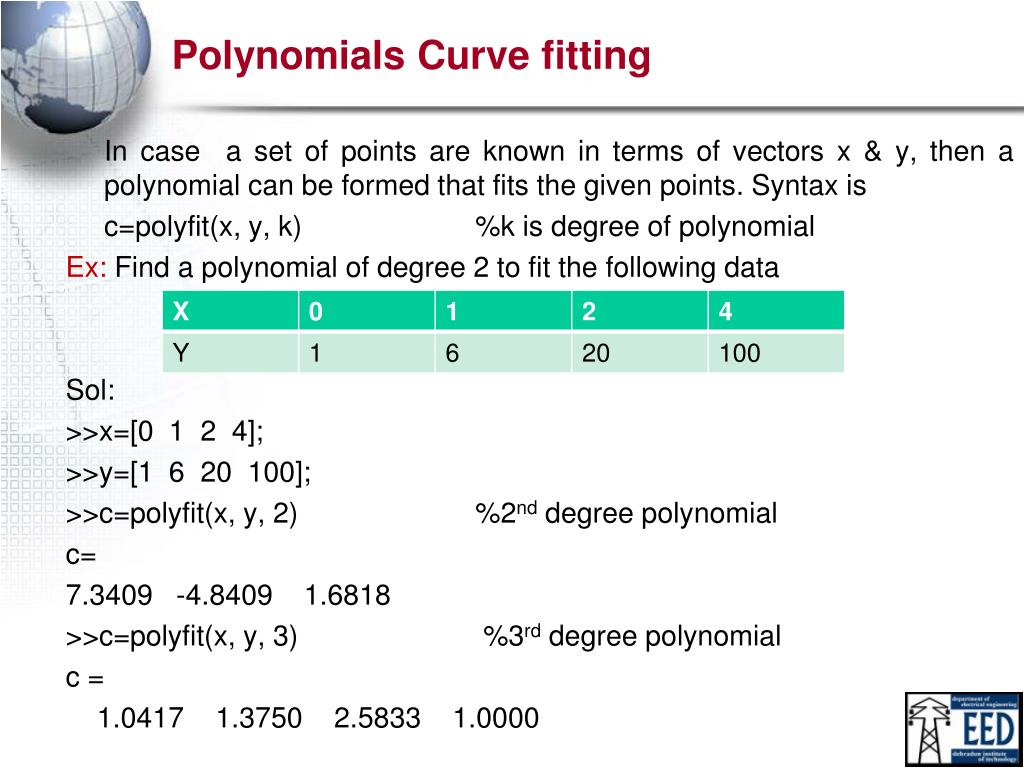

Polynomials Curve fitting In case a set of points are known in terms of vectors x & y, then a polynomial can be formed that fits the given points. Syntax is c=polyfit(x, y, k) %k is degree of polynomial Ex: Find a polynomial of degree 2 to fit the following data Sol: >>x=[0 1 2 4]; >>y=[1 6 20 100]; >>c=polyfit(x, y, 2) %2nd degree polynomial c= 7.3409 -4.8409 1.6818 >>c=polyfit(x, y, 3) %3rd degree polynomial c = 1.0417 1.3750 2.5833 1.0000
Polynomials Curve fitting Ex: Find a polynomial of degree 1 to fit the following data Sol: >>current=[10 15 20 25 30]; >>voltage=[100 150 200 250 300]; >>resistance=polyfit(current, voltage, 1) resistance= 10.0000 -0.0000 i.e. Voltage = 10x Current

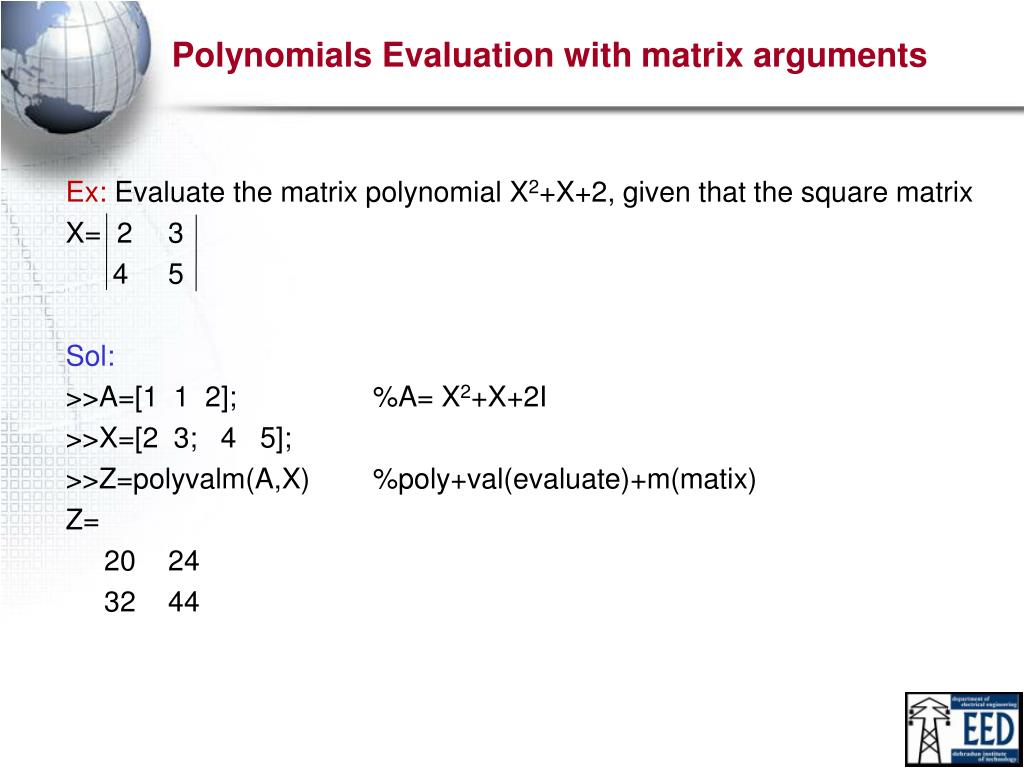

Polynomials Evaluation with matrix arguments Ex: Evaluate the matrix polynomial X2+X+2, given that the square matrix X= 2 3 4 5 Sol: >>A=[1 1 2]; %A= X2+X+2I >>X=[2 3; 4 5]; >>Z=polyvalm(A,X) %poly+val(evaluate)+m(matix) Z= 20 24 32 44
