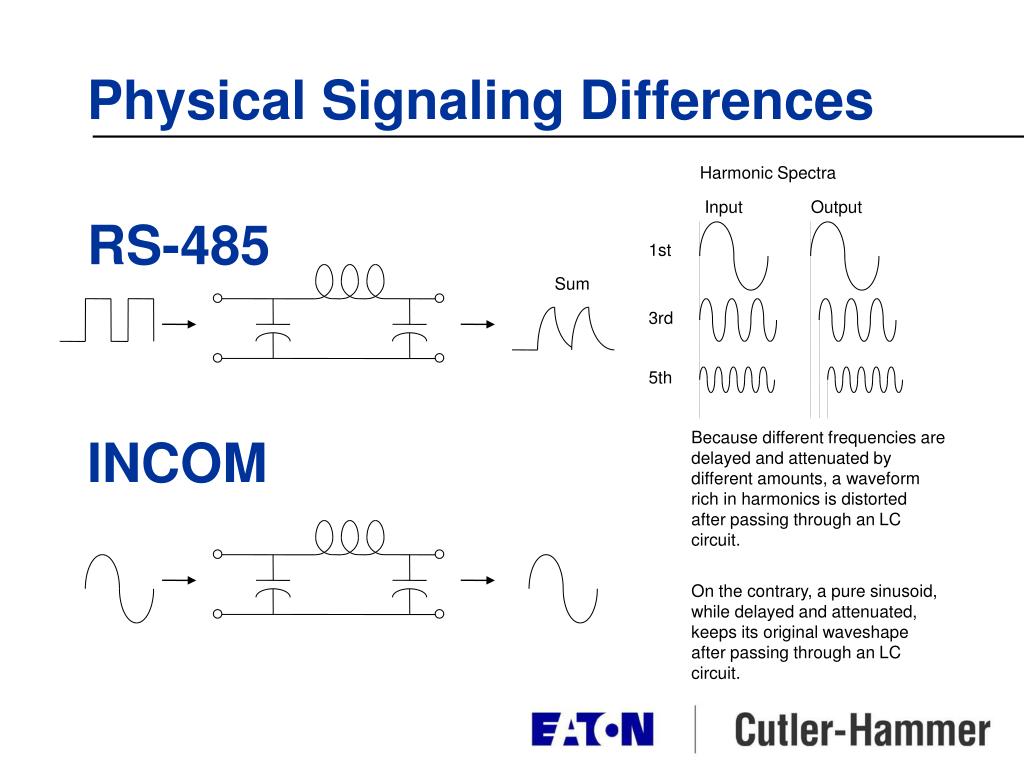

RS-485. Physical Signaling Differences. Harmonic Spectra. Input. Output. 1st. Sum. 3rd. 5th. INCOM. Because different frequencies are delayed and attenuated by different amounts, a waveform rich in harmonics is distorted after passing through an LC circuit.

omer
Download Presentation

RS-485

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. RS-485 Physical Signaling Differences Harmonic Spectra Input Output 1st Sum 3rd 5th INCOM Because different frequencies are delayed and attenuated by different amounts, a waveform rich in harmonics is distorted after passing through an LC circuit. On the contrary, a pure sinusoid, while delayed and attenuated, keeps its original waveshape after passing through an LC circuit.

  2. Detecting RS-485 1’s and 0’s 11 00 11 01 0? 1? Receivers than convert serial bit streams into parallel data are called UARTs (Universal Asynchronous Receiver Transmitters). A UART determines whether the serial stream contains a 1 or a 0 by sampling at the bit rate (9600, 19.2 k, etc.) For better error immunity it typically samples 2 or 3 times per bit. Two bit readings in a row must be the same for the UART to declare a 1 or a 0. With distorted wave shapes, the UART will typically be observing a data stream where the bit value changes from within a bit time. This can cause the UART to declare various errors (such as framing or parity) and discard the byte.

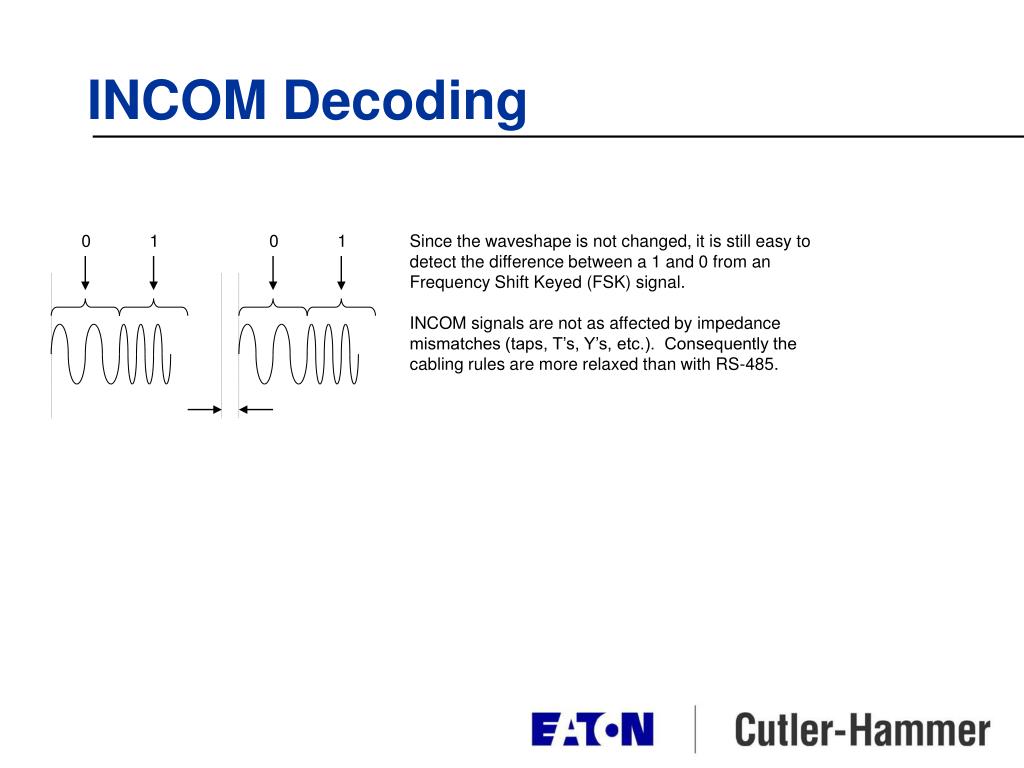

  3. INCOM Decoding 0 1 0 1 Since the waveshape is not changed, it is still easy to detect the difference between a 1 and 0 from an Frequency Shift Keyed (FSK) signal. INCOM signals are not as affected by impedance mismatches (taps, T’s, Y’s, etc.). Consequently the cabling rules are more relaxed than with RS-485.

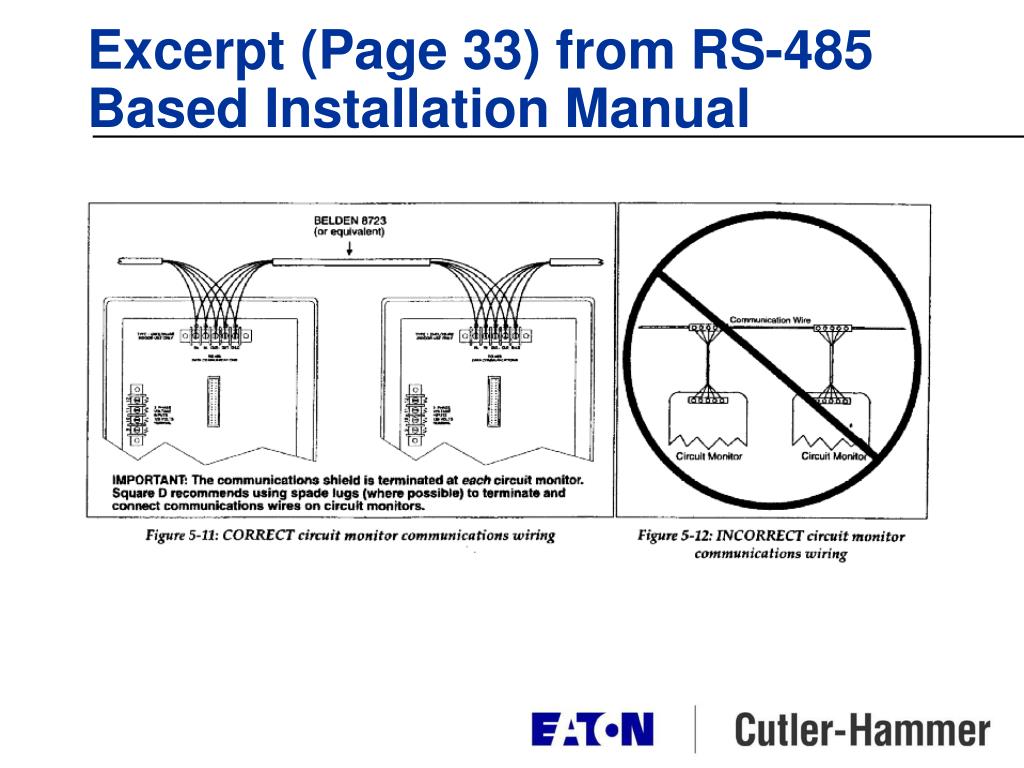

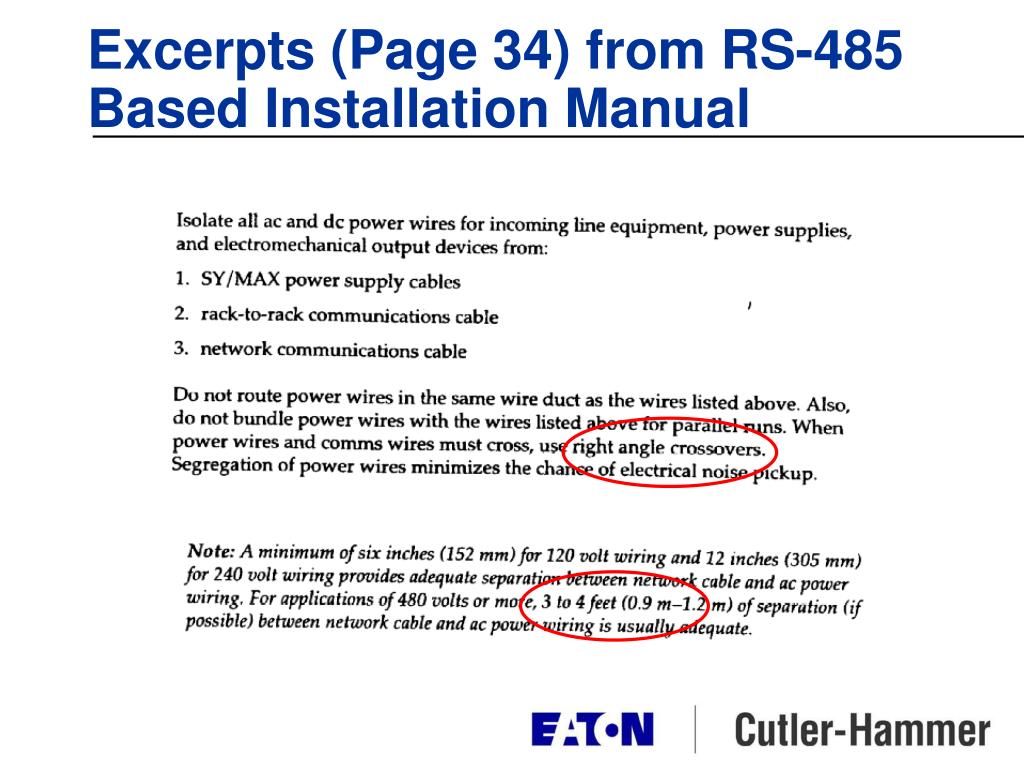

  4. Excerpt (Page 33) from RS-485Based Installation Manual

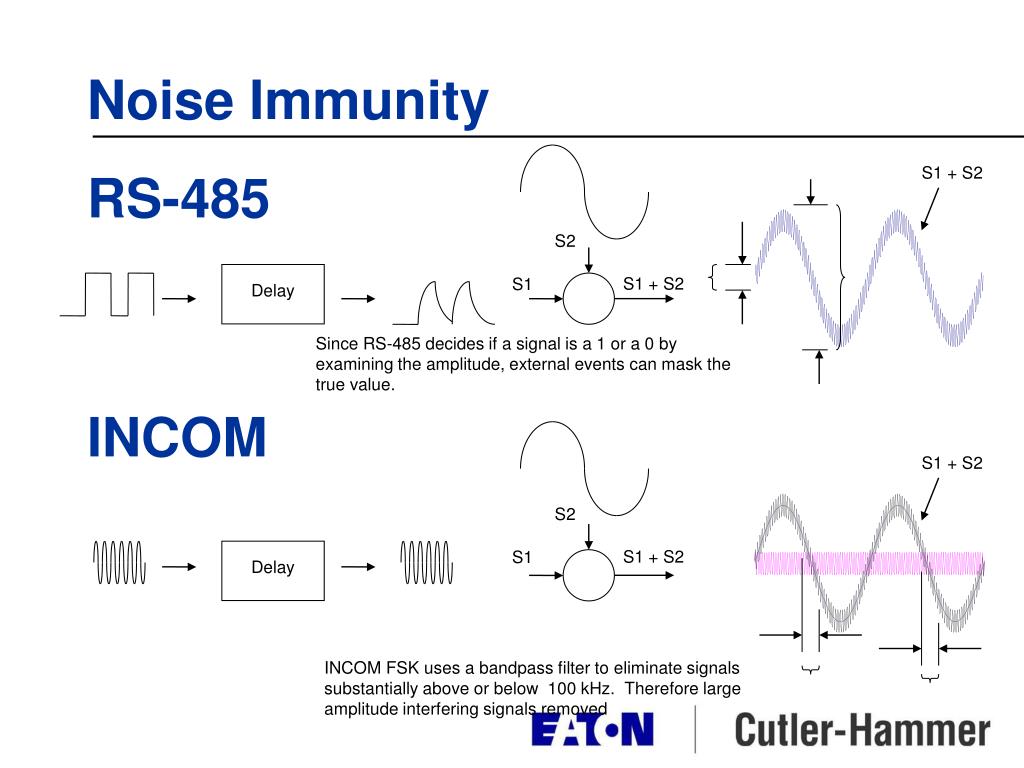

  5. Noise Immunity S1 + S2 S2 Delay S1 + S2 S1 S1 + S2 S2 Delay S1 + S2 S1 RS-485 Since RS-485 decides if a signal is a 1 or a 0 by examining the amplitude, external events can mask the true value. INCOM INCOM FSK uses a bandpass filter to eliminate signals substantially above or below 100 kHz. Therefore large amplitude interfering signals removed

  6. INCOM Vs RS-485

  7. A B C D E F G H I J 1 1 Cutler-Hammer IMPCABLE or Belden 9463 (or equivalent in Plenum) RJ-11 Install in PC CONI This design places brings all network (Lighting Control and Power Monitoring) back to the Central Plant. RJ-45 IN 1 IP 2 Shield 3 Phoenix Contact RJ-11 to Terminals Ethernet Hub Ethernet 10BASE-T RS-232 2 Belden 9207 (or equivalent in Plenum) 2 RS-485/ 232 200’ max Typical Switchboard Tap RS-485 Device To PDS PONI PONI 130 131 3 3 IED IED IED Typical Typical IQ Analyzer IQ Analyzer 4 4 PONI 131 5 5 These taps are legal with INCOM wiring. These are not legal with RS-485 IED RS-485 Network INCOM Network Typical IQ Analyzer 6 6 Parking Garage Parking Lot Terminal RS-485 Network 7 DFTR DATE THE INFORMATION ON THIS DRAWING IS THE PROPERTY OFEATON CORPORATION. IT IS DISCLOSED IN CONFIDENCEAND IS NOT TO BE REPRODUCED, USED OR DISCLOSEDEXCEPT FOR THE PURPOSE FOR WHICH FURNISHED. 1 APPD DATE DGL 11-DEC-98 CUTLER-HAMMER APPD DATE POWER MANAGEMENT PRODUCTS CENTER ENG. REF. DATE TITLE REVISION NEXT REF. DATE 8 SHEET NO 1 OF 1 SIZE SCALE DIRECTORY DWG NO NONE A A B C D E F

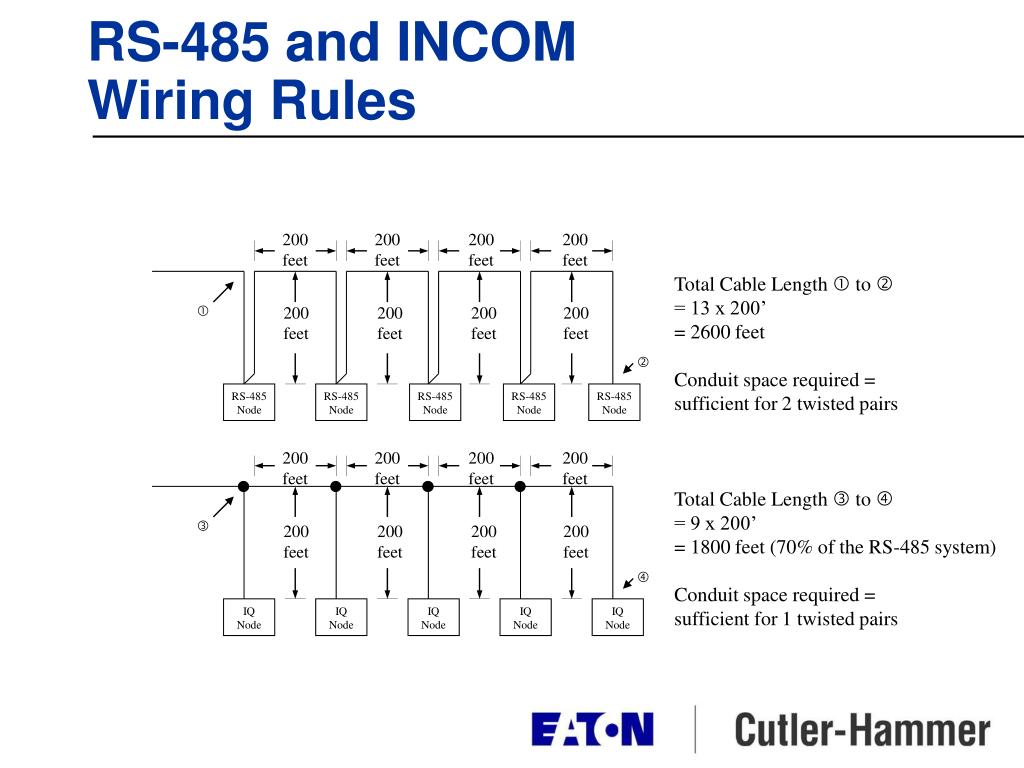

  8. RS-485 and INCOMWiring Rules 200feet 200feet 200feet 200feet Total Cable Length  to  = 13 x 200’ = 2600 feet Conduit space required = sufficient for 2 twisted pairs  200 feet 200 feet 200 feet 200 feet  RS-485 Node RS-485 Node RS-485 Node RS-485 Node RS-485 Node 200feet 200feet 200feet 200feet Total Cable Length  to  = 9 x 200’ = 1800 feet (70% of the RS-485 system) Conduit space required = sufficient for 1 twisted pairs  200 feet 200 feet 200 feet 200 feet  IQ Node IQ Node IQ Node IQ Node IQ Node

  9. Excerpts (Page 34) from RS-485 Based Installation Manual

  10. Reduce Total Cost of Ownership • Reduce initial installed cost • Lower operating cost • Reliability & Safety • Maximize capital utilization • Better customer service
