  1. Κεφάλαιο 6 ΣΧΕΔΙΑΣΜΟΣ ΒΑΣΕΩΝ ΔΕΔΟΜΕΝΩΝ ΚΑΙ ΚΑΝΟΝΙΚΟΠΟΙΗΣΗ (Normalization)

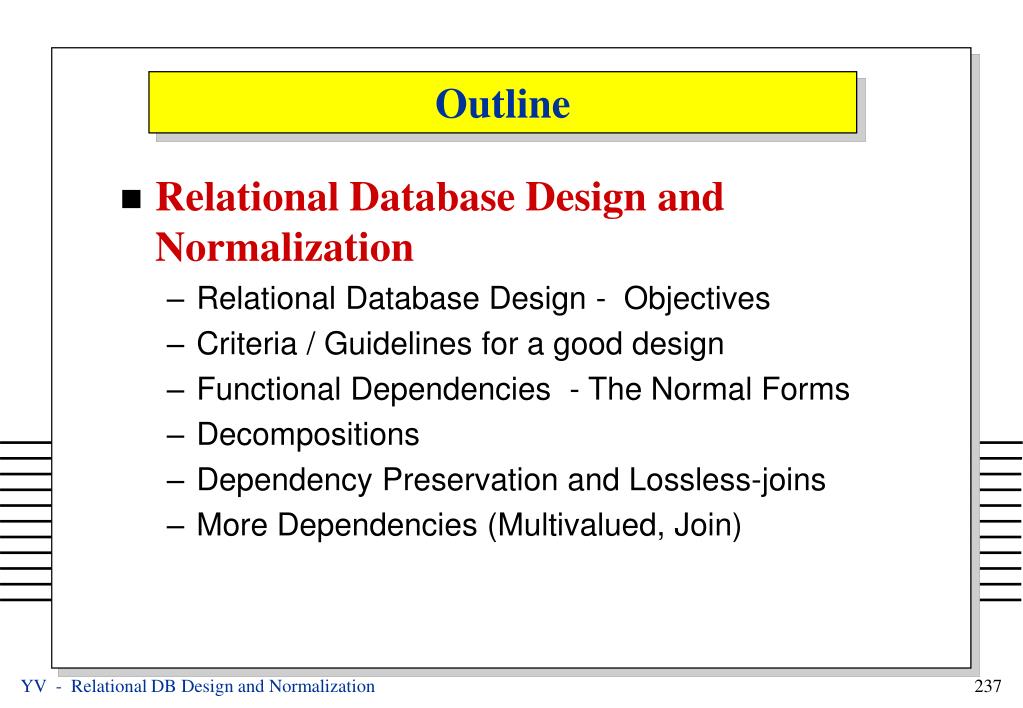

  2. Outline • Relational Database Design and Normalization • Relational Database Design - Objectives • Criteria / Guidelines for a good design • Functional Dependencies - The Normal Forms • Decompositions • Dependency Preservation and Lossless-joins • More Dependencies (Multivalued, Join)

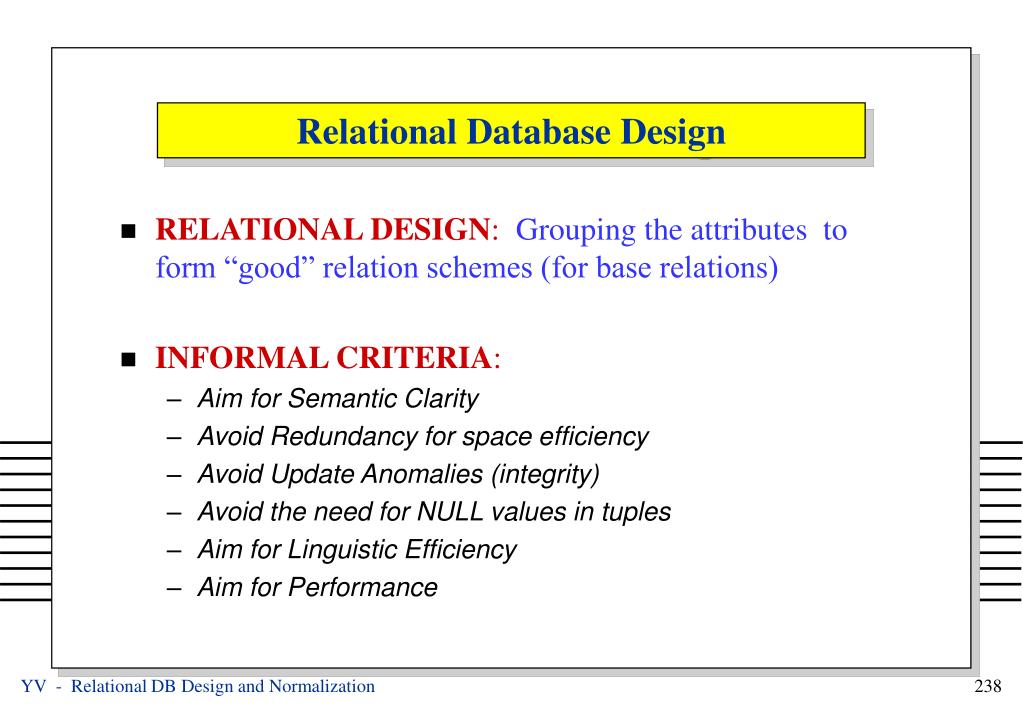

  3. Relational Database Design • RELATIONAL DESIGN: Grouping the attributes to form “good” relation schemes (for base relations) • INFORMAL CRITERIA: • Aim for Semantic Clarity • Avoid Redundancy for space efficiency • Avoid Update Anomalies (integrity) • Avoid the need for NULL values in tuples • Aim for Linguistic Efficiency • Aim for Performance

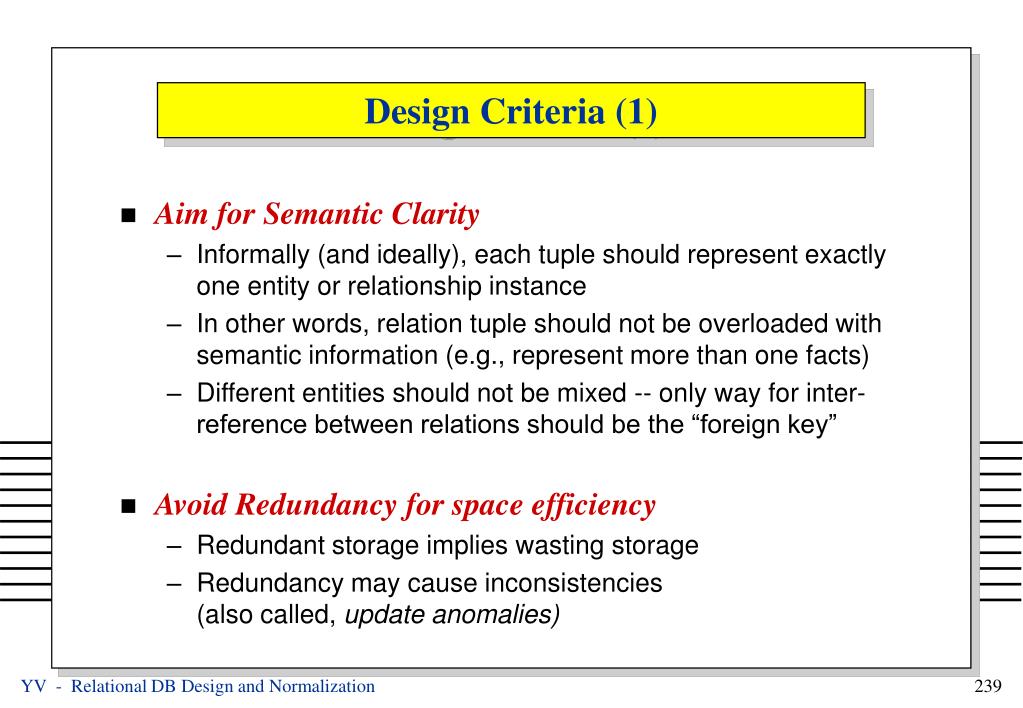

  4. Design Criteria (1) • Aim for Semantic Clarity • Informally (and ideally), each tuple should represent exactly one entity or relationship instance • In other words, relation tuple should not be overloaded with semantic information (e.g., represent more than one facts) • Different entities should not be mixed -- only way for inter-reference between relations should be the “foreign key” • Avoid Redundancy for space efficiency • Redundant storage implies wasting storage • Redundancy may cause inconsistencies (also called, update anomalies)

  5. Design Criteria (2) • Avoid Update Anomalies • The integrity of the database is damaged when insertion, deletion and modification anomalies occur. • An update in one place may cause an unpredictable number of updates in other places. • Avoid Null Values in Tuples • Null values imply “lack of knowledge” or “inapplicability” and frequently cause processing problems (correct execution of queries requires the use of a different logic (higher level) than the two-valued logic we use in traditional systems)

  6. Design Criteria (3) • Aim for Linguistic Efficiency • The simpler the queries in the applications the better for the application programmer and (usually) for the query optimizer • Queries are often simpler when they are executed on relations that have a lot of information (e.g., no need to do many joins for getting the result) • Aim for Performance • As in the previous case, when the relations have very few attributes (e.g., they are binary), a large number of joins is necessary for processing the queries. • MANY OF THE CRITERIA ARE CONTRADICTORY

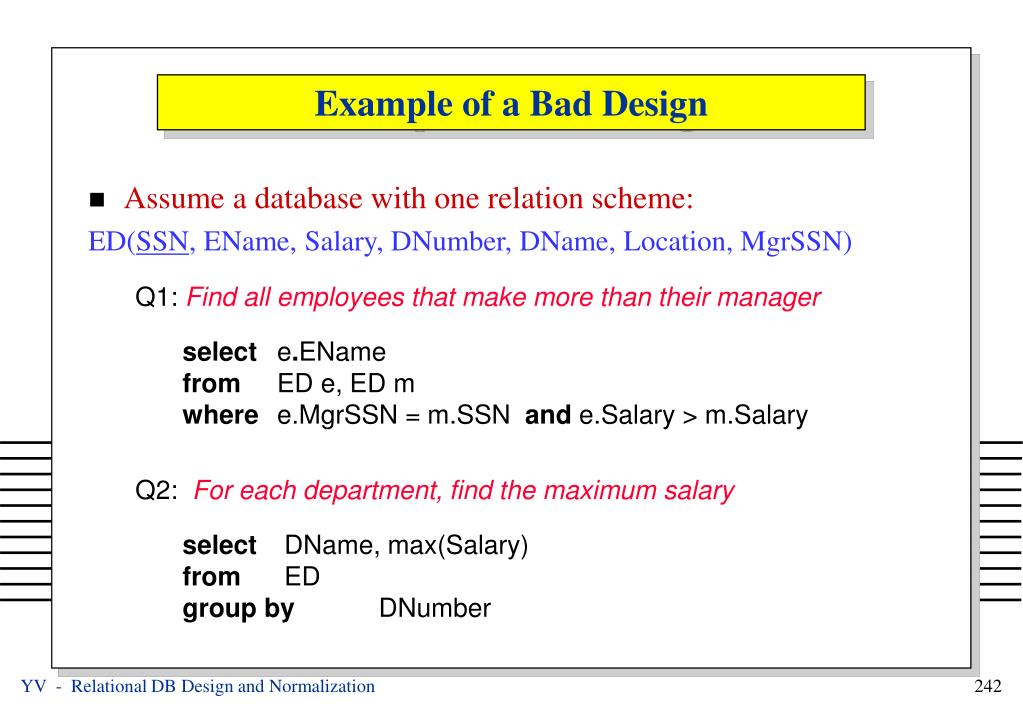

  7. Example of a Bad Design • Assume a database with one relation scheme: ED(SSN, EName, Salary, DNumber, DName, Location, MgrSSN) Q1: Find all employees that make more than their manager select e.EName from ED e, ED m where e.MgrSSN = m.SSN and e.Salary > m.Salary Q2: For each department, find the maximum salary select DName, max(Salary) from ED group by DNumber

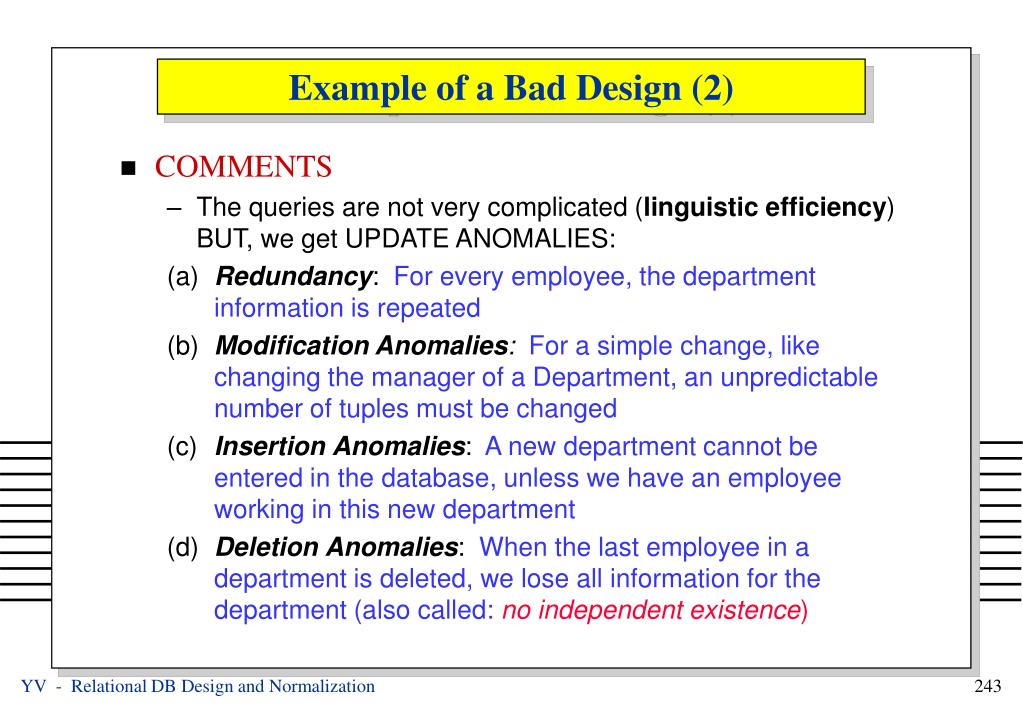

  8. Example of a Bad Design (2) • COMMENTS • The queries are not very complicated (linguistic efficiency) BUT, we get UPDATE ANOMALIES: (a) Redundancy: For every employee, the department information is repeated (b) Modification Anomalies:For a simple change, like changing the manager of a Department, an unpredictable number of tuples must be changed (c) InsertionAnomalies: A new department cannot be entered in the database, unless we have an employee working in this new department (d) DeletionAnomalies: When the last employee in a department is deleted, we lose all information for the department (also called:no independent existence)

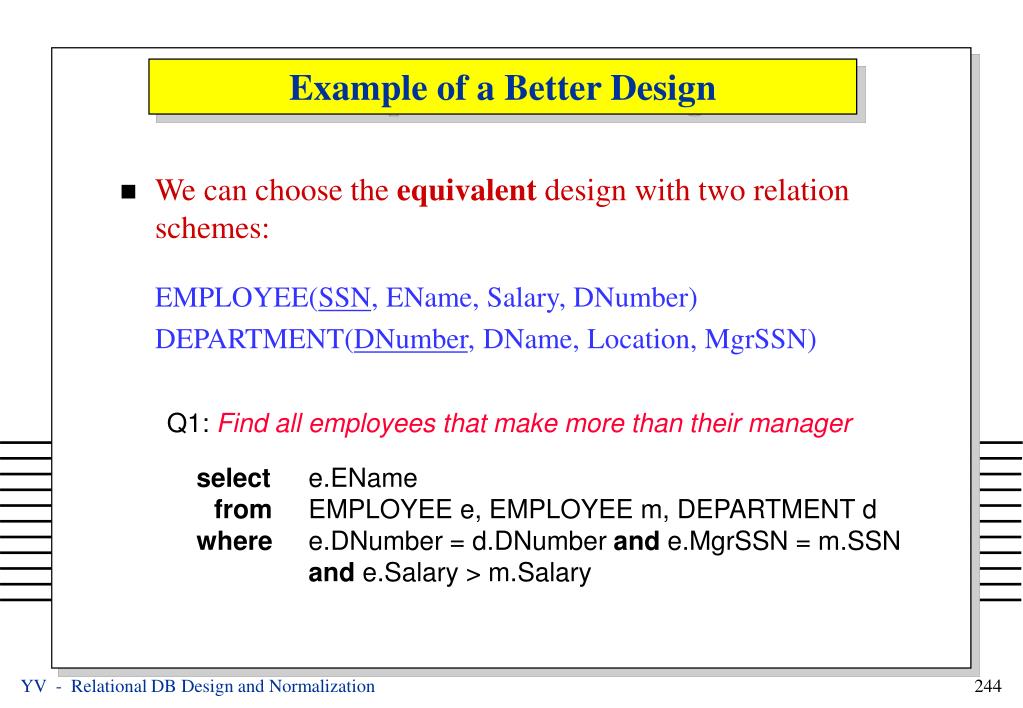

  9. Example of a Better Design • We can choose the equivalent design with two relation schemes: EMPLOYEE(SSN, EName, Salary, DNumber) DEPARTMENT(DNumber, DName, Location, MgrSSN) Q1: Find all employees that make more than their manager select e.EName from EMPLOYEE e, EMPLOYEE m, DEPARTMENT d where e.DNumber = d.DNumber and e.MgrSSN = m.SSN and e.Salary > m.Salary

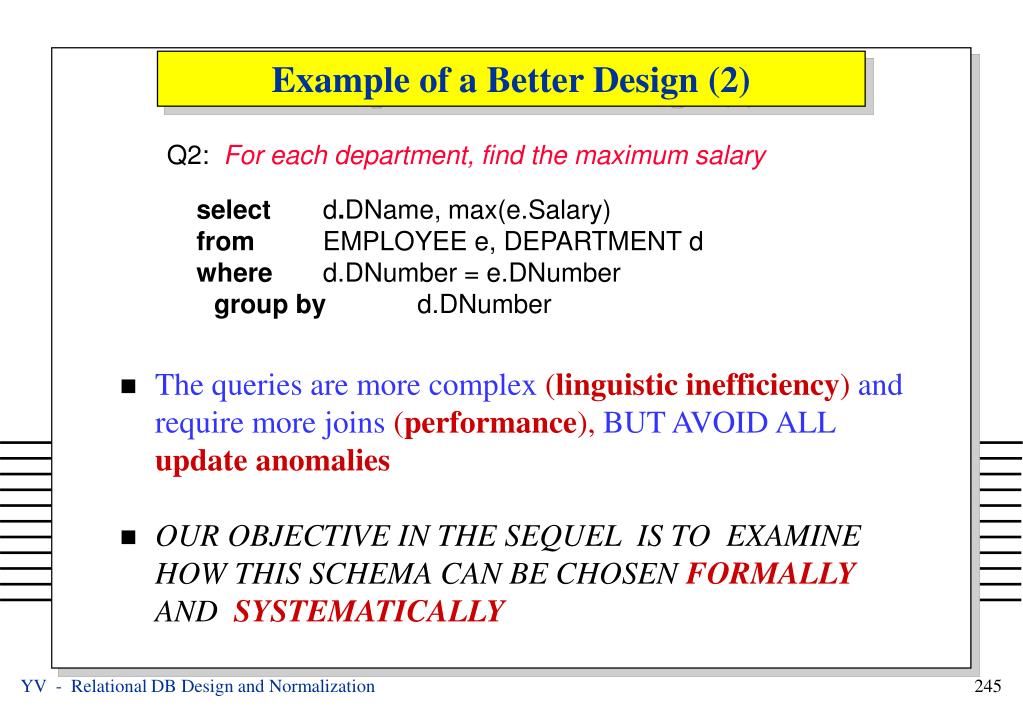

  10. Example of a Better Design (2) Q2: For each department, find the maximum salary select d.DName, max(e.Salary) from EMPLOYEE e, DEPARTMENT d where d.DNumber = e.DNumber group by d.DNumber • The queries are more complex (linguisticinefficiency) and require more joins (performance), BUT AVOID ALL update anomalies • OUR OBJECTIVE IN THE SEQUEL IS TO EXAMINE HOW THIS SCHEMA CAN BE CHOSENFORMALLYAND SYSTEMATICALLY

  11. Functional Dependencies • Functional Dependencies are the most commonformal measure of “goodness” for relational database designs • They are used to define the normal forms for relations • A Functional Dependency specifiesa constraint on all relation instances r(R), but is a property of the attributes in the schema R • DEFINITION: Let X, Y be set of attributes of relation scheme R. We say that the functional dependency (FD): X ® Y holdsif the X-value uniquely determines the Y-value.

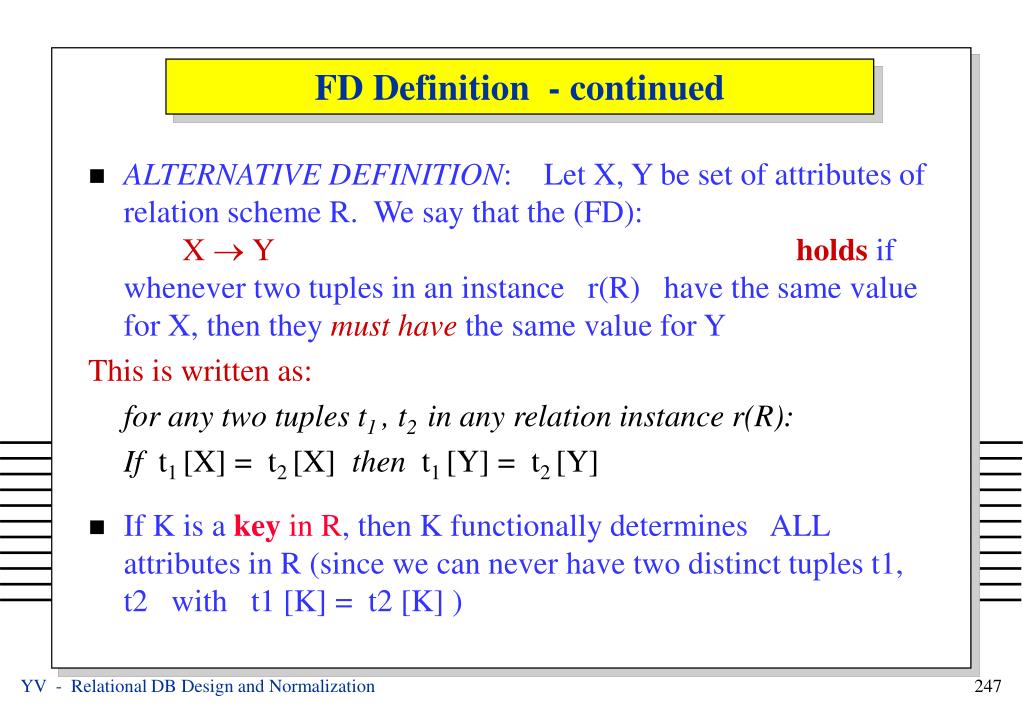

  12. FD Definition - continued • ALTERNATIVE DEFINITION: Let X, Y be set of attributes of relation scheme R. We say that the (FD): X ® Y holdsif whenever two tuples in an instance r(R) have the same value for X, then theymust have the same value for Y This is written as: for any two tuples t1 , t2 in any relation instance r(R): If t1 [X] = t2 [X] then t1 [Y] = t2 [Y] • If K is a key in R, then K functionally determines ALL attributes in R (since we can never have two distinct tuples t1, t2 with t1 [K] = t2 [K] )

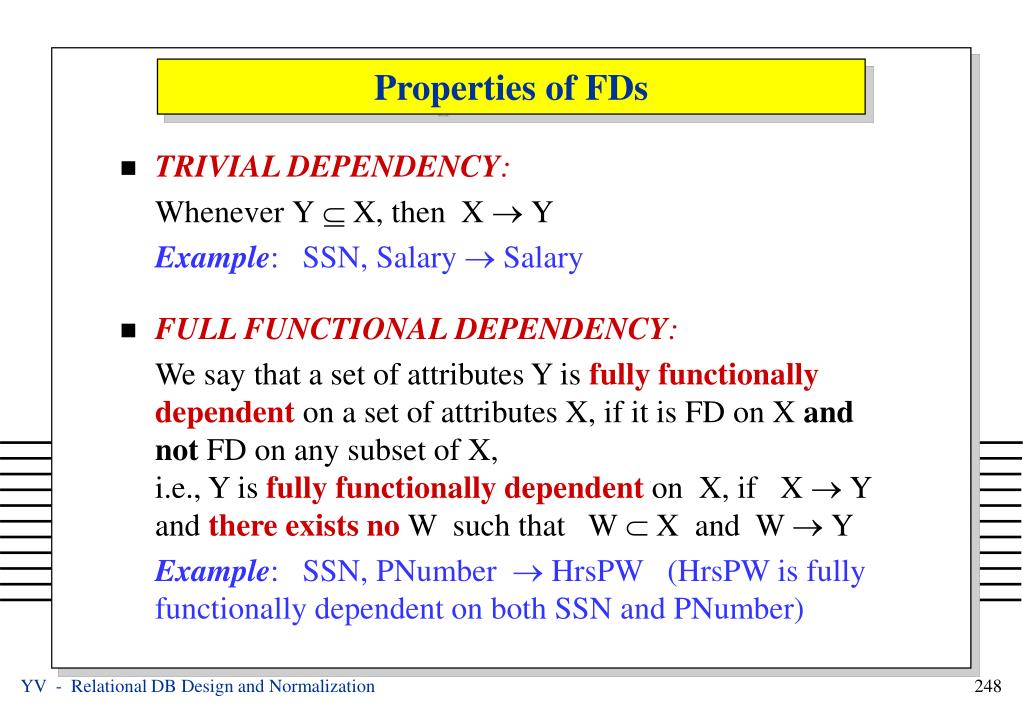

  13. Properties of FDs • TRIVIAL DEPENDENCY: WheneverY Í X, then X ® Y Example: SSN, Salary ® Salary • FULL FUNCTIONAL DEPENDENCY: We say that a set of attributes Y isfully functionally dependent on a set of attributes X, if it is FD on X and not FD on any subset of X,i.e., Y isfully functionally dependent on X, if X ® Y andthere exists no W such that W Ì X and W ® Y Example: SSN, PNumber ® HrsPW (HrsPW is fully functionally dependent on both SSN and PNumber)

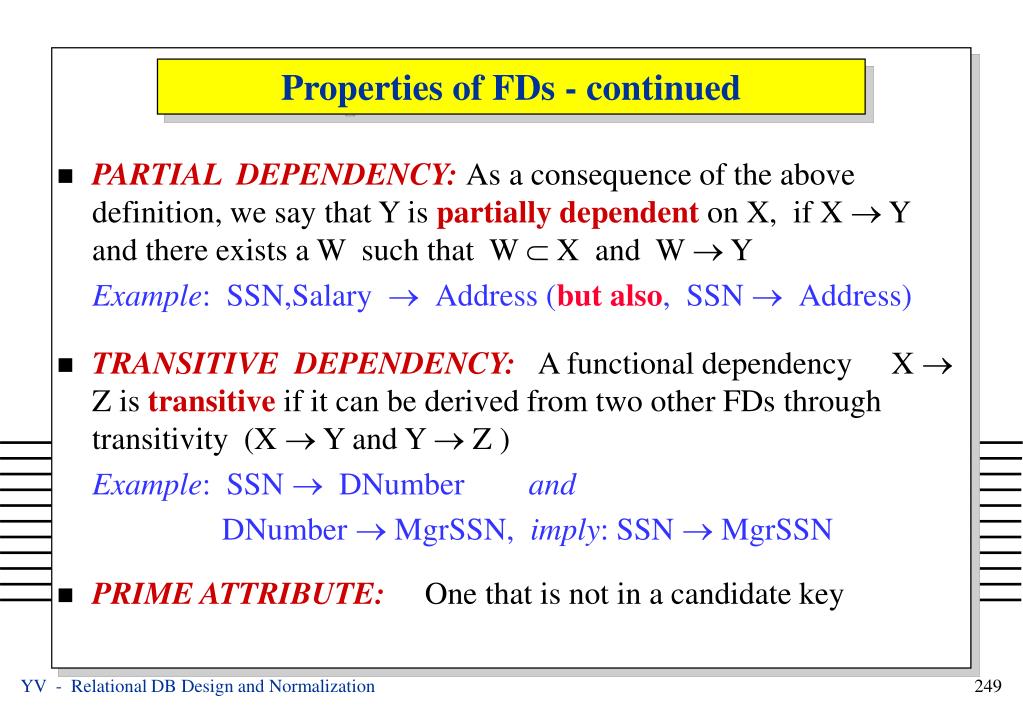

  14. Properties of FDs - continued • PARTIAL DEPENDENCY: As a consequence of the above definition, we say that Y is partially dependent on X, if X ® Y and there exists a W such that W Ì X and W ® Y Example: SSN,Salary ® Address (but also, SSN ® Address) • TRANSITIVE DEPENDENCY: A functional dependency X ® Z istransitive if it can be derived from two other FDs through transitivity (X ® Y and Y ® Z ) Example: SSN ® DNumber and DNumber ® MgrSSN, imply: SSN ® MgrSSN • PRIME ATTRIBUTE: One that is not in a candidate key

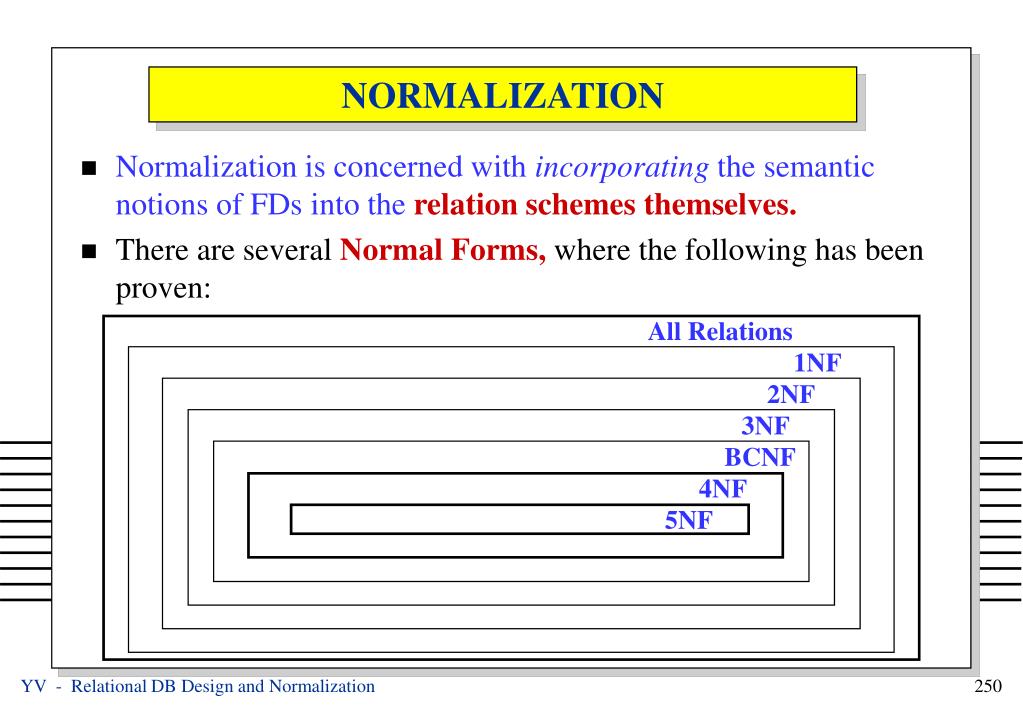

  15. NORMALIZATION • Normalization is concerned with incorporating the semantic notions of FDs into therelation schemes themselves. • There are severalNormal Forms, where the following has been proven: All Relations 1NF 2NF 3NF BCNF 4NF 5NF

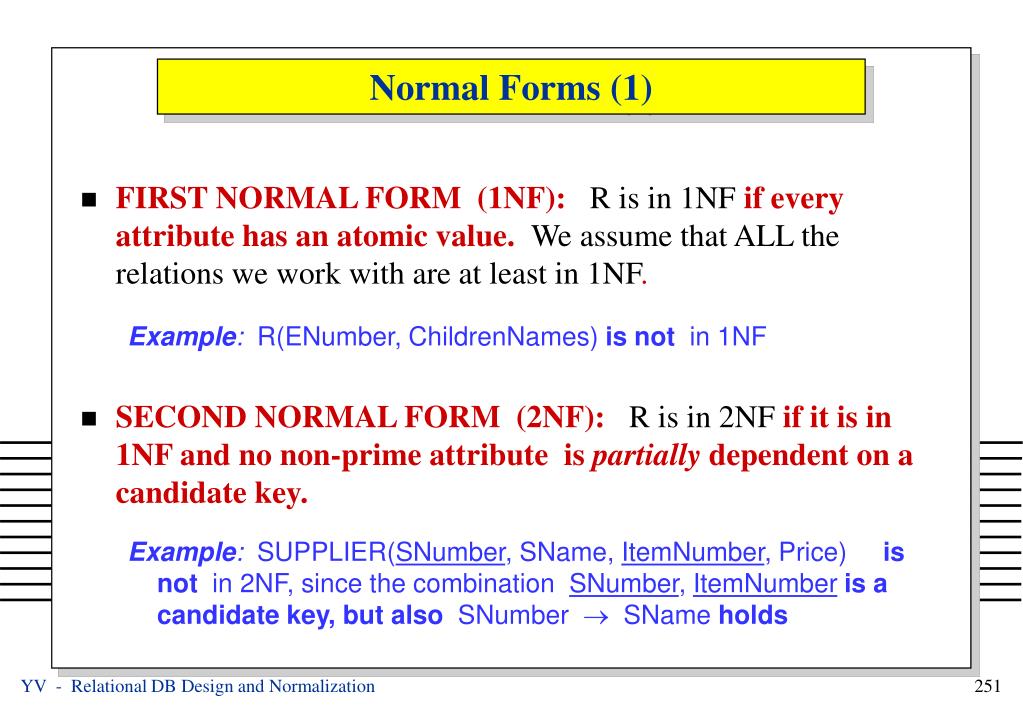

  16. Normal Forms (1) • FIRST NORMAL FORM (1NF): R is in 1NFif every attribute has an atomic value. We assume that ALL the relations we work with are at least in 1NF. Example: R(ENumber, ChildrenNames) is not in 1NF • SECOND NORMAL FORM (2NF): R is in 2NFif it is in 1NF and no non-prime attribute is partially dependent on a candidate key. Example: SUPPLIER(SNumber, SName, ItemNumber, Price) is not in 2NF, since the combination SNumber, ItemNumberis a candidate key, but also SNumber ® SName holds

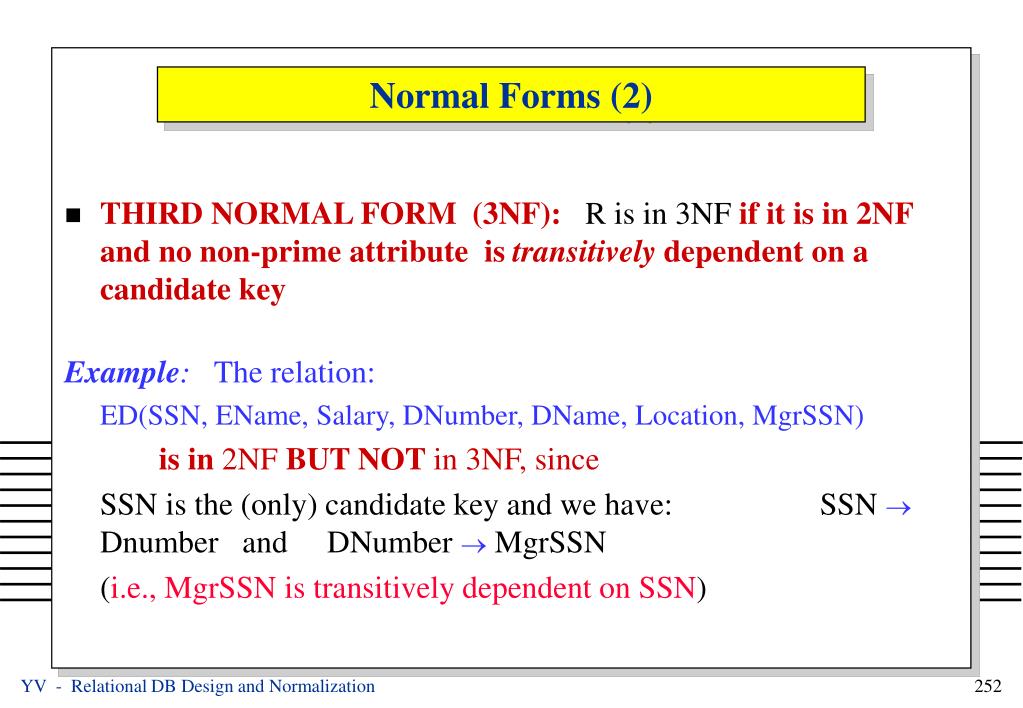

  17. Normal Forms (2) • THIRD NORMAL FORM (3NF): R is in 3NF if it is in 2NF and no non-prime attribute is transitively dependent on a candidate key Example: The relation: ED(SSN, EName, Salary, DNumber, DName, Location, MgrSSN) is in 2NF BUT NOT in 3NF, since SSN is the (only) candidate key and we have: SSN ® Dnumber and DNumber ® MgrSSN (i.e., MgrSSN is transitively dependent on SSN)

  18. Normal Forms (3) • Equivalent definition of THIRD NORMAL FORM (3NF): R is in 3NFif and only if for every FD X ® A, where X is a set of attributes in R and A is a single attribute, at least one of the following is true: 1.- A Í X (the FD is trivial) 2.- K Í X (with K being a candidate key of R) 3.- A Í K (with K being a candidate key of R)

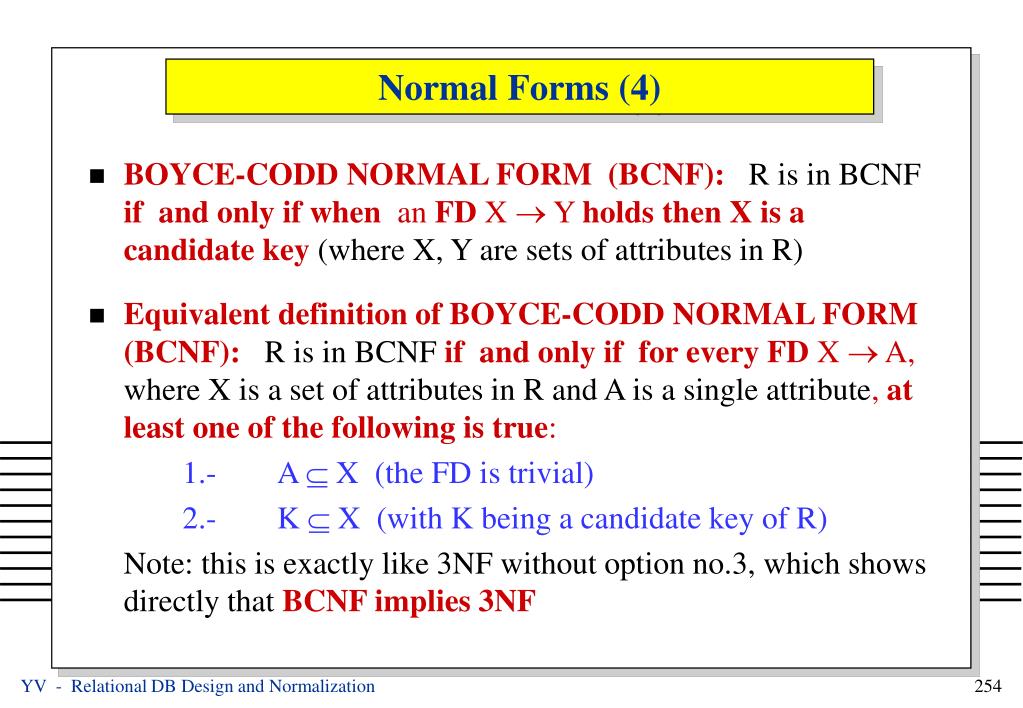

  19. Normal Forms (4) • BOYCE-CODD NORMAL FORM (BCNF): R is in BCNFif and only if when an FD X ® Y holdsthen X is a candidate key (where X, Y are sets of attributes in R) • Equivalent definition of BOYCE-CODD NORMAL FORM (BCNF): R is in BCNFif and only if for every FD X ® A, where X is a set of attributes in R and A is a single attribute, at least one of the following is true: 1.- A Í X (the FD is trivial) 2.- K Í X (with K being a candidate key of R) Note: this is exactly like 3NF without option no.3, which shows directly thatBCNF implies 3NF

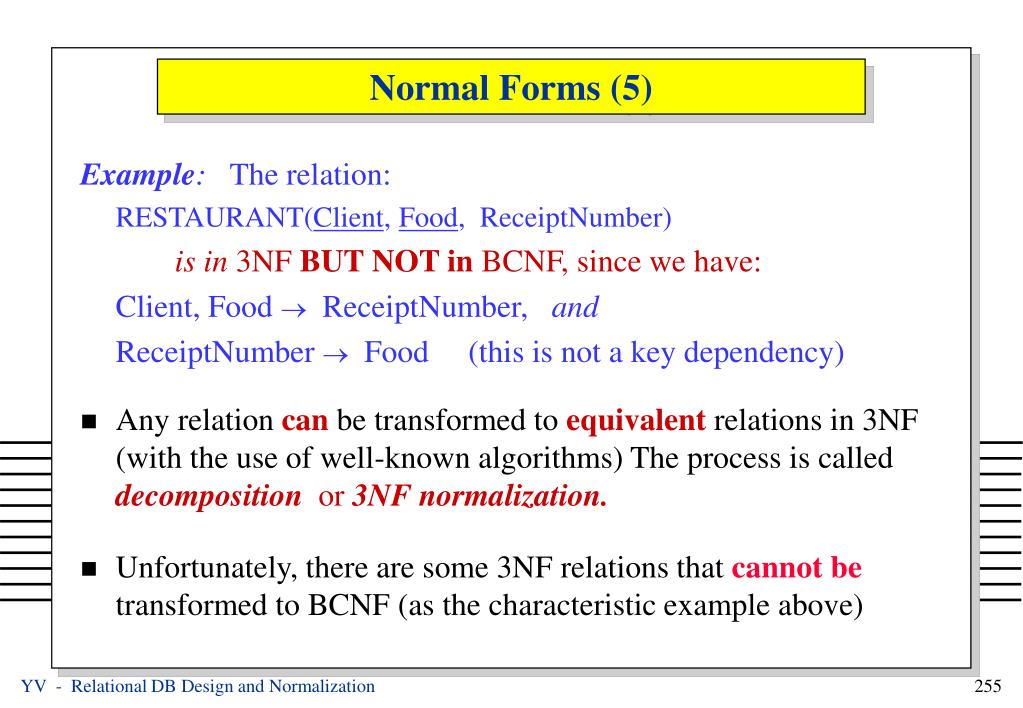

  20. Normal Forms (5) Example: The relation: RESTAURANT(Client, Food, ReceiptNumber) is in 3NF BUT NOT in BCNF, since we have: Client, Food ® ReceiptNumber, and ReceiptNumber ® Food (this is not a key dependency) • Any relationcanbe transformed toequivalentrelations in 3NF (with the use of well-known algorithms) The process is calleddecomposition or 3NF normalization. • Unfortunately, there are some 3NF relations that cannot be transformed to BCNF (as the characteristic example above)

  21. Normalization Theory • Given a set of FDs F we can determine additional FDs that hold whenever the FDs in F hold - to determine such FDs we needinference rules. A1. if Y Í X then X ® Y (Reflexivity) A2. if X ® Y then XZ ® YZ (Augmentation) A3. if X ® Y and Y ® Z then X ® Z (Transitivity) Armstrong proved that: {A1, A2, A3) is a sound and complete set of inference rules i.e., the rules generate only valid FDs and all FDs that can be inferred will be generated by the above rules

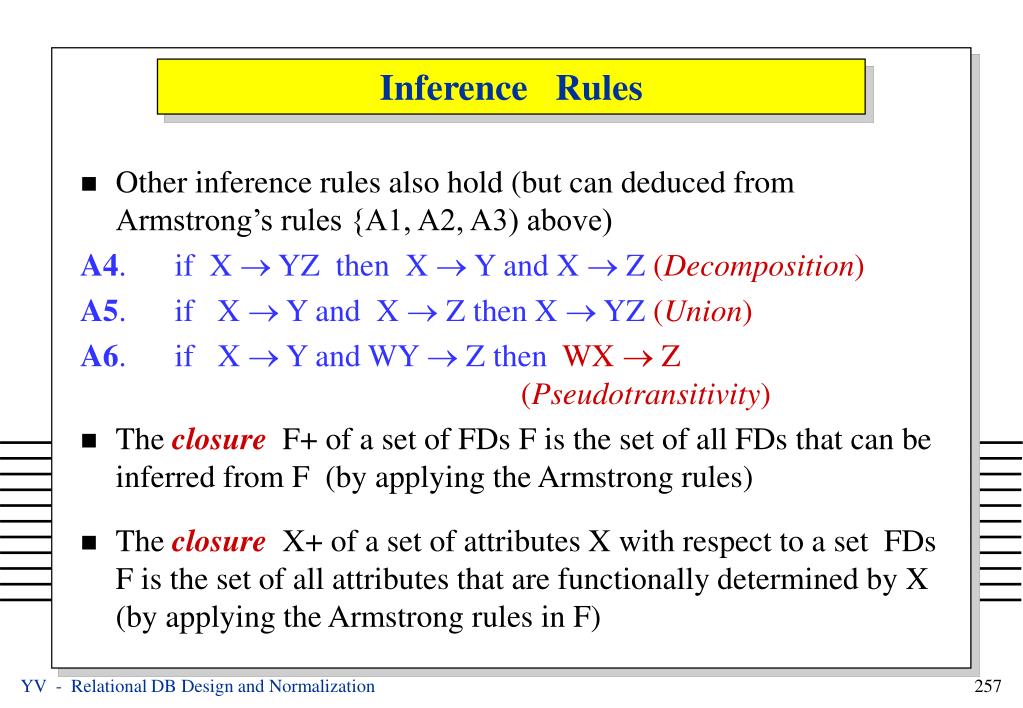

  22. Inference Rules • Other inference rules also hold (but can deduced from Armstrong’s rules {A1, A2, A3) above) A4. if X ® YZ then X ® Y and X ® Z (Decomposition) A5. if X ® Y and X ® Z then X ® YZ (Union) A6. if X ® Y and WY ® Z then WX ® Z (Pseudotransitivity) • Theclosure F+ of a set of FDs F is the set of all FDs that can be inferred from F (by applying the Armstrong rules) • Theclosure X+ of a set of attributes X with respect to a set FDs F is the set of all attributes that are functionally determined by X (by applying the Armstrong rules in F)

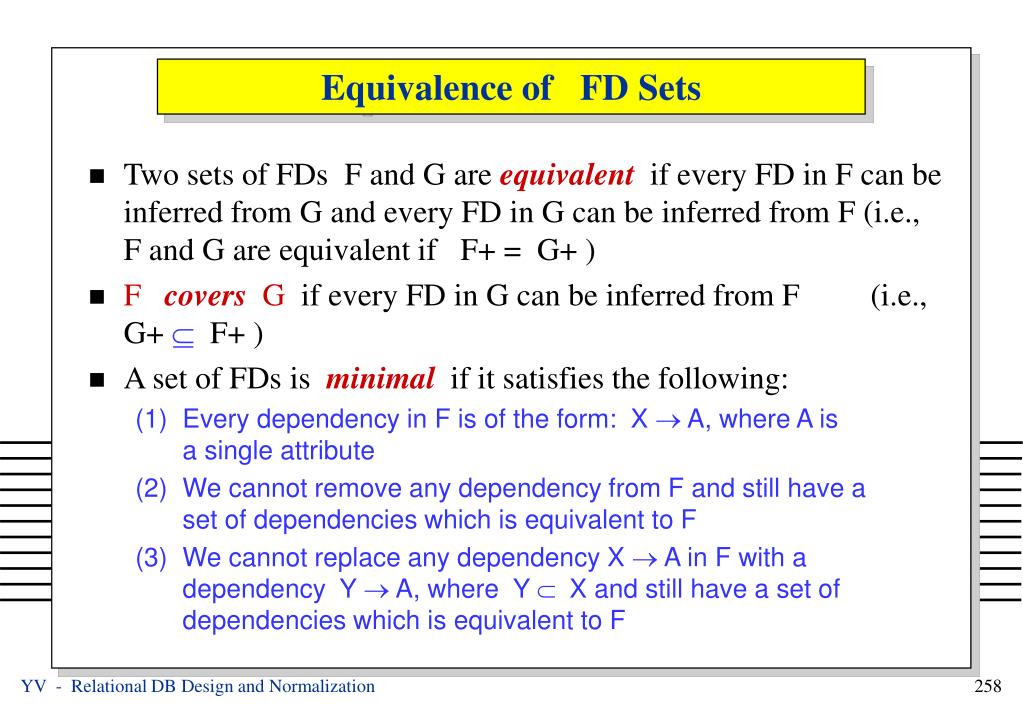

  23. Equivalence of FD Sets • Two sets of FDs F and G areequivalent if every FD in F can be inferred from G and every FD in G can be inferred from F (i.e., F and G are equivalent if F+ = G+ ) • F covers G if every FD in G can be inferred from F (i.e., G+ Í F+ ) • A set of FDs is minimal if it satisfies the following: (1) Every dependency in F is of the form: X ® A, where A is a single attribute (2) We cannot remove any dependency from F and still have a set of dependencies which is equivalent to F (3) We cannot replace any dependency X ® A in F with a dependency Y ® A, where Y Ì X and still have a set of dependencies which is equivalent to F

  24. Results from FD Theory • There is a simple algorithm for checking equivalence between two sets of FDs • Every set of FDs has an equivalent minimal set • There is nosimple (efficient) algorithm for computing a minimal set of FDs that is equivalent to a set F of FDs • Having a minimal set is important for several relational design algorithms • To ensure a good relational design we need to establish additional criteria (lossless join property, dependency preserving property) and algorithms that preserve them.

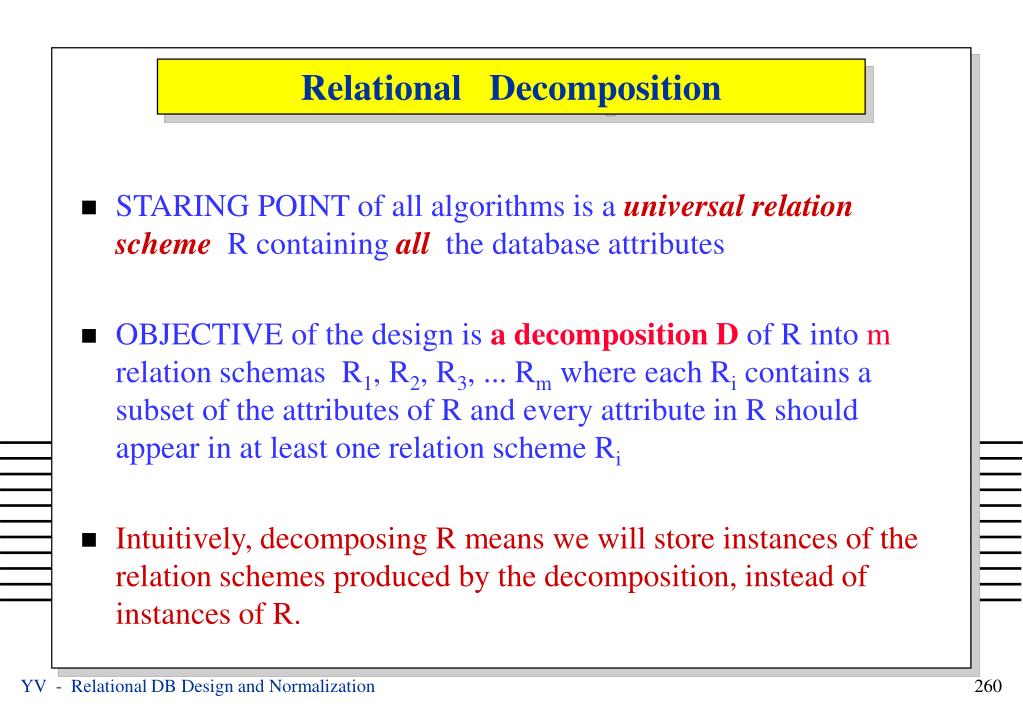

  25. Relational Decomposition • STARING POINT of all algorithms is auniversal relation scheme R containingallthe database attributes • OBJECTIVE of the design is a decomposition D of R into m relation schemas R1, R2, R3, ... Rm where each Ri contains a subset of the attributes of R and every attribute in R should appear in at least one relation scheme Ri • Intuitively, decomposing R means we will store instances of the relation schemes produced by the decomposition, instead of instances of R.

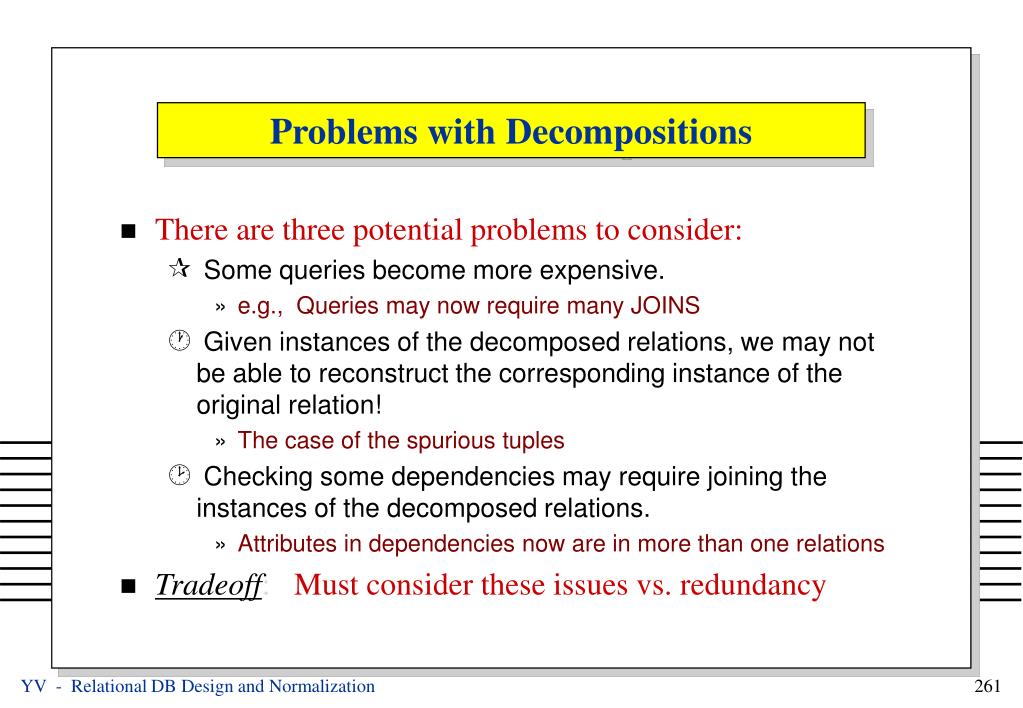

  26. Problems with Decompositions • There are three potential problems to consider: • Some queries become more expensive. • e.g., Queries may now require many JOINS • Given instances of the decomposed relations, we may not be able to reconstruct the corresponding instance of the original relation! • The case of the spurious tuples • Checking some dependencies may require joining the instances of the decomposed relations. • Attributes in dependencies now are in more than one relations • Tradeoff: Must consider these issues vs. redundancy

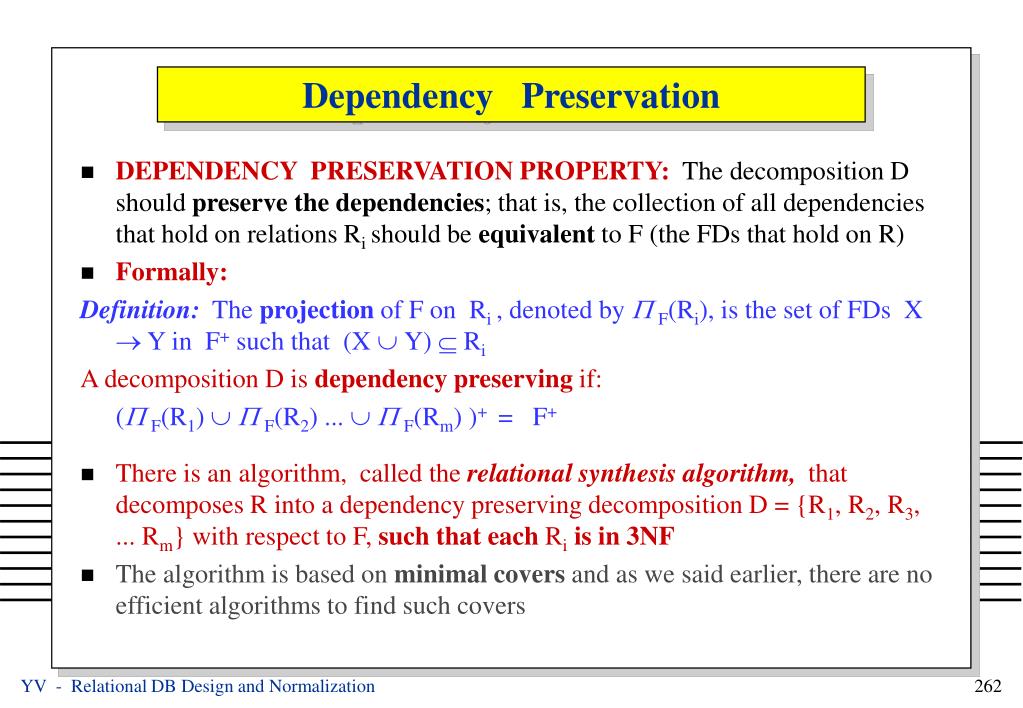

  27. Dependency Preservation • DEPENDENCY PRESERVATION PROPERTY: The decomposition D should preserve the dependencies; that is, the collection of all dependencies that hold on relations Ri should be equivalent to F (the FDs that hold on R) • Formally: Definition: The projection of F on Ri , denoted by PF(Ri), is the set of FDs X ® Y in F+ such that (X È Y) Í Ri A decomposition D is dependency preserving if: (PF(R1) ÈPF(R2) ... ÈPF(Rm) )+ = F+ • There is an algorithm, called the relational synthesis algorithm, that decomposes R into a dependency preserving decomposition D = {R1, R2, R3, ... Rm} with respect to F, such that each Ri is in 3NF • The algorithm is based on minimal covers and as we said earlier, there are no efficient algorithms to find such covers

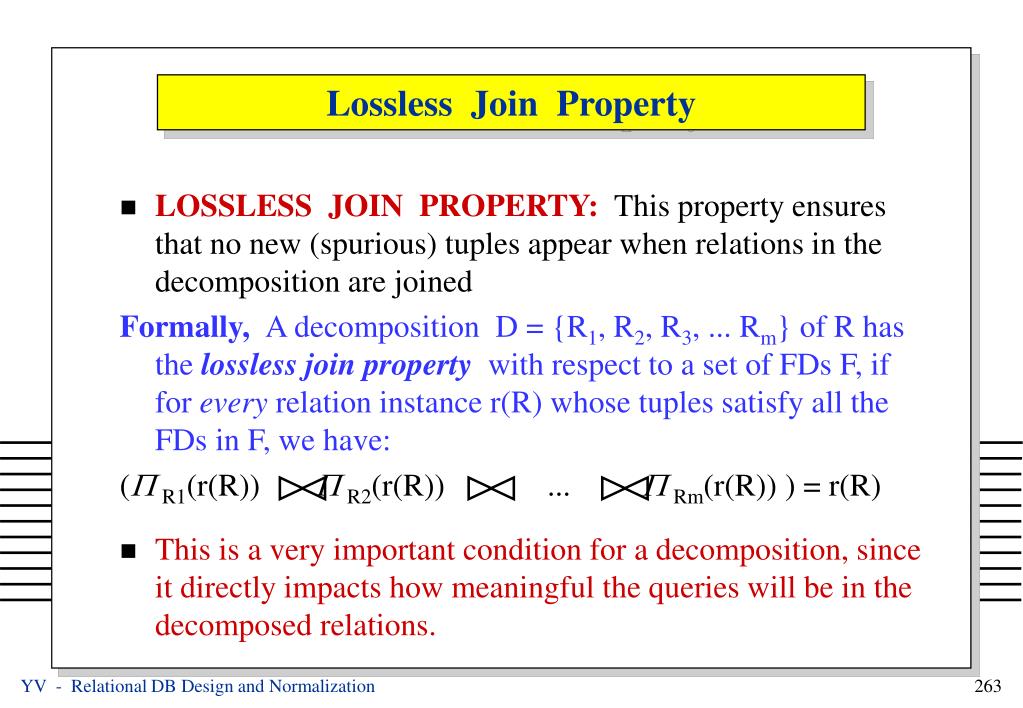

  28. Lossless Join Property • LOSSLESS JOIN PROPERTY: This property ensures that no new (spurious) tuples appear when relations in the decomposition are joined Formally, A decomposition D = {R1, R2, R3, ... Rm} of R has the lossless join property with respect to a set of FDs F, if for every relation instance r(R) whose tuples satisfy all the FDs in F, we have: (PR1(r(R)) PR2(r(R)) ... PRm(r(R)) ) = r(R) • This is a very important condition for a decomposition, since it directly impacts how meaningful the queries will be in the decomposed relations.

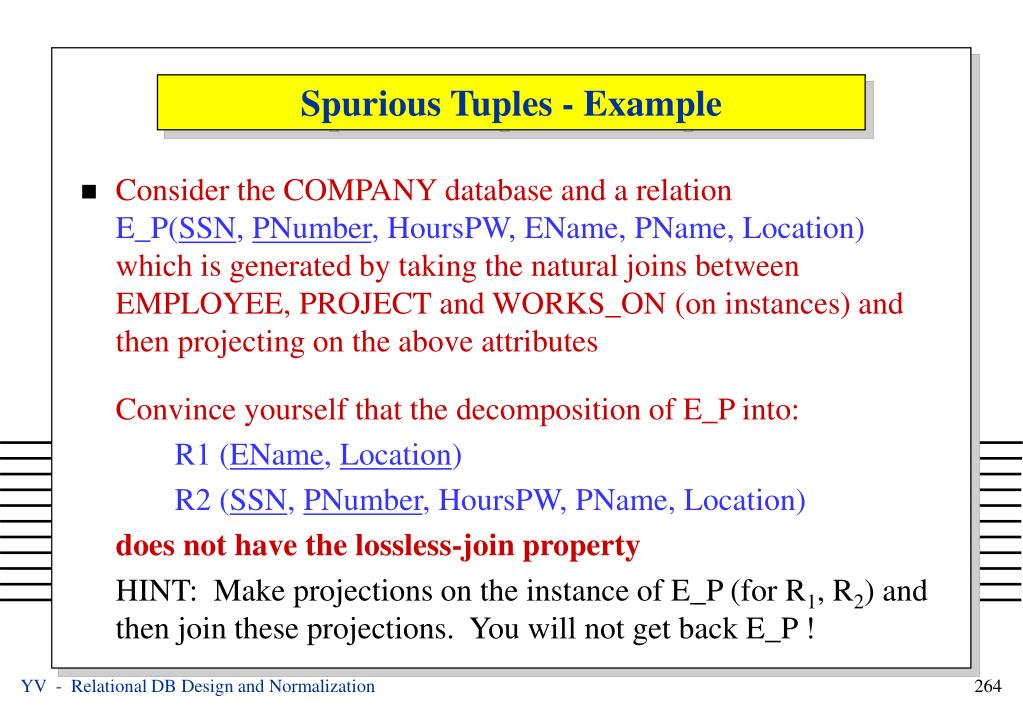

  29. Spurious Tuples - Example • Consider the COMPANY database and a relation E_P(SSN, PNumber, HoursPW, EName, PName, Location) which is generated by taking the natural joins between EMPLOYEE, PROJECT and WORKS_ON (on instances) and then projecting on the above attributes Convince yourself that the decomposition of E_P into: R1 (EName, Location) R2 (SSN, PNumber, HoursPW, PName, Location) does not have the lossless-join property HINT: Make projections on the instance of E_P (for R1, R2) and then join these projections. You will not get back E_P !

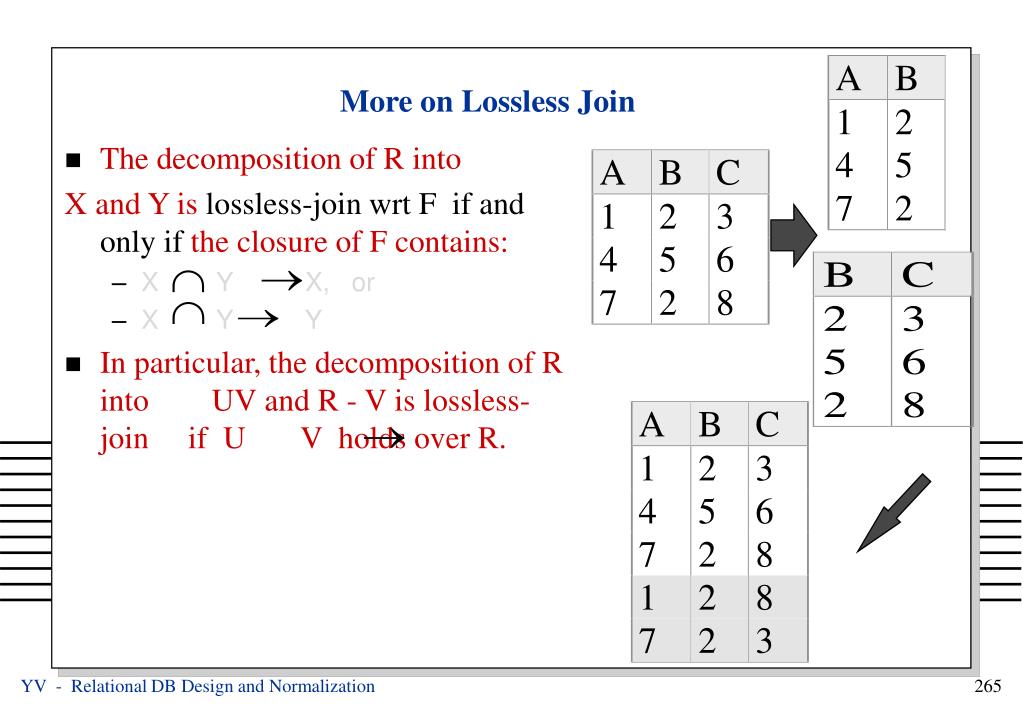

  30. More on Lossless Join • The decomposition of R into X and Y is lossless-join wrt F if and only ifthe closure of F contains: • X Y X, or • X Y Y • In particular, the decomposition of R into UV and R - V is lossless-join if U V holds over R.

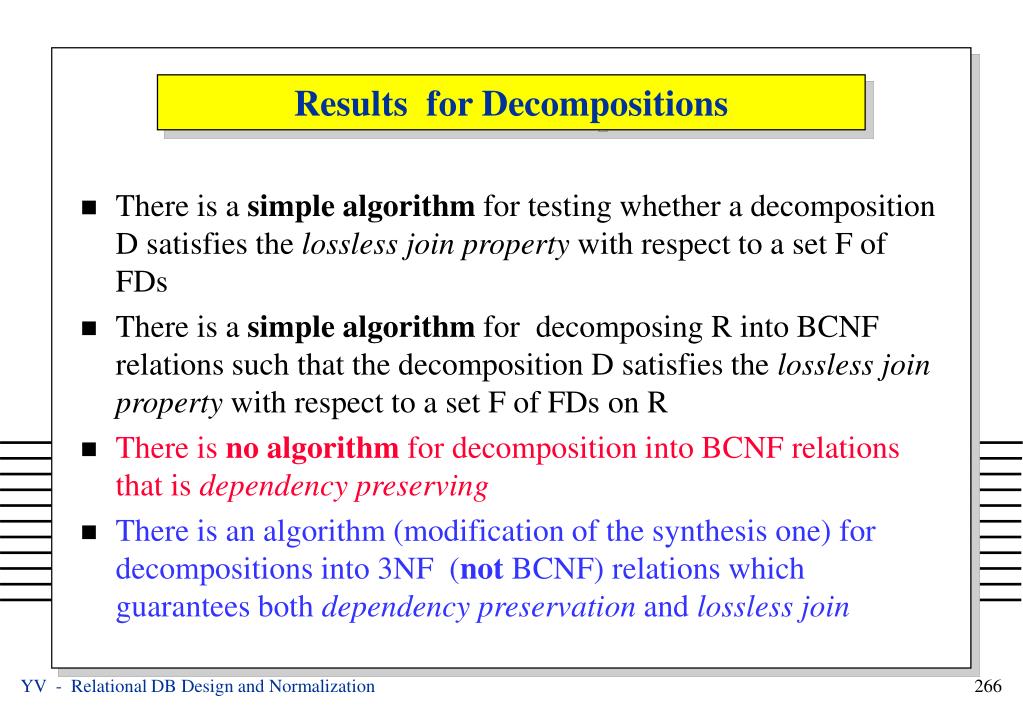

  31. Results for Decompositions • There is a simple algorithm for testing whether a decomposition D satisfies the lossless join property with respect to a set F of FDs • There is a simple algorithm for decomposing R into BCNF relations such that the decomposition D satisfies the lossless join property with respect to a set F of FDs on R • There is no algorithm for decomposition into BCNF relations that is dependency preserving • There is an algorithm (modification of the synthesis one) for decompositions into 3NF (not BCNF) relations which guarantees both dependency preservation and lossless join

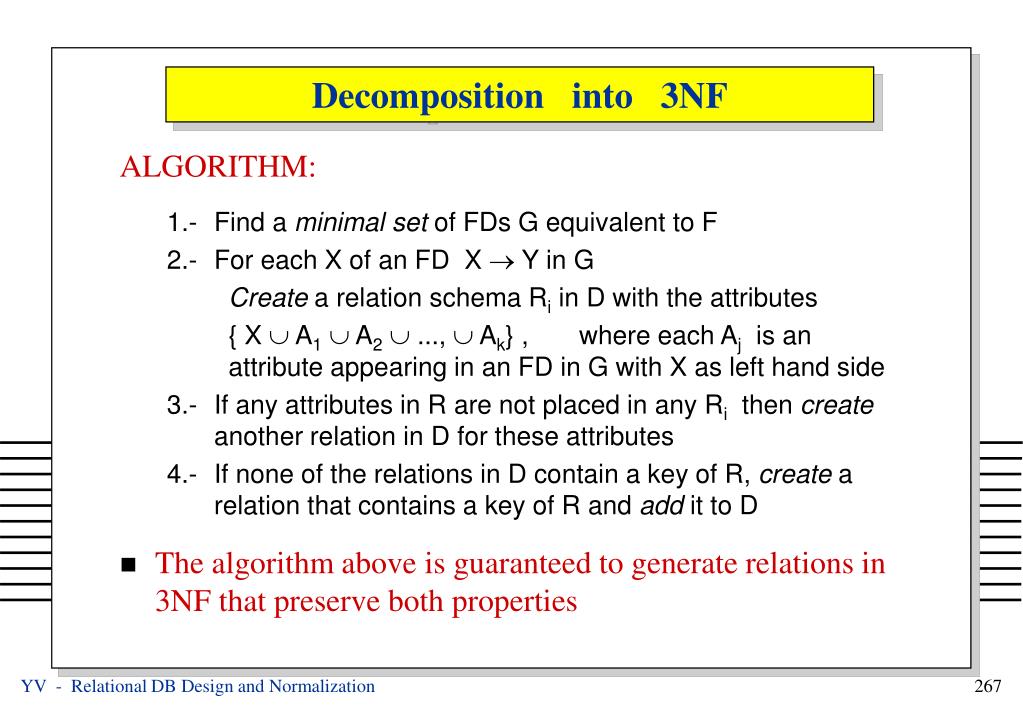

  32. Decomposition into 3NF ALGORITHM: 1.- Find a minimal set of FDs G equivalent to F 2.- For each X of an FD X ® Y in G Create a relation schema Ri in D with the attributes { X È A1È A2È ..., È Ak} , where each Aj is an attribute appearing in an FD in G with X as left hand side 3.- If any attributes in R are not placed in any Ri then create another relation in D for these attributes 4.- If none of the relations in D contain a key of R, create a relation that contains a key of R and add it to D • The algorithm above is guaranteed to generate relations in 3NF that preserve both properties

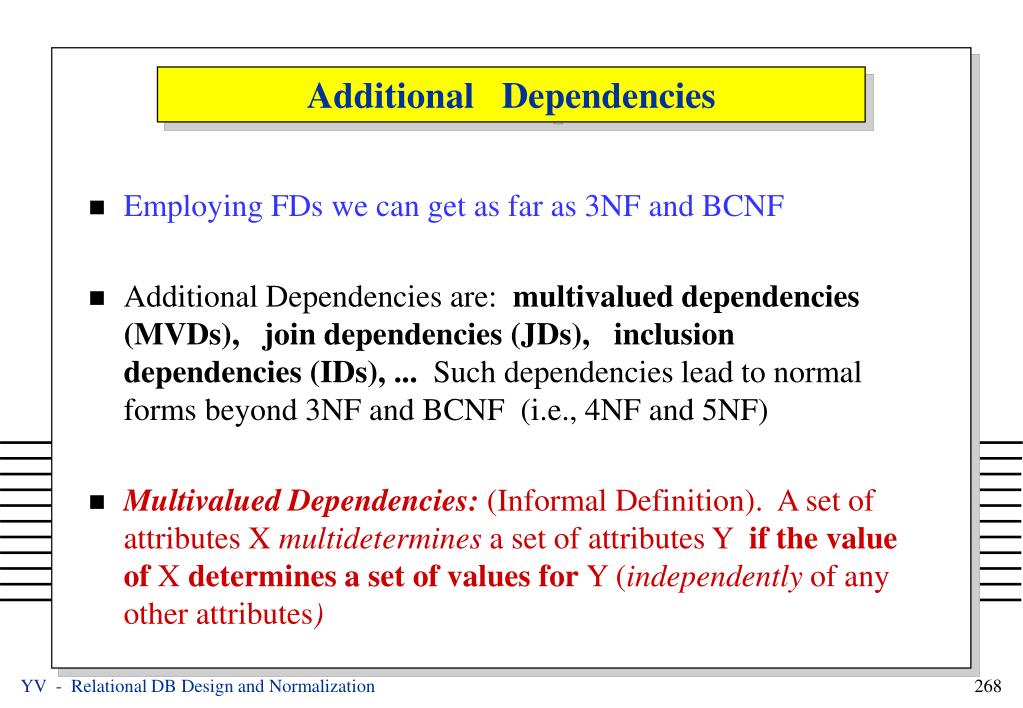

  33. Additional Dependencies • Employing FDs we can get as far as 3NF and BCNF • Additional Dependencies are: multivalued dependencies (MVDs),join dependencies (JDs), inclusion dependencies (IDs), ... Such dependencies lead to normal forms beyond 3NF and BCNF (i.e., 4NF and 5NF) • Multivalued Dependencies: (Informal Definition). A set of attributes X multidetermines a set of attributes Y if the value of X determines a set of values for Y (independently of any other attributes)

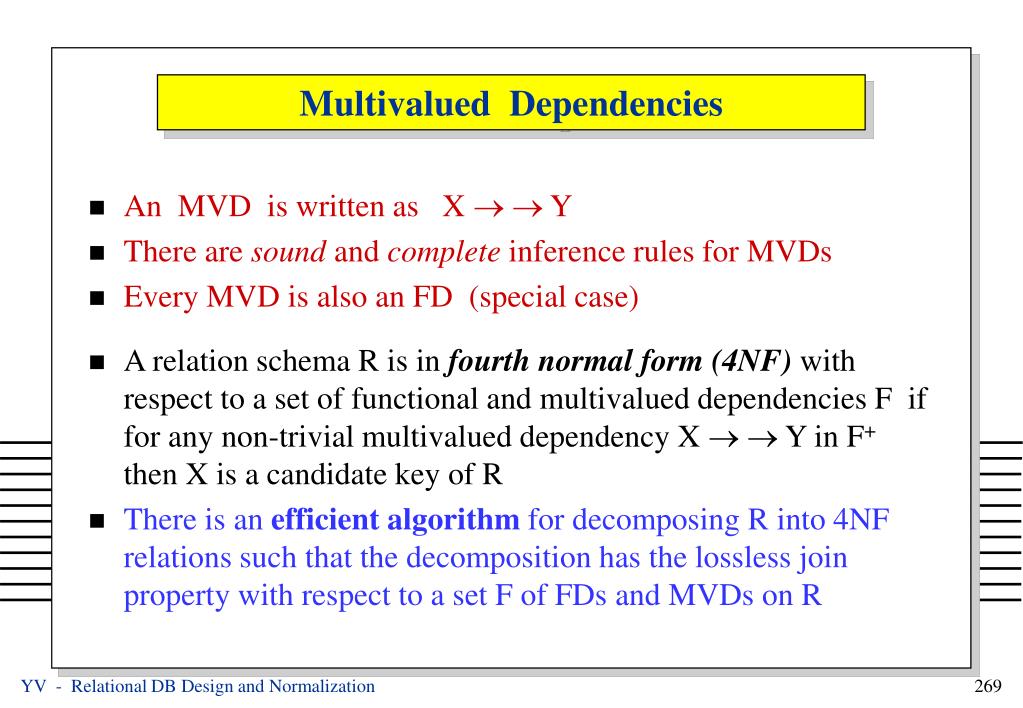

  34. Multivalued Dependencies • An MVD is written as X ®® Y • There are sound and complete inference rules for MVDs • Every MVD is also an FD (special case) • A relation schema R is in fourth normal form (4NF) with respect to a set of functional and multivalued dependencies F if for any non-trivial multivalued dependency X ®® Y in F+ then X is a candidate key of R • There is an efficient algorithm for decomposing R into 4NF relations such that the decomposition has the lossless join property with respect to a set F of FDs and MVDs on R

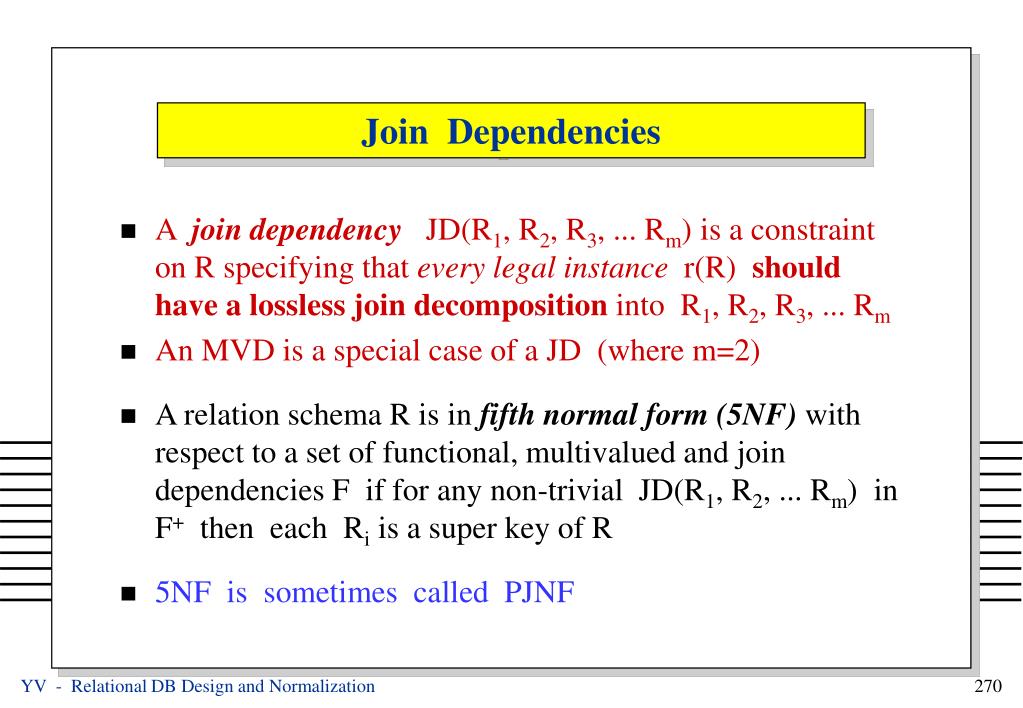

  35. Join Dependencies • A join dependency JD(R1, R2, R3, ... Rm) is a constraint on R specifying that every legal instance r(R) should have alossless join decomposition into R1, R2, R3, ... Rm • An MVD is a special case of a JD (where m=2) • A relation schema R is in fifth normal form (5NF) with respect to a set of functional, multivalued and join dependencies F if for any non-trivial JD(R1, R2, ... Rm) in F+ then each Ri is a super key of R • 5NF is sometimes called PJNF

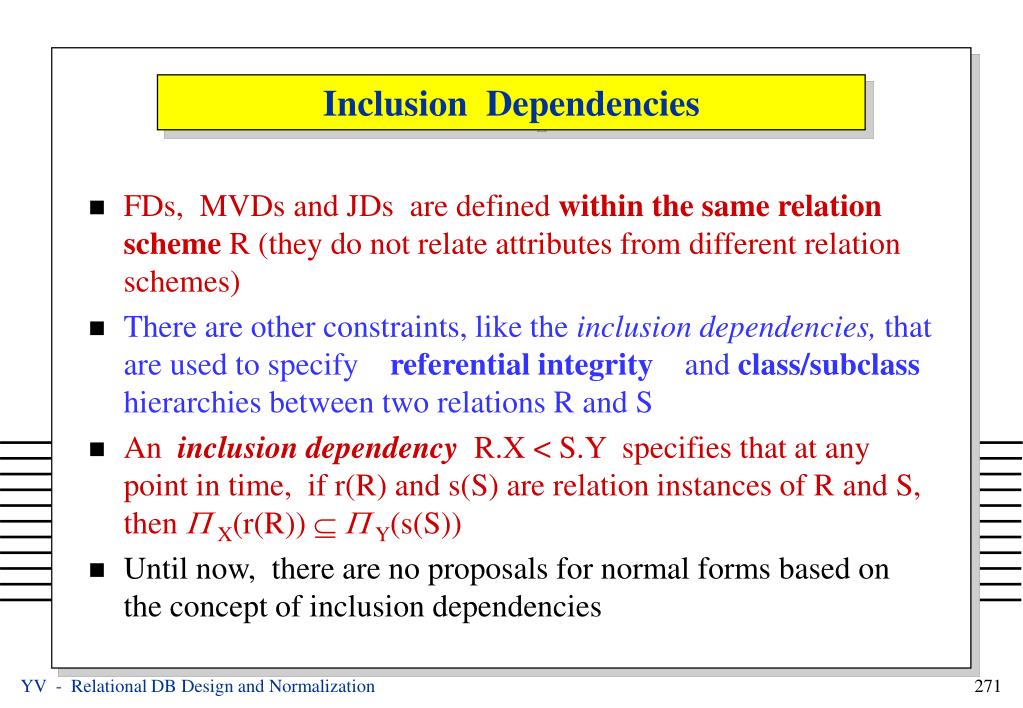

  36. Inclusion Dependencies • FDs, MVDs and JDs are defined within the same relation scheme R (they do not relate attributes from different relation schemes) • There are other constraints, like the inclusion dependencies, that are used to specify referential integrity and class/subclass hierarchiesbetween two relations R and S • An inclusion dependency R.X < S.Y specifies that at any point in time, if r(R) and s(S) are relation instances of R and S, then PX(r(R)) ÍPY(s(S)) • Until now, there are no proposals for normal forms based on the concept of inclusion dependencies

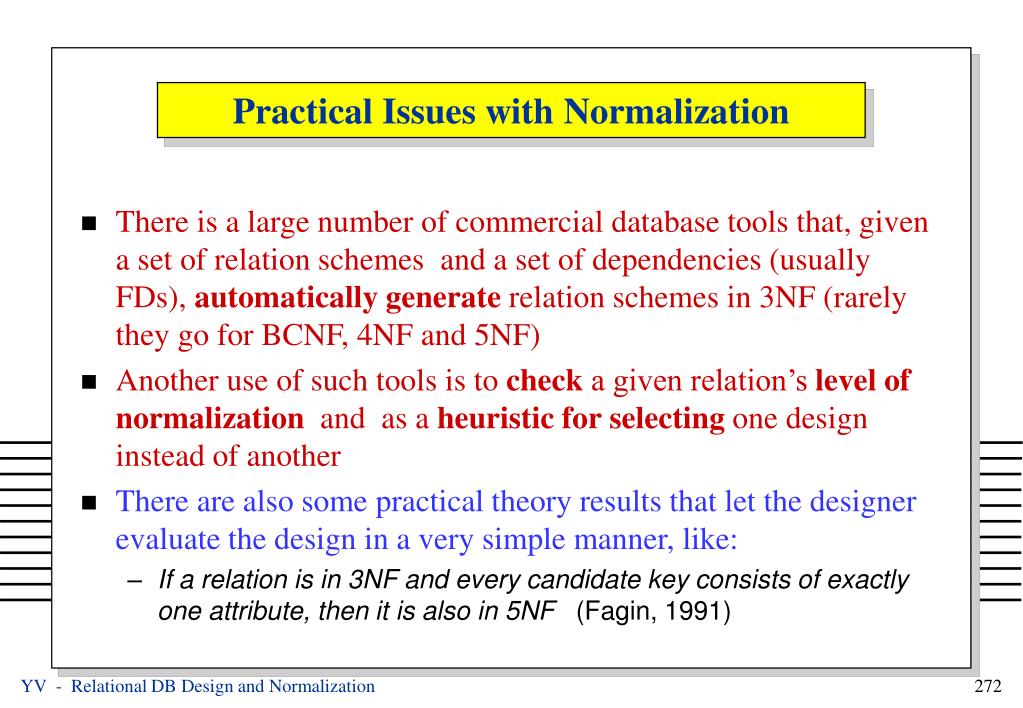

  37. Practical Issues with Normalization • There is a large number of commercial database tools that, given a set of relation schemes and a set of dependencies (usually FDs), automatically generate relation schemes in 3NF (rarely they go for BCNF, 4NF and 5NF) • Another use of such tools is to check a given relation’s level of normalization and as a heuristic for selecting one design instead of another • There are also some practical theory results that let the designer evaluate the design in a very simple manner, like: • If a relation is in 3NF and every candidate key consists of exactly one attribute, then it is also in 5NF (Fagin, 1991)

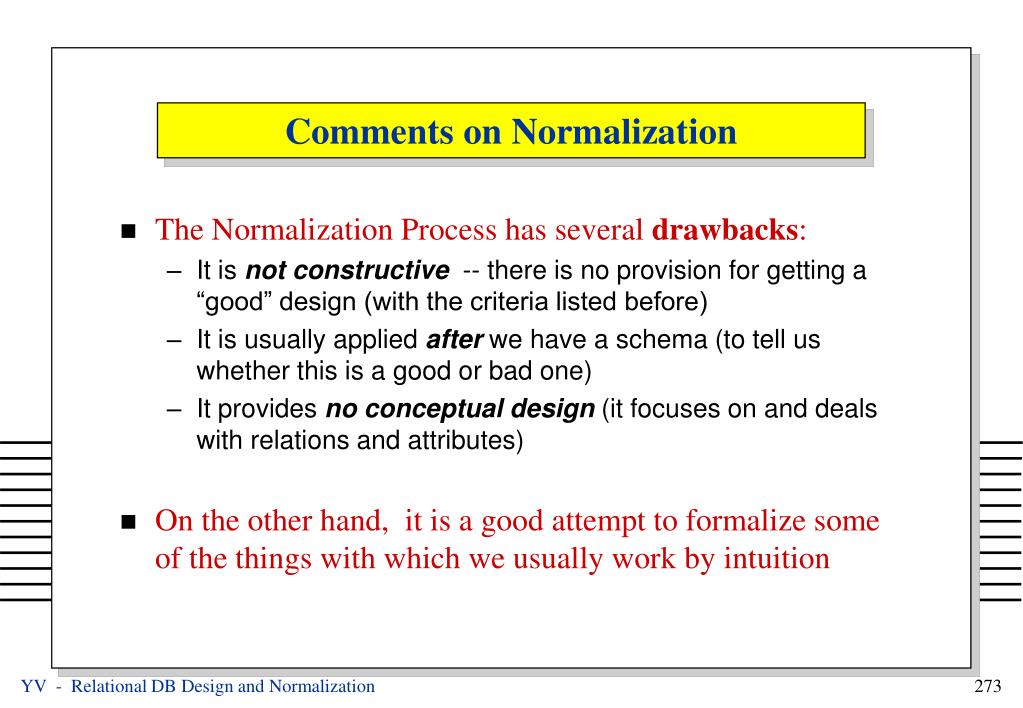

  38. Comments on Normalization • The Normalization Process has several drawbacks: • It is not constructive -- there is no provision for getting a “good” design (with the criteria listed before) • It is usually applied after we have a schema (to tell us whether this is a good or bad one) • It provides no conceptual design (it focuses on and deals with relations and attributes) • On the other hand, it is a good attempt to formalize some of the things with which we usually work by intuition
