  1. Measuring autonomic activity Heart rate variability Centre for Doctoral Training in Healthcare Innovation Dr. Gari D. Clifford, University Lecturer & Associate Director, Centre for Doctoral Training in Healthcare Innovation, Institute of Biomedical Engineering, University of Oxford

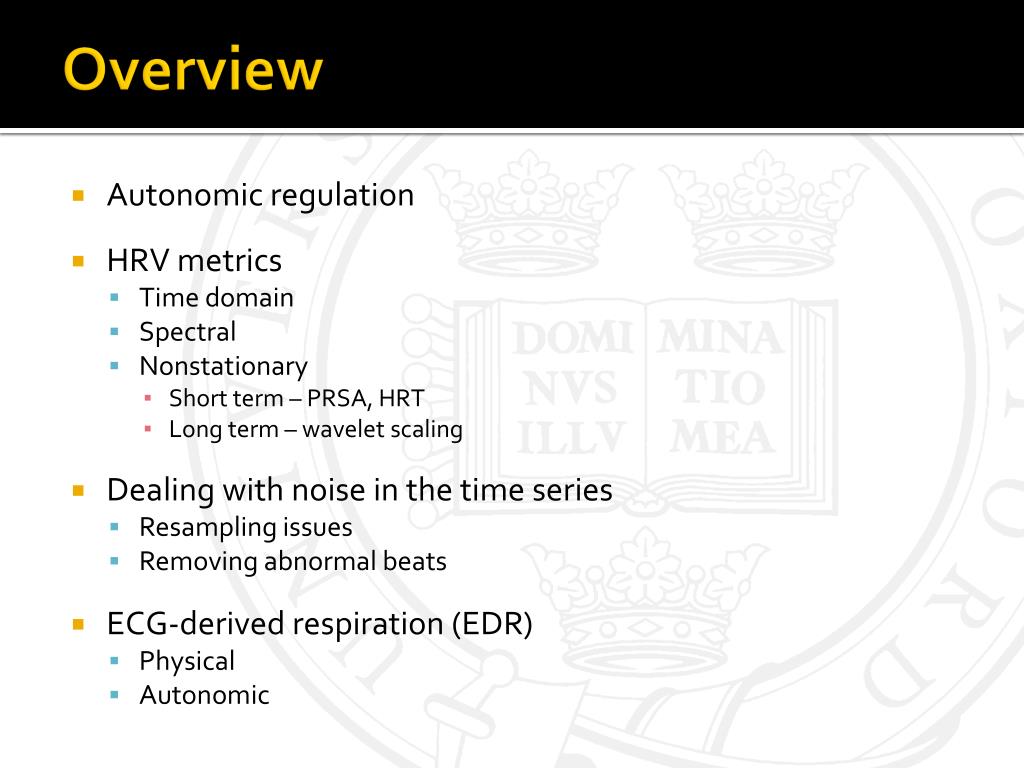

  2. Overview Autonomic regulation HRV metrics Time domain Spectral Nonstationary Short term – PRSA, HRT Long term – wavelet scaling Dealing with noise in the time series Resampling issues Removing abnormal beats ECG-derived respiration (EDR) Physical Autonomic

  3. Autonomic Regulation Rest & Digest Fight & Flight http://www.becomehealthynow.com/images/organs/nervous/sympth_parasymth.gif

  4. How to ‘measure’ autoregulation ANS autoregulates heart through SA node So measure HRV to gain insight into how autoregulation is working Why? To provides a metric of health … by looking for departures form normality (given demographics)

  5. RR Tachogram Sequence of RR intervals is called Tachogram 60/.RR interval = Instantaneous HR Plot (t,RR) (time vs differential of time!) Now you can employ signal processing on the data! Data taken from PhysioNet; http://www.physionet.org

  6. What is HRV? Oscillations in RR tachogram from: Simple example: RSA Also changes due to blood pressure Myogenic changes? Smooth muscle Diurnal variations (temp, sleep, activity) Sudden changes – ectopy, arrhythmia

  7. Cardiorespiratory co-ordination ECG, HR and Respiration: HR and respiration highly correlated Resp rate is highest Freq component ~ 0.1-0.5 Hz

  8. HRV is a quantification of variation of the beat-to-beat intervals Frequency domain analysis is traditionally split into 4 frequency bands (ULF, VLF, LF & HF) representing the 4 (approx. distinct) time scales over which cardiovascular variations are thought to occur Spectral components of HRV • HF (0.15-0.4Hz): Vagal/parasympathetic variations over seconds (e.g. respiration) • LF (0.04–0.15Hz): Sympathetic- over minutes (BP, Meyer waves) • VLF (0.003-0.04Hz): Myogenic? Variations over hours, e.g. temp. • ULF (0.0001-0.003Hz):Circadian – e.g. activity nonstationarities

  9. ‘Autonomic Balance’ Sympathetic & parasympathetic braches of CNS act in opposition Think of it like 2 pedals in a car – both are accelerators AND breaks (innervate / inhibit) The sympathetic brake/accelerator is less ‘sticky’ Fight/flight response = rapid sympathetic innervation, and slower parasympathetic inhibition (note that parasympathetic action leads to higher frequency oscillations in RR tachogram – why?) • The ratio of the LF & HF power reflects the ‘autonomic balance’ between these continuously interacting inhibitory and innervating actions of the CNS • Small values indicate you are relaxing • Large values indicate a highly active system – e.g. when you are running • Elevated values when you are relaxing indicate health problem LF HF

  10. How do we construct the tachogram? Record ECG Detect Peaks Calculate RR interval (time between each R peak) Remove RR intervals associated with noise & non-sinus beats (& following N beats?) Interpolate through missing data (insert phantom beats) if using cubic spline? [or cut data] (why do we remove non-sinus beats?) Resample / interpolate time series – WHY?

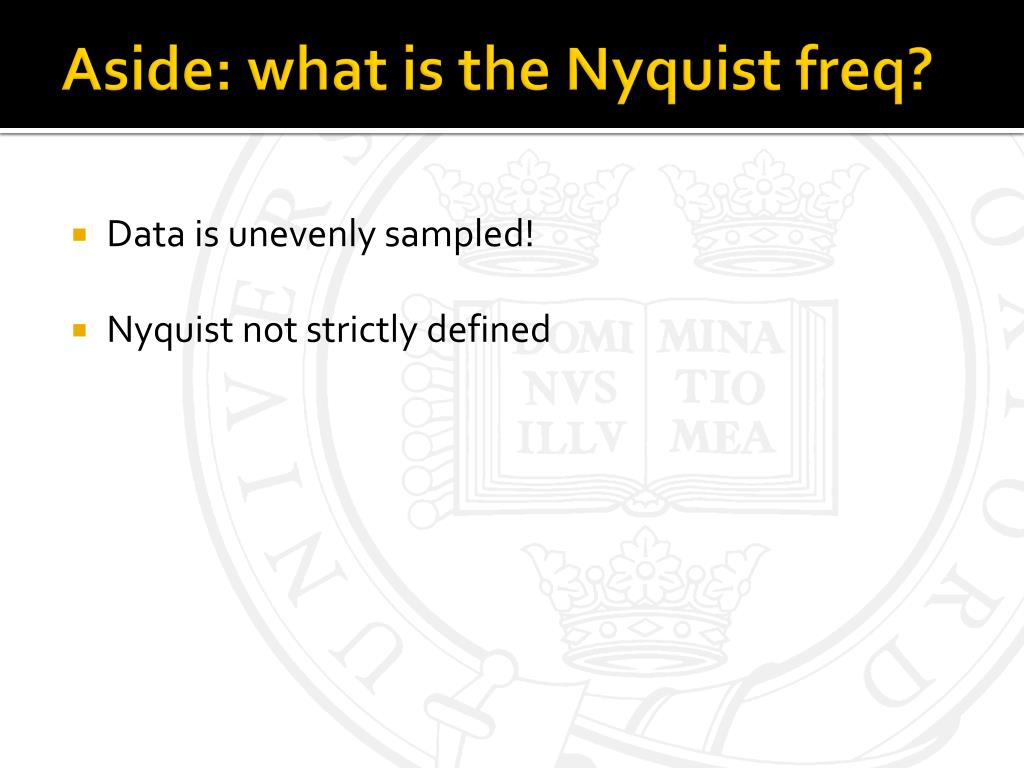

  11. Aside: what is the Nyquist freq? Data is unevenly sampled! Nyquist not strictly defined

  12. What is the Nyquist freq? Data is unevenly sampled! Nyquist not strictly defined Nyquist frequency = 1/mean(RR) Hz (generally 0.5Hz for 60 BPM) Some frequencies above this, so you can ‘beat’ Nyquist through uneven sampling But the accuracy at higher frequencies depends on number of samples with corresponding intervals

  13. What if we have abnormal beats? Data courtesy of PhysioNet; http://www.physionet.org

  14. Why do we remove non-sinus beats? Non-sinus beats are not reflective of SA node activity They lead to nonstationarities in time series … so we remove a few following beats Insert phantom beats to create stability for nonlinear interp Resample to make an evenly sampled time series • Generally you remove any RR intervals which change by more than 20% on the previous RR interval • Example with linear interpolation • Note phantom beat is interpolated with linear interp – so phantom not needed here

  15. At what frequency should we resample? Depends on task. Is (average) Nyquist the right resampling frequency? Smallest RR interval possible? → ? Hz For respiration, what’s the fastest rate? → ? Hz Autonomic information up to ? Hz

  16. At what frequency should we resample? Depends on task. There are frequencies above average Nyquist! Smallest RR interval possible? 200ms → 10 Hz But HRV only for sinus beats: <160 BPM → ~6 Hz Fastest respiration rate? 60 CPM → 2 Hz Autonomic information up to 1 Hz → 2 Hz (In reality you need to sample a bit faster than Nyquist)

  17. How do we assess variability? Many measures, some parametric, some non-parametric. Work over many scales Some deal with non-stationarities, some do not

  18. Simple example Sine wave, with standard deviation calculated over different lengths • Eventually it tends to a limit, but local measures can be unrepresentative

  19. Typical HRV statistics Time domain (assumes stationarity) Standard frequency domain (assumes stationarity) ‘Scaling’ over 24 hours Nonlinear measures (sample entropy) Multi-scale entropy

  20. Time domain statistics Recap: Moments of a distribution Discrete approx Continuous Mean Var General:

  21. Higher order moments (3rd -skewness) x

  22. Higher order moments (4th-kurtosis) Gaussians are mesokurtic with κ =3 SubGaussian SuperGaussian x

  23. Statistics of the RR tachogram Approximations of distributions:

  24. Frequency domain HRV LF, HF, LF/HF, VLF, ULF Why these bands? Chemical experiments provide evidence … • HF (0.15-0.4Hz): Vagal/parasympathetic variations over seconds (e.g. respiration) • LF (0.04–0.15Hz): Sympathetic- over minutes (BP, Meyer waves) • VLF (0.003-0.04Hz): Myogenic? Variations over hours, e.g. temp. • ULF (0.0001-0.003Hz):Circadian – e.g. activity nonstationarities

  25. Long-term cardiovascular nonstationarity Tachogram has many states with similar means or variances Length of state varies  minutes (weakly stationary) Movements between states have brief accelerations in RR interval  new mean and/or variance. HRi Time (40 mins)

  26. Scaling over 24 hours 24 hour spectrum of RR intervals exhibits 1/f βscaling β indicates type of long term correlation β=2 : Brownian motion β=1 : Pink (natural) noise β=0 : White noise (no long-term correlation) Measure of ‘fractal’ properties? (Probably not) • Scaling should be not too white, or too brown. Pink is normal for humans • How do we measure β since HRV is not stationary? Hint: not with Fourier.

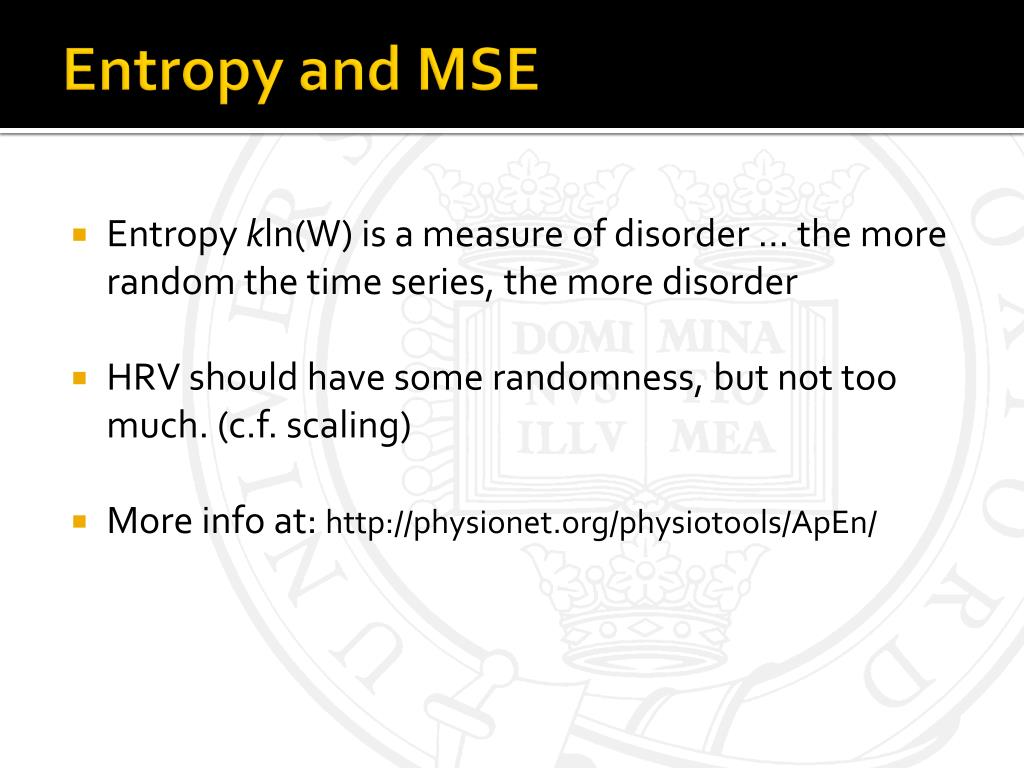

  27. Entropy and MSE Entropy kln(W) is a measure of disorder … the more random the time series, the more disorder HRV should have some randomness, but not too much. (c.f. scaling) More info at: http://physionet.org/physiotools/ApEn/

  28. The diurnal rhythm & sleep http://sdic.sookmyung.ac.kr/pharmacotherapy/INSOM/sleep_cycle.jpg

  29. Recall the LF/HF ratio Only short segments of data required Unit-free - no scaling issues Thought to reflect the sympathovagal balance

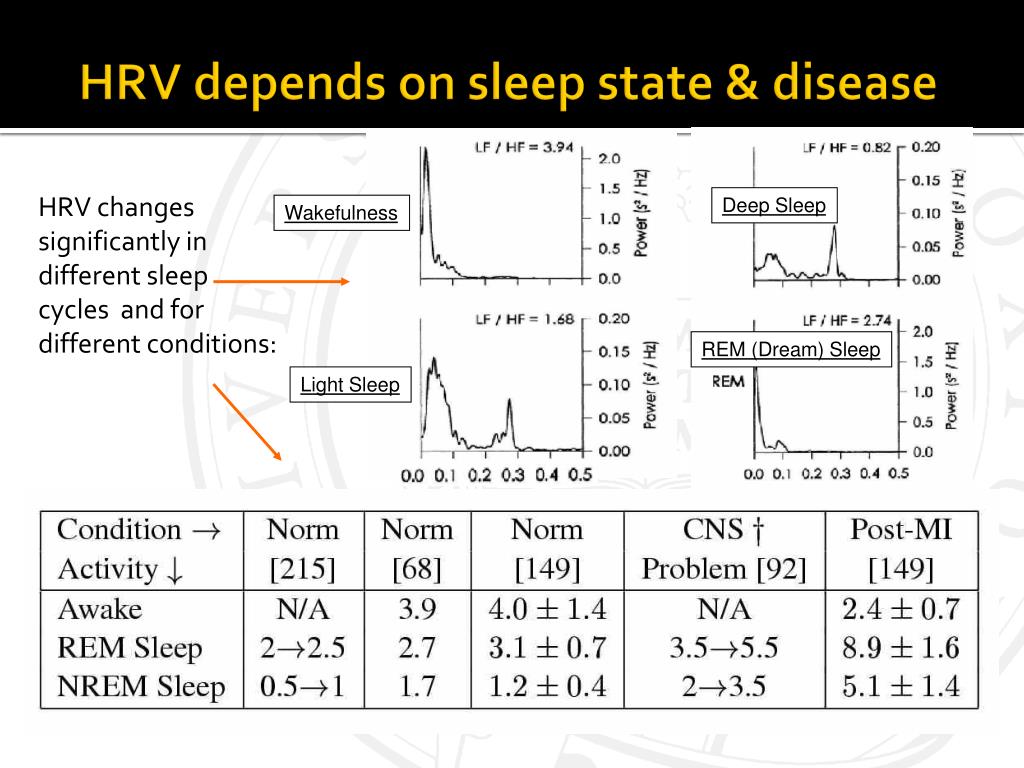

  30. HRV depends on sleep state & disease HRV changes significantly in different sleep cycles and for different conditions: Deep Sleep Wakefulness REM (Dream) Sleep Light Sleep

  31. HRV depends on conscious activity Changes can be larger than inter-patient differences with different pathologies (Bernardi et al.)

  32. Perturbation dynamics & signal averaging HRT – Heart rate turbulence – a cardiovascular response to ectopy PRSA – Phase rectified signal averaging – the normal response of HR accelerations and decelerations

  33. Recall:Changesdue to ectopy Data courtesy of PhysioNet; http://www.physionet.org

  34. Heart Rate Turbulence SA node response to ectopic beat; short HR acceleration then deceleration. Maintain BP; rapid parasympathetic withdrawal? Then parasympathetic innervation  baseline http://www.h-r-t.org/hrt/en/hrtdemo_js.html Credit: R. Schneider: http://www.librasch.org/

  35. Heart Rate Turbulence Ectopic beats disturb RR tachogram stationarity Disturbance lasts  10 - 20 beats HRT quantifies this disturbance using 2 metrics: TO: Turbulence Onset TS: Turbulence Slope

  36. TS/TO: Turbulence Onset/Slope Credit: Bauer A, Barthel P, Schneider R, Schmidt G. Dynamics of Heart Rate Turbulence. Circulation 2001b; Vol. 104; No. 17; Supplement; II-339, 1622.

  37. Turbulence Onset (+ index  intervals after ectopic, - index  before) Percentage difference between mean of each pair of NN intervals on either side of ectopic pair Must average the TO over >> 10 ectopics

  38. TS: Turbulence Slope Find steepest slope for each possible sequence of 5 consecutive normal intervals from RR+2 RR+16 Usually average 10-20 time series first then calculate one TS on the average time series! Outlier Rejection Important: (See Notes)

  39. Examples Run: http://www.librasch.org/hrt/en/hrtdemo_java.html Figure Credit: Mäkikallio et al., Eur. Heart J., April 2005; 26:

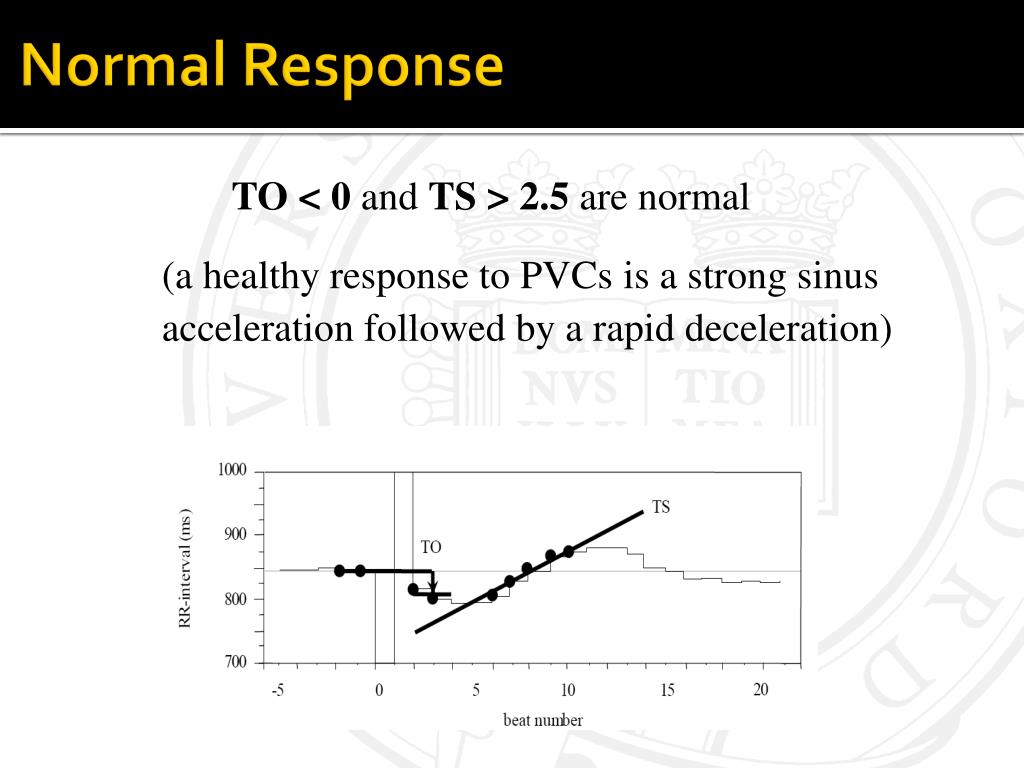

  40. Normal Response TO < 0 and TS > 2.5 are normal (a healthy response to PVCs is a strong sinus acceleration followed by a rapid deceleration)

  41. PRSA – Phase rectified signal averaging http://www.librasch.org/prsa/en/

  42. Are HRV metrics any use? • An independent predictor of late mortality after acute MI [Schmidt 1999, Ghuran 2002, Wichterle 2004, Watanabe 2005, Baur 2006] • Abnormal HRT Predicts Initiation of Ventricular Arrhythmias [Iwasa 2005] • HRT indices appear to correlate better with EF than SDNN inChagas disease [Tundo2005] • HRT Predicts Cardiac Death in Patients Undergoing CABG [Cygankiewicz 2003] • Prognostic Marker in Patients with Chronic Heart Failure [Kayama 2002] • Risk Predictors in Patients With Diabetes Mellitus [Barthel 2000 Barthel 2002] • LF/HF ratio indicates stress [Healey 2002 + others] • LF/HF ratio separates normal and sleep apneoic patients (with sleep stage) [Clifford 2003] • LF/HF ratio used to screen patients who are responsive to sleep treatments [Campana 2011]

  43. Summary HRV is scale dependent – short and long term metrics exist Some metrics appropriate only to short scales Can deal with nonstationarities by using: Perturbation analysis Signal averaging Short term ‘boxing’ Nonstationary measures e.g. wavelets. Can also measure how HRV changes over scale Must be careful to remove noise from data first Choose resample rate based on task! (Always true of all pre-processing – there’s no ‘magic’ pre-processing unit) Try to use a smooth resampler if you must … or avoid resampling (advanced) HRV very useful in risk stratification, but often need to use some other measure – univariate analysis is limited

  44. The statistics of sleep & waking periods

  45. Complex example - OSA SNA: Sympathetic Nerve Activity (recorded from peroneal nerve)

  46. HRV examples What if there is noise in the data (or ectopy)?

  47. Artefacts and Abnormal Beats Abnormal or Non-sinus beats (ectopics) generally appear earlier (or sometimes later) than when a sinus beat is expected Ectopic beats usually replace the sinus beat and are followed by a compensatory pause. Their frequency is on average about 1 per hour for the NSRDB Artefacts occur are additional and occur independently of the phase of the sinus rhythm with a recording method-dependent distribution.

  48. Interpolation introduces artefact Linear/cubic interpolation of RR intervals then perform FFT Over-estimation of LF and under-estimation of HF Use Lomb-Scargle periodogram to avoid interpolation

  49. The Lomb-Scargle Periodogram • Spectral estimation of unevenly sampled data without resampling • Variable integration step size • Equivalent to least squares fitting of sines to data! Scargle, J. D. (1982). "Studies in astronomical time series analysis. II - Statistical aspects of spectral analysis of unevenly spaced data". Astrophysical Journal263: 835. doi:10.1086/160554
