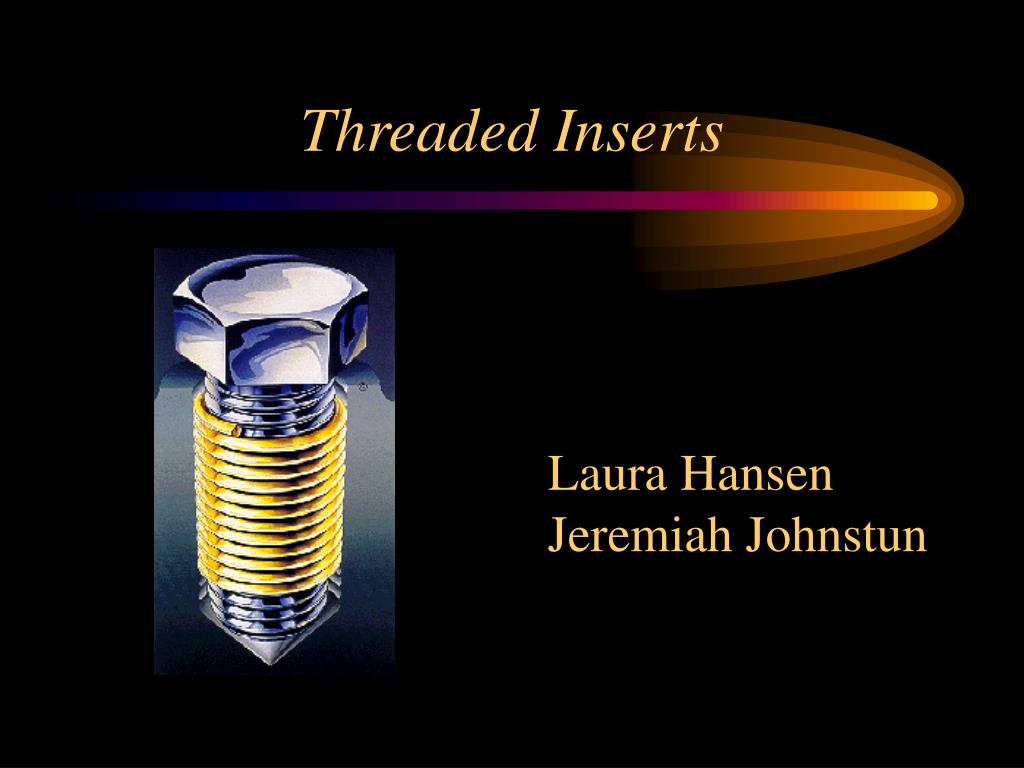

  1. Threaded Inserts Laura Hansen Jeremiah Johnstun

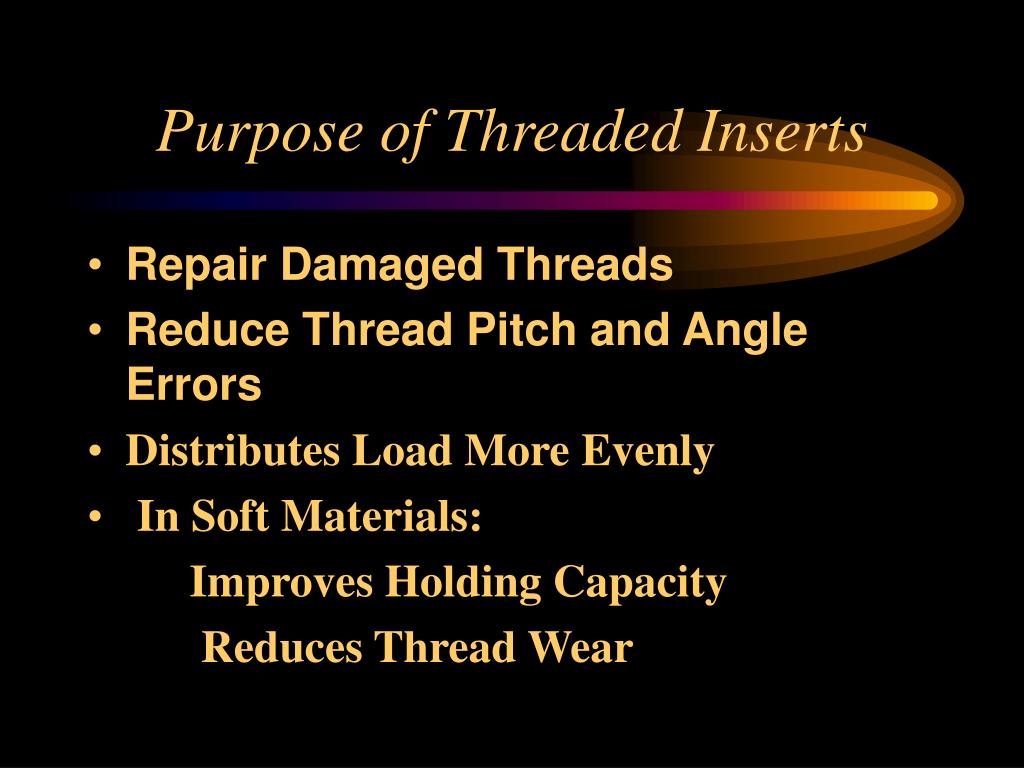

  2. Purpose of Threaded Inserts • Repair Damaged Threads • Reduce Thread Pitch and AngleErrors • Distributes Load More Evenly • In Soft Materials: Improves Holding Capacity Reduces Thread Wear

  3. Angle and Thread Pitch Errors

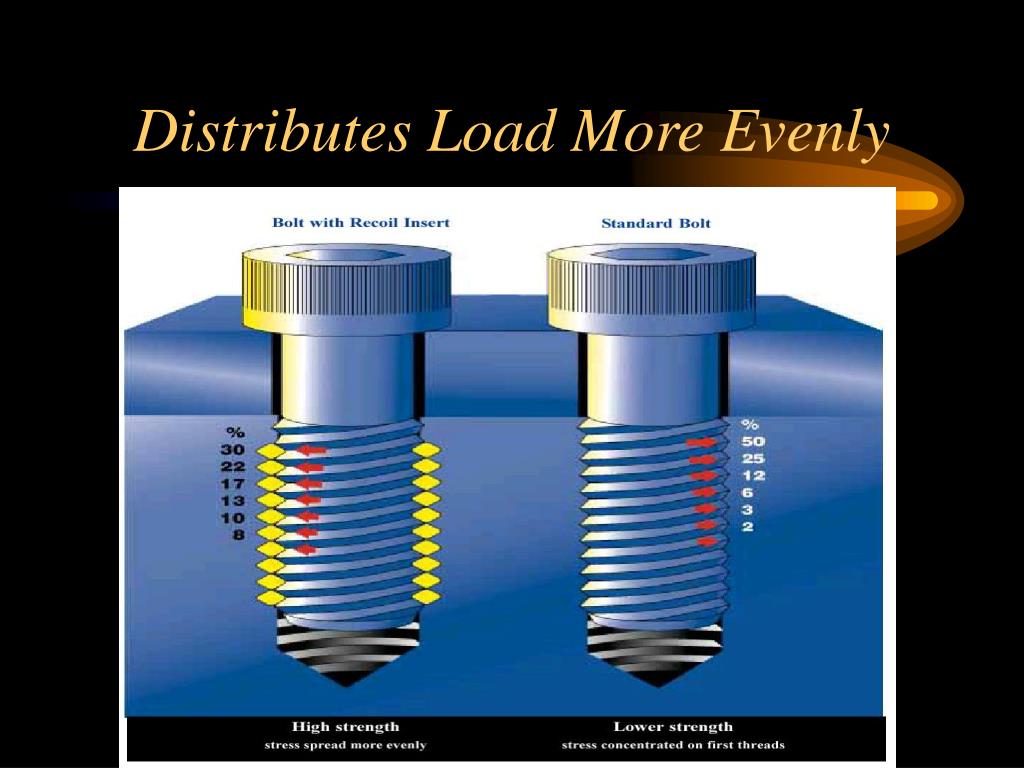

  4. Distributes Load More Evenly

  5. Advantages of Threaded Inserts • Low cost • Blind installation • Permanent, reliable fastening • Eliminates the need for welding or tapping

  6. Coil Type Wire wound intoa helical coil Larger diameter than tapped hole—applies compression Can be self-threading or drilled and tapped Most Common Threaded Inserts

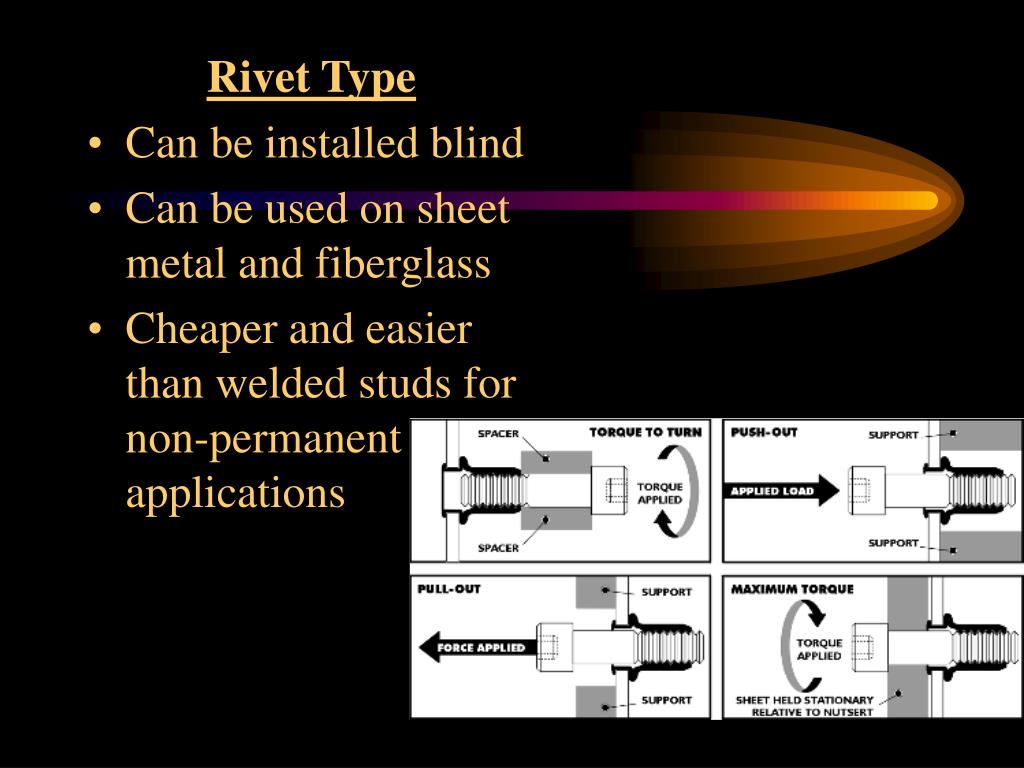

  7. Rivet Type • Can be installed blind • Can be used on sheet metal and fiberglass • Cheaper and easier than welded studs for non-permanent applications

  8. In Conclusion Web Addresses: www.recoil.com.au www.avdelcherrytextron.com www.emhart.com www.klsales.com www.pintech.com
