An Introduction to Test-Driven Development (TDD). Disclaimer. Developer = Programmer We’re talking about unit testing – i.e. testing the internals of a class Black box testing for objects Classes are testing in isolation Loosely coupled, highly cohesive architectures. Agenda. Motivation
E N D

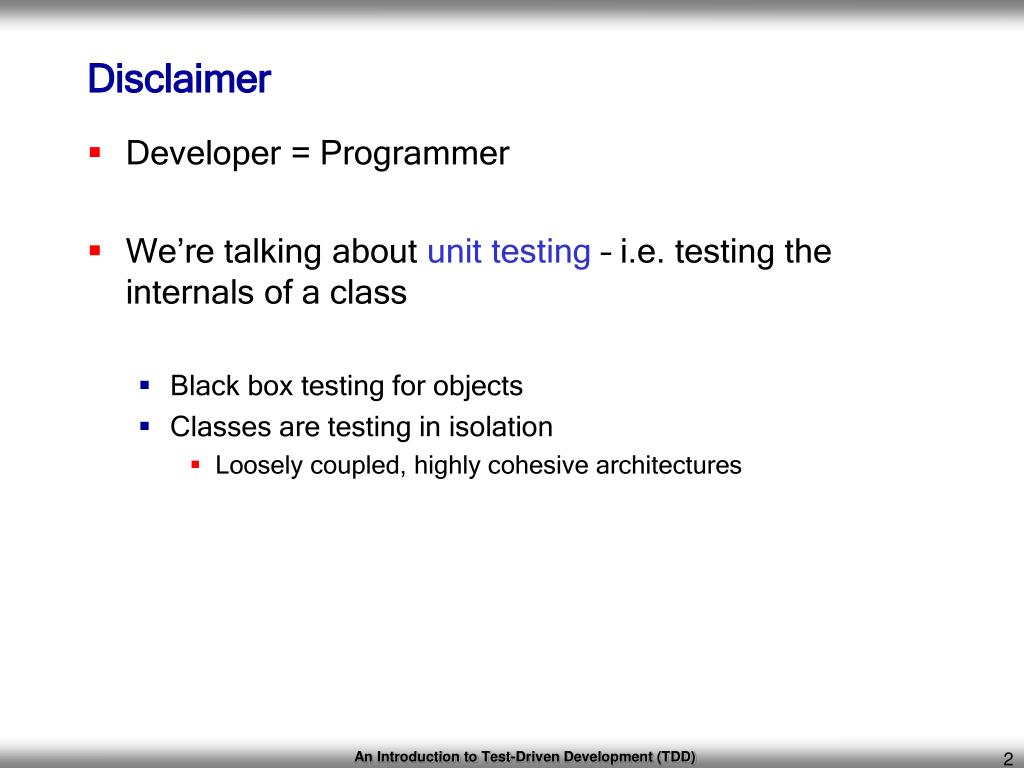

Disclaimer • Developer = Programmer • We’re talking about unit testing – i.e. testing the internals of a class • Black box testing for objects • Classes are testing in isolation • Loosely coupled, highly cohesive architectures An Introduction to Test-Driven Development (TDD)

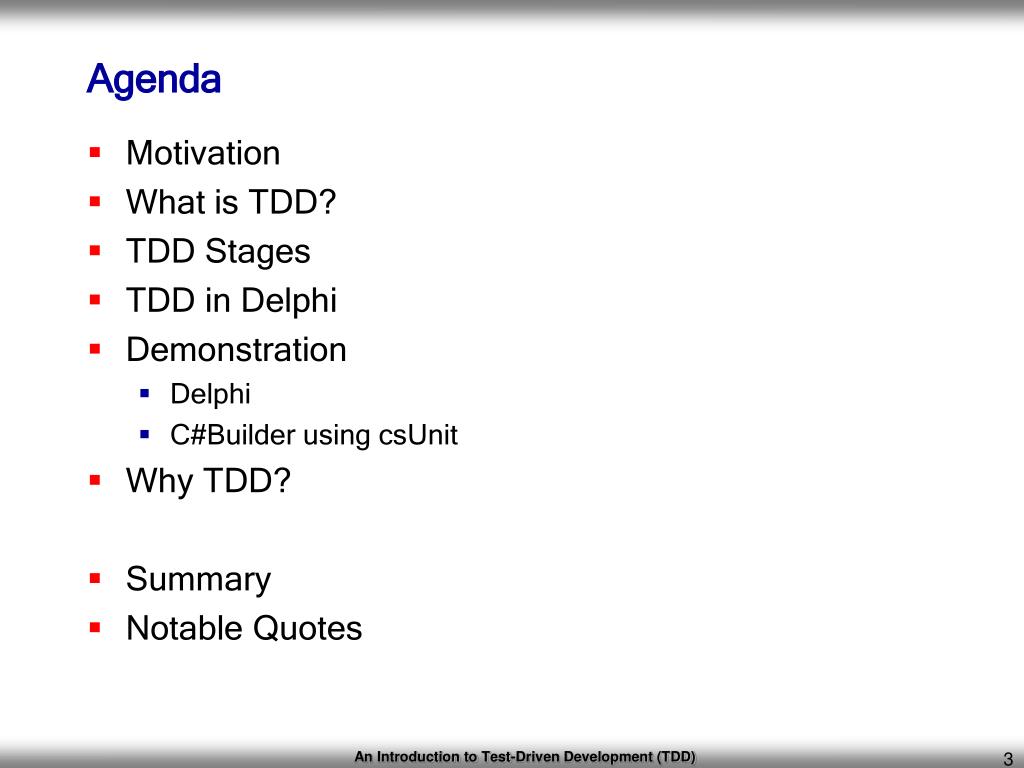

Agenda • Motivation • What is TDD? • TDD Stages • TDD in Delphi • Demonstration • Delphi • C#Builder using csUnit • Why TDD? • Summary • Notable Quotes An Introduction to Test-Driven Development (TDD)
Motivation • One of my goals for Q3/Q4 2003 was to become evangelical about eXtreme Programming (XP) and Test-Driven Development (TDD) • TDD sits nicely in the XP “way of doing things” • TDD can be used without practicing XP • Writing articles and giving presentations is one such way of achieving that goal • To reduce the amount of re-testing that is required • Especially with legacy applications • To avoid introducing new bugs after refactoring existing code An Introduction to Test-Driven Development (TDD)
What is TDD? • “Before you write code, think about what it will do. Write a test that will use the methods you haven’t even written yet.” • Extreme Programming Applied: Playing To Win • Ken Auer, Roy Miller • “The Purple Book” • A test is not something you “do”, it is something you “write” and run once, twice, three times, etc. • It is a piece of code • Testing is therefore “automated” • Repeatedly executed, even after small changes An Introduction to Test-Driven Development (TDD)
What is TDD? • TDD is a technique whereby you write your test cases before you write any implementation code • Tests drive or dictate the code that is developed • An indication of “intent” • Tests provide a specification of “what” a piece of code actually does • Some might argue that “tests are part of the documentation” An Introduction to Test-Driven Development (TDD)
Agenda • Motivation • What is TDD? • TDD Stages • TDD in Delphi • Demonstration • Delphi • C#Builder using csUnit • Why TDD? • Summary • Notable Quotes An Introduction to Test-Driven Development (TDD)
TDD Stages • In Extreme Programming Explored (The Green Book), Bill Wake describes the test / code cycle: • Write a single test • Compile it. It shouldn’t compile because you’ve not written the implementation code • Implement just enough code to get the test to compile • Run the test and see it fail • Implement just enough code to get the test to pass • Run the test and see it pass • Refactor for clarity and “once and only once” • Repeat An Introduction to Test-Driven Development (TDD)
TDD Stages Write a test Refactor code(and test) Compile Run test, watch it pass Fix compile errors Write code Run test,watch it fail An Introduction to Test-Driven Development (TDD)
Agenda • Motivation • What is TDD? • TDD Stages • TDD in Delphi • Demonstration • Delphi • C#Builder using csUnit • Why TDD? • Summary • Notable Quotes An Introduction to Test-Driven Development (TDD)
TDD in Delphi • DUnit • An xUnit implementation for Delphi • xUnit is a colloquial umbrella term • Platform-specific implementations • e.g. sUnit, JUnit, XMLUnit • Provides classes with methods to help us write test cases • TTestCase • “Check” functions… An Introduction to Test-Driven Development (TDD)
TDD in Delphi using DUnit TObject TTestCase TYourClass TTestYourClass Test SomeMethod1 SomeMethod2 Test SomeMethod2 SomeMethod1 Test SomeMethod1 and SomeMethod2 An Introduction to Test-Driven Development (TDD)
TDD in Delphi using DUnit Check (condition: boolean; msg: string = ''); CheckEquals (expected, actual: integer; msg: string = ''); procedure TTestCaseList.TestAdd; var AddObject: TObject; FEmpty : TList; Begin FEmpty := TList.Create; AddObject := TObject.Create; FEmpty.Add(AddObject); // The following calls check to see if everything went OK. // When check fails, it will end up in the TestResult as a failure. Check(FEmpty.Count = 1); Check(FEmpty.Items[0] = AddObject); end; An Introduction to Test-Driven Development (TDD)

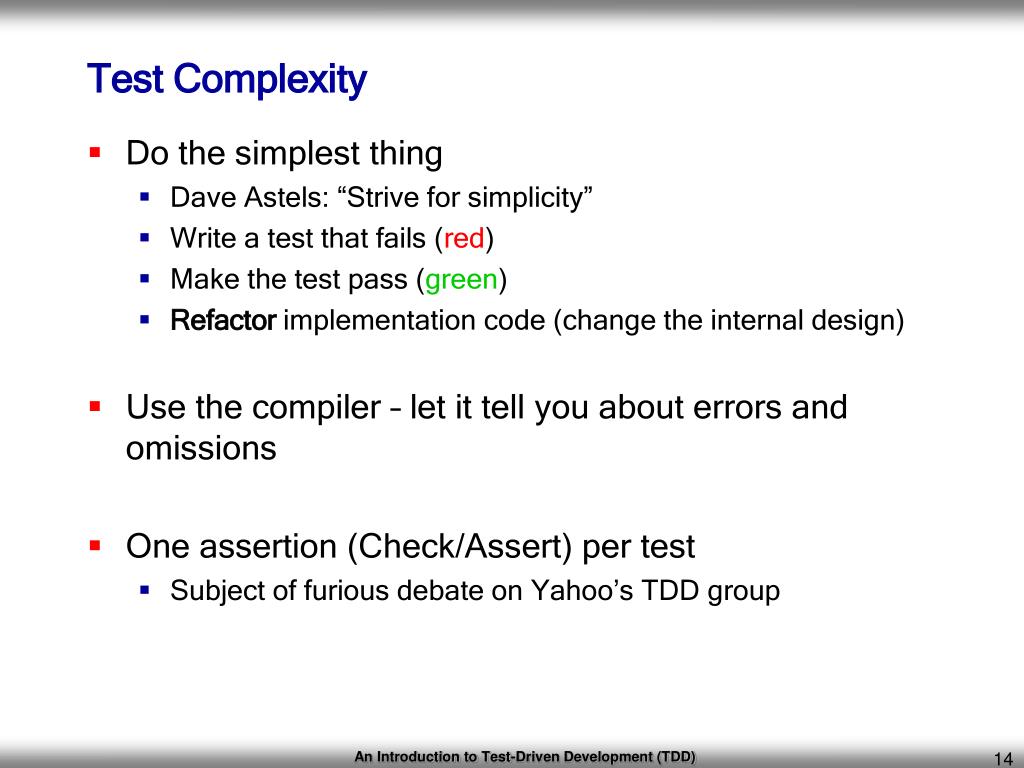

Test Complexity • Do the simplest thing • Dave Astels: “Strive for simplicity” • Write a test that fails (red) • Make the test pass (green) • Refactor implementation code (change the internal design) • Use the compiler – let it tell you about errors and omissions • One assertion (Check/Assert) per test • Subject of furious debate on Yahoo’s TDD group An Introduction to Test-Driven Development (TDD)
demo Test-driven development using Dunit in Delphi 6 using csUnit in C#Builder An Introduction to Test-Driven Development (TDD)
Smells • Duplication • Once And Once Only (OAOO) • Setup / TearDown • Some duplicated code reveals itself as common ‘initialisation’ code • And / Or as ‘cleanup’ code An Introduction to Test-Driven Development (TDD)
Agenda • Motivation • What is TDD? • TDD Stages • TDD in Delphi • Demonstration • Delphi • C#Builder using csUnit • Why TDD? • Summary • Notable Quotes An Introduction to Test-Driven Development (TDD)
Why TDD? • Programmers dislike testing • They will test reasonably thoroughly the first time • The second time however, testing is usually less thorough • The third time, well.. • Testing is considered a “boring” task • Testing might be the job of another department / person • TDD encourages programmers to maintain an exhaustive set of repeatable tests • Tests live alongside the Class/Code Under Test (CUT) • With tool support, tests can be run selectively • The tests can be run after every single change An Introduction to Test-Driven Development (TDD)
Why TDD? • Bob Martin: • “The act of writing a unit test is more an act of design than of verification” • Confidence boost • By practicing TDD, developers will strive to improve their code – without the fear that is normally associated with code changes • Isn’t the green bar a feel good factor? • Remove / Reduce reliance on the debugger • No more “debug-later” attitudes An Introduction to Test-Driven Development (TDD)

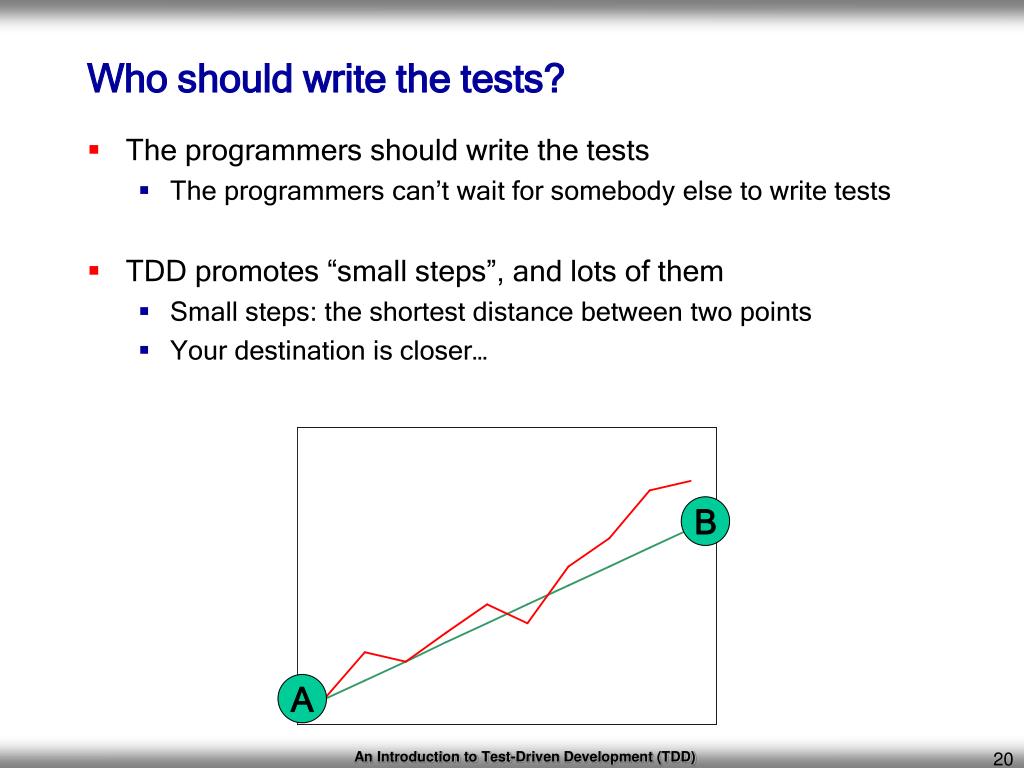

Who should write the tests? • The programmers should write the tests • The programmers can’t wait for somebody else to write tests • TDD promotes “small steps”, and lots of them • Small steps: the shortest distance between two points • Your destination is closer… B A An Introduction to Test-Driven Development (TDD)
Agenda • Motivation • What is TDD? • TDD Stages • TDD in Delphi • Demonstration • Delphi • C#Builder using csUnit • Why TDD? • Summary • Notable Quotes An Introduction to Test-Driven Development (TDD)
Summary • TDD does not replace traditional testing • It defines a proven way that ensures effective unit testing • Tests are working examples of how to invoke a piece of code • Essentially provides a working specification for the code • No code should go into production unless it has associated tests • Catch bugs before they are shipped to your customer • No code without tests • Tests determine, or dictate, the code An Introduction to Test-Driven Development (TDD)
Summary • TDD isn’t new • To quote Kent Beck: • “…you type the expected output tape from a real input tape, then code until the actual results matched the expected result…” • TDD means less time spent in the debugger • TDD negates fear • Fear makes developers communicate less • Fear makes developers avoid repeatedly testing code • Afraid of negative feedback An Introduction to Test-Driven Development (TDD)
Summary • TDD promotes the creation of a set of “programmer tests” • Automated tests that are written by the programmer • Exhaustive • Can be run over and over again • TDD allows us to refactor, or change the implementation of a class, without the fear of breaking it • TDD and refactoring go hand-in-hand • With care, [some] User Acceptance Tests can codified and run as part of the TDD process An Introduction to Test-Driven Development (TDD)
Notable Quotes • Ron Jeffries, TDD and XP aficionado on the subject of TDD: • “clean code that works” • Martin Fowler: “The code is the design” • Alan Francis: “Legacy code is code without tests” • To learn more about Agile Methods, Extreme Programming & Test-Driven Development visit: http://groups.yahoo.com/group/AgileScotland An Introduction to Test-Driven Development (TDD)

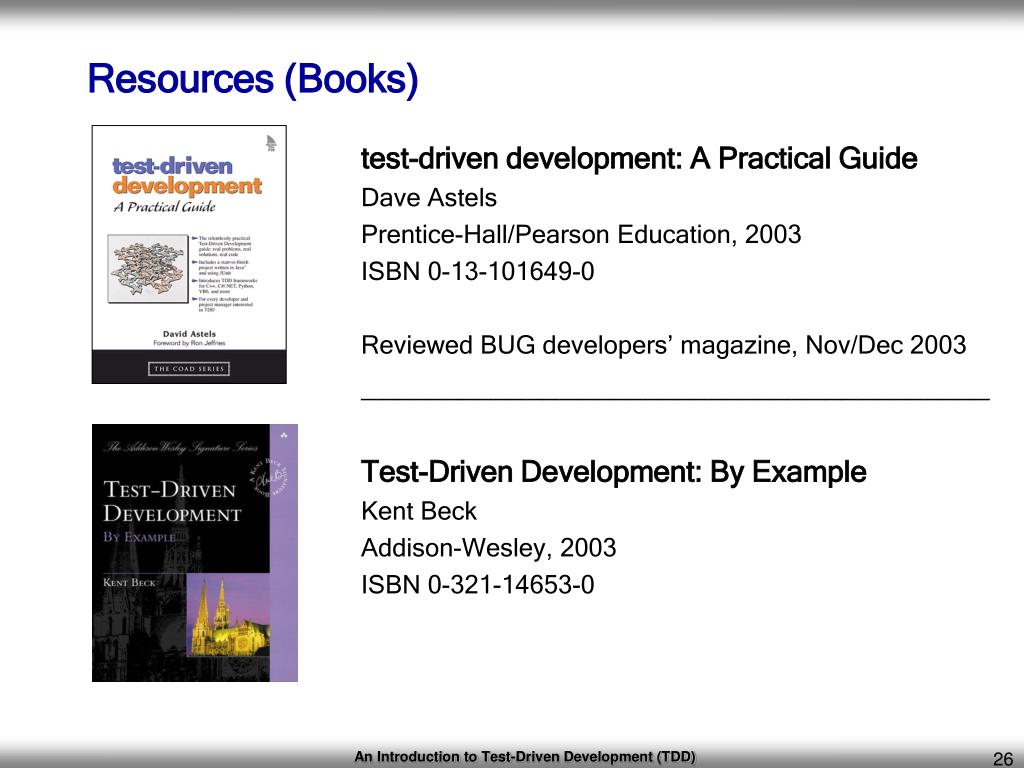

Resources (Books) test-driven development: A Practical Guide Dave Astels Prentice-Hall/Pearson Education, 2003 ISBN 0-13-101649-0 Reviewed BUG developers’ magazine, Nov/Dec 2003 ______________________________________ Test-Driven Development: By Example Kent Beck Addison-Wesley, 2003 ISBN 0-321-14653-0 An Introduction to Test-Driven Development (TDD)
Resources (Books) Refactoring: Improving the Design of Existing Code Martin Fowler Addison-Wesley, 1999 ISBN 0-201-48567-2 An Introduction to Test-Driven Development (TDD)
Resources (web-sites) • NUnit: http://www.nunit.org • CSUnit: http://www.csunit.org • http://groups.yahoo.com/group/csunit • Mock Objects: http://www.mockobjects.com • testdrivendevelopment group (Yahoo): • http://groups.yahoo.com/group/testdrivendevelopment • Ron Jeffries, Dave Astels, Kent Beck, etc. are regular contributors An Introduction to Test-Driven Development (TDD)
Resources (web-sites) • The DUnit group at SourceForge • http://dunit.sourceforge.net • Lutz Roeder’s .NET Reflector: • http://www.aisto.com/roeder/dotnet • xUnit implementations: • http://www.xprogramming.com/software.htm • http://www.junit.org An Introduction to Test-Driven Development (TDD)
Resources (Articles) • Test-Driven Development using csUnit in C#Builder • Craig Murphy • UK-BUG Magazine Issue Jan/Feb 2004 • “To err is human: automated testing of Delphi code with DUnit” • Kris Golko • UK-BUG Magazine Issue Nov/Dec 2002 • Testing: Quality Time with DUnit • Rob Bracken • The Delphi Magazine, Issue 76 (Dec01) • An Introduction to Endo-Testing Using Mock Objects • Sacha Frick • The Delphi Magazine, Issue 96 (Aug03) An Introduction to Test-Driven Development (TDD)

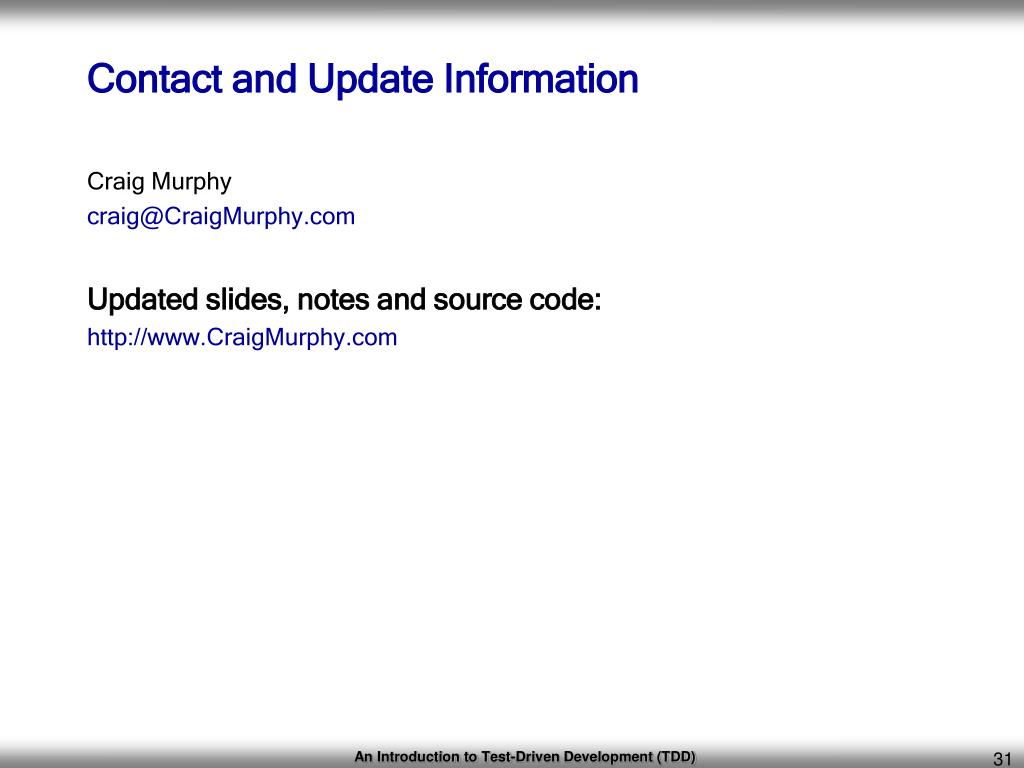

Contact and Update Information Craig Murphy craig@CraigMurphy.com Updated slides, notes and source code: http://www.CraigMurphy.com An Introduction to Test-Driven Development (TDD)
Questions? RED GREEN REFACTOR An Introduction to Test-Driven Development (TDD)
