  1. Architecture and scalability of a high-speed traffic measurement platform with a highly flexible packet classification Author: Detlef Sas *, Simon Hauger, Martin Kohn Publisher: Computer Networks 53 (2009) Presenter: Han-Chen Chen Date:2009/10/28

  2. Outline • Introduction • Traffic Measurement • Architecture of I2MP • Scalability of I2MP • Performance * I2MP (IKR Internet Measurement Platform)

  3. Introduction • Evolving network technologies, new web services and changing usage patterns continuously change traffic characteristics. But a thorough understanding of the traffic is the basis for many applications in networking.

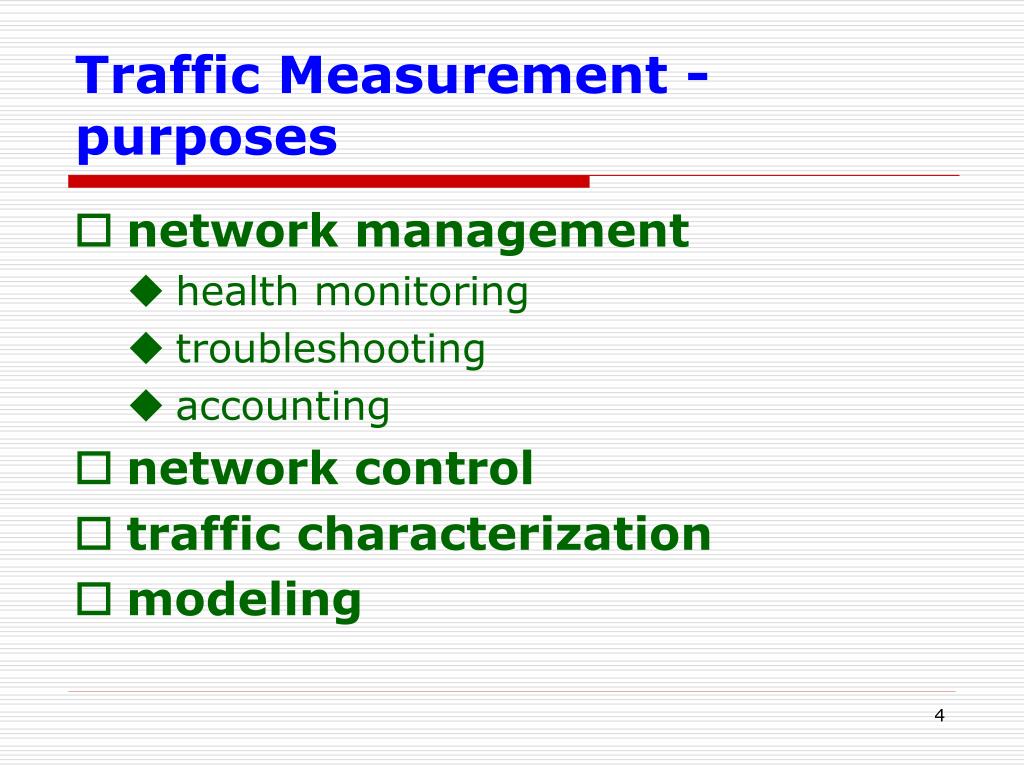

  4. Traffic Measurement - purposes • network management • health monitoring • troubleshooting • accounting • network control • traffic characterization • modeling

  5. Traffic Measurement -Functional blocks • Reception of data from the network link • Decoding line signal including error checks and restoring packets • Decapsulate packets from lower layer protocols • Time stamping • Pre-processing • Passive • Active • Storing data

  6. Traffic Measurement -Platforms For processing data • General-purpose processors (GP-CPU) • Network processors (NP) • FPGA and ASIC For storing the measured data • HD • RAM

  7. Architecture of I2MP

  8. Hardware Unit • Interface • Time Stamping unit • Classification and Filtering unit • decode protocol • classification packet • filter packet • Assembly unit

  9. Hardware Unit Classification and Filtering Unit

  10. Hardware Unit Processing of a packet by Protocol Layering Decoder Protocol tag index

  11. Hardware Unit Classifier TCAM TCAM Find the all rules which contains these criteria Find the highest priority rule Find the relevant criteria

  12. PC Unit Online mode Offline mode Reception of data containers Post-processing of data records Storage of the final trace

  13. Scalability of I2MP • Throughput of Hardware unit • Increase clock rate • Increase number of bytes processed in each clock rate • Increase internal word width • Replicate the entire system or those parts of limit the overall throughput • Process the first part of each packet • Classification criteria and rules • Increasing those parameters does not deteriorate the system’s throughput.

  14. Performance • 16 bytes word width • Clock rate of 60MHz (FPGA) • Packet size of 200Bytes • Throughput of 20Gb/s (Ethernet, IP, TCP)

  15. Thanks for your listening
