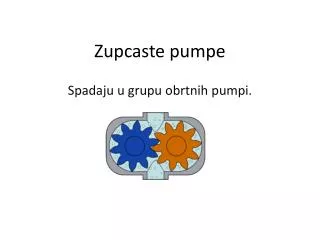

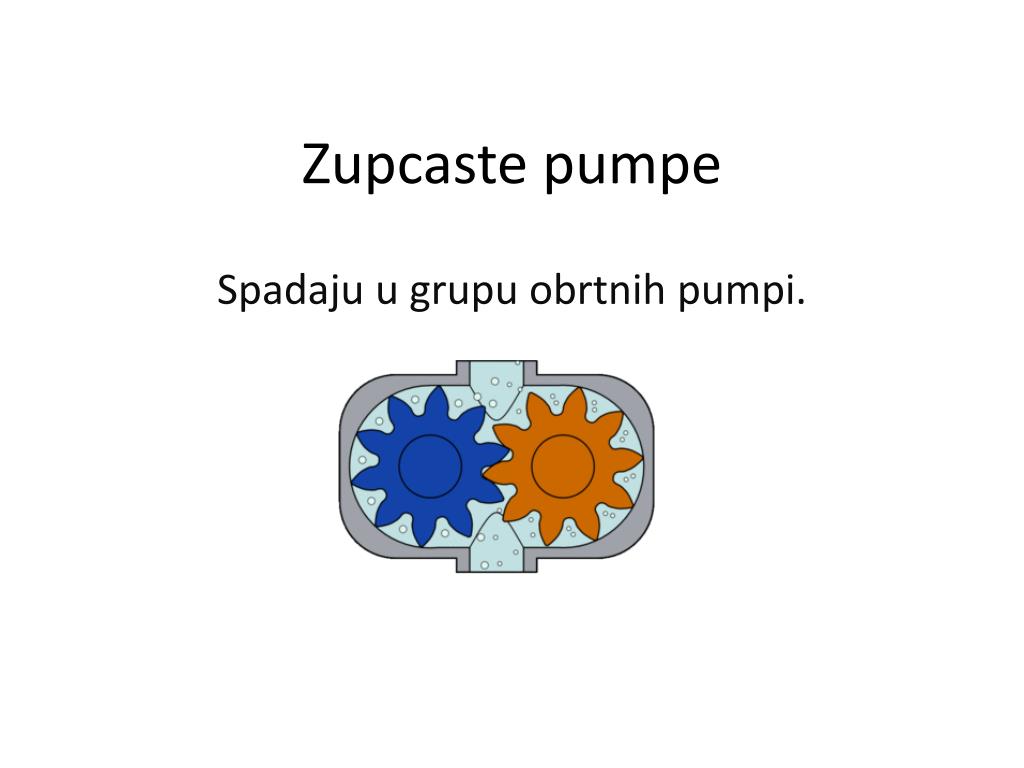

  1. Zupcastepumpe Spadaju u grupuobrtnihpumpi.

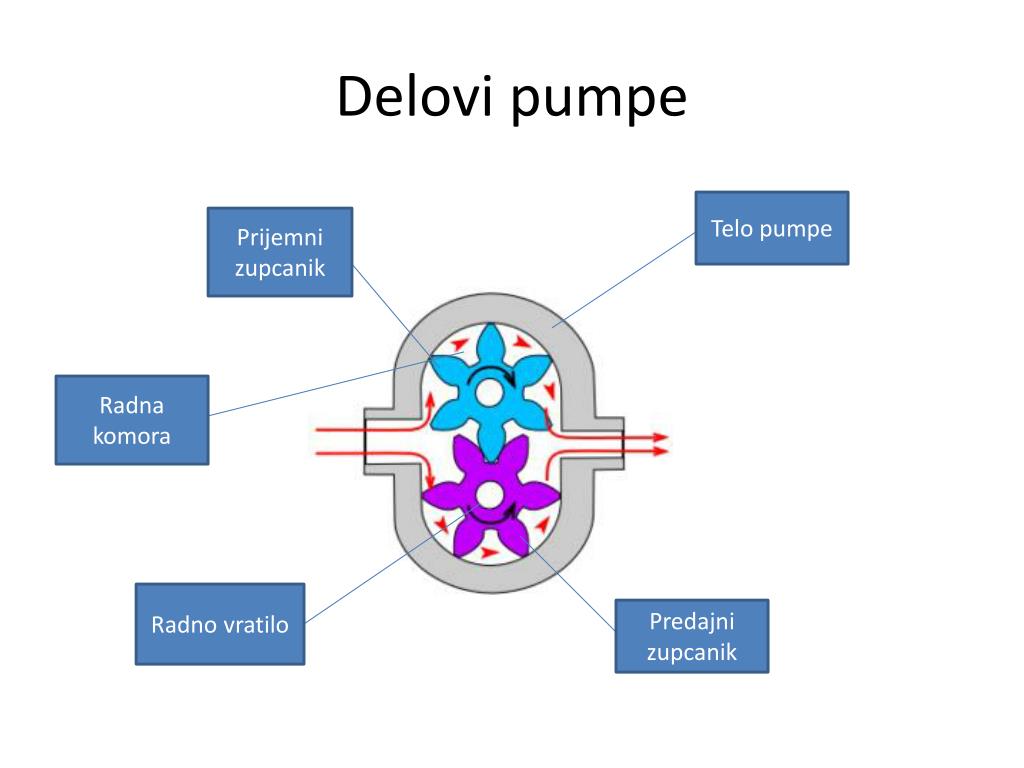

  2. Delovipumpe Telopumpe Prijemnizupcanik Radnakomora Radnovratilo Predajnizupcanik

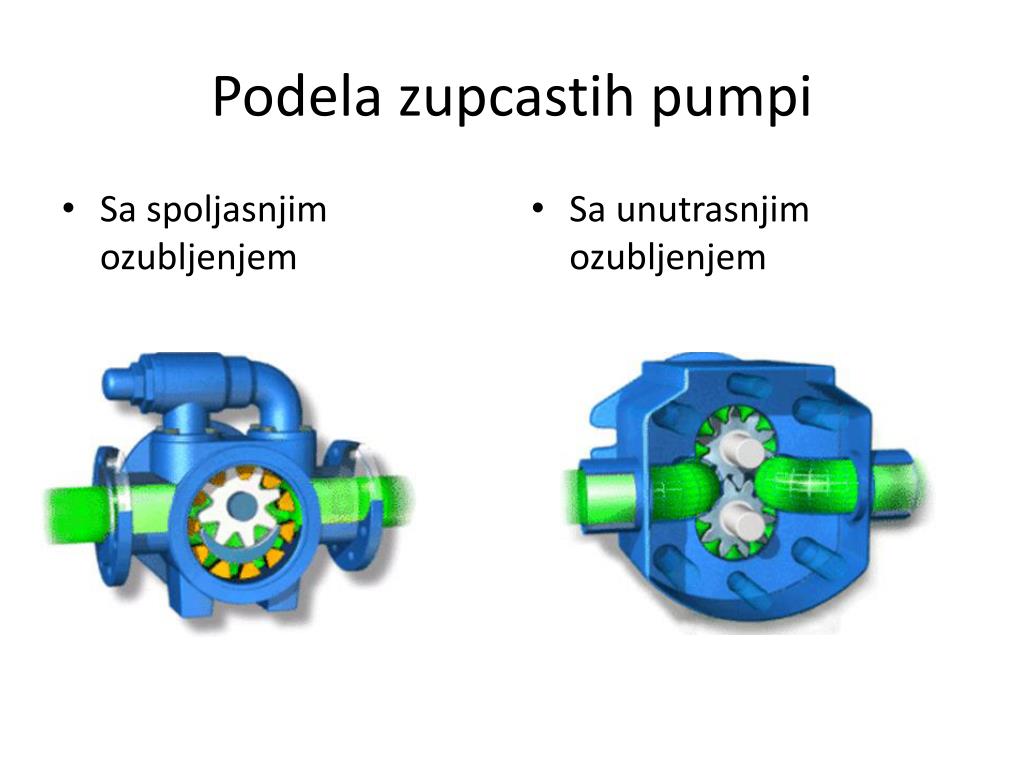

  3. Podelazupcastihpumpi • Sa spoljasnjimozubljenjem • Sa unutrasnjimozubljenjem

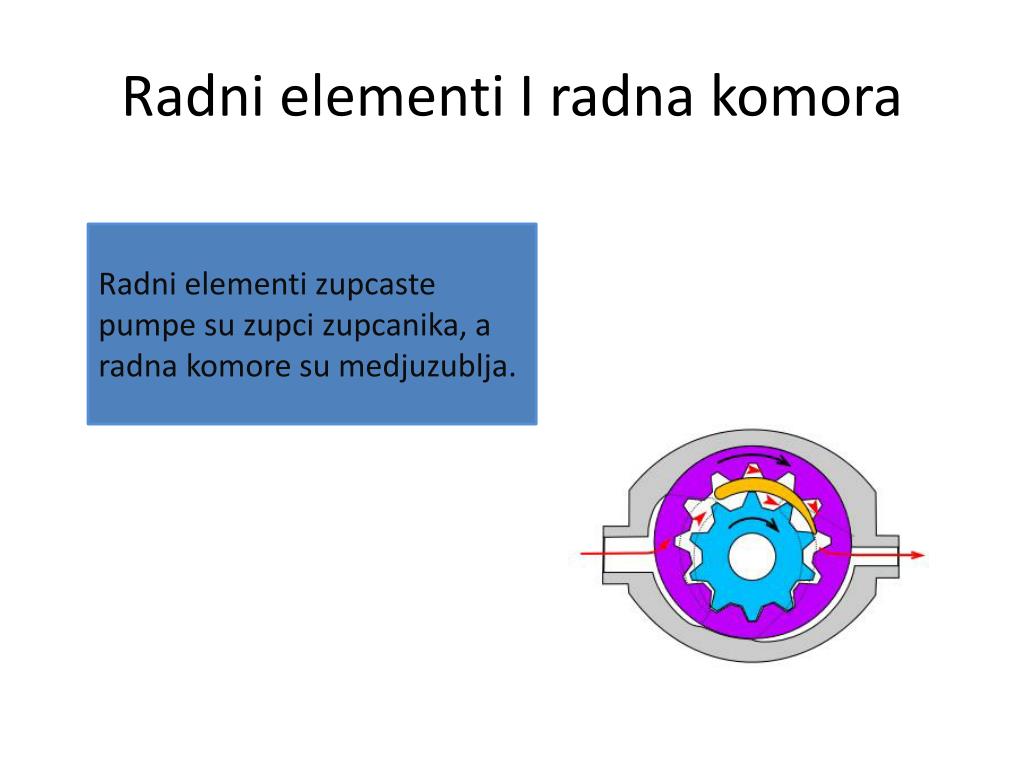

  4. Radnielementi I radnakomora Radnielementizupcastepumpesuzupcizupcanika, a radnakomoresumedjuzublja.

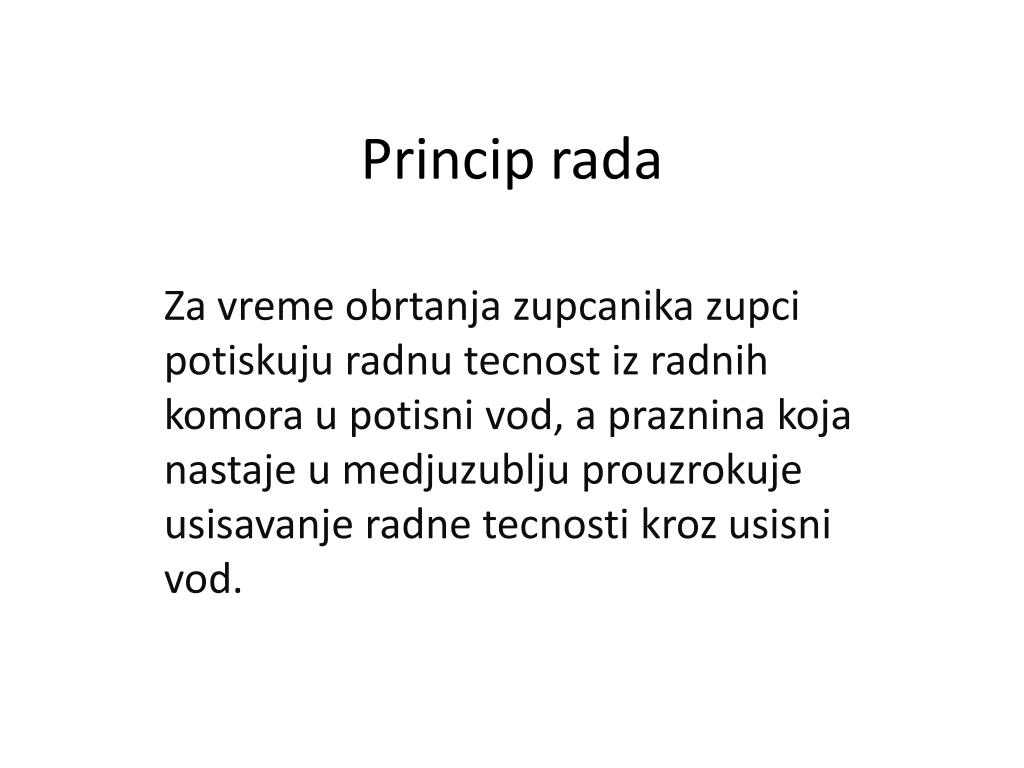

  5. Principrada Zavremeobrtanjazupcanikazupcipotiskujuradnutecnostizradnihkomora u potisnivod, a prazninakojanastaje u medjuzubljuprouzrokujeusisavanjeradnetecnostikrozusisnivod.

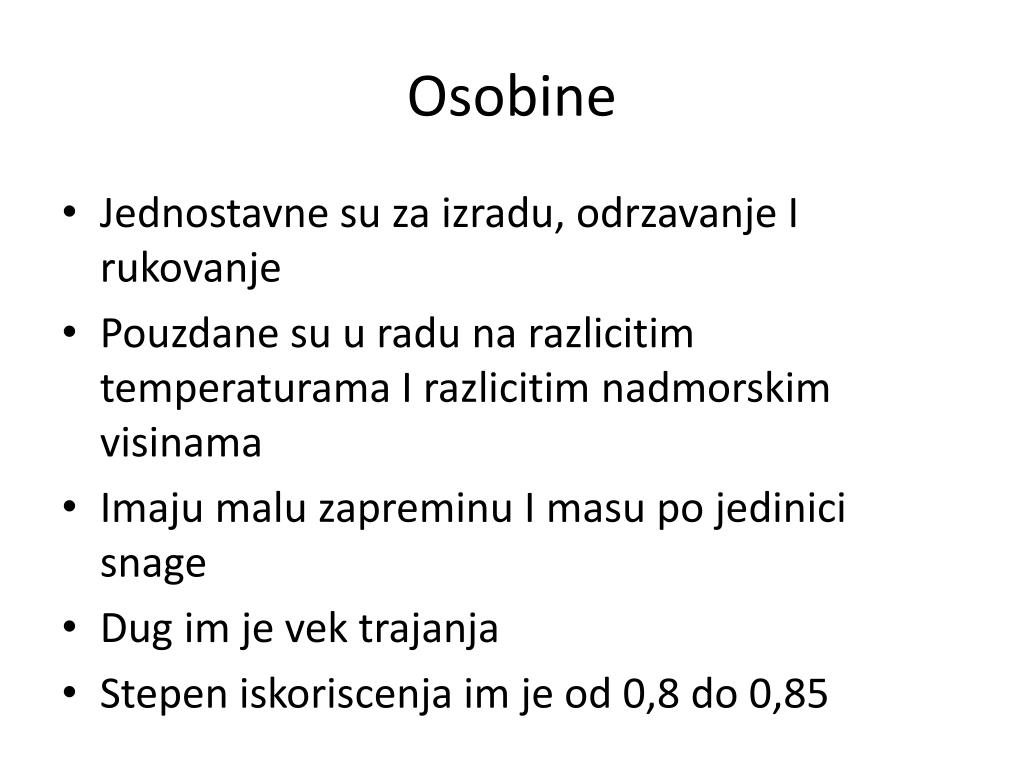

  6. Osobine • Jednostavnesuzaizradu, odrzavanje I rukovanje • Pouzdanesu u radunarazlicitimtemperaturamaI razlicitimnadmorskimvisinama • Imajumaluzapreminu I masupojedinicisnage • Dug im je vektrajanja • Stepeniskoriscenjaim je od 0,8 do 0,85

  7. Ucenici • Lazar Štulić • Miloš Simić • Lazar Šumanski
