  1. MINISTRY OF SCIENCE AND TECHNOLOGYDEPARTMENT OFTECHNICAL AND VOCATIONAL EDUCATION EP 3032 ELECTRICAL TRANSIENT B.Tech (First Year) Electrical Power Engineering

  2. Electrical Transient • Source Free RL and RC Circuits • The Application of the Unit-Step Forcing Function • The RLC Circuit • Complex Frequency • Frequency Response • State-Variable Analysis • Fourier Analysis • Fourier Transforms • Laplace Transform Techniques

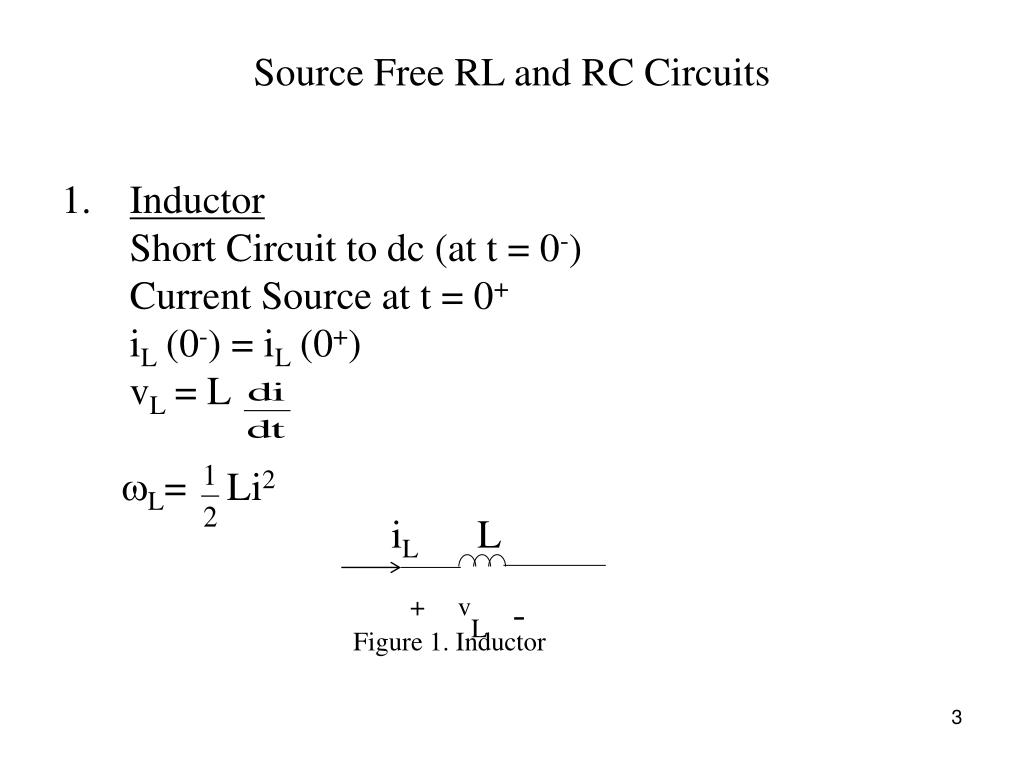

  3. Source Free RL and RC Circuits • Inductor Short Circuit to dc (at t = 0-) Current Source at t = 0+ iL (0-) = iL (0+) vL = L L= Li2 iL L + vL - Figure 1. Inductor

  4. i(t) - + vR R L vL + - Figure 2 A Series RL Circuit

  5. 2 Capacitor Open circuit to dc (t = 0-) Voltage source at (t = 0+) vc(0+) = vC (0-) iC (t) = C c = Cv2 iC C + vC - Figure 3 Capacitor

  6. i(t) + C v R Figure 4. A parallel RC Circuit

  7. 3. Response (Natural Response) i(t) = i(0+) e –t/ ,  = v(t) = v(0+) e-t/ ,  = RC 0  t(s) Figure 5. Time Versus i/I0 i/I0

  8. 5 Switch Operations t = 0 just before the switch changes t < 0 close just after the switch changes t > 0 open t = 0 just before the switch changes t < 0 open just after the switch changes t > 0 close

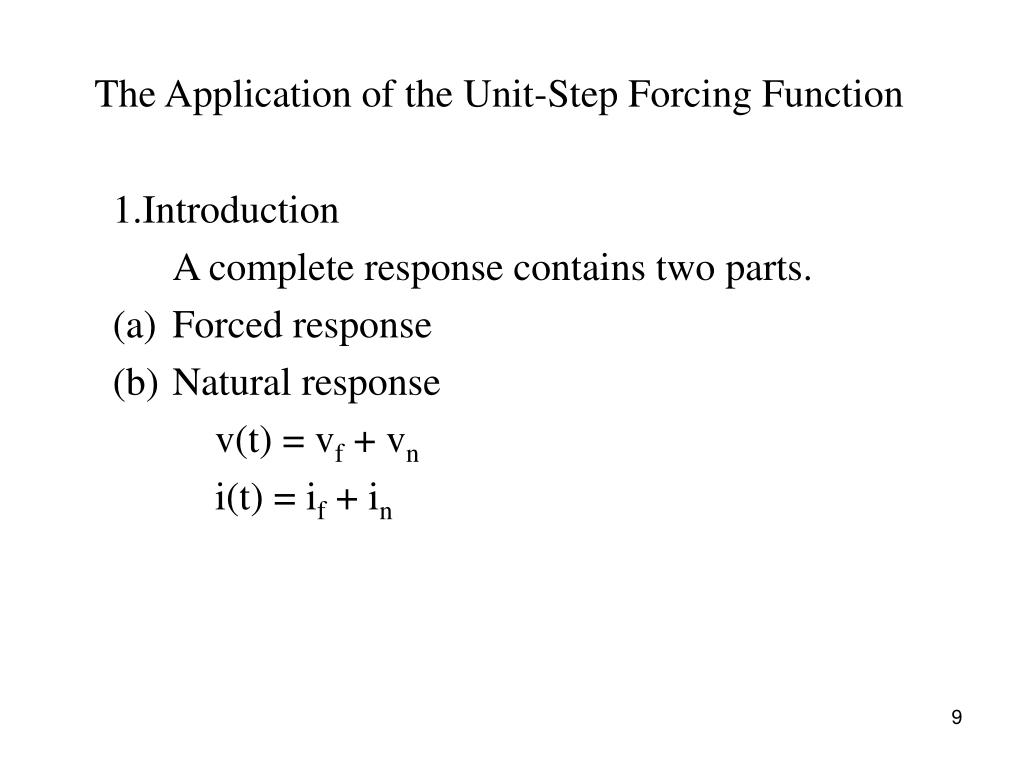

  9. The Application of the Unit-Step Forcing Function 1.Introduction A complete response contains two parts. • Forced response • Natural response v(t) = vf + vn i(t) = if + in

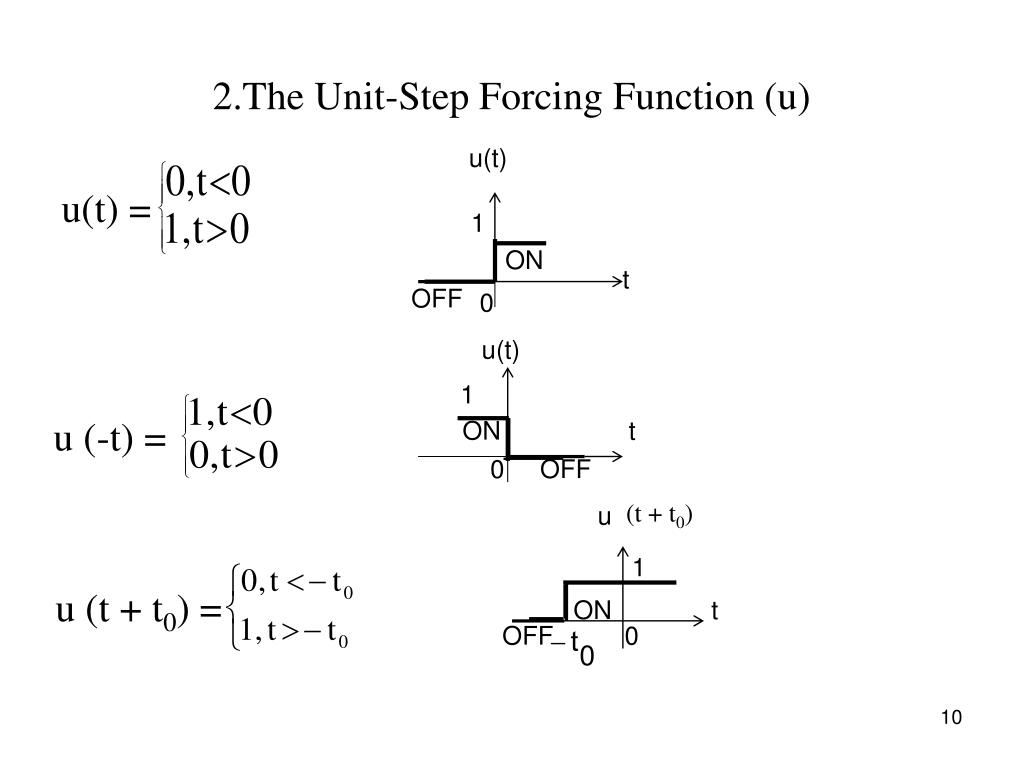

  10. 1 ON t OFF 0 1 ON t ON t 0 2.The Unit-Step Forcing Function (u) u(t) u(t) = u(t) u (-t) = 0 OFF (t + t0) u 1 u (t + t0) = OFF

  11. u ON t 0 OFF u (t0 - t ) ON OFF t t0 0 (t - t0) u (t – t0) = u (t0- t) =

  12. 50u(t) V 2 - + i(t) 3. Determine i(t) for all values of time in the circuit of Figure. 50V 6 3H At t<0 2 iL (0- ) = iL (0+) =50/2 = 25A iL(0-) 50V 6 At t >0 2 Reqt=2 // 6  = L/R 50V iL 50V 6 3H -+ = 3/1.5 = 2S = 1.5 • i(t) = in + if = A e -t/ + i()

  13. At t=  2 -+ iL 50V 50V 6 i(t),A • i(t) = in + if = Ae -t/ + 50 i(0+) = 50+A = 25 • A = -25 •  i(t) = 50 -25e -0.5t (t>0) 50 25 t(s) A sketch of the complete response of i(t)

  14. The RLC Circuit (1) Over damped ( >0) (2) Under damped (< 0) (3) Critically damped ( = 0) Series RLC Circuit  = R /2L where  = exponential damping coefficient (s-1) 0 = resonant frequency (rad/s) 0 = Parallel RLC Circuit  = 0 =

  15. (1) Overdamped ( > 0) i(t) or v(t) = A1 s1,2 = -  (2) Under damped (  < 0) i(t) or v(t) = e-t (A1 cos dt + A2 sin dt) d = where, d = natural resonant frequency (rad/s) (3) Critically damped v(t) (or) i(t) = e-t (A1t + A2)

  16. Complex Frequency Complex Frequency (s) s =  + j  where,  = neper frequency (neper per second)  = radian frequency (radian per second) Time Domain Frequency Domain v = Ri = R v = L =j L v = = Critical Frequency (1) Pole frequency () (2) Zero frequency ()

  17. Euler's Identity  e j(t + ) = cos (t + ) + j sin (t + ) Impedance Admittance ZR = R YR = 1/R ZL = sL YL = 1/sL ZC =1/sC YC= sC Gain = where, = Transfer function If = Forced response = Forcing function
