  1. USRobotics Professional Access Point Yosi Rafael

  2. USR5453 Business Class Wireless • Professional ‘Business Class” Access Point • Suitable for small and medium sized companies • Business class management and monitoring • Powerful security • Quality of service • Flexibility and Ease of Deployment • Competitive value

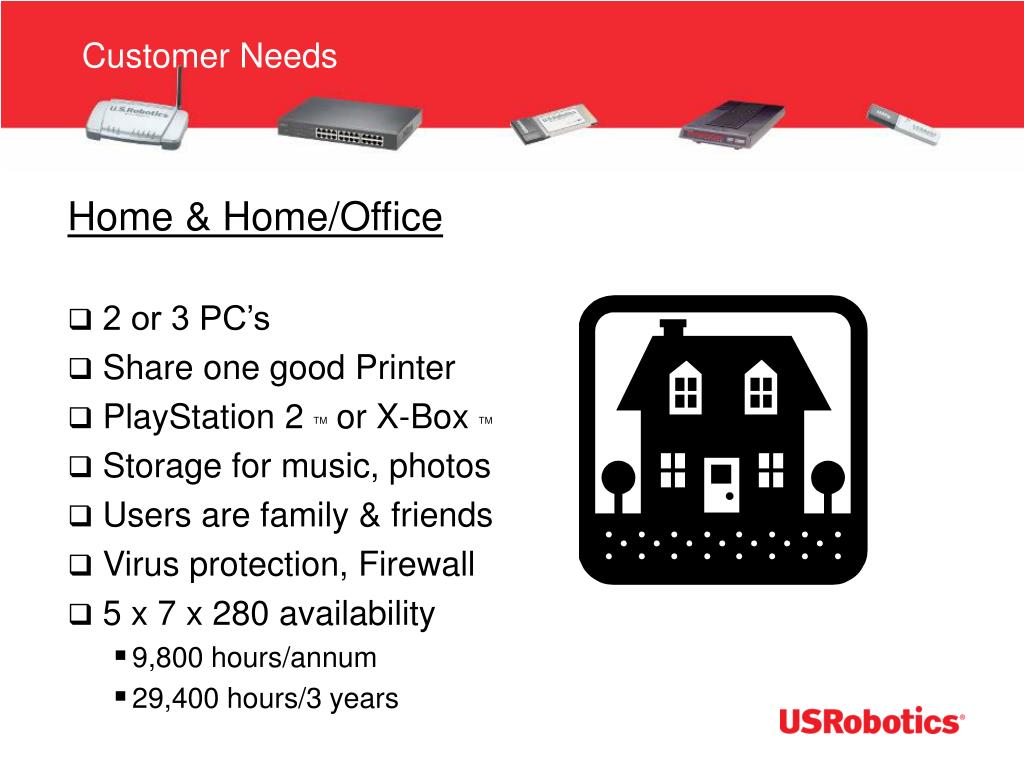

  3. Customer Needs Home & Home/Office 2 or 3 PC’s Share one good Printer PlayStation 2 TM or X-Box TM Storage for music, photos Users are family & friends Virus protection, Firewall 5 x 7 x 280 availability 9,800 hours/annum 29,400 hours/3 years

  4. Customer Needs Business 10-100 PC’s Multiple printers Multiple servers Secure data storage Users are employees & guests Multiple Security & Audit issues Virus, Firewall, SurfControl, Confidentiality, Protected access 24 x 7 x 365 availability 61,320 hours/annum 183,960 hours/5 years

  5. ‘Business Class’ Managed access Secure authentication By user types By access to resources Managed performance Speed Priority by data type Controlled coverage

  6. ‘Business Class’ • Data Security is assured • Secure encryption • VPN support • Rogue AP detection • Flexible configuration • One unit meets most needs • Reduced cost of install • Simple to support

  7. USR5453 has Business Class Features The USR5453 Professional Access Point is all this and more! • Home/Home Office Access Point • Provides a single SSID for user connections (one network) • Supports simple authentication and encryption security • Has some www based management functions • Is a low cost purchase • Business Access Point Functions include: • Advanced and flexible management capability • Sophisticated security options • Quality of Service capability • Network monitoring • Multiple SSID capabilities (partition users) • Each can have separate security settings • Integrated Authentication Server (Radius) • VLAN capabilities

  8. Key Features and Benefits USR5453 Professional Access Point

  9. Cluster up to 8 Access Points • Cluster • Primary AP is configured… • New APs are detected by the Primary • Existing configuration is “auto-magically” transferred to each • new AP without user intervention SSID: PrdMgt – Channel: 6 – Security: WEP SSID: PrdMgt – Chan: 6 – Sec: WEP

  10. Other benefits of using Clustering • Use clustering to get MAC addresses to the whole network. • A MAC address identified in one AP will be automatically copied to the rest of the cluster of up to AP’s. • Reduce downtime – an unskilled person can install an AP • Simply replace an access point and the cluster will auto configure it. • Technician visit to a location is not necessary • Configure more than 8 AP’s by connecting to a Switch for the initial ‘reference AP’ configuration process. • Configure first ‘Reference AP’ and attach to a switch • Insert second AP, power up, configuration is copied automatically • Remove second AP physically and install in proper network • Delete second AP from ‘Reference AP’ list • Insert another AP, power up, configuration is copied automatically etc..

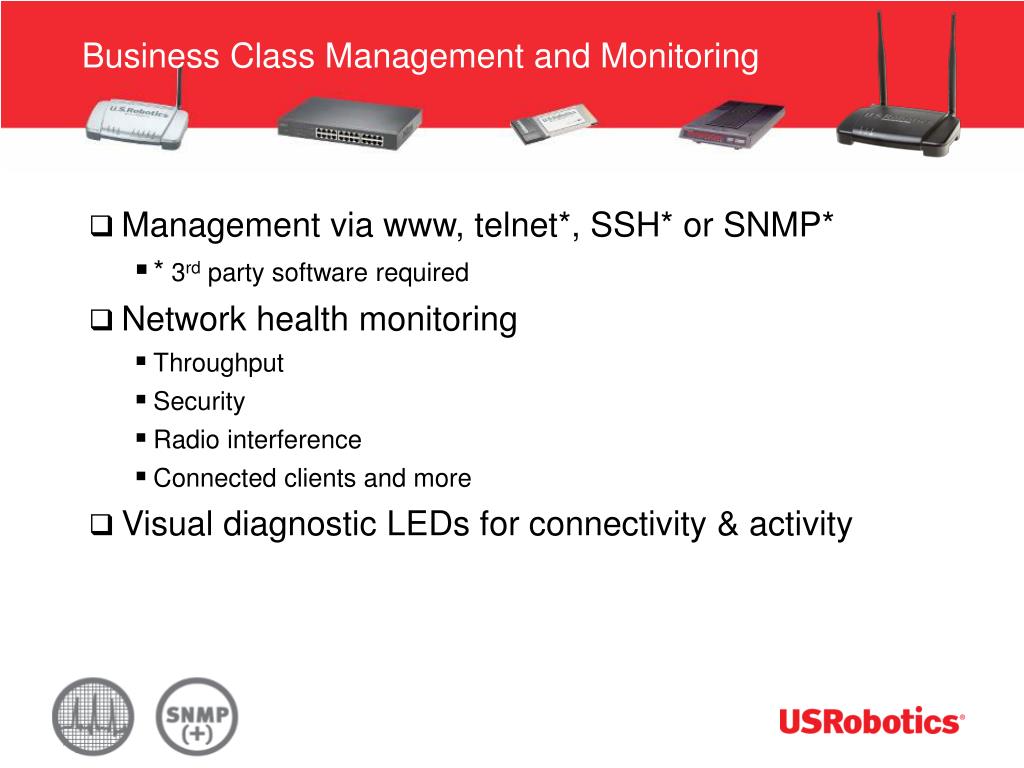

  11. Business Class Management and Monitoring • Management via www, telnet*, SSH* or SNMP* • * 3rd party software required • Network health monitoring • Throughput • Security • Radio interference • Connected clients and more • Visual diagnostic LEDs for connectivity & activity

  12. Powerful Security Control who can access your network • Network visibility • SSID broadcast enable/disable • Neighbour AP detection (rogue) • Authentication • L2TP VPN pass-through • MAC addresses • 802.1x RADIUS server support • Integrated Mini-RADIUS feature • Supports 100 users

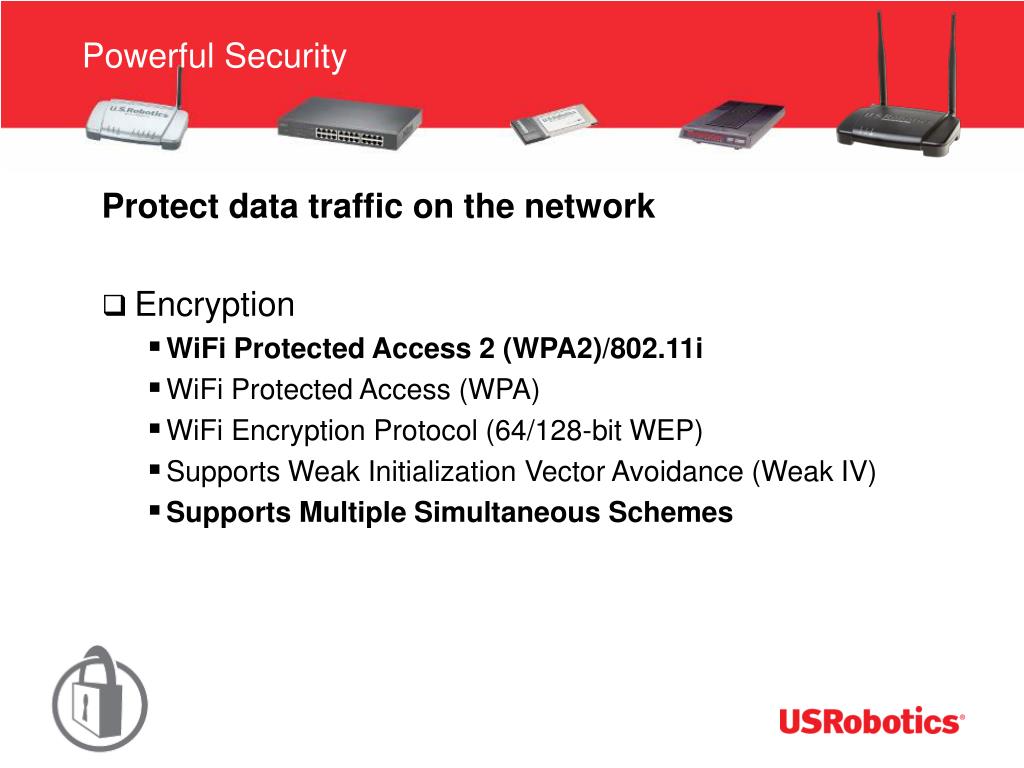

  13. Powerful Security Protect data traffic on the network • Encryption • WiFi Protected Access 2 (WPA2)/802.11i • WiFi Protected Access (WPA) • WiFi Encryption Protocol (64/128-bit WEP) • Supports Weak Initialization Vector Avoidance (Weak IV) • Supports Multiple Simultaneous Schemes

  14. Quality of Service Streaming Video Priority: High Delay: Minimum Throughput: Medium Web Surfing Priority: Medium Delay: Medium Throughput: Medium For QOS to operate, standard IP ‘tagging’ must be operational so that the higher priority status can be switched on !

  15. Virtual Local Area Networking (VLAN) with Multi-SSID • Segment secure access into 4 ‘Virtual’ Lan’s

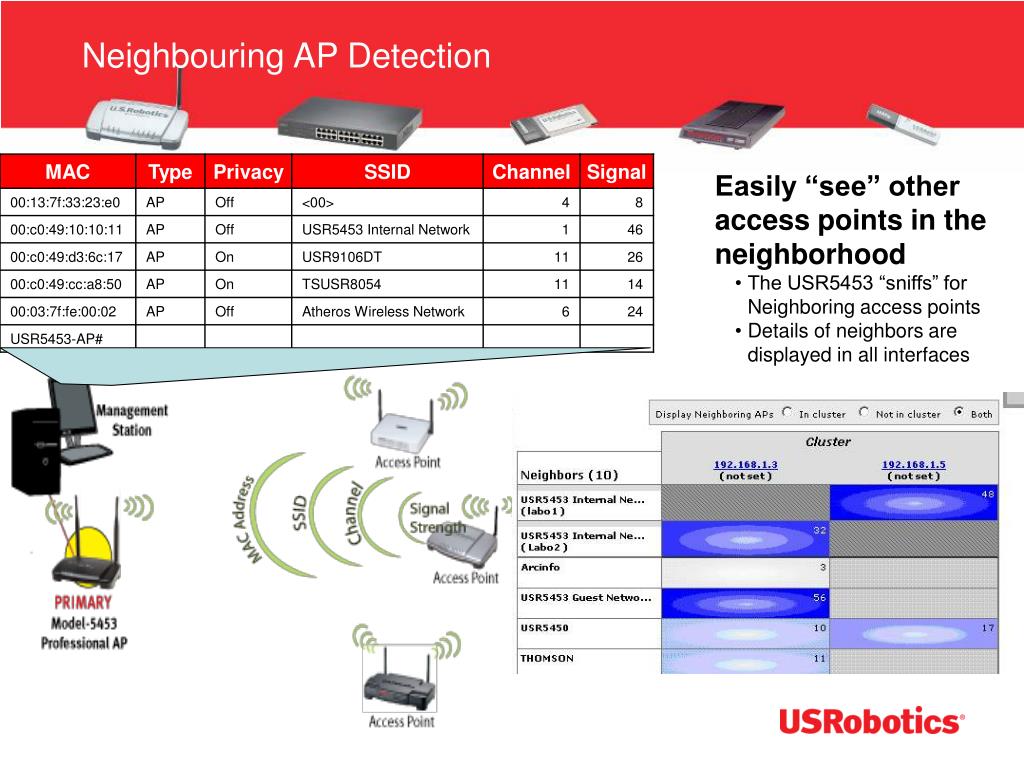

  16. Neighbouring AP Detection • Easily “see” other access points in the neighborhood • The USR5453 “sniffs” for Neighboring access points • Details of neighbors are displayed in all interfaces

  17. Simple implementation Easy Installation and Management • Simple 1-2-3 configuration • Clustering to install up to 8 AP’s from one master • Upgradeable antenna • Auto Channel Selection • Dynamic Channel Planning • Load Balancing

  18. Load Balancing • Automatically route around wireless traffic congestion Location of AP = Warehouse

  19. ‘Multi-Function’ includes AP, Repeater, Bridge Excellent Compatibility and Superior Flexibility • Backwards compatible with 802.11g and 802.11b • Integrated Bridge functionality • Integrated Repeater functionality • Can be wall mounted for convenient placement

  20. Wireless LAN Bridging Connect multiple Local Area Networks wirelessly

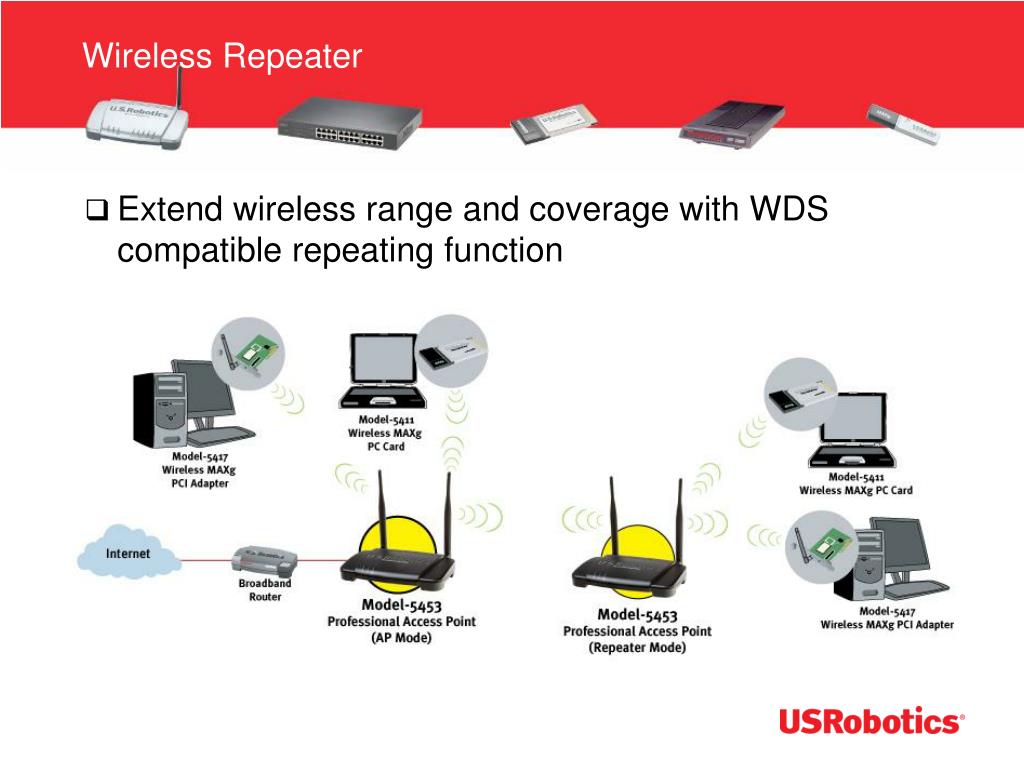

  21. Wireless Repeater Extend wireless range and coverage with WDS compatible repeating function

  22. Competitive Considerations Wireless Functionality and Security Management Standards Support

  23. USR5453 competes and beats … • “Business / Enterprise” products • USRobotics USR5453 • D-Link DWL-2210 AP • Symbol AP4131 • Netgear WG-302 • Cisco 1100 • Cisco 1000 • Proxim AP700

  24. USR5453 Typical Competitive Advantages • Performance • 5db Antenna as standard • Load balancing • Auto channel selection • Security • Integrated Mini RADIUS server (100 users) • Neighbourhood AP detection • Simple Configuration • Clustering of up to 8 access points • Supports 4 Virtual LAN’s from one access points • Quality of Service (QOS) • Prioritise performance for important applications like Video

  25. USR5453 Business Class Wireless • Professional ‘Business Class” Access Point • Suitable for small and medium sized companies • Business class management and monitoring • Powerful security • Quality of service • Flexibility and Ease of Deployment • Competitive value
