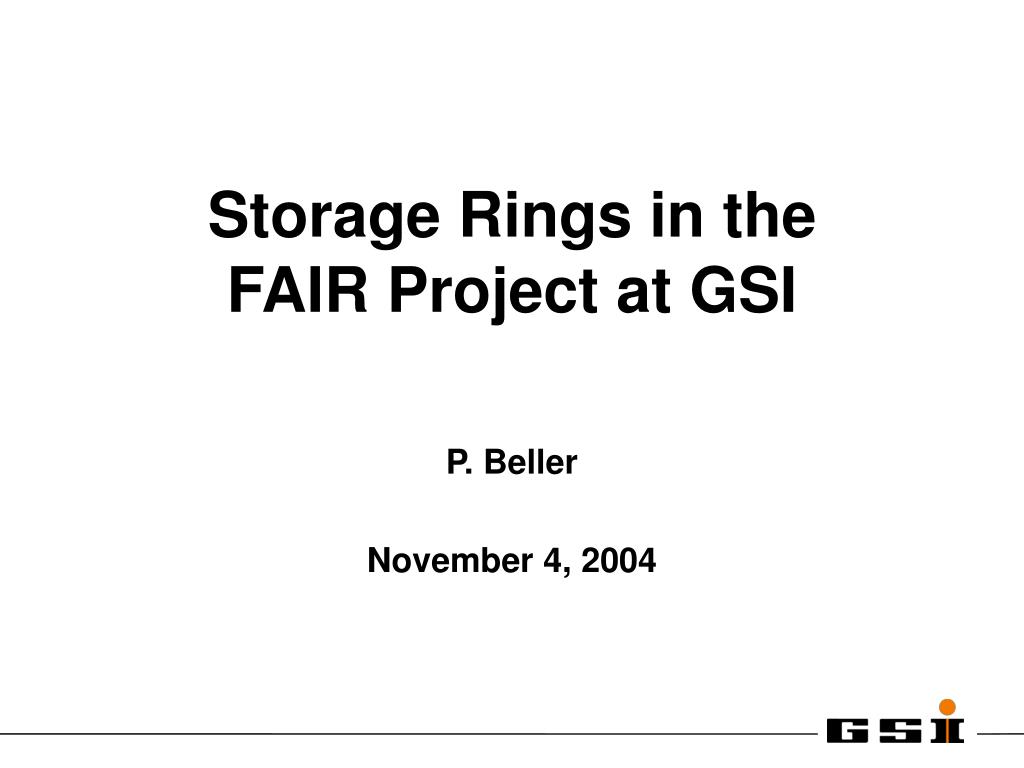

  1. Storage Rings in the FAIR Project at GSI P. Beller November 4, 2004

  2. Physics at the New Storage Rings Physics at the New Storage Rings • Physics with Rare Isotope Beams • Antiproton Physics • Atomic Physics with Highly charged Heavy Ions Required Properties of the Storage Rings • Stochastic Precooling • Electron Cooling • Accumulation • Fast Deceleration (100 - 500 MeV/u) • Deceleration to Low Energies • Fast/Slow Extraction to Cave • In-Ring Experiments • Isochronous Mass Measurements

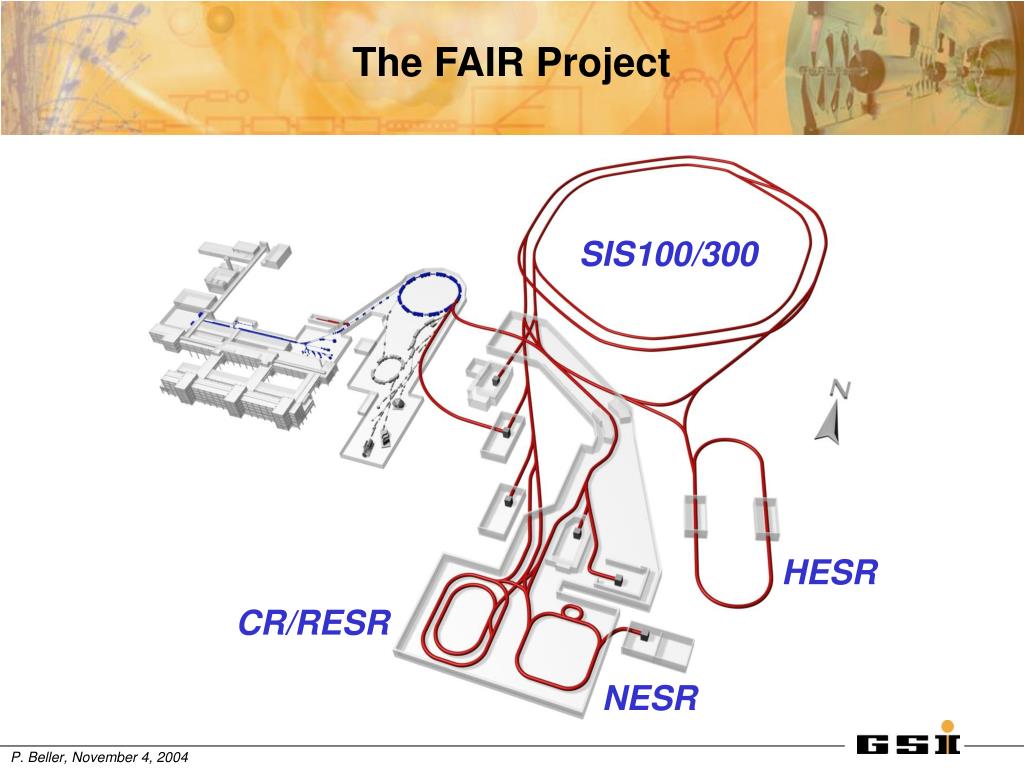

  3. The FAIR Project SIS100/300 HESR CR/RESR NESR

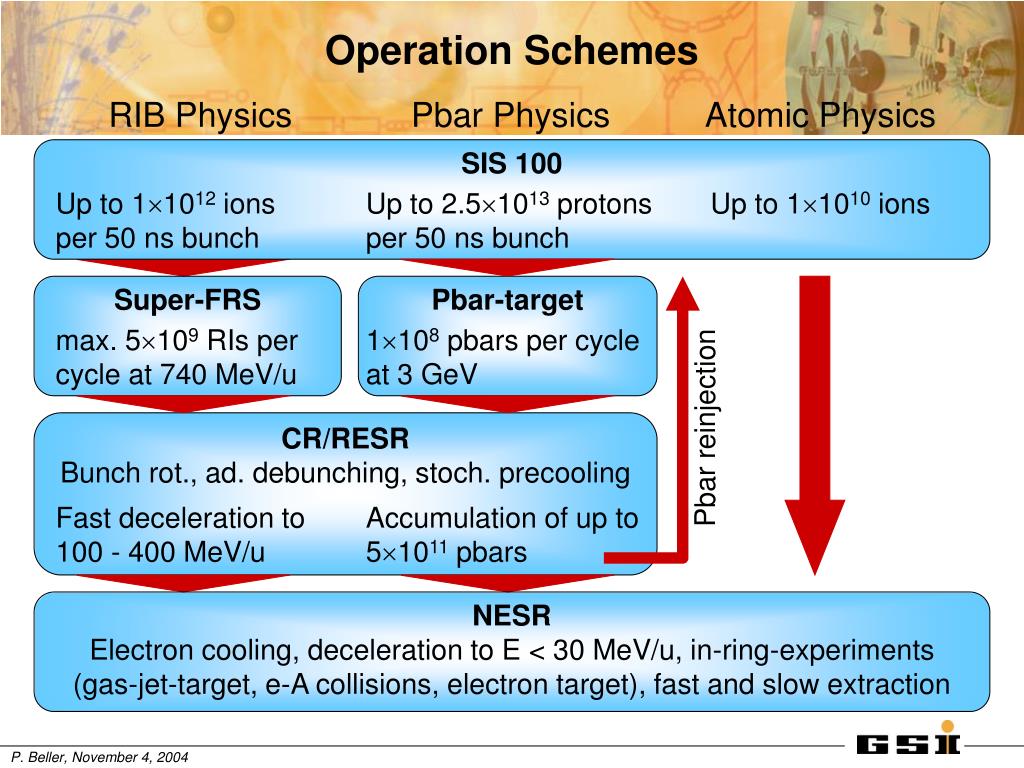

  4. Operation Schemes SIS 100 Super-FRS Pbar-target Pbar reinjection CR/RESR Bunch rot., ad. debunching, stoch. precooling NESR Electron cooling, deceleration to E < 30 MeV/u, in-ring-experiments (gas-jet-target, e-A collisions, electron target), fast and slow extraction

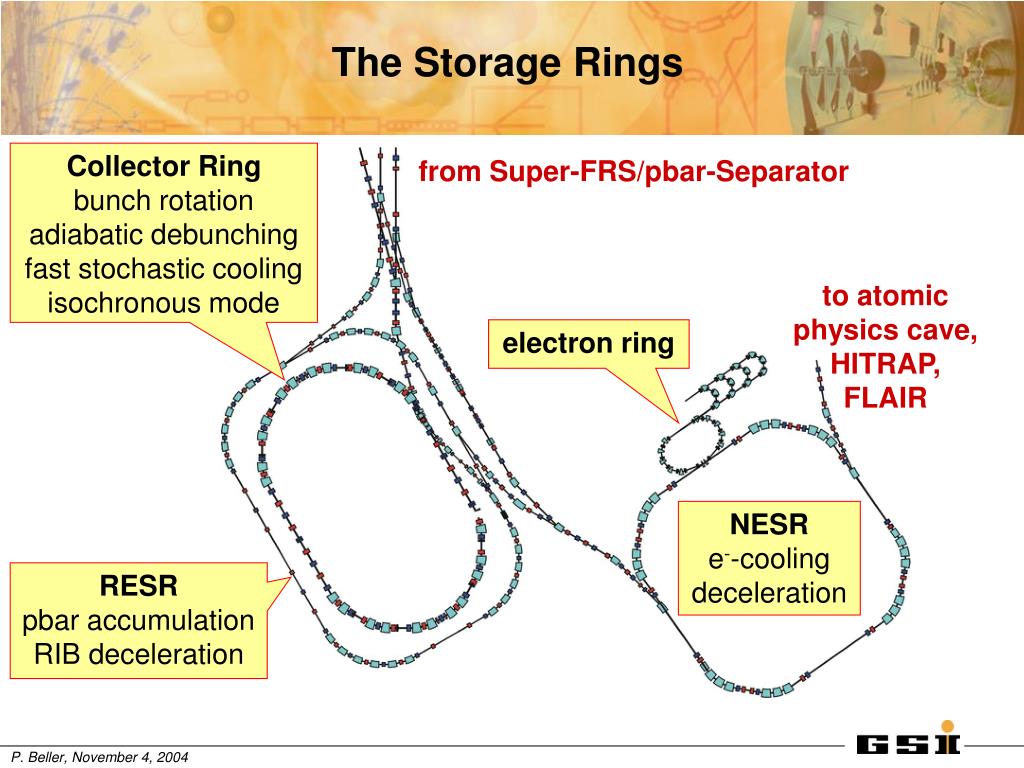

  5. The Storage Rings Collector Ring bunch rotation adiabatic debunching fast stochastic cooling isochronous mode from Super-FRS/pbar-Separator to atomic physics cave, HITRAP, FLAIR electron ring NESR e--cooling deceleration RESR pbar accumulation RIB deceleration

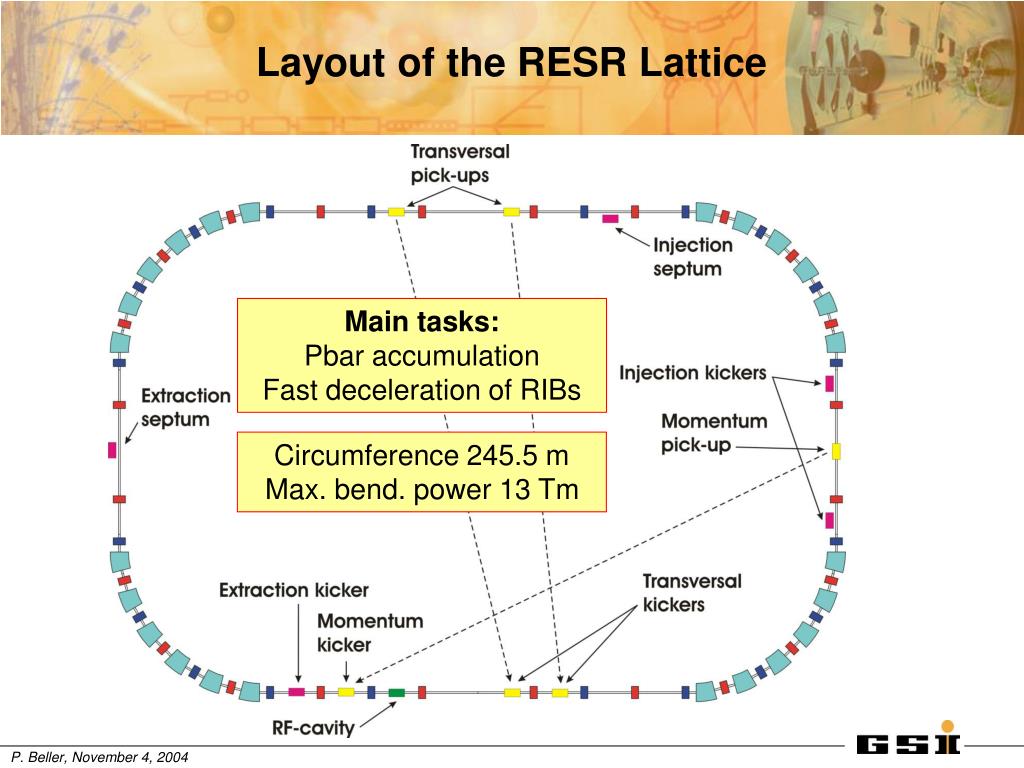

  6. Layout of the RESR Lattice Main tasks: Pbar accumulation Fast deceleration of RIBs Circumference 245.5 m Max. bend. power 13 Tm

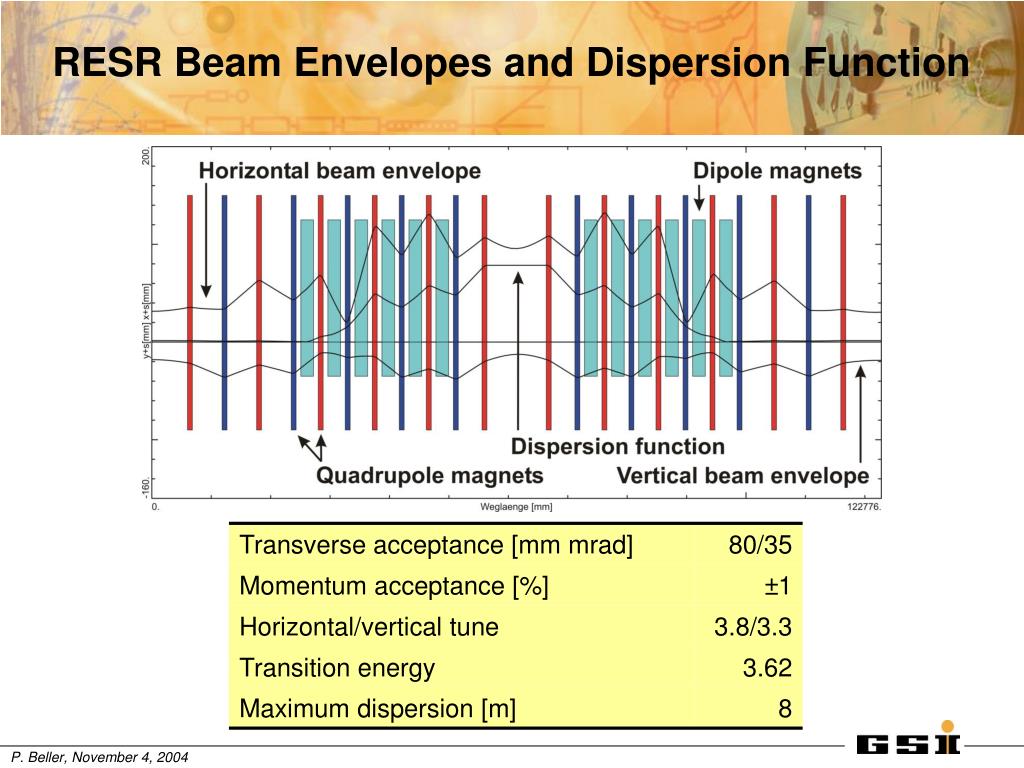

  7. RESR Beam Envelopes and Dispersion Function

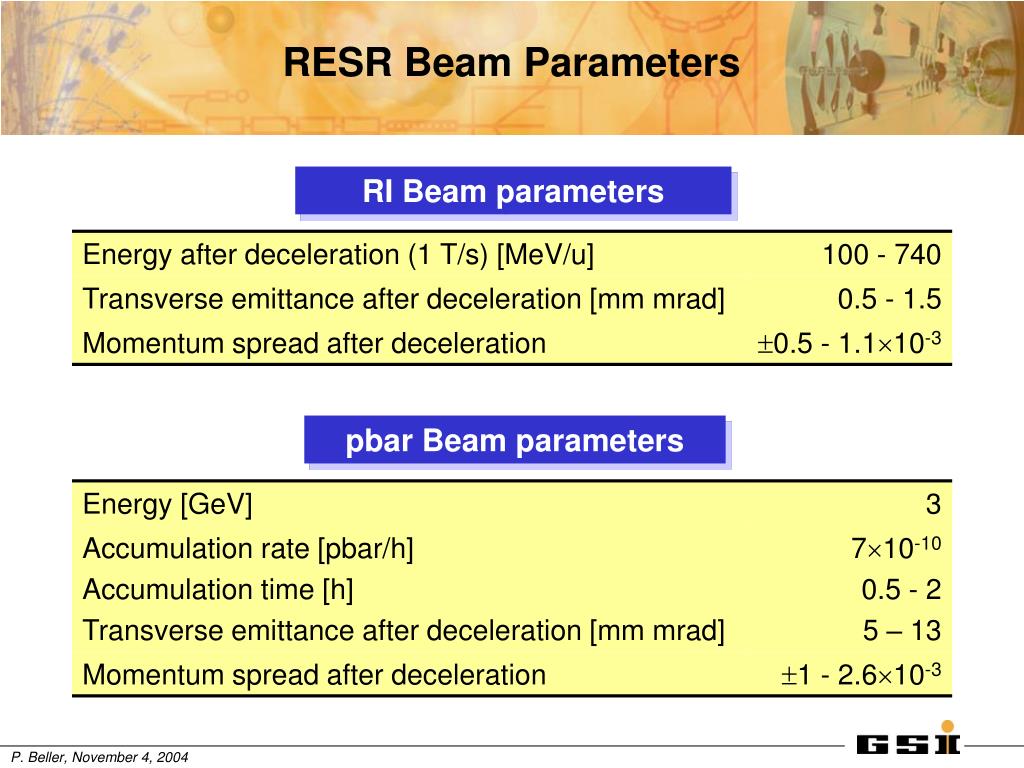

  8. RESR Beam Parameters RI Beam parameters pbar Beam parameters

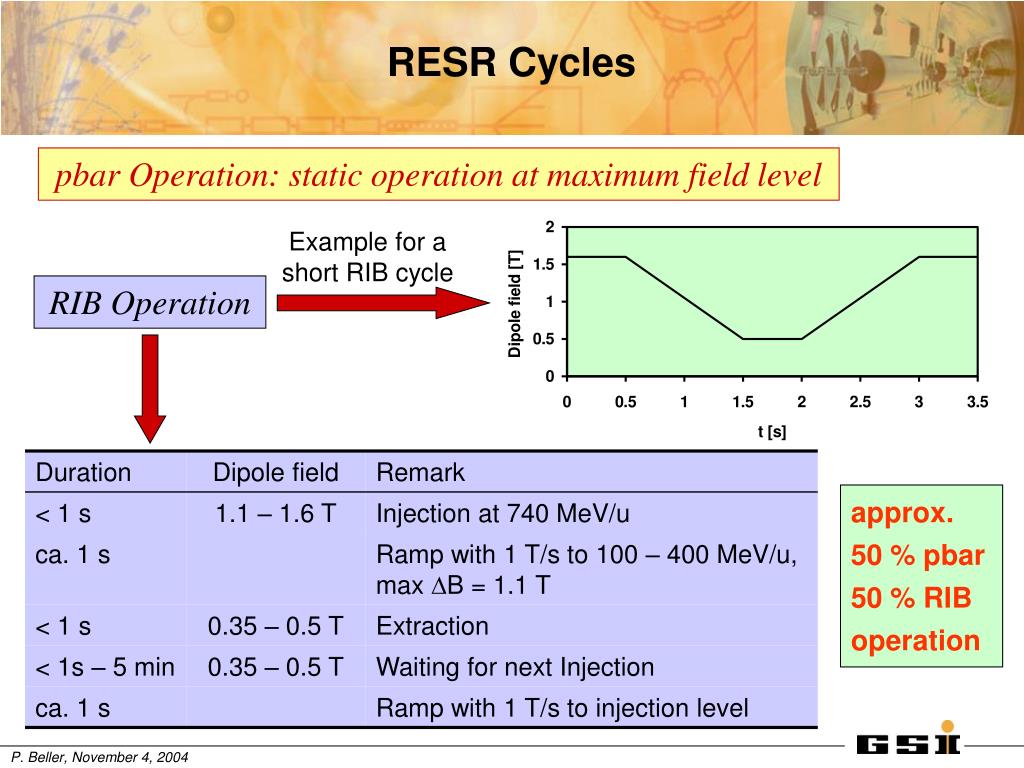

  9. RESR Cycles pbar Operation: static operation at maximum field level Example for a short RIB cycle RIB Operation approx. 50 % pbar 50 % RIB operation

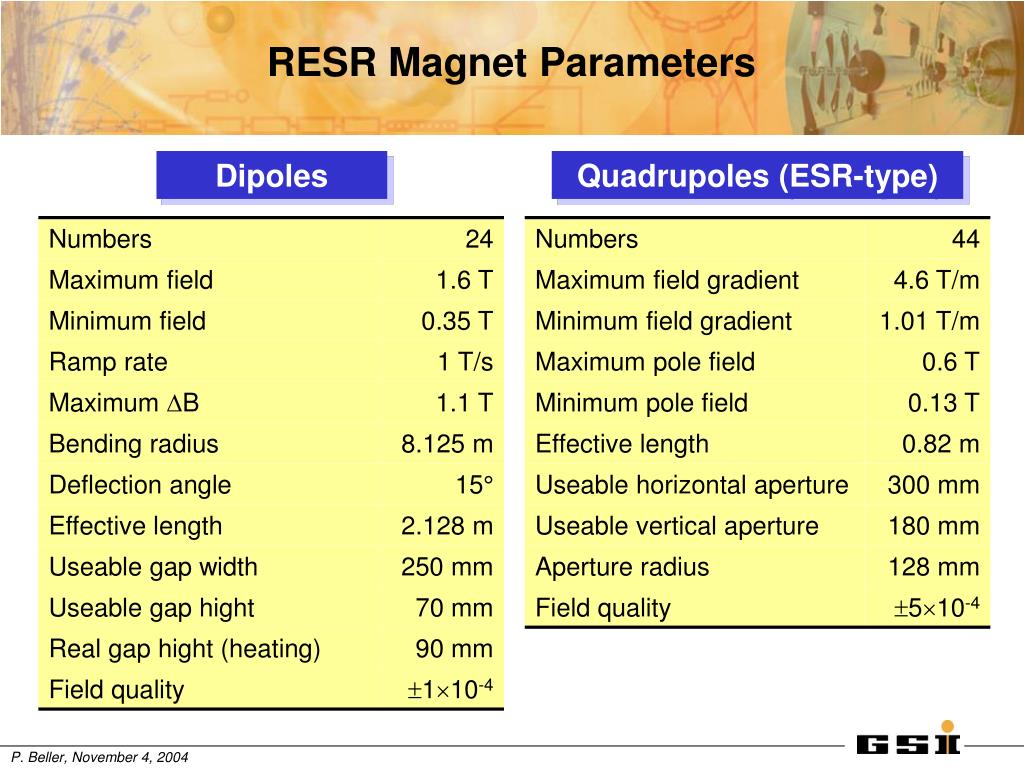

  10. RESR Magnet Parameters Dipoles Quadrupoles (ESR-type)

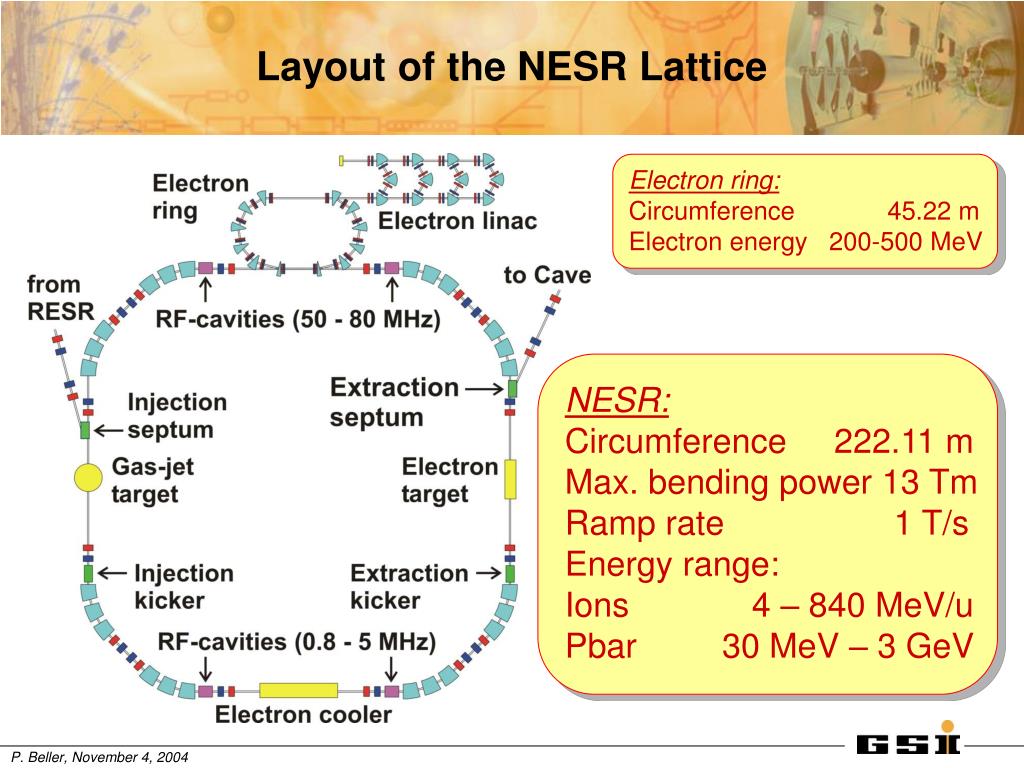

  11. Layout of the NESR Lattice Electron ring: Circumference 45.22 m Electron energy 200-500 MeV NESR: Circumference 222.11 m Max. bending power 13 Tm Ramp rate 1 T/s Energy range: Ions 4 – 840 MeV/u Pbar 30 MeV – 3 GeV

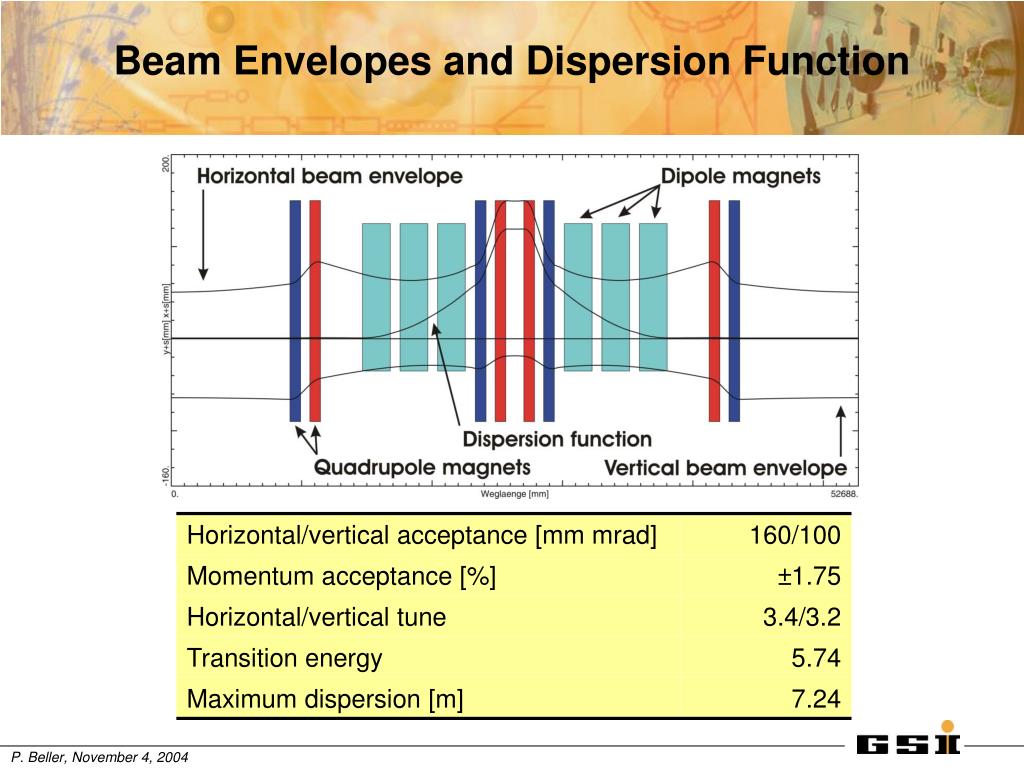

  12. Beam Envelopes and Dispersion Function

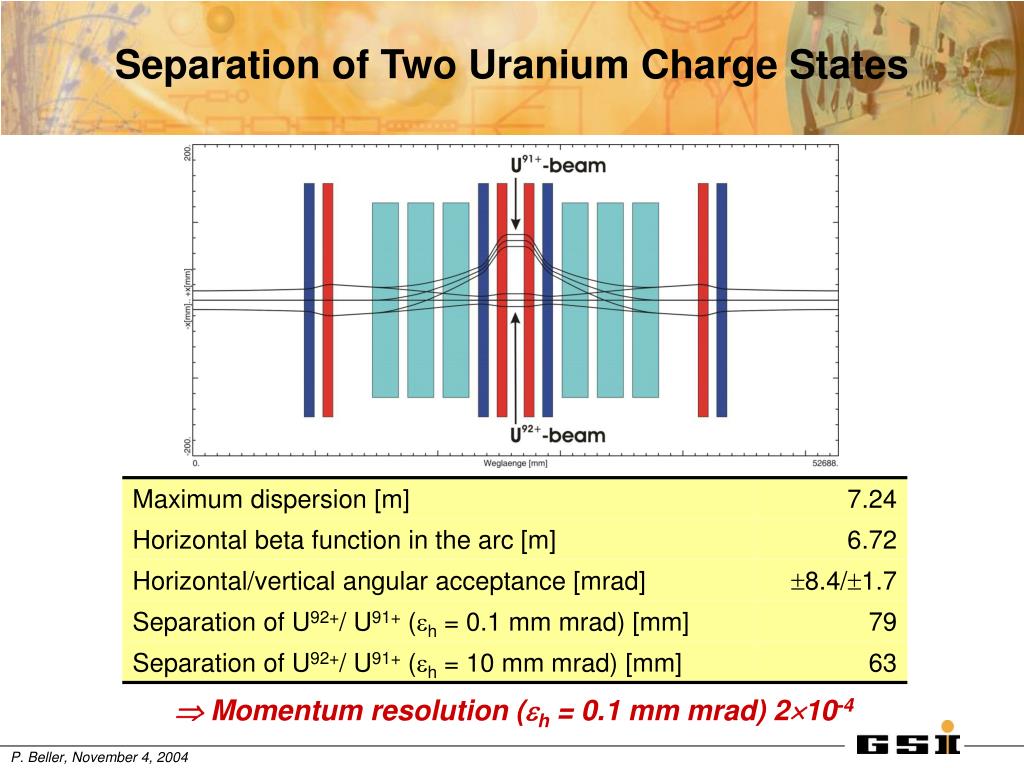

  13. Separation of Two Uranium Charge States  Momentum resolution (eh = 0.1 mm mrad) 210-4

  14. NESR Beam Parameters Ion (RI or stable) Beam parameters pbar Beam parameters

  15. NESR Cycles (pbar) pbar cycle with deceleration to 30 MeV (approx. 25 % of operating time)

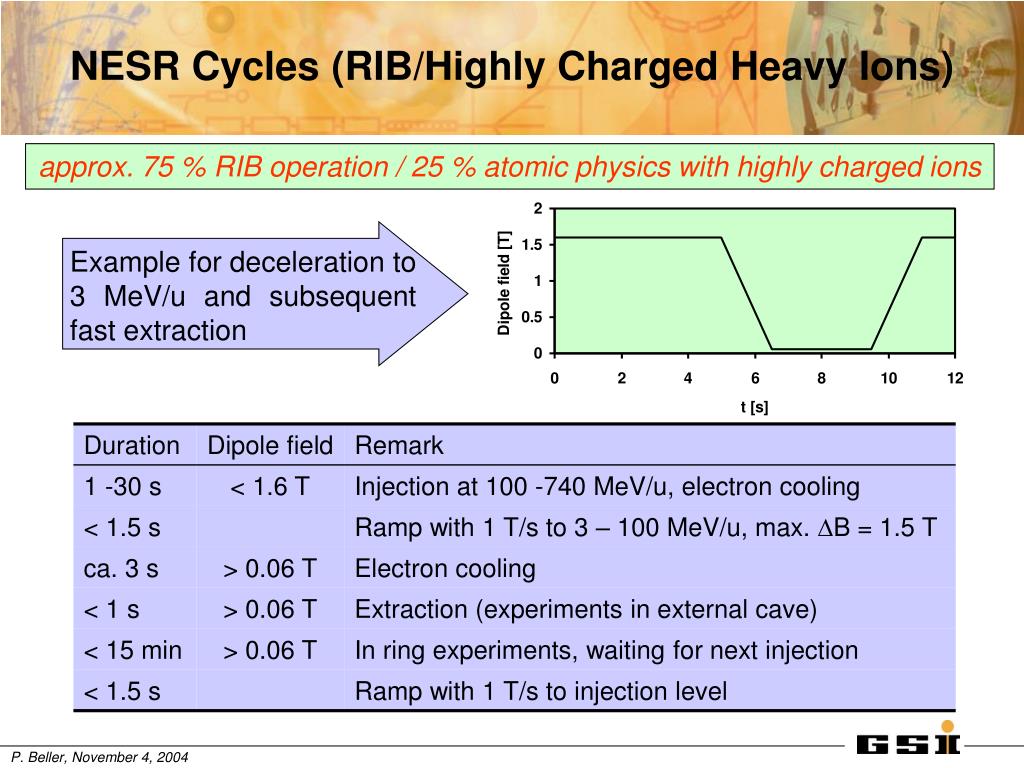

  16. NESR Cycles (RIB/Highly Charged Heavy Ions) approx. 75 % RIB operation / 25 % atomic physics with highly charged ions Example for deceleration to 3 MeV/u and subsequent fast extraction

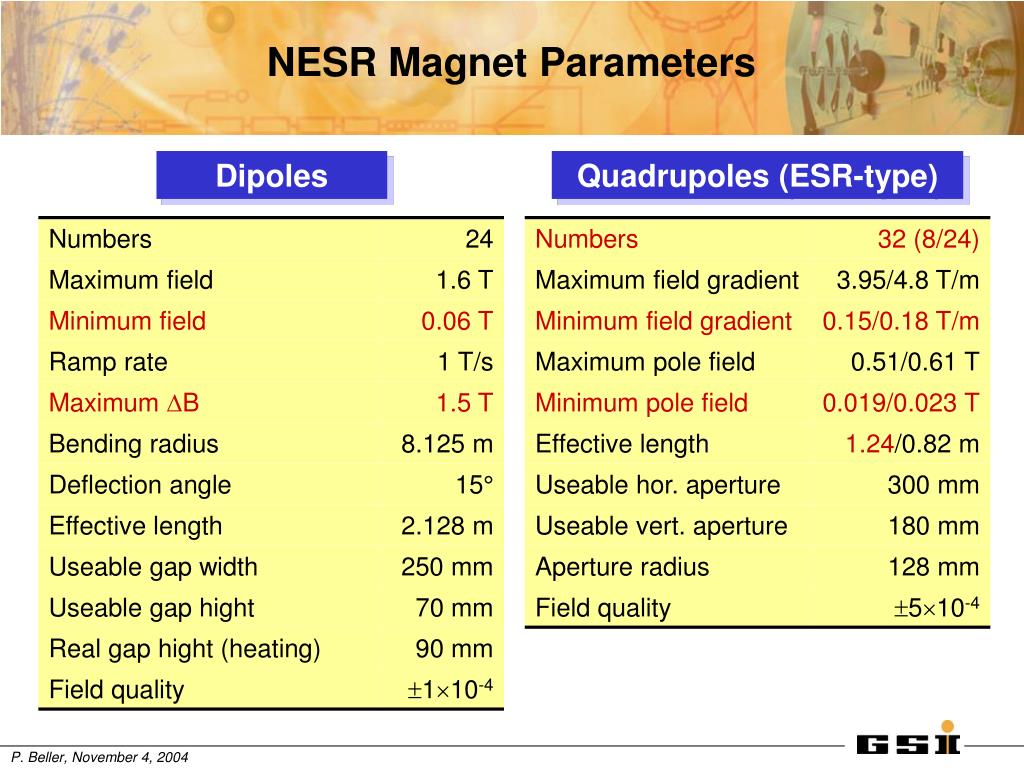

  17. NESR Magnet Parameters Dipoles Quadrupoles (ESR-type)

  18. Summary of Dipole Ramp Data RESR and NESR Dipoles will be identical! RESR: 50 % of operating time will be static operation at maximum field level (pbar) NESR: more than 25 % of operating time will be operation with low duty cycle (pbar + atomic physics with highly charged heavy ions)
