  1. Binary Stars

  2. Double Stars/Binary Stars Double Star Earth Binary Star Earth

  3. Visual Binary Stars Center of Mass Orbit of Star 1 Orbit of Star 2

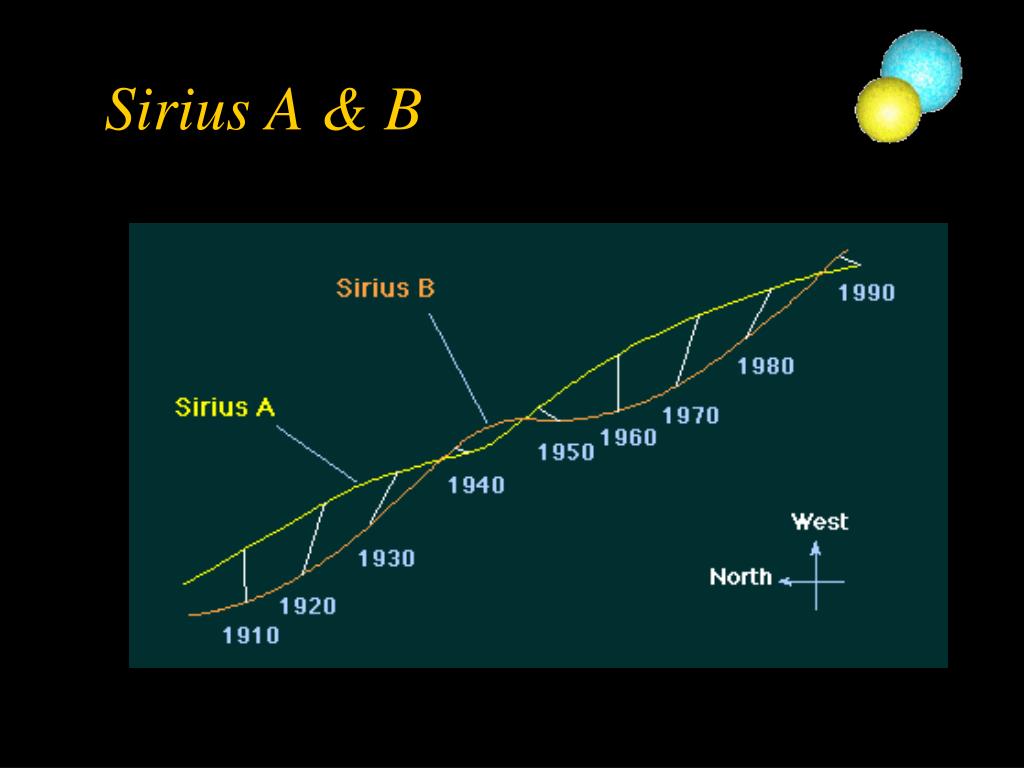

  4. Sirius A & B

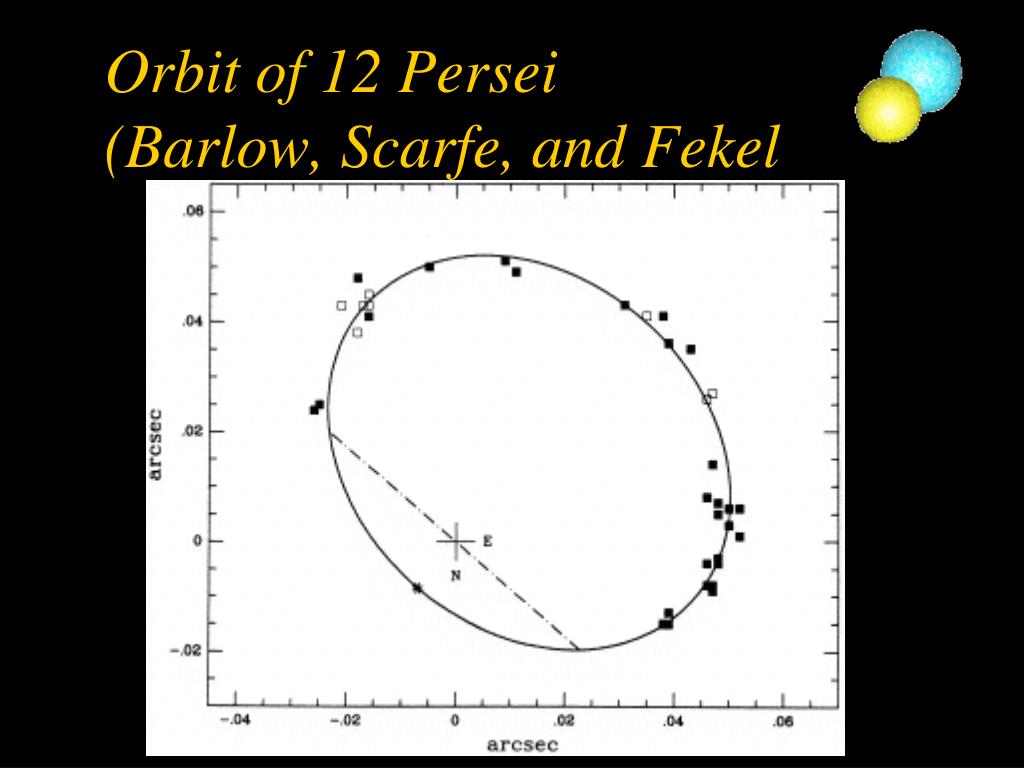

  5. Orbit of 12 Persei(Barlow, Scarfe, and Fekel

  6. Visual Binaries • Stars must be either close to us or far from each other. • Long orbital periods indicate they are far from each other. (years to decades) • About 10% of all stars are visual binaries • Possible planet detection

  7. Spectroscopic Binaries Spectrum of Hydrogen in Lab Spectrum a Star…..Day 1 Spectrum a Star…..Day 2 Spectrum a Star…..Day 3 Spectrum a Star…..Day 4 What do these spectra tell us about the star?

  8. Spectroscopic Binary Stars

  9. Radial Velocity Curve HDE 226868

  10. Spectroscopic Binaries • Orbital Periods are several days • Stars are close together • Orbits inclined 90° to sky are discovered this way. • All of the extra-solar planets have been found in this way.

  11. Eclipsing Binary Stars

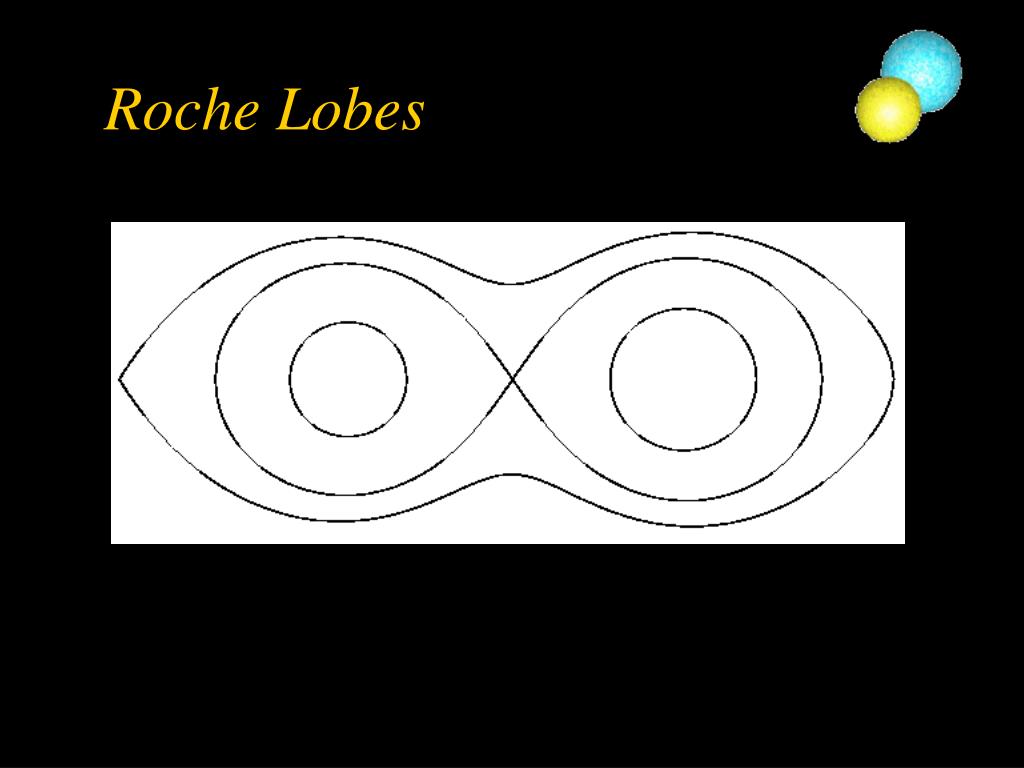

  12. Roche Lobes

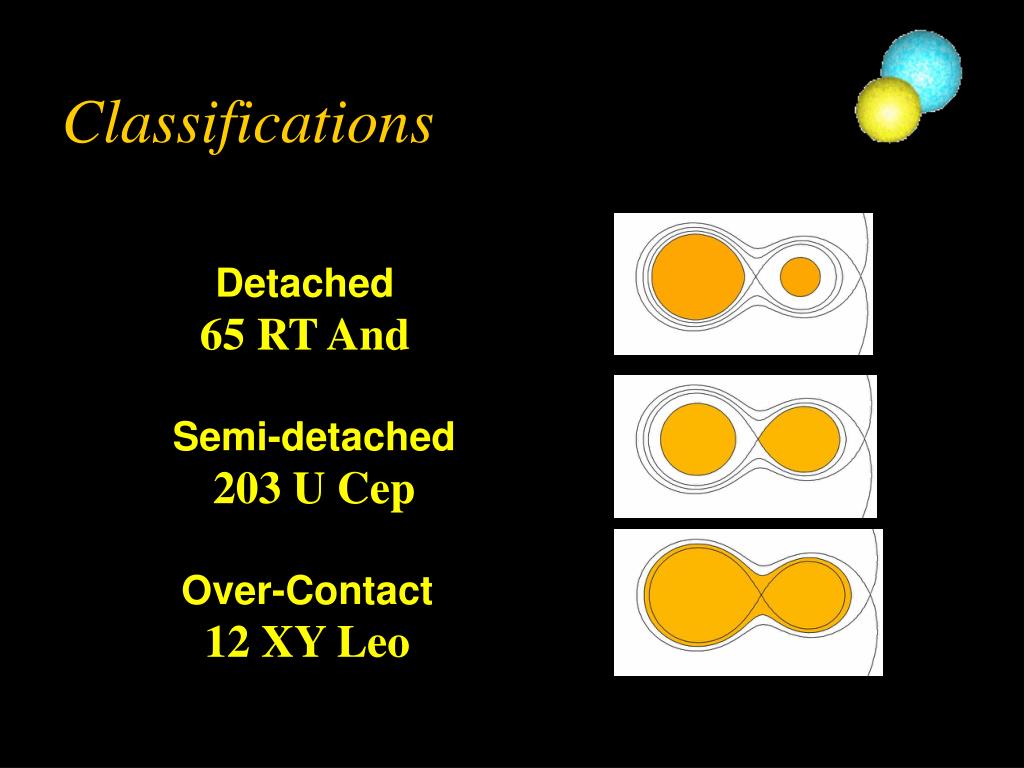

  13. Classifications Detached 65 RT And Semi-detached 203 U Cep Over-Contact 12 XY Leo

  14. Star Light Pro

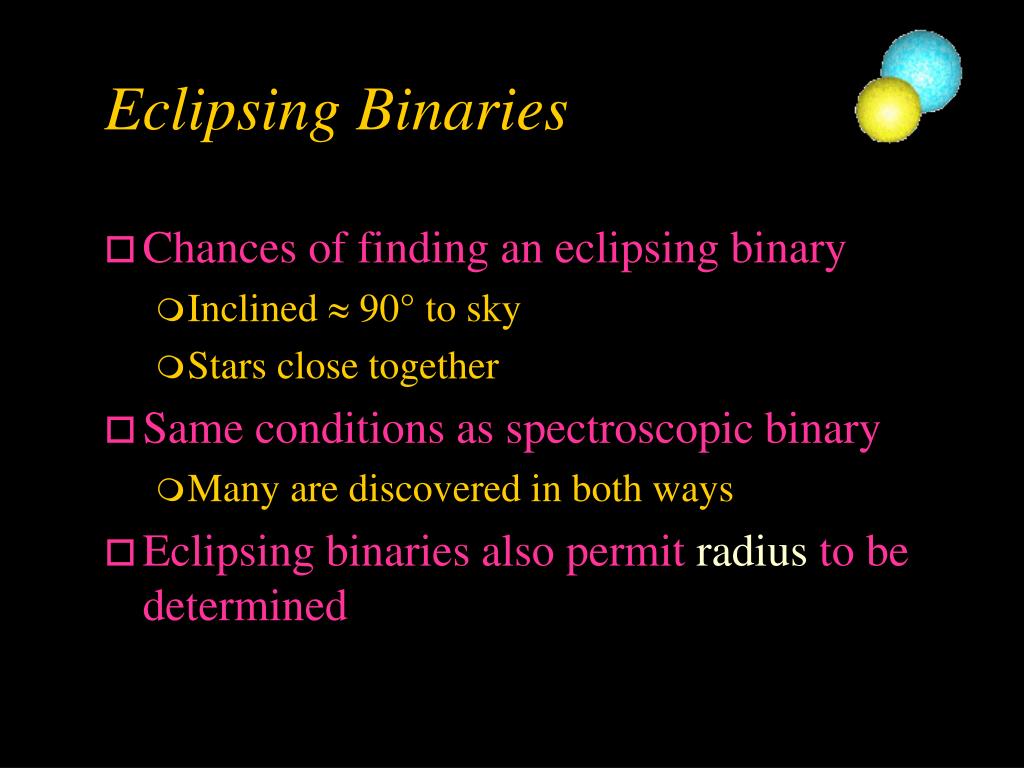

  15. Eclipsing Binaries • Chances of finding an eclipsing binary • Inclined  90° to sky • Stars close together • Same conditions as spectroscopic binary • Many are discovered in both ways • Eclipsing binaries also permit radius to be determined

  16. Second contact separation = difference in radii Eclipse begins separation = sum of radii Relative radius Time difference between these events gives radii of stars

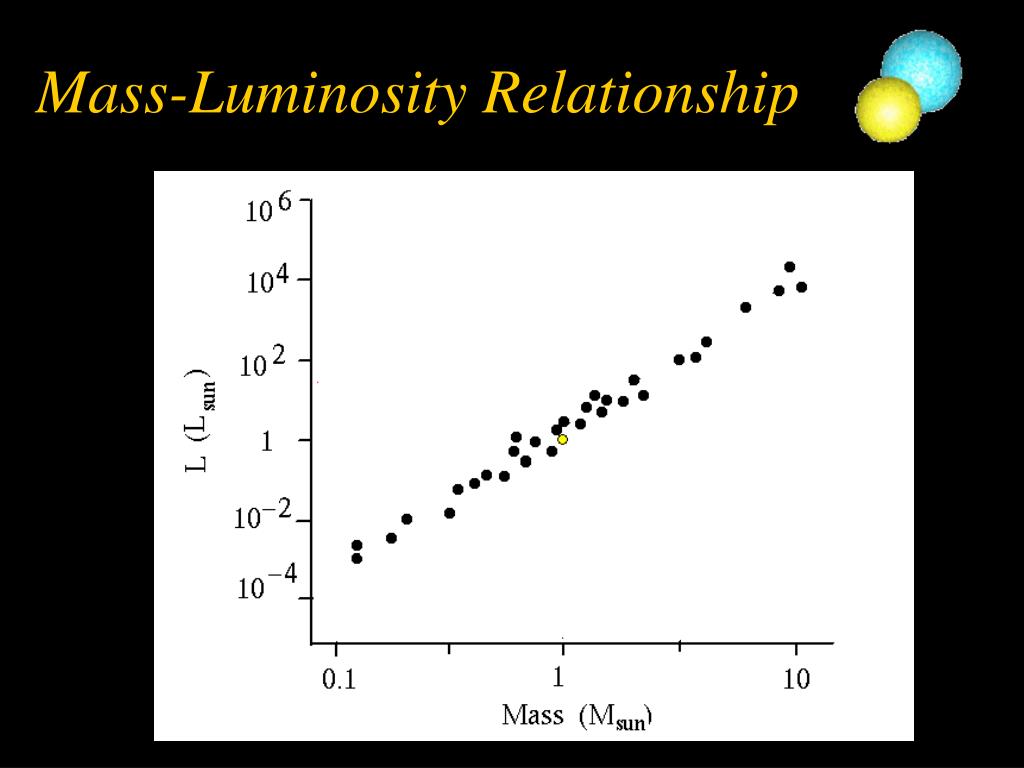

  17. Mass-Luminosity Relationship
