Shared Memory Consistency Models: A Tutorial

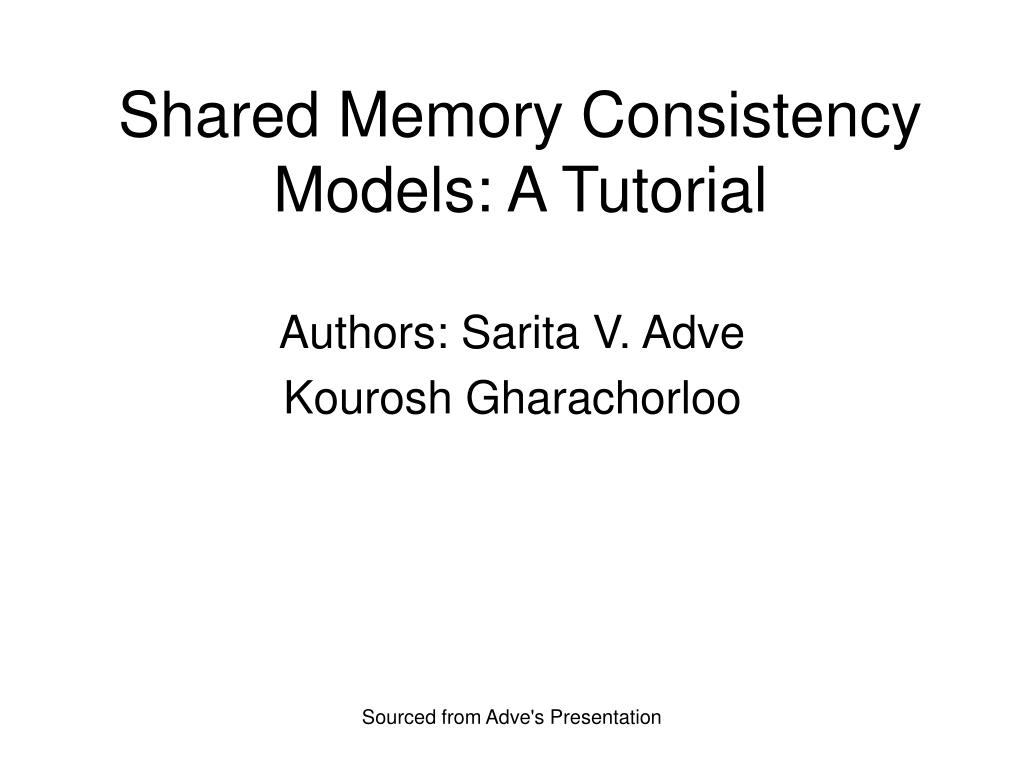

1. Shared Memory Consistency Models: A Tutorial Authors: Sarita V. Adve Kourosh Gharachorloo Sourced from Adve's Presentation

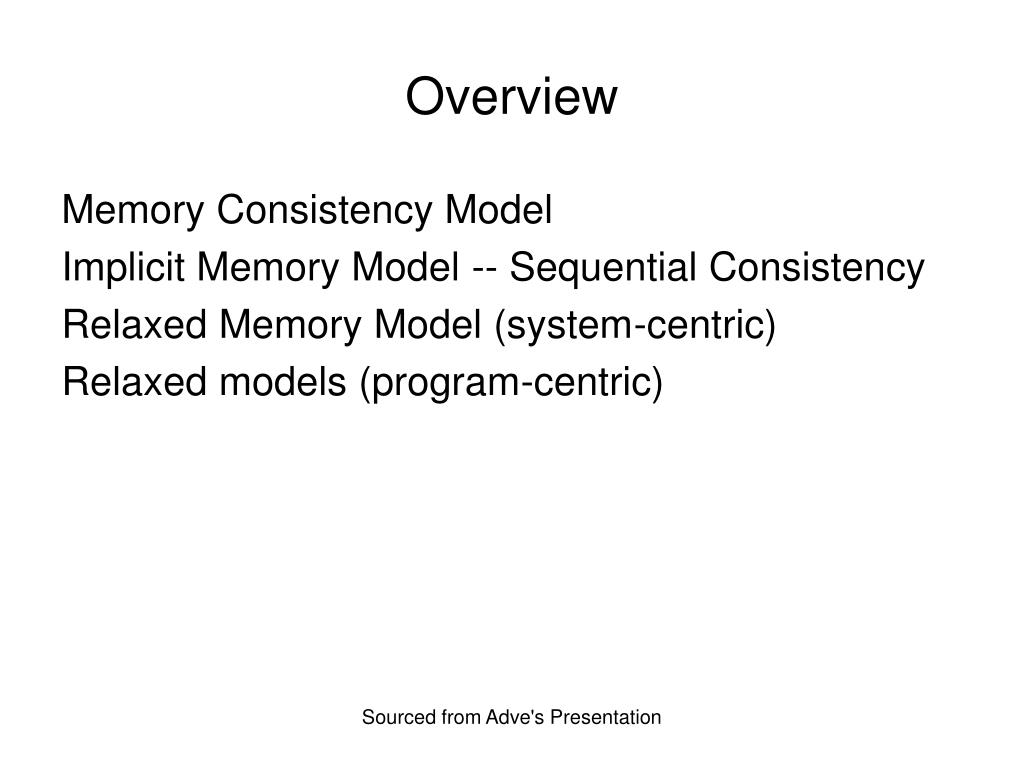

2. Overview Memory Consistency Model Implicit Memory Model -- Sequential Consistency Relaxed Memory Model (system-centric) Relaxed models (program-centric) Sourced from Adve's Presentation

3. Memory Consistency Model Definition: Order in which memory operations will appear to execute -- what value can a read return -- a read should return the value of the “last” write to the same memory location Affecting 3P -- Programmability (easy-of-programming) -- Performance (optimization) -- Portability (moving software across different systems) Sourced from Adve's Presentation

4. P1 P2 P3 Pn MEMORY Implicit Memory Model • Sequential consistency (SC) [Lamport] • Result of an execution appears as if • All operations executed in some sequential order • Memory operations of each process in program order Sourced from Adve's Presentation

5. P1 P2 P3 Pn MEMORY Implicit Memory Model • Sequential consistency (SC) [Lamport] • Result of an execution appears as if • All operations executed in some sequential order • Memory operations of each process in program order • Two aspects: • Program order • Atomicity Sourced from Adve's Presentation

6. Architectures without Caches: example 1 Initially Flag1 = Flag2 = 0 P1 P2 Flag1 = 1 Flag2 = 1 if (Flag2 == 0) if (Flag1 == 0) critical section critical section Execution: P1 P2 (Operation, Location, Value)(Operation, Location, Value) Write, Flag1, 1 Write, Flag2, 1 Read, Flag2, 0 Read, Flag1, ____ Sourced from Adve's Presentation

7. Architectures without Caches: example 1 Initially Flag1 = Flag2 = 0 P1 P2 Flag1 = 1 Flag2 = 1 if (Flag2 == 0) if (Flag1 == 0) critical section critical section Execution: P1 P2 (Operation, Location, Value)(Operation, Location, Value) Write, Flag1, 1 Write, Flag2, 1 Read, Flag2, 0 Read, Flag1, 0? Sourced from Adve's Presentation

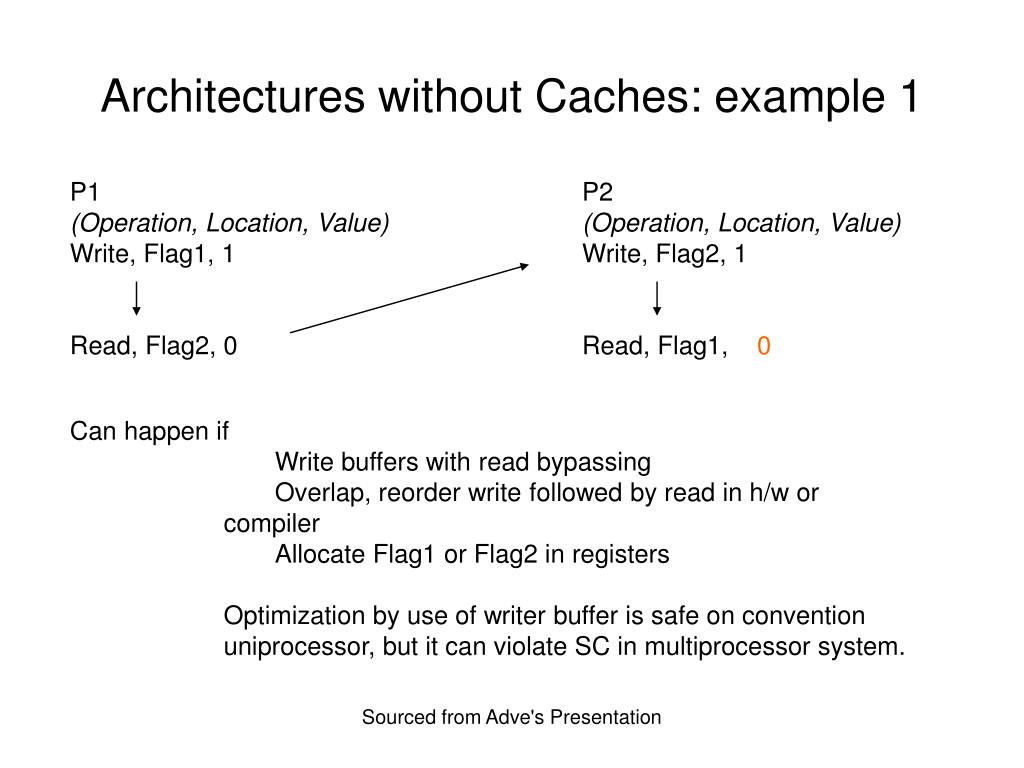

8. Architectures without Caches: example 1 P1 P2 (Operation, Location, Value)(Operation, Location, Value) Write, Flag1, 1 Write, Flag2, 1 Read, Flag2, 0 Read, Flag1, 0 • Can happen if • Write buffers with read bypassing • Overlap, reorder write followed by read in h/w or compiler • Allocate Flag1 or Flag2 in registers • Optimization by use of writer buffer is safe on convention uniprocessor, but it can violate SC in multiprocessor system. Sourced from Adve's Presentation

9. Architectures without Caches: example 1 Write buffer Sourced from Adve's Presentation

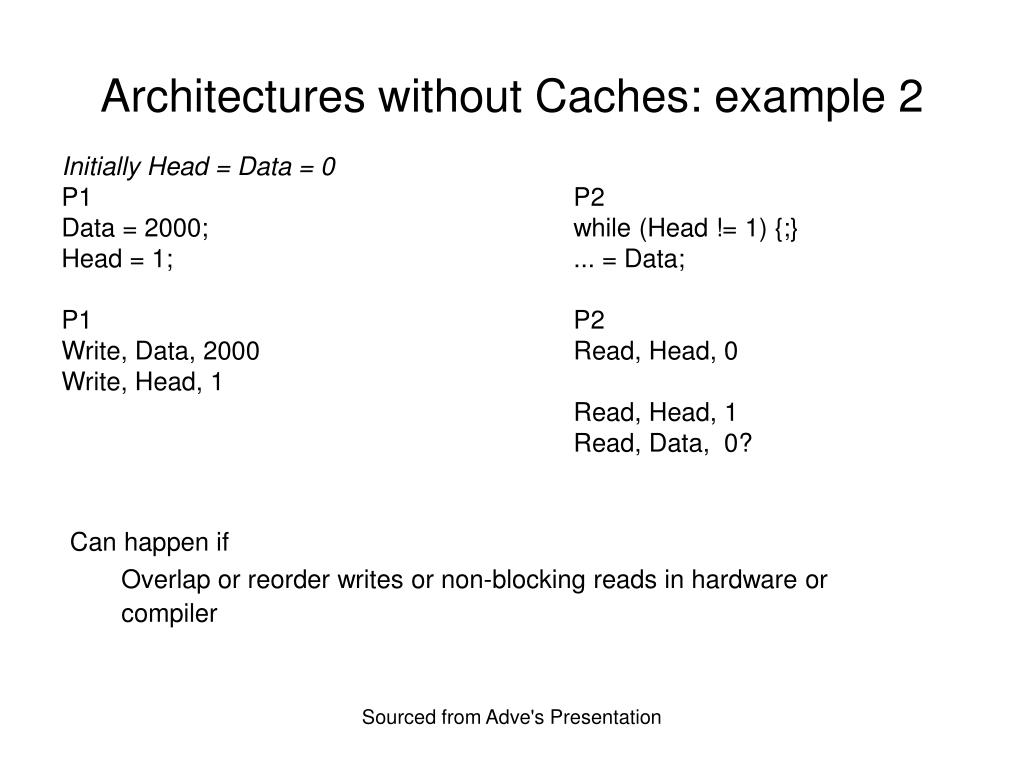

10. Architectures without Caches: example 2 Initially Head = Data = 0 P1 P2 Data = 2000; while (Head != 1) {;} Head = 1; ... = Data; P1 P2 Write, Data, 2000 Read, Head, 0 Write, Head, 1 Read, Head, 1 Read, Data, 0? • Can happen if • Overlap or reorder writes or non-blocking reads in hardware or compiler Sourced from Adve's Presentation

11. Architectures without Caches: example 2 Overlapped writes Sourced from Adve's Presentation

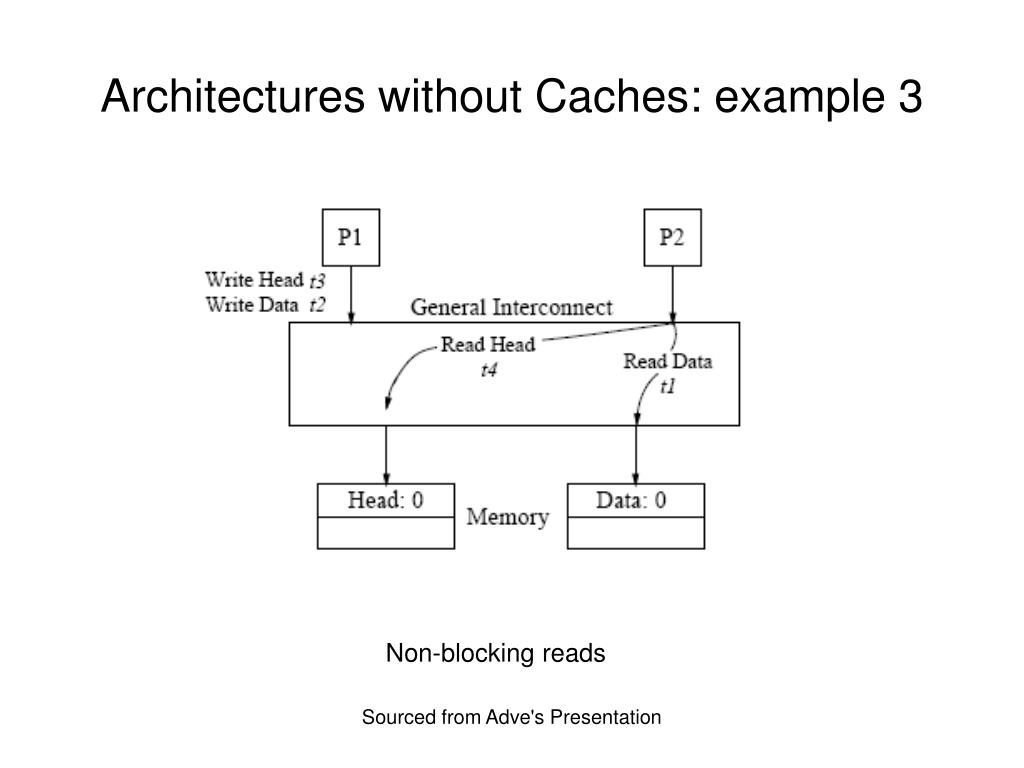

12. Architectures without Caches: example 3 Non-blocking reads Sourced from Adve's Presentation

13. Architectures With Caches • Cache Coherence and SC • Cache Coherence • A write is visible to all processors • Serialization of writes to the same location • SC • Serialization of writes to all locations • Operations appear to execute in program order • SC implies Cache Coherence: A memory consistency model as the policy that places an early and late bound on when a new value can be propagated by invalidating or updating • Atomicity for writes • Propagating changes to cache copies in a non-atomic operation • Serialize write can avoid the violation of SC • Ordering of updates/invalidates between source and destination is preserved by network • Or delay an update/invalidate from being sent out until any updates or invalidates from previous write are acknowledged Sourced from Adve's Presentation

14. SC Summary SC constrains all memory operations: Write  Read Write  Write Read  Read, Write Simple model for reasoning about parallel programs But, intuitively reasonable reordering of memory operations in a uniprocessor may violate sequential consistency model in multiprocessor Modern microprocessors reorder operations all the time to obtain performance (write buffers, overlapped writes,non-blocking reads…). How do we reconcile sequential consistency model with the demands of performance? Sourced from Adve's Presentation

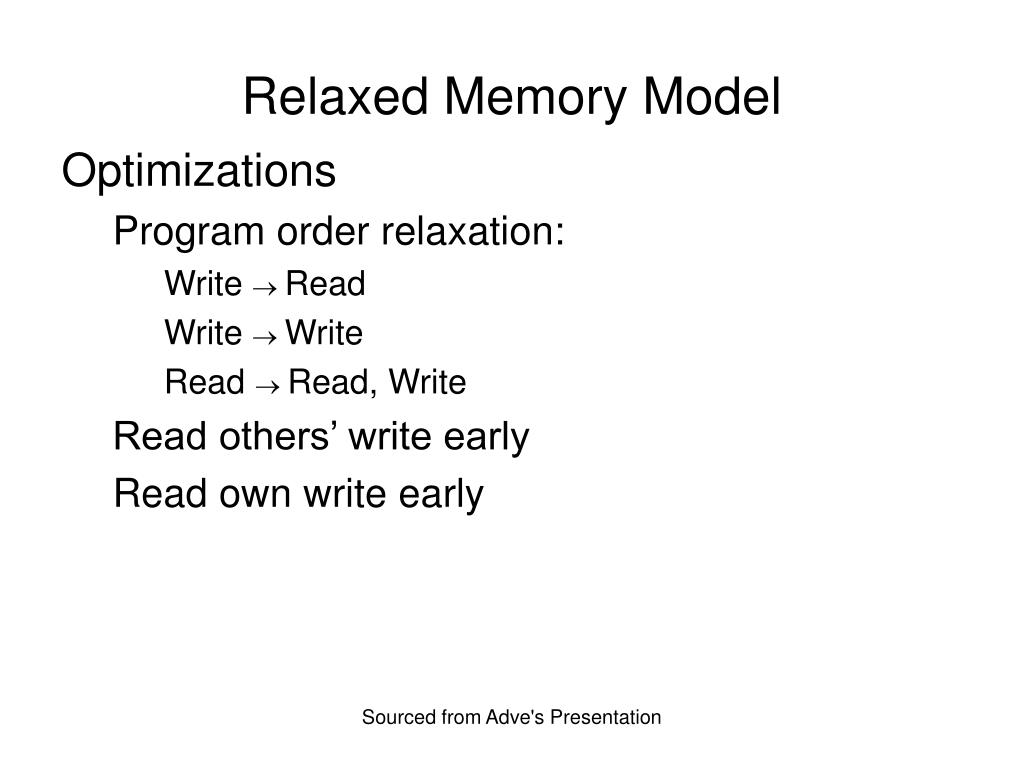

15. Relaxed Memory Model Optimizations Program order relaxation: Write  Read Write  Write Read  Read, Write Read others’ write early Read own write early Sourced from Adve's Presentation

16. Relaxed Memory Model (system-centric) Models provide safety net Models maintain uniprocessor data and control dependences, write serialization Sourced from Adve's Presentation

17. System-Centric model assessment System-centric models provide higher performance than SC BUT how about 3P criteria Programmability? Programmer need to consider the correctness with the optimization the specific model provides Portability? Many different models Performance? Can we do better? Programmer-Centric Model Sourced from Adve's Presentation

18. Programmer-Centric Models Data operation executed more aggressively Programmer provide information about memory operations System based on the model exploit the optimization without violating consistency Sourced from Adve's Presentation

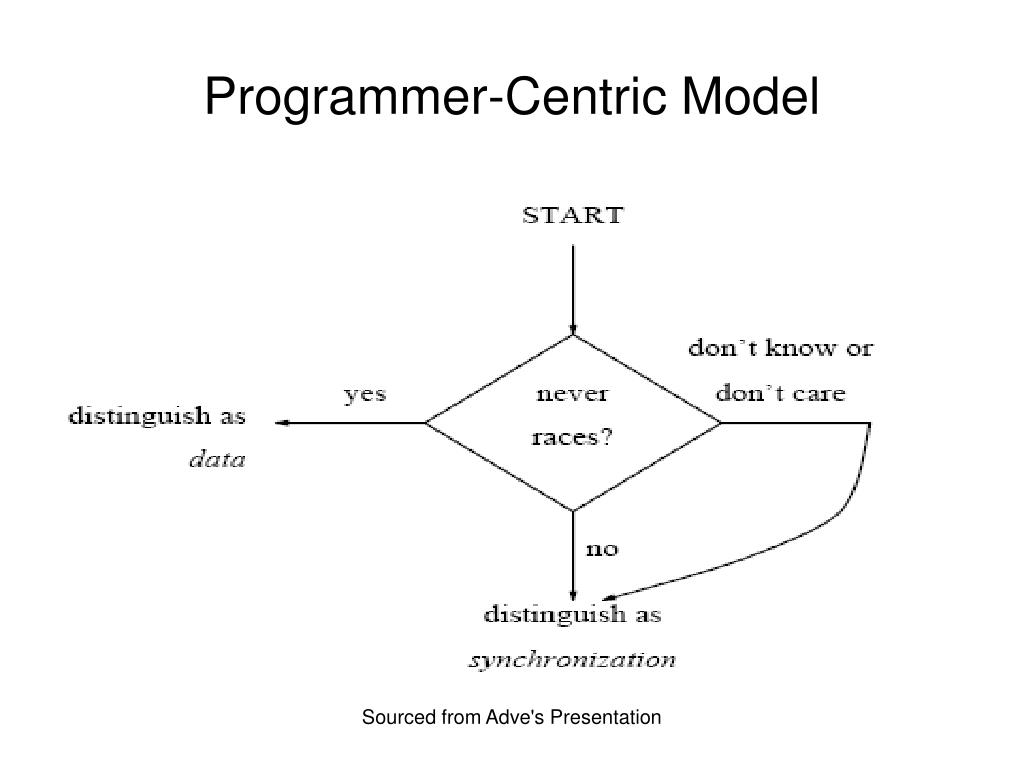

19. Programmer-Centric Model Sourced from Adve's Presentation

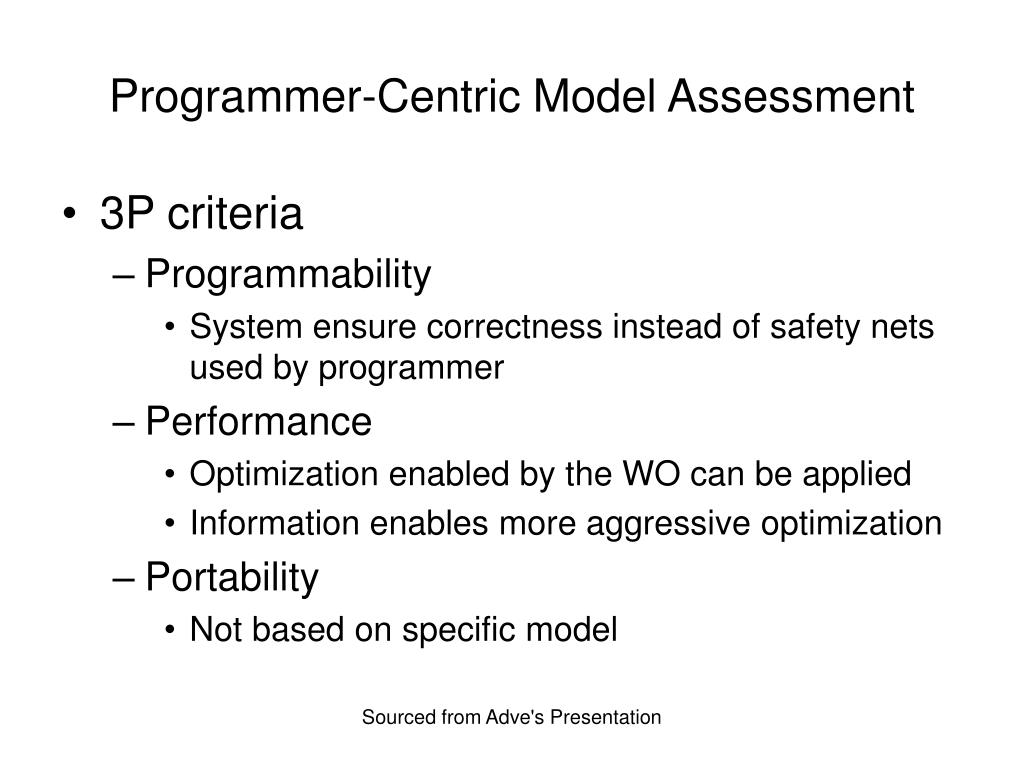

20. Programmer-Centric Model Assessment • 3P criteria • Programmability • System ensure correctness instead of safety nets used by programmer • Performance • Optimization enabled by the WO can be applied • Information enables more aggressive optimization • Portability • Not based on specific model Sourced from Adve's Presentation
