  1. Vu Phan SE157B Spring2007 04/15/2007 Indexing

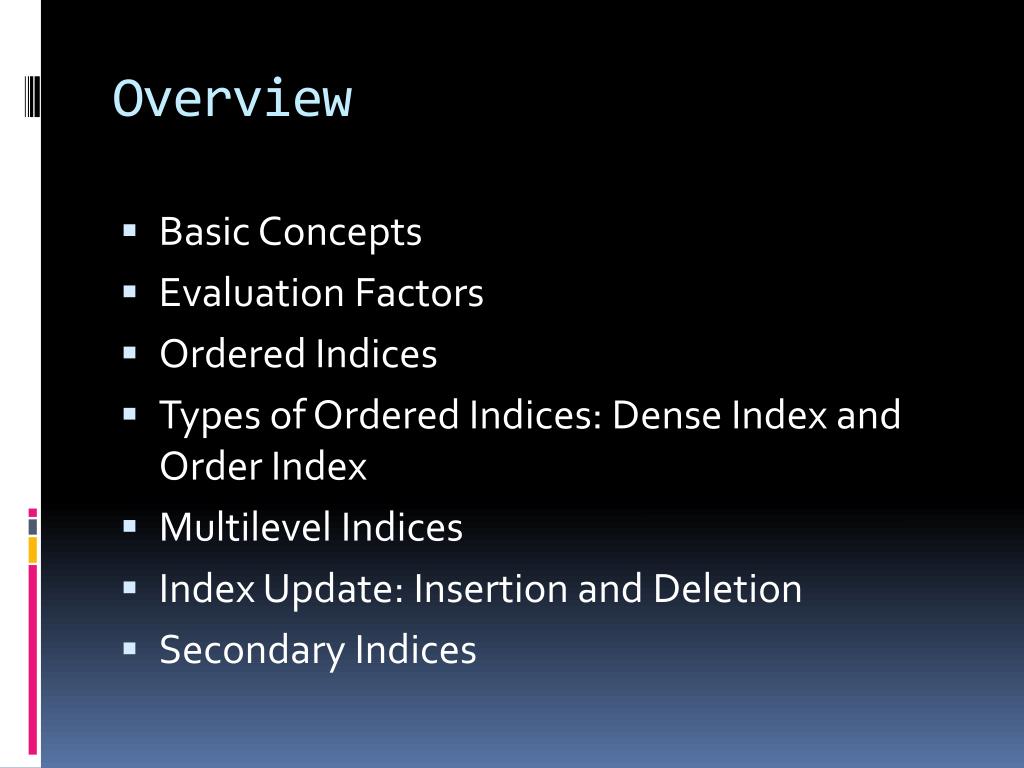

  2. Overview • Basic Concepts • Evaluation Factors • Ordered Indices • Types of Ordered Indices: Dense Index and Order Index • Multilevel Indices • Index Update: Insertion and Deletion • Secondary Indices

  3. Basic Concepts • Purpose: to look up and access desired data quickly • How: • Compress files into index files • An index file consists index records, or index entries • Two basic kinds of indices: • Ordered indices – store search-keys in a sorted order • Hash indices – store search-keys across “buckets” using a hash function

  4. Evaluation Factors • Access types • Access time • Insertion time • Deletion time • Space overhead

  5. Ordered Indices • Data is sorted sequentially based on the search-key value. • Clustering index • Also called primary index • Its search key defines the sequential order of data. • Nonclustering index • Also called secondary index • Its search key specifies an order different from the sequential order of data.

  6. Ordered Indices (Cont.) • Sequential file for account records

  7. Types of Ordered Indices • Dense index – an index record appears for every search-key value in the file.

  8. Types of Ordered Indices (Cont.) • Sparse index – an index record appears for only some of the search-key values in the file.

  9. Dense Index vs. Sparse Index

  10. Multilevel Indices • One index may be too large for efficient processing. • Solution: using multilevel index • Treat the primary index as a sequence file and create an sparse index on it • Outer index: a sparse index of primary index • Inter index: the primary index • If the outer index is still large, creating another level of index is necessary.

  11. Multilevel Indices (Cont.)

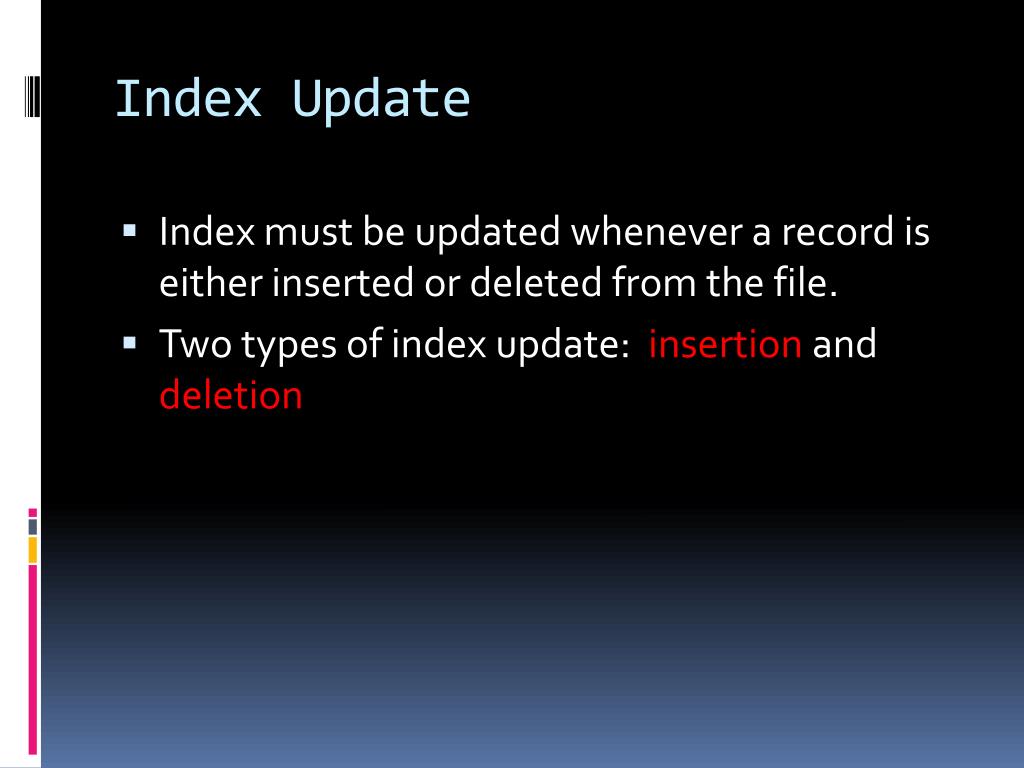

  12. Index Update • Index must be updated whenever a record is either inserted or deleted from the file. • Two types of index update: insertion and deletion

  13. Index Update – Insertion • Perform a lookup using the search-key value appearing in the record being inserted. • Dense indices: • If search-key value does not appear in the index, insert the new record to an appropriate position • Otherwise, • If the index record stores pointers to all records with the same search-key value, add a pointer to the new record to the index record • If the index record stores a pointer to only the first record with the same search-key value, just place the record being inserted after the other records with the same search-key values

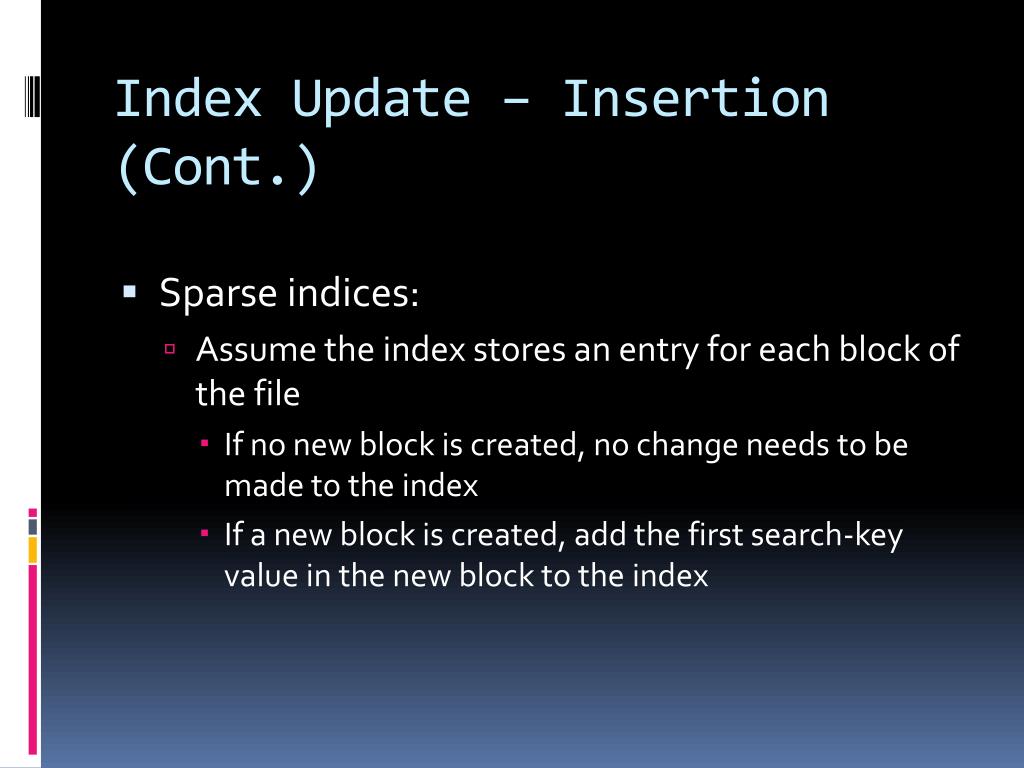

  14. Index Update – Insertion (Cont.) • Sparse indices: • Assume the index stores an entry for each block of the file • If no new block is created, no change needs to be made to the index • If a new block is created, add the first search-key value in the new block to the index

  15. Index Update - Deletion • Dense indices: • If the deleted record was the only record with its unique search-key value, delete it • Other wise, • If the index record stores pointers to all records with the same search-key value, delete the point to the deleted record from the index record • If the index record stores a pointer to only the first record with the same search-key value, and if the deleted record was the first record, update the index record to point to the next record

  16. Index Update – Deletion (Cont.) • Sparse indices: • If the deleted record was the only record with its search key, replace the corresponding index record with an index record for the next search-key value (in search-key order). • If the next search-key value already has an index entry, the index record is deleted instead of being replaced • If the record being deleted was one of many records with the same search-key value, and if the index record points to it, update the index record to point to the next record with the same search-key value

  17. Secondary Indices • Sometimes we want to find records by an order differed from the sequential order of primary index • Solution: create a secondary index which has different index records of each search-key value • Secondary index record points to a bucket that contains pointers to all actual records

  18. Secondary Indices • Secondary Indices have to be dense

  19. References • Silberschatz, Korth, & Sudarshan. Database system Concepts • http://codex.cs.yale.edu/avi/db-book/ • Dr. Lee’s lecture
