10.5 Surface Area of Prism

10.5 Surface Area of Prism. Surface Area. Sum of the areas of the base(s) and the lateral faces of the space figure. Surface Area Formula for Rectangular Prism Using Separate Surfaces. Find the area of each face ( bh ) and add together Top+Bottom + right+ left+front + back Or

Download Presentation

10.5 Surface Area of Prism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

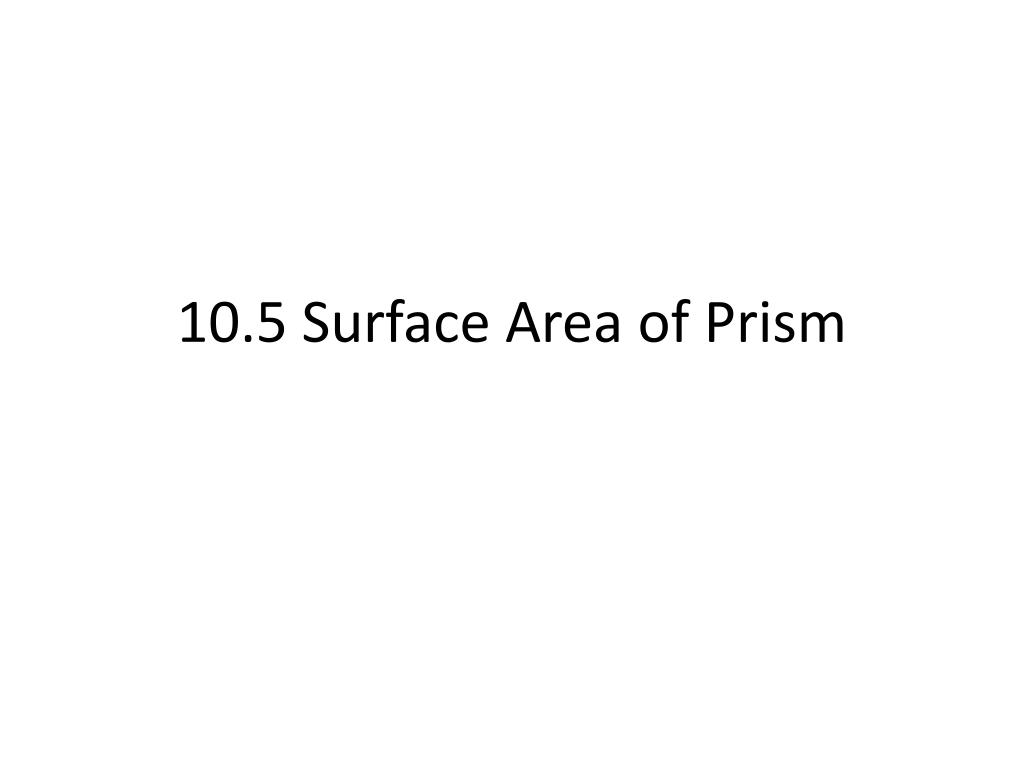

  1. 10.5 Surface Area of Prism

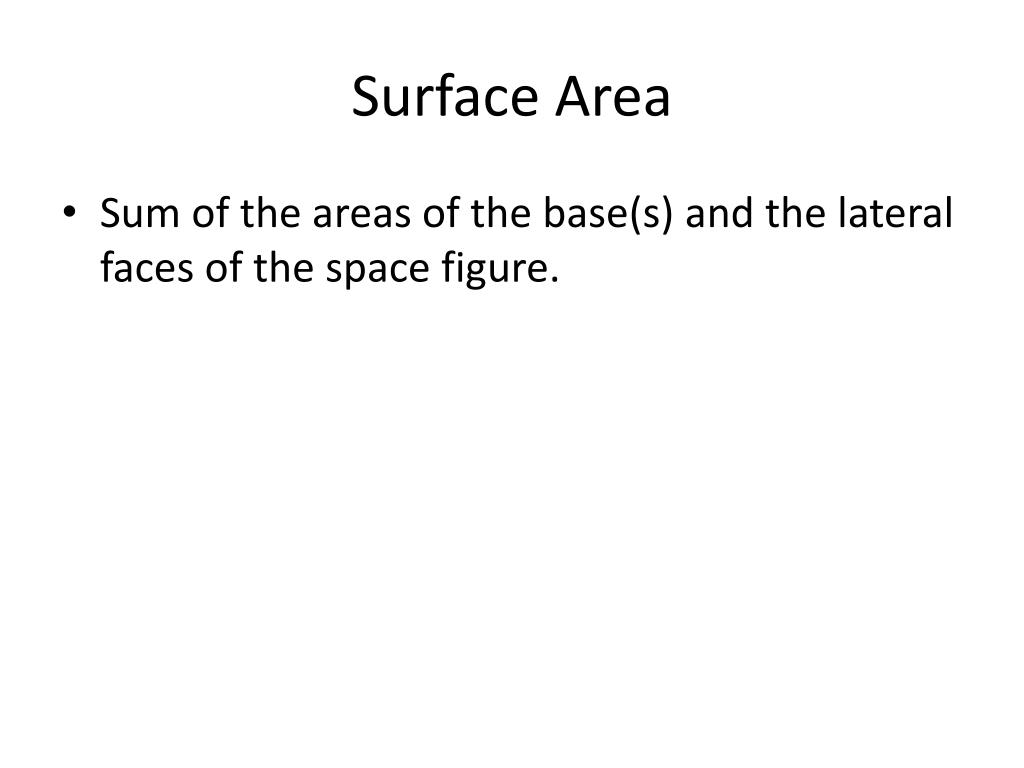

  2. Surface Area • Sum of the areas of the base(s) and the lateral faces of the space figure.

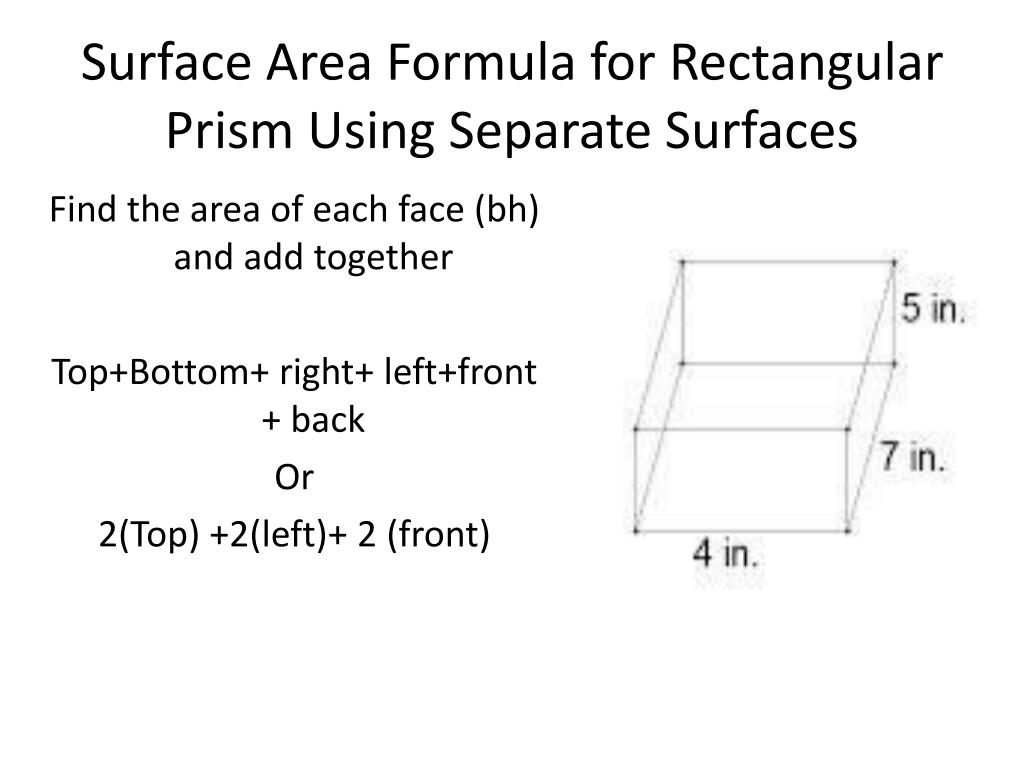

  3. Surface Area Formula for Rectangular Prism Using Separate Surfaces Find the area of each face (bh) and add together Top+Bottom+ right+ left+front + back Or 2(Top) +2(left)+ 2 (front)

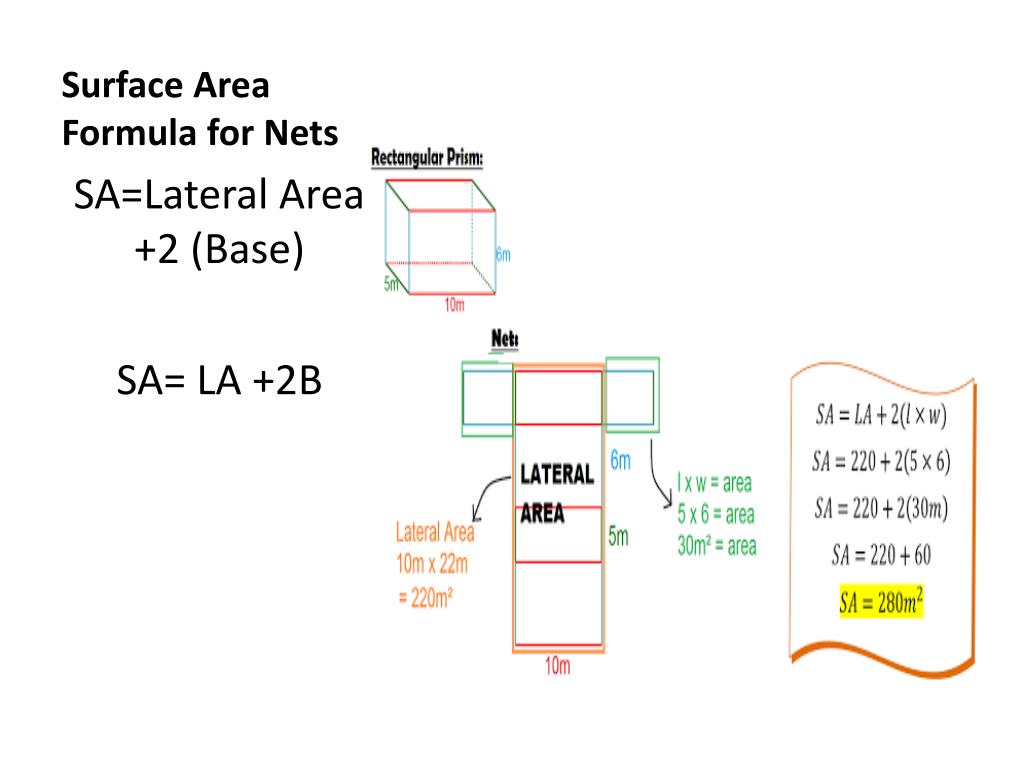

  4. Surface Area Formula for Nets SA=Lateral Area +2 (Base) SA= LA +2B

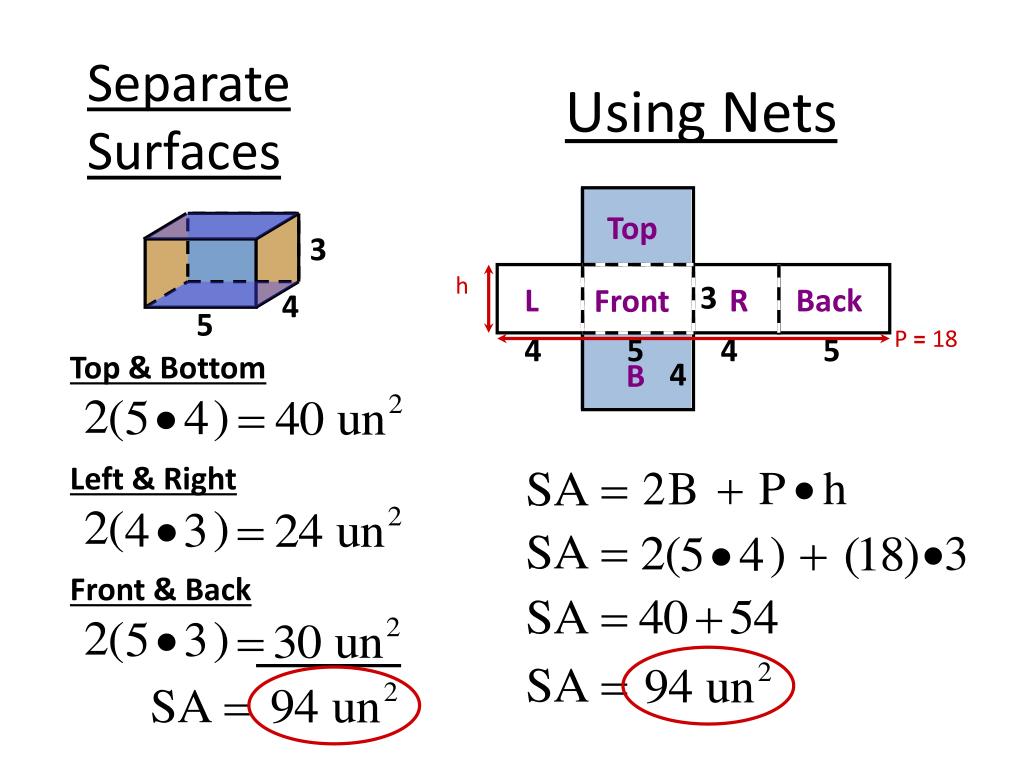

  5. Top L R Back Front B Separate Surfaces Using Nets 3 h 3 4 5 P = 18 4 5 4 5 Top & Bottom 4 Left & Right Front & Back

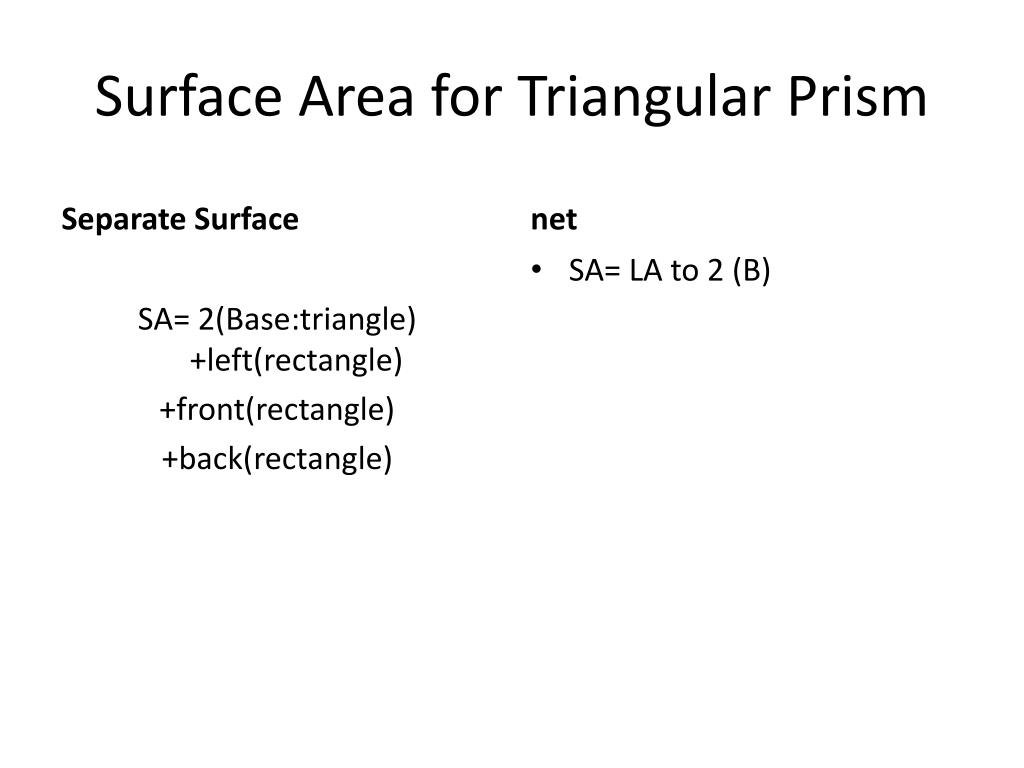

  6. Surface Area for Triangular Prism Separate Surface net SA= LA to 2 (B) SA= 2(Base:triangle) +left(rectangle) +front(rectangle) +back(rectangle)

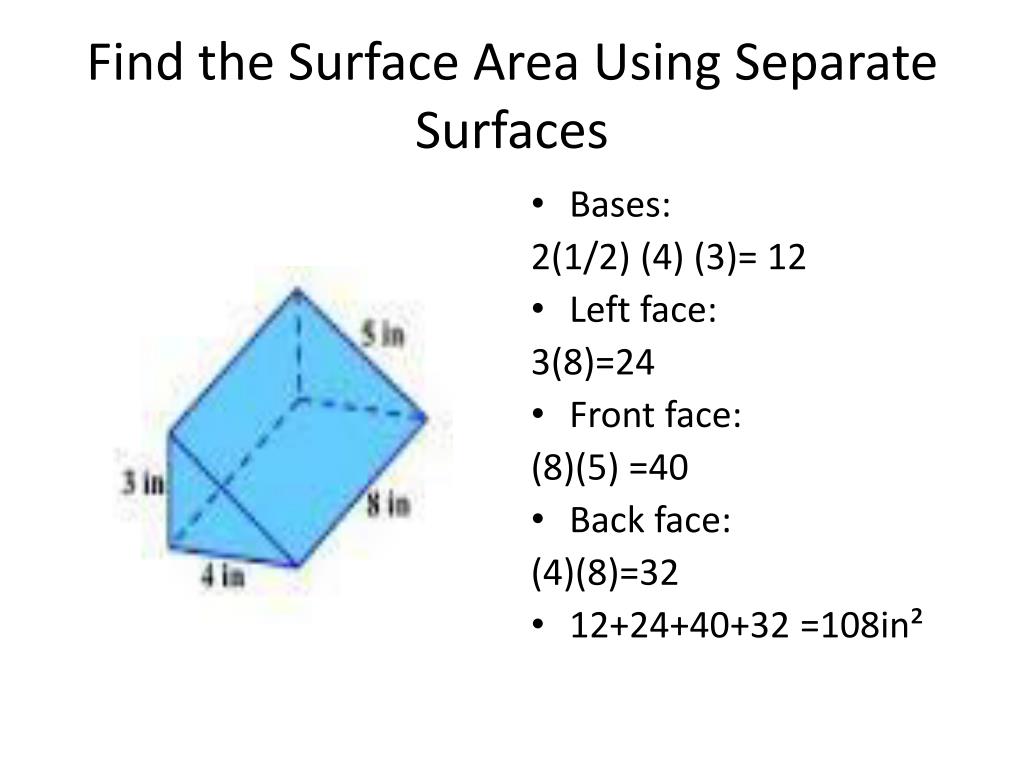

  7. Find the Surface Area Using Separate Surfaces • Bases: 2(1/2) (4) (3)= 12 • Left face: 3(8)=24 • Front face: (8)(5) =40 • Back face: (4)(8)=32 • 12+24+40+32 =108in²

  8. 5 3 3 4 5 6 . Find the Surface Area Using Nets 4 3 6 5

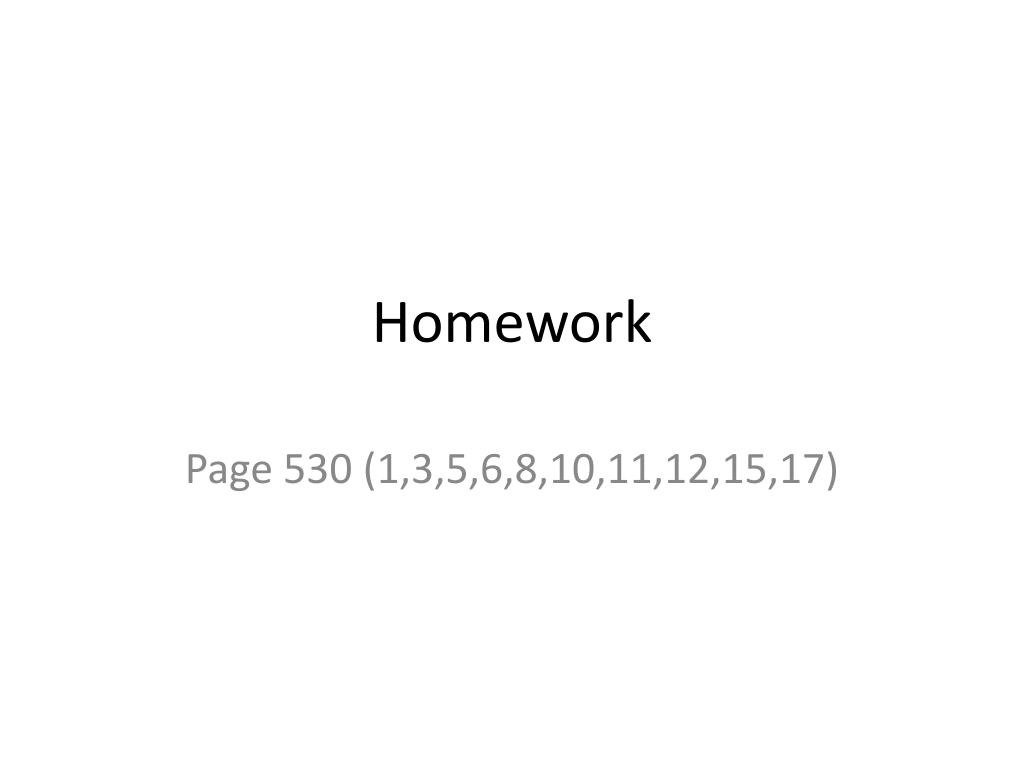

  9. Homework Page 530 (1,3,5,6,8,10,11,12,15,17)
