Comparing I > 2 Groups - Numeric Responses

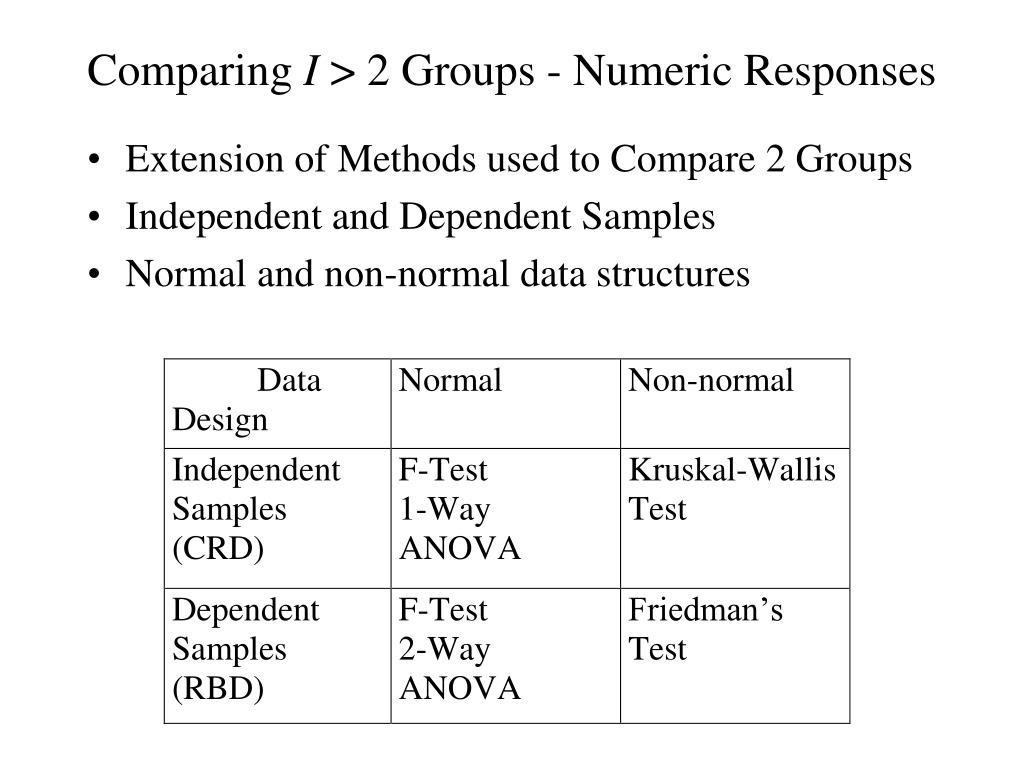

1. Comparing I > 2 Groups - Numeric Responses • Extension of Methods used to Compare 2 Groups • Independent and Dependent Samples • Normal and non-normal data structures

2. Independent Samples - Completely Randomized Design (CRD) • Controlled Experiments - Subjects assigned at random to one of the I treatments to be compared • Observational Studies - Subjects are sampled from I existing groups • Statistical model xij is a subject from group i: where miis the population mean of group/treatment i , eij is a random error

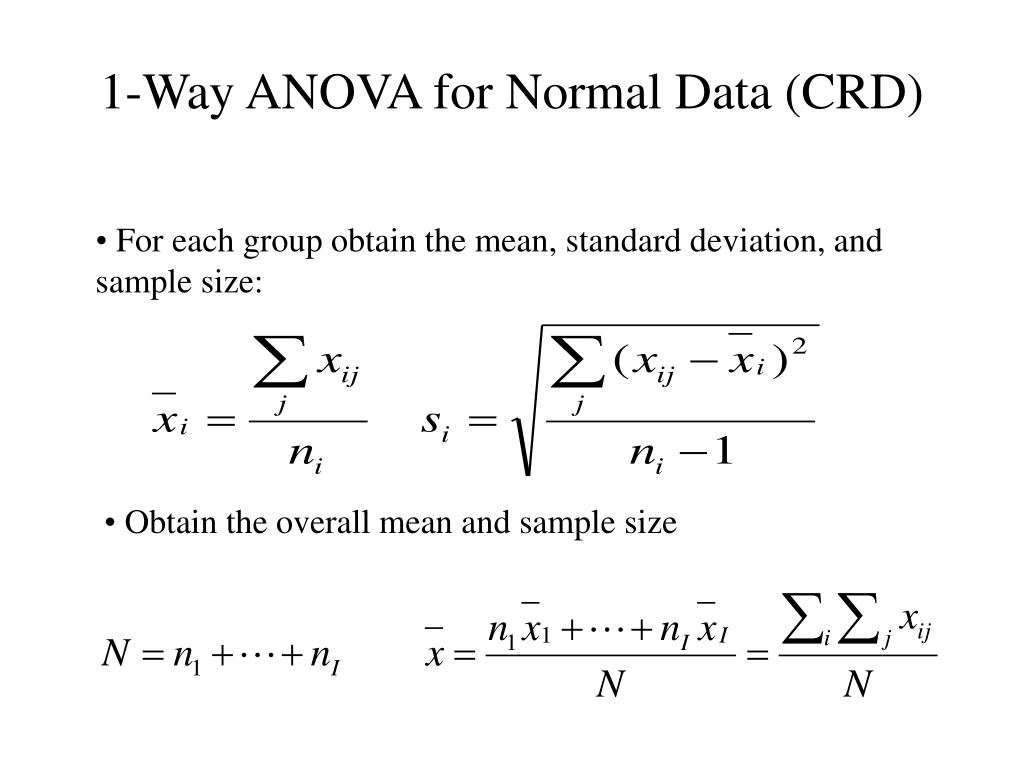

3. 1-Way ANOVA for Normal Data (CRD) • For each group obtain the mean, standard deviation, and sample size: • Obtain the overall mean and sample size

4. Analysis of Variance - Sums of Squares/Degrees of Freedom • Total Variation • Among Group Variation • Within Group Variation

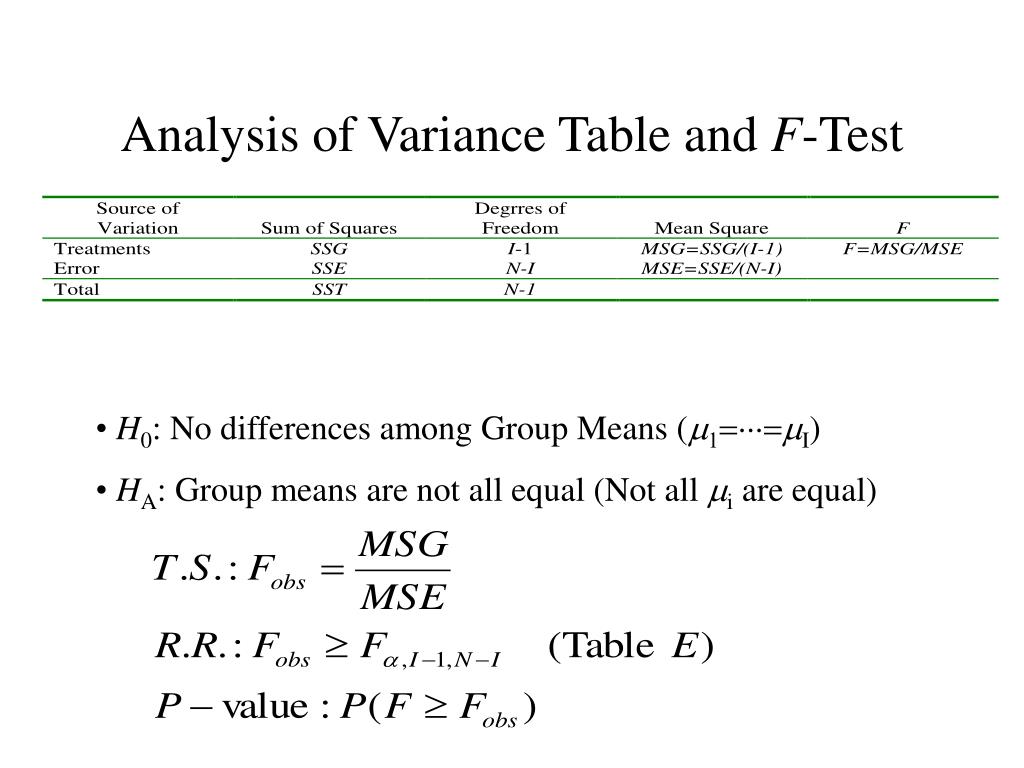

5. Analysis of Variance Table and F-Test • H0: No differences among Group Means (m1==mI) • HA: Group means are not all equal (Not all mi are equal)

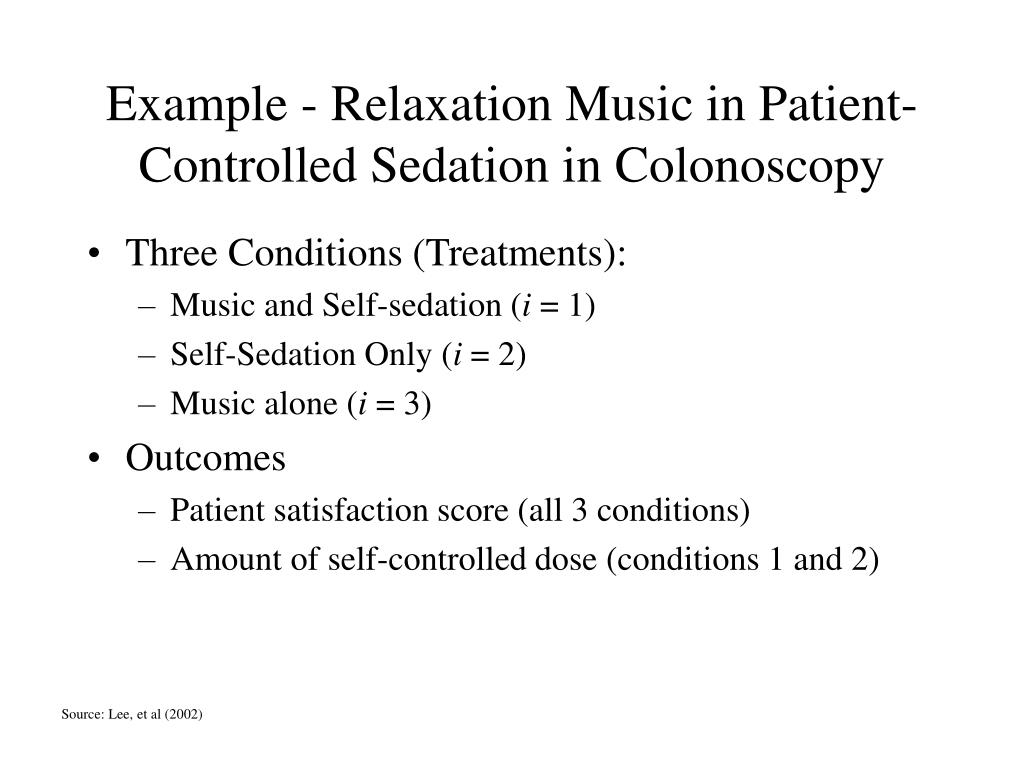

6. Example - Relaxation Music in Patient-Controlled Sedation in Colonoscopy • Three Conditions (Treatments): • Music and Self-sedation (i = 1) • Self-Sedation Only (i = 2) • Music alone (i = 3) • Outcomes • Patient satisfaction score (all 3 conditions) • Amount of self-controlled dose (conditions 1 and 2) Source: Lee, et al (2002)

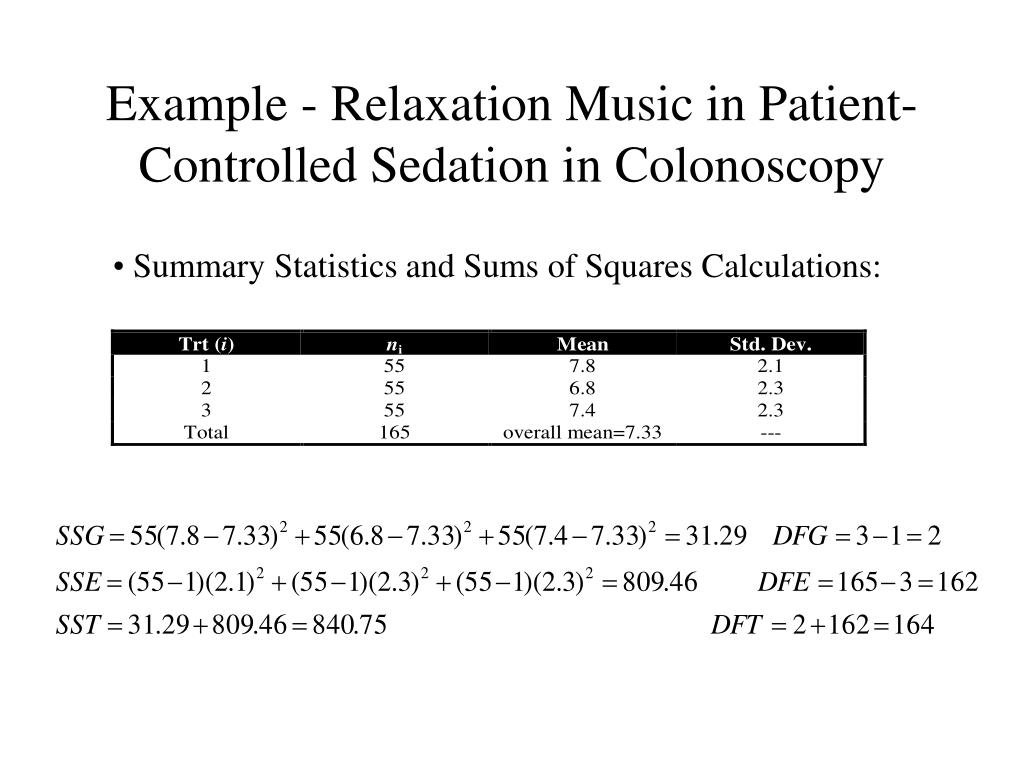

7. Example - Relaxation Music in Patient-Controlled Sedation in Colonoscopy • Summary Statistics and Sums of Squares Calculations:

8. Example - Relaxation Music in Patient-Controlled Sedation in Colonoscopy • Analysis of Variance and F-Test for Treatment effects • H0: No differences among Group Means (m1=m2=m3) • HA: Group means are not all equal (Not all mi are equal)

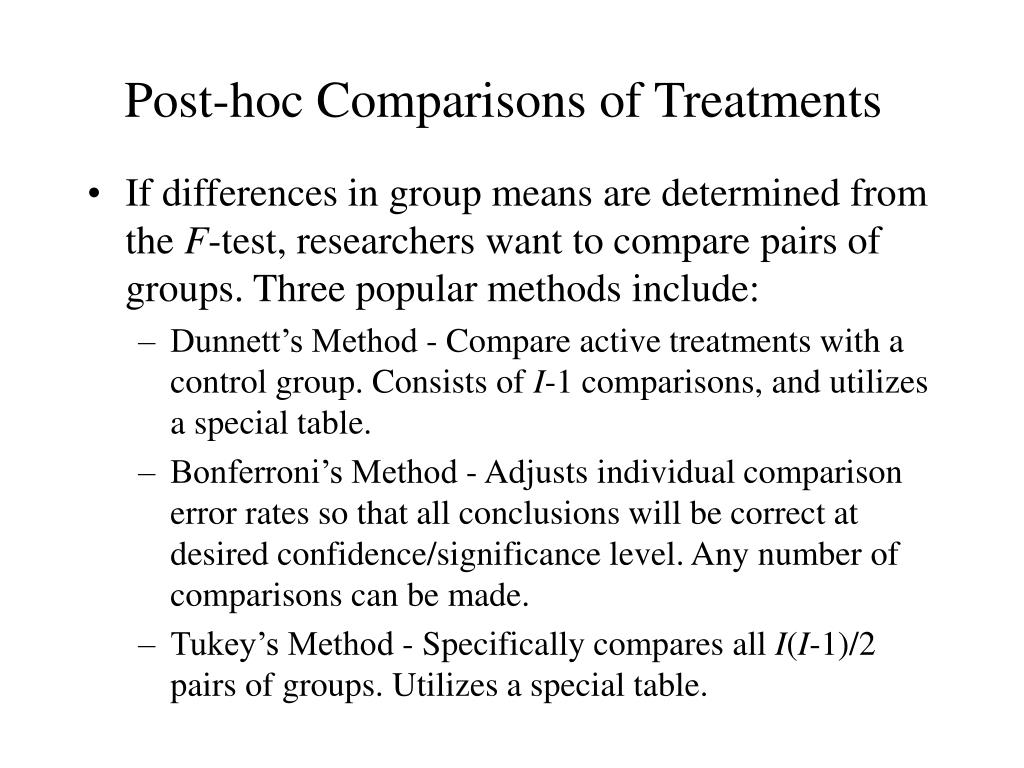

9. Post-hoc Comparisons of Treatments • If differences in group means are determined from the F-test, researchers want to compare pairs of groups. Three popular methods include: • Dunnett’s Method - Compare active treatments with a control group. Consists of I-1 comparisons, and utilizes a special table. • Bonferroni’s Method - Adjusts individual comparison error rates so that all conclusions will be correct at desired confidence/significance level. Any number of comparisons can be made. • Tukey’s Method - Specifically compares all I(I-1)/2 pairs of groups. Utilizes a special table.

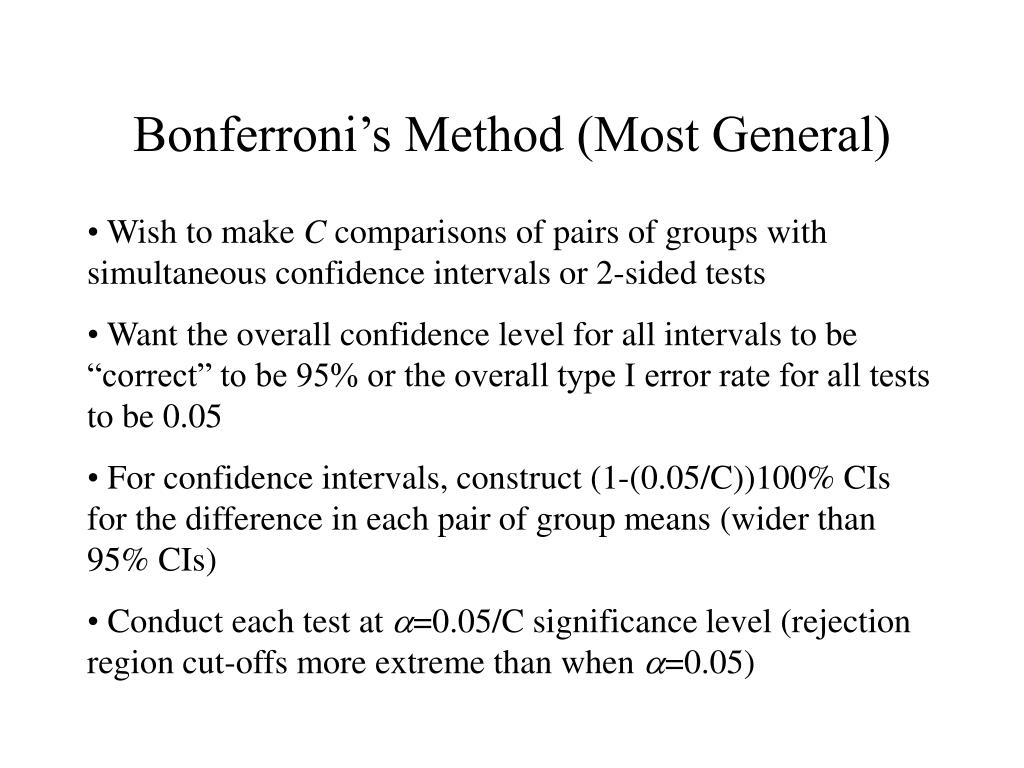

10. Bonferroni’s Method (Most General) • Wish to make C comparisons of pairs of groups with simultaneous confidence intervals or 2-sided tests • Want the overall confidence level for all intervals to be “correct” to be 95% or the overall type I error rate for all tests to be 0.05 • For confidence intervals, construct (1-(0.05/C))100% CIs for the difference in each pair of group means (wider than 95% CIs) • Conduct each test at a=0.05/C significance level (rejection region cut-offs more extreme than when a=0.05)

11. Bonferroni’s Method (Most General) • Simultaneous CI’s for pairs of group means: • If entire interval is positive, conclude mi > mj • If entire interval is negative, conclude mi < mj • If interval contains 0, cannot conclude mi mj

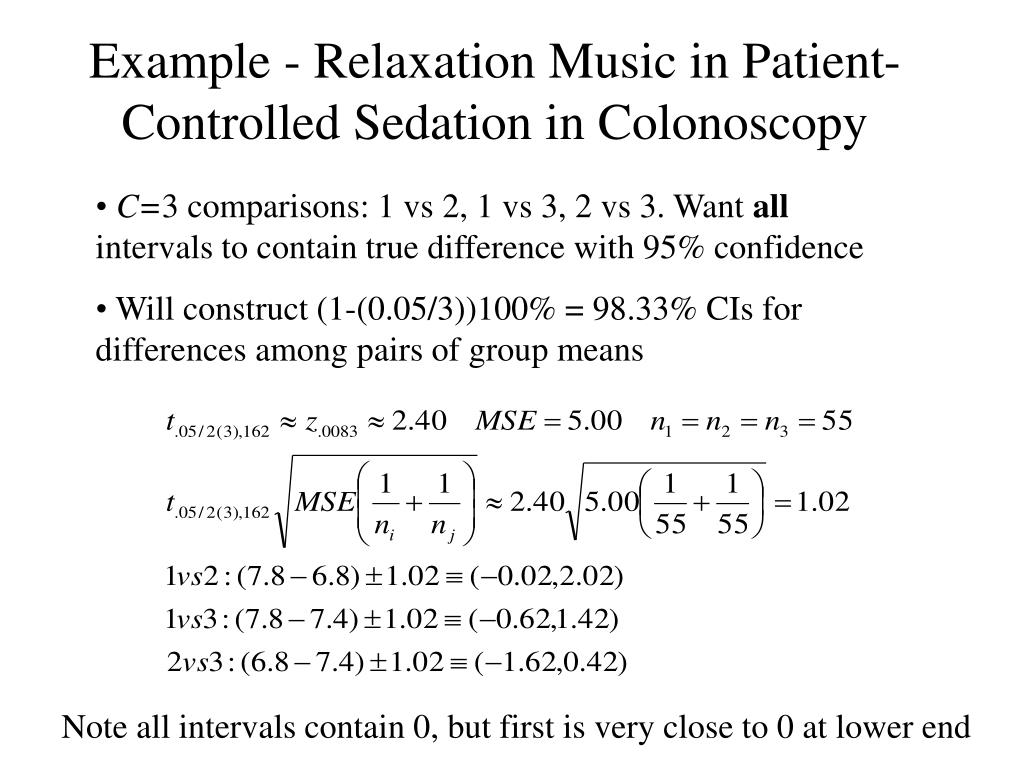

12. Example - Relaxation Music in Patient-Controlled Sedation in Colonoscopy • C=3 comparisons: 1 vs 2, 1 vs 3, 2 vs 3. Want all intervals to contain true difference with 95% confidence • Will construct (1-(0.05/3))100% = 98.33% CIs for differences among pairs of group means Note all intervals contain 0, but first is very close to 0 at lower end

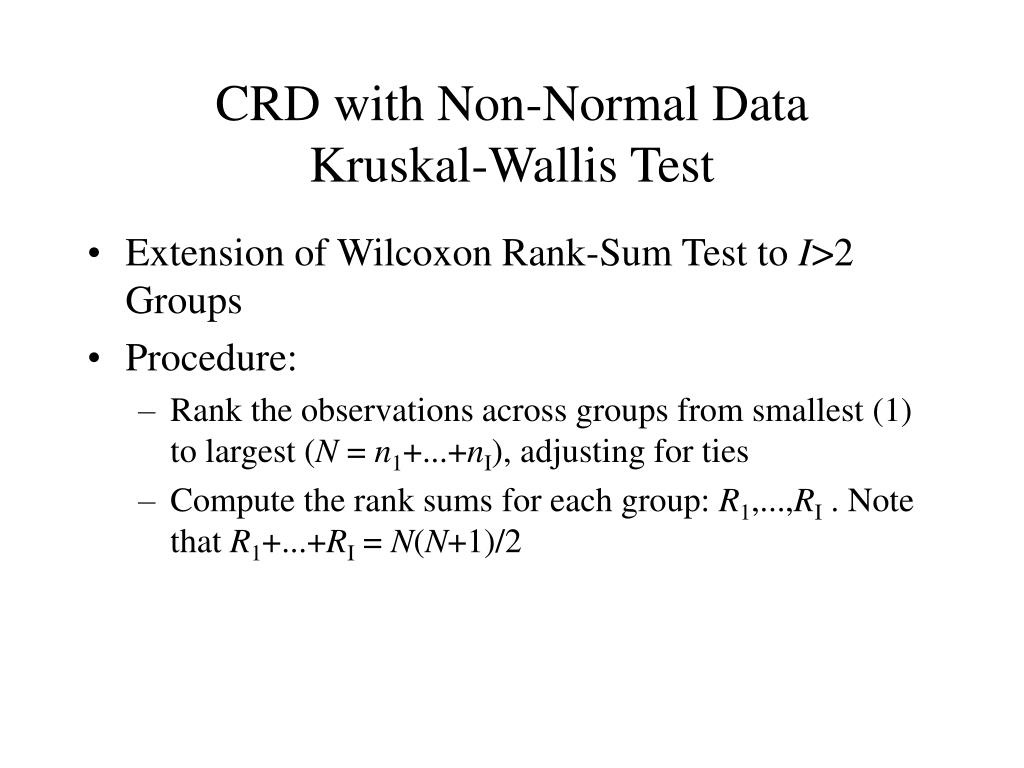

13. CRD with Non-Normal Data Kruskal-Wallis Test • Extension of Wilcoxon Rank-Sum Test to I>2 Groups • Procedure: • Rank the observations across groups from smallest (1) to largest (N = n1+...+nI), adjusting for ties • Compute the rank sums for each group: R1,...,RI . Note that R1+...+RI = N(N+1)/2

14. Kruskal-Wallis Test • H0: The I population distributions have same distribution • HA: Not all I distributions are identical Post-hoc comparisons of pairs of groups can be made by pairwise application of rank-sum test with Bonferroni adjustment

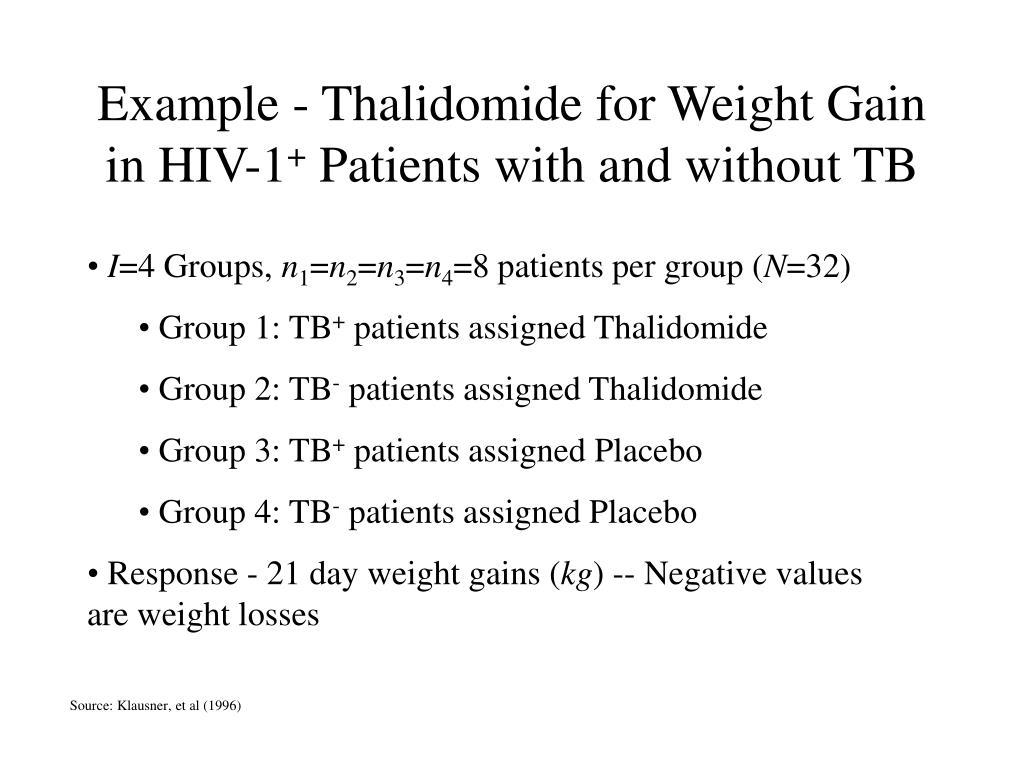

15. Example - Thalidomide for Weight Gain in HIV-1+ Patients with and without TB • I=4 Groups, n1=n2=n3=n4=8 patients per group (N=32) • Group 1: TB+ patients assigned Thalidomide • Group 2: TB- patients assigned Thalidomide • Group 3: TB+ patients assigned Placebo • Group 4: TB- patients assigned Placebo • Response - 21 day weight gains (kg) -- Negative values are weight losses Source: Klausner, et al (1996)

16. Example - Thalidomide for Weight Gain in HIV-1+ Patients with and without TB

17. Weight Gain Example - SPSS OutputF-Test and Post-Hoc Comparisons

18. Weight Gain Example - SPSS OutputF-Test and Post-Hoc Comparisons

19. Weight Gain Example - SPSS OutputKruskal-WallisH-Test

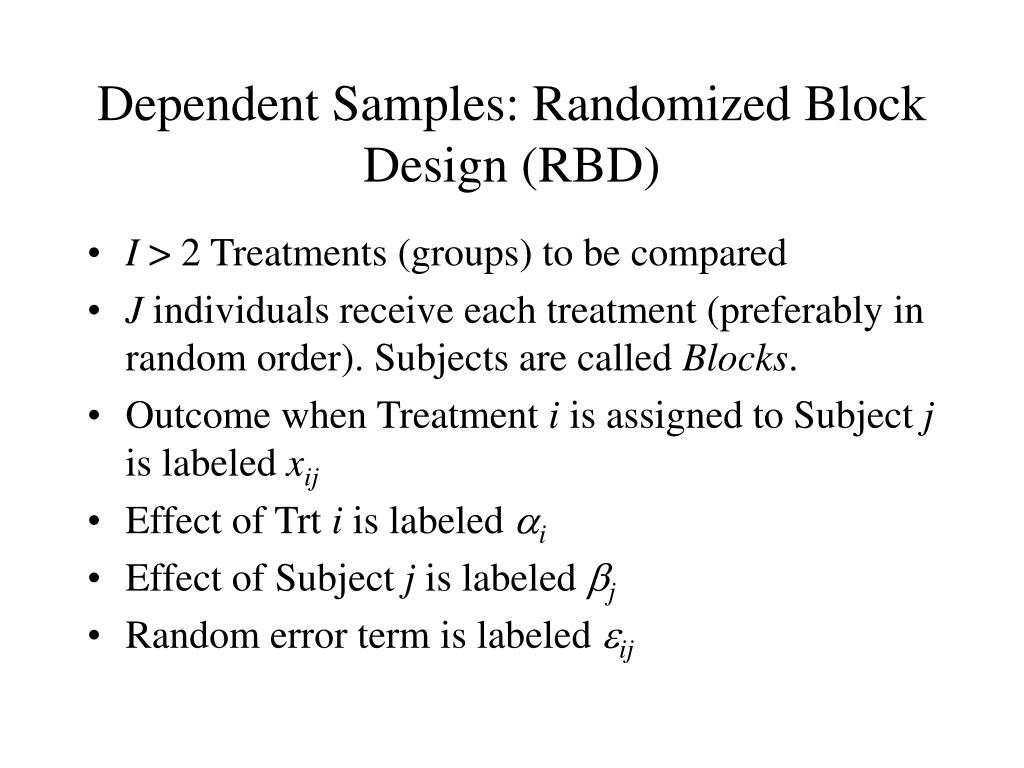

20. Dependent Samples: Randomized Block Design (RBD) • I > 2 Treatments (groups) to be compared • J individuals receive each treatment (preferably in random order). Subjects are called Blocks. • Outcome when Treatment i is assigned to Subject j is labeled xij • Effect of Trt i is labeled ai • Effect of Subject j is labeled bj • Random error term is labeled eij

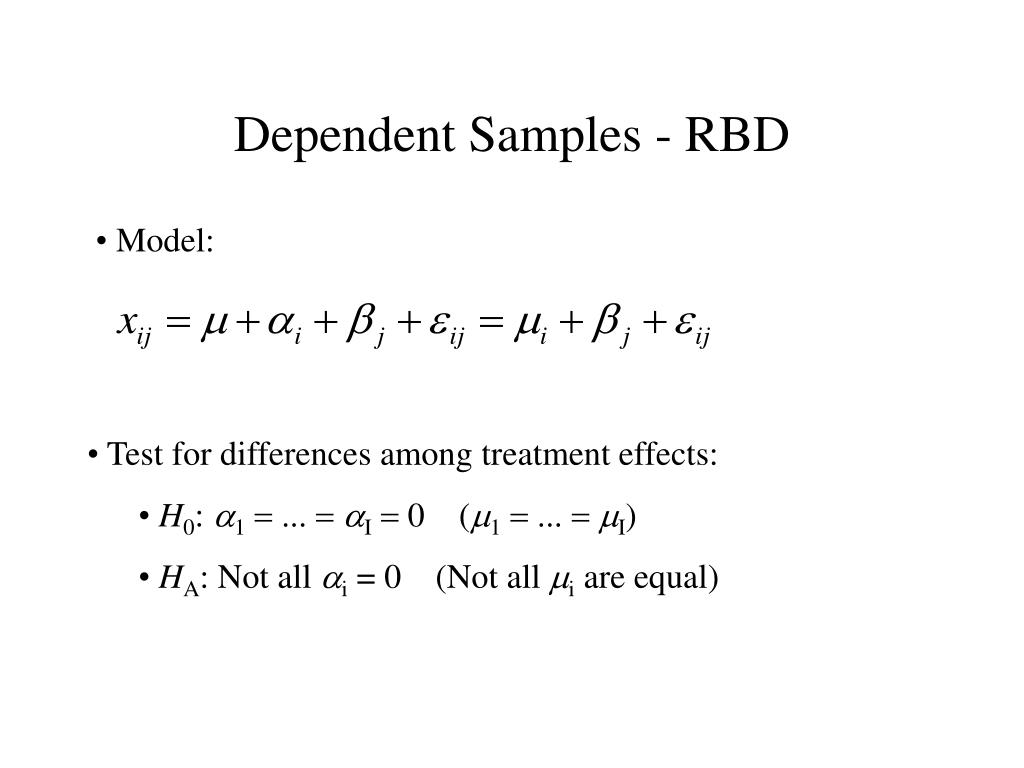

21. Dependent Samples - RBD • Model: • Test for differences among treatment effects: • H0: a1 = ... = aI= 0 (m1= ... = mI) • HA: Not all ai = 0 (Not all mi are equal)

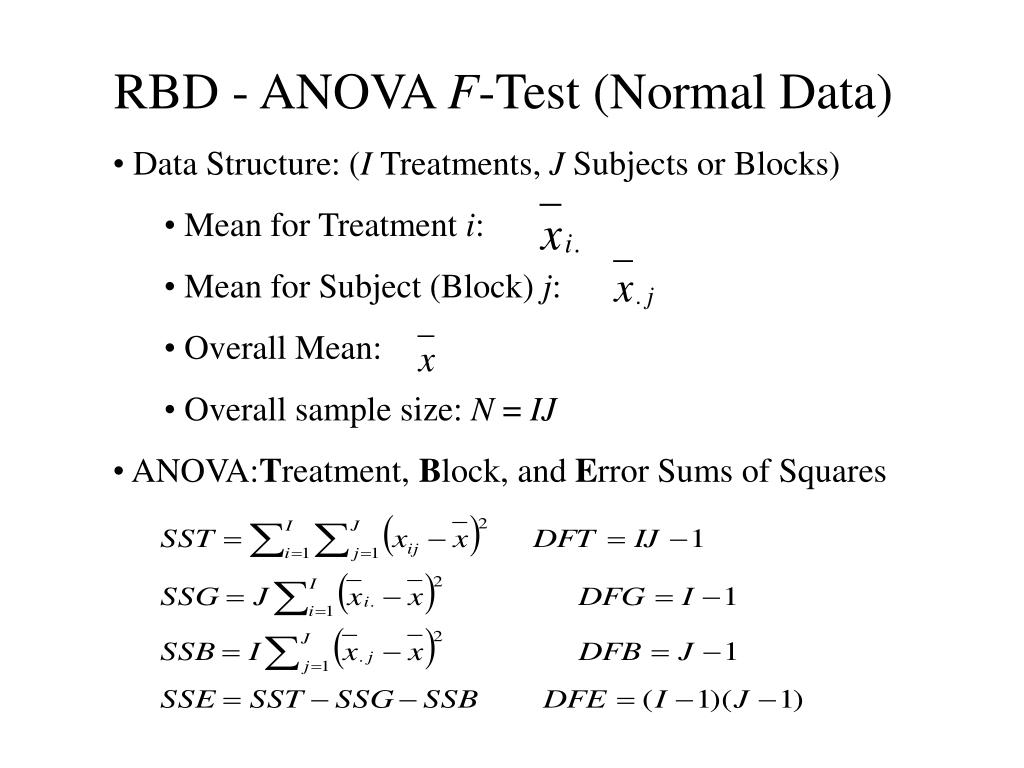

22. RBD - ANOVA F-Test (Normal Data) • Data Structure: (I Treatments, J Subjects or Blocks) • Mean for Treatment i: • Mean for Subject (Block) j: • Overall Mean: • Overall sample size: N = IJ • ANOVA:Treatment, Block, and Error Sums of Squares

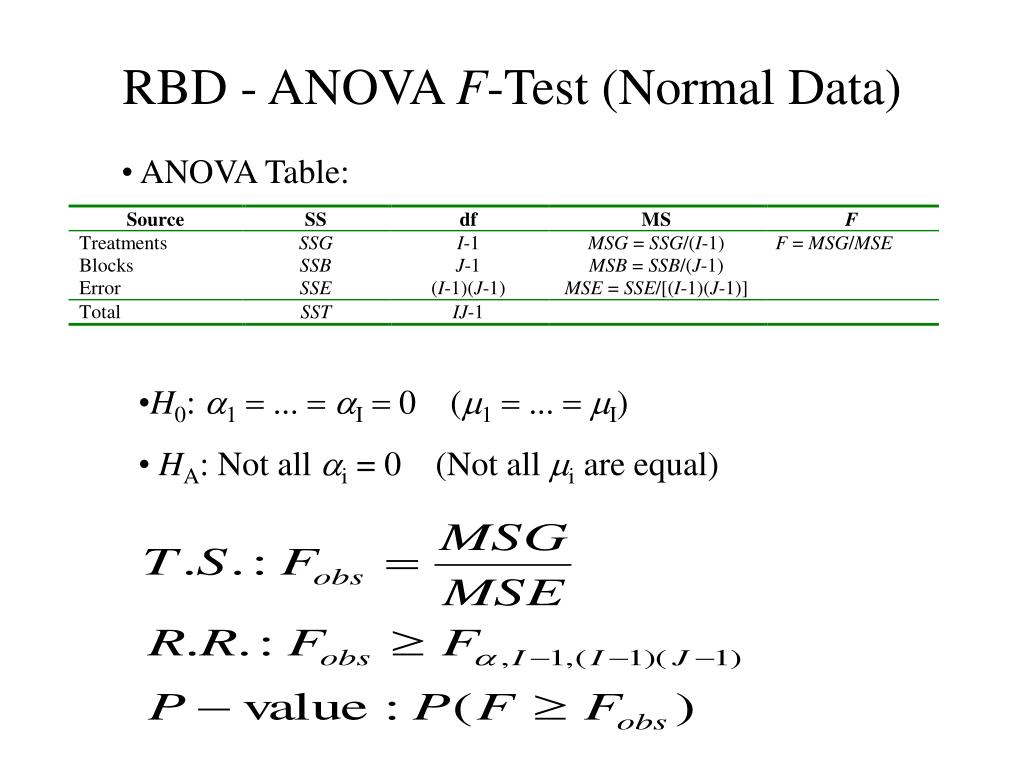

23. RBD - ANOVA F-Test (Normal Data) • ANOVA Table: • H0: a1 = ... = aI= 0 (m1= ... = mI) • HA: Not all ai = 0 (Not all mi are equal)

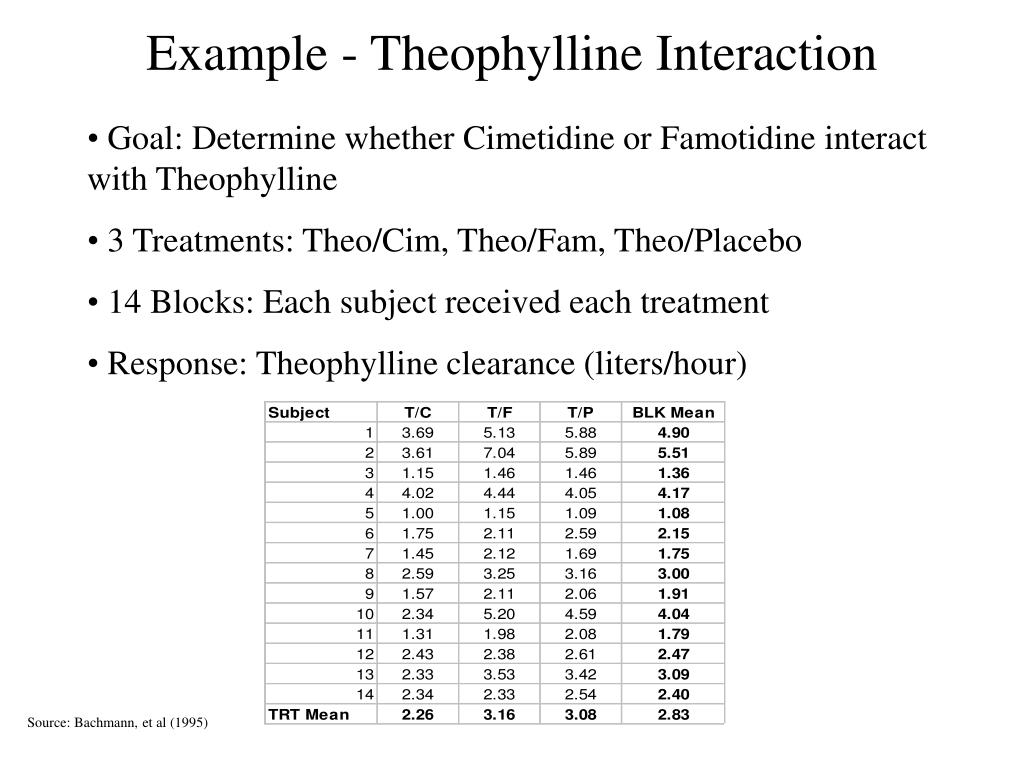

24. Example - Theophylline Interaction • Goal: Determine whether Cimetidine or Famotidine interact with Theophylline • 3 Treatments: Theo/Cim, Theo/Fam, Theo/Placebo • 14 Blocks: Each subject received each treatment • Response: Theophylline clearance (liters/hour) Source: Bachmann, et al (1995)

25. Example - Theophylline Interaction • The test for differences in mean theophylline clearance is given in the third line of the table • T.S.: Fobs=10.59 • R.R.:Fobs F.05,2,26 = 3.37 (From F-table) • P-value: .000 (Sig. Level)

26. Example - Theophylline InteractionPost-hoc Comparisons

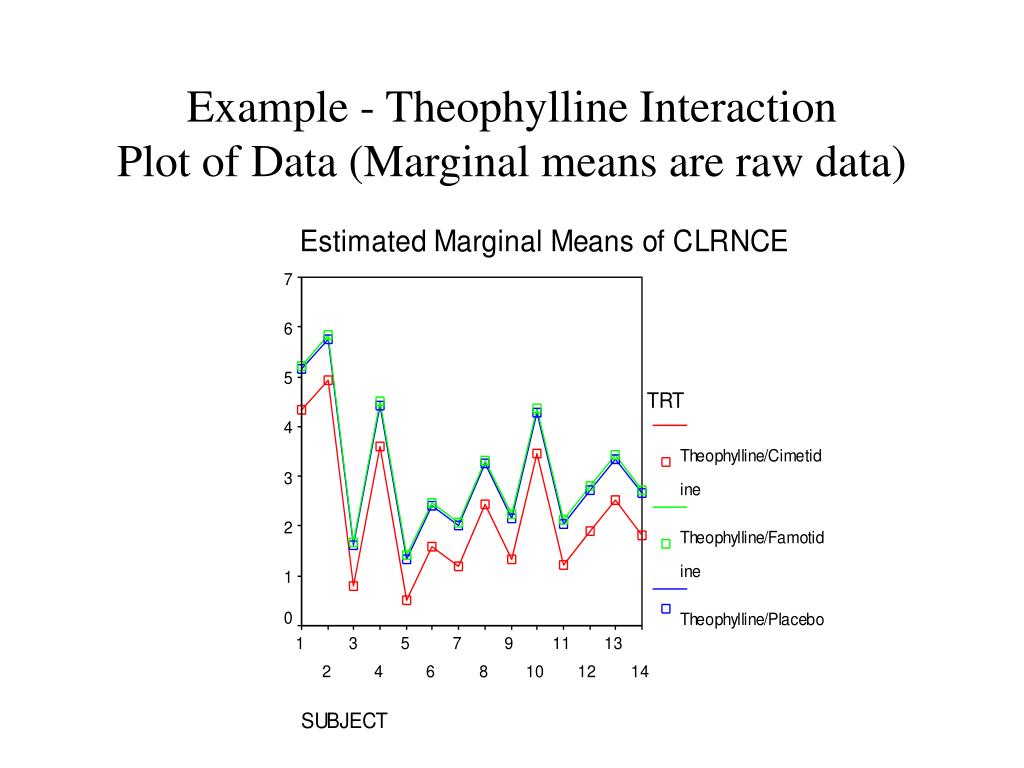

27. Example - Theophylline InteractionPlot of Data (Marginal means are raw data)

28. RBD -- Non-Normal DataFriedman’s Test • When data are non-normal, test is based on ranks • Procedure to obtain test statistic: • Rank the I treatments within each block (1=smallest, I=largest) adjusting for ties • Compute rank sums for treatments (Ri) across blocks • H0: The I populations are identical (m1=...=mI) • HA: Differences exist among the I group means

29. Example - tmaxfor 3 formulation/fasting states • I=3 Treatments of Valproate: Capsule/Fasting (i=1), Capsule/nonfasting (i=2), Enteric-Coated/fasting (i=3) • J=11 subjects • Response - Time to maximum concentration (tmax) Source: Carrigan, et al (1990)

30. Example - tmaxfor 3 formulation/fasting states • H0: The I populations are identical (m1=...=mI) • HA: Differences exist among the I group means

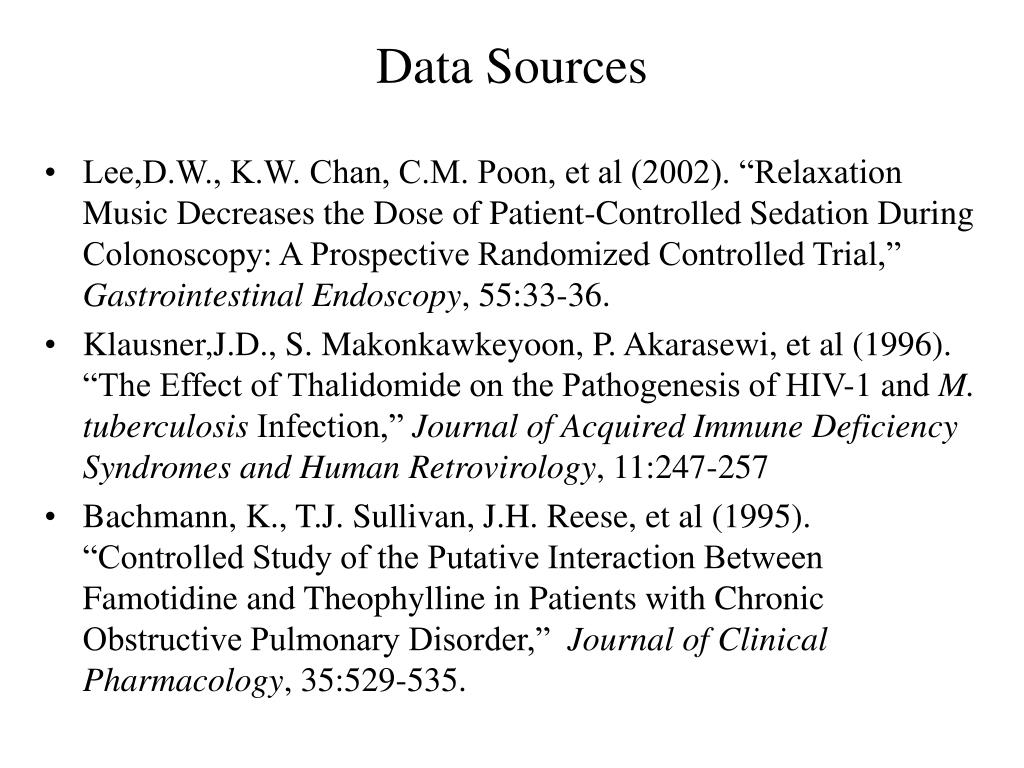

31. Data Sources • Lee,D.W., K.W. Chan, C.M. Poon, et al (2002). “Relaxation Music Decreases the Dose of Patient-Controlled Sedation During Colonoscopy: A Prospective Randomized Controlled Trial,” Gastrointestinal Endoscopy, 55:33-36. • Klausner,J.D., S. Makonkawkeyoon, P. Akarasewi, et al (1996). “The Effect of Thalidomide on the Pathogenesis of HIV-1 and M. tuberculosis Infection,” Journal of Acquired Immune Deficiency Syndromes and Human Retrovirology, 11:247-257 • Bachmann, K., T.J. Sullivan, J.H. Reese, et al (1995). “Controlled Study of the Putative Interaction Between Famotidine and Theophylline in Patients with Chronic Obstructive Pulmonary Disorder,” Journal of Clinical Pharmacology, 35:529-535.
