Banding pattern

Banding pattern. Banding pattern seen in the electron microscope. Banding pattern seen in the polarizing microscope. Light bands: I bands (I-L I GHT).Thin filaments only Dark bands: A bands (A-D A RK).overlapping thick and thin filaments.

piera
Download Presentation

Banding pattern

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Banding pattern Banding pattern seen in the electron microscope Banding pattern seen in the polarizing microscope

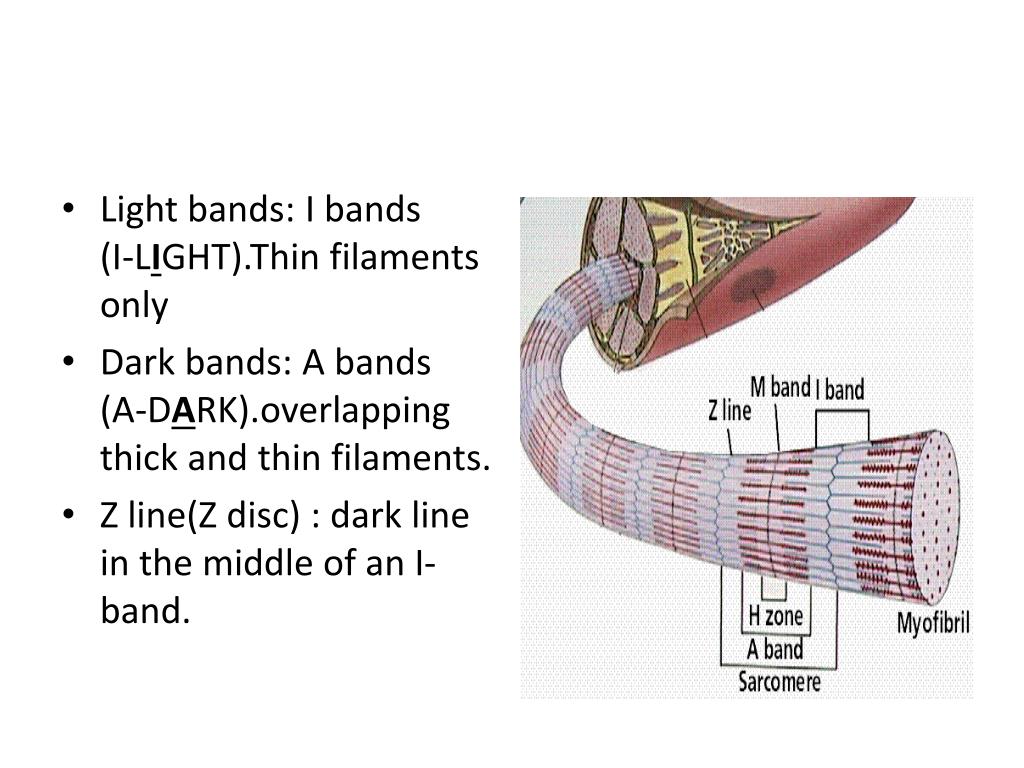

  2. Light bands: I bands (I-LIGHT).Thin filaments only • Dark bands: A bands (A-DARK).overlapping thick and thin filaments. • Z line(Z disc) : dark line in the middle of an I-band.

  3. H-zone : a lighter, central region in the middle of a dark A-band. Only thick filaments. • Sarcomere : runs from Z-line to Z-line (functional contractile unit)

  4. Sliding filament hypothesis of contraction • Nerve impulses carried from brain/spinal cord to muscle by the axon of a motor neuron • Axon meets muscle fiber at the neuromuscular junction(myoneural junction) • Axon releases a chemical neurotransmitter called acetrylcholine, which binds to sarcolemma. • A nerve impulse is generated in sarcolemma and it passes down the t-tubules. As a result the sarcoplasmic reticulum releases Ca++ ions

  5. MUSCLE CELL OR FIBER

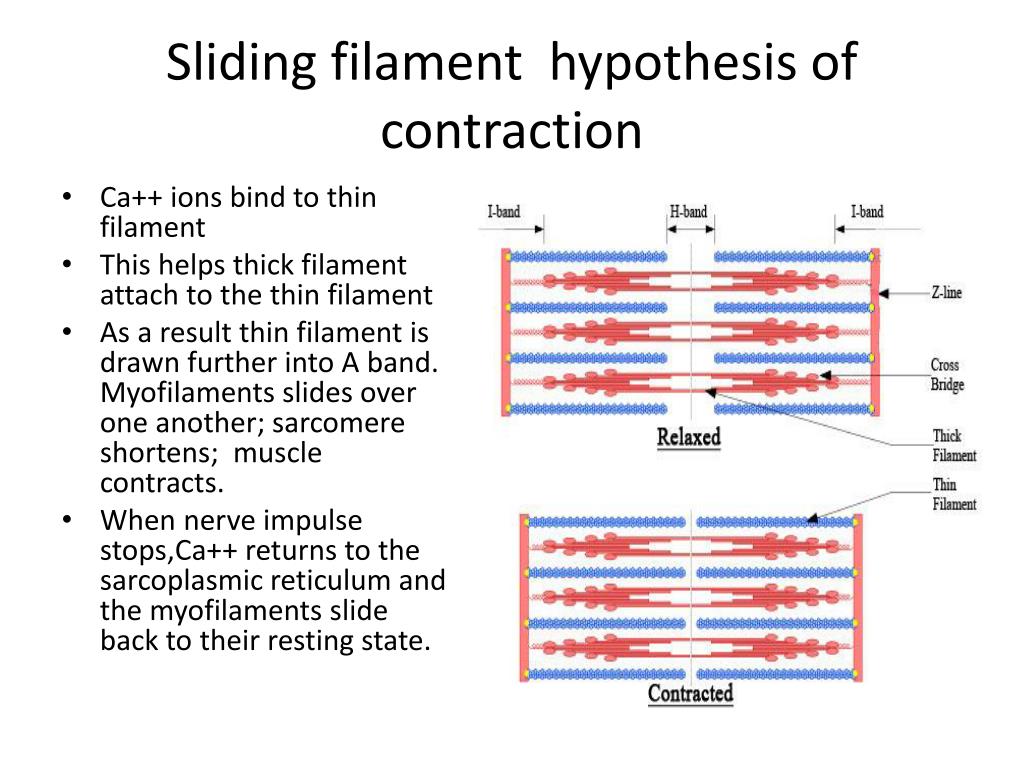

  6. Sliding filament hypothesis of contraction • Ca++ ions bind to thin filament • This helps thick filament attach to the thin filament • As a result thin filament is drawn further into A band. Myofilaments slides over one another; sarcomere shortens; muscle contracts. • When nerve impulse stops,Ca++ returns to the sarcoplasmic reticulum and the myofilaments slide back to their resting state.
