  1. Please Note:Information contained in this document is consideredLENOVO CONFIDENTIALFor Lenovo Internal Use OnlyDo Not Copy or Distribute!! For Lenovo APR Service only

  2. IdeaPad S10-3Hardware Disassembly

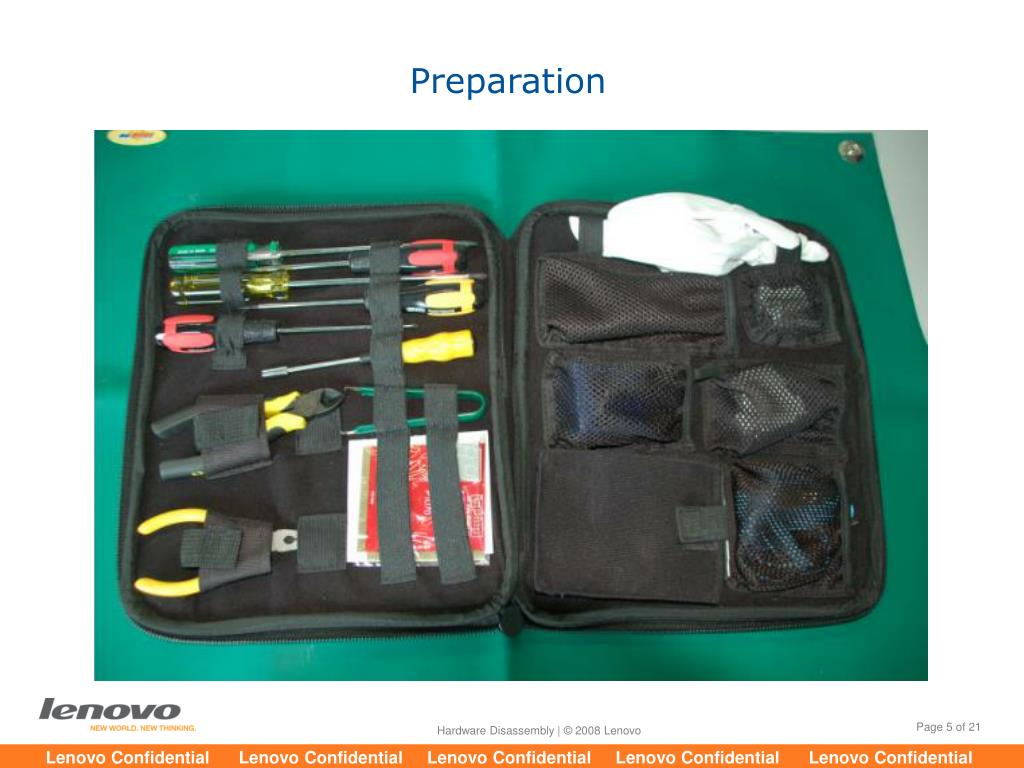

  3. Preparation

  4. Legend Screw Cable Movement Comment

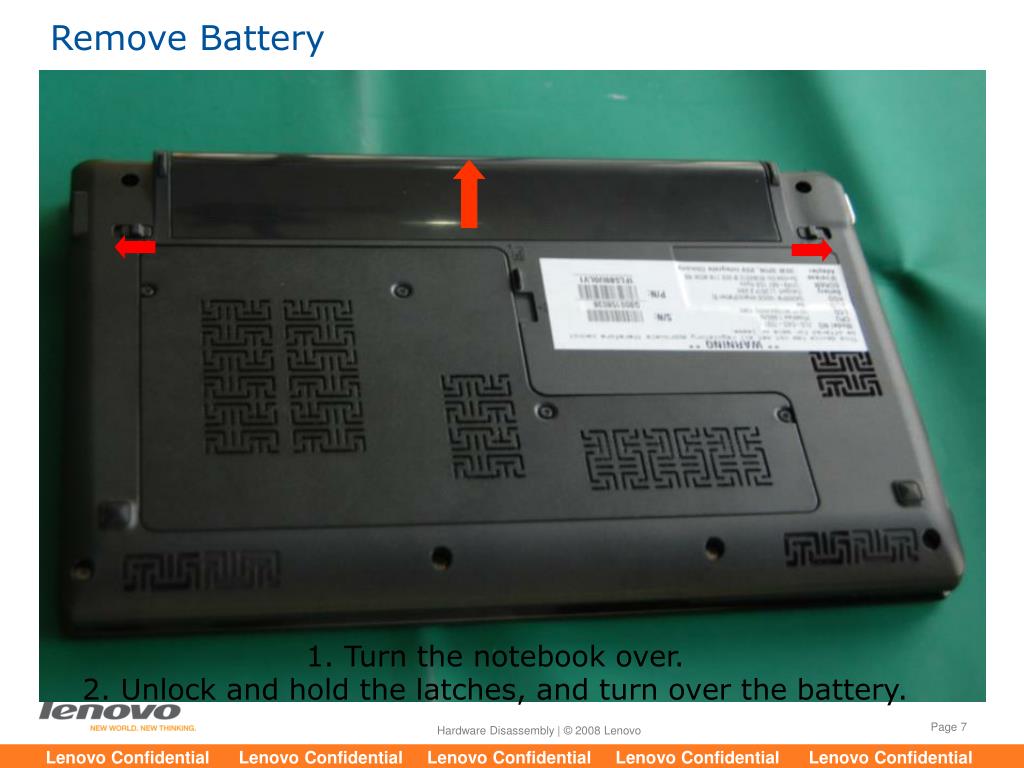

  5. Remove Battery 1. Turn the notebook over. 2. Unlock and hold the latches, and turn over the battery.

  6. Remove Battery - continue 3. Battery is removed.

  7. Remove Bottom Cover Module Remove 4 screws and take the cover away.

  8. Remove Memory Module WLAN HDD WWAN/GPS Memory Pull two latches and pop the Memory module up to the 45°angles, and then pull out the module in that angle.

  9. Remove HDD Module M2*3 WLAN WWAN/GPS Note: Pay attention to the positions of the screws. 4 screws are used to fix the HDD. Two of them are on the bottom cover. 1. Remove 2 screws and pull out the HDD module.

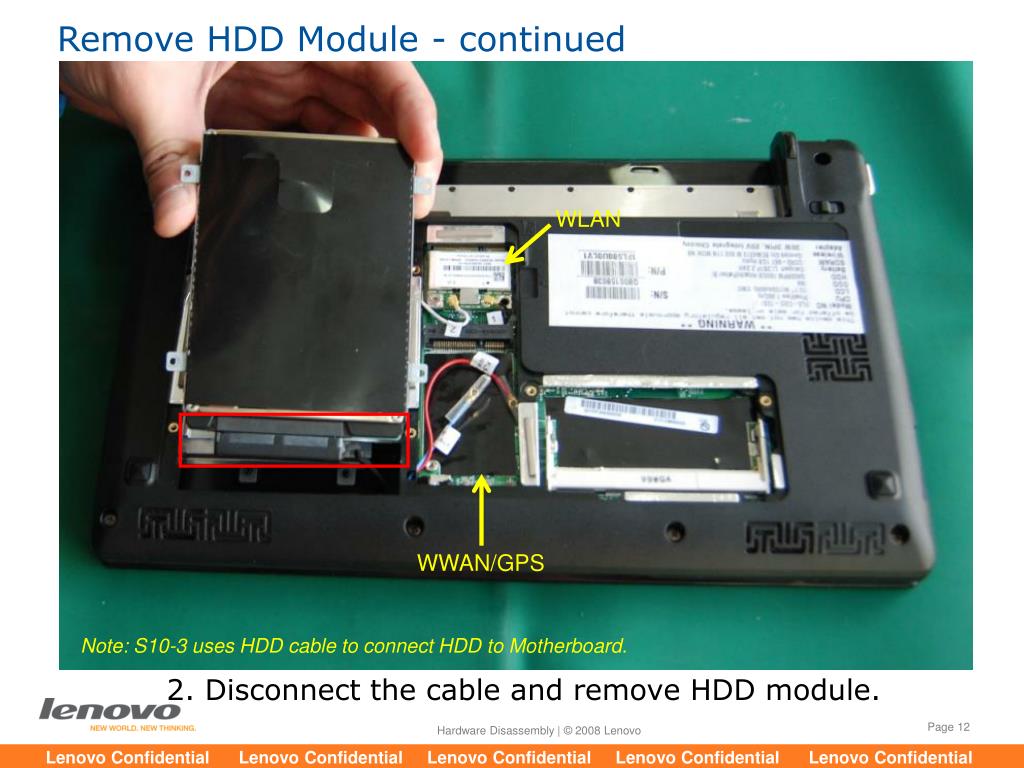

  10. Remove HDD Module - continued WLAN WWAN/GPS Note: S10-3 uses HDD cable to connect HDD to Motherboard. 2. Disconnect the cable and remove HDD module.

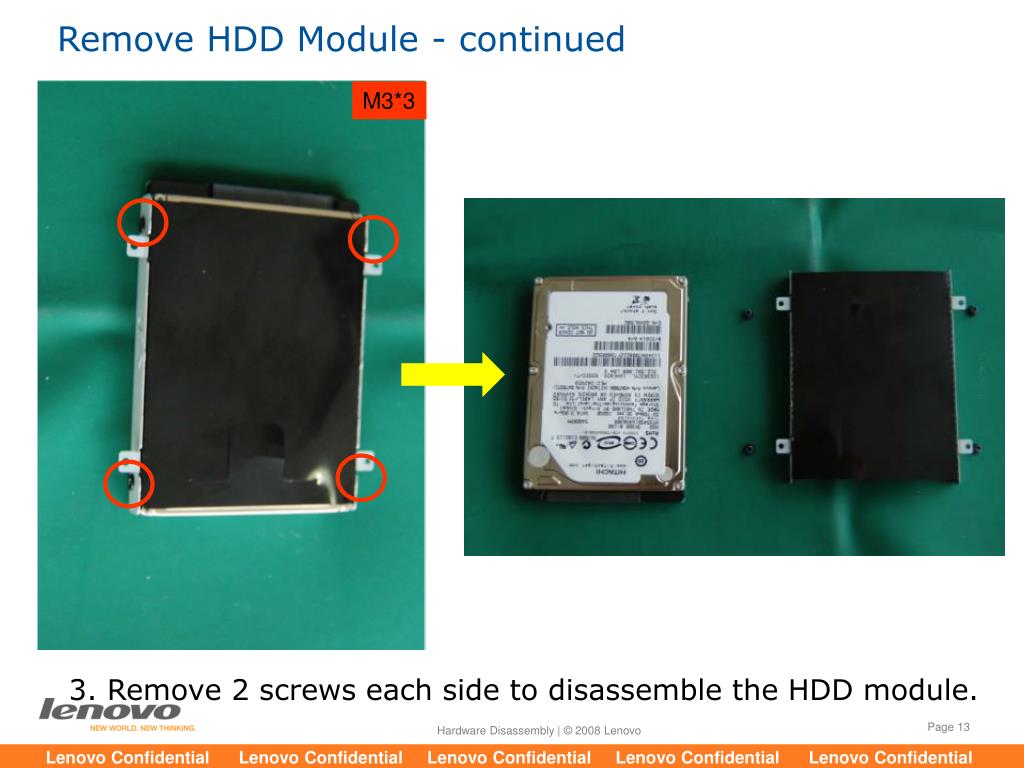

  11. Remove HDD Module - continued M3*3 3. Remove 2 screws each side to disassemble the HDD module.

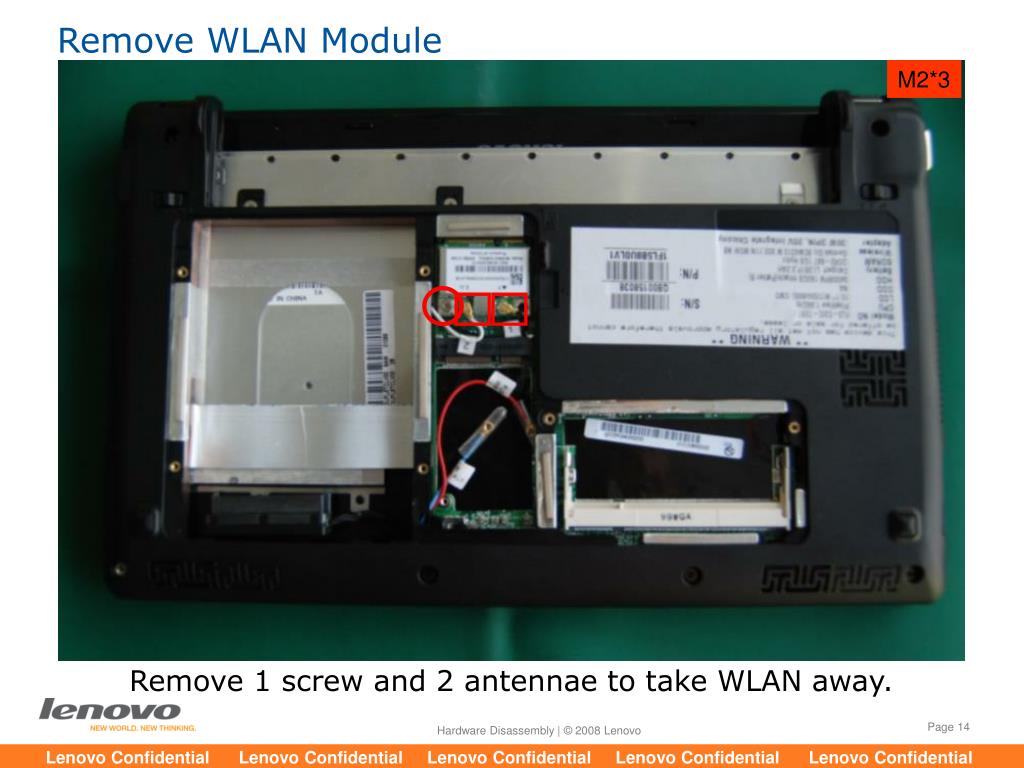

  12. Remove WLAN Module M2*3 Remove 1 screw and 2 antennae to take WLAN away.

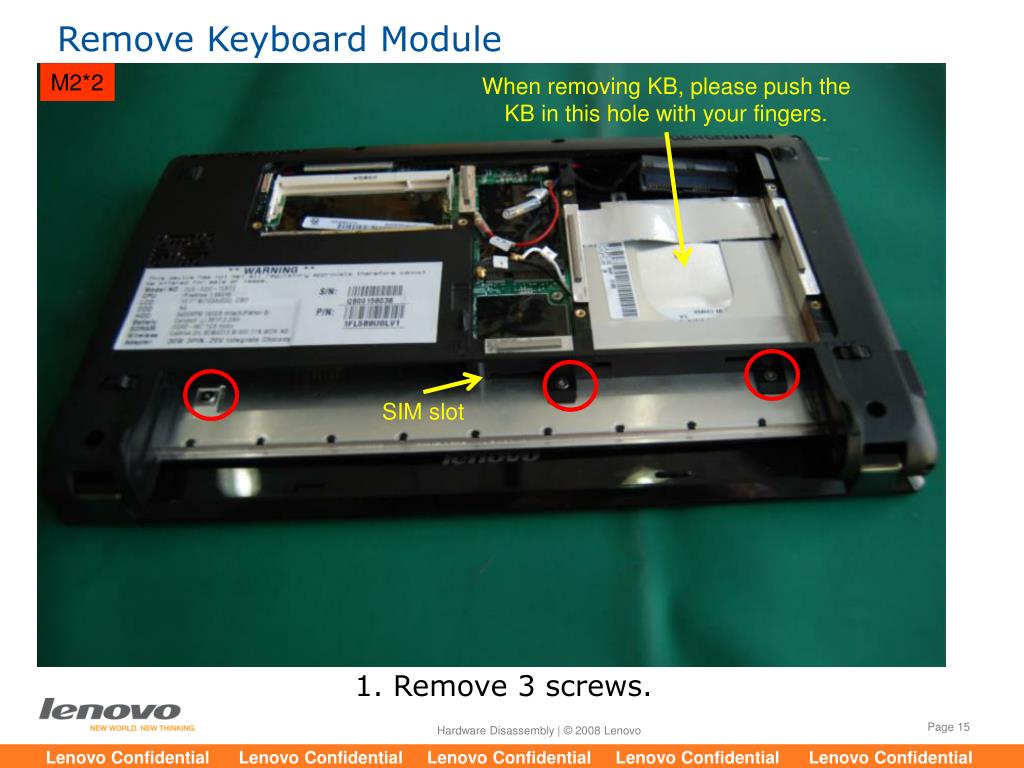

  13. Remove Keyboard Module M2*2 When removing KB, please push the KB in this hole with your fingers. SIM slot 1. Remove 3 screws.

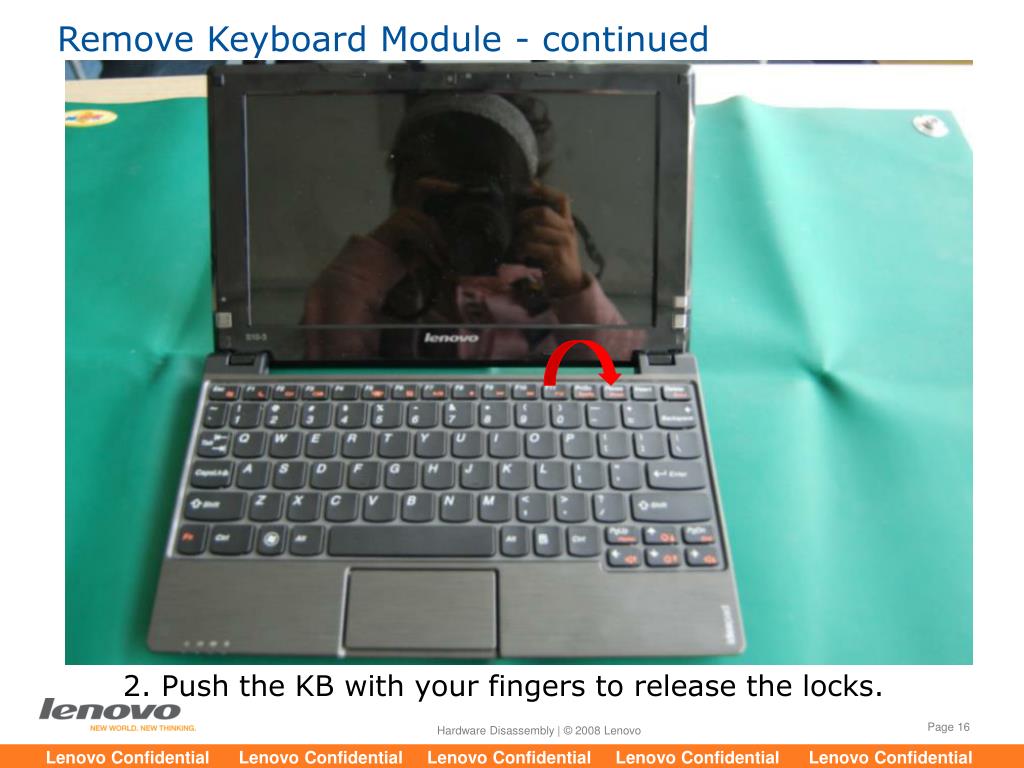

  14. Remove Keyboard Module - continued 2. Push the KB with your fingers to release the locks.

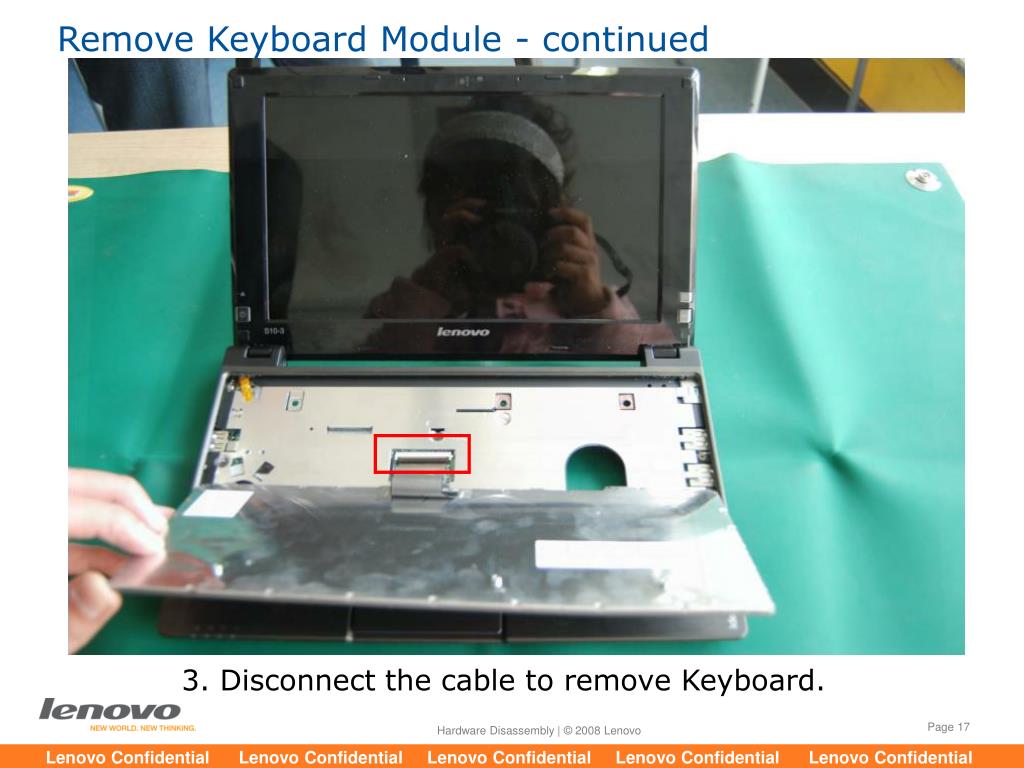

  15. Remove Keyboard Module - continued 3. Disconnect the cable to remove Keyboard.

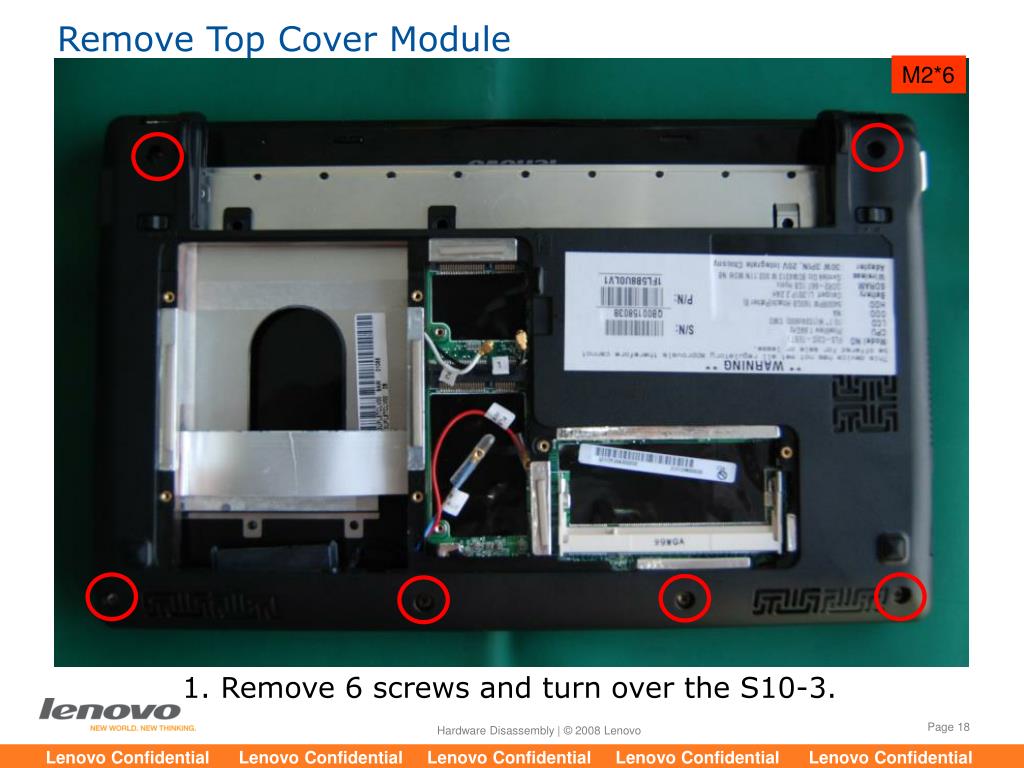

  16. Remove Top Cover Module M2*6 1. Remove 6 screws and turn over the S10-3.

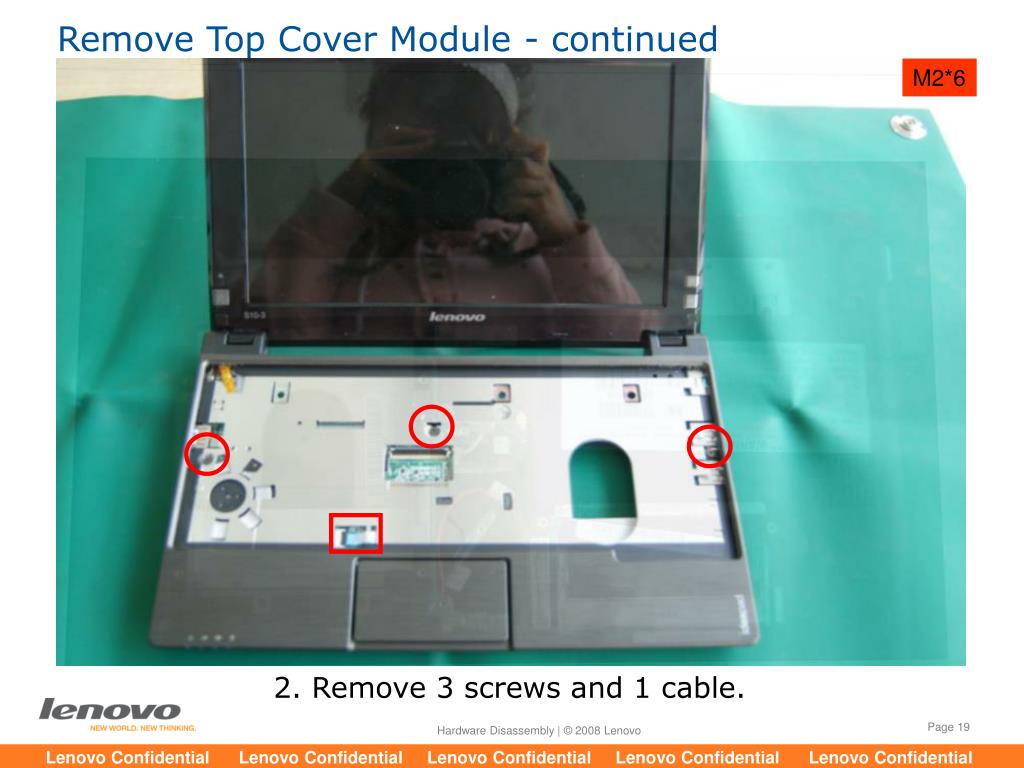

  17. Remove Top Cover Module - continued M2*6 2. Remove 3 screws and 1 cable.

  18. Remove Top Cover Module - continued 3. Release the locks and Lift up the Top Cover.

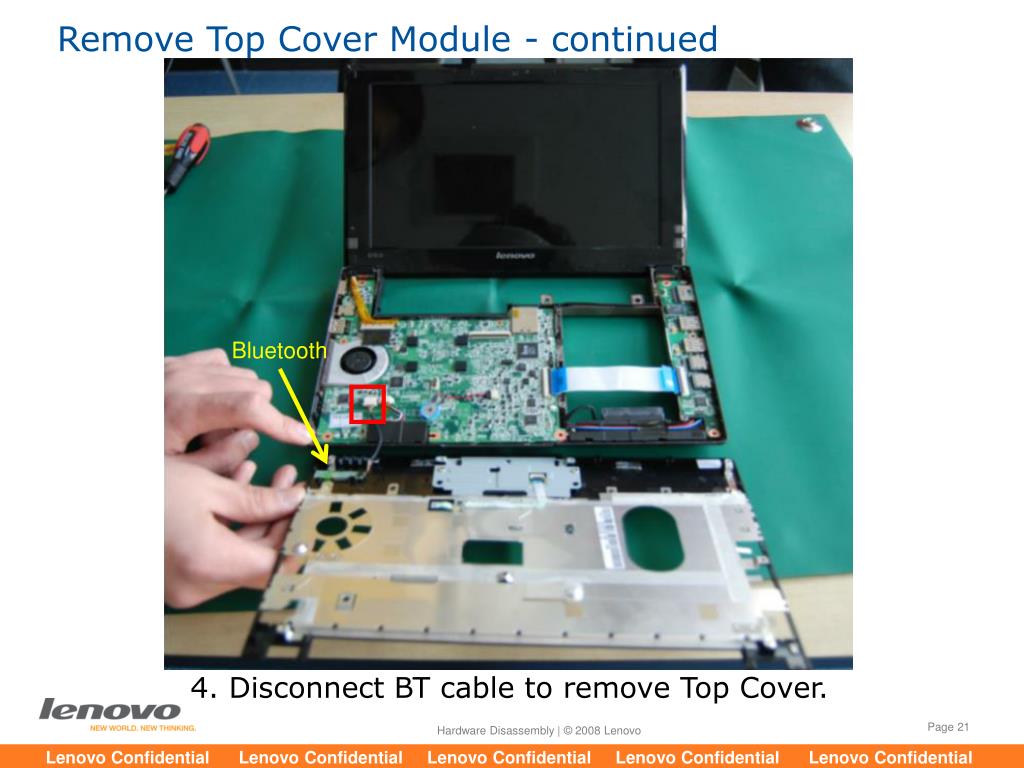

  19. Remove Top Cover Module - continued Bluetooth 4. Disconnect BT cable to remove Top Cover.

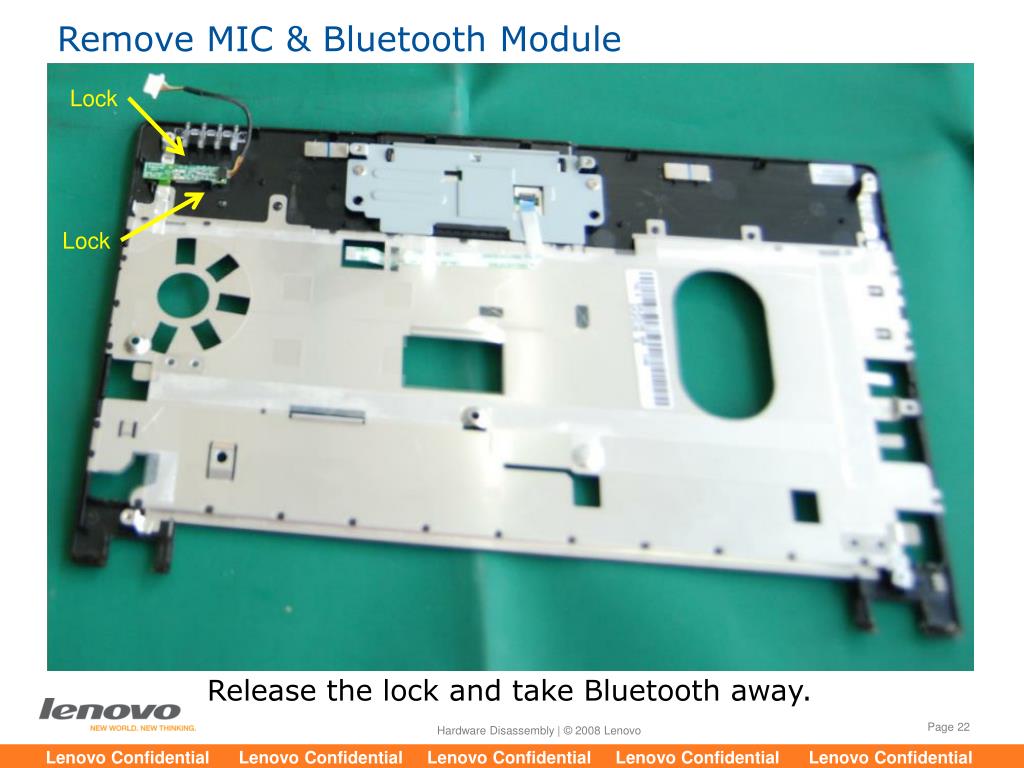

  20. Remove MIC & Bluetooth Module Lock Lock Release the lock and take Bluetooth away.

  21. Remove TouchPad Module Lock Lock 1. Remove 2 screws and 1 cable and release the lock to take the Touchpad cover.

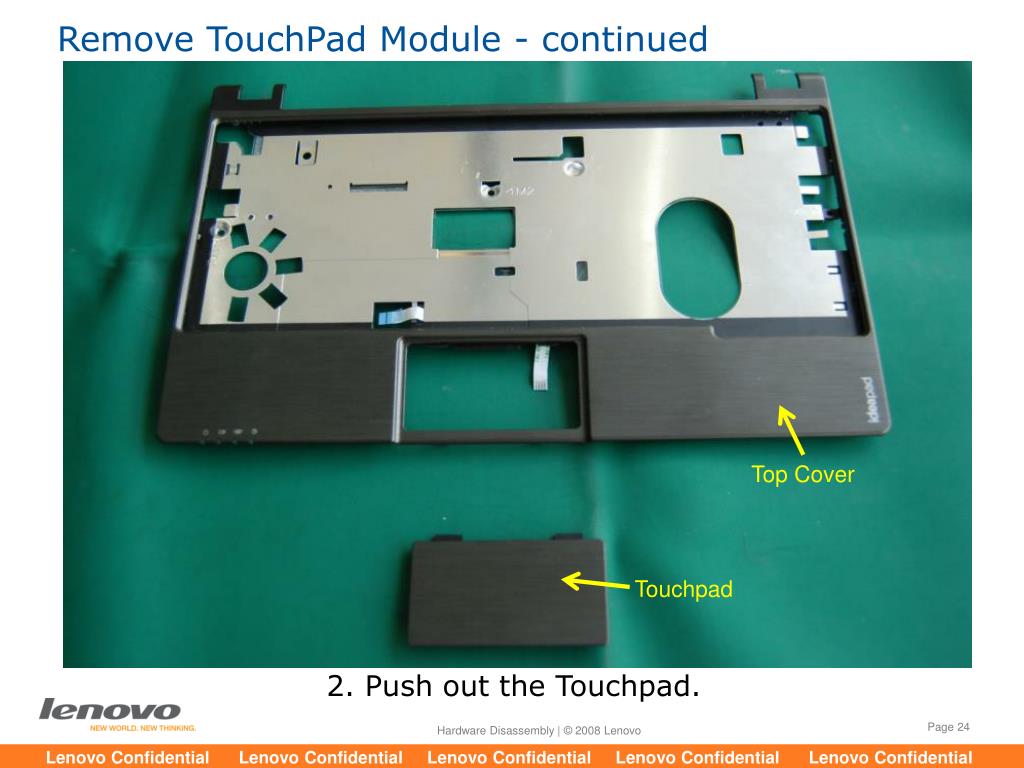

  22. Remove TouchPad Module - continued Top Cover Touchpad 2. Push out the Touchpad.

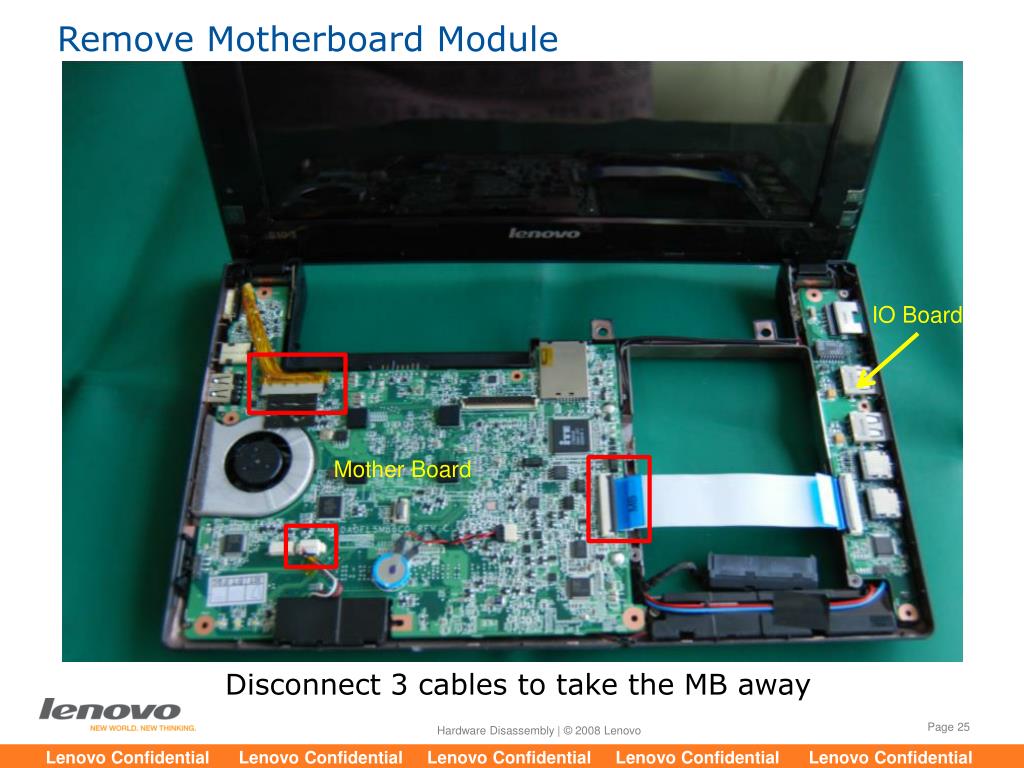

  23. Remove Motherboard Module IO Board Mother Board Disconnect 3 cables to take the MB away

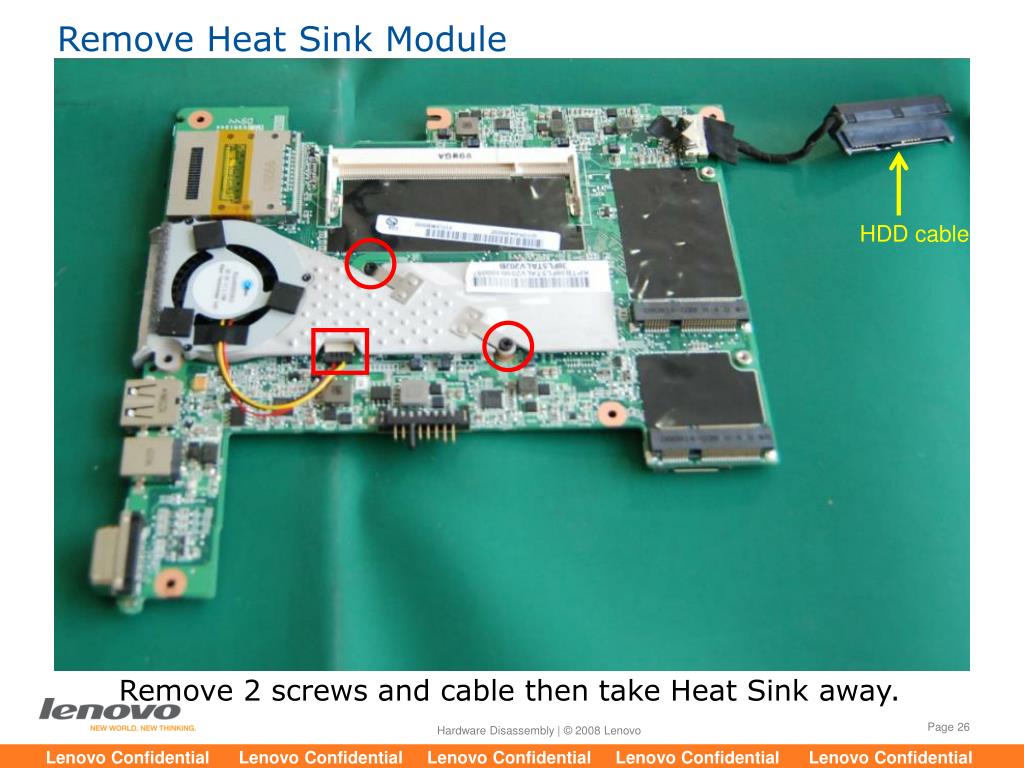

  24. Remove Heat Sink Module HDD cable Remove 2 screws and cable then take Heat Sink away.

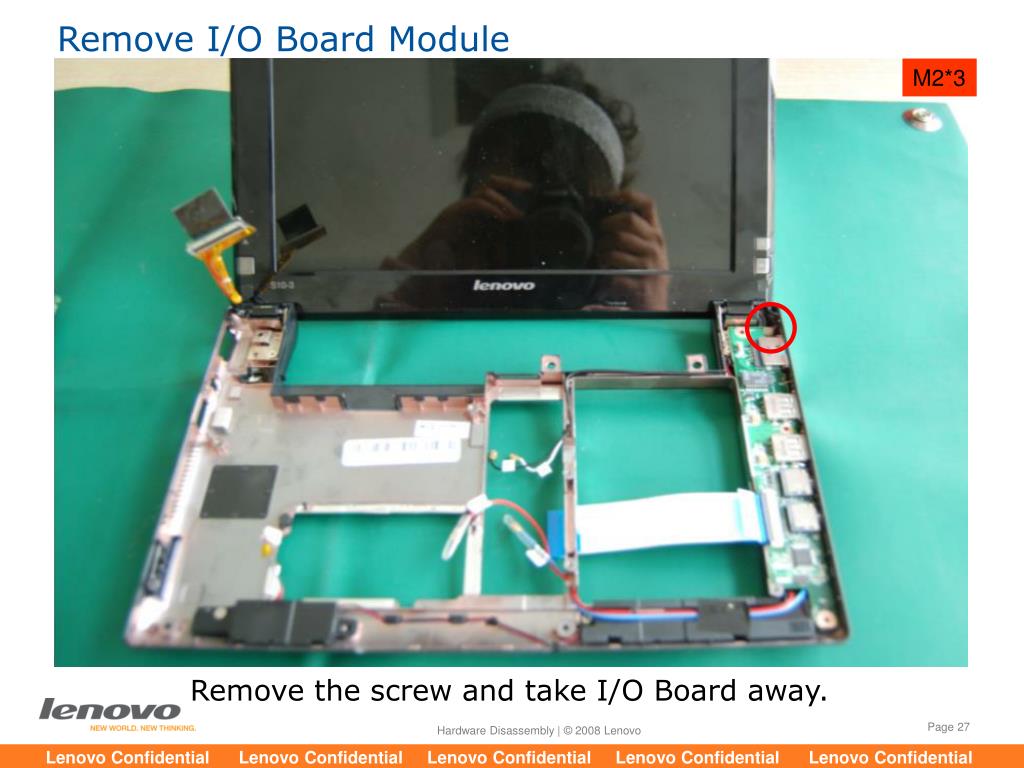

  25. Remove I/O Board Module M2*3 Remove the screw and take I/O Board away.

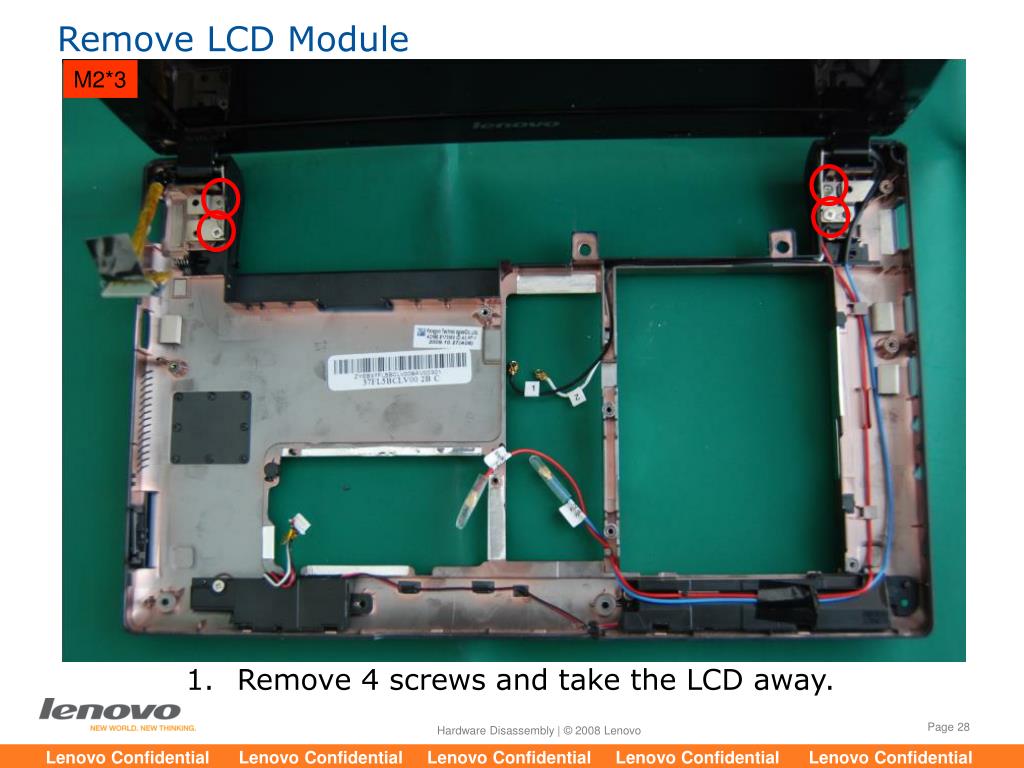

  26. Remove LCD Module M2*3 • Remove 4 screws and take the LCD away.

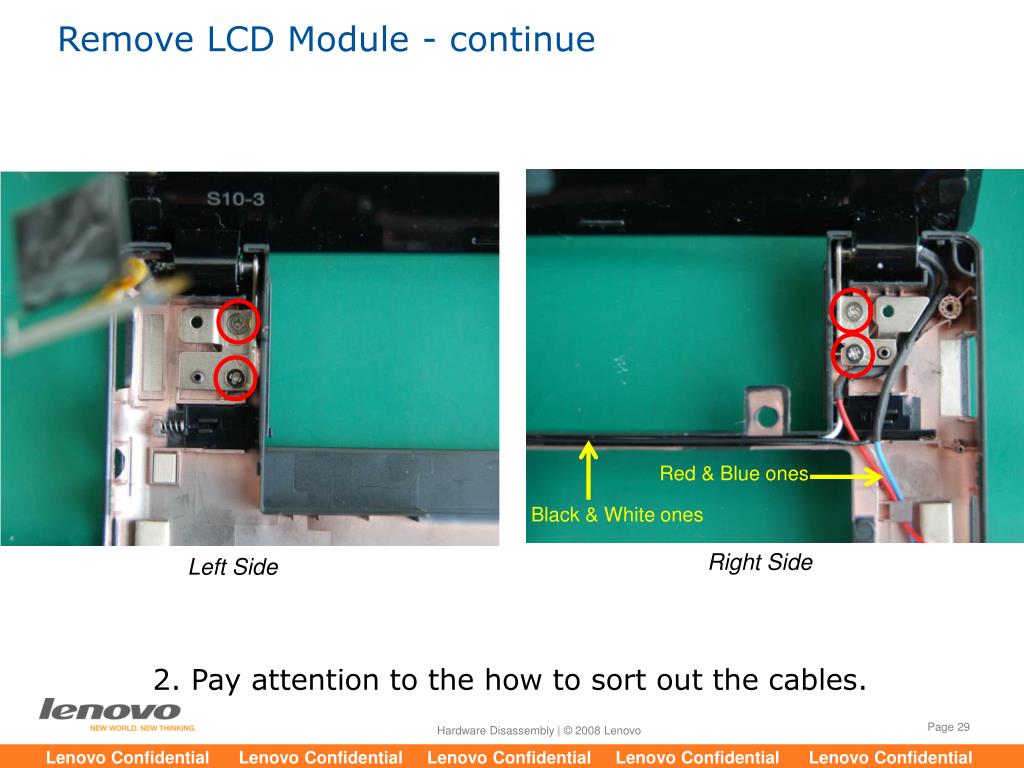

  27. Remove LCD Module - continue Red & Blue ones Black & White ones Right Side Left Side 2. Pay attention to the how to sort out the cables.

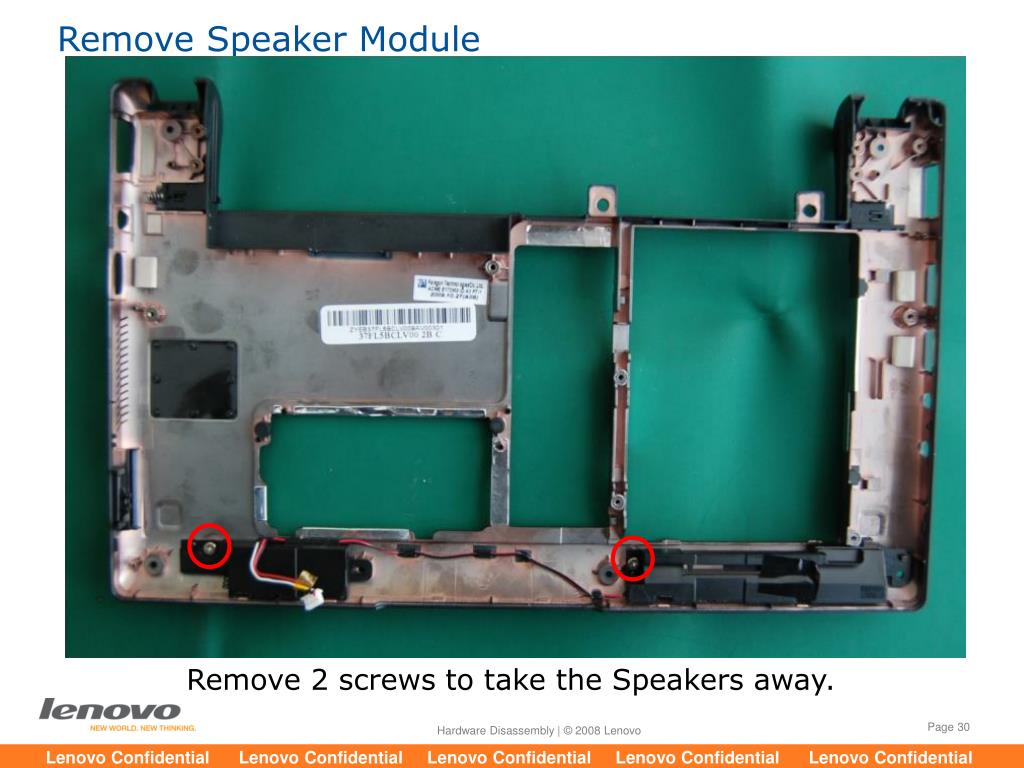

  28. Remove Speaker Module Remove 2 screws to take the Speakers away.

  29. Disassemble LCD Module Rubber 1 Rubber 1 M2*3 Rubber 2 Rubber 2 Note: Rubber 1 is different with Rubber 2. 1. Remove 4 rubbers and screws then remove the LCD front cover.

  30. Disassemble LCD Module - continued Note: The left one is the Power Button Board. The right one is Mute and OneKey Button Board. The Boards are fixed with glue. LCD 2. Disconnect 2 cables to take Boards away.

  31. Disassemble LCD Module - continued M2*3 3. Remove 2 screws each side to lift up the LCD.

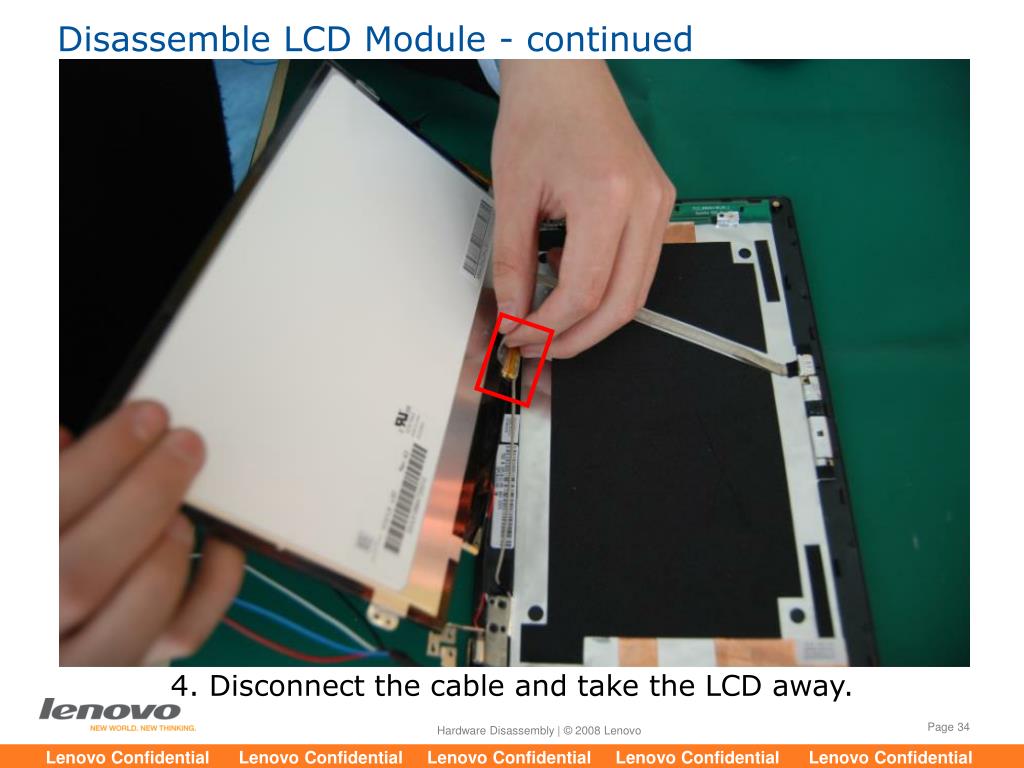

  32. Disassemble LCD Module - continued 4. Disconnect the cable and take the LCD away.

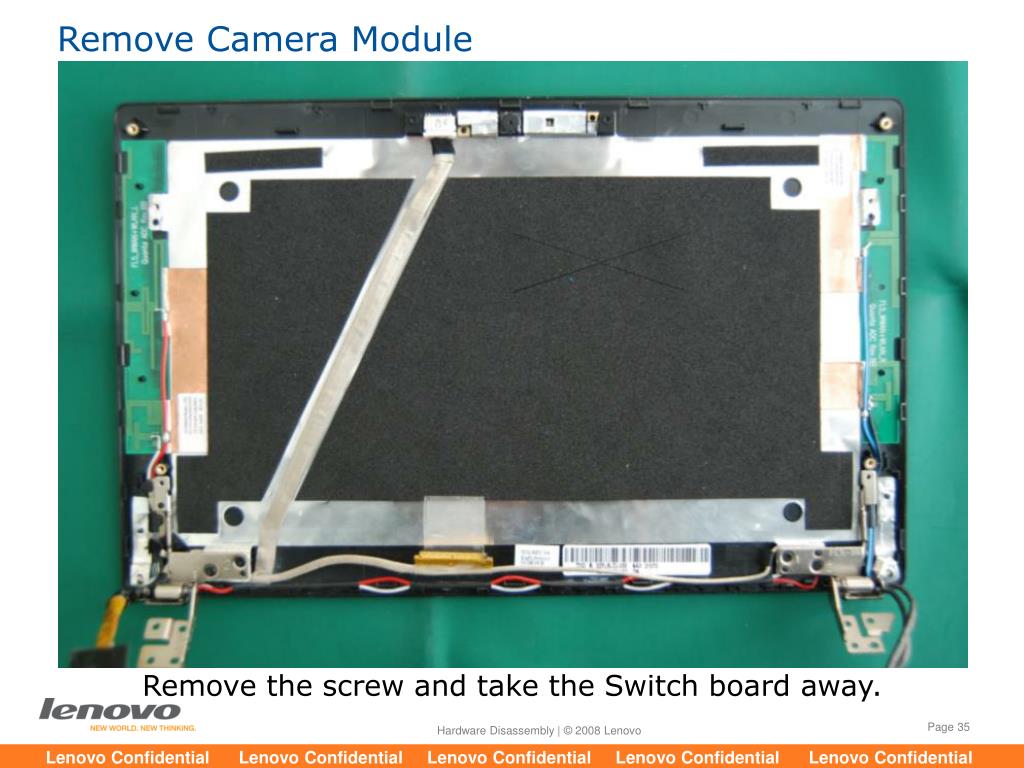

  33. Remove Camera Module Remove the screw and take the Switch board away.
