2. D.O.T. Portable Washing Systems By Hydro Engineering Inc. www.hydroblaster.com

3. THE REQUIREMENTS • High-pressure, Hot Water wash/rinse systems • Vehicle and equipment wash pads • Wash wastewater collection and recycling • Prevent buildup of contaminants and Magnesium Chloride in recycling systems • Maximize availability/minimize complexity • Meet Clean Water Act (40-CFR) provisions

4. CLEAN WATER ACT • Simply: “No water other than that from rain may hit the ground and make its way to a waterway” • Solution: “Closed-Loop, Full Recycle”

5. HydropadPortable Wash Pad Systems

6. Hydropad Benefits • No design or engineering costs • No permits and no construction • Hydropads won’t crack like concrete • Hydropads can be configured for any size wash pad and any weight rating required • Hydropads can be set in place, connected and used in just hours

7. 32’ Long X 14’ We propose a 32’ Long X 14’ Wide Hydropad System that can be expanded

8. 25 tons on three Hydropads are tough 25-tons on three points

9. Hydroblaster High-Pressure, Hot Water Washing Equipment • 4-GPM, 3,000 PSI • Hot water washing equipment that utilizes recycled water from Hydrokleen System • Electrically powered • Natural or LP gas heated • UL 1776 Certified

10. Hydroblaster Low Volume Rinse • 3-GPM, 1,000 PSI • Fresh water rinsing system • Integrated into one cleaning system wand at the wash pad

11. Remote Control Washing • Hydroblaster Remote at the wash station allows operator to select hot recycled water for washing or rinse with fresh water

12. Hydrokleen Wastewater Recycling Equipment • Solids that are larger than 5-microns are removed by the CMAFU-2 • 100 yards of filtration media automatically advances as required • No cartridge filters to buy, change and dispose of

13. The Ultimate In Recycling • HE/5000 performs • Oil coalescing and skimming • Fine solids polishing to less than one micron • Pressurizes filtered water back to the Hydroblaster

14. Hydrokleen Water Tests (high solids & oils) PARAMETER BEFOREAFTERREDUCTION PERCENTAGE • Biochemical Oxygen Demand, mg/L > 121 < 1 99.173 % • Chemical Oxygen Demand, mg/L 3,500 < 5 99.857 % • Cyanide (T), mg/L 0.003 < 0.002 33.333 % • Mercury (T), as Hg, mg/L 0.0008 < 0.0002 75 % • Total Phenolics, mg/L 0.021 0.003 85.714 % • Total Suspended Solids, mg/L 9,710 < 2.5 99.974 % • Arsenic (T), as As, mg/L < 0.06 < 0.015 75 % • Cadmium (T), as Cd, mg/L 0.098 0.002 97.959 % • Chromium (T), as Cr, mg/L 0.077 0.001 98.701 % • Copper (T), as Cu, mg/L 0.62 < 0.002 99.677 % • Lead (T), as Pb, mg/L 0.44 < 0.01 97.727 % • Molybdenum (T), as Mo, mg/L 0.11 0.065 40.909 % • Nickel (T), as Ni, mg/L 0.05 < 0.002 96 % • Selenium (T), as Se, mg/L < 0.08 < 0.02 75 % • Silver (T), as Ag, mg/L 0.042 < 0.002 95.238 % • Zinc (T), as Zn, mg/L 4.02 0.008 99.801 % • Oil & Grease, mg/L 365 7 98.082 % • Receiving Temperature, degrees C 6 6   * All generally accepted test sample procedures were followed. A certified copy of the test results is available by mail from Hydro Engineering, Inc.

15. Desalinization • Our integrated desalinization system clarifies many gallons of water per day, constantly removing trace contaminants • Magnesium Chloride and other contaminants will be removed

16. complete washing Your complete washing and recycling system can be located just inside of your building

17. No Building Space?Use a Hydrosite Hydrosite Corrosion Control Package

18. Inside . . . Drive thru wash bay No need to tear up concrete

19. An indoor wash pad . . . outside An indoor wash pad . . . outside

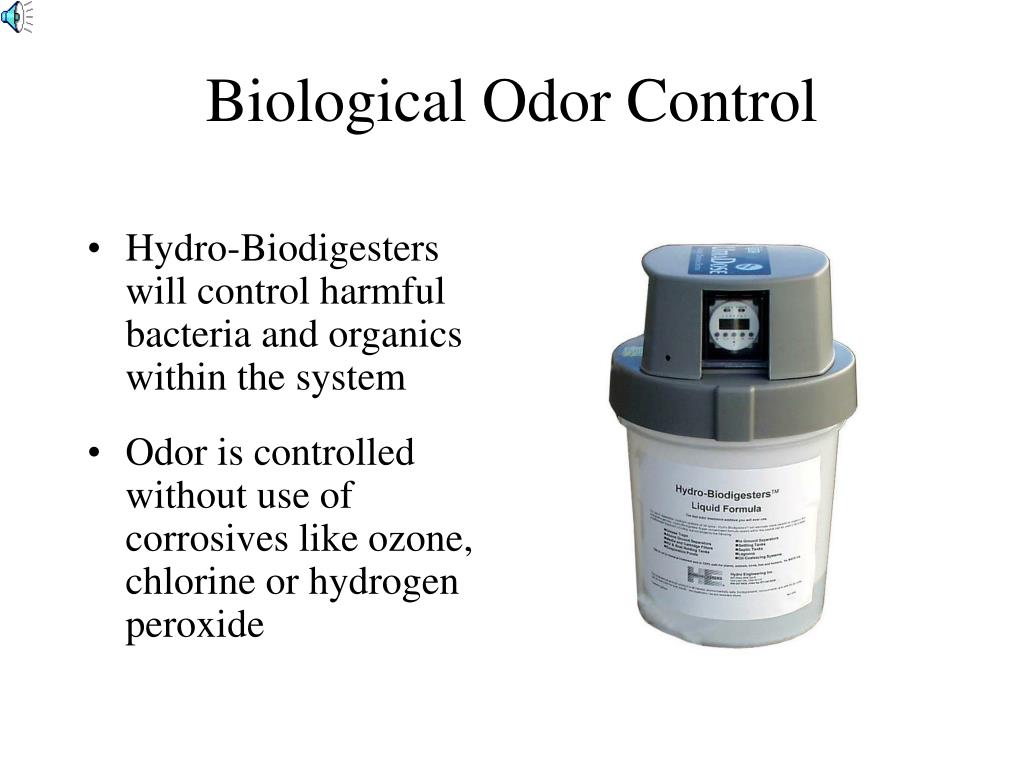

20. Biological Odor Control • Hydro-Biodigesters will control harmful bacteria and organics within the system • Odor is controlled without use of corrosives like ozone, chlorine or hydrogen peroxide

21. Complete Turnkey Wash System • Preliminary site evaluation • System layout engineering • Utility installation and site preparation • System delivery and installation • Operation and maintenance training • Annual service contract “Full Service Project Support “

22. Made In AmericaSalt Lake City, Utah Hydroblaster Pressure WashersHydrokleenWater Filtration & Recycling HydropadPortable Wash Pads “Providing Solutions For Nearly 25 Years”
