针状晶体的 溶析结晶过程研究

1. 针状晶体的溶析结晶过程研究 报告人：李洁琼 指导教师：王静康 教授 日期：2012.09.22

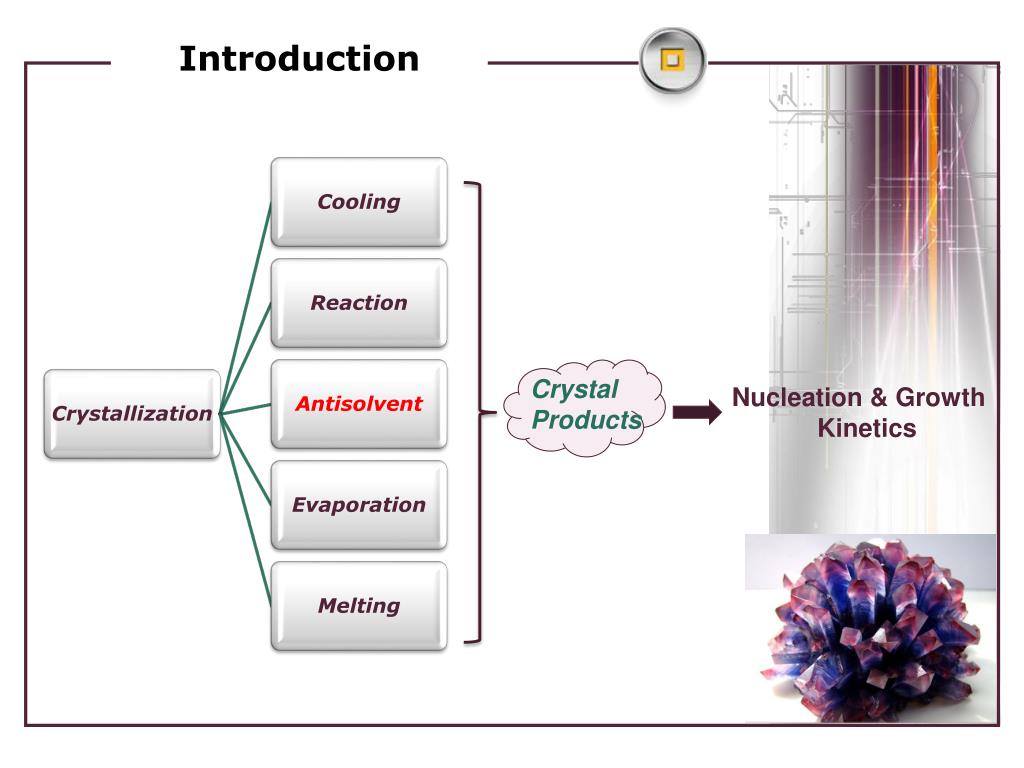

2. Introduction Crystal Products Nucleation & Growth Kinetics

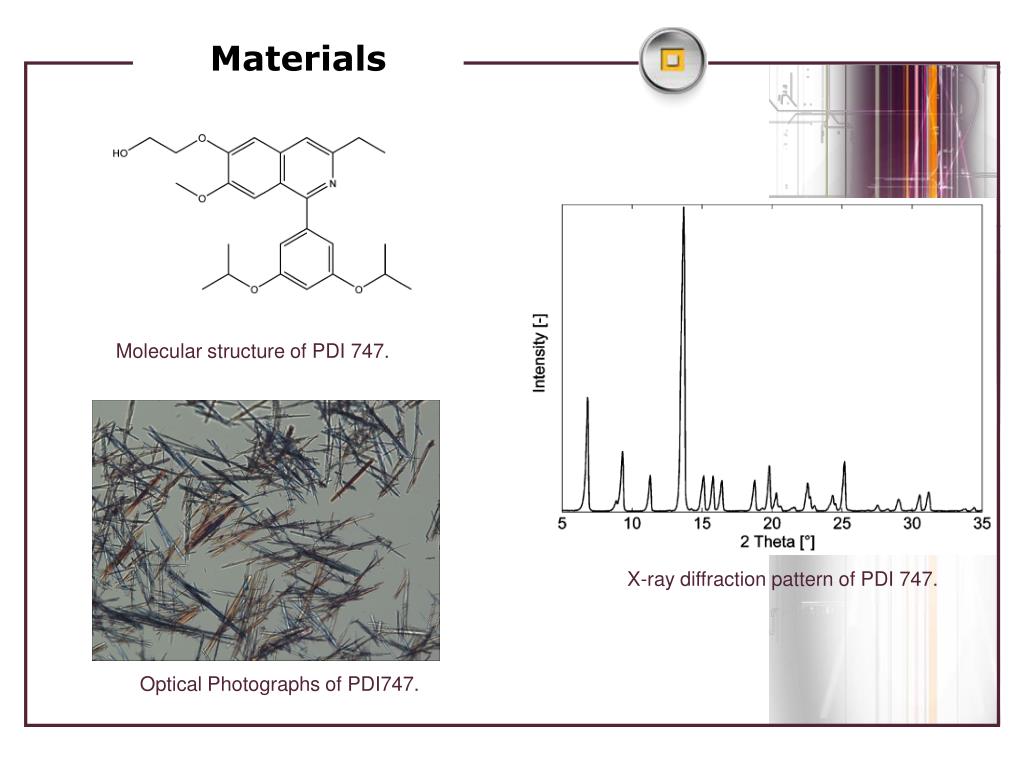

3. Materials Molecular structure of PDI 747. X-ray diffraction pattern of PDI 747. Optical Photographs of PDI747.

4. In Situ Monitoring Techniques FBRM (Focused Bea Reflectance Measurement) ATR-FTIR (Attenuated Total Reflection Flourier Transformed Infrared Spectroscopy) Schematic of the 500 mL batch reactor combining the different in situ process analytical technologies of FBRM and ATR-FTIR spectroscopy.

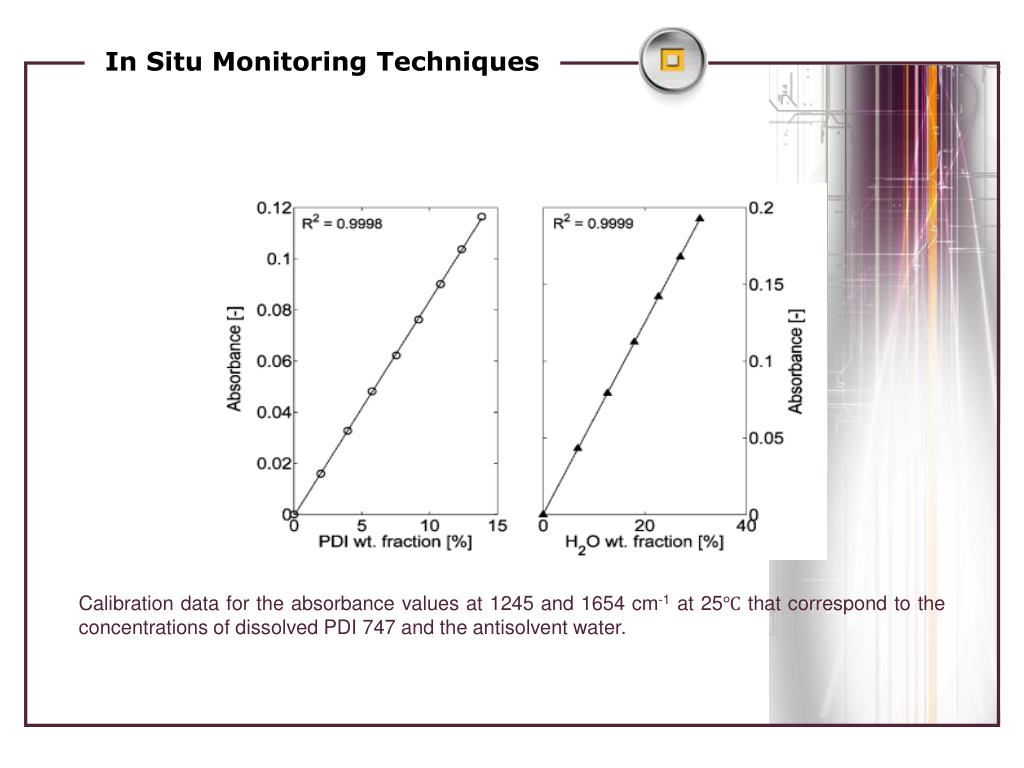

5. In Situ Monitoring Techniques Calibration data for the absorbance values at 1245 and 1654 cm-1 at 25℃ that correspond to the concentrations of dissolved PDI 747 and the antisolvent water.

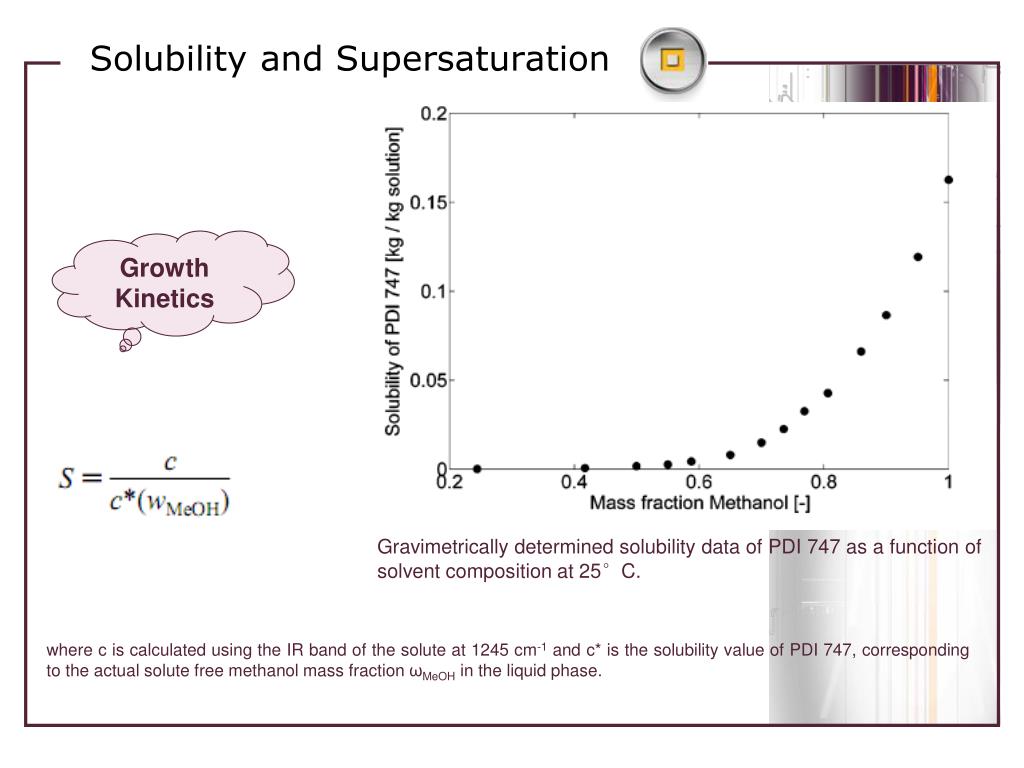

6. Solubility and Supersaturation Growth Kinetics Gravimetrically determined solubility data of PDI 747 as a function of solvent composition at 25°C. where c is calculated using the IR band of the solute at 1245 cm-1 and c* is the solubility value of PDI 747, corresponding to the actual solute free methanol mass fraction ωMeOH in the liquid phase.

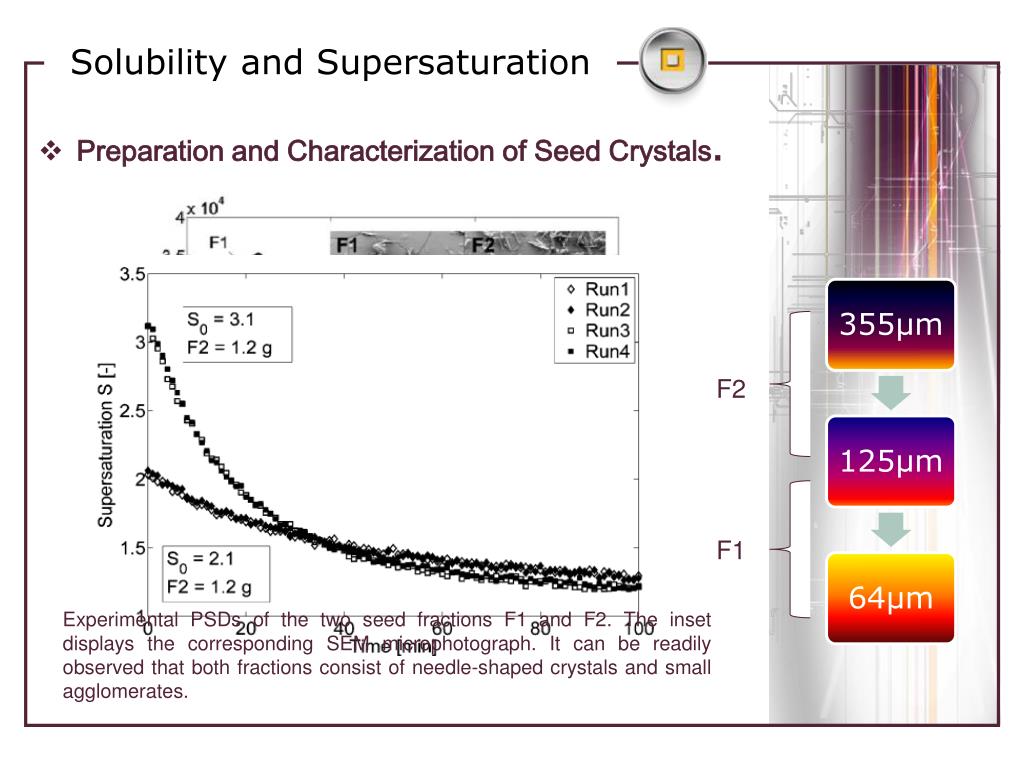

7. Solubility and Supersaturation • Preparation and Characterization of Seed Crystals. F2 F1 Experimental PSDs of the two seed fractions F1 and F2. The inset displays the corresponding SEM microphotograph. It can be readily observed that both fractions consist of needle-shaped crystals and small agglomerates.

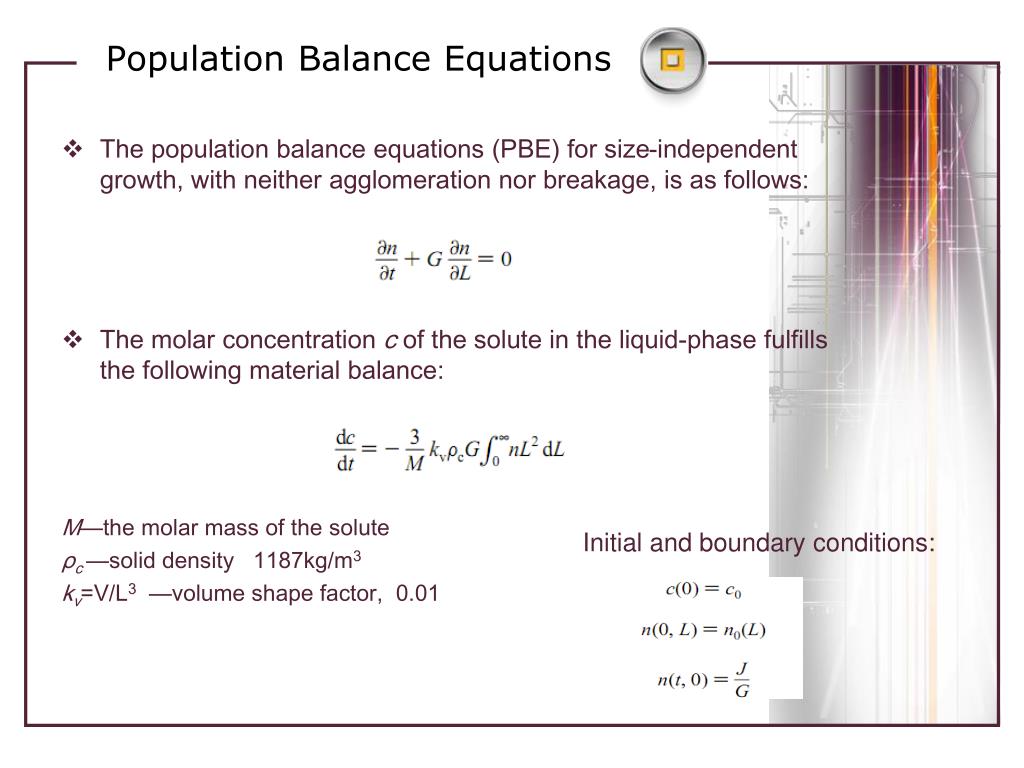

8. Population Balance Equations • The population balance equations (PBE) for size-independent growth, with neither agglomeration nor breakage, is as follows: • The molar concentration c of the solute in the liquid-phase fulfills the following material balance: M—the molar mass of the solute ρc—solid density 1187kg/m3 kv=V/L3 —volume shape factor, 0.01 Initial and boundary conditions:

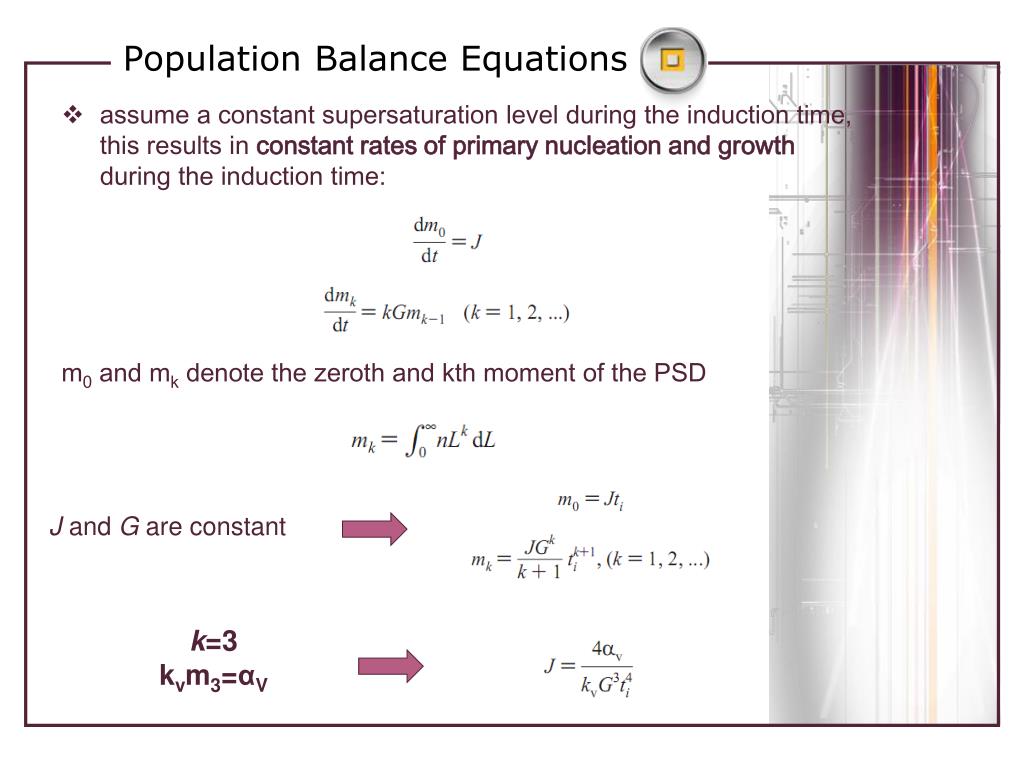

9. Population Balance Equations • assume a constant supersaturation level during the induction time, this results in constant rates of primary nucleation and growth during the induction time: m0 and mk denote the zeroth and kth moment of the PSD J and G are constant k=3 kvm3=αV

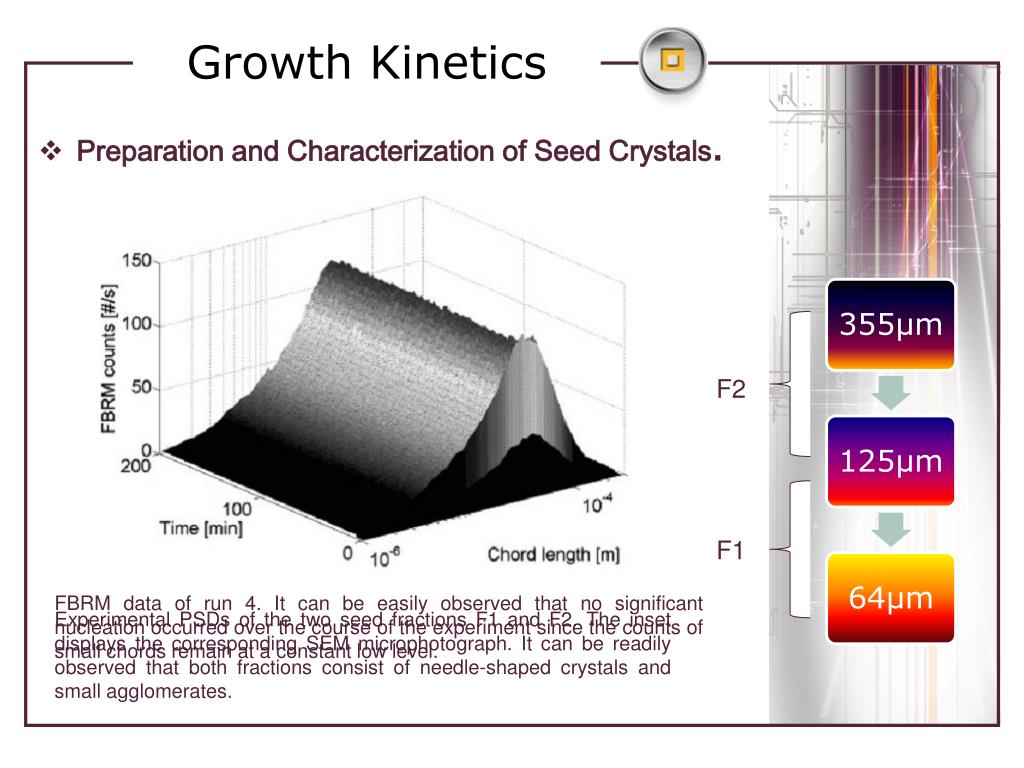

10. Growth Kinetics • Preparation and Characterization of Seed Crystals. F2 F1 FBRM data of run 4. It can be easily observed that no significant nucleation occurred over the course of the experiment since the counts of small chords remain at a constant low level. Experimental PSDs of the two seed fractions F1 and F2. The inset displays the corresponding SEM microphotograph. It can be readily observed that both fractions consist of needle-shaped crystals and small agglomerates.

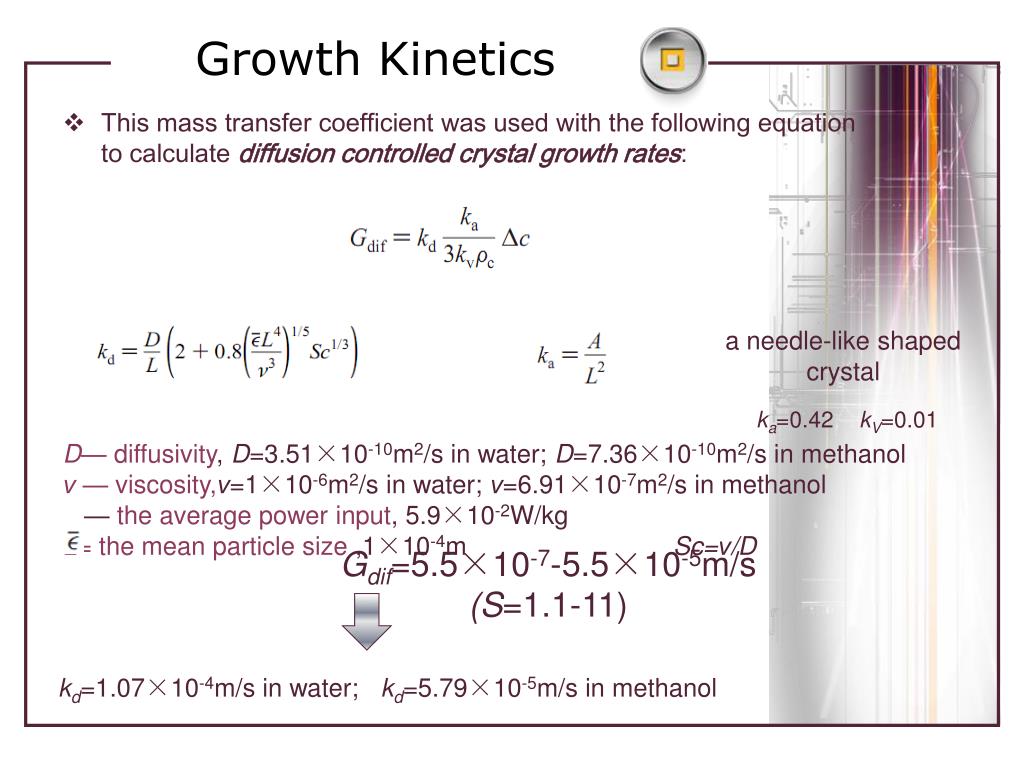

11. Growth Kinetics • This mass transfer coefficient was used with the following equation to calculate diffusion controlled crystal growth rates: a needle-like shaped crystal ka=0.42 kV=0.01 D— diffusivity, D=3.51×10-10m2/s in water; D=7.36×10-10m2/s in methanol ν — viscosity,ν=1×10-6m2/s in water; ν=6.91×10-7m2/s in methanol — the average power input, 5.9×10-2W/kg L= the mean particle size ,1×10-4m Sc=ν/D Gdif=5.5×10-7-5.5×10-5m/s (S=1.1-11) kd=1.07×10-4m/s in water; kd=5.79×10-5m/s in methanol

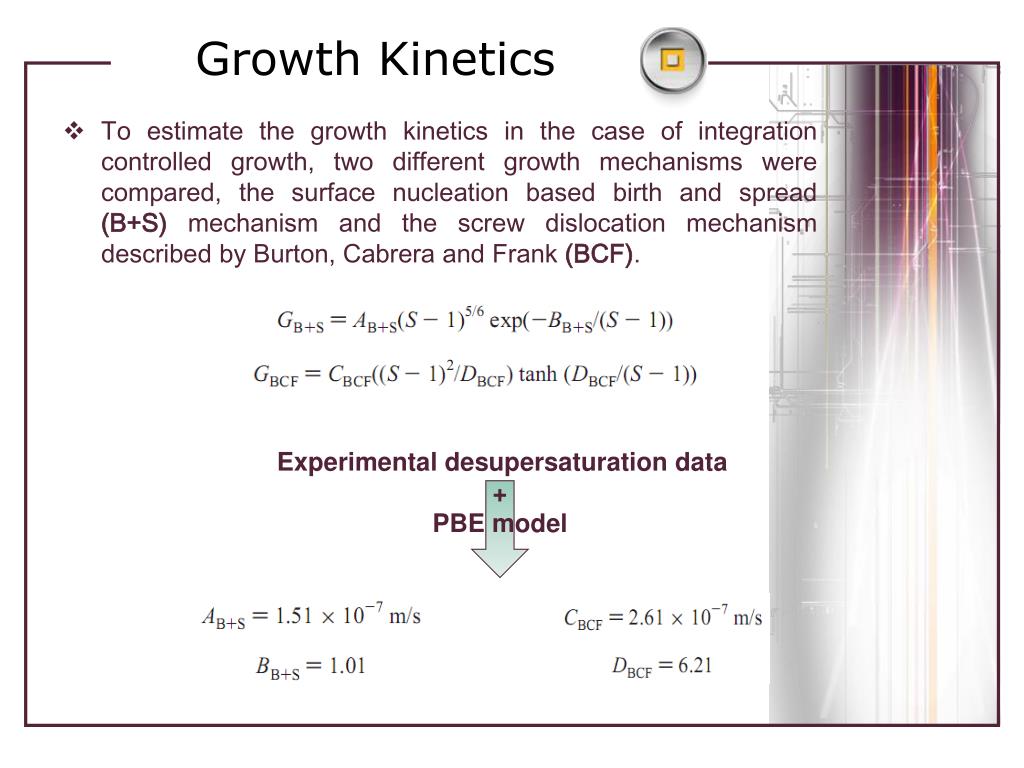

12. Growth Kinetics • To estimate the growth kinetics in the case of integration controlled growth, two different growth mechanisms were compared, the surface nucleation based birth and spread (B+S) mechanism and the screw dislocation mechanism described by Burton, Cabrera and Frank (BCF). Experimental desupersaturation data + PBE model

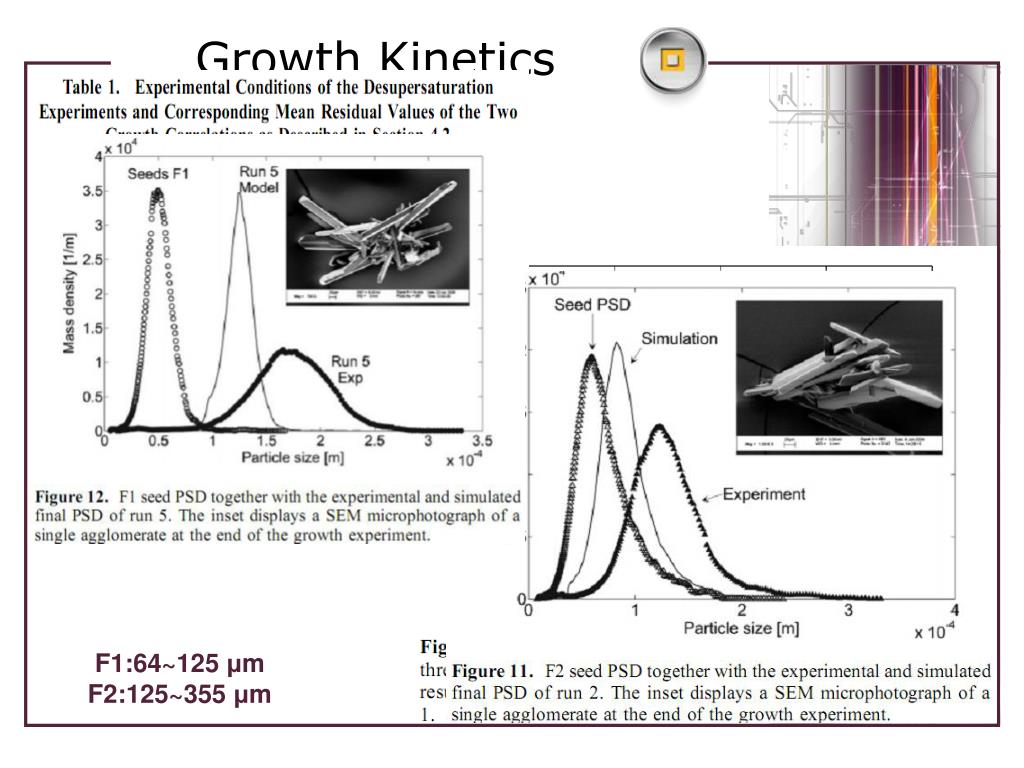

13. Growth Kinetics F1:64~125 μm F2:125~355 μm

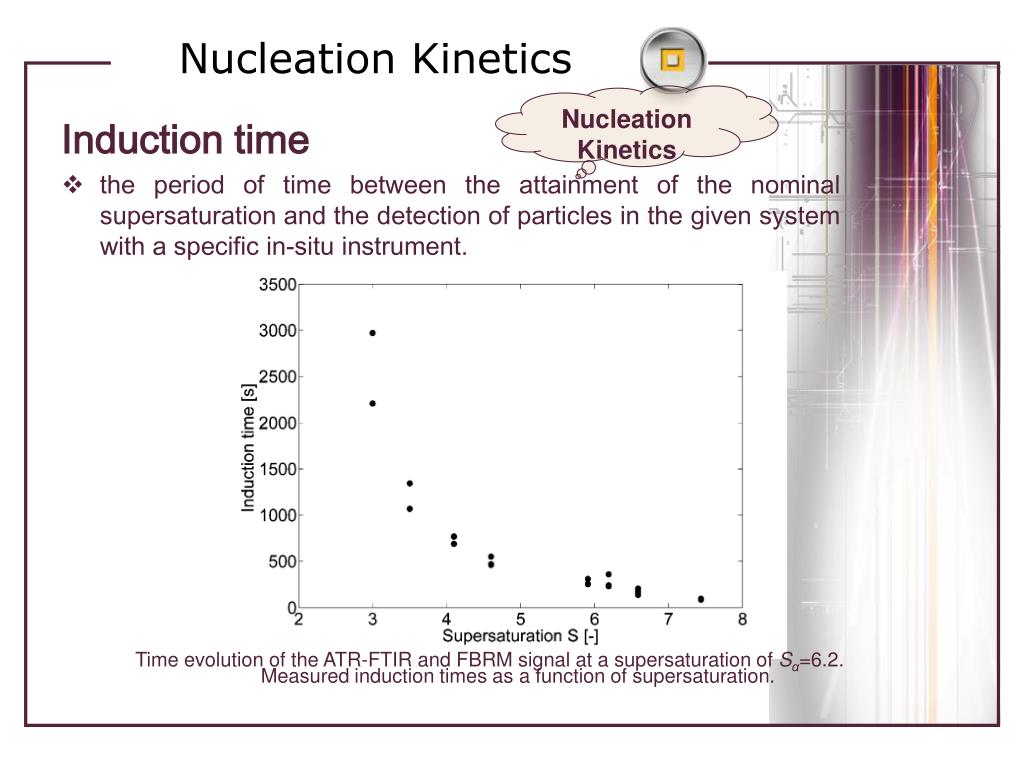

14. Nucleation Kinetics Nucleation Kinetics Induction time • the period of time between the attainment of the nominal supersaturation and the detection of particles in the given system with a specific in-situ instrument. Time evolution of the ATR-FTIR and FBRM signal at a supersaturation of Sα=6.2. Measured induction times as a function of supersaturation.

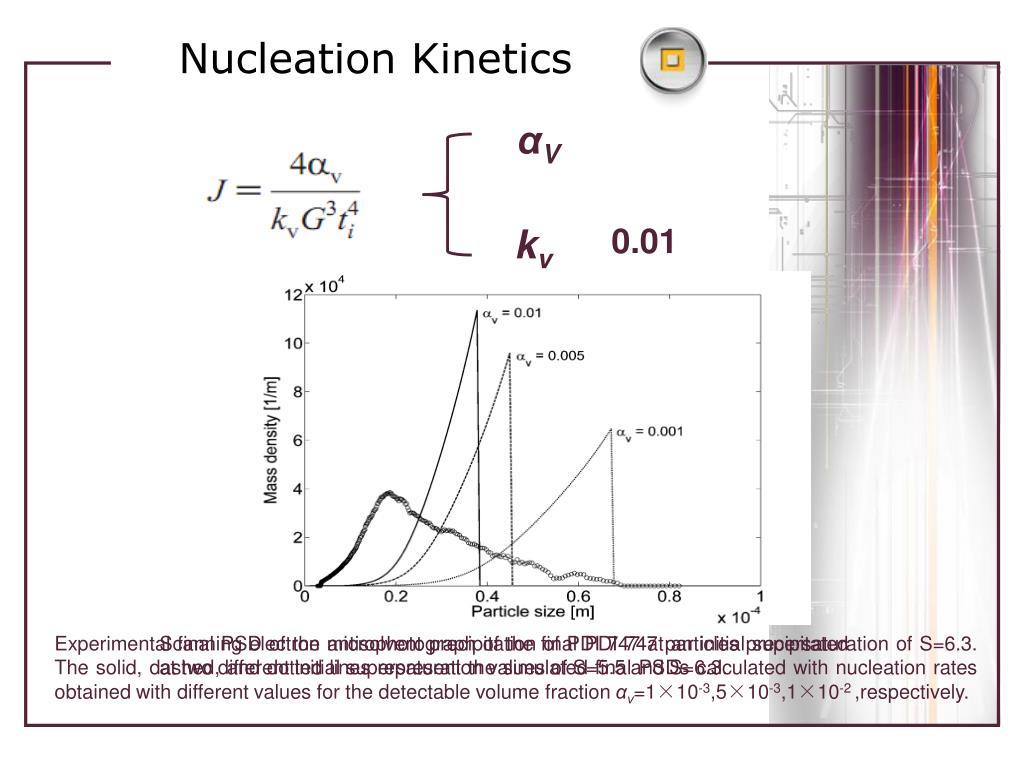

15. Nucleation Kinetics αV kv 0.01 Experimental final PSD of the antisolvent precipitation of PDI 747 at an initial supersaturation of S=6.3. The solid, dashed, and dotted lines represent the simulated final PSDs calculated with nucleation rates obtained with different values for the detectable volume fraction αν=1×10-3,5×10-3,1×10-2 ,respectively. Scanning electron microphotograph of the final PDI 747 particles precipitated at two different initial supersaturation values of S=5.5 and S=6.3.

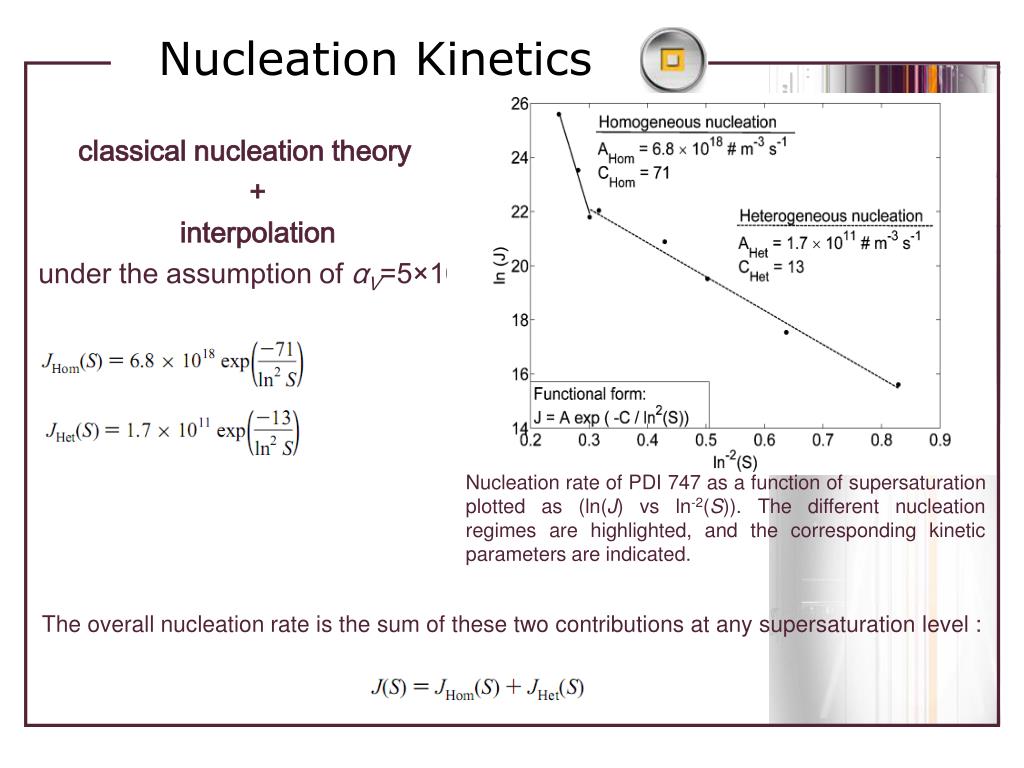

16. Nucleation Kinetics classical nucleation theory + interpolation under the assumption of αV=5×10-3 Nucleation rate of PDI 747 as a function of supersaturation plotted as (ln(J) vs ln-2(S)). The different nucleation regimes are highlighted, and the corresponding kinetic parameters are indicated. The overall nucleation rate is the sum of these two contributions at any supersaturation level :

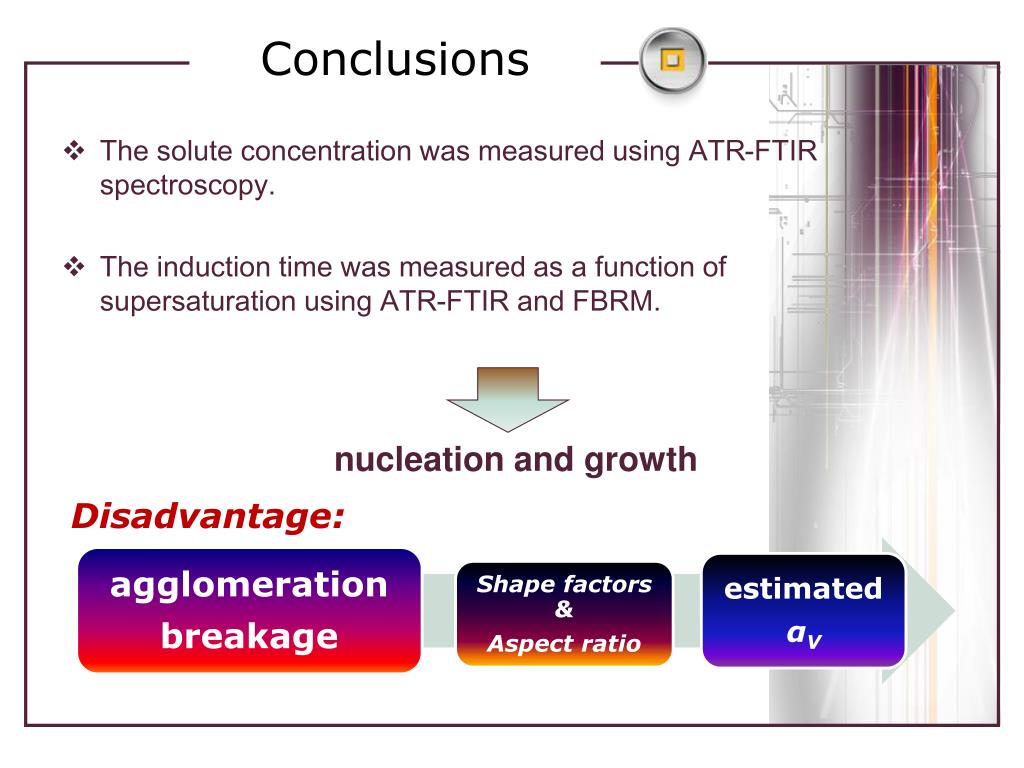

17. Conclusions • The solute concentration was measured using ATR-FTIR spectroscopy. • The induction time was measured as a function of supersaturation using ATR-FTIR and FBRM. nucleation and growth Disadvantage:
