  1. TWO POINT PERSPECTIVE Object in front of Picture Plane

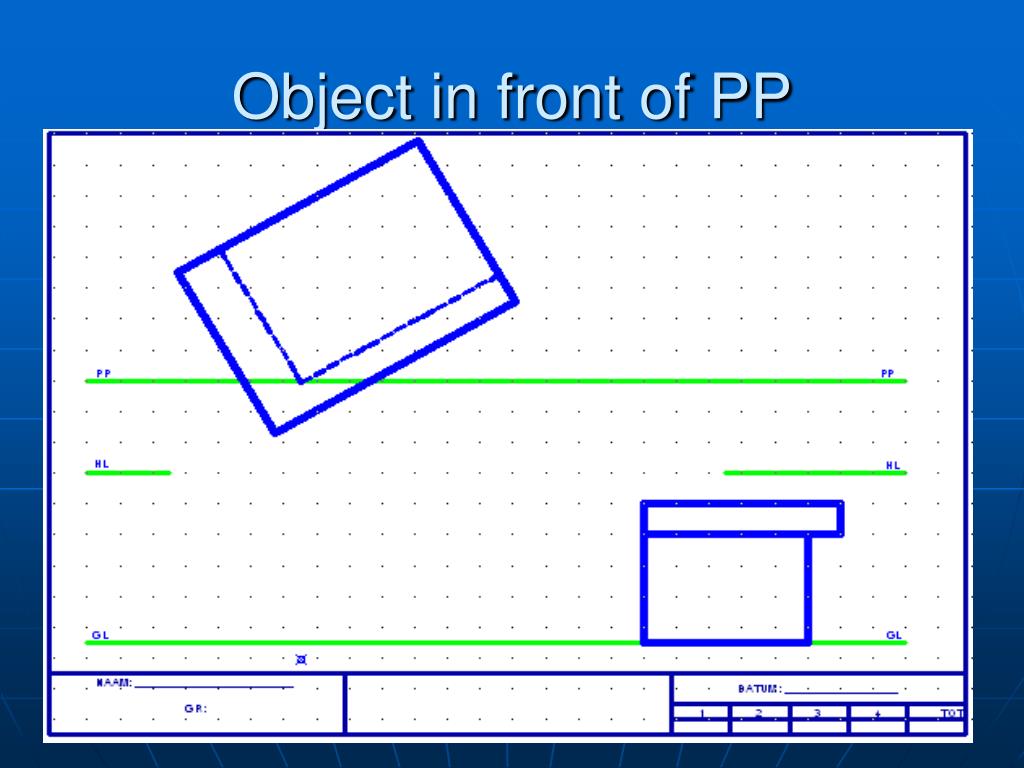

  2. Object in front of PP

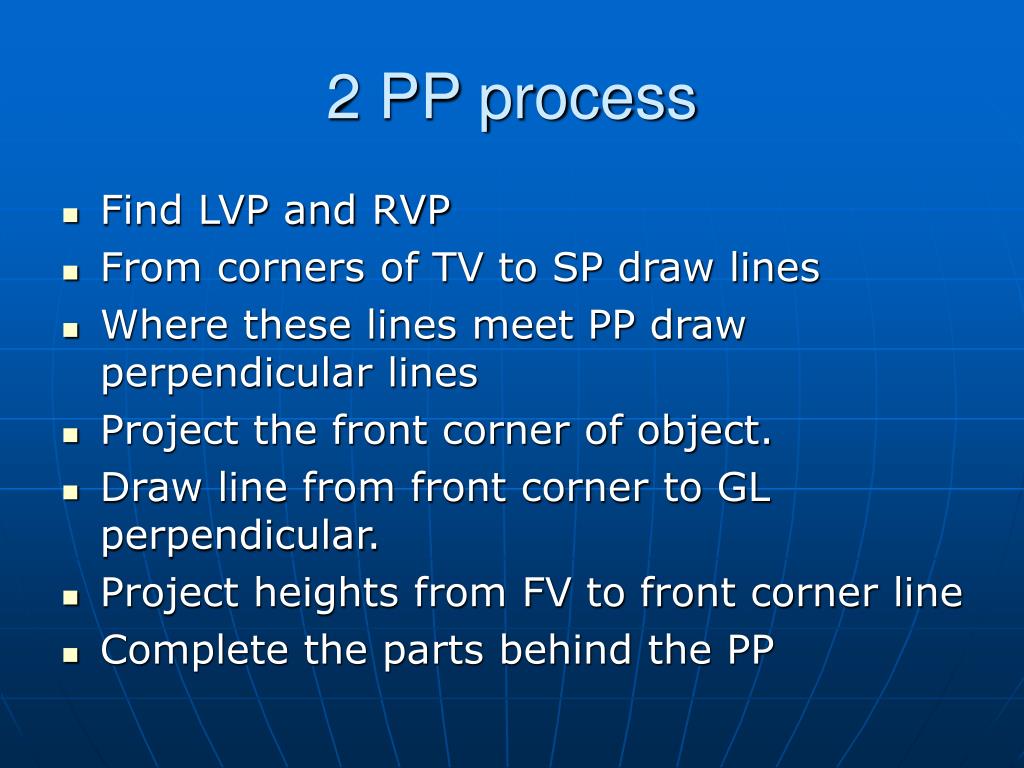

  3. 2 PP process • Find LVP and RVP • From corners of TV to SP draw lines • Where these lines meet PP draw perpendicular lines • Project the front corner of object. • Draw line from front corner to GL perpendicular. • Project heights from FV to front corner line • Complete the parts behind the PP

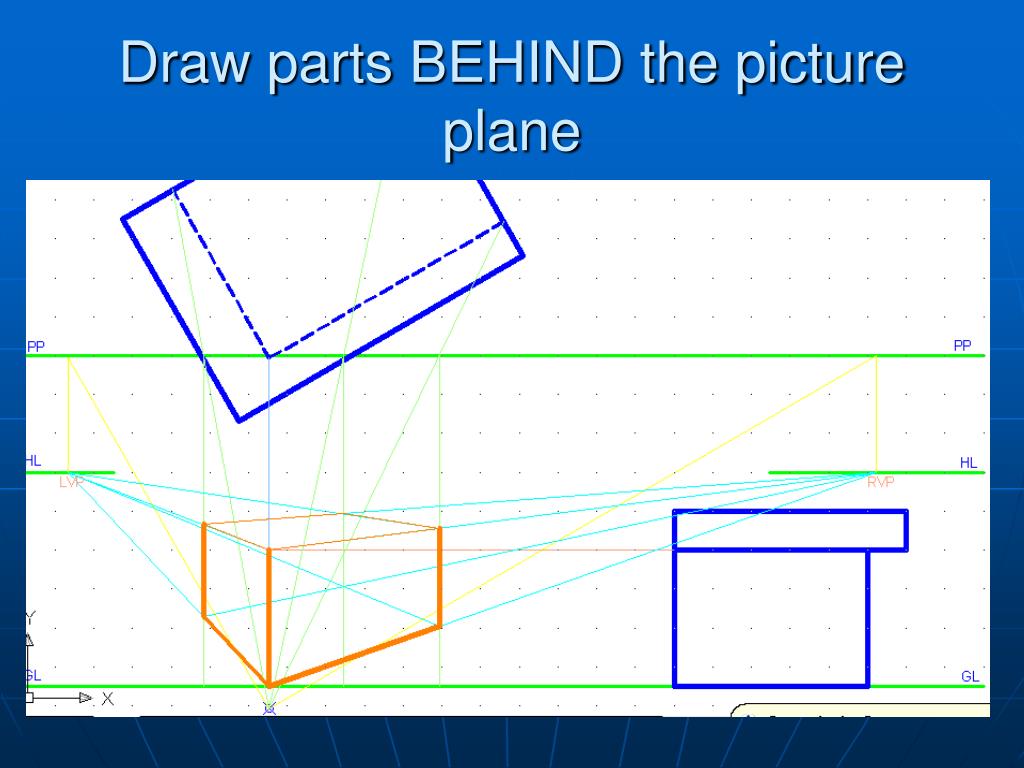

  4. Draw parts BEHIND the picture plane

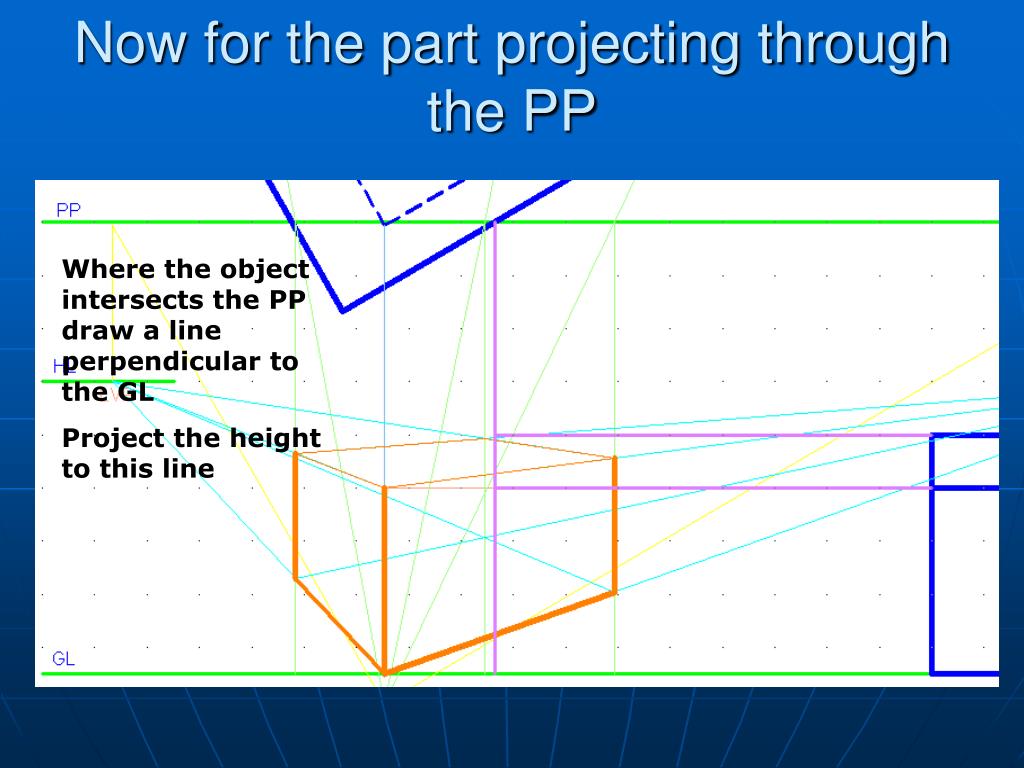

  5. Now for the part projecting through the PP Where the object intersects the PP draw a line perpendicular to the GL Project the height to this line

  6. Project these points to the RVP

  7. Draw line from SP to the front corner.

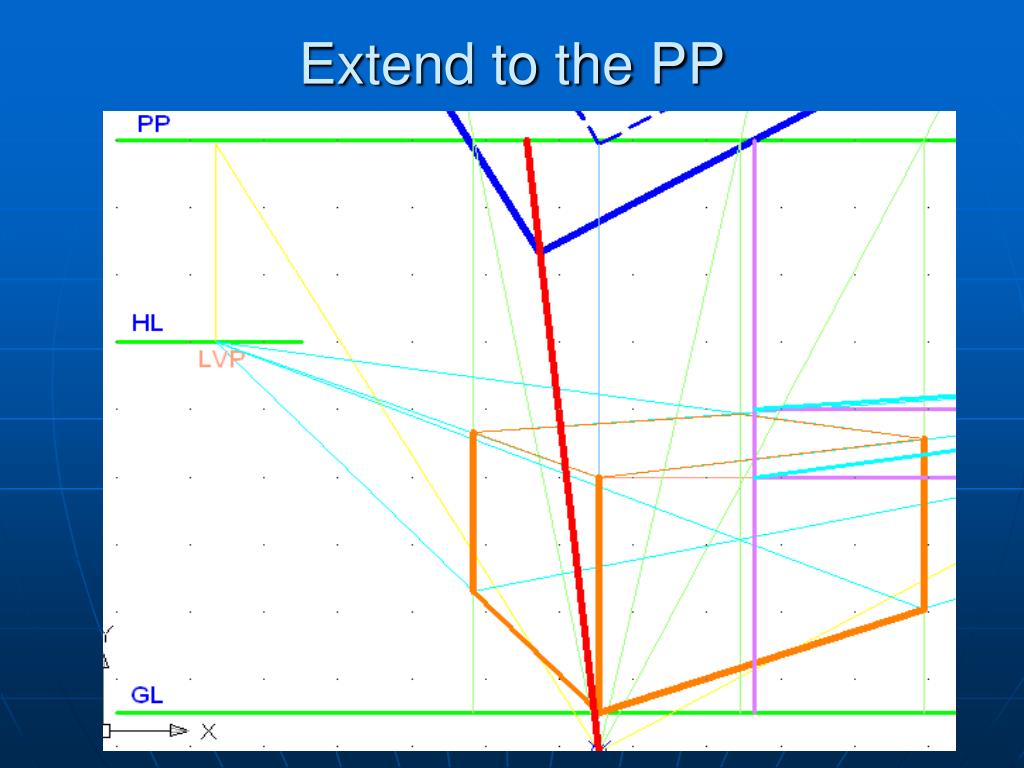

  8. Extend to the PP

  9. Project line from the intersection to the GL

  10. Extend the vanish lines to the perpendicular line

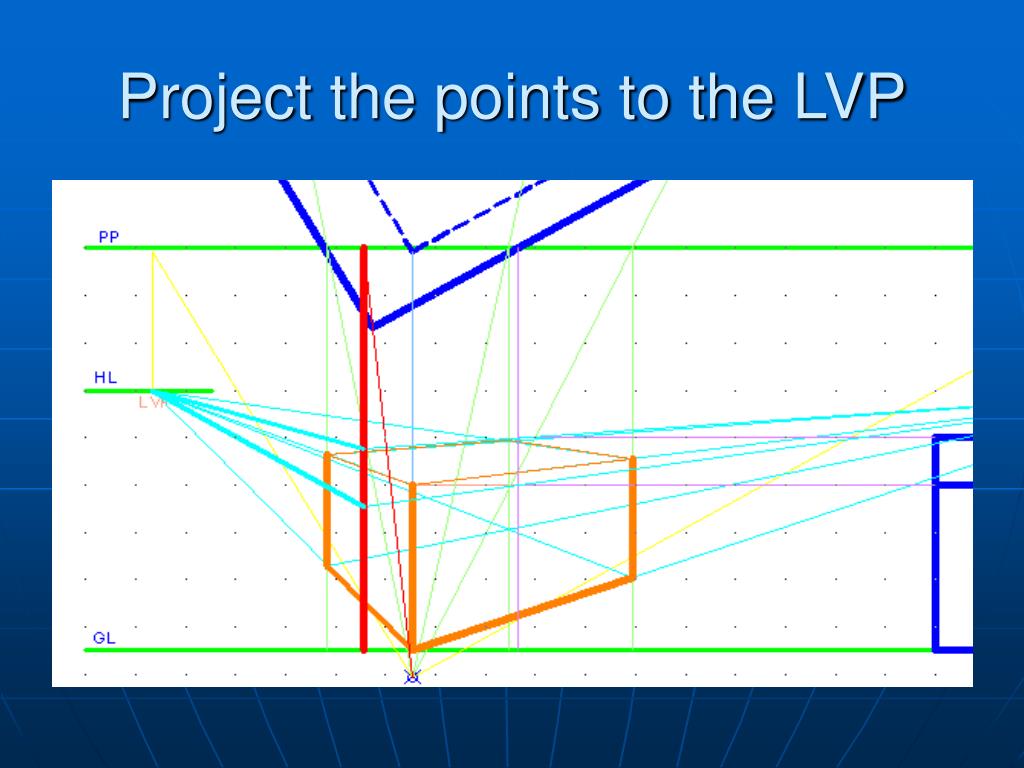

  11. Project the points to the LVP

  12. Project the corners behind the PP

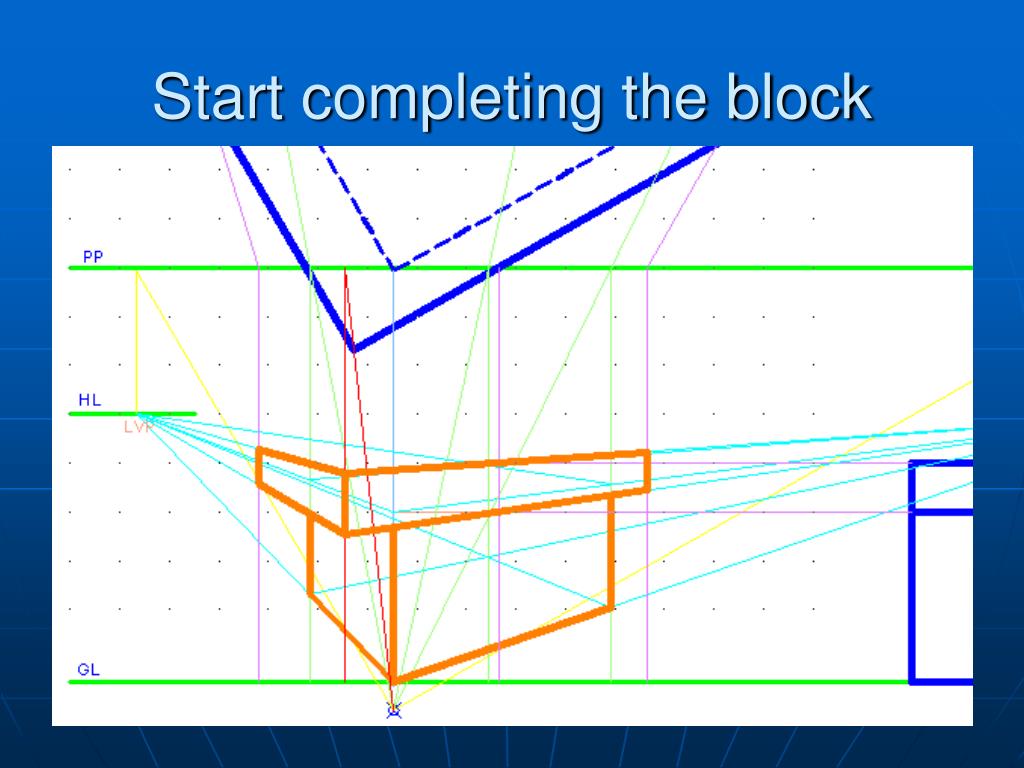

  13. Start completing the block

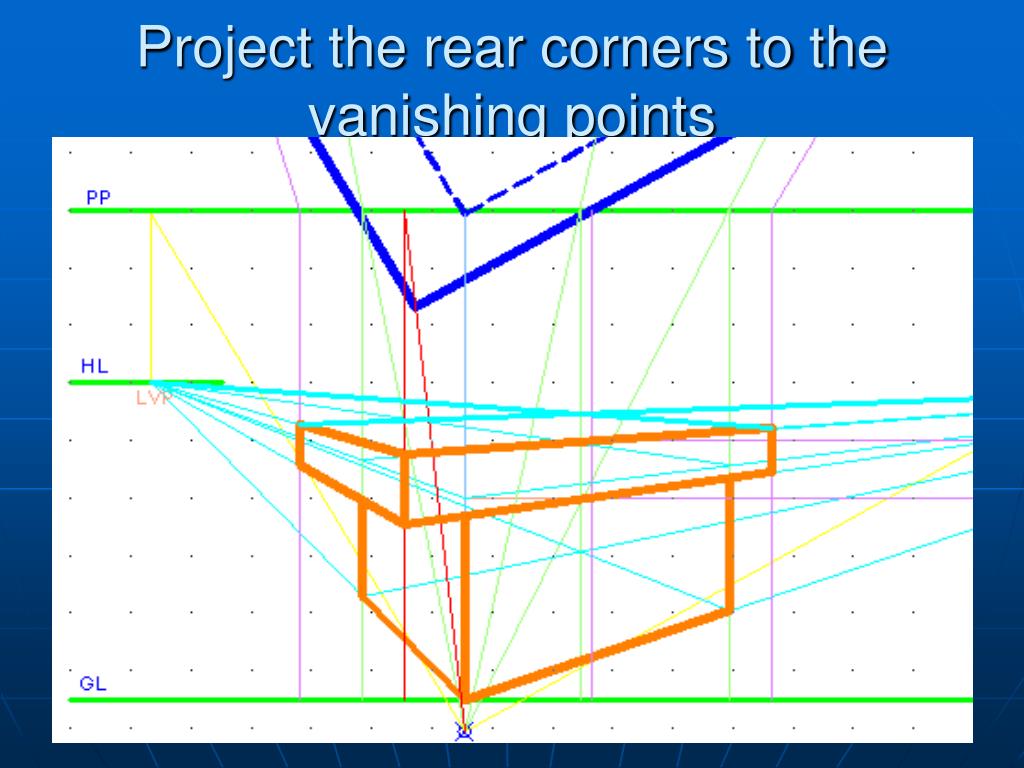

  14. Project the rear corners to the vanishing points

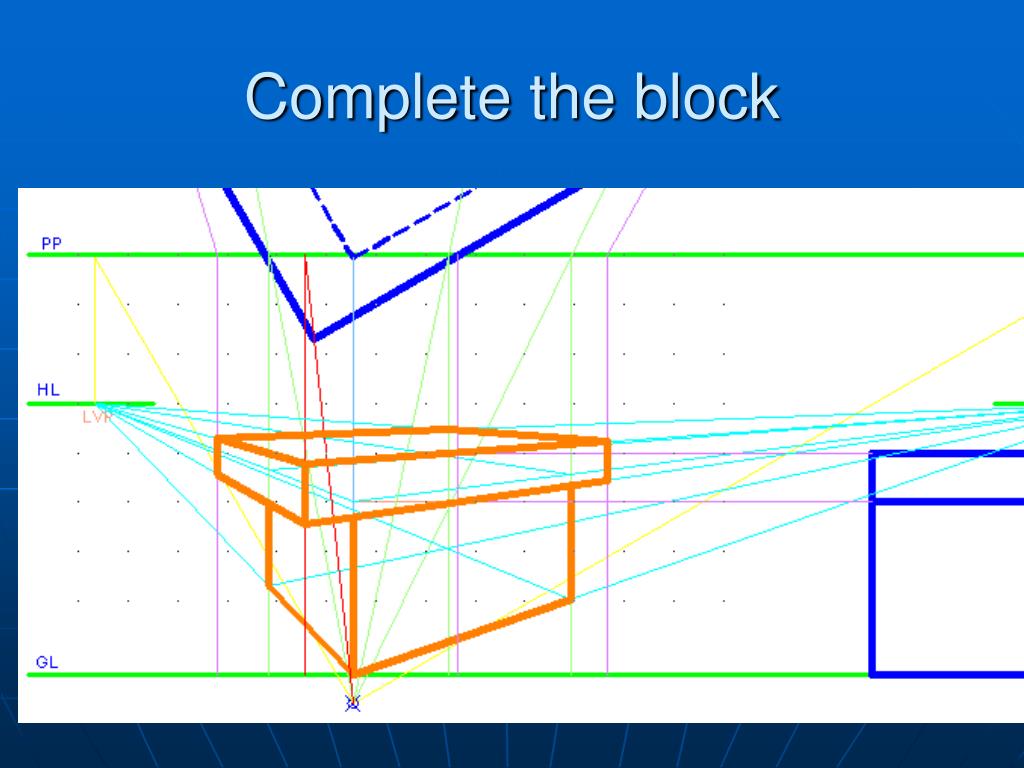

  15. Complete the block
