  1. “Scoop and Run” or “Stay and Play”? Approach to pediatric stabilization and transport Janis Rusin MSN, RN, CPNP-AC Pediatric Nurse Practitioner Children’s Memorial Hospital Transport Team

  2. Case Study • 2 month old infant found in full cardiac arrest at home • Paramedics initiated CPR and continued CPR for 10 minutes until arrival in ED

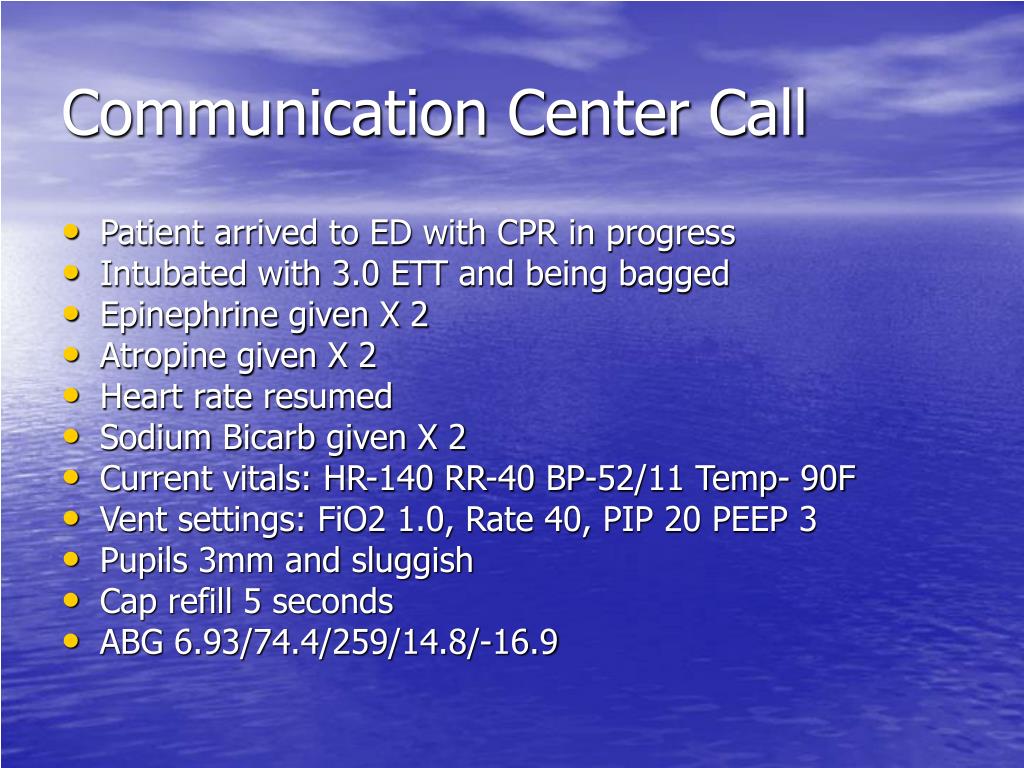

  3. Communication Center Call • Patient arrived to ED with CPR in progress • Intubated with 3.0 ETT and being bagged • Epinephrine given X 2 • Atropine given X 2 • Heart rate resumed • Sodium Bicarb given X 2 • Current vitals: HR-140 RR-40 BP-52/11 Temp- 90F • Vent settings: FiO2 1.0, Rate 40, PIP 20 PEEP 3 • Pupils 3mm and sluggish • Cap refill 5 seconds • ABG 6.93/74.4/259/14.8/-16.9

  4. On Arrival • Unresponsive • Lungs clear and equal bilaterally • Capillary refill 4 seconds • Color pale/gray with cool extremities • Peripheral pulses palpable • Abdomen full and soft to palpation • Fontanel soft and flat • 2 tibial IO’s in place bilaterally and one PIV with maintanance and dopamine infusing at 5 mcg/kg/min • Glucose-47, K-7.0 non-hemolyzed • Succinylcholine given by ED staff but patient with gasping respiratory effort

  5. The Golden Hour • Concept originated in 1973 by Cowley et al. • Referred to Army helicopter use • Goal for soldiers to be within 35 minutes of definitive life-saving care • Reported a 3 fold increase in mortality with every 30 minutes away from ‘definitive care’ • Resulted in less field intervention in favor of speed of transport • Interventions on transport in 1973, not comparable to our capabilities today

  6. Initiation of ‘definitive’ care • Definitive care begins with the arrival of the transport team • Early goal directed treatment improves outcomes • Needs to begin with the local emergency departments and continue with the transport team • Early aggressive interventions to reverse shock can increase survival by 9 fold if proper interventions are done early! • Hypotension and poor organ perfusion worsens outcomes “Further improvement in the outcome of critical illness is likely if the scoop-and-run mentality is replaced by protocol driven, early goal-directed therapy in the pretertiary hospital setting” Stroud et al., (2008)

  7. Initiation of ‘definitive’ care • Ramnarayan (2009) • Urgent vital interventions such as CPR, intubation or central venous access required in the first hour after arrival in an ICU • May indicate that inadequate stabilization was completed during transport • McPhearson and Graf (2009) • Attention to small details makes significant difference in pediatric transport • Securing ETT • Early recognition and treatment of shock • Adequate IV access

  8. Adverse Events • Orr et al. (2009) • Sample size 1085 pediatric patients • 5% had at least one unplanned event • Airway events-Most common • Cardiac arrest • Sustained hypotension • Loss of IV line needed for inotropic support • Hypothermia • Pediatric specialized teams had longer transport times, but lower incidents of adverse events, major interventions and deaths

  9. Not so fun facts… • Primary cardiac arrest in infants and children is rare • Pediatric cardiac arrest is often preceded by respiratory failure and/or shock and it is rarely sudden • Early intervention and continued monitoring can prevent arrest • The terminal rhythm in children is usually bradycardia that progresses to PEA and asystole • Septic shock is the most common form of shock in the pediatric population • 80% of children in septic shock will require intubation and mechanical ventilation within 24 hours of admission

  10. Method to the madness • Stabilization goals on transport • Airway/Breathing • Respiratory distress and failure • Circulation • Shock identification and management • Disability • ICP management • Exposure • Avoid hypothermia

  11. Airway • The respiratory systems continues to develop until 8-10 years of age • The pediatric airway is considerably smaller than the adult airway • Poiseuille’s Law: If radius of airway is reduced by half, the resistance in increased by 16 fold! • The cricoid cartilage is the most narrow point of airway • Serves as a natural cuff for ETT’s • Cuffed ETT’s may be used in young children but only inflate cuff to minimize air leak

  12. Respiratory Distress • A compensated state in which oxygenation and ventilation are maintained • Define oxygenation and ventilation • How will the blood gas look? • Characterized by any increased work of breathing • Flaring, retractions, grunting • What is grunting?

  13. Respiratory Failure • Compensatory mechanisms are no longer effective • Inadequate oxygenation and/or ventilation resulting in acidosis • Abnormal blood gas with hypercapnia and/or hypoxia • Medical emergency! Must protect airway! • Strongly consider intubation

  14. Respiratory Failure • Major events that lead to respiratory failure: • Hypoventilation • Decreased LOC • Diffusion impairment • Alveolar collapse or obstruction • Pulmonary edema • Pneumonia • Intrapulmonary shunting and V/Q mismatch • Alveoli are ventilated but not perfused-raising FiO2 may not improve PaO2 • Lungs perfused but not ventilated • Asthma, ARDS, pneumonia, PPHN

  15. Endotracheal Tubes • Size • Pediatric patient: 16 + age in years 4 • Compare to little finger • Neonates • See table

  16. Endotracheal Tubes • Length of tube estimated by the following: • Children > 1 year of age: • 13 plus ½ patient’s age • Infants < 1 year of age: • Estimated 3x ETT size

  17. Respiratory assessment and management on transport • Across the room • As you approach patient • Alert, pink, restless, combative? • Airway • Assess positioning • Airway noise? • Intubated? • ETT secure and in proper position • T2-T4-Above carina

  18. Respiratory assessment and management on transport • Tired appearance/decreased or altered LOC • Children have thin chest walls that make it relatively easy to hear their lung sounds. If you can’t hear them, something is wrong! • Anxiety-Air hunger • Cyanosis does not become clinically apparent until < 88% • Stridor/snoring respirations • Head bobbing • Prolonged expiration

  19. Respiratory assessment and management on transport • 100% oxygen via NRB mask • Wean O2 as patient stabilizes using face mask or nasal cannula • Provide bag valve mask ventilation for children who are not breathing effectively • Unable to maintain O2 sats on oxygen • Cyanosis • Unable to protect airway • Bag with enough force to make chest rise • 1 breath every 3 seconds • CE hand position • Do not occlude airway with your fingers!

  20. Rapid Sequence Intubation • Goals of RSI • Induce anesthesia and paralysis to facilitate rapid completion of procedure • Minimize elevations of ICP and blood pressure • Prevention of aspiration and ventilation of stomach • Sellick Maneuver • Compression of the cricoid cartilage • Compresses esophogus to prevent aspiration • Improves visualization of vocal cords

  21. Rapid Sequence Intubation • Procedure • Oxygenate with FiO2 of 1.0 • Administer atropine • Prevents vagally induced bradycardia • Minimizes secretions • Administer an opiate and benzodiazepine • Sedation • Administer paralytic • Relaxes all muscles allowing ease of opening airway and controlling breathing • Proceed with intubation

  22. Circulation • Shock • An abnormal condition of inadequate blood flow to the body tissues, with life threatening cellular dysfunction • Remember: CO = HR X SV • Oxygen delivery to the tissues is the product of cardiac output • Mortality rate varies from 25-50% • Earliest symptom is tachycardia • Tachycardia in a child always has a cause-if you don’t know why, find out!

  23. Circulation • Compensated Shock • The body’s compensatory mechanisms are working and maintaining the body’s most important functions • Blood pressure is maintained • Symptoms of early shock include: • Mild tachycardia • Mild tachypnea • Slightly increased capillary refill time • Weak peripheral pulses • Decrease in urine output and bowel sounds • Cool/mottled extremities

  24. Circulation • Decompensated Shock • The compensatory mechanisms are no longer effective • Blood pressure begins to deteriorate-this is what distinguishes compensated from decompensated shock! • Symptoms become more pronounced: • Tachycardia/tachypnea • Diminished or absent peripheral pulses • Very delayed capillary refill and cold extremities • Pallor • Poor or absent urine output • Fluid shifts causing generalized edema • Petichiae: DIC • Hypothermia

  25. Types of shock • Hypovolemic Shock • Occurs from loss of blood or body fluid volume from the intravascular space • Causes can be injury, vomiting or diarrhea • Cardiogenic Shock • Pump Failure • Inability of the heart to maintain adequate cardiac output • SVT, arrhythmias, cardiomyopathy, heart block • Support ABC’s • Treat the cause

  26. Types of shock • Obstructive Shock • Inadequate cardiac output due to an obstruction of the heart or great blood vessels • Cardiac tamponade • Tension Pneumothorax • Mediastinal mass • Support ABC’s, but fluids may not be the best option. The obstruction must be relieved

  27. Distributive Shock • Septic shock • Systemic infection as evidenced by a positive blood culture • Clinical presumptive diagnosis important • Patient in early septic shock will have bounding pulses and warm extremities • Also known as warm shock

  28. Distributive Shock • Septic shock: • Bacterial organisms release toxins, which results in an inflammatory response and cellular damage • Bacterial toxins serve as vasodilators resulting in loss of vascular tone • Increased capillary permeability • Fluid shifts to extracellular space • Hypotension may not respond to fluid resuscitation • Inotropic support • Early antibiotics • 80% of children in septic shock will require intubation and mechanical ventilation within 24 hours of admission

  29. Distributive Shock • Neurogenic shock: • Severe head or spinal injury • Decreased sympathetic output from the CNS • Decreased vascular tone • Anaphylactic shock: • Antibody-antigen reaction stimulates histamine release • Histamine is a powerful vasodilator • Loss of vascular tone

  30. Shock Management • Venous access: Ideally 2 large bore IV’s • Fluid resuscitation: 20ml/kg bolus of NS or LR • Reassess patient after each bolus • Convert to blood bolus if patient is bleeding • Inotropic support for hypotension that persists despite fluid resuscitation-Beware of catecholamine resistant shock! • Treat hypothermia • Correct F/E imbalances • Find the cause and fix it!

  31. AVPU scale Alert: Patient is A & O X 3 Verbal: Patient requires verbal stimulation to wake and respond Pain: Patient requires painful stimuli to wake and respond Unresponsive: Patient does not respond to any stimuli Dextrose Children in distress become hypoglycemic quickly Altered mental status can be a sign of hypoglycemia Check accucheck or i-Stat Treat hypoglycemia with 2ml/kg of D10W Recheck accucheck q 15-30 minutes Disability and Dextrose

  32. Exposure/Enviornment • Remember a naked child is a cold child! • Check child’s temperature • Warm IV fluids if possible: room temperature fluids are about 20 degrees colder than normal body temperature • Warm blankets for transport • Portawarmer mattress: Can use more than one for an older child • Place under blanket to avoid burns to skin • Hypothermia exacerbates acidosis!

  33. Family Presence • On transport, the family is almost always present either at the OSH or in the ambulance • The literature shows that most clinicians are concerned that parents will interfere with care if allowed to be present during resuscitation • However, this is rarely the case • In fact, some studies show that care is improved when a parent is present • There is no evidence to suggest that the legal risk increases with parental presence • What would you want if it were your child? Dingeman et al. (2007)

  34. X-Ray evaluation • Systematic approach • Check patient name • Check time of film-use most recent • Air is black and solid structures are white due to increase density • Ribs should be same length on both sides • Asymmetry may indicate rotated position • Check for ETT placement, line placements and for immediate life threats

  35. X-Ray evaluation

  36. X-Ray evaluation

  37. X-Ray evaluation

  38. X-Ray evaluation

  39. Back to the case study • Current vitals: HR-140 RR-40 BP-52/11 Temp- 90F • Vent settings: FiO2 1.0, Rate 40, PIP 20 PEEP 3 • Cap refill 5 seconds • ABG 6.93/74.4/259/14.8/-16.9 • 2 tibial IO’s in place bilaterally and one PIV with maintanance and dopamine infusing at 5 mcg/kg/min • Glucose-47, K-7.0 non-hemolyzed • Succinylcholine given by ED staff but patient with gasping respiratory effort

  40. Interventions • Re-tape and pull back ETT 1 cm • Increase PEEP to +5 • Sedation with Fentanyl 1-2 mcg/kg • Treat hypoglycemia-2ml/kg of D10W • Provide adequate paralysis with pavulon • Give Calcium Chloride-Why? • Give dextrose to increase accucheck to 100, then give regular insulin 0.1u/kg-Why?

  41. What happened? • Patient sedated and paralyzed appropriately • CaCl and bicarb given as ordered • Recheck of accucheck after dextrose =112 • Insulin given as ordered • Accucheck dropped to 42 so D10W repeated • One IO was infiltrated so new PIV started • Repeat ABG 6.94/92.1/233/18.8/-13.1 • BP dropped after pavulon, so dopamine titrated up-to 20mcg/kg/min • Pt diagnosed with Influenza A

  42. Summary • Transporting critically ill children requires a systematic approach • Attention to details will help to avoid adverse events • Be prepared before you move • Minimize major interventions in ambulance or helicopter • It’s all about the ABC’s

  43. References • Ajizian, S.J., Nakagawa, T.A., Interfacility Transport of the Critically Ill Pediatric Patient. Chest. 2007; 132: 1361-1367 • Cowley, R.A., Hudson, F., Scanlan, E., Gill. W., Lally, R.J., Long, W., et al. An Economical and Proved Helicopter Program for Transporting the Emergency Critically Ill and Injured Patient in Maryland. The Journal of Trauma. 1973; 13(12): 1029-1038 • Dingeman, R.S., Mitchell, E.A., Meyer, E.C., Curley, M.A.Q. Parent Presence during Complex invasive Procedures and Cardiopulmonary Resuscitation: A Systematic Review of the Literature. Pediatrics. 2007; 120(4): 842-854 • Horowitz, R., Rozenfeld, R.A., Pediatric Critical Care Interfacility Transport. Pediatric Emergency Medicine. 2007; 8: 190-202

  44. References • Kliegman, R.M., Behrman, R.E., Jenson, H.B., Stanton, B.F. (eds.), Nelson Textbook of Pediatrics, 18th ed., 2004, Philadelphia, Saunders Elsevier • McCloskey, K.A.L., Orr, R.A. Pediatric Transport Medicine, 1995, St. Louis, Mosby • McPherson, M.L., Graf, J.M., Speed isn’t Everything in Pediatric Medical Transport. Pediatrics. 2009;124(1): 381-383 • Orr, R.A., Felmet, K.A., Han, Y., McCloskey, K.A., Drogotta, M.A., Bills, D.M., et al. Pediatric Specialized Transport Teams are Associated with Improved Outcomes. Pediatrics. 2009; 124: 40-48 • Stroud, M.H., Prodhan, P., Moss, M.M., Anand, K.J.S. Redefining the Golden Hour in Pediatric Transport. Pediatric Critical Care Medicine. 2008; 9(4): 435-437
