4.10. Prove Triangles Cong. by ASA and AAS. E. B. F. D. C. A. Angle-Side-Angle (ASA) Congruence Postulate. If two angles and the included side of one triangle are congruent to two angles and the included side of a second triangle, then the two triangles are congruent. 4.10.

raheem
Download Presentation

4.10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

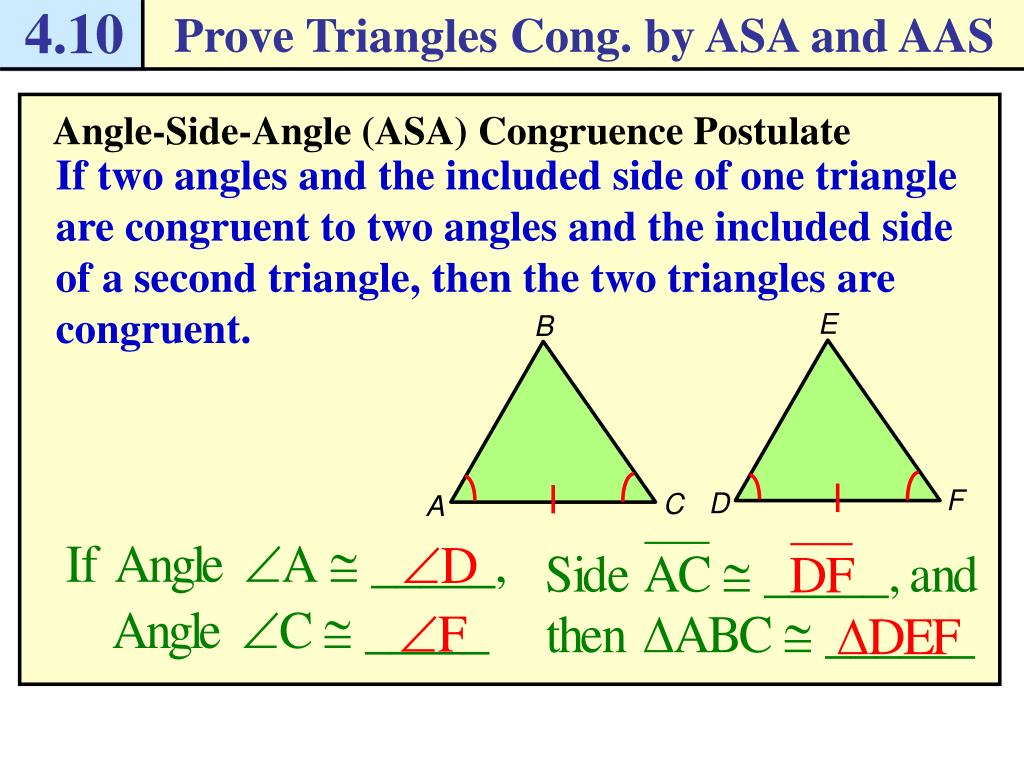

  1. 4.10 Prove Triangles Cong. by ASA and AAS E B F D C A Angle-Side-Angle (ASA) Congruence Postulate If two angles and the included side of one triangle are congruent to two angles and the included side of a second triangle, then the two triangles are congruent.

  2. 4.10 Prove Triangles Cong. by ASA and AAS E B F D C A Theorem 4.13: Angle-Angle-Side (AAS) Congruence Theorem If two angles and a non-included side of one triangle are congruent to two angles and the corresponding non-included side of a second triangle, then the two triangles are congruent.

  3. 4.10 Prove Triangles Cong. by ASA and AAS t p q Theorem 4.14: Alternate Interior Angles Theorem If two parallel lines are cut by a transversal, then the pair of alternate interior angles are _________. 4 congruent 5

  4. 4.10 Prove Triangles Cong. by ASA and AAS Identify congruent triangles Example 1 Can the triangles be proven congruent with the information given in the diagram? If so, state the postulate or theorem you would use. a. • There is not enough information to prove the triangles congruent, because no _______ are known to be the congruent. sides

  5. 4.10 Prove Triangles Cong. by ASA and AAS Identify congruent triangles Example 1 Can the triangles be proven congruent with the information given in the diagram? If so, state the postulate or theorem you would use. b. non-included • Two pairs of angles and a ______________ pair of sides are congruent. The triangles are congruent by the _____________________________. AAS Congruence Theorem

  6. 4.10 Prove Triangles Cong. by ASA and AAS Identify congruent triangles Example 1 Can the triangles be proven congruent with the information given in the diagram? If so, state the postulate or theorem you would use. c. • The vertical angles are congruent, so two pairs of angles and their _______________ are congruent. The triangles are congruent by the ____________________________. included sides ASA Congruence Postulate

  7. 4.10 Prove Triangles Cong. by ASA and AAS • Can STW and VWT be proven congruent with the information given in the diagram? If so, state the postulate or theorem you would use. S V U T W Checkpoint. Complete the following exercises. you have two pairs of angles and a non-included pair of sides. The triangles are congruent by the AAS Congruence Theorem

  8. 4.10 Prove Triangles Cong. by ASA and AAS In the diagram, 1 4 and CF bisects ACE. Write a flow proof to show CBF CDF. C D B 2 3 1 4 E A F Def. of _______________ angles Cong. Supps. Thm. _________________________ Write a flow proof Example 2 Given: Prove: supplements supplements Given supplementary Given Reflexive Prop. AAS Congruence Theorem

  9. 4.10 Prove Triangles Cong. by ASA and AAS C • In the diagram, CF bisects ACE and BFD. Write a flow proof to show CBF CDF. D B 2 3 1 4 E A F Def. of bisector Def. of bisector Checkpoint. Complete the following exercises. Given: Prove: Given Given Reflexive Prop. ASA Congruence Postulate

  10. 4.10 Prove Triangles Cong. by ASA and AAS Pg. 267, 4.10 #1-20
