  1. Basics of Reactivity March 1, 2001 Dongmin Luo Research Division California Air Resources Board

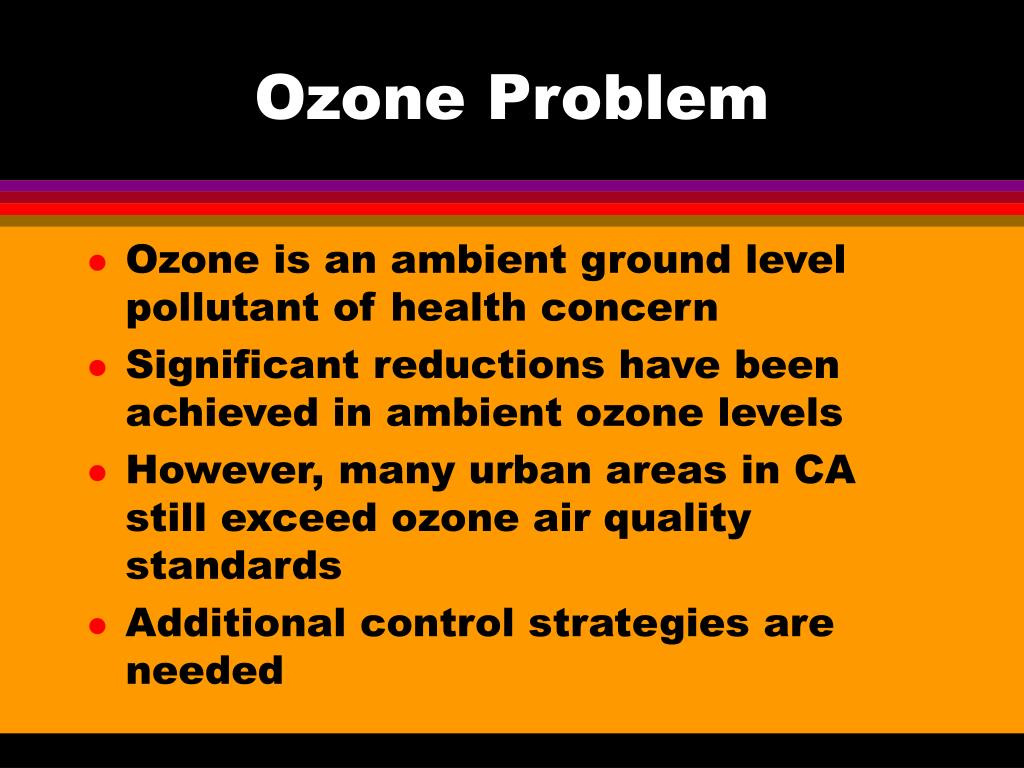

  2. Ozone Problem • Ozone is an ambient ground level pollutant of health concern • Significant reductions have been achieved in ambient ozone levels • However, many urban areas in CA still exceed ozone air quality standards • Additional control strategies are needed

  3. Ozone Formation • Ozone is formed from reactions of VOCs and NOx in sunlight • Very low levels of ozone are formed if VOCs are absent • No ozone is formed if NOx is absent • Many types of VOCs promote ozone formation

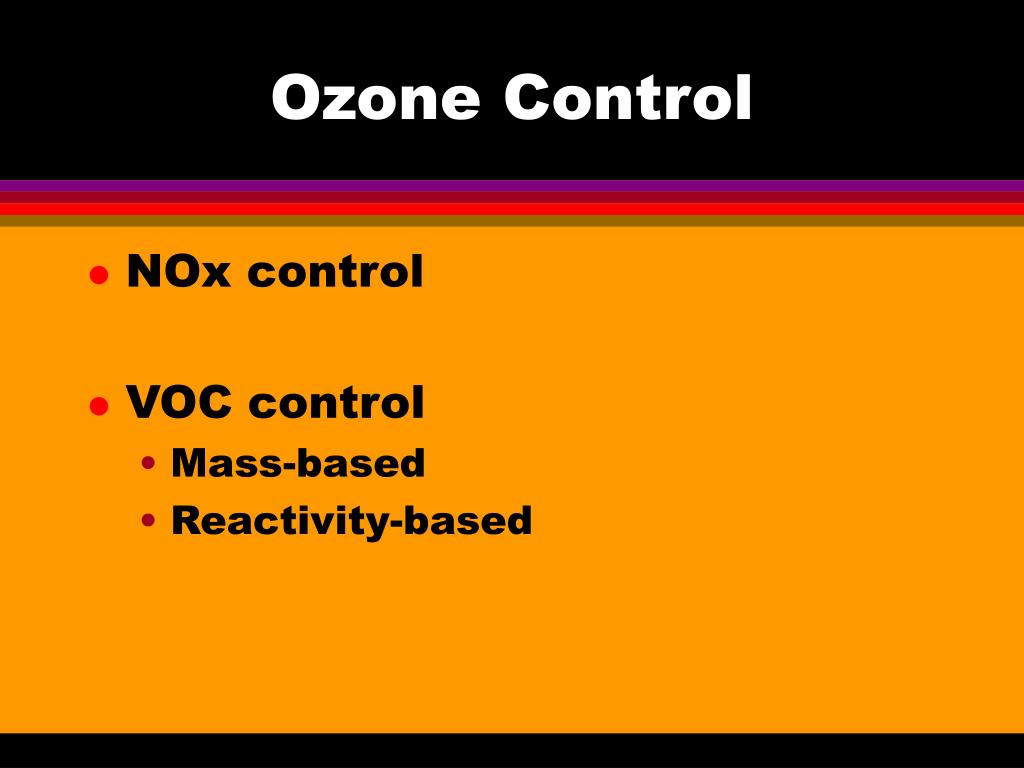

  4. Ozone Control • NOx control • VOC control • Mass-based • Reactivity-based

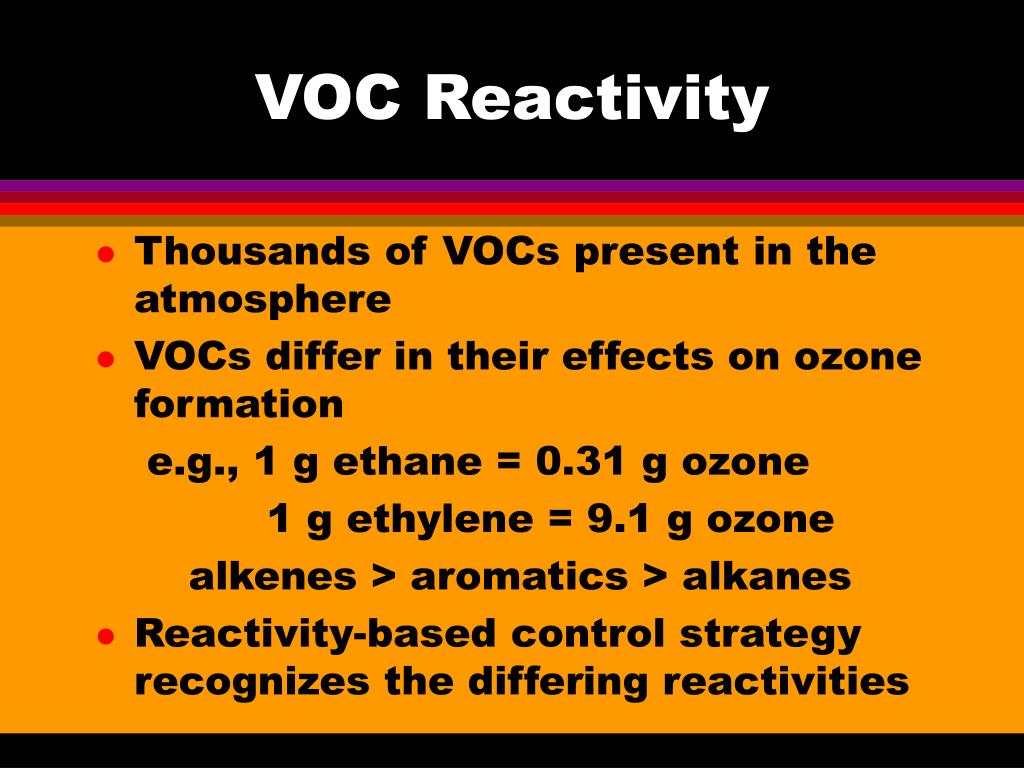

  5. VOC Reactivity • Thousands of VOCs present in the atmosphere • VOCs differ in their effects on ozone formation e.g., 1 g ethane = 0.31 g ozone 1 g ethylene = 9.1 g ozone alkenes > aromatics > alkanes • Reactivity-based control strategy recognizes the differing reactivities

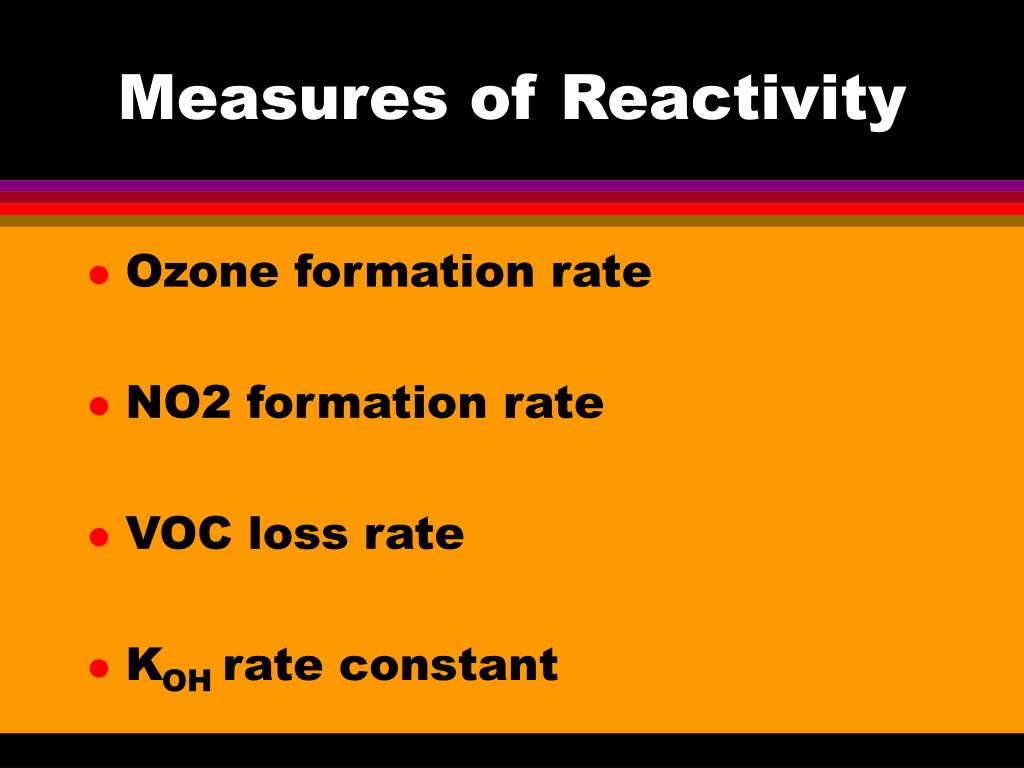

  6. Measures of Reactivity • Ozone formation rate • NO2 formation rate • VOC loss rate • KOH rate constant

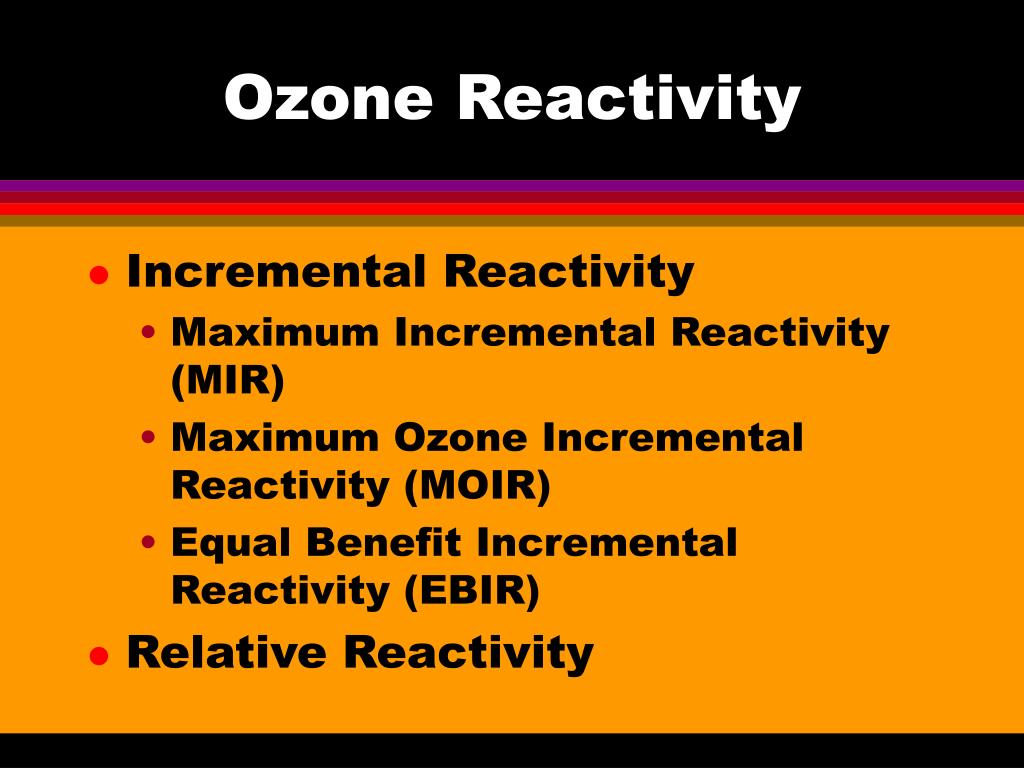

  7. Ozone Reactivity • Incremental Reactivity • Maximum Incremental Reactivity (MIR) • Maximum Ozone Incremental Reactivity (MOIR) • Equal Benefit Incremental Reactivity (EBIR) • Relative Reactivity

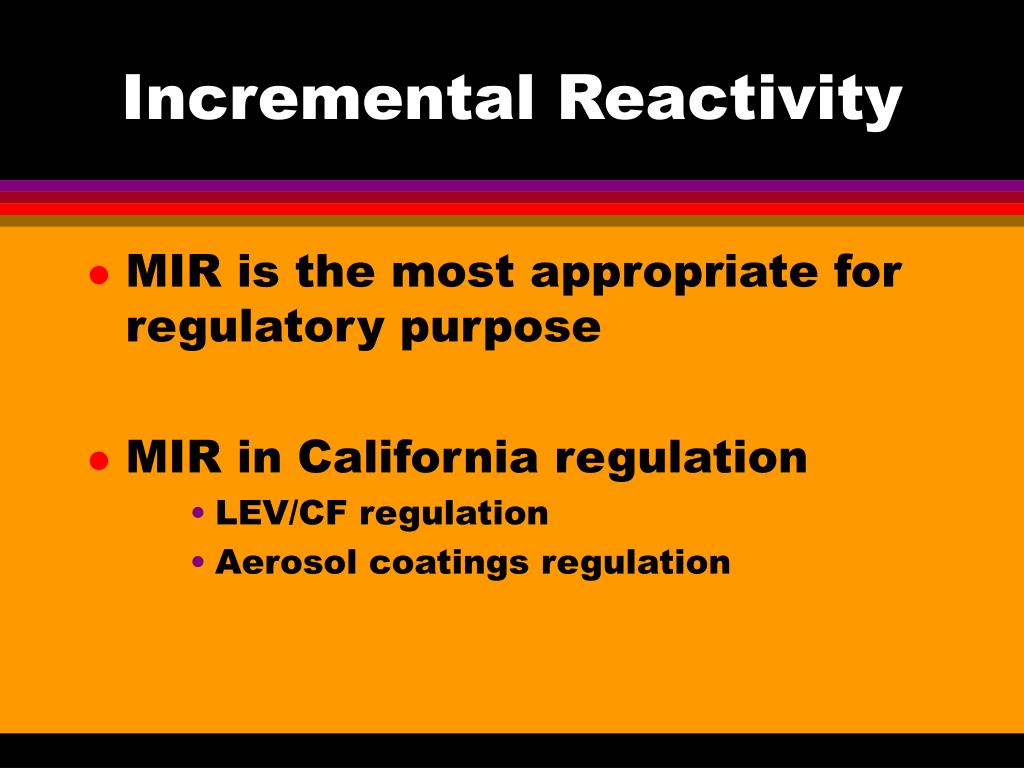

  8. Incremental Reactivity • MIR is the most appropriate for regulatory purpose • MIR in California regulation • LEV/CF regulation • Aerosol coatings regulation
