  1. Marine Corps Systems Command PM Communication Systems CONDOR BCOTM Brief

  2. The CONDOR Gateway: • Purpose: Connects EPLRS Communities over distance. • EPLRS Node • C2PC Gateway • Over-the-Horizon connection (INMARSAT, Iridium, TACSAT) Beyond Line of Sight EPLRS Community EPLRS Community CONDOR “Gateway”

  3. INMARSAT or TACSAT Gateway Beyond Line of Sight • The CONDOR Point of Presence Vehicle: • Purpose: Connects Users without EPLRS to the TDN • SINCGARS • HaveQuick II • TACSAT DAMA • HF • HF ALE • EPLRS • Iridium - ETCS • … PoP-V EPLRS Community CONDOR “PoP-V”

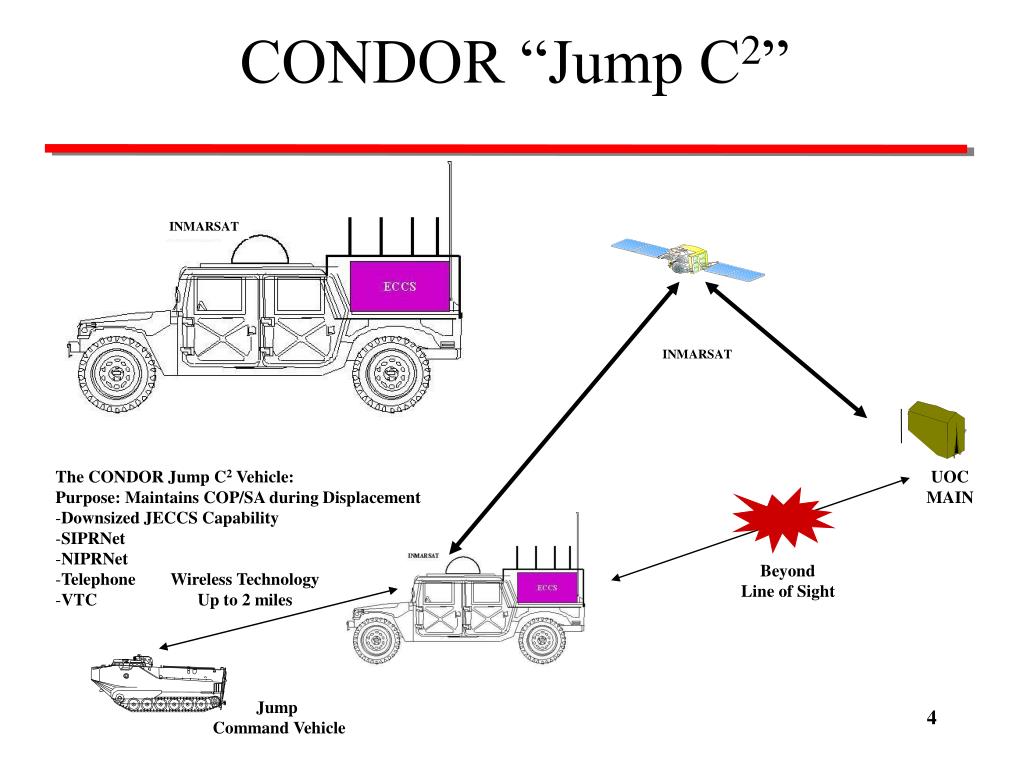

  4. CONDOR “Jump C2” INMARSAT INMARSAT • The CONDOR Jump C2 Vehicle: • Purpose: Maintains COP/SA during Displacement • Downsized JECCS Capability • SIPRNet • NIPRNet • Telephone • VTC UOC MAIN Beyond Line of Sight Wireless Technology Up to 2 miles Jump Command Vehicle

  5. US Army & CONDOR • 9 June USMC CONDOR Team met with US Army Central Technical Support Facility (CTSF) Staff, Fort Hood, Texas • Two US Army FBCB2 HMMWVS have been shipped to SPAWAR, Charleston for CONDOR GatewayIntegration • US Army, USMC, and CenGen will cooperate on US Army to USMC EPLRS issues concerning interoperability to include COP-B

  6. US Army CONDOR GW

  7. Nomenclature Model/Part No. Source Transit Case Mounted Components MILEX Transit Case 7815.6602.02XX EDAK Inc. (US) PDU DC to AC Inverter NCGL1.5k-2U-24-115-R-7647 Nova Electric INMARSAT M4 Mobile ISDN TT-3082A LandSea Systems, Inc. In-Line Network Encryptor Sectéra, KG-235 General Dynamics C4 Systems Power Supply, DC (KG-235) General Dynamics C4 Systems Ethernet Router (Red) CISCO2621XM Cisco Systems Corp. Ethernet Router (Black) CISCO3725 Cisco Systems Corp. Radio Set, EPLRS AN/VSQ2C (V) 2 Government Furnished Equipment USB to 8-Port w/RS232 Adapter 2801 Sealink Global Positioning System GPS76 Garmin International Inc. Power Supply, DC (T-40) IBM Corporation Internal Components Laptop Computer T-40 IBM Corporation Laptop Mount 01008B2230 Diversified Metal Technologies Equipment Mounting Skid 03005J8100 Laurentide Inc. Radio Set, AN/MRC-145A Government Furnished Equipment External Components Helmet Hard Top 8557-4D-C AMTECH Corp. Antenna, VHF AS-3900 Government Furnished Equipment Antenna, EPLRS AS-3449 Government Furnished Equipment Antenna, INMARSAT TT-3008E LandSea Systems, Inc. Antenna, GPS GA-29F Garmin International Inc. US Army CONDOR GW

  8. FY05 Events • Development Test and Evaluation: • System of Systems Tests • USMC Limited User Evaluation/Subject Matter Expert Demonstration • USMC/US ARMY Limited User Evaluation/Subject Matter Expert Demonstration • Possible Sea Viking ‘05 Integration • Possible Trident Warrior ’05 Integration

  9. Questions

  10. Army CONDOR GW Two CONDOR Gateways to be built, delivered, and integrated at Central Technical Support Facility(CTSF), Fort Hood, Texas • SSCC built CONDOR GW minus Marine Corps EPLRS Transmitter • Army Provided HMMWVs • Army Provided EPLRS Transmitter • Army Provided FBCB2 Terminal

  11. “Hardhat” FBCB2 EPLRS C2PC Army Configuration Gateway Transit Case SPAWAR will provide GW with all equipment depicted in green, Army will equip with gear depicted in blue Cisco 3725 Cisco 2600 KG-235 EPLRS Bay INMARSAT Power Module GPS

  12. Army Integration Effort Phase 1: Integrate existing GW configuration with Army EPLRS and FBCB2. Intent is to provide a viable “solution” to address US Army’s EPLRS/FBCB2 extended range requirement. Beyond Line of Sight US Army EPLRS Community US Army EPLRS Community

  13. Army Integration Effort Phase 2: Integrate existing GW configuration with Army EPLRS and extend “data pipe” from USMC Battalion EPLRS community to US Army Brigade EPLRS community. Intent is to create network extensions to allow TCP/IP communications between two units in a joint environment. USMC EPLRS Community Beyond Line of Sight US Army EPLRS Community

  14. Army Integration Effort Phase 3: Utilize “data pipe” from USMC Battalion EPLRS community to US Army Brigade EPLRS community to enable passing of Situational Awareness (SA) and Position Location Information (PLI) utilizing each service’s C2 system. Intent is to utilize network extensions to enable C2PC and FBCB2 interoperability. C2PC FBCB2 USMC EPLRS Community Beyond Line of Sight US Army EPLRS Community

  15. Army Integration Effort Phase 4: Integration of different EPLRS communities into one GW that accomplishes interoperability piece and allows two units to work side by side with common GW. C2PC or FBCB2 Task Force CP FBCB2 C2PC USMC Battalion EPLRS Community US Army Brigade EPLRS Community

  16. FBCB2 3.6x with EPLRS 11.3 Planned EPLRS fragmentation – not automatically “self-healing” capability Only two fragments, and both fragments share the same Bde-wide SA and C2 needlines If time permits, will relax some of these Assumptions for Phase 1

  17. 1-10 Cav unit is well forward of DTAC/4th Brigade, so that it has lost Bde-wide EPLRS connectivity A company of 1BN22 is well forward of 1BDE and 1BN22, so that it has lost Btn-local and Bde-wide EPLRS connectivity Scenarios for Phase 1
