  1. Energy from the Wind

  2. Outline • Introduction to Wind • History of mankind's use of wind • Mechanical conversion of Winds kinetic energy • Types of wind turbines • Electrical conversion of mechanical energy • Conclusion

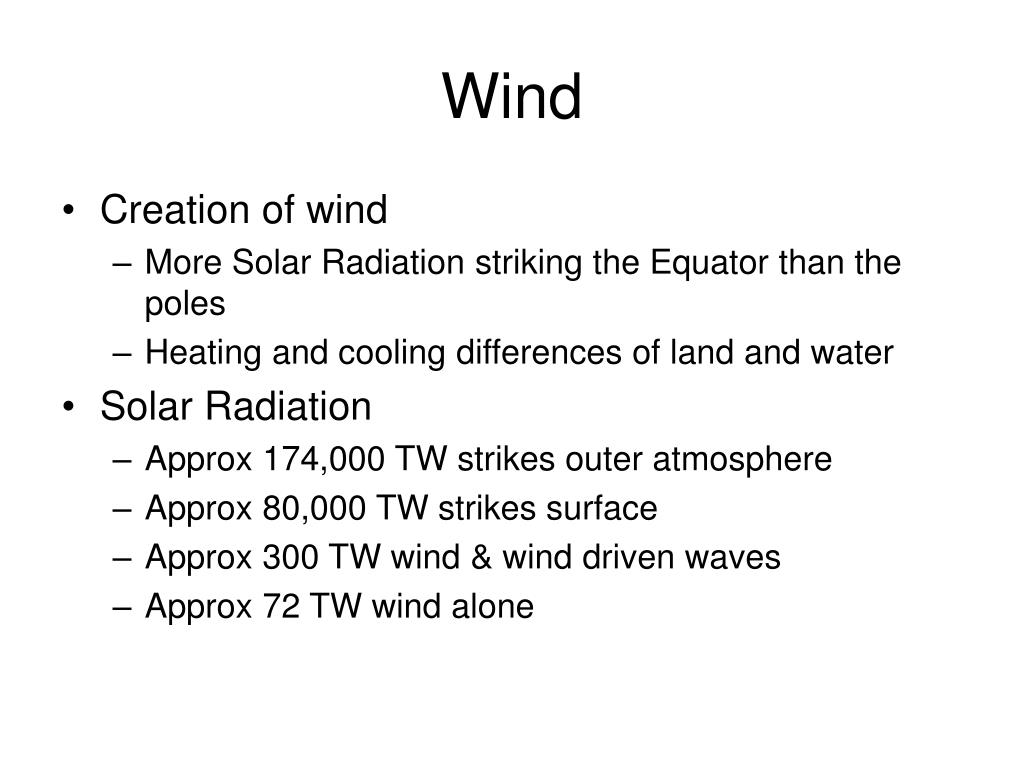

  3. Wind • Creation of wind • More Solar Radiation striking the Equator than the poles • Heating and cooling differences of land and water • Solar Radiation • Approx 174,000 TW strikes outer atmosphere • Approx 80,000 TW strikes surface • Approx 300 TW wind & wind driven waves • Approx 72 TW wind alone

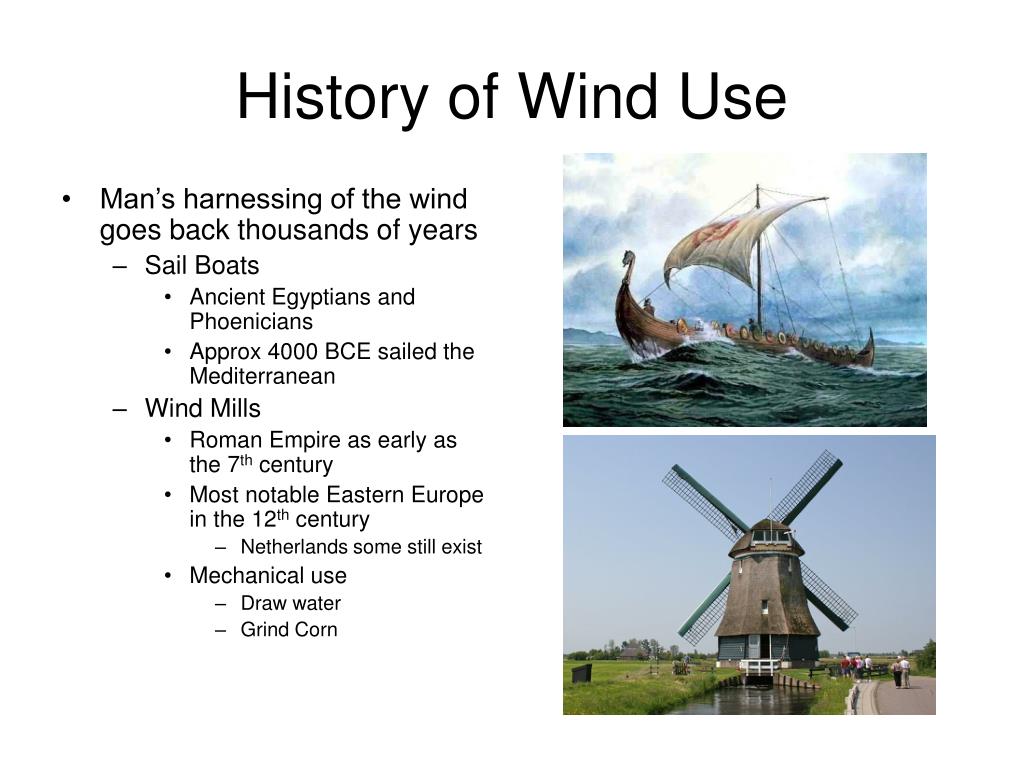

  4. History of Wind Use • Man’s harnessing of the wind goes back thousands of years • Sail Boats • Ancient Egyptians and Phoenicians • Approx 4000 BCE sailed the Mediterranean • Wind Mills • Roman Empire as early as the 7th century • Most notable Eastern Europe in the 12th century • Netherlands some still exist • Mechanical use • Draw water • Grind Corn

  5. Beaufort scale

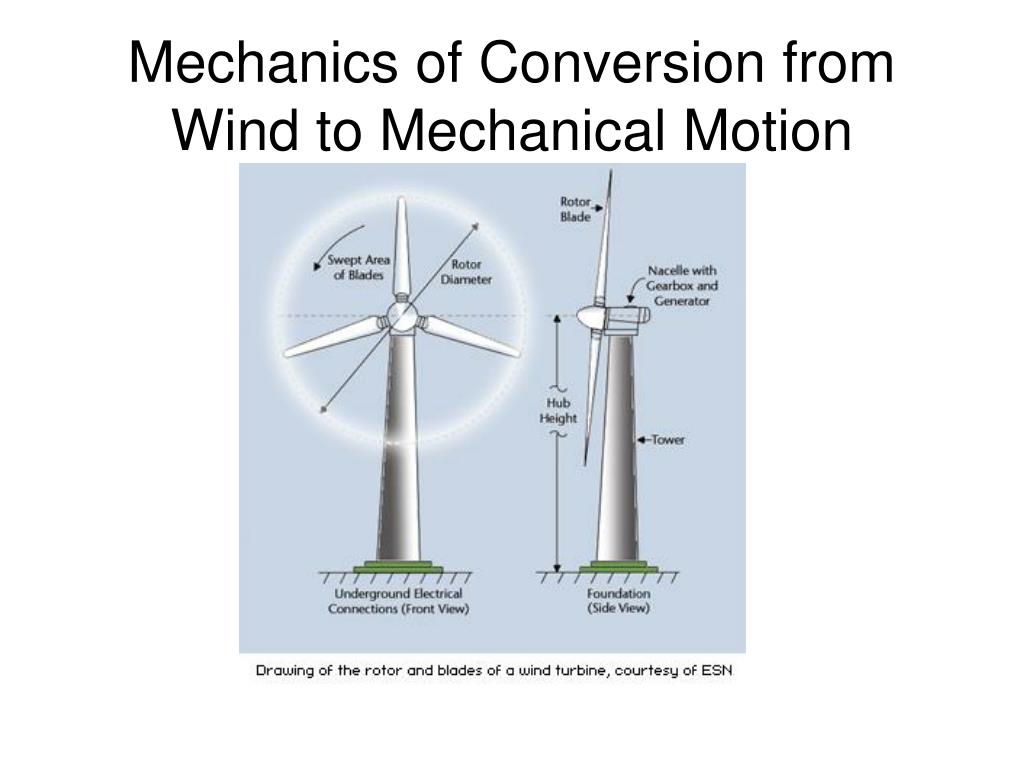

  6. Mechanics of Conversion from Wind to Mechanical Motion

  7. Turbine blades • Similar to airplane wings • FL= Lift force • FD = Drag force • Wind energy is converted to rotation velocity • Causing turbine to spin

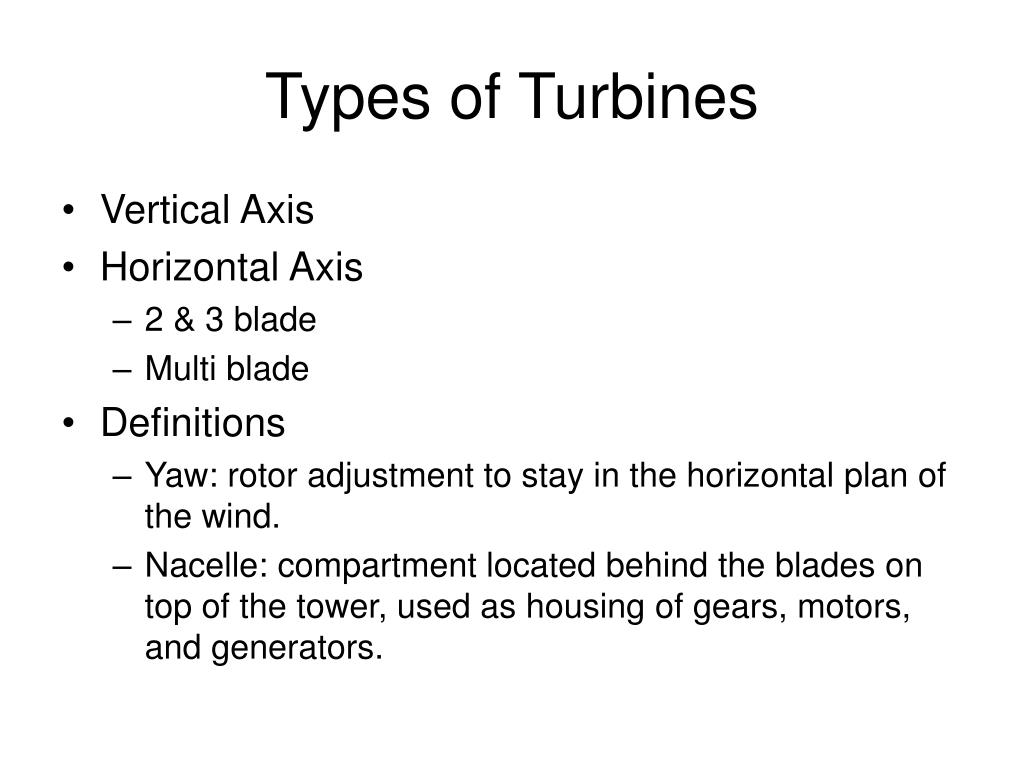

  8. Types of Turbines • Vertical Axis • Horizontal Axis • 2 & 3 blade • Multi blade • Definitions • Yaw: rotor adjustment to stay in the horizontal plan of the wind. • Nacelle: compartment located behind the blades on top of the tower, used as housing of gears, motors, and generators.

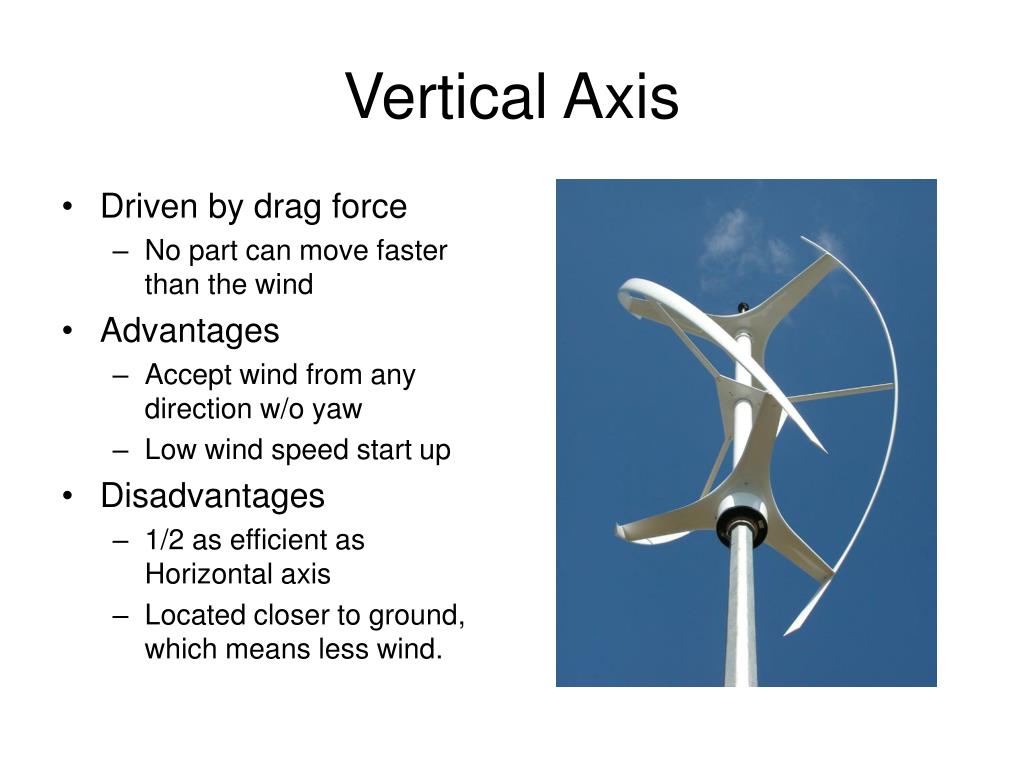

  9. Vertical Axis • Driven by drag force • No part can move faster than the wind • Advantages • Accept wind from any direction w/o yaw • Low wind speed start up • Disadvantages • 1/2 as efficient as Horizontal axis • Located closer to ground, which means less wind.

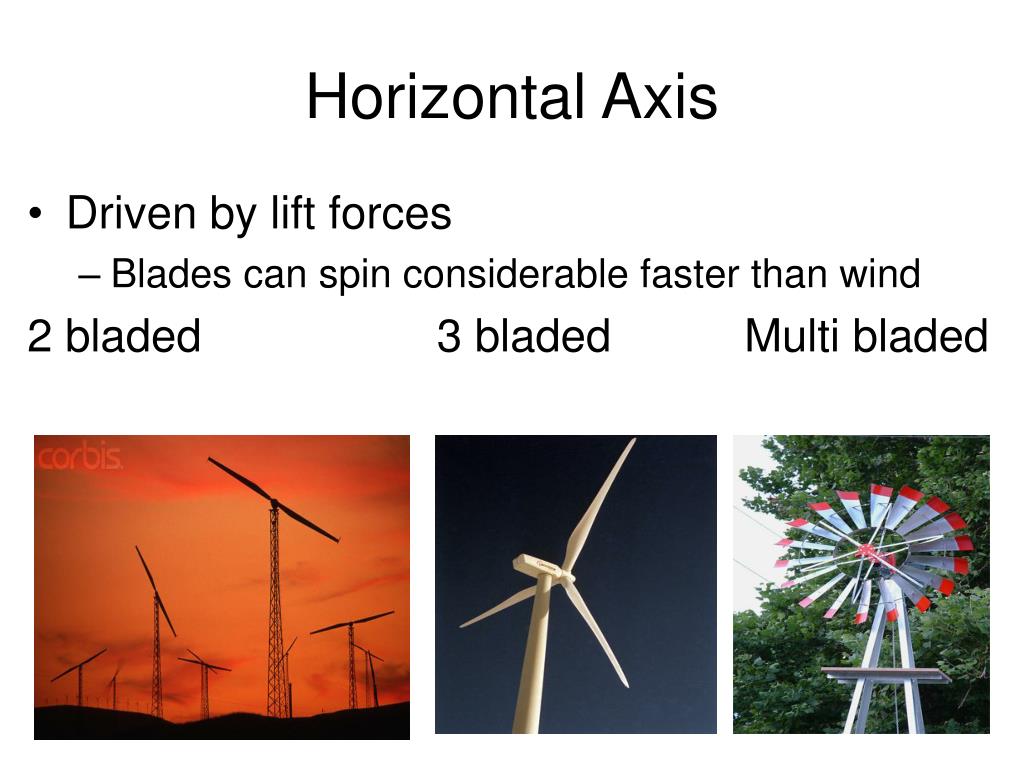

  10. Horizontal Axis • Driven by lift forces • Blades can spin considerable faster than wind 2 bladed 3 bladed Multi bladed

  11. Power & Torque conversions • PT = ½ CPAρu03 • CP = power coefficient • A = cross section of wind front contacting turbine • ρ = wind density (mass of air per unit area) • Depends on air temperature and pressure • u0 = initial wind speed • Cp = λCN • CP = power coefficient • CN = torque coefficient • λ = 4π / n = tip speed ratio • n = number of rotors

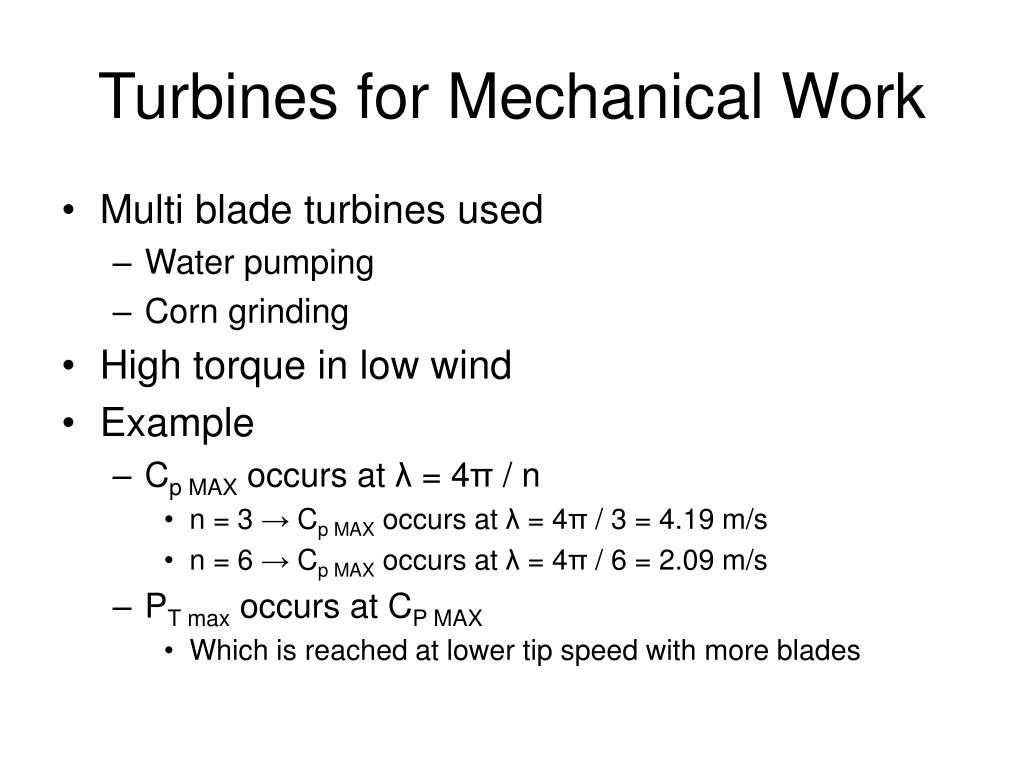

  12. Turbines for Mechanical Work • Multi blade turbines used • Water pumping • Corn grinding • High torque in low wind • Example • Cp MAX occurs at λ = 4π / n • n = 3 → Cp MAX occurs at λ = 4π / 3 = 4.19 m/s • n = 6 → Cp MAX occurs at λ = 4π / 6 = 2.09 m/s • PT max occurs at CP MAX • Which is reached at lower tip speed with more blades

  13. Turbines for Electrical Energy • Electric generation requires more steady and higher wind velocities • 2 & 3 bladed machines are used instead of multi/many bladed machines • Up wind and down wind positioning • Blades are up or down wind of nacelle • Upwind means blades are on incoming wind side of nacelle, and must have yaw control • Downwind means that incoming wind hits nacelle before blades automatically yaws with wind as direction changes

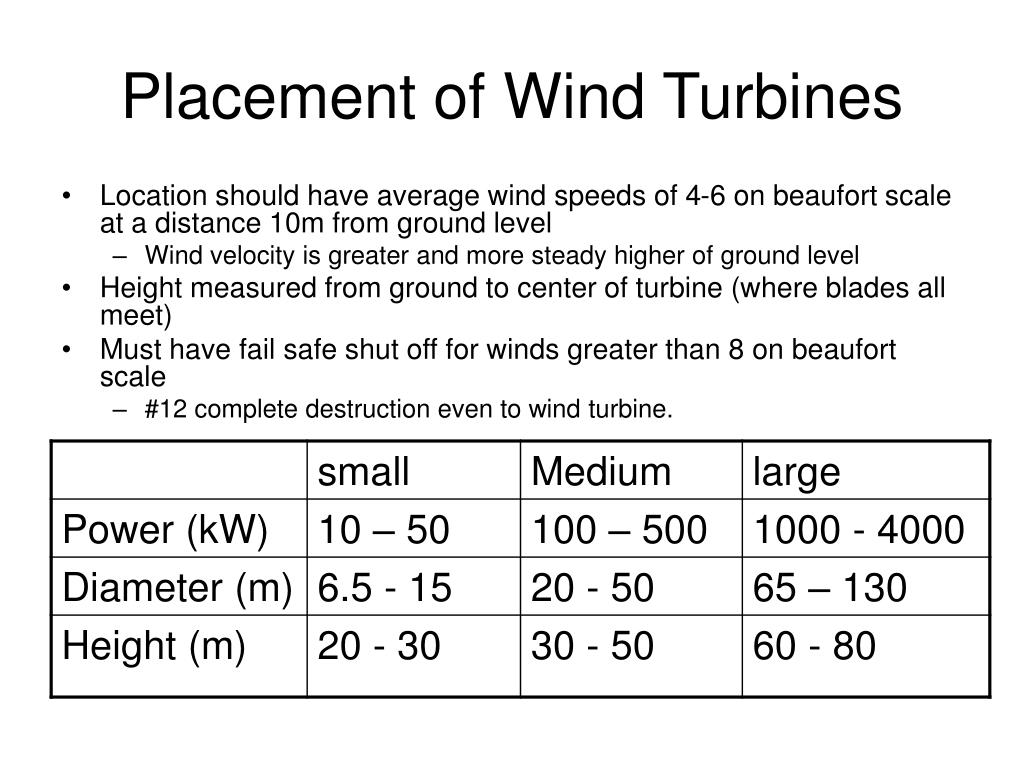

  14. Placement of Wind Turbines • Location should have average wind speeds of 4-6 on beaufort scale at a distance 10m from ground level • Wind velocity is greater and more steady higher of ground level • Height measured from ground to center of turbine (where blades all meet) • Must have fail safe shut off for winds greater than 8 on beaufort scale • #12 complete destruction even to wind turbine.

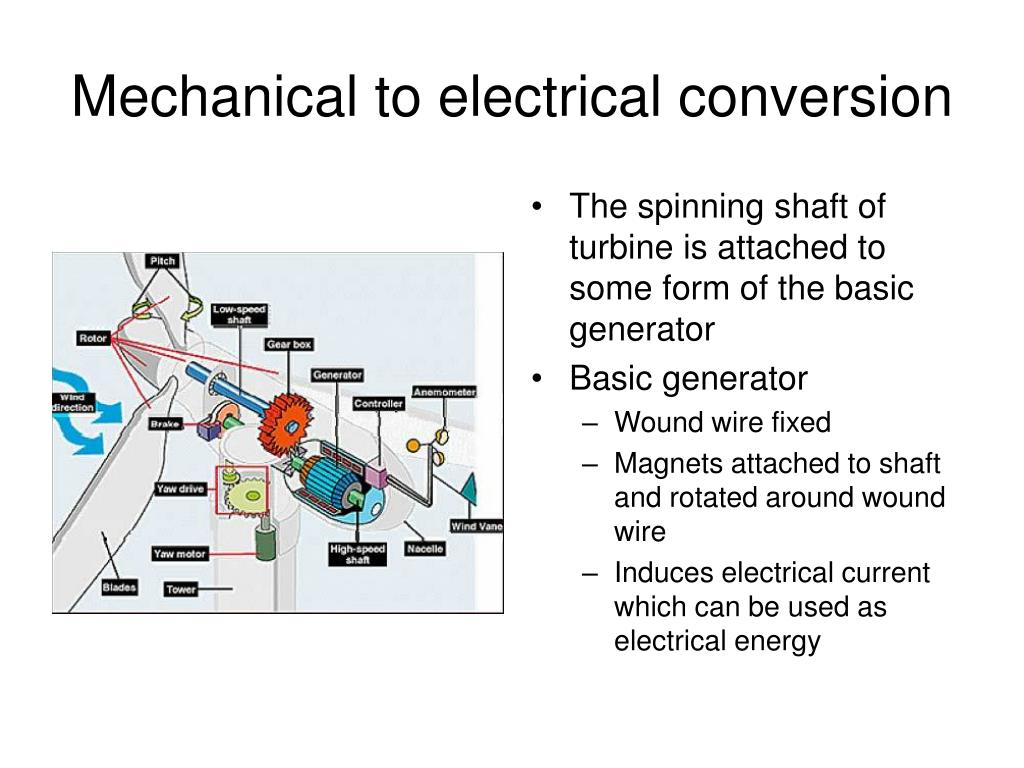

  15. Mechanical to electrical conversion • The spinning shaft of turbine is attached to some form of the basic generator • Basic generator • Wound wire fixed • Magnets attached to shaft and rotated around wound wire • Induces electrical current which can be used as electrical energy

  16. Conclusion • Energy in the wind is no new idea • As our society advances we are finding more was to use the wind and other natural phenomenon. • Conversions from wind → mechanical → electrical + periodicity of wind • Efficiency = approx 25-35% (mostly due to its periodicity) • Global energy use in 2007 • Approx 17 TW • (72 / 2 = 36 TW wind energy)(.25 eff.) = 9 TW energy • That means that harnessing one half of the total energy in the wind would account for 50% of the global energy consumption from 2007. • Wind derived energy has been used more and more in recent years in many countries • Denmark 19% of energy consumed is generated from wind • Spain & Portugal 9%, and Germany & Ireland 6%

  17. Wind Derived Energy in the U.S.
