Explorations in Anonymous Communication

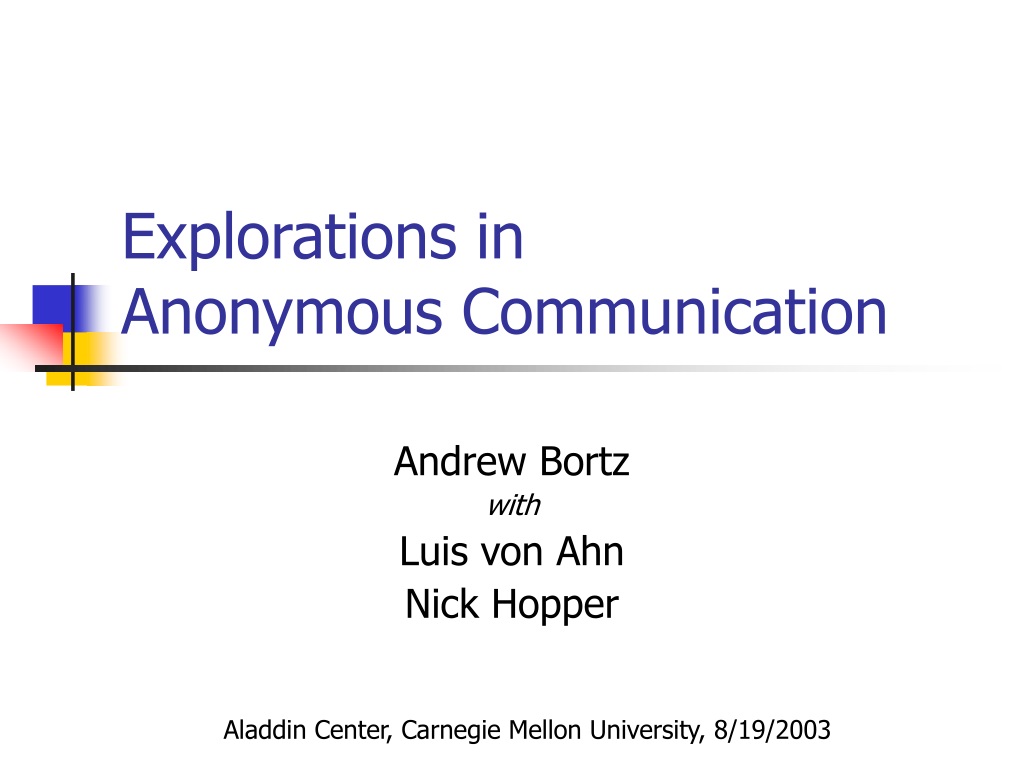

1. Explorations in Anonymous Communication Andrew Bortz with Luis von Ahn Nick Hopper Aladdin Center, Carnegie Mellon University, 8/19/2003

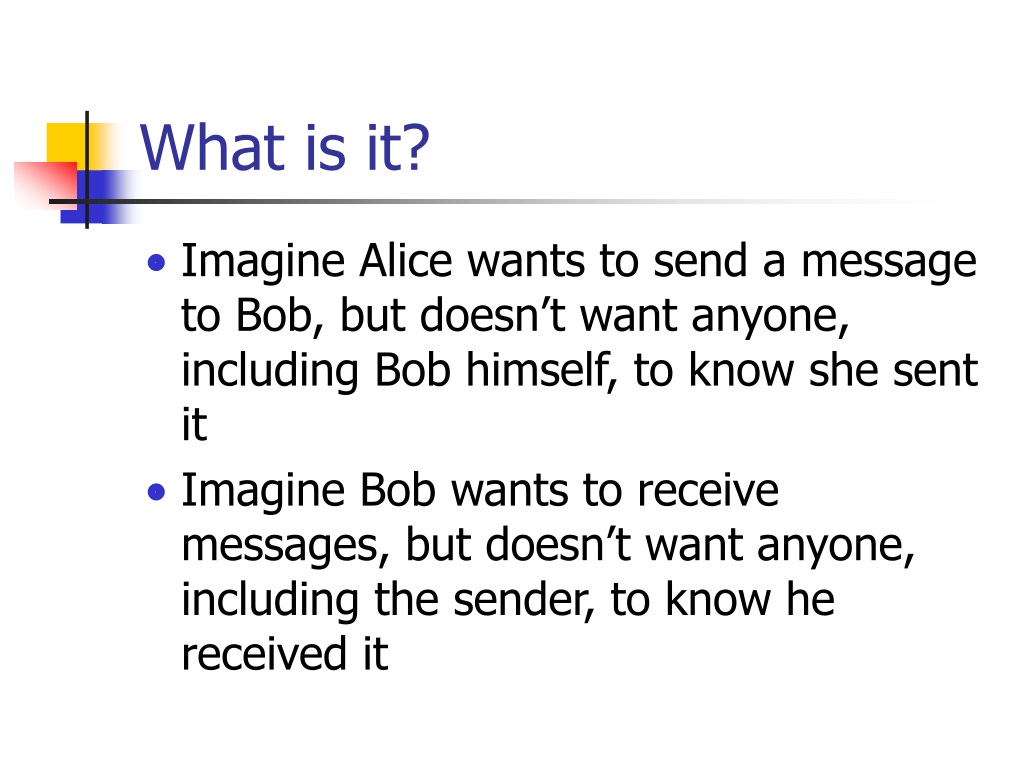

2. What is it? • Imagine Alice wants to send a message to Bob, but doesn’t want anyone, including Bob himself, to know she sent it • Imagine Bob wants to receive messages, but doesn’t want anyone, including the sender, to know he received it

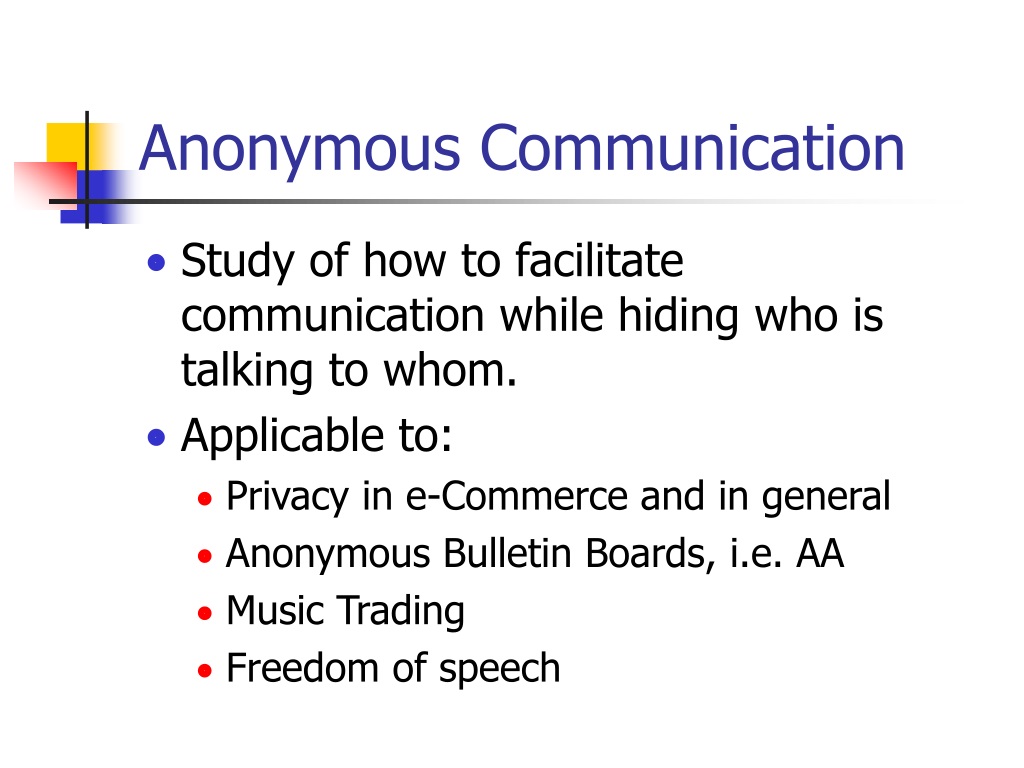

3. Anonymous Communication • Study of how to facilitate communication while hiding who is talking to whom. • Applicable to: • Privacy in e-Commerce and in general • Anonymous Bulletin Boards, i.e. AA • Music Trading • Freedom of speech

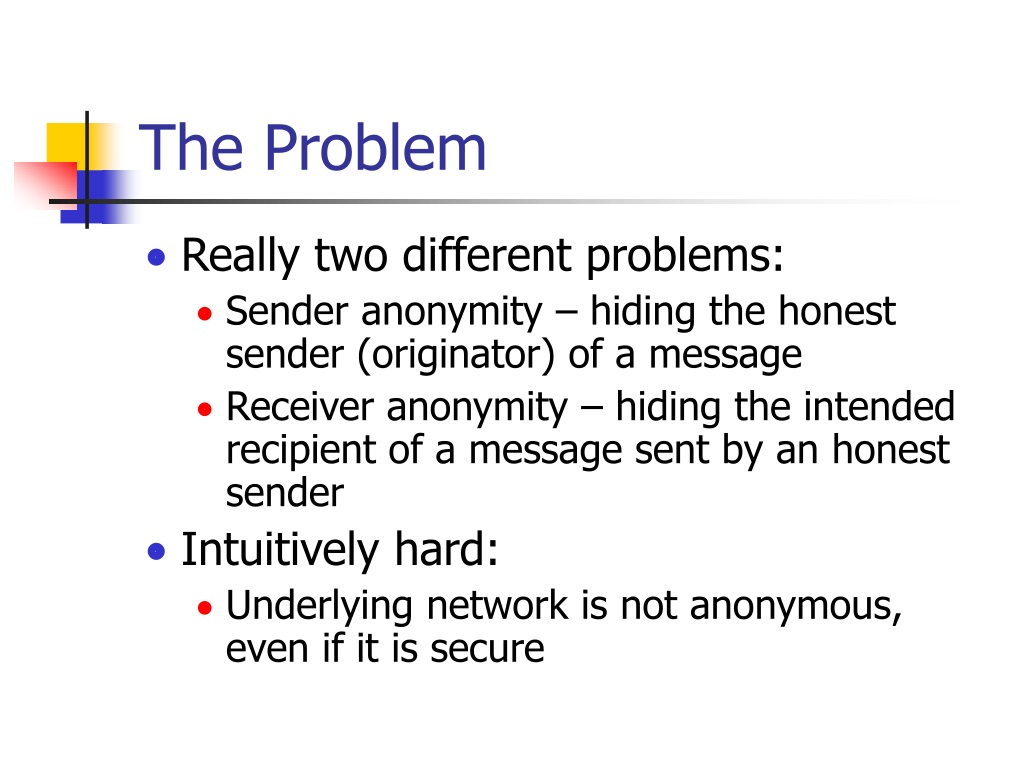

4. The Problem • Really two different problems: • Sender anonymity – hiding the honest sender (originator) of a message • Receiver anonymity – hiding the intended recipient of a message sent by an honest sender • Intuitively hard: • Underlying network is not anonymous, even if it is secure

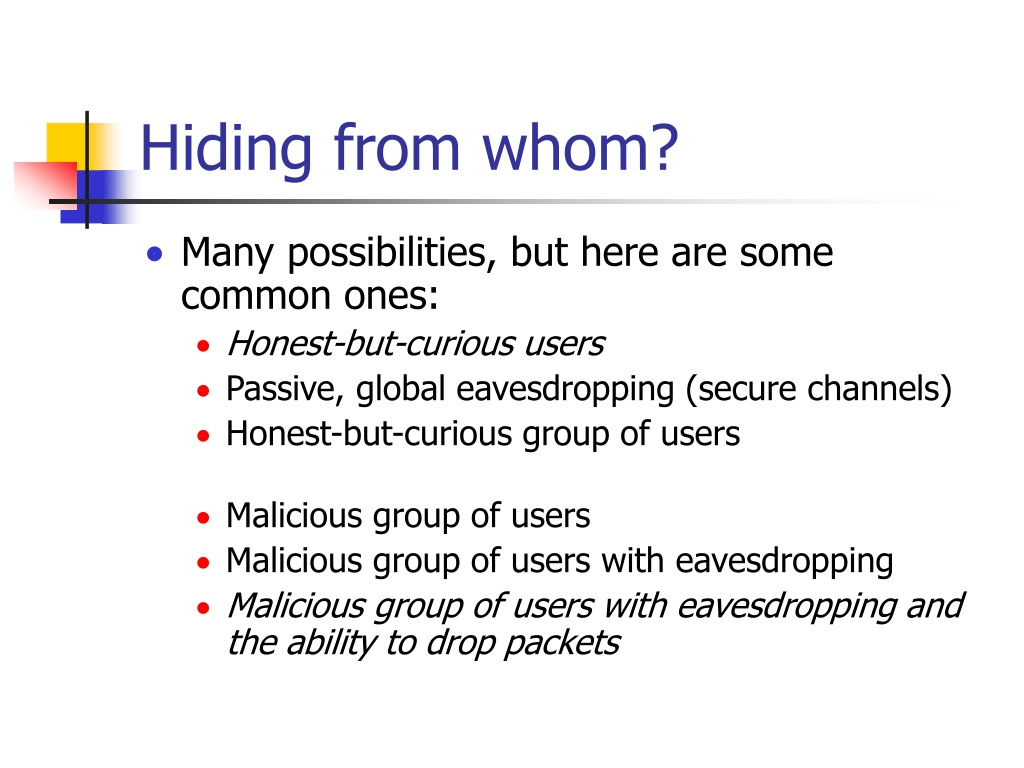

5. Hiding from whom? • Many possibilities, but here are some common ones: • Honest-but-curious users • Passive, global eavesdropping (secure channels) • Honest-but-curious group of users • Malicious group of users • Malicious group of users with eavesdropping • Malicious group of users with eavesdropping and the ability to drop packets

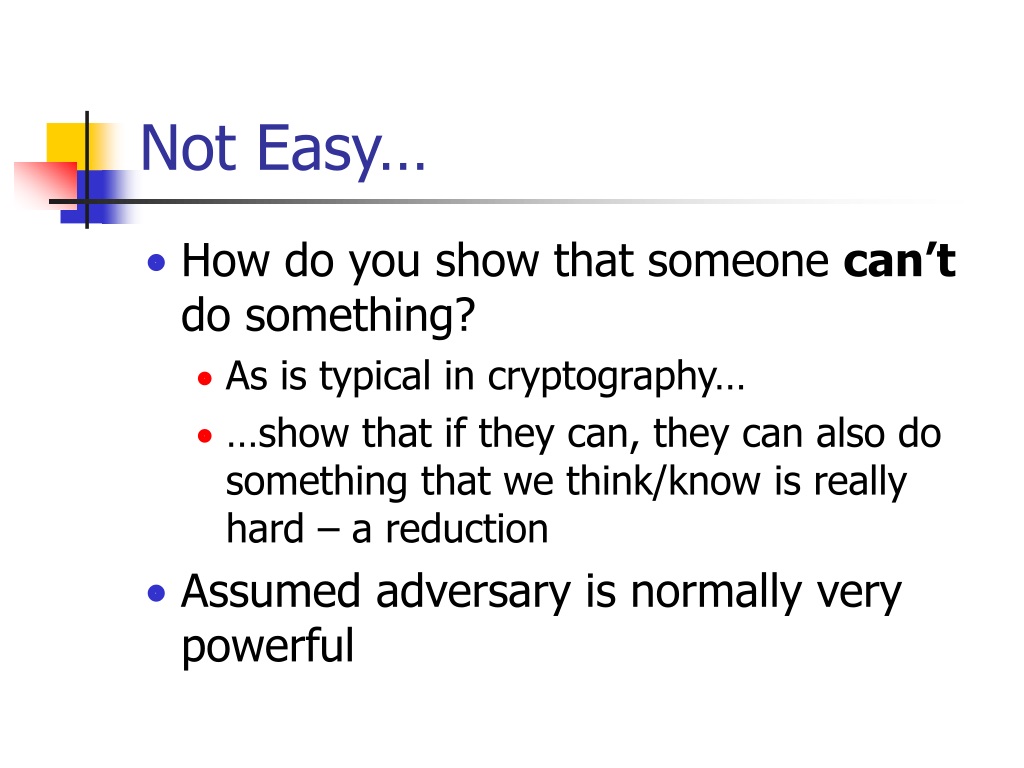

6. Not Easy… • How do you show that someone can’t do something? • As is typical in cryptography… • …show that if they can, they can also do something that we think/know is really hard – a reduction • Assumed adversary is normally very powerful

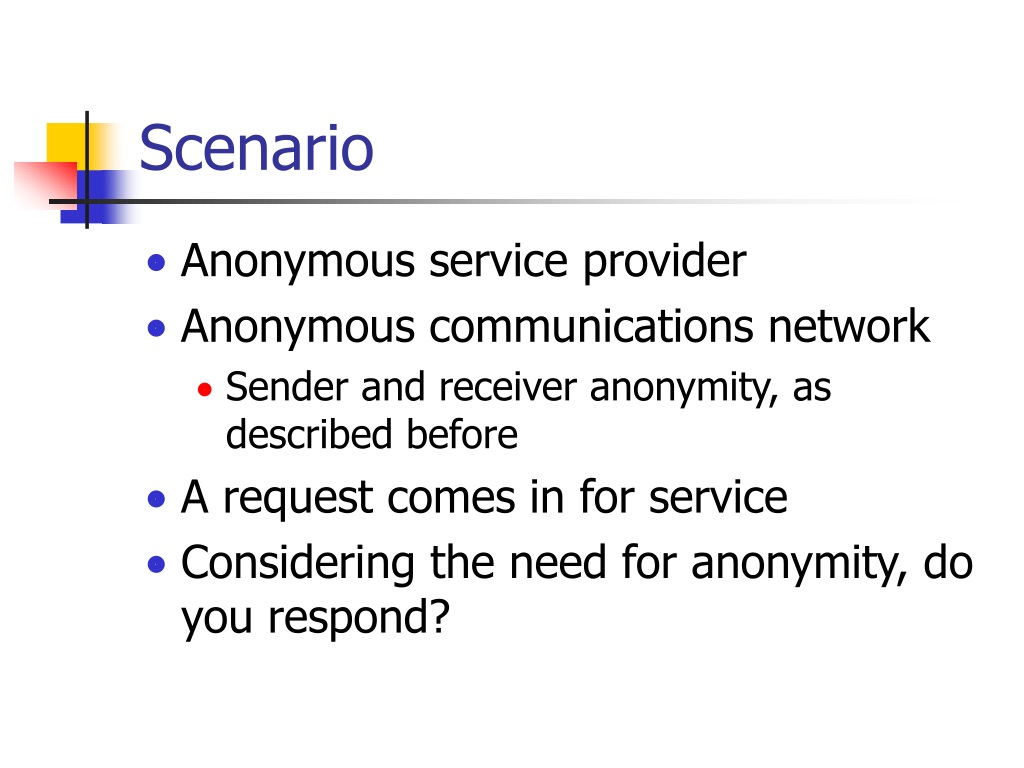

7. Scenario • Anonymous service provider • Anonymous communications network • Sender and receiver anonymity, as described before • A request comes in for service • Considering the need for anonymity, do you respond?

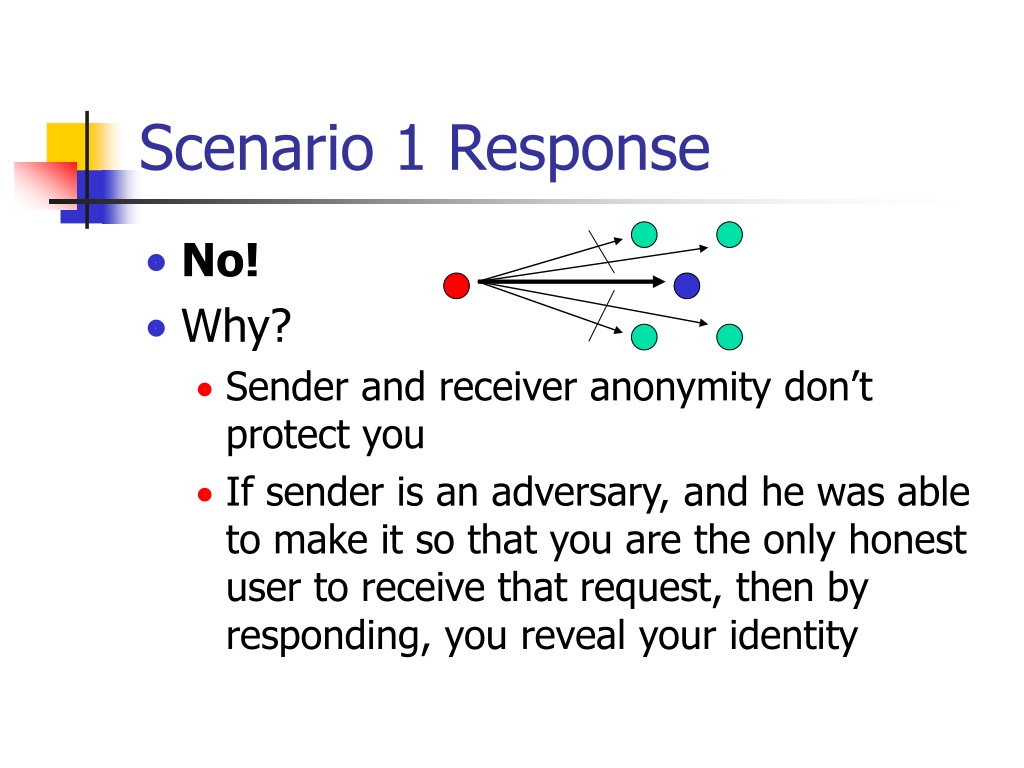

8. Scenario 1 Response • No! • Why? • Sender and receiver anonymity don’t protect you • If sender is an adversary, and he was able to make it so that you are the only honest user to receive that request, then by responding, you reveal your identity

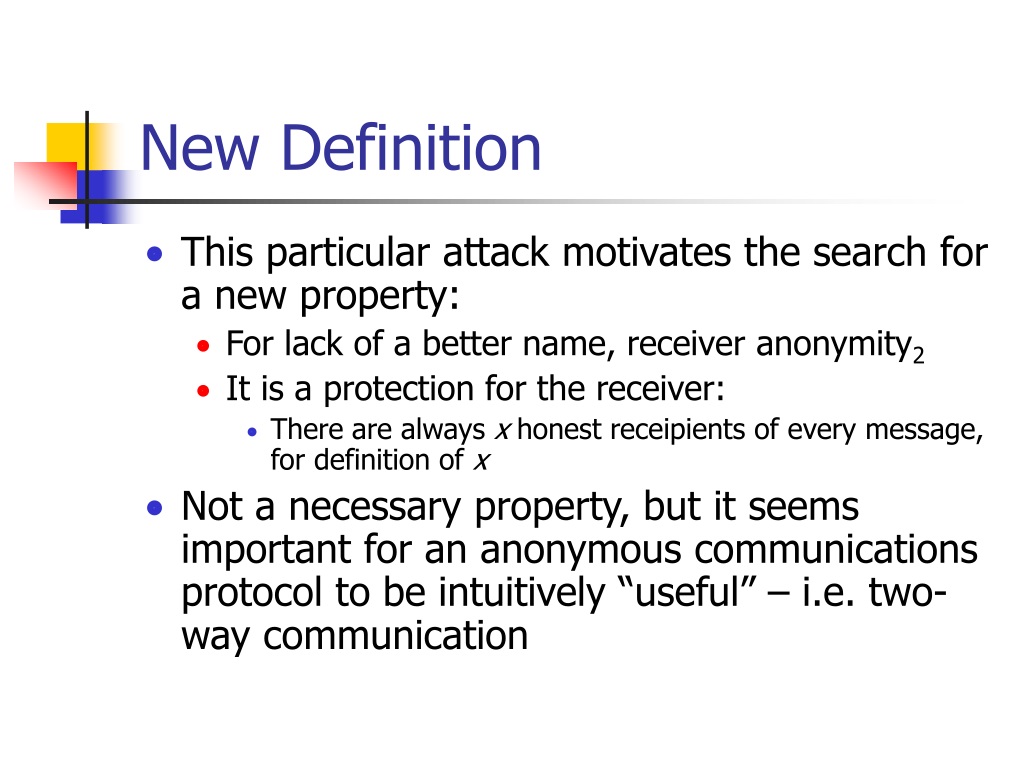

9. New Definition • This particular attack motivates the search for a new property: • For lack of a better name, receiver anonymity2 • It is a protection for the receiver: • There are always x honest receipients of every message, for definition of x • Not a necessary property, but it seems important for an anonymous communications protocol to be intuitively “useful” – i.e. two-way communication

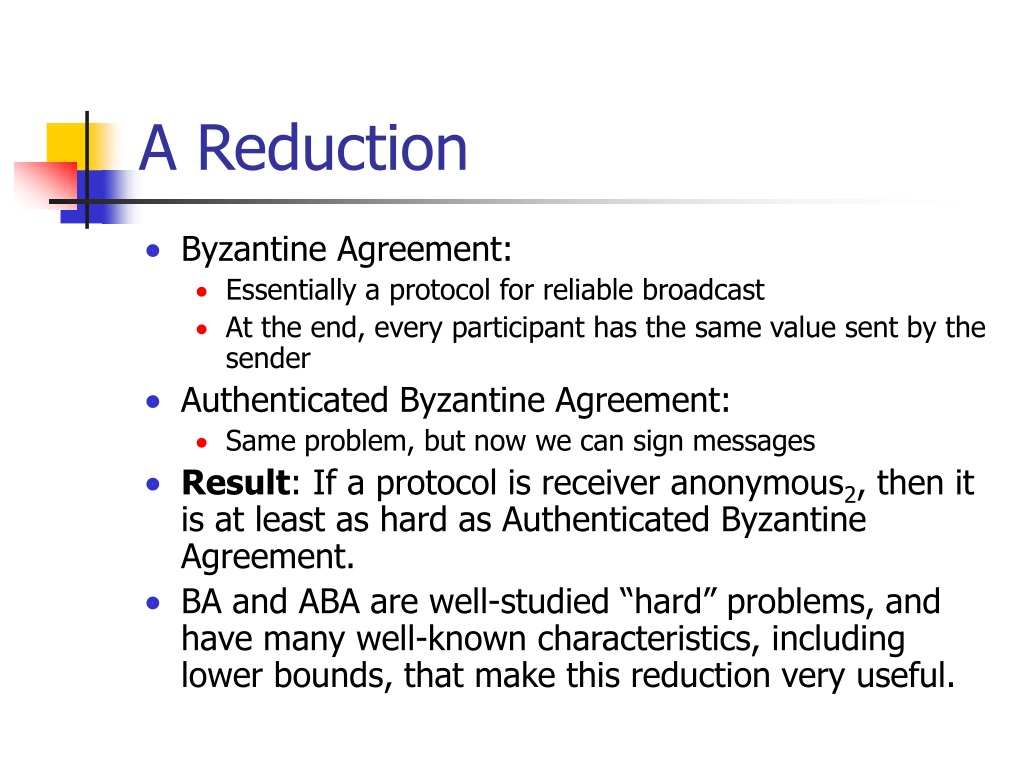

10. A Reduction • Byzantine Agreement: • Essentially a protocol for reliable broadcast • At the end, every participant has the same value sent by the sender • Authenticated Byzantine Agreement: • Same problem, but now we can sign messages • Result: If a protocol is receiver anonymous2, then it is at least as hard as Authenticated Byzantine Agreement. • BA and ABA are well-studied “hard” problems, and have many well-known characteristics, including lower bounds, that make this reduction very useful.

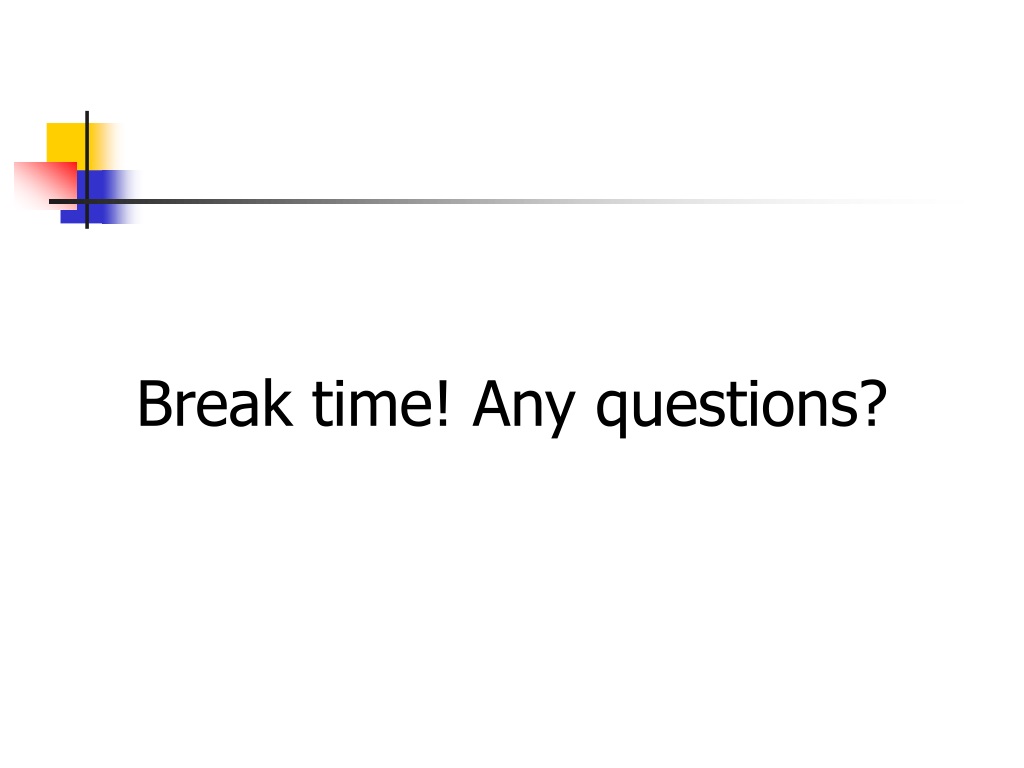

11. Break time! Any questions?

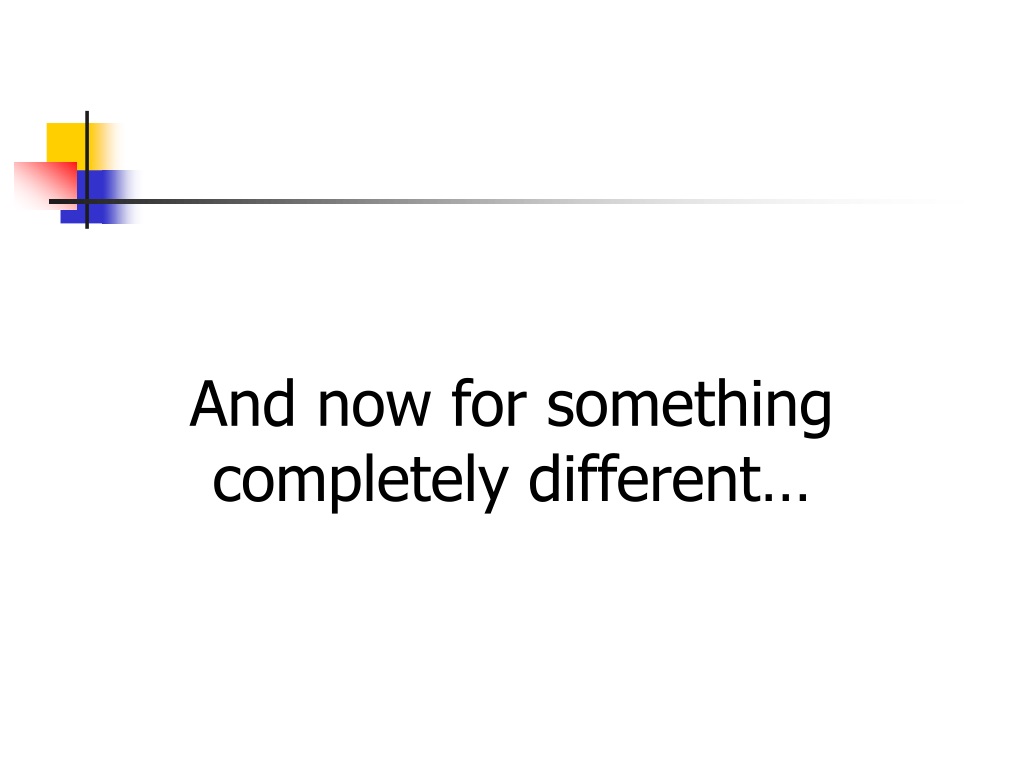

12. And now for something completely different…

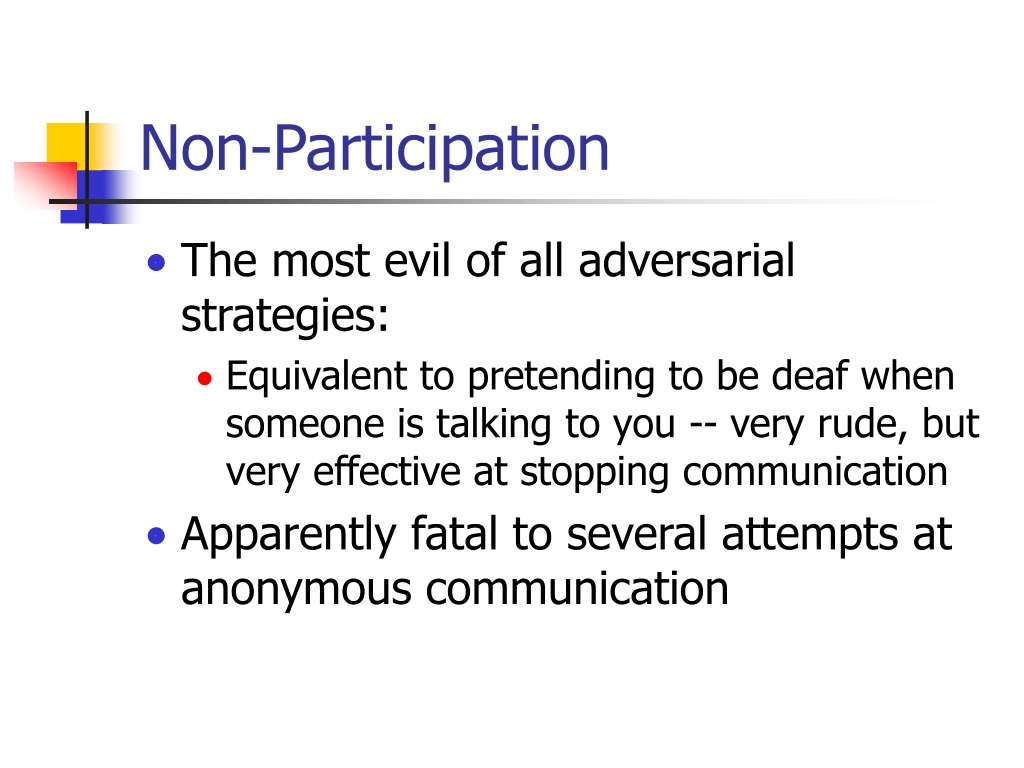

13. Non-Participation • The most evil of all adversarial strategies: • Equivalent to pretending to be deaf when someone is talking to you -- very rude, but very effective at stopping communication • Apparently fatal to several attempts at anonymous communication

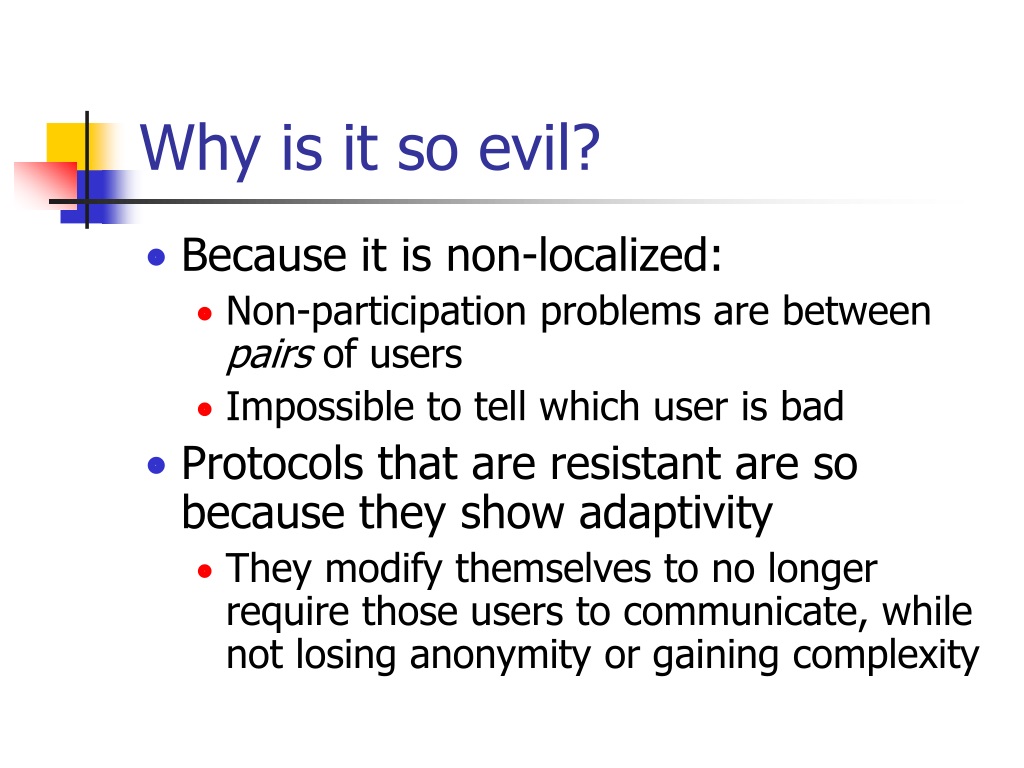

14. Why is it so evil? • Because it is non-localized: • Non-participation problems are between pairs of users • Impossible to tell which user is bad • Protocols that are resistant are so because they show adaptivity • They modify themselves to no longer require those users to communicate, while not losing anonymity or gaining complexity

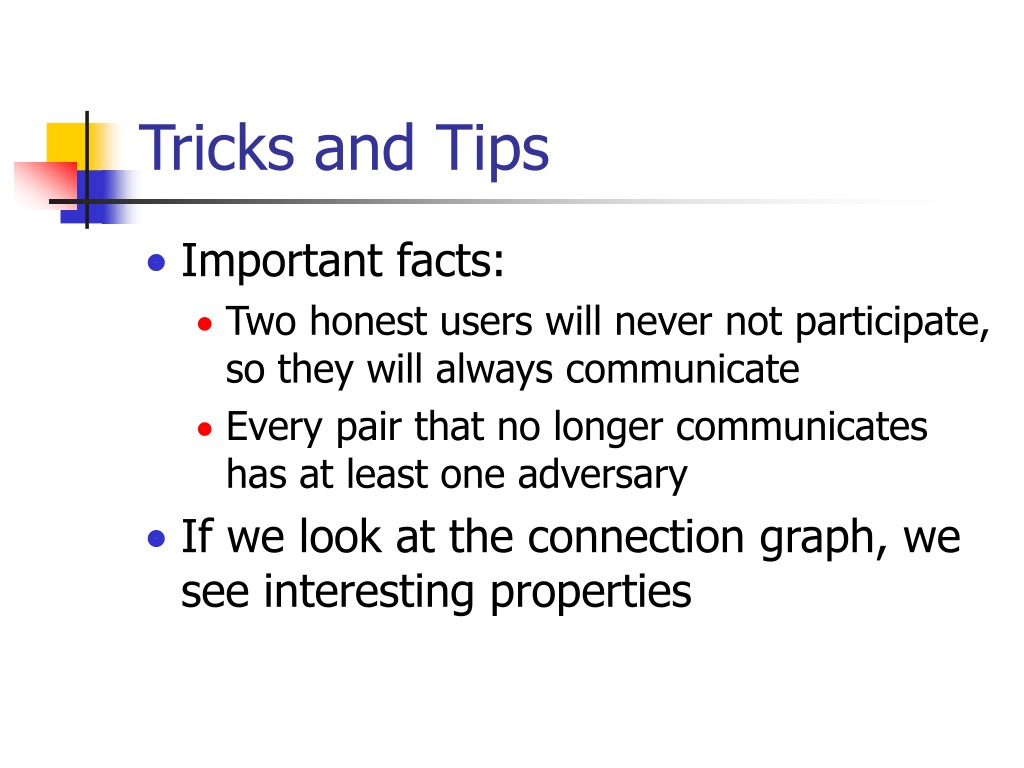

15. Tricks and Tips • Important facts: • Two honest users will never not participate, so they will always communicate • Every pair that no longer communicates has at least one adversary • If we look at the connection graph, we see interesting properties

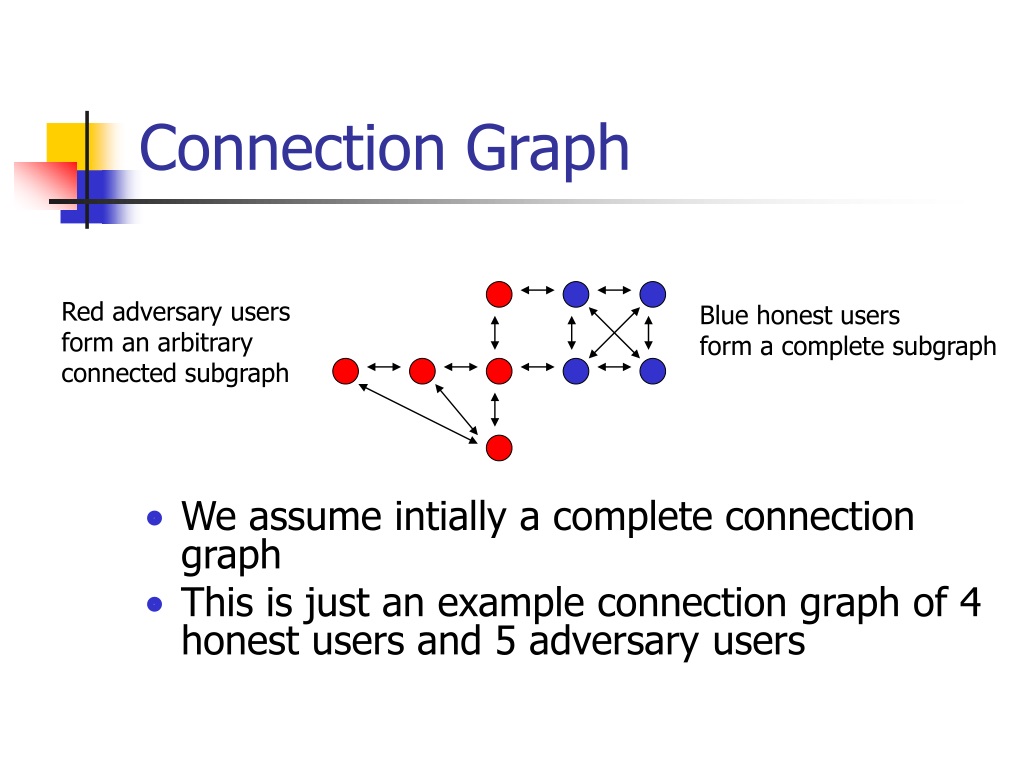

16. Connection Graph • We assume intially a complete connection graph • This is just an example connection graph of 4 honest users and 5 adversary users Red adversary usersform an arbitrary connected subgraph Blue honest usersform a complete subgraph

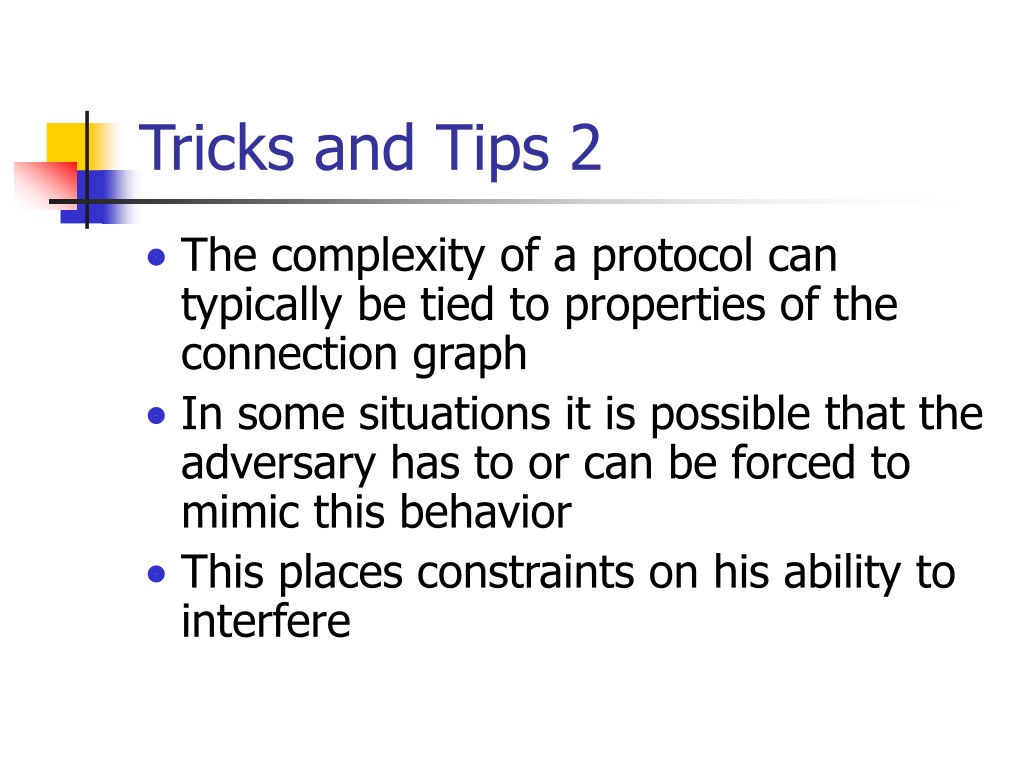

17. Tricks and Tips 2 • The complexity of a protocol can typically be tied to properties of the connection graph • In some situations it is possible that the adversary has to or can be forced to mimic this behavior • This places constraints on his ability to interfere

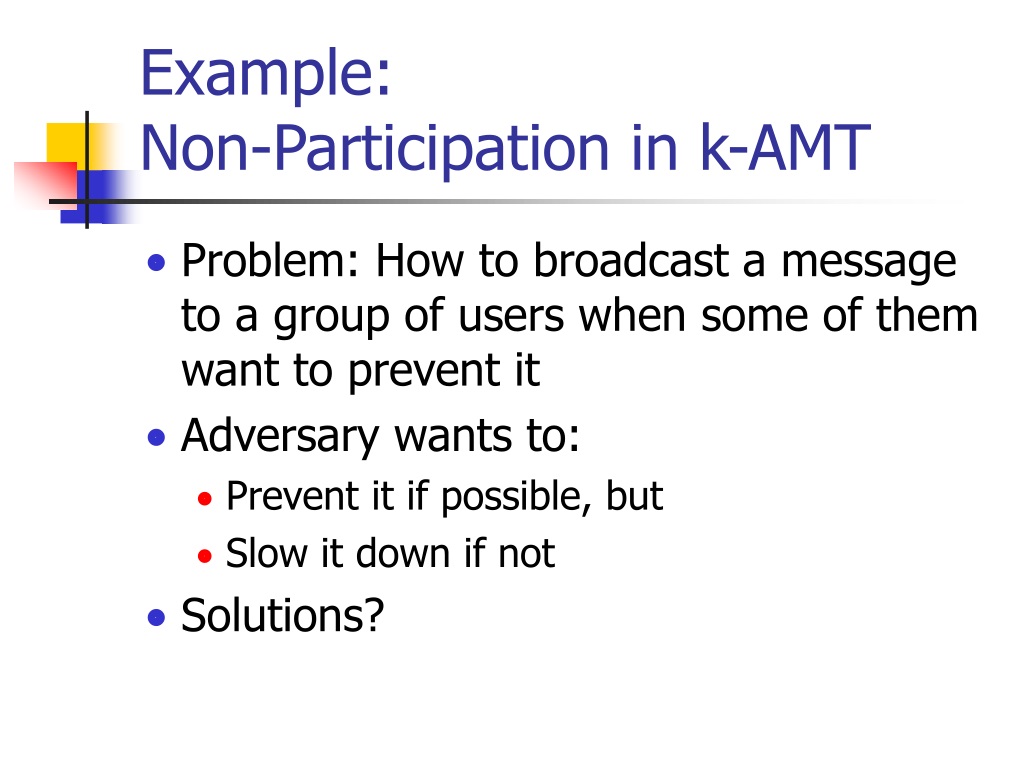

18. Example:Non-Participation in k-AMT • Problem: How to broadcast a message to a group of users when some of them want to prevent it • Adversary wants to: • Prevent it if possible, but • Slow it down if not • Solutions?

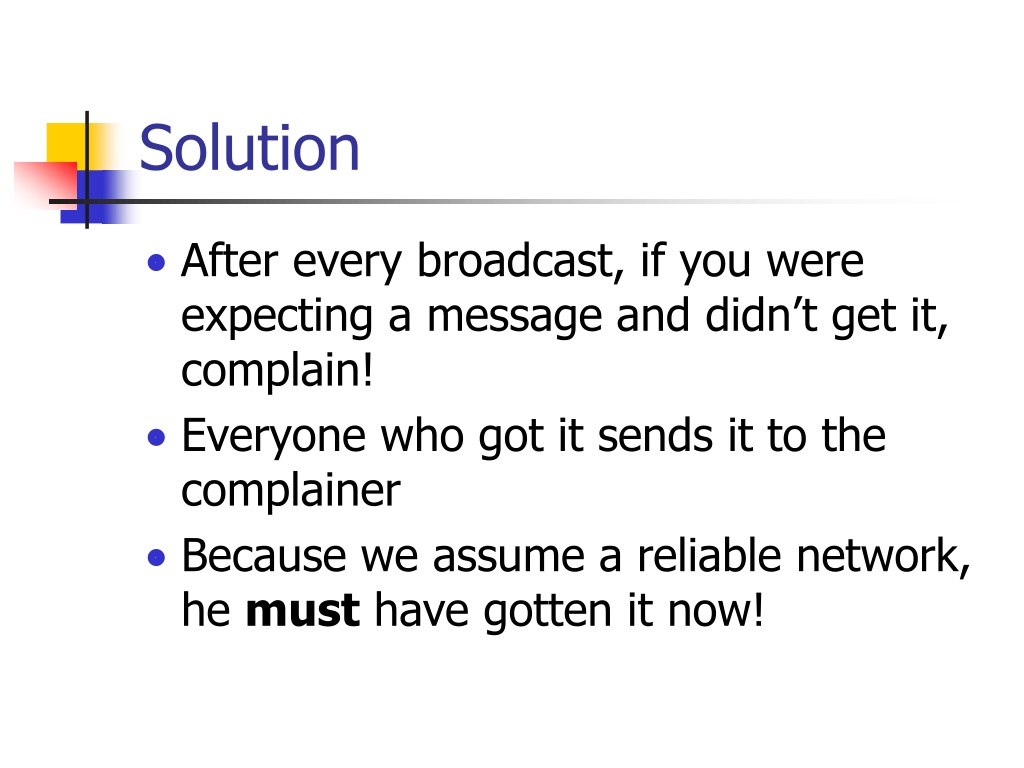

19. Solution • After every broadcast, if you were expecting a message and didn’t get it, complain! • Everyone who got it sends it to the complainer • Because we assume a reliable network, he must have gotten it now!

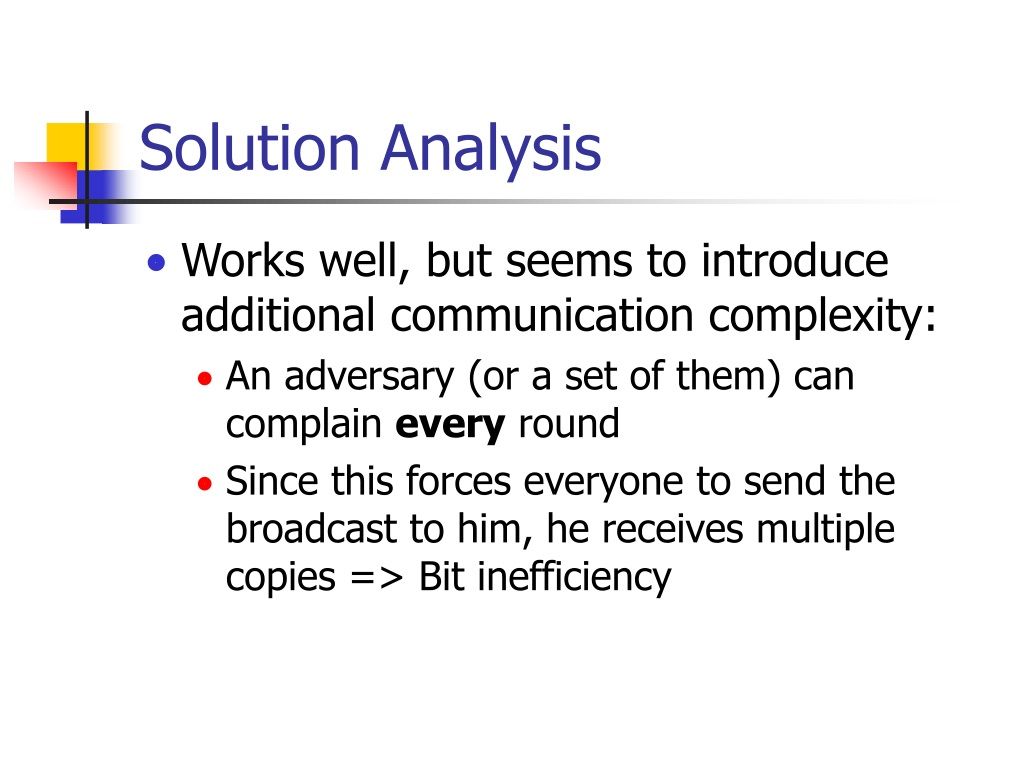

20. Solution Analysis • Works well, but seems to introduce additional communication complexity: • An adversary (or a set of them) can complain every round • Since this forces everyone to send the broadcast to him, he receives multiple copies => Bit inefficiency

21. Another Way • Use the connection graph! • If you don’t get a message, complain. • Everyone removes that edge in the connection graph, and redefines the broadcast patterns to not use that edge • If the graph is connected, it is always possible and easy to do optimally • Problem: an adversary can make the diameter of the connection graph really big, thus making broadcast take many rounds

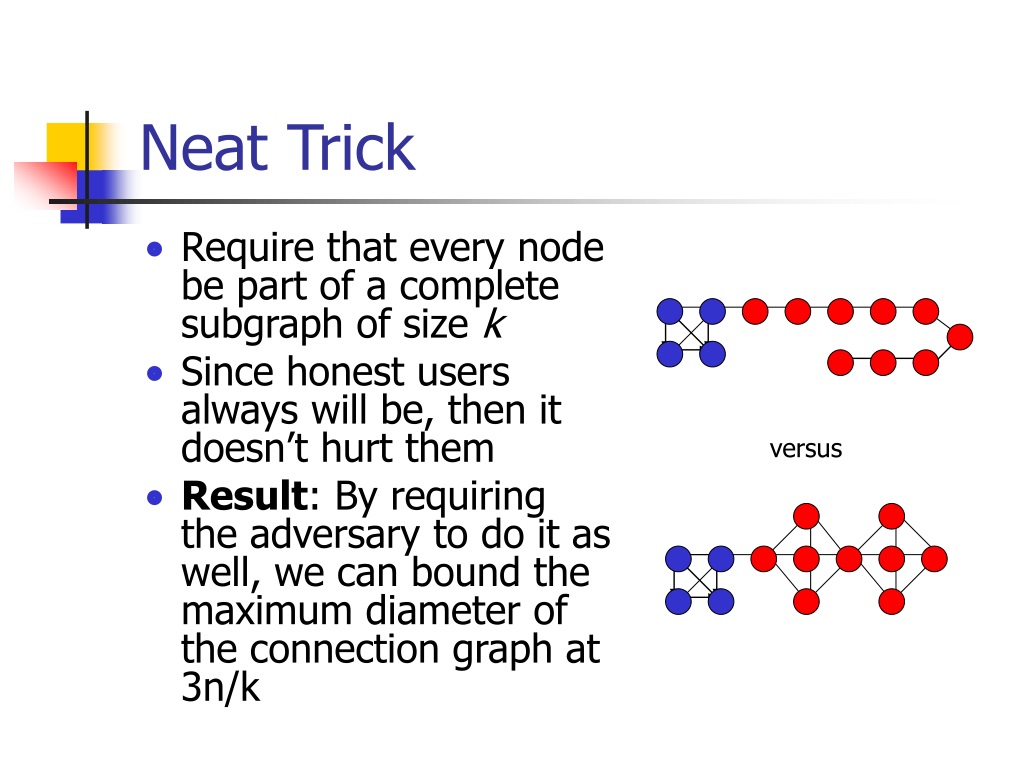

22. Neat Trick • Require that every node be part of a complete subgraph of size k • Since honest users always will be, then it doesn’t hurt them • Result: By requiring the adversary to do it as well, we can bound the maximum diameter of the connection graph at 3n/k versus

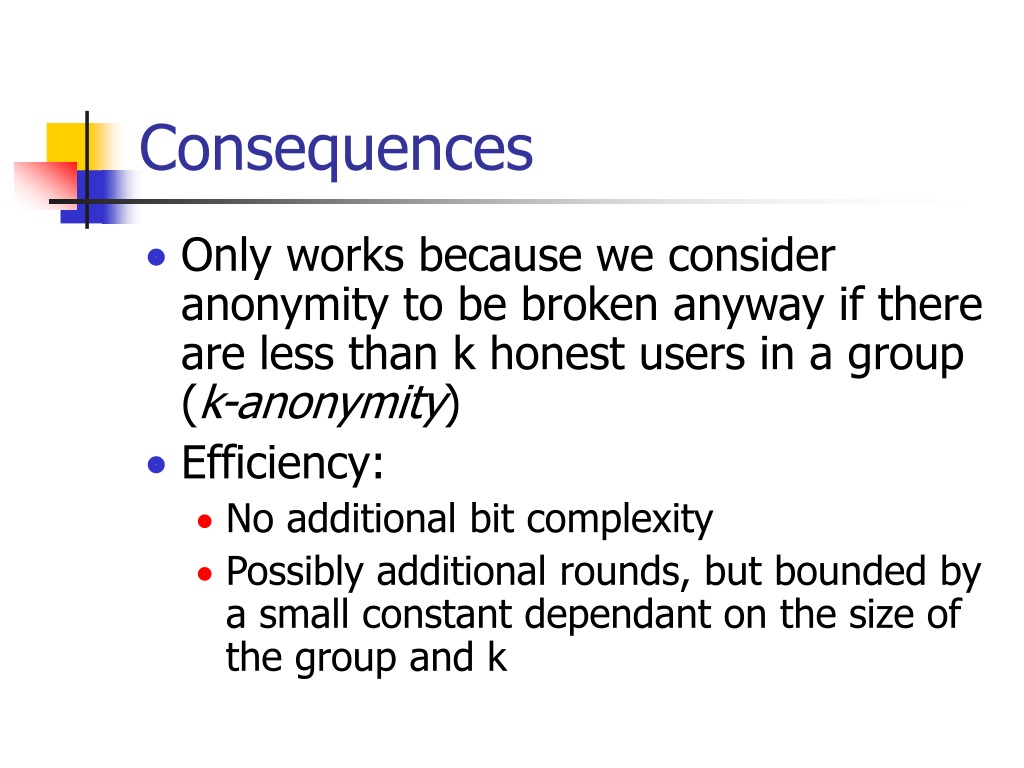

23. Consequences • Only works because we consider anonymity to be broken anyway if there are less than k honest users in a group (k-anonymity) • Efficiency: • No additional bit complexity • Possibly additional rounds, but bounded by a small constant dependant on the size of the group and k

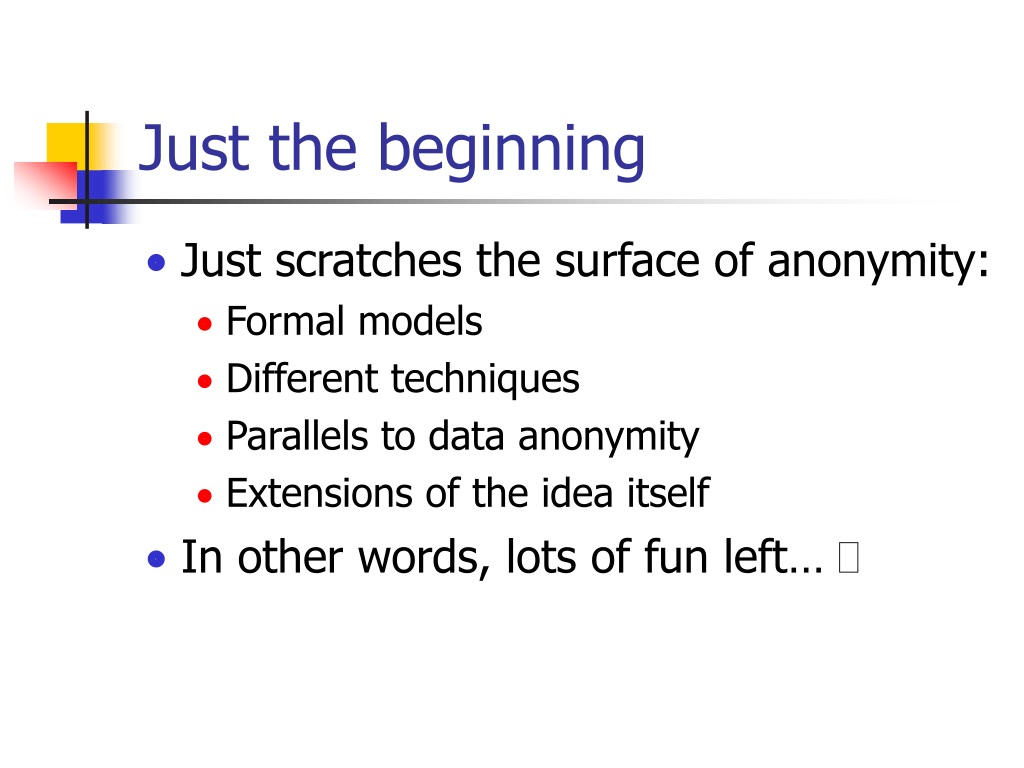

24. Just the beginning • Just scratches the surface of anonymity: • Formal models • Different techniques • Parallels to data anonymity • Extensions of the idea itself • In other words, lots of fun left… 

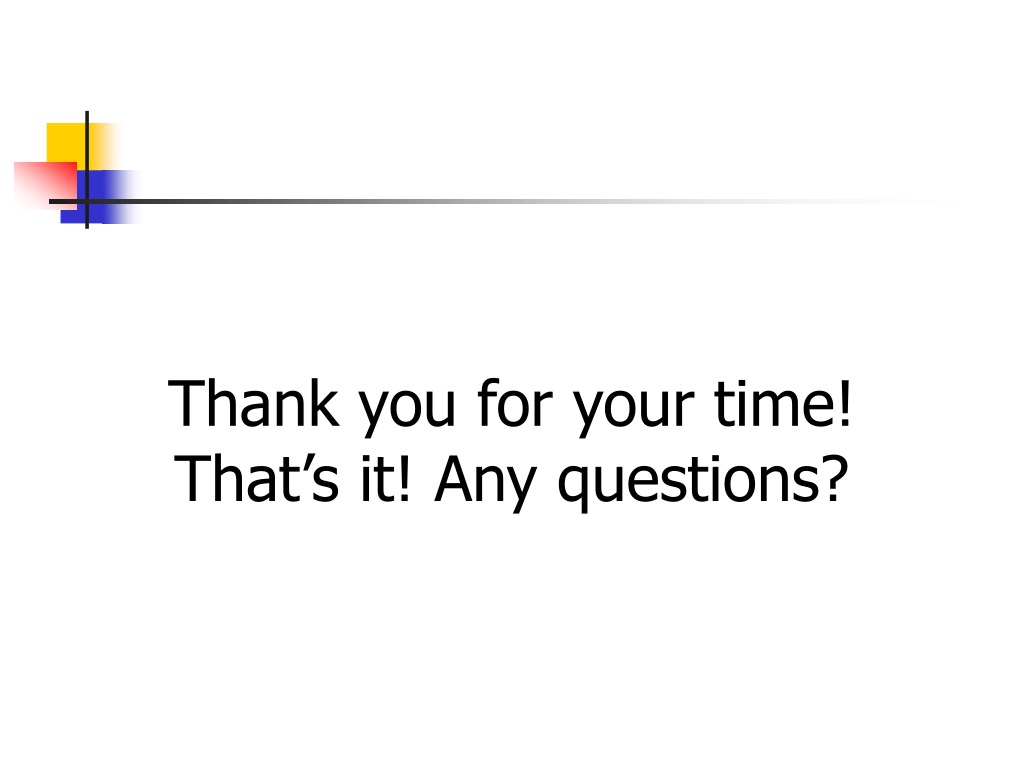

25. Thank you for your time!That’s it! Any questions?
