  1. AXIS P1311 Network Camera Support Training

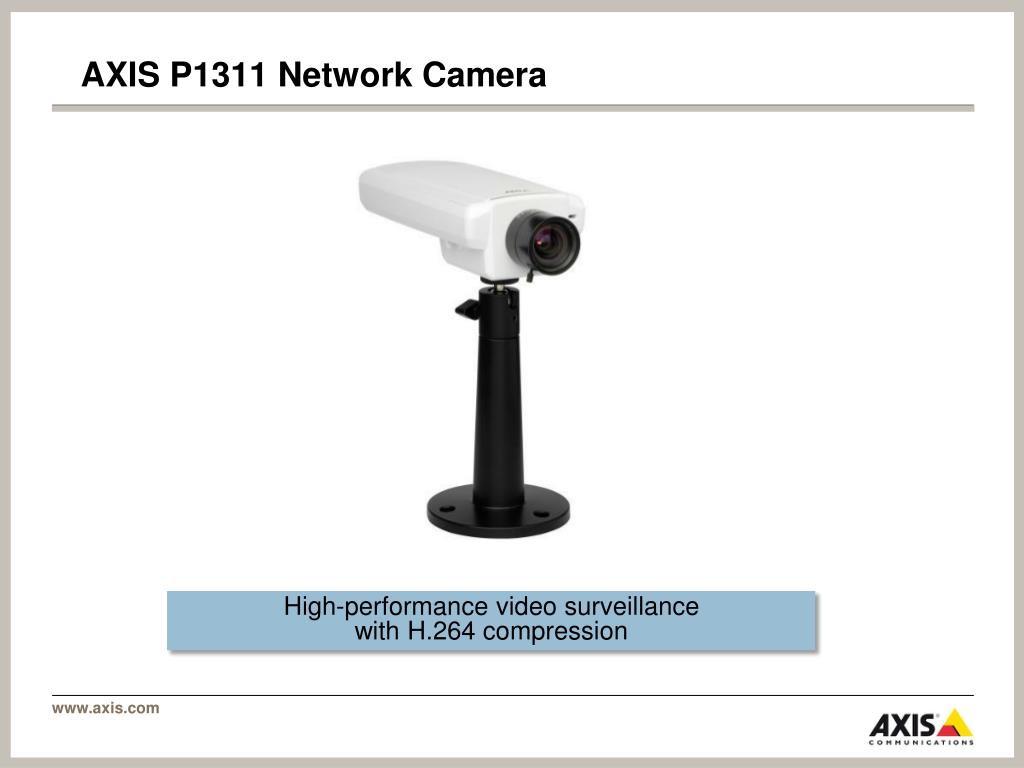

  2. AXIS P1311 Network Camera High-performance video surveillance with H.264 compression

  3. Topics • Features • Front/back/under • Technical specifications • Image: Focusing, min illumination • Streaming • Streaming types • Limitations • Performance, bandwidth usage • Accessories

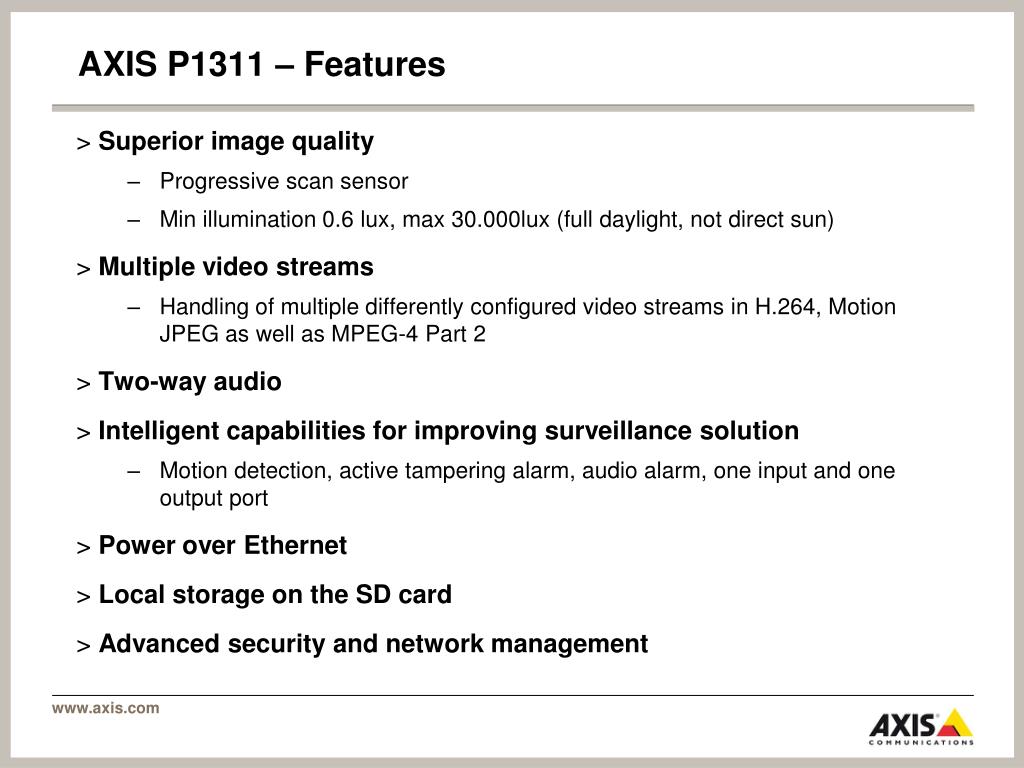

  4. AXIS P1311 – Features • Superior image quality • Progressive scan sensor • Min illumination 0.6 lux, max 30.000lux (full daylight, not direct sun) • Multiple video streams • Handling of multiple differently configured video streams in H.264, Motion JPEG as well as MPEG-4 Part 2 • Two-way audio • Intelligent capabilities for improving surveillance solution • Motion detection, active tampering alarm, audio alarm, one input and one output port • Power over Ethernet • Local storage on the SD card • Advanced security and network management

  5. AXIS P1311 Front • Metal casing, zink • Stand the same like on the AXIS 221/223M • Status indicator • Can be used for focusing without looking in Live View (see the Installation Guide) • Built-In microphone Status indicator placement Built-in microphone Focus puller

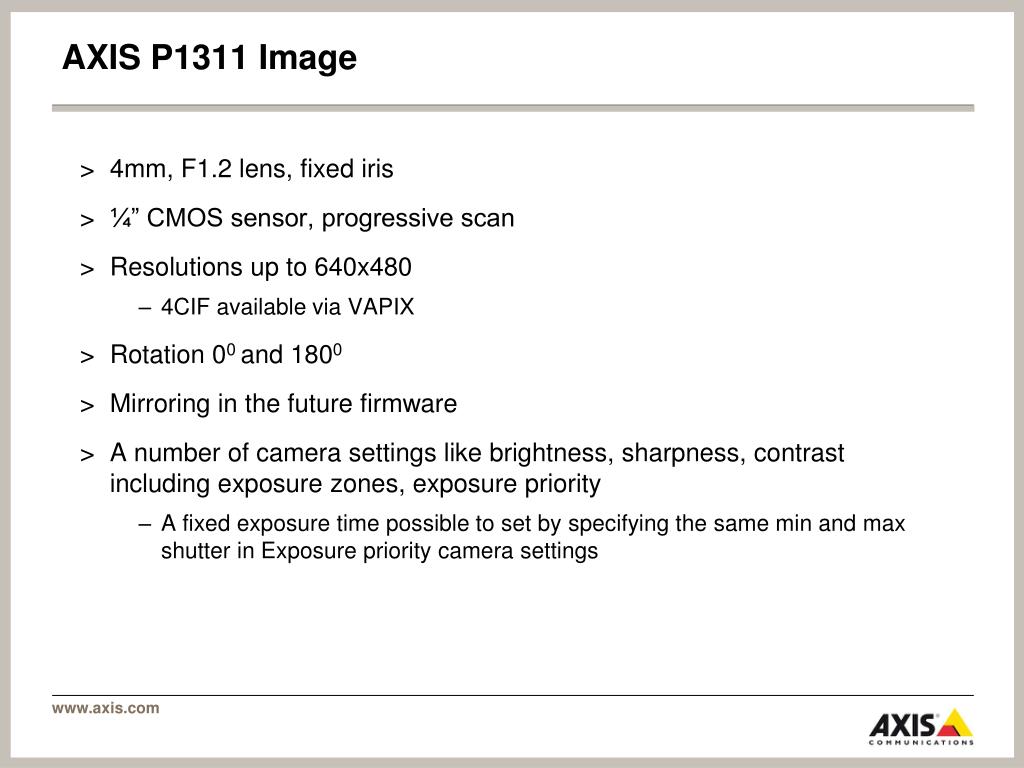

  6. AXIS P1311 Image • 4mm, F1.2 lens, fixed iris • ¼” CMOS sensor, progressive scan • Resolutions up to 640x480 • 4CIF available via VAPIX • Rotation 00 and 1800 • Mirroring in the future firmware • A number of camera settings like brightness, sharpness, contrast including exposure zones, exposure priority • A fixed exposure time possible to set by specifying the same min and max shutter in Exposure priority camera settings

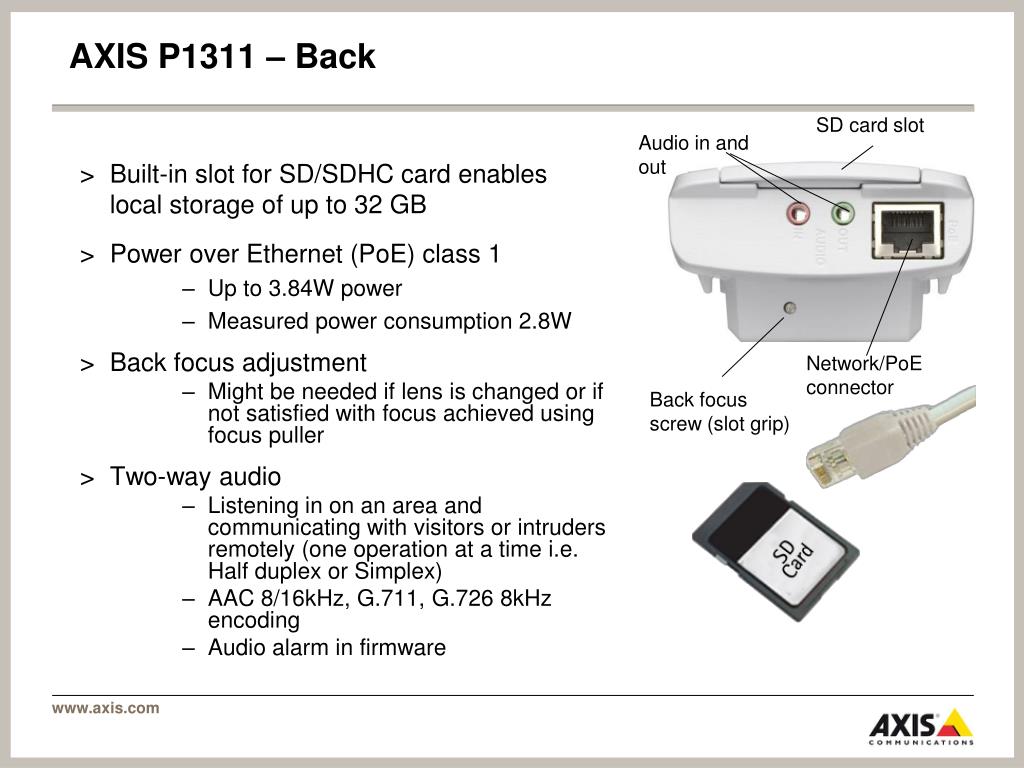

  7. AXIS P1311 – Back SD card slot Audio in and out Network/PoE connector Back focus screw (slot grip) • Built-in slot for SD/SDHC card enables local storage of up to 32 GB • Power over Ethernet (PoE) class 1 • Up to 3.84W power • Measured power consumption 2.8W • Back focus adjustment • Might be needed if lens is changed or if not satisfied with focus achieved using focus puller • Two-way audio • Listening in on an area and communicating with visitors or intruders remotely (one operation at a time i.e. Half duplex or Simplex) • AAC 8/16kHz, G.711, G.726 8kHz encoding • Audio alarm in firmware

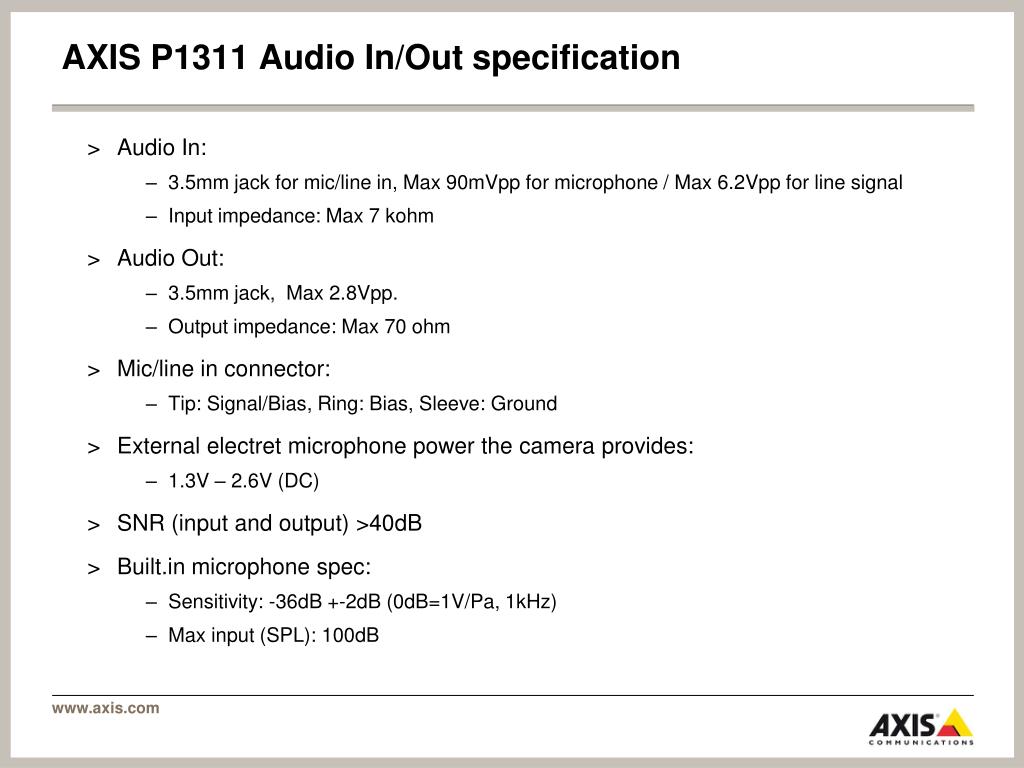

  8. AXIS P1311 Audio In/Out specification • Audio In: • 3.5mm jack for mic/line in, Max 90mVpp for microphone / Max 6.2Vpp for line signal • Input impedance: Max 7 kohm • Audio Out: • 3.5mm jack, Max 2.8Vpp. • Output impedance: Max 70 ohm • Mic/line in connector: • Tip: Signal/Bias, Ring: Bias, Sleeve: Ground • External electret microphone power the camera provides: • 1.3V – 2.6V (DC) • SNR (input and output) >40dB • Built.in microphone spec: • Sensitivity: -36dB +-2dB (0dB=1V/Pa, 1kHz) • Max input (SPL): 100dB

  9. AXIS P1311 – Underside Control button Power and Network LED I/O terminal block Power in terminal block • Powering with PS-K or 8-20VDC, max 2.8W, separate terminal block for power in to the camera • One input (pin3)/one output (pin4) • 3.3V power out on pin 2 (not power in!) for powering other equipment

  10. AXIS P1311 – Accessories • Camera operating temperature: -100 to 550 C • Choice of housings • AXIS T92A Housing • VT Verso Housing • VT Vandal-resistant Housing • Illumination • AXIS T90A white LED illuminators • AXIS Camera Station for recording

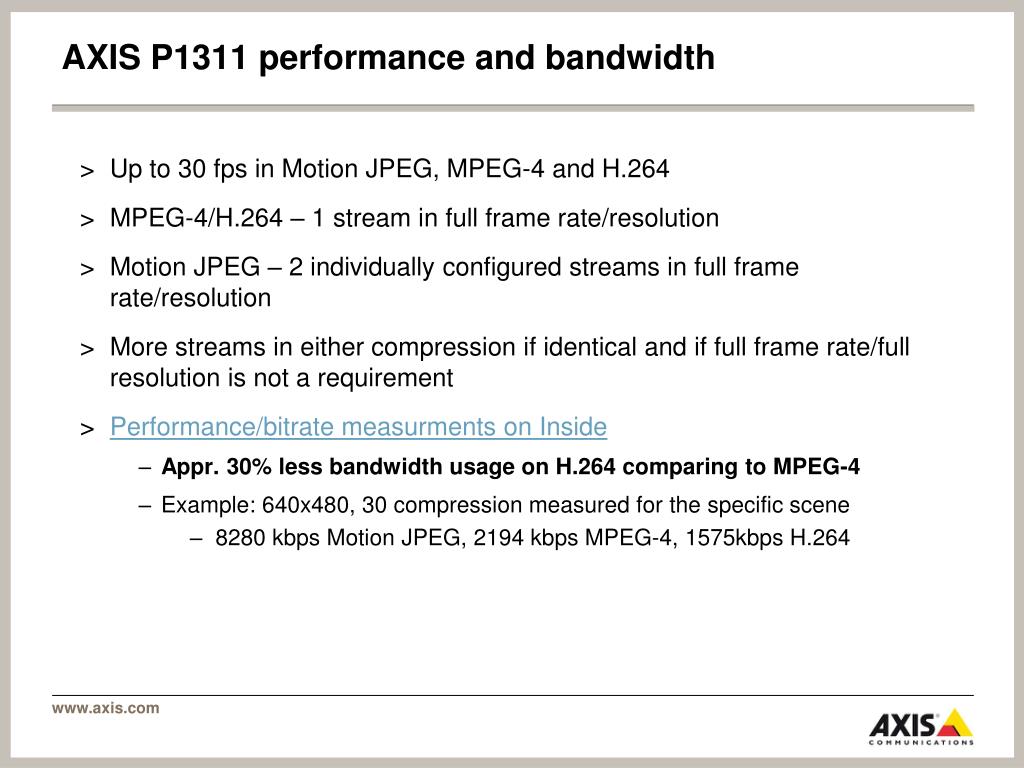

  11. AXIS P1311 performance and bandwidth • Up to 30 fps in Motion JPEG, MPEG-4 and H.264 • MPEG-4/H.264 – 1 stream in full frame rate/resolution • Motion JPEG – 2 individually configured streams in full frame rate/resolution • More streams in either compression if identical and if full frame rate/full resolution is not a requirement • Performance/bitrate measurments on Inside • Appr. 30% less bandwidth usage on H.264 comparing to MPEG-4 • Example: 640x480, 30 compression measured for the specific scene • 8280 kbps Motion JPEG, 2194 kbps MPEG-4, 1575kbps H.264

  12. AXIS M3011 Fixed Dome Network Camera Support Training

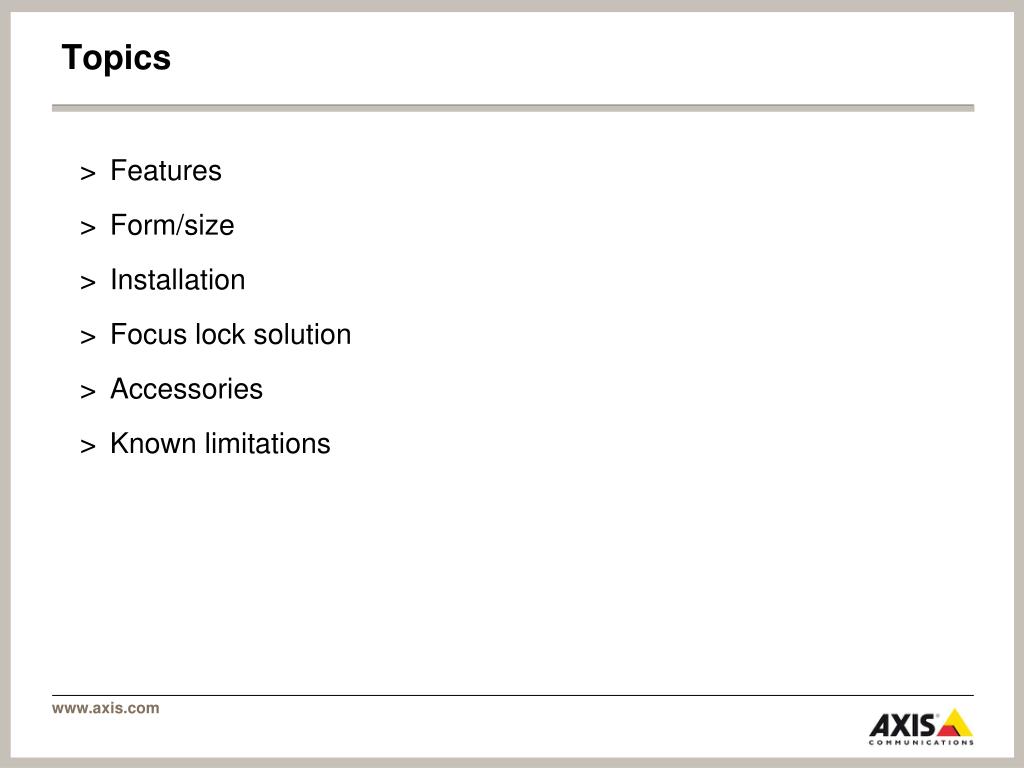

  13. Topics • Features • Form/size • Installation • Focus lock solution • Accessories • Known limitations

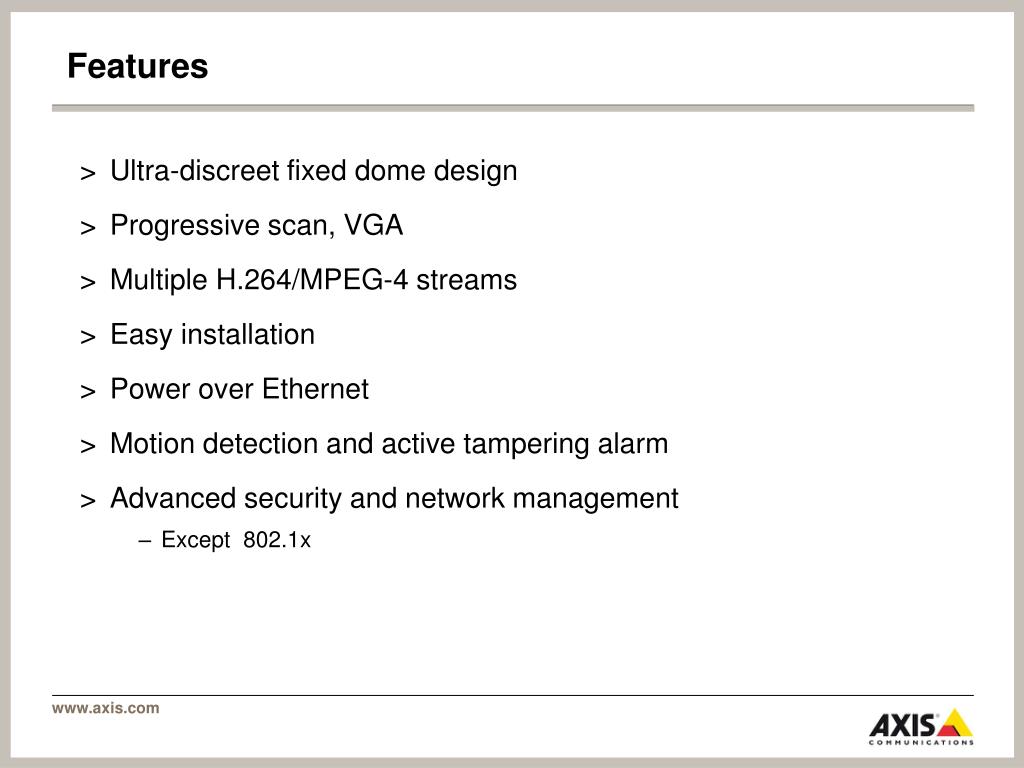

  14. Features • Ultra-discreet fixed dome design • Progressive scan, VGA • Multiple H.264/MPEG-4 streams • Easy installation • Power over Ethernet • Motion detection and active tampering alarm • Advanced security and network management • Except 802.1x

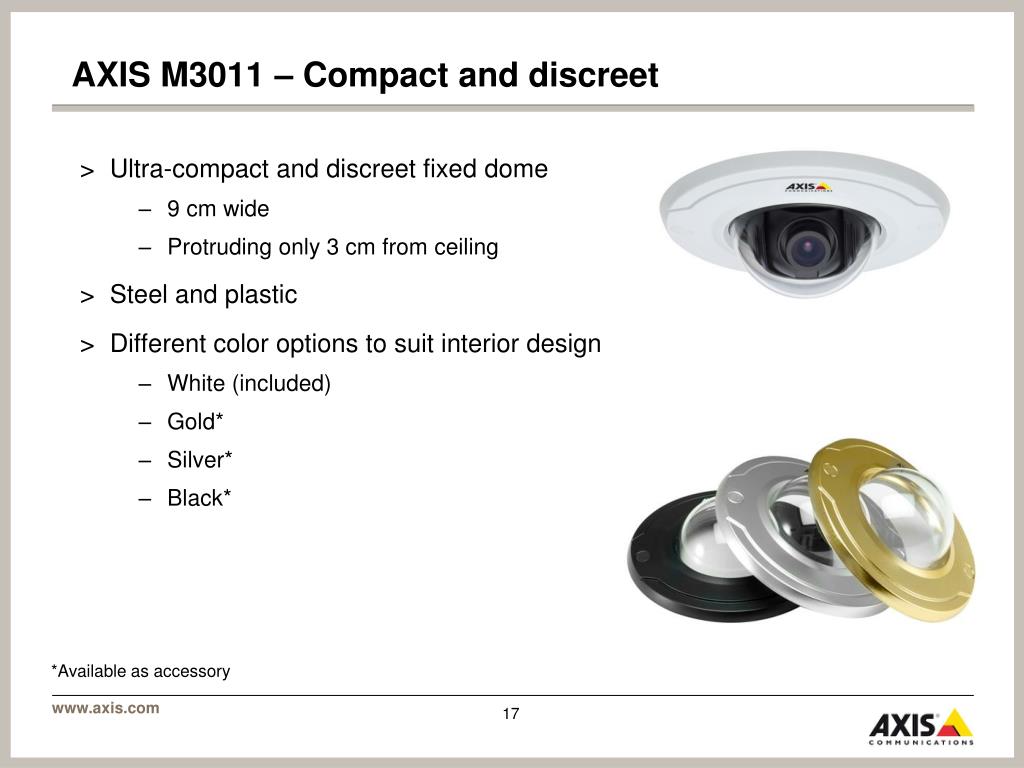

  15. AXIS M3011 – Compact and discreet • Ultra-compact and discreet fixed dome • 9 cm wide • Protruding only 3 cm from ceiling • Steel and plastic • Different color options to suit interior design • White (included) • Gold* • Silver* • Black* *Available as accessory

  16. AXIS M3011 – Image&Video • ¼” progressive scan CMOS VGA sensor • Up to 640x480 resolution • Lens 3.0mm, F2.0, fixed iris, 660 Horizontal angle of view • M12 board lens mount • Multiple H.264 streams as well as Motion JPEG • Full frame rate or individually optimized streams • Supports MPEG-4 Part 2 for backward compatibility • Performance and bitrate measurments

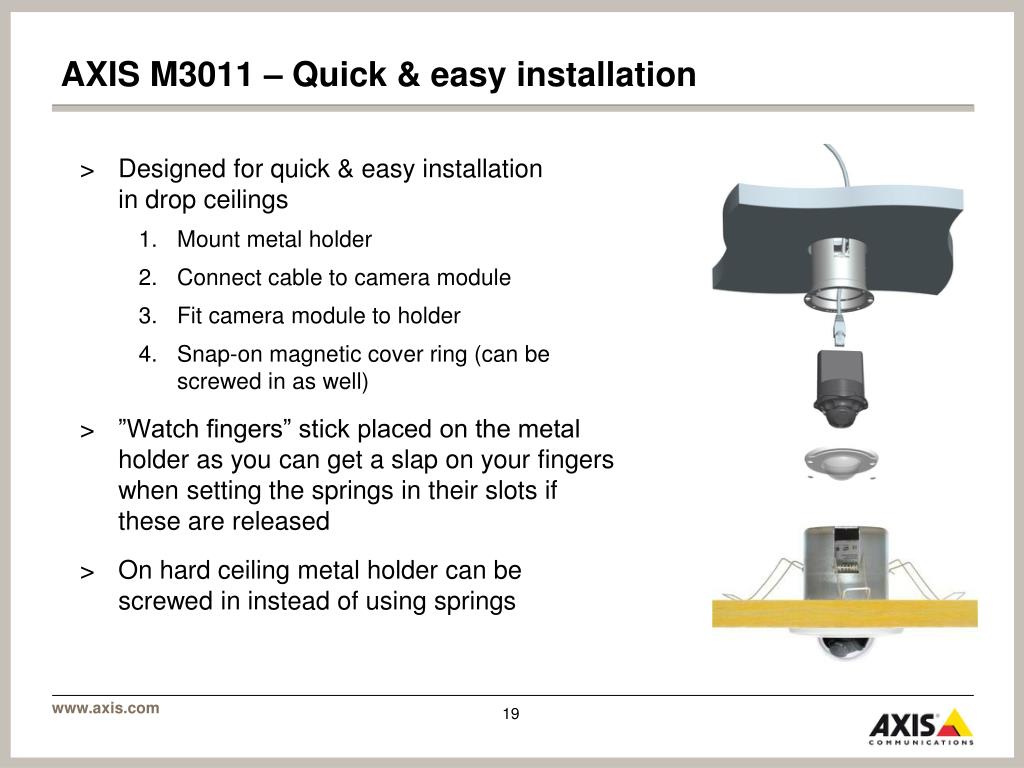

  17. AXIS M3011 – Quick & easy installation • Designed for quick & easy installationin drop ceilings • Mount metal holder • Connect cable to camera module • Fit camera module to holder • Snap-on magnetic cover ring (can be screwed in as well) • ”Watch fingers” stick placed on the metal holder as you can get a slap on your fingers when setting the springs in their slots if these are released • On hard ceiling metal holder can be screwed in instead of using springs

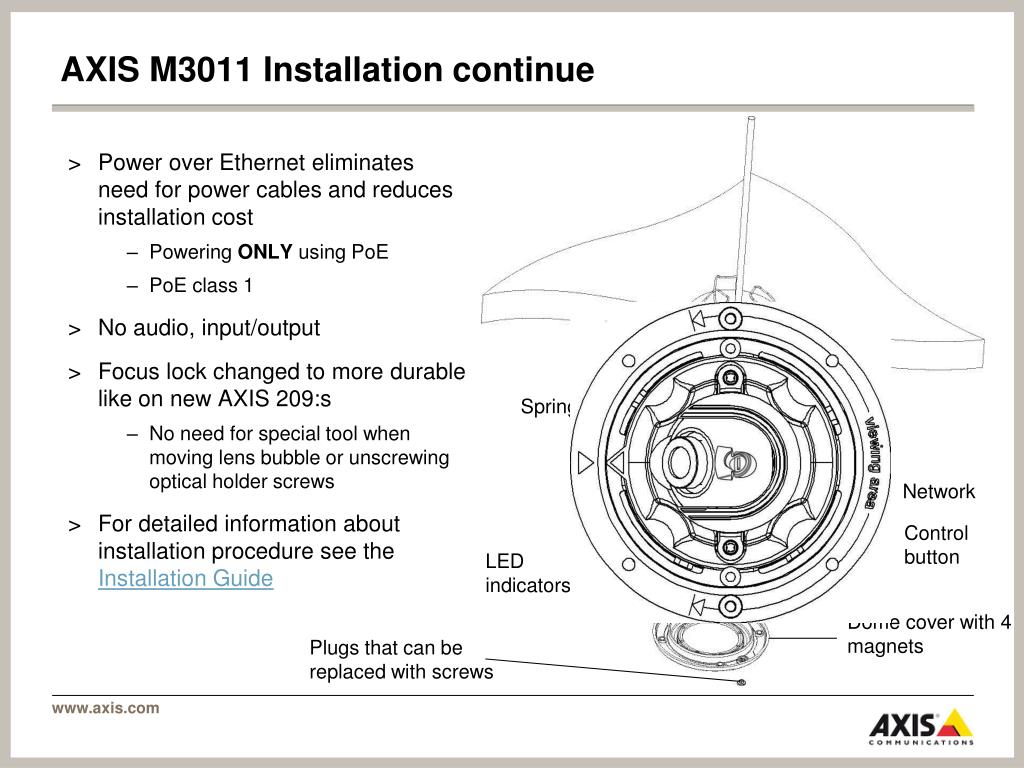

  18. AXIS M3011 Installation continue • Power over Ethernet eliminates need for power cables and reduces installation cost • Powering ONLY using PoE • PoE class 1 • No audio, input/output • Focus lock changed to more durable like on new AXIS 209:s • No need for special tool when moving lens bubble or unscrewing optical holder screws • For detailed information about installation procedure see the Installation Guide Springs Network Control button LED indicators Dome cover with 4 magnets Plugs that can be replaced with screws

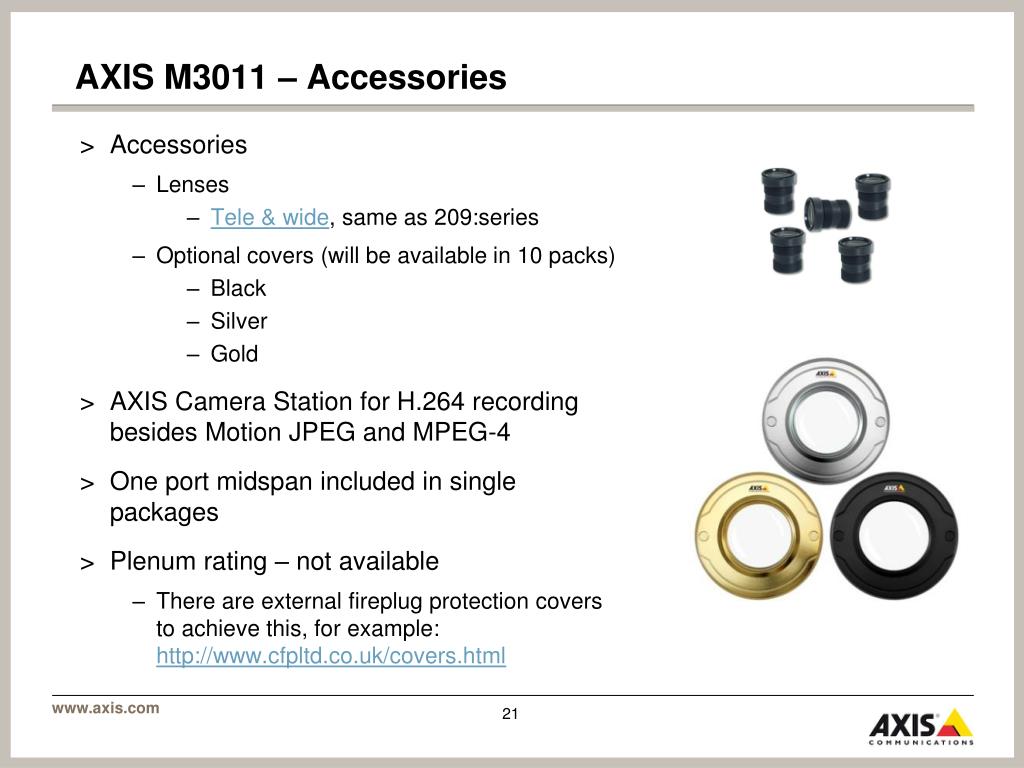

  19. AXIS M3011 – Accessories • Accessories • Lenses • Tele & wide, same as 209:series • Optional covers (will be available in 10 packs) • Black • Silver • Gold • AXIS Camera Station for H.264 recording besides Motion JPEG and MPEG-4 • One port midspan included in single packages • Plenum rating – not available • There are external fireplug protection covers to achieve this, for example: http://www.cfpltd.co.uk/covers.html

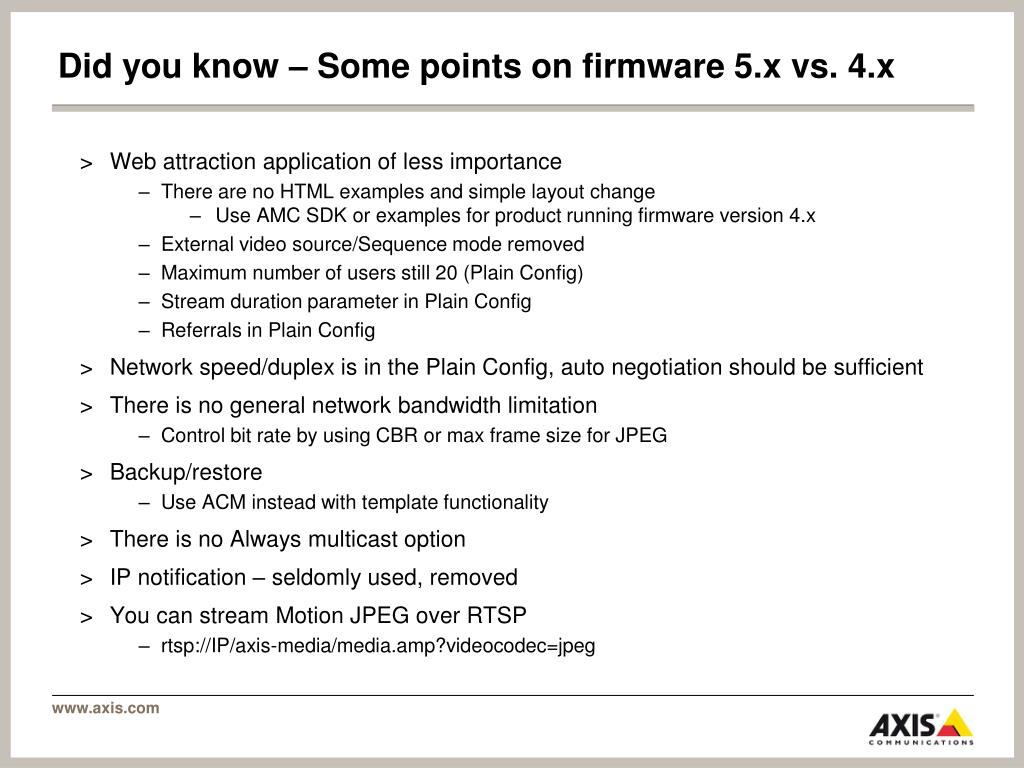

  20. Did you know – Some points on firmware 5.x vs. 4.x • Web attraction application of less importance • There are no HTML examples and simple layout change • Use AMC SDK or examples for product running firmware version 4.x • External video source/Sequence mode removed • Maximum number of users still 20 (Plain Config) • Stream duration parameter in Plain Config • Referrals in Plain Config • Network speed/duplex is in the Plain Config, auto negotiation should be sufficient • There is no general network bandwidth limitation • Control bit rate by using CBR or max frame size for JPEG • Backup/restore • Use ACM instead with template functionality • There is no Always multicast option • IP notification – seldomly used, removed • You can stream Motion JPEG over RTSP • rtsp://IP/axis-media/media.amp?videocodec=jpeg

  21. Questions & Conclusion Thank you!
