  1. Implementing UCON with XACML for Grid Services Bruno Crispo Vrije Universiteit Amsterdam OGF-25-Tutorial crispo@cs.vu.nl Trust and Security for Next Generation Grids, www.gridtrust.eu

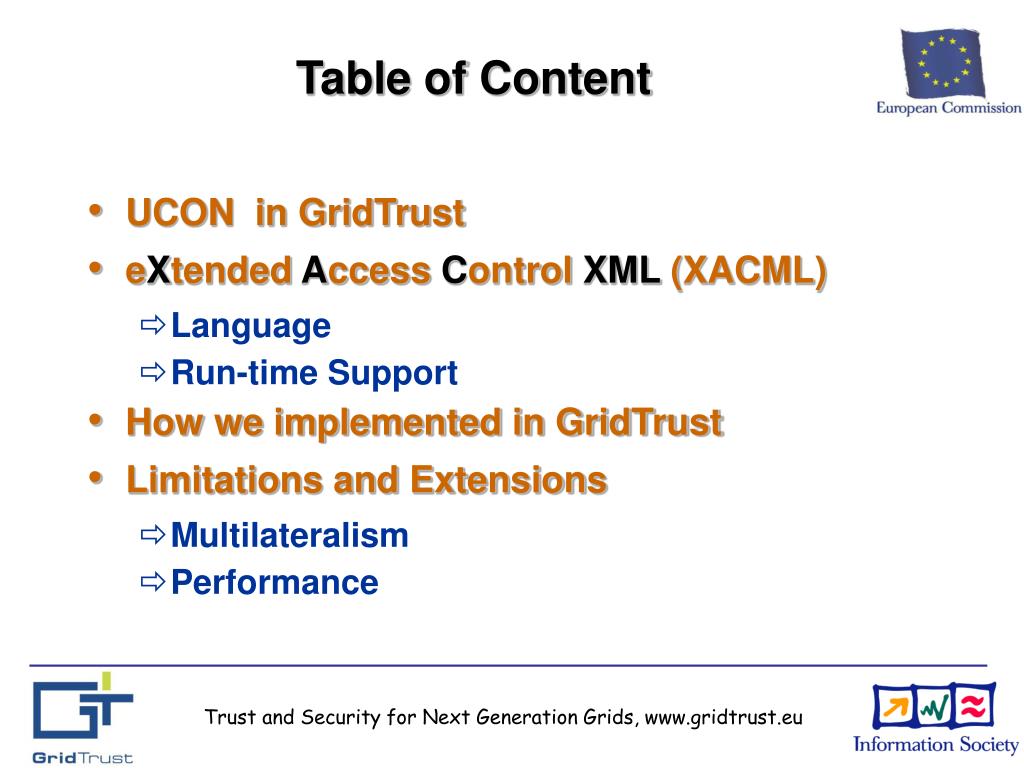

  2. Table of Content • UCON in GridTrust • eXtended Access Control XML (XACML) • Language • Run-time Support • How we implemented in GridTrust • Limitations and Extensions • Multilateralism • Performance Trust and Security for Next Generation Grids, www.gridtrust.eu

  3. Conditions From Access Control to Usage Control Rights Subjects Usage Decision (Authorizations) Objects Trust and Security for Next Generation Grids, www.gridtrust.eu

  4. From Access Control to Usage Control Rights Subjects Usage Decision Objects Attributes Attributes Authorizations oBligations Conditions Trust and Security for Next Generation Grids, www.gridtrust.eu

  5. Policies Examples • Access Control policies • Silver Users can use the service from 8:00 am till 8:00pm • Managers can read and write Purchase Orders of the all Sales Department while Accountants can only write they own P.O. • Users from Server A can run any experiment that uses at most 10GB of disk and 1 GB of RAM Trust and Security for Next Generation Grids, www.gridtrust.eu

  6. Policies Examples • Usage Control policies • Silver Users can use the service only 5 times from 8:00 am till 8:00pm • The SendOrder Service can be invoked only after the Log Service has been successfully invoked • All mails sent outside the company must be encrypted • All data related to a customer must be deleted when its account is deleted • Users from Server A can run any experiment that uses at most 10GB of disk and 1 GB of RAM History based Workflow based Obligations Continuous monitoring Trust and Security for Next Generation Grids, www.gridtrust.eu

  7. Policies Examples • DRM policies • (Pay Per Use) - The cost to see this movie is $ 4.00 • (Metered Payment) - The cost to see this movie is 1¢/minute • (Play n times) – You can see this movie at most 10 times Trust and Security for Next Generation Grids, www.gridtrust.eu

  8. GridTrust Model

  9. Components service providers PKI • GridTrust Services • TRS • SRB • VBE Manager • C-UCON VO Library users ENFORCER Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  10. Virtual Breeding Environment VBE Manager PKI Virtual Breeding Environment Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  11. User & SP Registration to a VBE VBE Manager SRB PKI • A Virtual Breeding Environment formed by users and different types of services. • A VBE manager regulated the subscription of services and users to the VBE Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  12. VO: Virtual Organizations VBE Manager SRB PKI • Any user (VO Owner) may initiate the process of creating a VO by looking for service providers she needs. VO Manager Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

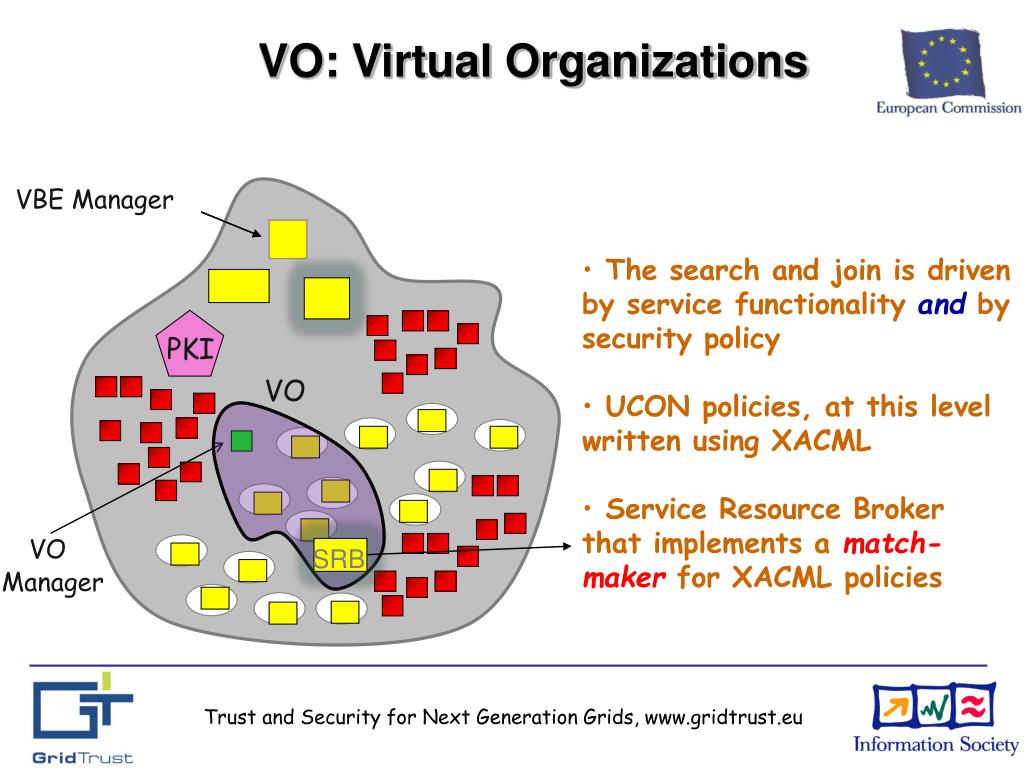

  13. VO: Virtual Organizations VBE Manager • The search and join is driven by service functionality and by security policy • UCON policies, at this level written using XACML • Service Resource Broker that implements a match-maker for XACML policies PKI VO VO Manager SRB Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  14. SRB: Secure Resource Broker Service Trust and Security for Next Generation Grids, www.gridtrust.eu Service to match the security policy required by the VO with the policies exposed by service providers Supports XACML as a policy language It supports policy integration algorithms Trust and Security for Next Generation Grids, www.gridtrust.eu

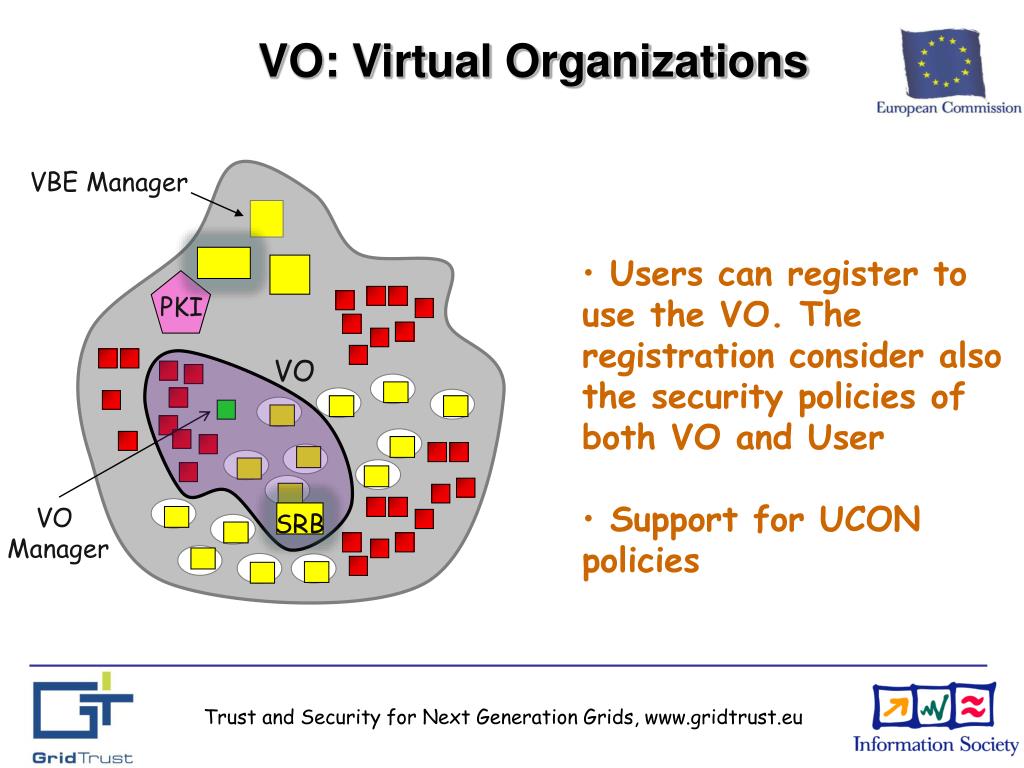

  15. VO: Virtual Organizations VBE Manager • Users can register to use the VO. The registration consider also the security policies of both VO and User • Support for UCON policies PKI VO C-UCON VO Manager SRB Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  16. Enforcer Trust and Security for Next Generation Grids, www.gridtrust.eu • A component used by the VO • Optionally can be also a third party service • Implement UCON policy at VO level • E.g. Service1 can be invoked only after Service2 has been invoked Trust and Security for Next Generation Grids, www.gridtrust.eu

  17. VO Usage Virtual Breeding Environment VO ENFORCER VO user Service2 Application Service1 Service3 Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  18. eXtendible Access Control XML (XACML) • XML based access control language • Simple Syntax, Strong Expressivity • OASIS standard • Widely adopted both in industry and academia • Many implementations (both open source and proprietary) Trust and Security for Next Generation Grids, www.gridtrust.eu

  19. XACML History • First Meeting – 21 May 2001 • Requirements from: Healthcare, DRM, Online Web, XML Docs, Fed Gov, Workflow…. • XACML 1.0 - OASIS Standard – 6 February 2003 • XACML 1.1 – Committee Specification – 7 August 2003 • XACML 2.0 – Approved February 2005 • XACML 3.0 Core Specification under review Trust and Security for Next Generation Grids, www.gridtrust.eu

  20. Goals • Define a core XML schema for representing authorization and entitlement policies • Target - any object - referenced using XML • Fine grained access control • Consistent with and building upon SAML Trust and Security for Next Generation Grids, www.gridtrust.eu

  21. XACML – Key Aspects • General-purpose authorization policy model and XML-based specification language • Input/output to the XACML policy processor is clearly defined as XACML context data structure • Extension points: function, identifier, data type, rule-combining algorithm, policy-combining algorithm, etc. • A policy consists of multiple rules • A set of policies is combined by a higher level policy (PolicySet element) Trust and Security for Next Generation Grids, www.gridtrust.eu

  22. XACML Syntax Trust and Security for Next Generation Grids, www.gridtrust.eu

  23. XACML Example =Multimedia =Deny-Overrides =login =ana@xacml.org =VideoServer = Permit = UsersRegs = >08h00 and <17h00 “the user ana@xacml.org can login on a Video Server in the period between 08:00AM and 05:00PM” Trust and Security for Next Generation Grids, www.gridtrust.eu

  24. Request Schema PolicySchema Response Schema PolicySet (Combining Alg) Policy* (Combining Alg) Rule* (Effect) Target Subject* Resource* Action* Environment Effect Condition Obbligation* • Response • Decision • Permit • Permit w/ Obligations • Deny • N/A • Indeterminate Request Subject Resource Action XACML Schemas Trust and Security for Next Generation Grids, www.gridtrust.eu

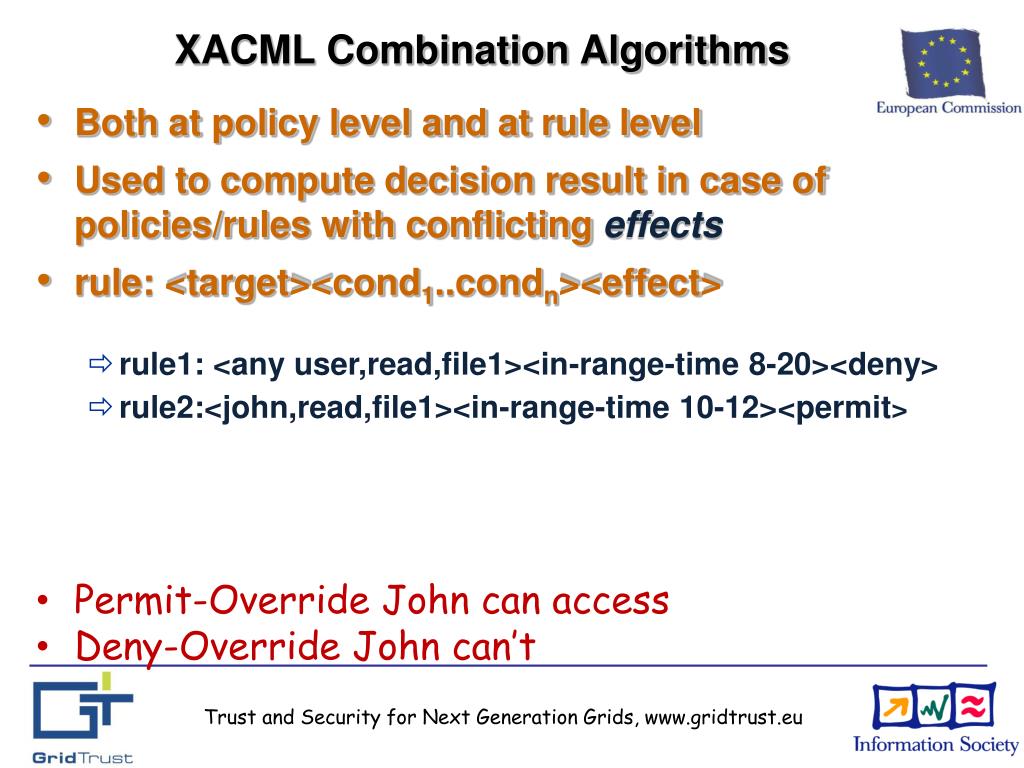

  25. XACML Combination Algorithms • Permit-Override John can access • Deny-Override John can’t Trust and Security for Next Generation Grids, www.gridtrust.eu • Both at policy level and at rule level • Used to compute decision result in case of policies/rules with conflicting effects • rule: <target><cond1..condn><effect> • rule1: <any user,read,file1><in-range-time 8-20><deny> • rule2:<john,read,file1><in-range-time 10-12><permit> Trust and Security for Next Generation Grids, www.gridtrust.eu

  26. XACML Combination Algorithms • Similarly for policies Trust and Security for Next Generation Grids, www.gridtrust.eu

  27. Problem: Policy Integration Trust and Security for Next Generation Grids, www.gridtrust.eu • If VO can always “impose” its policy, combination algorithms are enough • Simple • Not very flexible • We want to increase flexibility to increase the chances service provider can join the VO • Then we cannot impose but we need to integrate VO and service provider policies, thus combination algorithms are not enough.

  28. Example • Which combination algorithm to apply? Trust and Security for Next Generation Grids, www.gridtrust.eu VO Policy: Any user with an email in the “.edu” or in the “.gov” domains can read any file. However, no access is allowed from 8am till 12am. [Deny-Override] SP policy: Any user with an email in the “.edu” domain can perform any action on any resource. HP users can read any files from 8am till 10am. However, requests received between 8am till 6pm are denied [Permit-Override]

  29. Example • If Deny-Override  HP users cannot read file from 8am till 10am Trust and Security for Next Generation Grids, www.gridtrust.eu VO Policy: Any user with an email in the “.edu” or in the “.gov” domains can read any file. However, no access is allowed from 8am till 12am. [Deny-Override] SP policy: Any user with an email in the “.edu” domain can perform any action on any resource. HP users can read any files from 8am till 10am. However, requests received between 8am till 6pm are denied [Permit-Override]

  30. Example • If Permit-Override  VO may not be happy that HP users and “.edu” domain can violate its policy Trust and Security for Next Generation Grids, www.gridtrust.eu VO Policy: Any user with an email in the “.edu” or in the “.gov” domains can read any file. However, no access is allowed from 8am till 12am. [Deny-Override] SP policy: Any user with an email in the “.edu” domain can perform any action on any resource. HP users can read any files from 8am till 10am. However, requests received between 8am till 6pm are denied [Permit-Override]

  31. Propose integration algorithms Trust and Security for Next Generation Grids, www.gridtrust.eu Stakeholders specify combination algorithms and also which compromise they are willing to accept if they offer their service to a VO Step1: Normalize policy (First-one applicable) Step2: Compute policy similarity Step3: Specify integration preferences

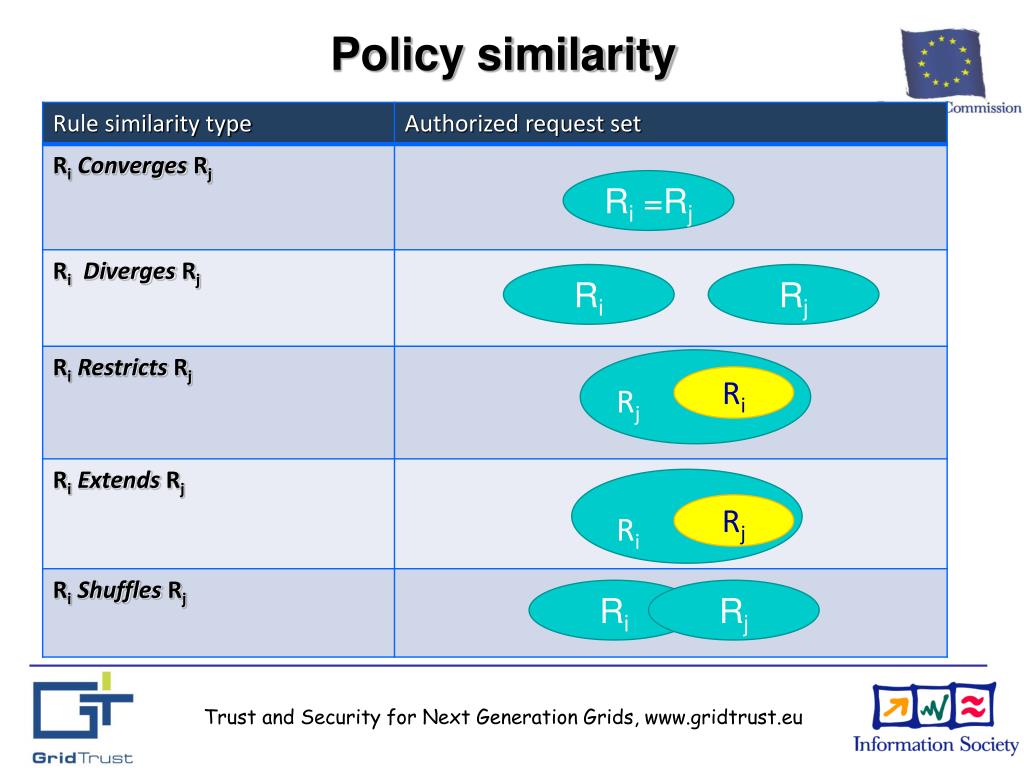

  32. Policy similarity Ri =Rj Ri Rj Ri Rj Rj Ri Ri Rj Trust and Security for Next Generation Grids, www.gridtrust.eu

  33. Policy Integration Preferences VO point of view Converge Override VO enforces only its unchanged policy Restrict Override VO enforces also SP policies that do not deny its Deny Override VO enforces also SP policies. Request permitted only if all permit it Permit Override VO enforces also SP policies. Requested permitted if at least one permit it SP point of view Restrict Override SP accepts that only a subset of its accepted requests will be accepted by the VO Extend Override SP accepts requests it doesn’t accept will be accepted by the VO Converge Override SP demands that its unchanged policy is enforced by the VO Trust and Security for Next Generation Grids, www.gridtrust.eu

  34. Policy Integration Preferences SP VO Trust and Security for Next Generation Grids, www.gridtrust.eu

  35. XACML Runtime Support • The Policy Administration Point (PAP) stores XACML policies in the appropriate repository. • The Policy Enforcement Point (PEP) performs access control by making decision requests and enforcing authorization decisions. • The Policy Information Point (PIP) serves as the source of attribute values, or the data required for policy evaluation. • The Policy Decision Point (PDP) evaluates the applicable policy and renders an authorization decision. Note: The PEP and PDP might both be contained within the same application, or might be distributed across different servers Trust and Security for Next Generation Grids, www.gridtrust.eu

  36. Evaluation Workflow VO User PEP (DKM ) Obligations service 2. service invocation 12. response 3. request 4. request notification PDP Context Handler 9. resource Resources Attribute Manager 5. attribute query 10. attributes 11. response context 6. attribute query 8. attributes PIP 7b. Resource attributes 7c. Environment attributes 1. policy 7a. subject attributes PAP Environment Attribute Manager Subjects Attribute Manager Trust and Security for Next Generation Grids, www.gridtrust.eu

  37. Our implementation in GridTrust Virtual Breeding Environment VO ENFORCER P E P Service2 VO user Service1 Service3 Trust and Security for Next Generation Grids, www.gridtrust.eu Trust and Security for Next Generation Grids, www.gridtrust.eu

  38. Enforcer Trust and Security for Next Generation Grids, www.gridtrust.eu • Extension of SUN XACML PDP to support UCON at VO service level • At the moment covers only a subset of the XACML specifications • In case of denial respond with the rule that caused the deny • Rollback Trust and Security for Next Generation Grids, www.gridtrust.eu

  39. Enforcer (Extended PDP) APPPLICATION (PEP) Allow? Yes/No/Delay/Modify/N/A • OAM: Object Attribute Manager • SAM: Subject Attribute Manager • HM: History Manager • CM Consition Manager • OM: Obligation Manager PDP OAM SAM HM CM OM Enforcer Trust and Security for Next Generation Grids, www.gridtrust.eu B. Crispo TNO Groningen - 16-10-2008 39

  40. Why PDP Performance is Important? • PDP is critical for the overall performance of authorization service • The proliferation of service oriented applications • S3-like services will face enormous amount of requests requiring authorization decisions Trust and Security for Next Generation Grids, www.gridtrust.eu

  41. Experiments PDP Tested: Sun XACML, XACML Enterprise, XACMLight Two phases have been tested: Policy Load: Loading of policy/policies from disk to main memory. Policy Evaluation: Request evaluation against loaded policies. Environment: 3.4 GHzPentium IV CPU, 2GB RAM, 160 GB Serial ATA (7200rpm) HDD JVM heap size : 256 MB - 1024MB Trust and Security for Next Generation Grids, www.gridtrust.eu

  42. Policy TestSuite Three policy test suites (syntetic policies): Large Number of Policies: 10, 100, 1000 and 10000 XACML policies composed of 4 rules. Large Number of Rules: 10, 50, 100, 500 and 1000rules in a single policy. Policy Similarity: 10 policies with different similarity settings Trust and Security for Next Generation Grids, www.gridtrust.eu

  43. Large Number of Policies In enterprise/cross-enterprise systems With large number of entities eager to specify access control policies With shared PDP services 1 request is evaluated against 10, 100, 1000 and 1000 policies at a time. Trust and Security for Next Generation Grids, www.gridtrust.eu

  44. Large Number of Policies Policy Load Trust and Security for Next Generation Grids, www.gridtrust.eu

  45. Large Number of Policies (Cont.) Policy Evaluation Trust and Security for Next Generation Grids, www.gridtrust.eu

  46. Large Number of Rules A single organization Withlarge number of users and resources Single Point of Control 1 request is evaluated against 10 policies with 10, 50, 100, 500, 1000 rules inside Trust and Security for Next Generation Grids, www.gridtrust.eu

  47. Large Number of Rules Policy Load Trust and Security for Next Generation Grids, www.gridtrust.eu

  48. Large Number of Rules (Cont.) Policy Evaluation Trust and Security for Next Generation Grids, www.gridtrust.eu

  49. Ongoing Work • Extend the enforcement by reaction, extending the obligation • Integrating security policy Match-making with Resource Allocation/Scheduling • Improve performance acting both on loading time (more efficient policy representation) and evaluation time (more efficient evaluation algorithms) • Considering Continuous Monitoring at service level for some specific applications Trust and Security for Next Generation Grids, www.gridtrust.eu
