  1. Spatio-Temporal Relationship Match:Video Structure Comparison for Recognition of Complex Human Activities M. S. Ryooand J. K. Aggarwal ICCV2009

  2. Introduction • Human activity recognition, an automated detection of ongoing activities from video is an important problem. • This technology can use on surveillance systems, robots, human-computer interface. • When using on serveillancesystems,automaically detect violent activities is very important.

  3. Introduction • Spatial-temporal feature-based approaches have been proposed by many researchers. • The method above have benn successful on short video containing simple action such as “walking” and “waving”. • In real-world applications, actions and activities are seldom like this.

  4. Related works • Methods focused on tracking persons and bodies are developed [4,11] ,but their results rely on background subtraction. • Approaches that analyze a 3-S XYT volume gained particular in past few years[3,5,6,9,13,16] , they extracted relationship on features and trained a model.

  5. [3] P. Dollar, V. Rabaud, G. Cottrell, and S. Belongie. Behaviorrecognitionvia sparse spatio-temporal features. In IEEEInternationalWorkshop on VS-PETS, pages 65–72, 2005. • [4] S. Hongeng, R. Nevatia, and F. Bremond. Video-based eventrecognition: activity representation and probabilistic recognitionmethods. CVIU, 96(2):129–162, 2004. • [5] H. Jhuang, T. Serre, L. Wolf, and T. Poggio. A biologicallyinspiredsystem for action recognition. In ICCV, 2007. • [6] I. Laptev, M. Marszalek, C. Schmid, and B. Rozenfeld.Learning realistic human actions from movies. In CVPR,2008. • [9] J. C. Niebles, H. Wang, and L. Fei-Fei. Unsupervised learning of human action categories using spatial-temporal words. IJCV, 79(3), Sep 2008. • [11] M. S. Ryoo and J. K. Aggarwal. Semantic representation and recognition of continued and recursive human activities. IJCV, 82(1):1–24, April 2009. • [13] C. Schuldt, I. Laptev, and B. Caputo. Recognizing humanactions: a local svm approach. In ICPR, 2004. • [16] S.-F. Wong, T.-K. Kim, and R. Cipolla. Learning motion categories using both semantic and structural information. In CVPR, 2007.

  6. Related works • In this paper, we propose a new spatial-temporal feature-based methodology. • Kernel functions are built on relationship between features. • After training features , match function uses for matching test data.

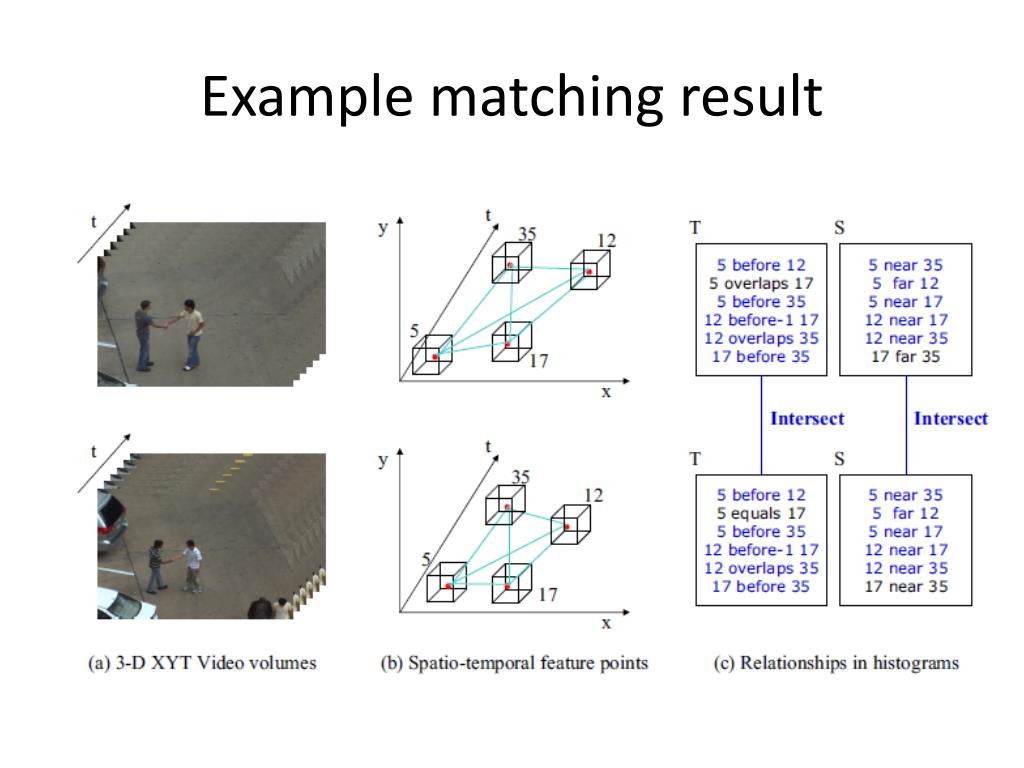

  7. Example matching result

  8. Spatio-temporal relationship match • The method is based on matching two videos and output a real number for result. • K : V x V R • V -> input video , R-> result

  9. Features and their relations • A spatial-temporal feature extractor [3,14]detects each interest point locating a salient change.

  10. Features and their relations • f= (fdes,floc) • fdes ->descriptor ,floc-> 3-D coordinate • The features are clustered into k types using k-means on fdes.

  11. Features and their relations • Each floc haven elements, f1loc,…..fnloc. • There are types to describe temporal relations:

  12. Features and their relations • Spatial relation are described below:

  13. Features and their relations

  14. Human activity recognition • Our system maintains one training dataset Dα per activity α. • Let Dαm extracted from mth training video in the set Dα, then use the matching function.

  15. Localization

  16. Hierarchical recognition • We can combine low-level action into high-level action. • For instance, hand-shake includes two sub-action, “arm streching” and “arm withdrawing”. • Detecting hand-shake may like :st1 before wd1,st2 before wd2, st1 equals st2 ,wd1 equals wd2.

  17. Experiments • The dataset is UT-interaction dataset. • The actions are performed by actors, each video contains shake hands,point,hug,push,kick and punch.

  18. Experiments

  19. Experiments

  20. Conclusion • This method rely on the extracted feature and spatial-temporal relationship on features. • Can hierarchically detect high-level actions. • Miss-detect on unusual feature combination.
