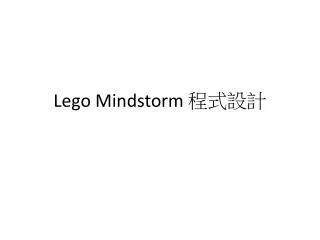

  1. Lego Mindstorm程式設計

  2. 設定檔案名稱 請務必命名檔案。

  3. 常見功能區 Move 移動 Record/play 紀錄/執行 Sound 聲音 Display顯示 Wait 等待 Loop 迴圈 Switch 條件判斷

  4. 動作功能區 Motor 馬達 sound 聲音 Display 顯示 Send Message 送訊息 Motors* 馬達* Lamp* 電燈

  5. 偵測功能區 Touch Sensor 觸碰偵測 Sound Sensor聲音偵測 Light Sensor光線偵測 Ultrasonic Sensor超音波偵測 NXTbutton 主機按鈕 Rotation Sensor旋轉偵測 Timer 計時器 Receive Message接收訊息 Touch Sensor* 觸碰偵測 Rotation Sensor*旋轉偵測 Light Sensor*光線偵測 Temperature Sensor*溫度偵測 *註記為舊版偵測器RCX

  6. 流程偵測區 Wait 等待 Loop 迴圈 Switch 條件判斷 Stop 暫停

  7. 主機控制功能 Download and Run Selected 下載和執行選擇程式碼 NXTwindow 主機連結畫面 Download 下載 Stop 暫停 Download and Run 下載和執行程式
